Operation & Instruction Manual
Model BNCE-20 SN#___________
120Volt Corded Saw
Keep this booklet and enter your tool serial number
in the appropriate space above.
BNCE-20_Operations_Manual_2017.indd

~ Page | 2 ~
Contents
3 Safety Instruction - General Safety Rules
3 Work Area Safety
3 Electrical Safety
3 Personal Safety
3 Power Tool Use and Care
4 Service
4 Contents of the Cutting Edge Saw Package
4 120 Volt Corded Cutting Edge Saw Package
4 Functions and Applications
4 Specication
4 Standard Blade: (Best for Ferrous Metals)
4 Operation
5 Operation Instructions
5 Check The State of Your Work Site.
5 Remove Hazardous Substances.
5 Maintenance of the Main Unit
5 RB-BNCE-KNH Blade
5 General Operating Cautions
6 EXPLODED VIEW
7 PARTS LIST
Instruction Manual
Please read this manual before operating this tool.
Operation and Instruction Manual
Purpose of this manual - This manual is intended to provide users with cor-
rect knowledge and the procedures for operation, maintenance and inspec-
tionofthetool,amultipurposeushcuttingsawforcuttingreinforcingbar,
coil rod, all-threaded rod, pipe, tubing, and conduit. Improper use of the tool
may possibly lead to a serious accident. Therefore, always read this instruc-
tion manual before using the tool to familiarize yourself with its correct us-
age, operating method, warnings, etc.

~ Page | 3 ~
Safety Instruction - General Safety Rules
Warning! Read and understand all instruc-
tions. Failure to follow all instructions listed
belowmayresultinelectricshock,reand/
or serious personal injury.
PLEASE SAVE THESE INSTRUCTIONS!
Work Area Safety
• Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
• Do not operate power tools in explosive atmospheres,
suchasinthepresenceofammableliquids,gasesor
dust. Power tools create sparks which may ignite the
dust or fumes.
• Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
Electrical Safety
• Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodied plugs
and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
• Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
• Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
Replace damaged cords.
• When operating a power tool outdoors, use an exten-
sion cord suitable for outdoor use. Use of a cord suit-
able for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is un-
avoidable, use a residual current device (RCD) pro-
tected supply. Use of an RCD reduces the risk of elec-
tric shock.
NOTE The term ″residual current device (RCD)″ may be
replaced by the term ″ground fault circuit interrupter
(GFCI)″ or ″earth leakage circuit breaker (ELCB)″.
Personal Safety
• Always wear eye protection. Care must be taken to
prevent chips from hitting other workers in the same
area.
• Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
powertoolwhileyouaretiredorundertheinuence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
• Use personal protective equipment. Always wear
eye protection.Protectiveequipmentsuchasdust
mask, non-skid safety shoes, hard hat, or hearing pro-
tection used for appropriate conditions will reduce
personal injuries.
• Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/orbatterypack,pickinguporcarryingthetool.
Carryingpowertoolswithyourngerontheswitchor
energizing power tools that have the switch on invites
accidents.
• Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
• Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool
in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing and gloves away from mov-
ing parts. Loose clothes, jewelry or long hair can be
caught in moving parts.
• If devices are provided for the connection of dust ex-
traction and collection facilities, ensure these are con-
nected and properly used. Use of dust collection can
reduce dust-related hazards.
Power Tool Use and Care
• Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
• Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
• Disconnecttheplugfromthepowersourceand/orthe
battery pack from the power tool before making any
adjustments, changing accessories, or storing power

~ Page | 4 ~
tools. Such preventive safety measures reduce the risk
of starting the power tool accidentally.
• Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool.
• Power tools are dangerous in the hands of un-
trained users.
• Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
• Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in ac-
cordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from
those intended could result in a hazardous situation.
Service
• Haveyourpowertoolservicedonlybyaqualiedrepair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
Contents of the Cutting Edge Saw Package
Upon purchasing the Cutting Edge Saw, open the carrying
case and check the contents for the following:
120 Volt Corded Cutting Edge Saw Package
1. BNCE-20 Corded Cutting Edge Saw with blade
mounted : 1 unit
2. Removable Side Handle and chip collector
attachment: 1 unit
3. Allen Wrenches for Blade Removal and
Installation: 1 unit
4. Additional Saw Blade: 1 unit
5. Operation Manual: 1 copy
6. Extra set of electrical brushes
If anything is missing or damaged please do not return this
packaged unit to the distributor, please call the Benner-
Nawman customer service department: 800-992-3833 or
928-684-2813
Functions and Applications
This section describes the functions, applications, service
environment and other aspects of the Cutting Edge Saw.

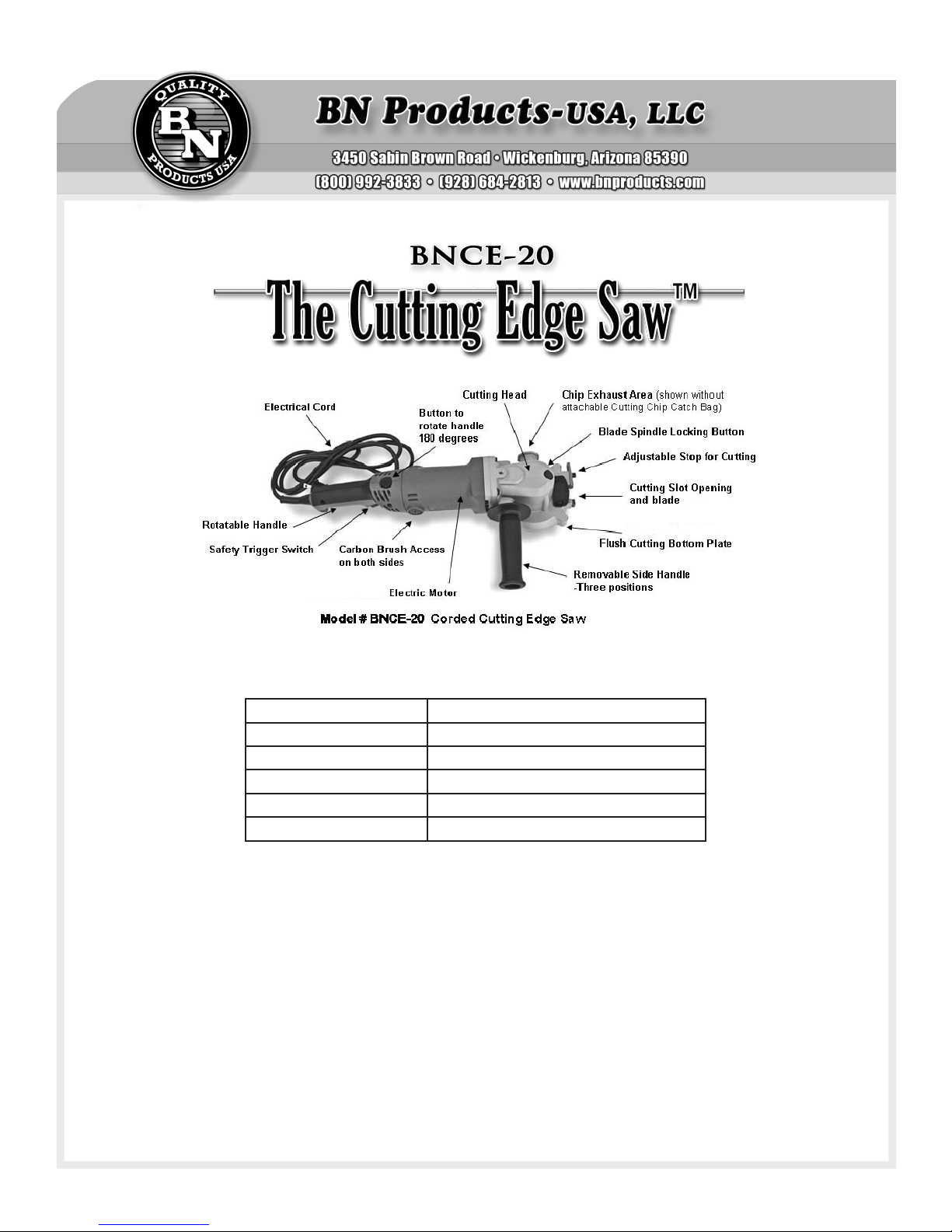

The Cutting Edge Saw is a power tool developed for fast
and efcient cutting of various ferrous and non-ferrous
materials. This multipurpose tool can be used by a variety
of contractors however the primary design was for ush
cutting or free cutting reinforcing bars, coil rod and all-
threaded rod used in the construction industry.
Application of the Tool - Actual areas of application the
Cutting Edge Saw is used for are as follows:
3/8”to3/4“or10mmto19mmgrade60rebar(reinforc-
ingbars),upto½”I.Dpipe,¾”O.D.copperwaterpipe,
¾” O.D. tubing, 1/2” conduit, ¾” square steel tubing &
bar,andupto7/8”O.D.all-threadedorcoilrod.
Rules of Use and Storage - To use the tool to its fullest per-
formance,theuserisrequiredtobefullyfamiliarwiththe
saw itself, the cutting blades, and storage procedures upon
completion of work.
Specication
The power tool is a multipurpose saw with an enclosed
guardandushcuttingcapabilities.Thespecicationsof
the main unit are as follows.
Standard Blade: (Best for Ferrous Metals)
Supplied with (2) each 110 mm Blade diameter × 1.6mm
thickness,24teethwithlaserweldedangeformounting
to Cutting Edge saw spindle. The maximum blade RPM is
2000.
Operation
Checking and Preparation of Working Environment:
Check the following before using the Cutting Edge Saw. Al-
ways observe the instructions and prohibited items.
Checking of weather conditions, do not use in the rain or
snow:
!DANGER: The Cutting Edge is not a wa-
terproof power tool. If it becomes wet,
the power source system may become
faulty or the operator may get an electric
shock. Therefore, when it is raining or
snowing, never operate this saw out-
doors, on top of buildings or under roofs
where rain or snow enters freely. Do not use where water
accumulates or where water splashes.

~ Page | 5 ~
Operation Instructions
Adjust the rear handle position to comfortably grip the
tool. (The rear handle changes position with the button
located on the top of the handle.) Locate the front handle
in the mounting hole that provides the best grip. To oper-
ate the trigger, depress the trigger lock button (on the
side of the tool) and then pull the trigger to start the saw.
Start the saw before cutting and then apply a light pres-
sure moving forward through the cut.
! DANGER: Electric Shock Hazard. Ig-
noring this warning may lead to death or
serious injury. When raining or snowing,
do not operate outdoors or indoors where
rain or snow enters freely or in extreme
temperatures.
Do not use under high temperature and humidity or ex-
tremely cold temperature conditions. The tool is designed
for use under an allowable environmental temperature of
0 to 100°F.Operation at higher temperature may cause the
tool’s main unit to overheat. Operation at high tempera-
ture with high humidity may cause the tool to fail due to
condensation.
Also, do not operate the Cutting Edge Saw in very cold
places or inside refrigerators where the temperature is
freezing or below.
Check The State of Your Work Site.
Before using the tool, check whether the state of the work
site is as follows. Is the worksite free of foreign objects,
debris, water, ice, snow, powered electrical cables, and
excessivedust?Istheoorfreeofobstructions?Istheir
adequateventilation?Istheworkerproperlyinsulated
from the ground. Follow the operation instructions and
avoid prohibited items.
Remove Hazardous Substances.
Since the tool is an electric tool, it may spark and cause an
explosionorareifoperatedneargascylinders,thinner,
or explosive and other hazardous substances or in a place
lled with ammable gas, etc. Therefore, do not use the
tool in places where such hazardous substances are pres-
ent.
! DANGER May cause an explosion or a
re.Ignoringthiswarningmaycause
death or serious injury. Never use the
toolinplaceslledwithammablegas
or near hazardous substances of high
ammability.
Maintenance of the Main Unit
Always unplug the saw from the electric outlet before attempt-
ing any maintenance. Clean the entire unit occasionally by
removingdust,debrisandoils.Occasionallyremovetheush
cutting bottom plate; then remove any cutting chips that re-
main lodged in the area the cutting blade rotated.
It is also recommended that the cutting blade be removed and
inspect for any materials that did not exit out the chip exhaust
area. This should be done after 4-8 hours of use. Most material
cutting chips would normally exit out the chip exhaust area and
into the Cutting Chip Catch Bag. It is recommended that the
CuttingChipCatchbagbeemptiedwhenitbecomes2/3full
of cut material.
RB-BNCE-KNH Blade
The Blade for the BNCE-20 Cutting Edge Saw™ should be
replaced when the blade is dull or chipped and a noticeable
increase in cutting time has occurred.
To change the Blade, remove the screws that hold the Blade
Cover to the Body (4). Remove the cover and unscrew the (4)
bolts holding the blade to the Hub. The replacement blades
that you purchase have new screws to be used when installing
the new blade. Make sure that when you remove the blade you
clean out the head of any metal debris that has not escaped
the tool.
An optional Steel Mesh blade is available to improve the cut-
ting capability of the BNCE-20 when cutting the following
materials. Please see your distributor or call BN Products-
USA, LLC (www.bnproducts.com) for more information.
General Operating Cautions
The following describe the general cautions on operating tool.
Always observe the cautions stated in each item.
• Do not press the operation switch if the tool is pointed to-
wards anyone. Operating the tool by holding it toward any-
one may cause injury from contact with the blade.
• Do not apply the Cutting Edge Saw for purposes it is not
intended.
• Do not use the tool for lifting or hammering etc. instead,
only use this tool for cutting. Otherwise, the main unit may
be broken or damaged, causing injury.

~ Page | 6 ~
EXPLODED VIEW

~ Page | 7 ~
Parts List for thee BNCE-20 Cutting Edge Saw™
NO. Description Qty Part #
1 Hexagon Socket Screw (M5X15) 4 BNCEP1-71 2 Bottom Plate Guard (New) 1 BNCEP1-72 3 Hexagon Socket Screw (M5X8) 4 BNCEP1-73 4 Blade - WO/Hub 1 RB-BNCE-KNH 6 Blade Flange and Spindle 1 BNCEP1-75 7 Hexagon Socket Head Cap head
Screw M5X30
4 BNCEP-07
8Lockwasher 9 BNCEP-08 9 Washer 5mm 8 BNCEP-09
10 Aluminum Housing 1 BNCEP1-77 12 Gear Housing Gasket 1 BNCEP-12 13 Ball Bearing 628-2Z 3 BNCEP-13 16 Bevel Gear Assy W/Sha 1 BNCEP-16 17 Fixed Cutting Guide 1 BNCEP-17 18 Movable Cutting Guide 1 BNCEP-18 19 Pin A5X10 1 BNCEP-19 20 Hexagon Socket Head Cap head
Screw M5X15
1 BNCEP-20
21 Le and Right Rubber Guard 1 BNCEP-21 22 Washer 5mm 2 BNCEP-22 23 Lock Washer 4mm 2 BNCEP-23 24 Hexagon Socket Head Cap Screw
M4-20
2 BNCEP-24
25 Ball Bearing 6002-2RS 1 BNCEP-25 26 Spacer 1 BNCEP-26 27 Big Gear 1 BNCEP-27 28 Sha Clip 15 1 BNCEP-28 29 Pin A5X16 2 BNCEP-29 30 Aluminum Gear Housing 1 BNCEP-30 31 Steel Ring 6mm 1 BNCEP-31 32 Spring for Blade Lock 1 BNCEP-32 33 Lock Button for Blade 1 BNCEP-33 34 Phillips Pan Head Tapping
ScrewST4.2X32
4 BNCEP-34
35 Hex Nut M6 1 BNCEP-35
NO. Description Qty Part #
36 Bevel Pinion 1 BNCEP-36-A 37 Ball Bearing 6002-2Z 1 BNCEP-37 38 O-Ring 25X2 1 BNCEP-38 39 Center Housing Plate 1 BNCEP-39 40 Armature, 1210V 1 BNCEP-40 41 Ball Bearing 607-2RS 1 BNCEP-41 42 Bearing Bushing 1 BNCEP-42 43 Fan Guide 1 BNCEP-43 44 Phillips Head Tapping Screw
ST4.2X70
2 BNCEP-44
45 Stator Coil, 120V 1 BNCEP-45 46 Electrical Connector 2 BNCEP-46 47 Motor Housing 1 BNCEP-47 49 Brush Holder 2 BNCEP-49 50 Carbon Brush Set 2 BNCEP-50 51 Brush Cap 2 BNCEP-51 52 Plate for Inner Wire 1 BNCEP-52 53 Phillips Pan Head Tapping Screw
ST2.9X9.5
2 BNCEP-53
54 Rotation Button for Handle 1 BNCEP-54 55 Spring for Rotation Button 1 BNCEP-55 56 Trigger Switch, 120V 1 BNCEP-56 57 Phillips Pan Head Tapping Screw
ST4.2X13
2 BNCEP-57
58 Cord Retaining Clamp 1 BNCEP-58 59 Right Handle 1 BNCEP-59 60 Phillips Pan Head Tapping Screw
ST4.2X16
4 BNCEP-60
61 Power Cord - 120V 1 BNCEP-61 62 Cord Armor 1 BNCEP-62 63 Terminal 1 BNCEP-63 64 Le Handle 1 BNCEP-64 66 Washer 5mm 1 BNCEP-66 67 ree Position Side Handle 1 BNCEP-67 68 Particle Collection Bag 1 BNCEP-68 78 Key for Blade Spindle 1 BNCEP1-78
PARTS LIST

~ Page | 8 ~
Model No. BNCE-20
Power Supply 120 Volt -60 Hz, 9 Amp, Single phase
Electric Motor Type 1100 Watt Double Insulated
No-Load Blade Speed 2,000 RPM
Max Cutting Capacity 3/4”(20mm)
Max Blade Diameter 110mm(4.38”)
• Safe - Virtually no sparks or burrs
• Versatile - Flush cutting capability up to
7/8”“diametersteelrod
• Economical - Up to 500 cuts on #5 - 60
grade rebar
• Durable - One-year warranty
includes a carrying case, extra set
of brushes and two cutting blades
BNCE-20_Operations_Manual_2017.indd•September28,2017
