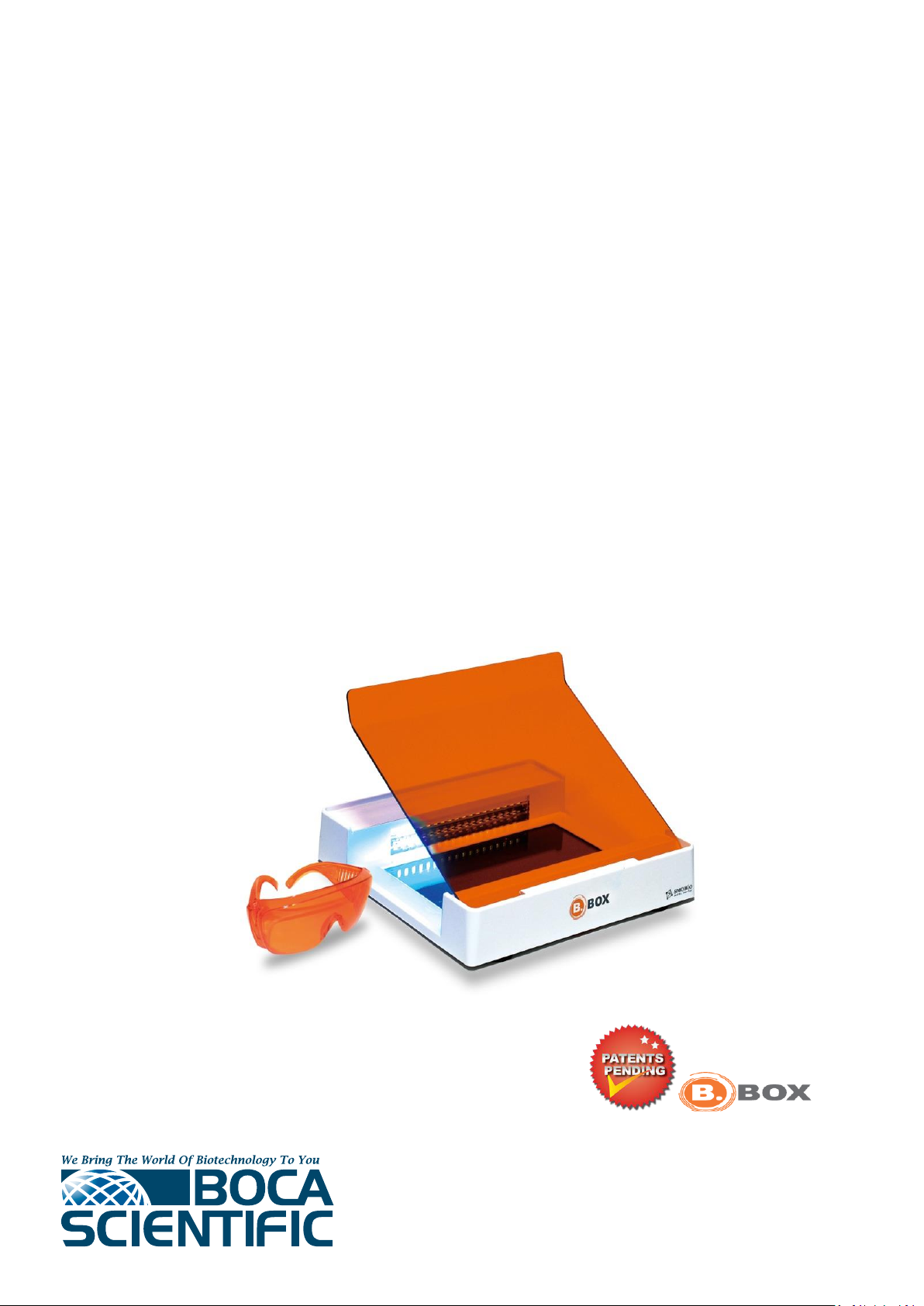

Boca B-BOX VE0100 User manual

B-BOX™ Blue Light LED
epi-illuminator
Catalogue No.: VE0100
Operator’s Manual
Ver. 1.3.1

Checking List
VE0100 B-BOX™ Blue Light LED epi-illuminator
VE0101 dapter, AC 100-240V, 50/ 60 Hz, 1.8m Power Cord
VE0102 ulti-angle Filter Plate (0°, 30°, 60° and 90°) for B-BOXTM, Acrylic,
Amber Color, 154 x 194 (mm)
VE0103 Goggles, Amber Color
Operator’s Manual and Warranty Certificate
2013 Product of SMOBiO, Inc. All rights reserved, no part of this publication may be
reproduced, stored in a retrieval system, or transmitted, in any form or by any means, in
whole or part, without the prior written permission of SMOBiO, Inc.
Patents Pending
B-BOXTM, SMOBiO logos are registered trademarks of
SMOBiO, Inc.
www.bocascientific.com • [phone] • [email protected]

Contents
A. Introduction
B. Important Safety Information
C. Description and Specifications
D. Installation and Operation
E. Warranty Policy
F. Troubleshooting
G. Ordering Information
H. Related Products
www.bocascientific.com • [phone] • [email protected]

A. Introduction
The SMOBiO B-BOX™ Blue Light LED epi-illuminator is designed to meet the need of
a light and compact bench top illuminator for visualizing electrophoresis products.
The B-BOX™ features light-emitting diode (LED) blue light modules which emit high
intensity blue light of 470 nm wave length while emitting only minute amount of
heat. The B-BOXTM is compatible with non-Ethidium bromide (EtBr) fluorescent DNA
and protein dyes, offering an unparalleled level of detection sensitivity and
protection to the DNA/protein sample from UV damage.
B. Important Safety Information
Although the 470 nm blue light do not cause physiological damage as do the UV
light, but staring directly into the LED without protective eyeware or filter plate
may cause damage to the retina, proper safety measure must be applied.
The working area is water tight but the B-BOX™ is not water proof, do not
submerge or pour excessive amount of liquid onto the B-BOX™ epi-illuminator.
The high intensity, low-heat LED modules emits only a small amount of heat
during operation, however, as precaution, the B-BOX™ epi-illuminator should be
placed at a well-ventilated area with sufficient vertical clearance of air space at
the base plate while using.
www.bocascientific.com • [phone] • [email protected]

C. Description and Specifications
Overall Dimension (mm): 201.4 x 200 x 38 (D x W x H)
Viewing Area (mm): 158 x 96 (D x W)
Wavelength of LED (nm): 470
Number of LED Unit: 72 PCS Super Flux LED
Long life time of LED light source (470 nm), up to 50,000 hours
Power : DC 12 Volt, 0.72 Amp
Electrical Requirements: AC 100~240V, 50/60 Hz (Adapter)
Weight (kg): 0.95 (Net Weight)
D. Installation and Operation
Unpack the B-BOX™ Blue Light LED epi-illuminator gently. The epi-illuminator should
be placed on a dry horizontal surface with safety measures mentioned above
straightly followed. Before operation, the B-BOX™ Blue Light epi-illuminator must be
connected to a compatible power source as specified in Section C of this booklet.
When operating the epi-illuminator, place the gel on top of the working area after
excess liquid staining or destaining solution is sufficiently drained. Eye-protecting
goggles or filter plate must be applied when the LED modules are being turned on.

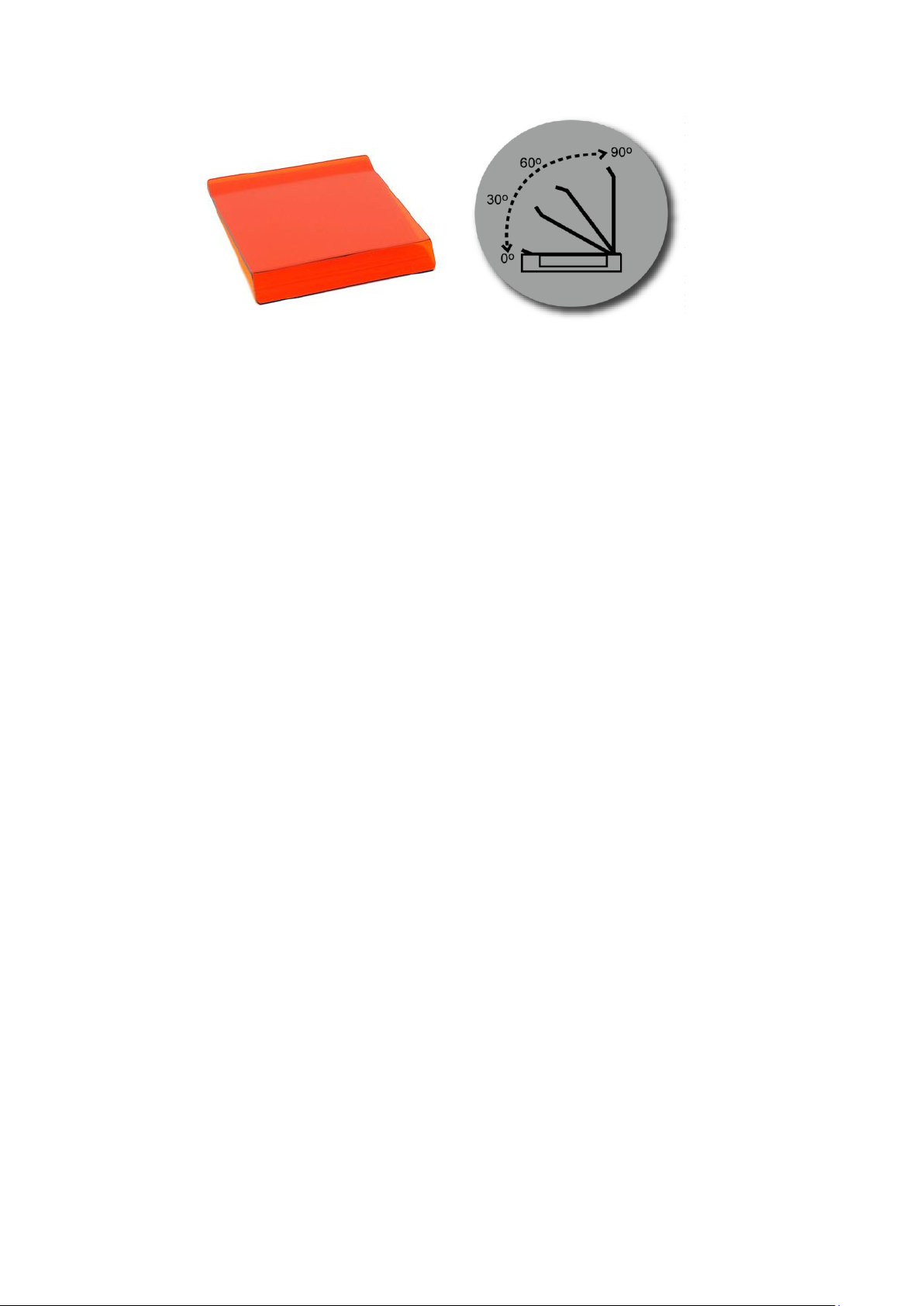

Gel cutting can be performed directly on top of the glass surface. The filter plate is a
four-angle design optimised for imaging and storage at 0°, visualisation at 30° and
90°, and gel cutting at 60°.
Multi-angle
Filter plate
Working
Area
LED
modules
Eye protecting
goggles
www.bocascientific.com • [phone] • [email protected]

Caution!!!
Do not place heavy object on the filter plate or bend it forcefully.
Avoid contact of the filter plate’s viewing surface with rough surfaces.
Avoid organic solvent such as isopropanol or ethanol while cleaning the
illuminator.
Recommended use of 1% bleach or mild detergent and deionized water for
cleaning.
Do not submerge the illuminator into any liquid solution.
Do not exert excessive pressure on the working area.
The B-BOX™ Blue Light LED epi-illuminator is compatible with
fluorescent dyes such as:
ExcelStain fluorescent Dyes from SMOBiO
SYBR Green I/II
GFP
SYBR Safe/Gold
SafeView
Midori Green Advanced
Gel Red/Green
HealthView
SERVA DNA Stain Clear G
EZ-Vision
………………..
www.bocascientific.com • [phone] • [email protected]

E. Warranty policy
The B.BOX™ Blue Light LED epi-illuminator is warranted against defects and
workmanship for a period of one year. Any defect which occurred within the
warranty period will be repaired or defective part replaced by SMOBiO without
charge. However under the following circumstances the warranty will be specifically
excluded:
User failed to register for warranty or unable to provide proof of purchase
Improper usage by the user
Unauthorised modification and replacement of parts by an unauthorised party
Damage caused by substituting alternative parts supplied by an unauthorised
party
Damage caused by accident or misuse
Damage caused by disaster
Corrosion caused by improper solvent or sample
F. Trouble Shooting
Listed below are possible problems, as well as recommended solutions. If you
cannot resolve the problem, call SMOBiO, Inc. or representative distributor or mail
to: [e-mail] for services.
Problem
Causes
Solutions
Leakage of the
working area
Excessive pressure being
applied to the surface or
improper use of organic
solvent in cleaning.
Contact the local distributor
for services.
Malfunctioning
LED modules

If the LED modules is not
working properly.

Do not attempt to replace
parts of the B-BOXTM Blue
Light LED epi-illuminator
which will nullify the
warranty of the product.
Contact the local distributor
for services.
High background

Excessive background may
be caused by residual
staining material.
Contaminants within the
electrophoresis running
buffer may cause local
deposition of staining
material on the gel
resulting in undesired
background signals.

Sufficiently drain the DNA or
protein gel prior to its
visualization or briefly
destain the gel can greatly
reduce background signal.
Thoroughly drain off running
buffer or a quick rinse with
deionized water.
Refer to the manufacture’s
instruction manual of the dye
www.bocascientific.com • [phone] • [email protected]

G. Ordering Information
VE0100 B-BOX™ Blue Light LED epi-illuminator, DC 12 Volt, 0.72 Amp
Complete Set Includes: VE0101, VE0102, VE0103 and Operator’s Manual
VE0101 Adapter, AC 100-240V, 50/ 60 Hz, 1.8m Power Cord
VE0102 Multi-angle Filter Plate (0°, 30°, 60° and 90°) for B-BOXTM, Acrylic, Amber
Color, 154 x 194 (mm)
VE0103 Goggles, Amber Color
H. Related Products
DM1160 FluoroBand 50 bp Fluorescent DNA Ladder, 500 µl
DM2160 FluoroBand 100bp Fluorescent DNA Ladder, 500 µl
DM2360 FluoroBand 100bp+3K Fluorescent DNA Ladder, 500 µl
DM3160 FluoroBand 1KB (0.25-10kb) Fluorescent DNA Ladder, 500 µl
DM3260 FluoroBand 1KB Plus (0.1-10kb) Fluorescent DNA Ladder, 500 µl
DM4160 FluoroBand XL 25kb Fluorescent DNA Ladder, Broad Range (up to 25kb),
500 µl
DL5000 FluoroDye DNA Fluorescent Loading Dye (Green, 6X), 1ml
DS1000 FluoroStain DNA Fluorescent Staining Dye (Green, 10,000X), 500 µl
DL5000 FluoroDye DNA Fluorescent Loading Dye (Green, 6X), 1ml
DL5001 FluoroDye DNA Fluorescent Loading Dye (Green, 6X), 1ml x 5
DS1000 FluoroStain DNA Fluorescent Staining Dye (Green, 10,000X), 500 µl
DS1001 FluoroStain DNA Fluorescent Staining Dye (Green, 10,000X), 500 µl x 5
PS1000 FluoroStain Protein Fluorescent Staining Dye (Red, 1,000X), 1 ml
PS1001 FluoroStain Protein Fluorescent Staining Dye (Red, 1,000X), 1 ml x 5
TP1260ExcelTaq Fluorescent 5X PCR Master Mix, 200 Rxn
