Body flex BRF 700 User manual
BRF 700

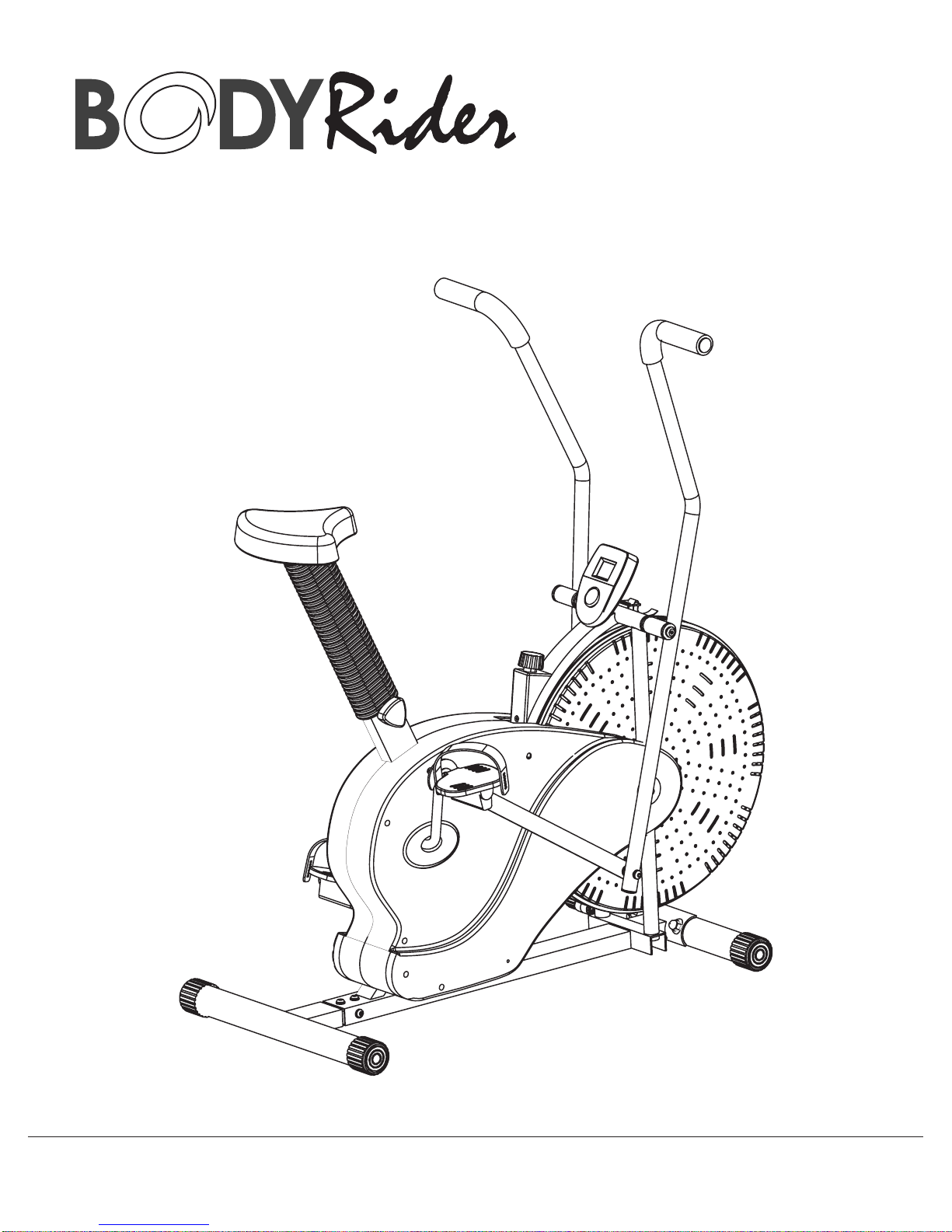

Fan Bike
OWNER’S MANUAL
* This item is for consumer use only and it is not meant for commercial use.
This page intentionally left blank
General Information
BRF 700 Page 1
Warranty
Body Flex Sports warrants your product for
a period of 1 year for the frame and 90 days
on all parts if the item is used for the intended
purpose, properly maintained and not used
commercially. Any alterations or incorrect
assembly of the product will void this warranty.
Proof of purchase must be presented for any
warranty validation (no exceptions). This
warranty applies to the original purchaser only
and is not transferable.
This warranty does not cover abuse or defects
caused during use, storage or assembly.
During the warranty period, Body Flex Sports
reserves the right to:
a). provide replacement parts to the
purchaser in an effort to repair the item.
b). repair the product returned to our
warehouse (at the purchaser’s cost).
c). replace the product if neither of the two
previously mentioned actions effect repair.
This warranty does not cover normal wear and
tear on upholstery.
Questions
If you have any questions concerning the
assembly of your item or if any parts are
missing, please DO NOT RETURN THE
ITEM TO THE STORE OR CONTACT THE
RETAILER. Our dedicated customer service
staff can help you with any questions you may
have regarding the assembly of this unit and
can also mail you replacement parts.
Customer Support
Customer Support is open 9:00 a.m. to 5:00
p.m. (Pacific Time) Monday through Friday.
Please contact us by any of the following
means.
Body Flex Sports, Inc.
21717 Ferrero Parkway, Walnut, CA 91789
Telephone: (888) 266 - 6789
Fax: (909) 598 - 6707
Email: info@bodyflexsports.com
Safety
Before you undertake any exercise program,
please be sure to consult with your doctor.
Frequent strenuous exercise should be
approved by your doctor and proper use
of your product is essential. Please read
this manual carefully before commencing
the assembly of your product or starting to
exercise.
• Please keep all children away from this item
when in use. Do not allow children to climb or
play on them when they are not in use.
• Supervise teenagers while they use this unit.
• For your own safety, always ensure that there
is at least 3 feet of free space in all directions
around your product while you are exercising.
• Regularly check to see that all nuts, bolts and
fittings are securely tightened. Periodically
check all moving parts for obvious signs of
wear or damage.
• Clean only with a damp cloth, do not use
solvent cleaners. If you are in any doubt, do
not use your product; contact CUSTOMER
SUPPORT.
• Before use, always ensure that your product
is positioned on a solid, flat surface. If
necessary, use a rubber mat underneath to
reduce the possibility of slipping.
• Always wear appropriate clothing and
footwear such as training shoes when
exercising. Do not wear loose clothing that
could become caught in moving parts during
exercise.
• Do not use this unit if it is not functioning
properly or if it is not fully assembled.
• Do not use this unit for commercial purposes.
Storage and Use
Your product is intended for use in clean
dry conditions. You should avoid storage in
excessively cold or damp places as this may
lead to corrosion and other related problems.
Weight Limit
Your product is suitable for users weighing:
250 pounds or less.

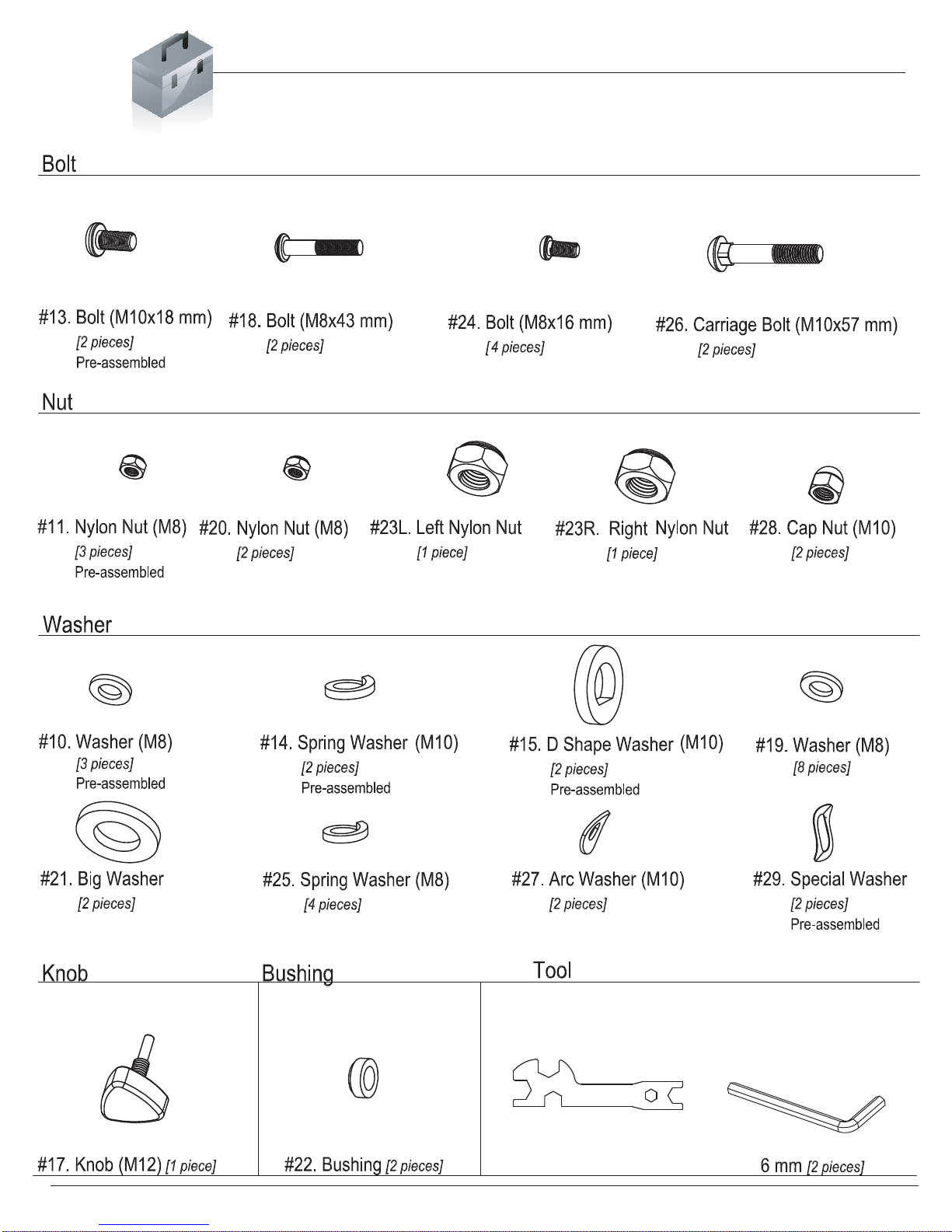

Hardware & Tool List
BRF 700 Page 2
a moment to familiarize yourself with these items.
PLEASE NOTE: some of these parts may have already been pre-assembled on your unit.
The following hardware is used to assemble your unit. Please take
S10-S13-S15-S17-S19 [1 piece]
BRF 700 Page 3
Parts Listing
# Description # Description
1 Main Frame 21 Big Washer
2 Front Stabilizer 22 Bushing
3 Rear Stabilizer 23L Left Nylon Nut
4L Left Handlebar 23R Right Nylon Nut
4R Right Handlebar 24 Bolt (M8x16 mm)
5 Seat Tube 25 Spring Washer (M8)
6L Left Linkage 26 Carriage Bolt (M10x57 mm)
6R Right Linkage 27 Arc Washer (M10)
7L Left Pedal 28 Cap Nut (M10)
7R Right Pedal 29 Special Washer
8 Monitor 30 Round Cap (50)
9 Seat 31 Front Roller
10 Washer (M8) 32 Hex Bolt (M6x48 mm)
11 Nylon Nut (M8) 33 Nylon Nut (M6)
12 Bellows 34 Bushing
13 Bolt (M10x18 mm) 35 Bearing
14 Spring Washer (M10) 36 Tension Control
15 D Shape Washer (M10) 37A Monitor Wire (Lower)
16 Handlebar Axle 37B Monitor Wire (Upper)
17 Knob (M12) 38 Friction Belt
18 Bolt (M8x43 mm) 39 Bushing
19 Washer (M8) 40 Foam Grip
20 Nylon Nut (M8) 41 Round Cap (25)
BRF 700 Page 4

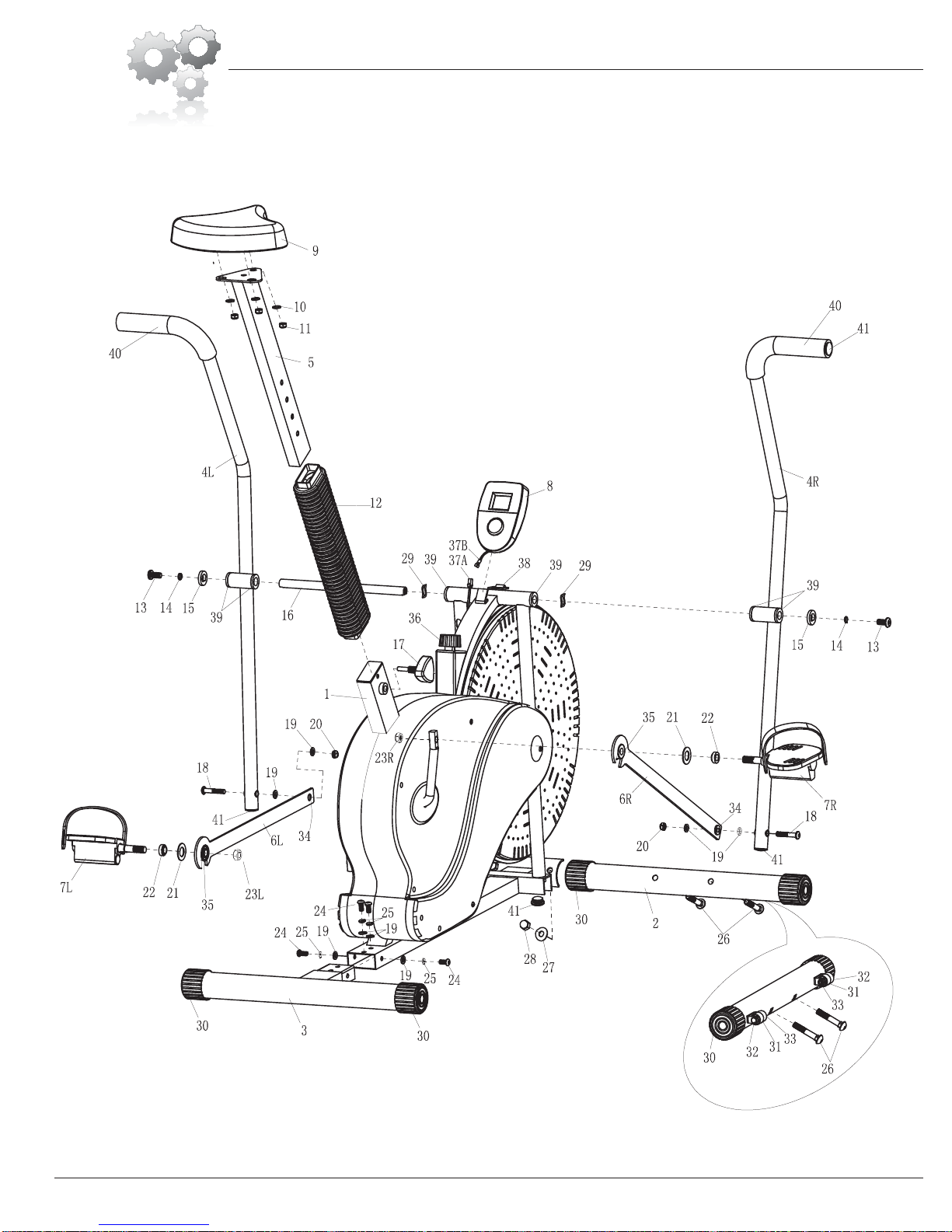

Exploded Diagram
BRF 700
Assembly Instructions

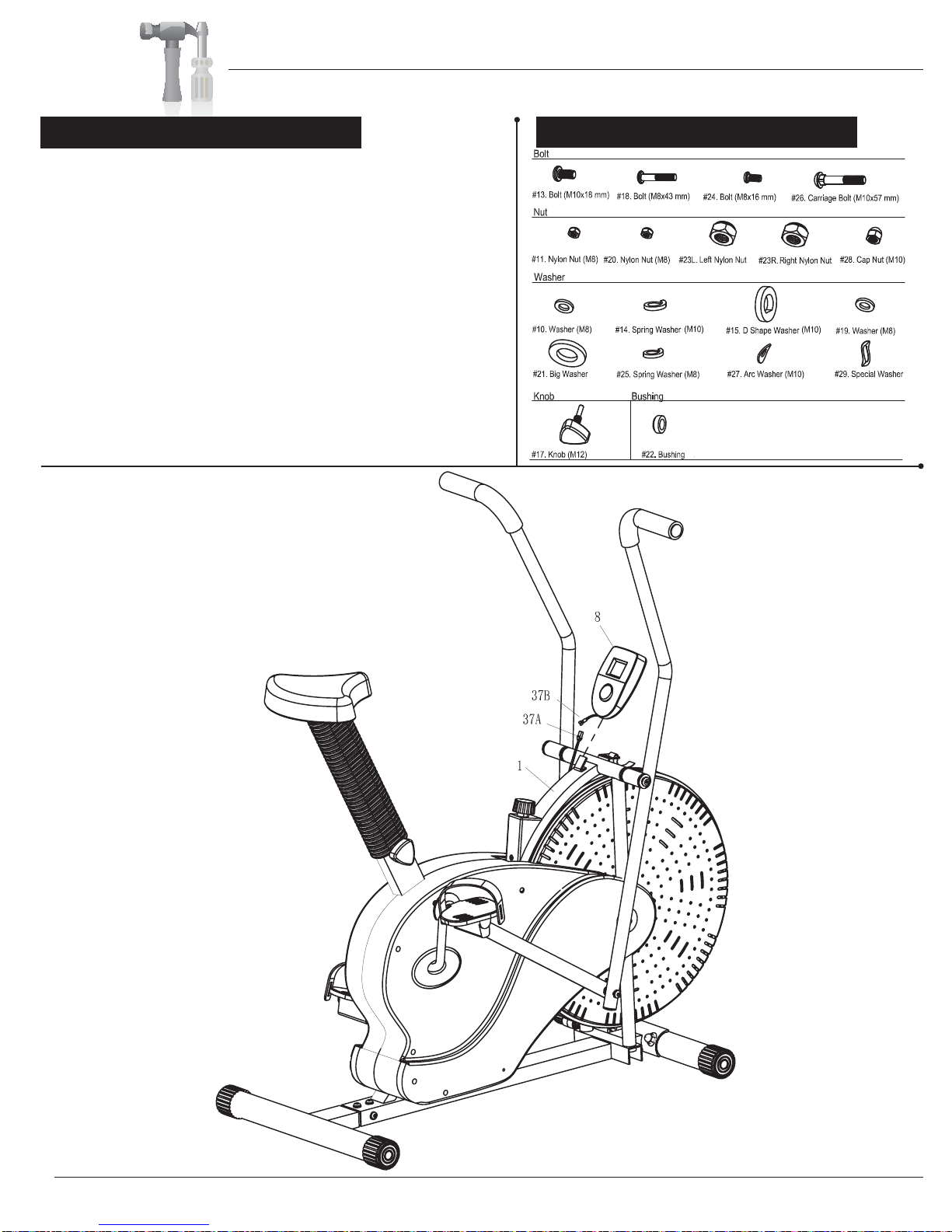

Assembly Step 1Hardware Required
Page 5
BRF 700
Assembly Instructions

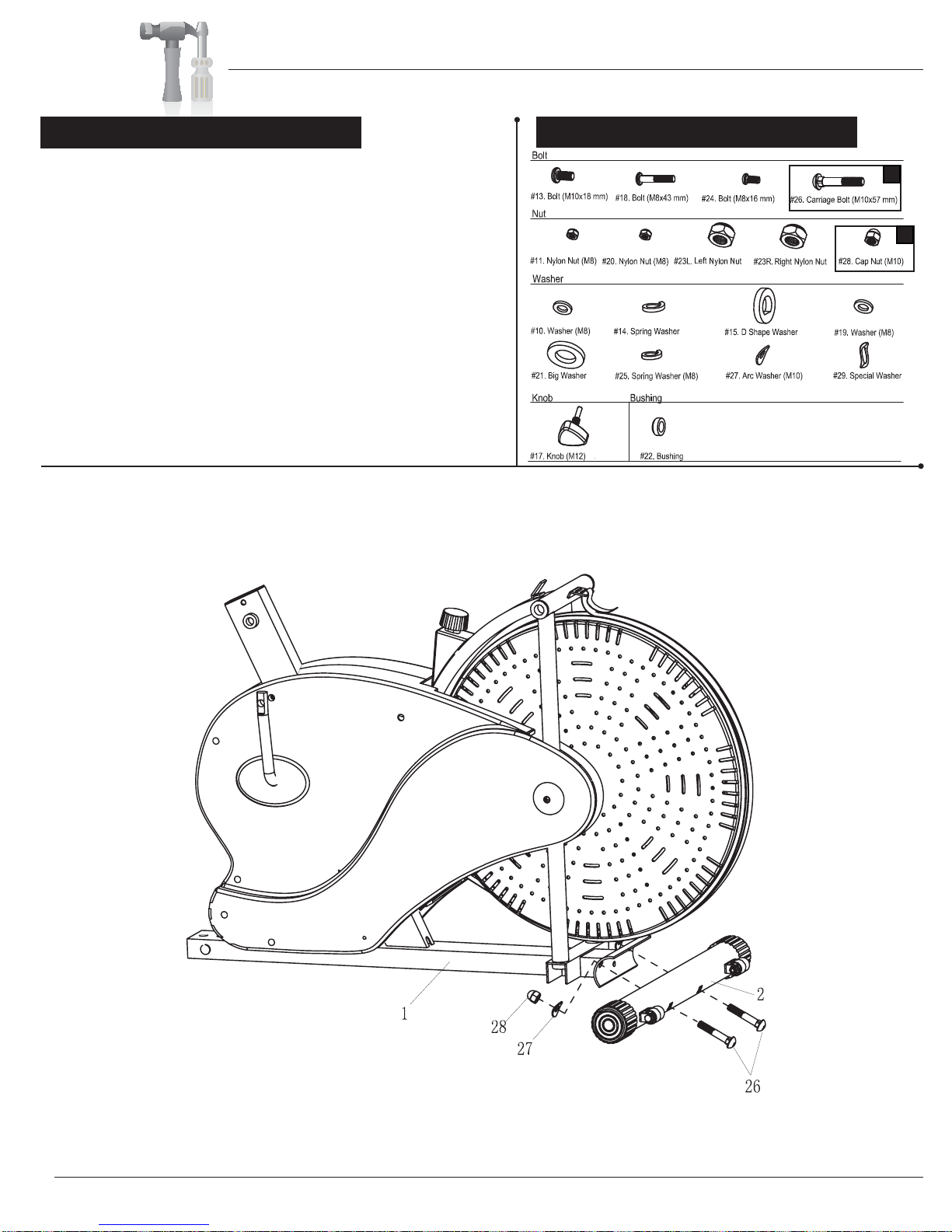

Assembly Step 2 Hardware Required
Page 6
BRF 700
Assembly Instructions

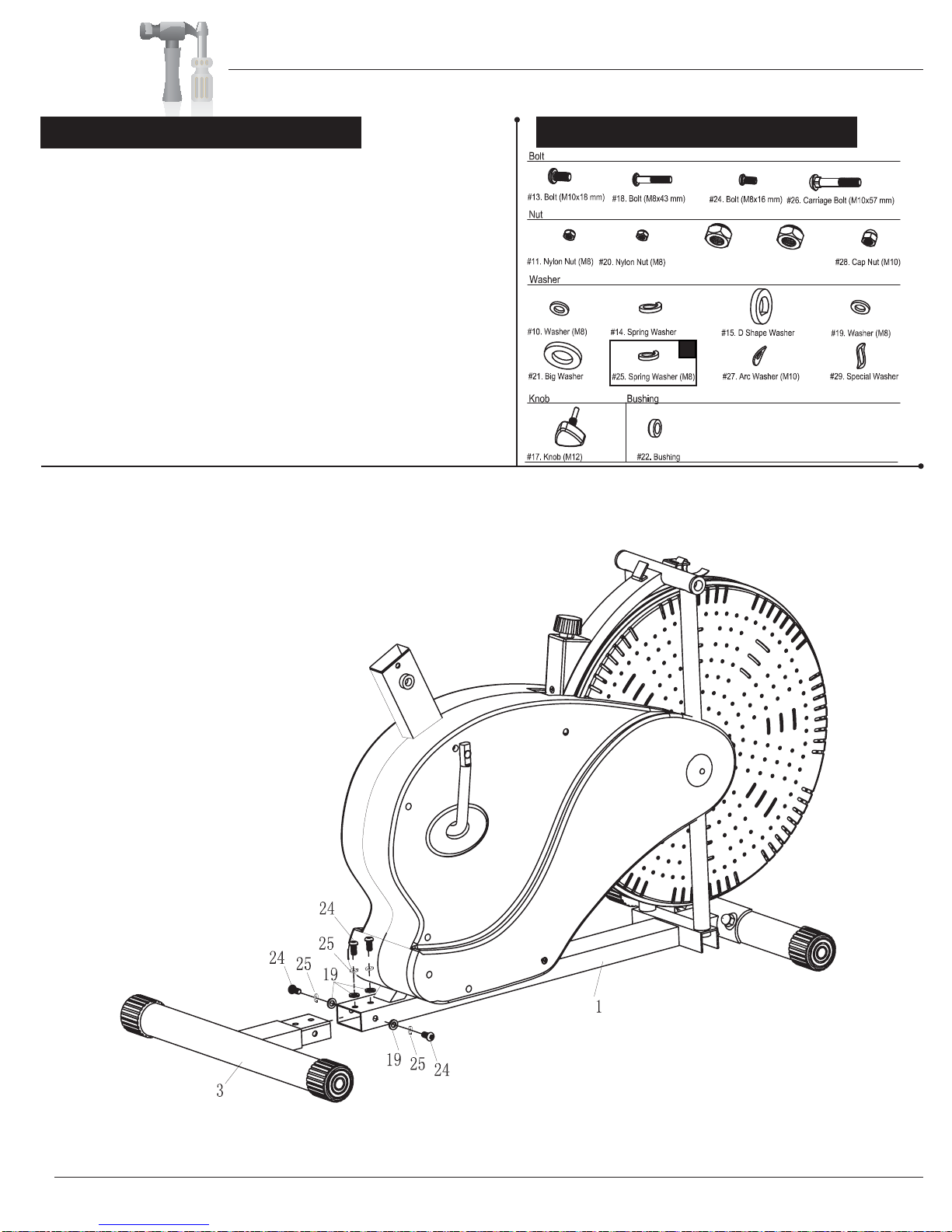

Assembly Step 3Hardware Required
Page 7
BRF 700
Assembly Instructions
Assembly Step 4Hardware Required
Remove the two Special Washers (#29), two D Shape washers
(#15),twoSpring Washers (#14) and two Bolts (#13) that are
pre-assembled on the Handlebar Axle (#16).InserttheHandlebar
Axle (#16) through the Main Frame (#1). Make sure the Handlebar
Axle (#16) is centered. If you encounter too muchfriction, try using
WD40 or Vaseline as a lubricant. Insert two Special Washers (#29)
that were just removed on the Handlebar Axle (#16) followed by
Right Handlebar (#4R) and Left Handlebar (#4L) on each side and
then secure them with two D Shape washers (#15),twoSpring
Washers (#14) and two Bolts (#13) that were just removed.
7KHQDttach the Right Handlebar (#4R) to the Right Linkage (#6R) with a
Washer (#19) in the between, secure with a Bolt (#18),aWasher
(#19) and a Nylon Nut (#20).
Carefully cut off the zip tie on the bushing of the Right Linkage (#6R)
Page 8
BRF 700
Assembly Instructions
Assembly Step 5Hardware Required
Page 9
BRF 700
Assembly Instructions
Assembly Step 6Hardware Required
Page 10
$WWDFK WKH Monitor (#8) WR WKH Main Frame (#1) DQG WKHQ
FRQQHFW WKH Monitor Wire (#37A) WR WKH Monitor Wire (#37B)
7KH aVVHmbly of fan bike is now complete
BRF 700
Assembly Instructions
Tension Adjustment
Page 11
For slight tension adjustment, VLPSO\ WXUQ WKH WHQVLRQ DGMXVWPHQW NQRE IRXQG DW WKH WRS FHQWHU 7HQVLRQ OHYHO FDQ EH
PDQLSXODWHG WKLV ZD\ WR YDU\ LQWHQVLW\ RI ZRUNRXW DV \RX H[HUFLVH

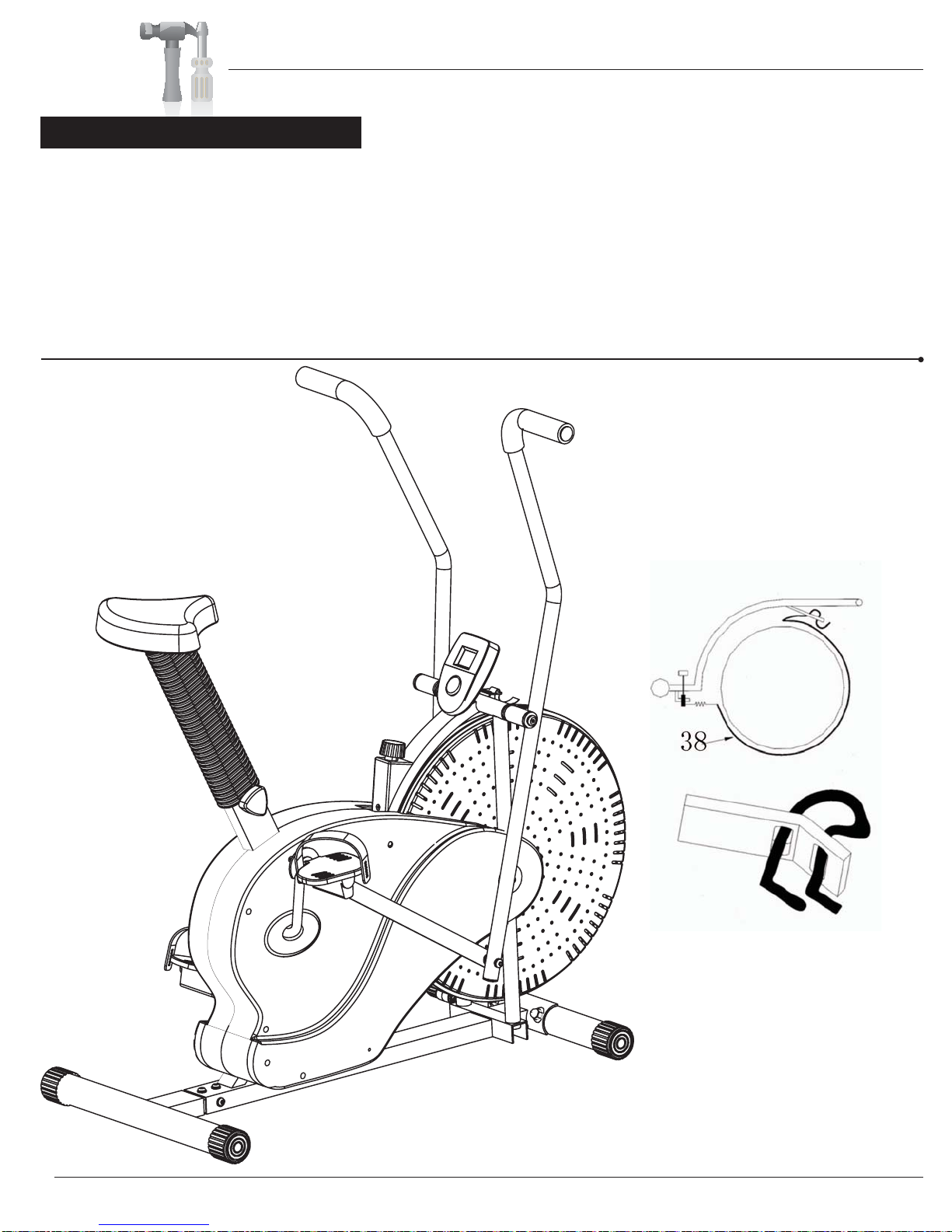

For greater tension adjustment \RX PD\ ORRVHQ RU WLJKWHQ WKH Friction Belt (#38) E\ UHVWUDSSLQJ LW 7R GR VR ILUVW
WXUQ WKH WHQVLRQ DGMXVWPHQW NQRE DOO WKH ZD\ WR WKH ORRVHVW VHWWLQJ 7KHQ UHVWUDS WKH EHOW DW WKH EXFNOH RQ WKH PDLQ
IUDPH MXVW EHQHDWK WKH IODW EHDP DW WKH WRS FHQWHU 7KH PRUH OHQJWK \RX DOORZ IRU WKH IULFWLRQ EHOW WR ZUDS DURXQG WKH
ZKHHO WKH OHVV IULFWLRQ LW ZLOO FDXVH 5HDGMXVW WKH WHQVLRQ NQRE DIWHU \RX ILQLVKHG UHVWUDSSLQJ
BRF 700 Page 12
Computer Operation
SPECIFICATIONS:
TIME………………………………………0:00-99:59
SPEED……………………………………0.0-99ML/H
DISTANCE ……………………………0.0-999.9ML
CALORIES………………………………0.0-9999CAL
KEY FUNCTION:
MODE: This key lets you to select and lock on to a particular function you want.
OPERATION PROCEDURES:
1.AUTOON/OFF:
ƹThe system turns on when any key is depressed of when it receives an input from the speed
sensor.
ƹThe system turns off automatically when the speed sensor has no signal input or no key are pressed for
approximately 4 minutes.
2. RESET:
The unit can be reset by changing battery or pressing the MODE key for 3 seconds.
3. FUNCTION:
Top portion of LCD Display
oSpeed: Display the current speed
Lower portion of the LCD Display (Press Mode to alternate through the following functions)
oTime: Display the total amount of time using the machine.
oDistance: Display the distance travelled.
oCalories: Display the amount of calories burned.
oScan: Automatically alternate between the different functions. (Time, Distance, Calories)
4.BATTERY:
7KLVPRQLWRUUHTXLUHVRQHRUWZR$$%DWWHU\LHV
You can replace the battery from the back of the unit.
