Bomet Norna P-475 User manual

------------ -------------
OWNER’S MANUAL
WARRANTY CARD
SPARE PARTS CATALOGUE
MOUNTED RIDGER
Norma
P - 475 - 3 units
P - 475/1 - 5 units
P - 475/2 - 3-sectional with rollers
PRIOR TO STARTING WORK, PLEASE READ
THE OPERATING INSTRUCTIONS
BOMET
Spółka z ograniczoną odpowiedzialnością
Spółka Komandytowa
07-100 Węgrów, ul. B. Joselewicza 2
tel. (0 prefix 25) 691 78 06
Węgrów 2017, Edition 6, Eng
Original manual

- 1 -
BOMET®
Spółka z ograniczoną odpowiedzialnością
Spółka Komandytowa
07-100 Węgrów, ul. B. Joselewicza 2
tel. (0 prefix 25) 691 78 06
http:www.bomet.pl; e-mail: [email protected]
DECLARATION OF CONFORMITY
for a machine
According to the Ordinance of Minister of Economy of 21 October 2008 (Journal of Laws “Dziennik Ustaw” No 199, item
1228) and European Union Directive 2006/42/WE of 17 May 2006 (Official Journal of the European Union L. 157 p. 24-86)
we declare with full responsibility that the machine:
Machine:
MOUNTED RIDGER
Type:
P 475
Year of production:
202 ....
Function:
Soil tillage, weed control, forming ridges
to which this declaration relates, is in conformity with:
the Ordinance of Minister of Economy of 21 October 2008 on essential requirements for
machines (Journal of Laws “Dziennik Ustaw” No 199, item 1228) and European Union
Directive 2006/42/WE of 17 May 2006
Person responsible for technical documentation of the machine: Andrzej Sińczuk, ul. B. Joselewicza 2, 07-100 Węgrów
Following harmonized standards have been applied:
PN-EN ISO 12100:2012P
PN-EN ISO 4254-1:2013-08E
This Declaration of Conformity WE loses its validity if the product is misused or modified
without proper authorization.
THE MANUAL CONSTITUTES MACHINE BASICEQUIPMENT!
Węgrów, ………………… …………………………….
Place and date of issue Name and function of the signatory

- 2 -

- 3 -
BOMET®
Spółka z ograniczoną odpowiedzialnością
Spółka Komandytowa
07-100 Węgrów, ul. B. Joselewicza 2
tel. (0 prefix 25) 691 78 06
http:www.bomet.pl; e-mail: [email protected]
DECLARATION OF CONFORMITY
for a machine
According to the Ordinance of Minister of Economy of 21 October 2008 (Journal of Laws “Dziennik Ustaw” No 199, item
1228) and European Union Directive 2006/42/WE of 17 May 2006 (Official Journal of the European Union L. 157 p. 24-86)
we declare with full responsibility that the machine:
Machine:
MOUNTED RIDGER
Type:
P 475
Year of production:
202 ....
Function:
Soil tillage, weed control, forming ridges
to which this declaration relates, is in conformity with:
the Ordinance of Minister of Economy of 21 October 2008 on essential requirements
for machines (Journal of Laws “Dziennik Ustaw” No 199, item 1228) and European
Union Directive 2006/42/WE of 17 May 2006
Person responsible for technical documentation of the machine: Andrzej Sińczuk, ul. B. Joselewicza 2, 07-100 Węgrów
Following harmonized standards have been applied:
PN-EN ISO 12100:2012P
PN-EN ISO 4254-1:2013-08E
This Declaration of Conformity WE loses its validity if the product is misused or modified
without proper authorization.
THE MANUAL CONSTITUTES MACHINE BASICEQUIPMENT!
Węgrów, ………………… …………………………….
Place and date of issue Name and function of the signatory

- 4 -
WARRANTY CARD
Mounted ridger type P 475
Serial number………………………….
Production date 202 ....
Inspector signature……………………
Date of sale……………………………
Seller signature…………………………. …………………………….
Seller stamp
CAUTION: It is seller’s obligation to fill in the warranty card and complaint forms carefully
(legibly). Lack of e.g. date of sale or stamp of sales point will put the user at risk of not
acknowledging possible complaints. Warranty card with any written corrections or filled in
illegibly –is invalid.
Warranty proceedings rules
1. A user is understood as a natural or legal person purchasing an agricultural
equipment and a seller –as a corporate unit providing equipment to the user and a
manufacturer - as a producer of agricultural equipment.
2. Manufacturer ensures good quality and efficient operation of the ridger, to which the
warranty card is attached.
3. Any defects or damage of the ridger shall be fixed free of charge at the place of the
purchaser in the period of 12 months from the sales date.
4. Any revealed defects or damages shall be reported in person, by post mail or by
phone.
5. If during warranty period, a necessity of performing 3 warranty repairs occurs and
the product will still reveal defects disabling its usage according to its intended use,
the purchaser is entitled to have the product exchanged into a new, flawless one or
refund.
6. If the manufacturer, a seller and a user will not establish another deadline for
considering the complaint, exchanging the product or refund, it should be made
within 14 days from the date of reporting it by the user.
7. Warranty repairs do not cover repairs caused by:
-using the ridger inconsistently with the manual and intended use,
-acts of God or others for which the guarantor does not take responsibility.
After warranty repairs can be performed only at the user/purchaser cost.
8. The manufacturer can cancel warranty on the product in case of stating:
-introducing structural changes,
-occurring any damages caused by acts of God,
-lack of necessary records or made by one’s own any records in the warranty card,
-using the ridger inconsistently with intended use or manual.

- 5 -
-------------------------------------------------------------------------------------------------------------
Complaint form no 1
Mounted ridger P 475
Serial number…………… Date of purchase……………...
Seller’s signature and stamp
Complaint protocol number…………………..
Complaint form no 2
Mounted ridger P 475
Serial number…………… Date of purchase……………...
Seller’s signature and stamp
Complaint protocol number…………………..
Complaint form no 3
Mounted ridger P 475
Serial number…………… Date of purchase……………...
Seller’s signature and stamp
Complaint protocol number…………………..

- 6 -
After repair I received technically efficient machine
on……………………… (date)
……………………….
User’s signature
Notices:
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………
………………………………………………………………………………….
After repair I received technically efficient machine
on……………………… (date)
……………………….
User’s signature
Notices:
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………
………………………………………………………………………………….
After repair I received technically efficient machine
on……………………… (date)
……………………….
User’s signature
Notices:
…………………………………………………………………………………………………………
…………………………………………………………………………………………………………
………………………………………………………………………………….

- 7 -
IDENTIFICATION
MOUNTED RIDGER
Mounted ridger of series P475 has a rating plate, fitted in the front part of the frame of the
ridger frame. Basic data which serves for identification of the machine: manufacturer’s
name, machine symbol, serial number, year of production, is put there.
Data placed on the rating plate serves for identification of the ridger and ought to
correspond to the following data, filled in during the sales.
Symbol P475 ……..………………………
Year of production 202 ....
Serial number …….………………………………..
IT IS ADVISED THAT THE SUPPLIER OF A MACHINE, BOTH NEW AND USED ONES,
KEEP THE SIGNED BY THE PURCHASER CONFIRMATION OF RECEIPT OF
MANUAL ALONG WITH THE MACHINE.
THE MANUAL CONSTITUTES MACHINE BASIC EQUIPMENT
KEEP THIS INSTRUCTION FOR FUTURE REFERENCE
CAUTION !
When lending the machine to another person, the manual shall be
attached to the machine.
CAUTION !
During operation, it is necessary to pay particular attention to loosening of screw
connections. Therefore, it is necessary to check and tighten screw connections
after stopping the tractor and turning off the tractor engine.

- 8 -
TABLE OF CONTENTS
WARRANTY CARD ...............................................................................................................................4
1. INTRODUCTION ............................................................................................................................. 9
2. INTENDED USE OF THE RIDGER................................................................................................. 9
3. SAFETY PRECAUTIONS AND WARNINGS ...............................................................................10
3.1. SYMBOLS:MEANING AND APPLICATION ...........................................................................................10
3.2. EXPECTED USE .............................................................................................................................10
3.3. DESCRIPTION OF RESIDUAL RISK....................................................................................................10
3.4. ESTIMATION OF RESIDUAL RISK .....................................................................................................11
3.5. REGULATIONS FOR OCCUPATIONAL HEALTH AND SAFETY.................................................................11
3.6. STANDARD CONFORMITY ...............................................................................................................14
3.7. MANUFACTURER’S RESPONSIBILITY AND GUARANTEE......................................................................14
3.8. NOISE AND VIBRATIONS .................................................................................................................14
3.9. SAFETY SIGNS AND CAPTIONS........................................................................................................14
4. USAGE REGULATIONS...............................................................................................................16
4.1. GENERAL INFORMATION.................................................................................................................16
4.2. CONSTRUCTION AND OPERATION OF THE MACHINE..........................................................................16
4.3. EQUIPMENT AND FITTINGS..............................................................................................................17
4.4. PREPARING THE TRACTOR TO WORK...............................................................................................17
4.5. ASSEMBLY OF THE RIDGER.............................................................................................................18
4.6. PREPARING THE RIDGER TO WORK .................................................................................................18
4.7. MOUNTING THE RIDGER ON THE TRACTOR ......................................................................................19
4.8. RIDGER ADJUSTMENT REGULATIONS ..............................................................................................19
4.9. OPERATION WITH THE RIDGER........................................................................................................19
5. TECHNICAL OPERATION............................................................................................................20
5.1. INSTRUCTION ON MAINTENANCE OF A RIDGER .................................................................................20
5.2. AFTER-SEASONAL MAINTENANCE ...................................................................................................20
5.3. TILLAGE OUTFIT STORAGE..............................................................................................................20
5.4.WORKING PARTS EXCHANGE..........................................................................................................21
5.5. DETECTION AND REMOVAL OF FAILURE...........................................................................................21
5.6. LUBRICATION INSTRUCTION............................................................................................................22
6. TRANSPORTATION ON PUBLIC ROADS..................................................................................22
6.1. RIDGER TRANSPORTATION BY MEANS OF TRANSPORT......................................................................22
6.2. TRANSPORTATION OF A RIDGER ON THE TRACTOR...........................................................................22
7. DISASSEMBLY.............................................................................................................................23
8. TOTALING.....................................................................................................................................23
9. TECHNICAL CHARACTERISTICS ..............................................................................................24
SPARE PARTS CATALOGUE .............................................................................................................25

- 9 -
1. INTRODUCTION
This manual is attached to each machine to make a user acquainted with construction,
operation and adjustment of the mounted ridger. Its aim is also warning about existing or
possible threats. The manual also contains information on preparation of the ridger for
operation and for transportation on public roads.
Strict compliance with recommendations included in the content of the instruction will
ensure long-term and non-failure operation and contribute to reduction of operating costs
of the machine.
Each chapter of the instruction (according to the contents) presents proper issues in
detail. If there is any unclear information for the user, they can obtain exhaustive
explanation by writing to the manufacturer’s address (the address is on the cover) – you
are asked to give: exact address of the purchaser of the machine, machine symbol, serial
number, year of production, year and number of issuing the manual.
Terms used in the manual: left side, right side, back and front –refer to the settings of an
observer with his face turned according to the direction of the machine drive.
Warranty proceedings regulations and rights resulting from them, are given in the warranty
card, attached to each ridger.
2. INTENDED USE OF THE RIDGER
Mounted ridger of P 475 series is intended to operate exclusively in the agriculture. Using
it for other purposes shall be understood as using it against the intended use. Meeting
requirements referring to operation of the machine, its maintenance and repairs according
to recommendations of the manufacturer and strictly complying to them state the condition
of using it according to the intended use.
The machine shall be employed and operated only by people acquainted with its detailed
characteristics and with procedures in the field of safety.
Regulations concerning accident prevention and all the basic regulations in the field of
occupational health and safety and also traffic regulations should be always abided by.
Unauthorized modifications introduced to the tool without the manufacturer’s consent may
absolve the manufacturer from liability for any resulting damages and harms.
Mounted ridger is a tool designed for tillage in row crops such as potatoes or vegetables
e.g. carrot on all kinds of stoneless soil of humidity enabling proper operation. The task of
the ridger is to form ridges on the field surface and remove weeds from the surface. The
width of processed rows interspace should be in the range of 62.5 to 75 cm.
Ridgers should operate only with recommended by the manufacturer tractor classes (see
technical characteristics) equipped with suspension system category II and front axle
standard ballasts for keeping the required controllability factor (s≥0.2).

- 10 -
3. SAFETY PRECAUTIONS AND WARNINGS
3.1. Symbols: meaning and application
In the present manual symbols are used in order to draw the reader’s attention and stress
certain particularly important aspects requiring discussion.
DANGER
This indicates danger, with a possible serious accident risk. Not obeying
recommendations marked with this sign may cause a situation of a serious risk of
sustaining an injury by the operator and/or people nearby!
Obey strictly these recommendations!
CAUTION
The symbol indicates possibility of damaging the machine or other object and
demands to be cautious.
It is important advice which should be paid special attention!
REMEMBER
The symbol indicates advice or notice regarding key functions or useful
information concerning proper functioning of the machine.
3.2. Expected use
Mounted ridgers of P475 series have been designed, built and adjusted for tillage in row
crops in flat and wavy fields, on all types of stoneless soil of humidity enabling proper
operation. Ridgers can be used for forming ridges on the field surface and removing
weeds from the surface. The operation of the ridger can be performed on slopes up to
8.5°. Ridgers should be aggregated with tractor classes recommended by the
manufacturer, see technical characteristics.
REMEMBER
Regulations concerning the intended use and configurations, provided for
this machine are the only ones, which are exclusively allowed. The
machine shall not be employed for other purposes than those, which have
been provided for it. The regulations given in this manual do not substitute
obligation towards present regulations with force of a statute, referring to
standards concerning safety and prevention from misadventure, but they
summarize them.
3.3. Description of residual risk
Residual risk results from wrong or incorrect behavior of the ridger operator. The greatest
danger can occur in performing following activities:
-Operation of the ridger by minors and also not acquainted with the manual or not
having qualifications for driving an agricultural tractor,
-Operation of the ridger by people with a disease, in a state indicating for using
alcohol or narcotic drugs,
-Transport and operation without proper safety measures,

- 11 -
-Aggregation of the ridger with a tractor if the operator is between the machine and
the tractor at the engine working,
-Operation when people or animals stay within the range of operation of the
assembly tractor + machine,
-Maintenance and adjustment at the ridger when the tractor engine is working and
the ridger is not protected against falling down.
When describing residual risk, the ridger is treated as a machine, which since the moment
of starting the production, has been designed and manufactured according to the present
technique condition.
3.4. Estimation of residual risk
During operation of the ridger, threat and residual risk can be limited to the minimum when
such recommendations are abided by:
-careful reading the manual,
-prohibition of people staying on the ridger during operation and transport,
-prohibition of people staying between the tractor and the ridger when the tractor
engine is working,
-all adjustment, maintenance and lubrication of the ridger shall be performed only at
the tractor engine stopped,
-repairs of the ridger performed only by people trained in this field,
-operation of the machine by people who have qualifications to drive agricultural
tractors and are familiar with the manual,
-protection of the ridger against children access.
Although BOMET® company takes responsibility for pattern-designing and
construction in order to eliminate danger, however certain risk elements during mounted
ridger operation are unavoidable.
1) Danger of being caught or hurt by edges of the frame or by sharp ending of
knurls, duckfoot shares or body of the ridger during aggregation or changing
transportation-operation position and inversely.
2) Danger of wound or abrasion by sharp working elements of the machine during
performing maintenance or adjustment resulting from improper position of the operator
during these activities.
3) Danger of being squeezed by movable elements of the articulated
parallelogramas a result of improper position of the operator during performing
maintenance and adjustment.
4) Danger of turning over the machine during storage or transportation.When
stored to keep stability, the ridger should be set on the flat ground on the ridger copying
wheels and the ploughshare. The ridger shall be aggregated only with recommended
tractor classes.
3.5. Regulations for occupational health and safety
CAUTION
In order to avoid threats, before starting operation of the ridger,
please read the present manual and follow these rules
concerning threats and safety measures.

- 12 -
General regulations
Apart from this manual, one shall also follow traffic regulations and occupational
safety and health regulations.
Warnings (pictograms) placed on the ridger give advice concerning safety of the
user and other people, and avoiding accidents.
When driving on public roads, it is obligatory to follow regulations included in
Highway Code.
It is recommended to cooperate with a tractor equipped with a cabin or a protective
frame.
Before each using the machine, it is necessary to check if all elements of the ridger
are in a good condition. Damage incurred shall be fixed without delay and possible
deficiencies filled up.
Avoid staying within the range of the operating ridger.
Before leaving the tractor cabin and before each activity made at the ridger, stop
the tractor engine and remove the key from the ignition switch.
The ridger shall be stored in a dry room, on the tough and flat ground. During
lowering the ridger onto the ground, keep particular caution. Danger of injury!!!
Aggregation
Keep particular caution during connecting the ridger with a tractor and during
disconnection.
It is forbidden to stay between the ridger and a tractor during any activities
performed with a hydraulic system lever.
While aggregating the ridger with a tractor, it is forbidden to stay between the tool
and the tractor at the tractor engine working.
During performing any maintenance at the ridger, it is necessary to stop the engine,
remove the key from the ignition switch and pull the handbrake.
Pivots of the ridger suspension system shall be secured only with the use of typical
protection in the form of cotter pins.
The ridger shall be aggregated only with recommended tractor classes equipped
with front axle standard ballasts.
The ridger can be operated by a person with qualifications allowing for using
agricultural tractors.
During aggregation, keep the minimum load of the tractor front.
CAUTION
Operation with a tractor of another class than recommended by
the manufacturer may cause threat of stability loss in operation or in stoppage.
The load of the tractor’s front axle cannot be lower than 20% of its weight.
Maintenance
A ridger can be operated by a person with qualifications allowing for using
agricultural tractors and acquainted with the manual of the ridger.
It is not allowed for other people not acquainted with the manual to operate the
ridger.
It is not allowed for children and people after drinking alcohol to operate the ridger.
The ridger shall be raised onto the tractor suspension system easily, without jerks
or vibrations.
Raise the ridger upwards each time when turning and making returns.
At each getting off the tractor by the operator, leave the ridger in the lowered
position.

- 13 -
Removing clogs can be performed after lowering the tool onto the ground and
turning off the tractor engine.
Work with a ridger on slopes with gradient exceeding 8.5° is not allowed.
It is not allowed to use tractor reverse gear during work, when the tool is in the
working position.
All maintenance (lubrication, repairs, cleaning etc.) shall be performed with the
ridger lowered onto the ground, the tractor engine stopped, key taken out from the
ignition switch and handbrake pulled.
People operating agricultural equipment should be equipped with working clothes
and footwear, and personal protection measures appropriate for existing threats
e.g. gloves.
Transportation
Transportation of a ridger by means of transport from the manufacturer to a sales
person or a client is described in the chapter ‘Transportation on public roads’ in
detail. One shall remember safety rules during the loading and proper fixing of the
ridger on a car trailer. Hooks for ropes or chains are marked with pictograms.
A ridger transported on public roads must be equipped with portable light and
warning devices and a triangular sign for low-speed vehicles, fixed in special
handles on the ridger frame, see details in chapter ‘Transportation on public roads’.
It is forbidden to transport any people or items on the ridger frame.
Due to considerable width of a ridger and a fixed connection with the tractor, keep
caution especially at returns and turnings during transportation on public roads with
regard to overlapping of the tool.
Keep extreme caution while making a turn of a tractor with a mounted ridger, both
during transportation and also while making returns in the field, especially when
there are any people or items nearby.
Driving speed of the tractor with a ridger during transportation cannot exceed:
-driving on hardened roads with flat surface –15 km/h,
-driving on field ways –10 km/h.
Storage
Disconnecting the ridger from the tractor can take place only after the tractor
engine is stopped, key taken out and the handbrake pulled.
A ridger shall be stored in a dry room, on the tough and flat ground. When lowering
the ridger onto the ground, keep extreme caution –danger of injury!!!
A ridger should be stored in places where there is no possibility of accidental injury
of people or animals, on the flat ground, preferably under a roof.
During storage the ridger should be leant firmly on working elements and the
copying wheel. The ridger shall be stored in a clean condition.
Others
It is not allowed to use a ridger for other purposes than given in the manual.
CAUTION
Not following these rules may cause threat to the operator and other people and also
may cause damage to a ridger. Any damage resulting from not following these rules is
the only responsibility of the user.

- 14 -
3.6. Standard conformity
The machine has been designed and made in accordance with standards concerning
safety in the machine industry, valid on the day of marketing the mounted ridger.
Particularly, following legal acts and harmonized standards have been taken into account:
-2006/42/WE –Directive on machinery safety introduced by the Ordinance of Minister of
Economy on 21 October 2008 (Journal of Laws ‘Dziennik Ustaw’ No 199, item 1228).
-PN-EN ISO 12100:2011 –Machinery. Safety. Basic concepts, general principles for
design. Basic terminology, methodology (orig.).
-PN-EN ISO 4254-1:2009 +AC:2010 –Agricultural machinery. Safety. Part 1: General
requirements.
-PN-ISO 730-1+AC1:1996 –Wheeled agricultural tractors. Rear three-point suspension
system. Categories 1, 2, 3 and 4.
-PN-ISO 2332:1998 –Tractors and agricultural machinery. Mounting machinery on
a three-point suspension system. Free space zone.
-PN-ISO 3600:1998 –Tractors, agricultural and forest machinery, mototools. Manual.
Contents and form.
-PN-ISO 11684:1998 –Tractors, agricultural and forest machinery, mototools. Safety
and warning signs. General principles.
3.7. Manufacturer’s responsibility and guarantee
In relation to described in this manual types of machines, BOMET®company does not
acknowledge any civil responsibility towards:
-improper or inconsistent with the manufacturer’s recommendations using the machine,
-using the machine in a way breaking domestic law concerning safety and preventing
from unfortunate accidents,
-non-compliance or improper following regulations cited in this manual,
-making unauthorized changes in the machine,
-using the machine by unqualified staff,
-using spare parts that are not original.
As long as the purchaser wants to make use of warranty, he should strictly follow
recommendations and regulations given in the manual. In particular:
-he should work only in the given ranges of the machine operation,
-he should always perform unchangeable and thorough maintenance,
-only operators with proper abilities and qualifications shall be allowed to use the
machine,
-he should use only original spare parts recommended by the manufacturer.
3.8. Noise and vibrations
During the operation of a ridger for the operator there is no threat caused by noise
contributing to the loss of hearing because the ridger is an inactive tool and the workplace
of the operator is in the tractor cabin. The tractor and not the machine is the source of
noise.
There is no threat caused by vibrations when working with a ridger because the operator’s
workplace is located in the tractor cabin where the seat is amortized and properly
ergonomically shaped.
3.9. Safety signs and captions
Mounted ridgers of P475 series are equipped with all devices that ensure safe work.
Where it is not possible to entirely secure dangerous places due to the proper operation of

- 15 -
the ridger, there are warning signs –pictograms which indicate for possibility of danger
and present manners of avoiding it.
In table 1 pictograms placed on the machine and their meaning have been specified.
Safety pictograms should be protected against being lost and against loss of legibility. Lost
or illegible signs and captions should be replaced with new ones. It is required that new
assemblies employed during repair were marked with all safety signs predicted by the
manufacturer.
If you want to buy pictograms, write to the manufacturer’s address or send information to
the e-mail address and give the sign number (according to the table 1), version and year of
issuing this manual.
Table 1. Safety signs and captions
No.
Pictogram
Meaning
Location
1
2
3
4
1.
(Rating plate)
Rating plate
At the front of the
central frame on the
left side
2.
Before operating the
machine, read the
manual.
On the ridger frame.
3.
Caution. Before operation
turn off the engine and
remove the key from the
ignition switch.
On the ridger frame.
4.
Do not stay near the lift
rods, while controlling the
lift.
On the ridger frame.
5.
Caution danger of
crushing. Do not reach
operation area of the
parallelogram arms.
On ridger arms.
6.
Marking places of loading
hooks.
On the ridger frame.
7.
Company logo
On the ridger frame.

- 16 -
4. USAGE REGULATIONS
4.1. General information
The P475 series mounted ridgers are manufactured in two working versions as a 3-
section machine for 3 rows or 5-section machine for 5 rows. Mounted ridgers of P475
series are suitable for operation on slopes not exceeding 8.5and cooperate with tractor
classes 0.6 and 0.9 (see technical characteristics - table 4) equipped with standard wheel
ballasts.
4.2. Construction and operation of the machine
The U724 series ridgers (Figure 1) are tools mounted on the three-point tractor
suspension system equipped with the suspension category II. Construction of the ridger is
modular, i.e. ridgers have the same working sections but only differ in the frame.
The ridger working sections are mounted with the yoke 10 to the ridger frame 1
(figure 1) equipped with a tool three-point suspension on the tractor. The working sections
have articulated parallelograms 2 which provide an equal operating angle for the ridger
operating units. In the parallelogram there is a spring tensioner 3 which facilitates
immersion of ridging coulters 4, a ripper 5 and a cultivator point 6. During the operation,
the ridger frame is supported on the copying wheels 7 of the working sections. The ridging
body consists of a two-sided ploughshare, a mouldboard and two wings. The ploughshare
passes the undercut soil onto the mouldboard. The mouldboard partly rakes the soil to the
sides and passes it to the wings. Wings form a ridge and spread soil under plants. There
are brackets 2 for installing light and warning devices, and a triangular sign for low-speed
vehicles welded to the ridger frame.
Figure 1. Hoe-ridger - general construction: 1 - frame, 2 - articulated parallelogram, 3 - spring
tensioner, 4 - ridging coulters, 5 - ripper, 6 - cultivator point, 7 - copying wheel, 8 -
bracket for mounting light and warning devices, 9 - bracket for mounting a triangular
sign for low-speed vehicles, 10 - working section yoke

- 17 -

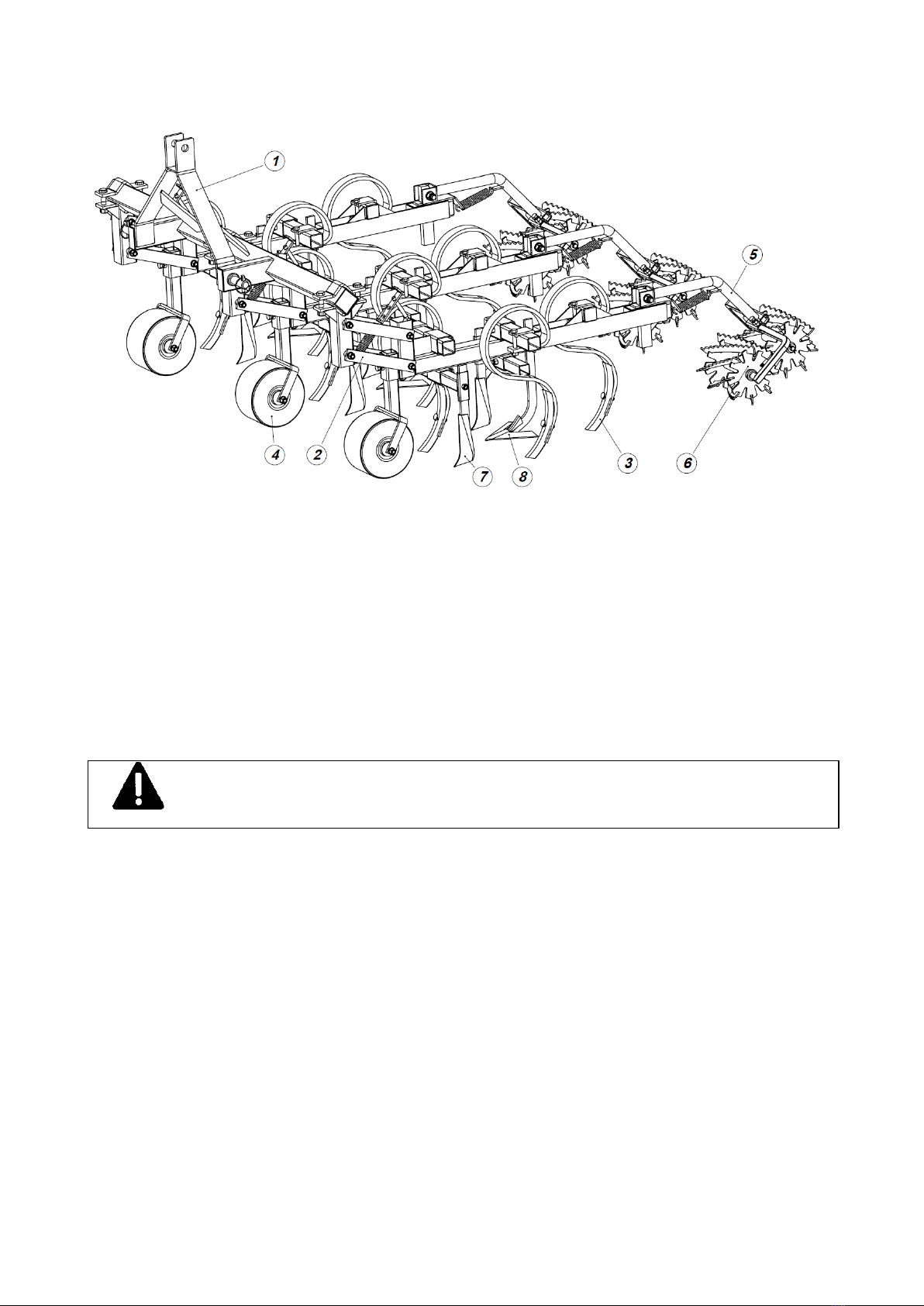

Figure 2. Ridger with rollers - general construction: 1 - frame, 2 - articulated parallelogram,
3 - spring tine set, 4 copying wheel, 5 - roller arm, 6 - string rollers, 7 - ripper,
8 - cultivator point
The ridger can be additionally equipped with a section of a hoe and string rollers.
The section of the hoe works using a parallelogram (2). The section consists of three
spring tines (3), and two string rollers (6) on movable arms (5), two rippers (7) and a
cultivator point (8) are attached to the end of the section.
4.3. Equipment and fittings
The manufacturer delivers the ridger for sale assembled. The manual with a spare parts
catalogue and a warranty card are delivered along with the machine by the manufacturer.
REMEMBER
Manual with a spare parts catalogue comprise basic equipment of the ridger.
Basic equipment of the machine does not involve portable light and warning devices and
a triangular sign for low-speed vehicles which are available at the agricultural equipment
storehouse.
Each user of a ridger shall have light and warning signs, in working order, and a triangular
sign for low-speed vehicles (sign description is available in the section ‘Transportation’).
Not having them during transportation may result in an accident. For damage incurred
during an accident the user of the machine is responsible.
4.4. Preparing the tractor to work
Preparation of a tractor to cooperation with a ridger consists in checking its general
efficiency in accordance with the tractor manual (pay particular attention to the proper
operation of the suspension system). It is mandatory to aggregate the ridger with
recommended tractor classes equipped with standard ballasts of front axle and rear
wheels in accordance with data given in the technical characteristics of the tractor.
Air pressure, particularly in rear tires of the tractor should be equal in both wheels and in
accordance with the tractor’s manual!

- 18 -

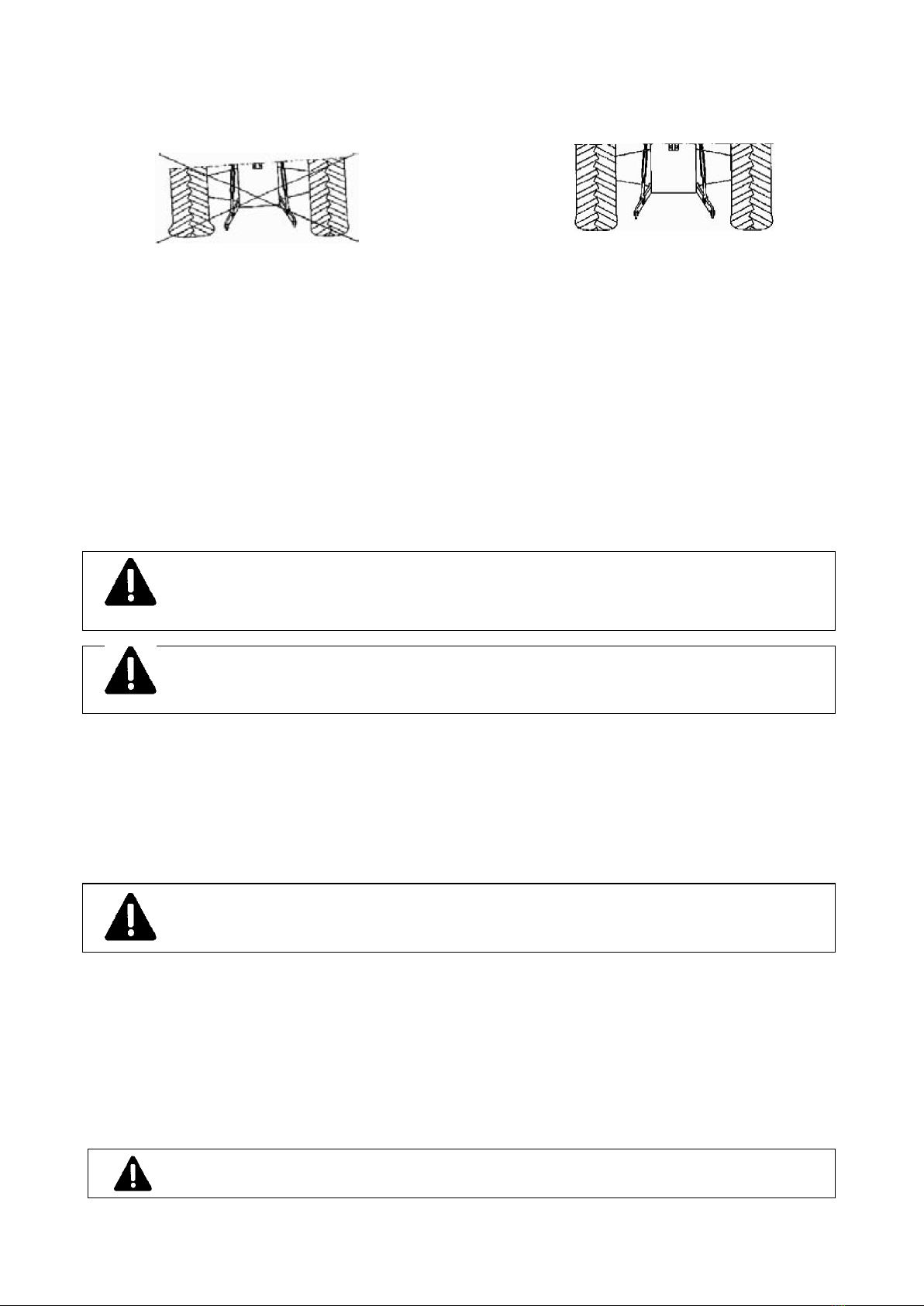

Before suspension of the machine, lower rods of the tractor’s suspension system shall be
in lower position at the same height (distance between joints and ground is minimum 200
mm). Rods set at the equal height from the ground facilitate mounting the ridger on the
tractor.
4.5. Assembly of the ridger
Ridgers from the manufacturer to a sales person or a client are transported partly
disassembled and therefore during the first run and preparation of the ridger for operation,
it shall be assembled. First, install the ridger frame on the tractor three-point suspension
system. Then on the frame, after raising it with the tractor lift and securing against falling
down, install the ridger working units. Position of the ridger units shall be set on the frame
by tightening two bolts fastening unit covers. After installing units, install the ridger working
elements by twisting off bolts fastening working elements caps in rails.
CAUTION
Assembly of the ridger shall be performed on the flat and even ground. Keep extreme
caution when installing the ridger body, knurls and duckfoot shares due to possibility
of danger of being hurt with sharp edges of the machine.
CAUTION
During assembly use the tables from the spare parts catalogue where connection of
ridger each element is presented.
4.6. Preparing the ridger to work
Preparation of a new ridger to operation and after storage period (e.g. after winter)
consists in checking its technical condition and most of all durability of connections of
working elements with the frame. In case of stating damage or worn elements it is
necessary to exchange them into new or regenerated ones. Otherwise it can lead to
reduction of the tool work quality.
CAUTION
It is forbidden for the operator to stay between the tractor and the machine at the
tractor engine running. The ridger shall be raised easily, without jerks or vibrations.
Furthermore, it is necessary to:
-check screw connections, in case of backlash tighten the nuts,
-check if copying wheels move easily and without jamming, in case of stating jamming
of a copying wheel, it shall be uninstalled, cleaned and lubricated or bushings of
copying wheels shall be exchanged,
-check if axles of articulated parallelograms and pull springs move easily and without
jamming, in case of stating jamming, they shall be cleaned and lubricated,
-lubricate the ridger in accordance with recommendations (see chapter ‘Lubrication
instruction’).
CAUTION
All maintenance in the ridger shall be performed before installing it on the tractor.
