BOOCAX Dolphin User manual

Better Robot, Better Life
BooCax Plasma Air Sterilizer
BKS-LTP-DP01
Product Manual
V 1.0.5
BOOCAX 布科思
0086 400 -161- 8661

BooCax 1/ 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
Safety and Precautions
The use of Plasma Air Sterilizer shall follow the operation instructions. Use beyond the range is prohibited!
BooCax will not assume any responsibilities for the losses caused by improper operation.
01/Safety Instructions
1) Prohibitions
①Do not use in flammable gas and similar dangerous environment；
②Do not throw any foreign matter into the machine；
③Cleaning and maintenance are strictly prohibited during the machine is power on；
④Do not disassemble the machine for repair or debugging without authorization；
⑤Do not replace any parts (except air filter) without authorization, if must be replaced,
please carry out under the approval and guidance of the company.
2) Use safety instructions
①Place and run the machine as far as possible in the place of plain, solid, room
temperature.
②Before using the machine, please install the air outlet grid, air filter and air inlet grid in
place.
③Do not place the machine
in the sun for a long time, so as not to deteriorate the material of the body and affect the
performance.
④When moving the product, please be sure to power off first, and then pull out the power
cord.
⑤When the filter is not installed in place, do not power on.
⑥When not using the product for a long time, please unplug the power plug and keep the
power off.
⑦If the product has abnormal sound, smell, high temperature and other abnormal condi-
tions, please immediately power off and stop using.
⑧Do not put fingers or other foreign objects in the air inlet and outlet.
⑨Please be careful not to put hair, fabric and other filamentous articles near the machine,
so as not to be involved into it.
⑩Do not sit, lean, tilt or dump the product.
⑪During maintenance, be sure to power off the machine first. Do not power off or power
on the machine with wet hands.
02/ Daily maintenance instructions
1) Cleaning

BooCax 2/ 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
①Clean the dust sensor probe regularly；
②Replace the air filter regularly；
③Keep the surface of the machine clean and tidy。
2) Check for loose screws
Gently shake the component periodically and observe whether the component has
abnormal sound of loosening with shaking. If there is abnormal sound, check the screws at the
installation point of related components. All the screws through the locking processing are not
easy to loosen. However, for the sake of safety, in case of loose, please contact the hotline of
BooCax After-sales Service.
03/Legal Declaration and Disclaimer
BooCax owns a number of patents involved in this product, and any institution and
individual shall not use any of it without authorization.
The machine internal structure is very precise, private disassembly is easy to affect the
safety. The machine shall not be disassembled by any person other than authorized personnel
of BooCax, otherwise the warranty qualification of the product will be lost. The company will
not be responsible for any damage, malfunction and property/personal damage caused by
private disassembly. The identification of unauthorized disassembly shall be subject to the anti-
disassembly mark on the machine.
04/After-sales Information
If you have any questions about maintenance, safety and other questions, you can contact
us by phone/email according to the manual, we are very willing to provide you with product-
related services。

BooCax 3/ 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
Catalogue
1.1. Disinfection principle................................................................................................................................... 4
1.2. Range of Application.................................................................................................................................. 4
1.3. The main bactericidal factors and their intensity............................................................................... 4
1.4. Category of killing microorganisms ....................................................................................................... 4
1.5. Machine Life................................................................................................................................................... 5
1.6. Product Superiority...................................................................................................................................... 5
2. Product Features................................................................................................................................... 5
3. Disinfection Effect................................................................................................................................. 5
4. Product Parameters.............................................................................................................................. 6
5. Overall Size............................................................................................................................................. 7
6. Function Module................................................................................................................................... 8
7. Assemble and Operate ........................................................................................................................ 9
7.1. Open and check items ........................................................................................................................... 9
7.2. Remove protective film of Air filter.................................................................................................... 9
7.3. Recommended Placement..................................................................................................................10
7.4. Connect the power cord......................................................................................................................10
7.5. Panel Control...........................................................................................................................................10
8. Attentions........................................................................................................................................... 11
1. Overview
“Dolphin”Plasma Air Sterilizer (BKS-LTP-DP01) disinfects the air and the space of the environment
through the rapid generation of plasma, in the way of fan air. Because it does not produce
harmful substances, man-machine can coexist.

BooCax 4/ 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
1.1. Disinfection principle
The effective purification of air in space environment is realized by rapidly generating plasma and
changing air by fan.
The role of the active group：A large number of reactive oxygen ions, high-energy free groups
and other components contained in plasma are easy to oxidize and denature proteins and nucleic
acids in bacteria, mold, spores and viruses, resulting in the death of various microorganisms.
The effect of high-speed particle to breakdown：Electrons and ions with high kinetic energy
can penetrate and etch bacteria and virus particles, thus achieving inactivation of bacteria and
viruses.
1.2. Range of Application
It can be used for air disinfection in closed and non-closed space
environment. The effective area of single disinfection can reach 100 square
meters, and the maximum air change volume of the equipment can reach
1000m³/h.
1.3. The main bactericidal factors and
their intensity
Plasma density:7.81 × 1017𝑚−3~2.27 × 1018𝑚−3
Plasma density is a measure of how much plasma is produced
in units per meter cubed.
The higher the density of plasma, the higher the elimination
rate of the passing air.
1.4. Category of killing microorganisms
Plasma has a strong killing effect on harmful microorganisms and viruses such as staphylococcus
alba, natural bacteria in the air, which can be killed and inactivated instantly after contact.

BooCax 5/ 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
1.5. Machine Life
Under the condition of regular maintenance, the validity period of the product is 5 years.
1.6. Product Superiority
With plasma generator which produce plasma up to 18 powers of high density, the disinfection
area of BooCax Plasma Air Sterilizer reaches 100 square meters and the highest air change volume
is up to 1000m³/h, accelerating the air circulation disinfection more thoroughly.
With simple operation panel, the state of disinfection machine can be easily and quickly adjusted
to meet different disinfection needs.
2. Product Features
①Maximum air volume: 1000m³/h；
②High-efficiency air disinfection by High-efficiency Plasma generator，plasma density reaches
2×1018/m³
③Dual control by the button panel and remote control, support timing and long-term
disinfection modes
④Air-filter replacement prompt (the machine will prompt when the air filter reaches expiry
date, and the prompt can be cleared manually)
⑤Mute universal wheel, easy to move
⑥Triple Air filters (initial effect air filter + HEPA air filter + Plasma air filter), triple protection
⑦Applicable to clinics, mobile cabinet hospital, office, conference room, toilet and other indoor
environment
3. Disinfection Effect
--- In a closed space of about 20m³, set the disinfection program to work for 30mins, the killing
rate of Staphylococcus albus is≥99.98%

BooCax 6/ 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
--- In a closed space of about 100m³, set the disinfection program to work for 60mins, the killing
rate of natural bacteria in air is≥92.86%,and for the same environment, this killing rate is≥96.05%
when the program work set to 120mins.
--- The killing rate of influenza A (H1N1) is 99.99% per 60mins, 30m³ of closed space.
--- The PM2.5 elimination rate reaches 99.98% per 60mins, 30m³ of closed space.
--- The Formaldehyde elimination rate reaches 97.6% per 24 hours, 30m³ of closed space.
4. Product Parameters
Type
Item
BooCax Plasma Air Sterilizer
Basic
parameters
Model No.:
BKS-LTP-DP01
Function:
to eliminate bacteria in the air, remove peculiar smell
and formaldehyde by plasma technology
Overall size:
900mm*530mm*330mm
Product weight:
26.5kg
Applicable environment
temperature
0℃-50℃
Performance
Parameters
Air volume
≤1000m³/h（four levels for adjust）
Applicable space
100 ㎡
noise
≤70db，the minimum level is 35dB
Plasma density
7.81 × 1017𝑚−3~2.27 × 1018𝑚−3
Elimination rate
Simulated field≥99.9%，on-site natural field≥90%
Notice
Fan speed level
Air volume (m³/h)
Noise dB
1
260
35
2
375
45
3
750
55
4
1000
70
Mobility
Motion type
Silent universal wheel

BooCax 7/ 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
Power
Supply Voltage
AC110V-220V
Power frequency
50Hz-60Hz
power
100W
sensor
PM2.5 sensor
1 group
Temperature and humidity
sensor
1 group
Remote control
1 pc
Air filter
Pre-filter*2，HEPA filter*2

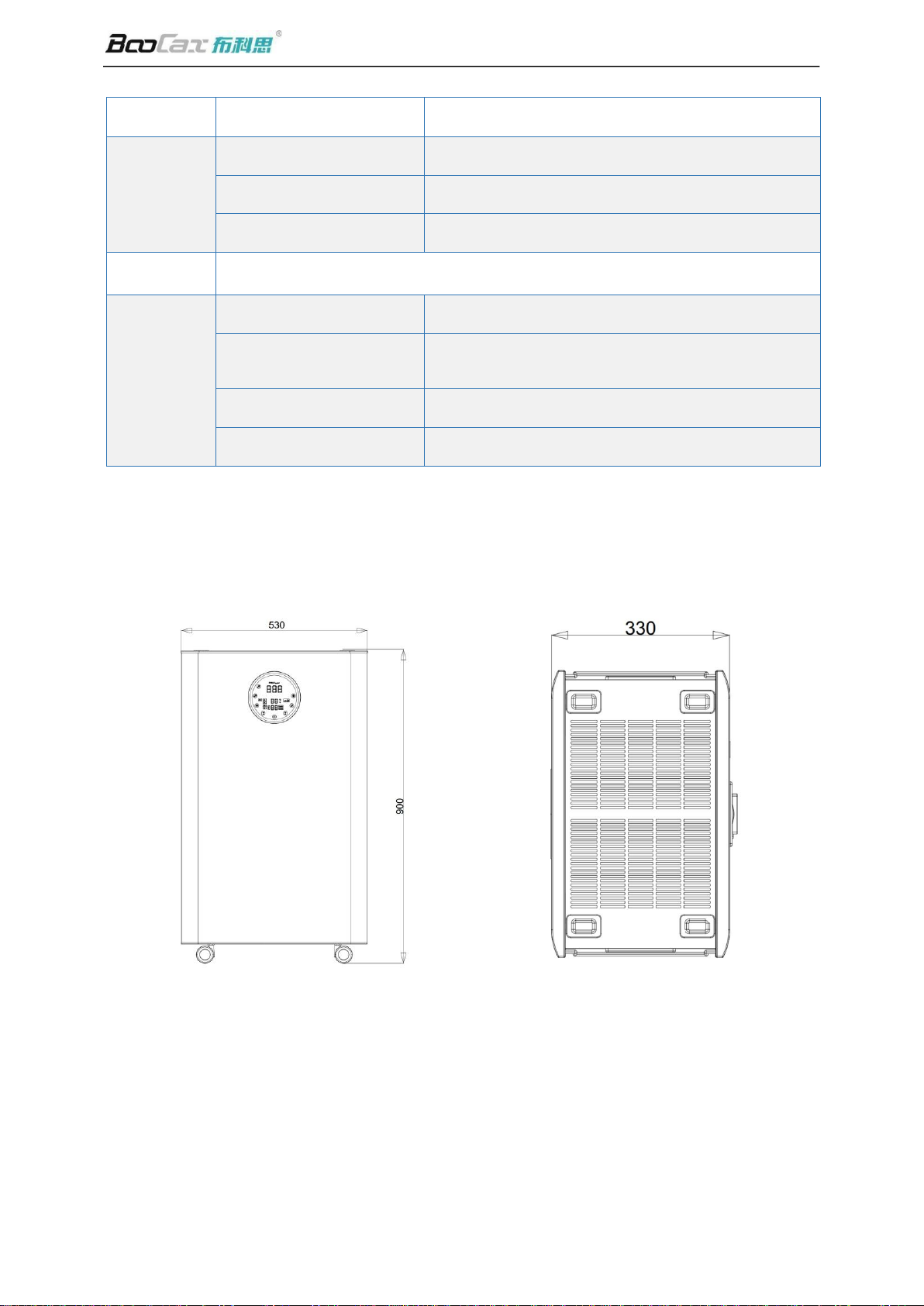

5. Overall Size
Front view Top view

BooCax 8/ 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
Back View Axonometric
6. Function Module
Operation
Panel
Universal
wheels
Lock catches of Air-outlet grid
Air-outlet grid
Handle of Air-
outlet grid
Machine
Handle
Air-inlet
grid
PM2.5
sensor
Sensor of
temperature &
Humidity
Power port

BooCax 9/ 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
7. Assemble and Operate
7.1. Open and check items
Packaging contains：
① sterilizer machine; ② Power cord; ③ Remote Control;④Quick guide;⑤Qualified
Certificate
7.2. Remove protective film of Air filter
The air filters of the new machine are sealed by protective film. Please remove the film
before use.
(1) Turn the four locks of air grid on the top of the machine inward
to the unlocked state.
(3)Hold the filter handle, pull up to take out the filter；
（5）Lock up the four locks of the air grid.；
(4) Remove the packaging of the filter, and restore the filter and air grid.
(2) Lift up the air grid and remove the air grid.

BooCax 10 / 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
7.3. Recommended Placement
7.4. Connect the power cord
power port
7.5. Panel Control
≥120cm
Filter Reset
Sleep
Power-off Alarm
Power-on Alarm
Fan Speed selection
Plasma Switch ON/OFF
Plasma level
Switch on/off
PM2.5 concentration
indicator

BooCax 11 / 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
Introduction of PM 2.5 Concentration Indicator Light Ring：
Blue:1-75ug/m³； Green:76-150ug/m³；Red:151-300ug/m³；Red Flashing：301-999ug/m³；
8. Attentions
①To Select the Plasma level for matching should be based on the actual space area, table be-
low is for the matching rules:
Plasma Level Selection
Plasma Level
1
2
3
4
5
6
7
8
9
10
Applicable area
(㎡)
10
20
30
40
50
60
70
80
90
100
②It is suggested that the filter replacement-
frequency for the office environment is one year. For the worse enviroment, the replacement
frequency is suggested to be half a year or less.
③When the button "Filter Reset" lights on, please replace the filter. Then long press the button
for 3-5 seconds to release the alarm.
④Please place and operate the machine in a flat, firm and normal temperature position as far
as possible.
⑤Do not place it in the sun for a long time, so as not to deteriorate the material of the body
and affect the performance.
⑥Before moving the machine, it should be power off firstly and plugged off the power cord.
⑦It is forbidden to power on the machine if the filter is not set in the place.
⑧When not using the product for a long time, please unplug the power plug and keep the po
wer off.
⑨If the product has abnormal sound, smell, high temperature and other abnormal conditions,
please immediately power off and stop using.
⑩Do not put fingers or other foreign objects in the air inlet and outlet.
⑪Please be careful not to put hair, fabric and other filamentous articles near the machine, so
as not to be involved into it.
⑫Do not sit, lean, tilt or dump the product.
⑬During maintenance, be sure to power off the machine first. Do not power off or power on
the machine with wet hands.

BooCax 12 / 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
⑭The company will not be responsible for the loss caused by exceeding the scope of use.
⑮The universal-wheels are with locking-buckle for self-lock if needed.

BooCax 13 / 13 www.boocax.com
Product manual of Plasma Air Sterilizer (BKS-LTP-DP01) V1.0.5
www
. boocax.com
