INSTALLING YOUR NEW BookEndz® DOCK
1. Place the BookEndz Dock on the at surface on which it
will be used and plug all of your external devices into the
BookEndz Docking Station (video monitor, network,
modem, etc.).
2. Shut down the MacBook and close the LCD screen.
3. Place the MacBook next to the BookEndz Dock (with the
ports of the MacBook aligning with the connectors of the
BookEndz Dock). Slowly slide the BookEndz Dock into
the MacBook.
4. Restart your MacBook and allow your peripheral devices
to bootup.
5. To travel with your MacBook, shut down your MacBook
and all external devices and close the LCD screen. It is not
necessary to unplug them from the dock. Gently pull
the dock away from the MacBook and you will be on your
way in seconds!
6. Refer to page 10 for more details on docking and undocking.
SECURITY FOR YOUR MacBook
AND BookEndz® DOCK
Since the BookEndz Docking Station allows you to remove
your MacBook in a matter of seconds, security should be a
concern. Security options for your computer include third party
solutions, such as the Kensington Slim MicroSaver® Notebook
Security Cable.
The MacBook has its own security slot on the left side towards
the front of the computer, and the BookEndz Dock has a
security slot on its left side near the back of the dock. You may
wish to secure one or both items while you are away.
Security devices may be connected to the slot(s) on the side of
the BookEndz Dock and/or the MacBook.
49

THE 13” MacBook
FEATURES & PORTS
Your 13” DVI MacBook has nine side panel ports and features
as shown:
1. Power 6. USB 2
2. Ethernet 7. Audio In
3. Mini-DVI port 8. Audio Out
4. FireWire 9. Security Slot
5. USB 1
AUDIO HOOKUP
The Headphone Out Connector on your BookEndz Dock was
designed to allow use of either external speakers or the internal
speakers of your MacBook.
To use external speakers, move the Headphone Out Connector
to engage into the MacBook:
To use internal speakers, move the Headphone Out Connector
to disengage from the MacBook:
85
1 2 3 4 5 6 7 8 9

BookEndzDOcK fEATUREs & cONNEcTORs
Top View
The connectors shown below mate with those on your MacBook
and allow you to easily dock and undock with your external
devices.
1. USB 2.0 6. Mini DVI
2. Headphone Out 7. Ethernet
3. Audio In 8. USB Indicator LED
4. USB 2.0’s 9. Stacked Dual USB 2.0
5. Firewire 400 10. Full Size VGA Monitor
BookEndzDOcK fEATUREs & PORTs
Rear View
Plug all of your peripherals into the ports shown below on the
rear of your BookEndz
BookEndz
1. Full Size DVI 5. Headphone/Audio Out
2. FireWire 400 6. Kingston Lock
3. Ethernet 7. Stacked Dual USB 2.0
4. Audio Line in 8. USB Power
67
23
4
1567
9
10
81
2345
7
8
6

BookEndz®DOCK FEATURES & CONNECTORS
Top View
The connectors shown below mate with those on your MacBook
and allow you to easily dock and undock with your external
devices.
1. USB 2.0 6. Mini DVI
2. Headphone Out 7. Ethernet
3. Audio In 8. USB Indicator LED
4. USB 2.0’s 9. Stacked Dual USB 2.0
5. Firewire 400 10. Full Size VGA Monitor
BookEndz®DOCK FEATURES & PORTS
Rear View
Plug all of your peripherals into the ports shown below on the
rear of your BookEndz Dock. Be sure all peripherals are turned
off prior to connecting them to your BookEndz Dock.
1. Full Size DVI 5. Headphone/Audio Out
2. FireWire 400 6. Kingston Lock
3. Ethernet 7. Stacked Dual USB 2.0
4. Audio Line in 8. USB Power
67
234
1567
9
10
81
2345
7
8
6

THE 13” MacBook
FEATURES & PORTS
Your 13” DVI MacBook has ten side panel ports and features
as shown:
1. Power 6. USB 2
2. Ethernet 7. Audio In
3. Mini-DVI port 8. Audio Out
4. FireWire 9. Security Slot
5. USB 1

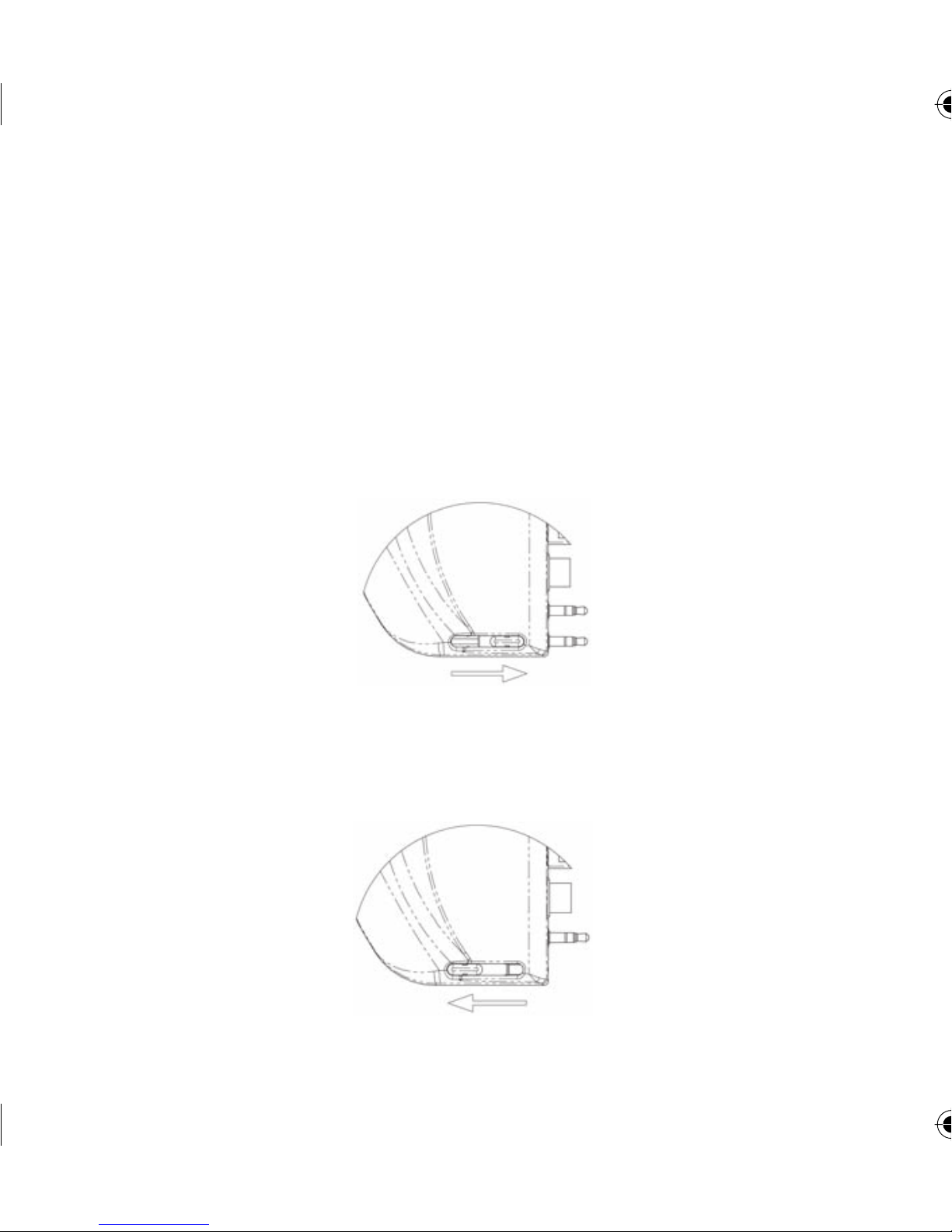

AUDIO HOOKUP
The Headphone Out Connector on your BookEndz Dock was
designed to allow use of either external speakers or the internal
speakers of your MacBook.
To use external speakers, move the Headphone Out Connector
to engage into the MacBook:
To use internal speakers, move the Headphone Out Connector
to disengage from the MacBook:
85
1 2 3 4 5 6 7 8 9

INSTALLING YOUR NEW BookEndz®DOCK
1. Place the BookEndz Dock on the flat surface on which it
will be used and plug all of your external devices into the
BookEndz Docking Station (video monitor, network,
modem, etc.).
2. Shut down the MacBook and close the LCD screen.
3. Place the MacBook next to the BookEndz Dock (with the
ports of the MacBook aligning with the connectors of the
BookEndz Dock). Slowly slide the BookEndz Dock into
the MacBook.
4. Restart you MacBook and allow your peripheral devices
to bootup.
5. To travel with your MacBook, shut down your MacBook
and all external devices and close the LCD screen. It is not
necessary to unplug them from the dock. In the same
motion depress the thumb ejector lever and push the
dock away from you MacBook/ The BookEndz Dock will
gently undock from your MacBook and you will be on your
way in seconds.
6. Refer to page 10 for more details on docking and undocking.
SECURITY FOR YOUR MacBook
AND BookEndz®DOCK
Since the BookEndz Docking Station allows you to remove
your MacBook in a matter of seconds, security should be a
concern. Security options for your computer include third party
solutions, such as the Kensington Slim MicroSaver®Notebook
Security Cable.
The MacBook has its own security slot on the left side towards
the front of the computer, and the BookEndz Dock has a
security slot on its left side near the back of the dock. You may
wish to secure one or both items while you are away.
Security devices may be connected to the slot(s) on the side of
the BookEndz Dock and/or the MacBook.
49

TABLE OF CONTENTS
Installing Your New BookEndz®Dock 4
13” MacBook®- Features & Ports 5
BookEndz®Dock - Features & Connectors 6
Top View
BookEndz®Dock - Features & Ports 7
Rear View
Audio Hookup 8
Security for Your MacBook®and BookEndz®Dock 9
Docking and Undocking Your BookEndz®Dock 10
Limited Warranty 11
DOCKING AND UNDOCKING
YOUR BookEndz®DOCK
Docking your BookEndz Dock into the MacBook is simple,
quick, and easy. With your MacBook shutdown (not asleep),
position the dock on the flat surface you intend to use it on.
Align the connectors on the BookEndz Dock, with the ports
on the MacBook, and gently push the BookEndz Dock until
docking is complete.
To undock, shutdown the MacBook and all in one motion gently
pull the BookEndz Docking Station away from your MacBook.
10 3
