Jensen JiMS-520i User manual

Docking System for iPod® and iPhone™
Owner’s Manual
JiMS-520i
(iPod and iPhone Not Included)
Please read this Instruction Manual carefully before
using the unit and retain it for future reference

1
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT
INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET REFER SERVICING TO
QUALIFIED PERSONNEL ONLY.
The Caution marking is located at the bottom of the unit
The rating plate is located at the bottom of the unit
CAUTION:
PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS
OWNER’S MANUAL AND THOSE MARKED ON THE UNIT, KEEP THESE INSTRUCTIONS.
RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can
result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if
you observe the following procedures for installation, use and servicing. This unit does not
contain any parts that can be repaired by the user.
The symbol for class II (Double insulation)
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS
VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.

2
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s
instructions.
IMPORTANT SAFETY INSTRUCTIONS
(Continued)
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding – type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15.The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on apparatus.
16.Main plug is used as disconnect device and it should remain readily operable during
intended use. In order to disconnect the apparatus from the mains completely, the mains
plug should be disconnected form the mains socket outlet completely.
17.Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

3
This Class B digital apparatus complies with Canadian ICES-003.
FCC NOTICE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
needed.
– Consult the dealer or an experienced radio/TV technician for help.
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

4
TABLE OF CONTENTS
WELCOME!...........................................................................................................................................5
PROTECT YOUR FURNITURE.............................................................................................................5
ABOUT THIS MANUAL .........................................................................................................................5
LOCATION OF CONTROLS..................................................................................................................5
FRONT VIEW...............................................................................................................................5
REAR VIEW.................................................................................................................................6
DISPLAY UNIT.............................................................................................................................6
REMOTE CONTROL UNIT...........................................................................................................7
GETTING STARTED.............................................................................................................................8
UNPACKING THE DOCKING SYSTEM.......................................................................................8
USING THE FM & AM ANTENNA ................................................................................................8
AUX IN CONNECTIONS..............................................................................................................8
POWER SOURCE.................................................................................................................................8
CONNECTING TO POWER SUPPLY..........................................................................................8
ACTIVATING THE REMOTE CONTRL ........................................................................................8
REPLACING THE REMOTE CONTROL BATTERY.....................................................................9
BATTERY PRECAUTIONS..........................................................................................................9
RADIO OPERATION.............................................................................................................................9
LISTENING TO RADIO................................................................................................................9
TO PRESET STATIONS ............................................................................................................ 10
TO RECEIVE PRESET STATIONS............................................................................................ 10
AUX OPERATION...............................................................................................................................11
IPOD ADAPTORS...............................................................................................................................12
DOCKING YOUR IPOD.......................................................................................................................13
DOCKING YOUR IPHONE..................................................................................................................14
CONNECTING AND VIEWING THE S-VIDEO OUT (IPOD)................................................................ 15
CONNECTING AND VIEWING THE S-VIDEO OUT (IPHONE)........................................................... 15
USING HEADPHONES ....................................................................................................................... 16
CLOCK SETTING................................................................................................................................16
SETTING THE TIME .................................................................................................................. 16
SETTING THE ALARM (S).........................................................................................................16
CLOCK LIGHT OPERATION...................................................................................................... 17
ALARM OPERATION..........................................................................................................................17
WAKE TO ALARM, IPOD OR RADIO.........................................................................................17
SNOOZE OPERATION .............................................................................................................. 18
SLEEP OPERATION........................................................................................................................... 18
ACTIVATING THE SLEEP TIMER.............................................................................................. 18
ADJUSTING THE SLEEP PERIOD............................................................................................18
DEACTIVATING THE SLEEP TIMER......................................................................................... 18
SLEEP AND WAKE TO ALARM, IPOD OR RADIO.............................................................................19
CARE AND MAINTENANCE ............................................................................................................... 19
CLEANING THE UNIT................................................................................................................ 19
TROUBLESHOOTING GUIDE............................................................................................................. 20
SERVICE.............................................................................................................................................20
SPECIFICATION.................................................................................................................................21

5
WELCOME
Thank you for purchasing the JENSEN JiMS-520i Docking System.
Before operating the unit, please read this manual thoroughly and retain it for future reference.
PROTECT YOUR FURNITURE!!
This system is equipped with non-skid rubber ‘feet’ to prevent the product from moving when you
operate the controls. These ‘feet’ are made from non-migrating rubber material specially formulated to
avoid leaving any marks or stains on your furniture. However certain types of oil based furniture
polishes, wood preservatives, or cleaning sprays may cause the rubber ‘feet’ to soften, and leave marks
or a rubber residue on the furniture.
To prevent any damage to your furniture we strongly recommend that you purchase small self-adhesive
felt pads, available at hardware stores and home improvement centers everywhere, and apply these
pads to the bottom of the rubber ‘feet’ before you place the product on fine wooden furniture.
ABOUT THIS MANUAL
Instructions in this manual describe using the controls on the remote. You can also use the controls on
the main unit if they have the same or similar names as those on the remote.
LOCATION OF CONTROLS
Front View
1. Volume + Button 10. ALARM 2 Button
2. STANDBY/ON Button 11. ALARM 1 Button
3. EQ Button 12. Skip Forward/Tuning Up Button !
4. Skip Backward/Tuning Down Button #13. SLEEP Button
5. FUNCTION Button 14. SET/FM Mode Button
6. BAND Button 15. Remote Sensor
7. Volume - Button 16. iPod Connector and Docking Bay

6
8. SNOOZE/LIGHT Button 17. Display
9. Play/Pause Button

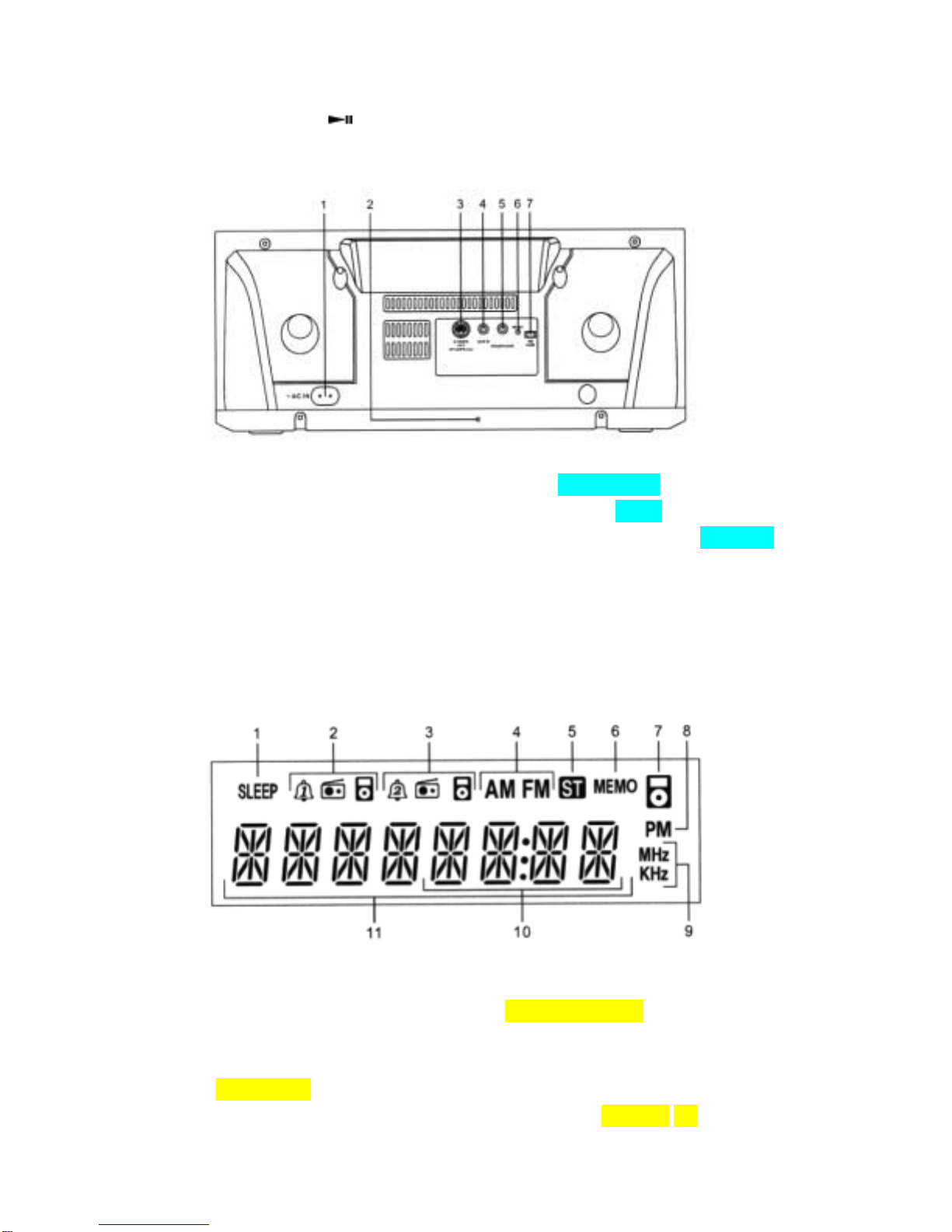

Rear View
1. AC INPUT SOCKET 5. HEADPHONE Jack
2. FM Antenna Wire 6. RESET Button
3. S-VIDEO OUT (iPod/iPhone) 7. AM LOOP Antenna Connector
4. AUX IN Jack
Display Unit
1. SLEEP Indicator 7. iPod Mode Indicator
2. ALARM 1 Wakeup Mode Indicator 8. PM Indicator
3. ALARM 2 Wakeup Mode Indicator 9. FREQUENCY Unit
4. AM-FM Band Indicator 10. TIME/FREQUENCY Reading
5. FM STEREO Indicator 11. FUNCTION/VOLUME/EQ Indicator
6. MEMORY Indicator

7

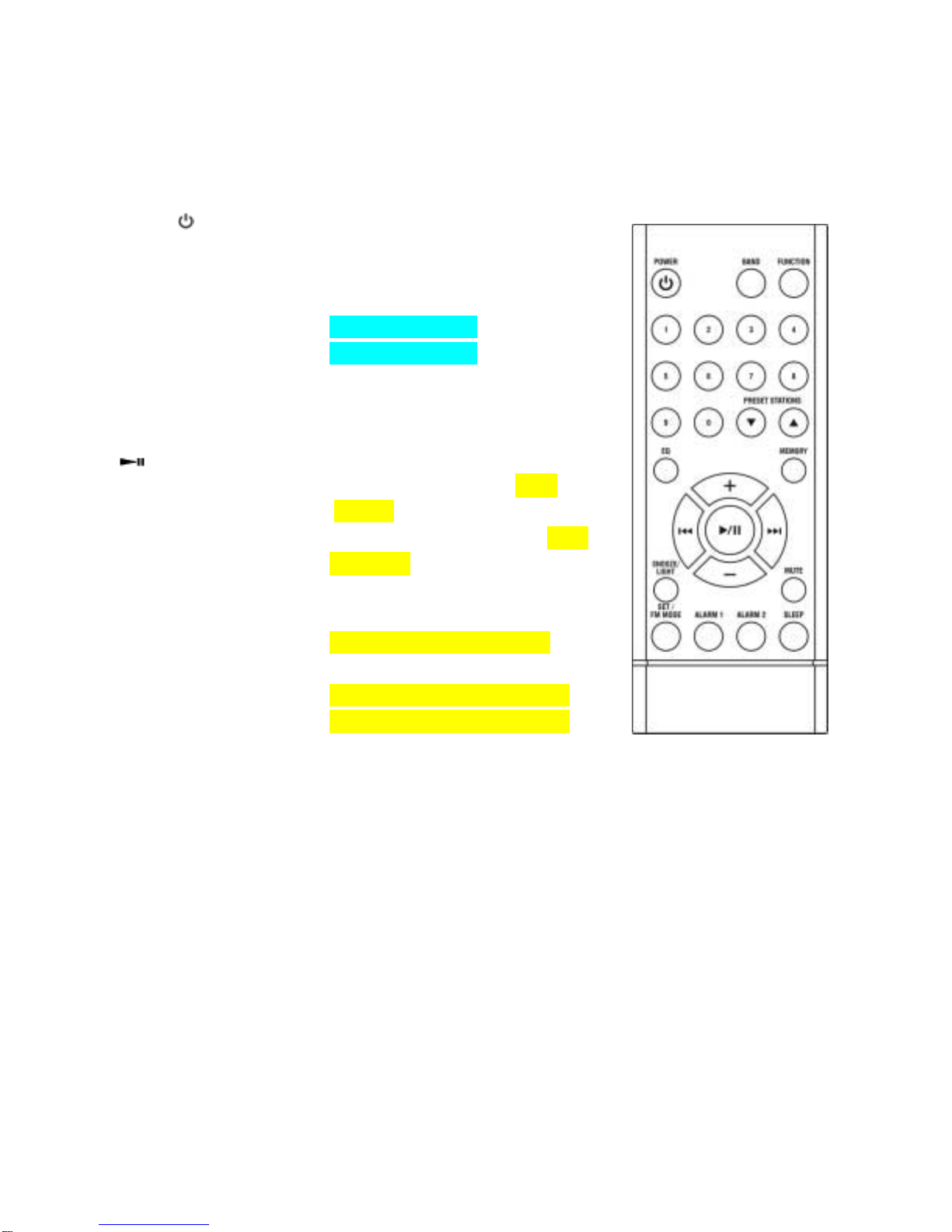

Remote Control Unit
POWER Turns the System On/Off
BAND Selects AM or FM Band
FUNCTION Selects Radio, iPod or Aux Mode
0 – 9 NumericButtons
PRESET STATIONS ▲Set & Access Stored Stations Up
PRESET STATIONS ▼Set & Access Stored Stations Down
EQ Equalizer Options
MEMORY Programs Preset Stations
+, – Adjusts Volume Up and Down
Activates Play/Pause Function
! Skips Forward/Tuning Up/Sleep
Time Up Adjustment
# Skips Backward/Tuning Down/Sleep
Time Down Adjustment
SNOOZE/LIGHT Silences the Alarm Temporarily/
Switches Backlight On/Off
MUTE Turns System Sound On or Off
SET/FM MODE Sets Time /Selects FM ST or MONO
ALARM 1 Sets Alarm 1 Time/Wakeup Mode
ALARM 2 Sets Alarm 2 Time/Wakeup Mode
SLEEP Turns SLEEP Timer On

8
GETTING STARTED
Unpacking the JiMS-520i Docking System
Please save all the original packaging. It provides the safest way to transport your unit.
NOTE: The JiMS-520i is not magnetically shielded and may cause color distortion on the screen of
some TVs or video monitors. To avoid this, you may need to move JiMS-520i further away from
the TV or monitor if unnatural color shifts or image distortion occurs.
Using the FM and AM Antenna
Before using your docking system please make sure both the FM and AM antenna are positioned
properly.
• Uncoil the FM Antenna Wire at the back of the unit, making sure it is fully extended (You can
even tape it onto the wall if required, the higher the better).
• Plug the AM antenna loop to the AM LOOP Pin Socket at back
of the unit. Rotate the AM loop antenna for best reception.
AUX IN Connection
Plug one end of the included cord into the AUX IN jack on the back of JiMS-520i. Plug the other end of
the cord into your external audio player, such as an iPod shuffle, CD, MP3 Player etc.
POWER SOURCE
! This JiMS-520i Docking System operates from AC120V~ 60Hz line power supply.
! The Remote Control operates on 1 Lithium battery, CR2025 (Included).
Connecting to Power Supply
Insert the AC Cord Inlet into the AC cord socket on back of JiMS-520i and the other end into a standard
120V~ AC outlet as shown in the diagram below. JiMS-520i will automatically go into standby mode.
Remark:
In the event of a malfunction due to electrostatic discharge (ESD), reset the unit by pressing the
RESET button on the back of the main unit with a ballpoint pen or similar object.
After resetting, re-adjustment of the current and alarm time (s) are required.
Activating the Remote Control
RESET
BUTTON

9
i. To activate the Remote Control, remove the protective film.
ii. Point the remote control toward the front of the main unit. The effective range of the remote is
about 15~19 ft from the remote sensor and within an angle of about 45° from the front of the unit.

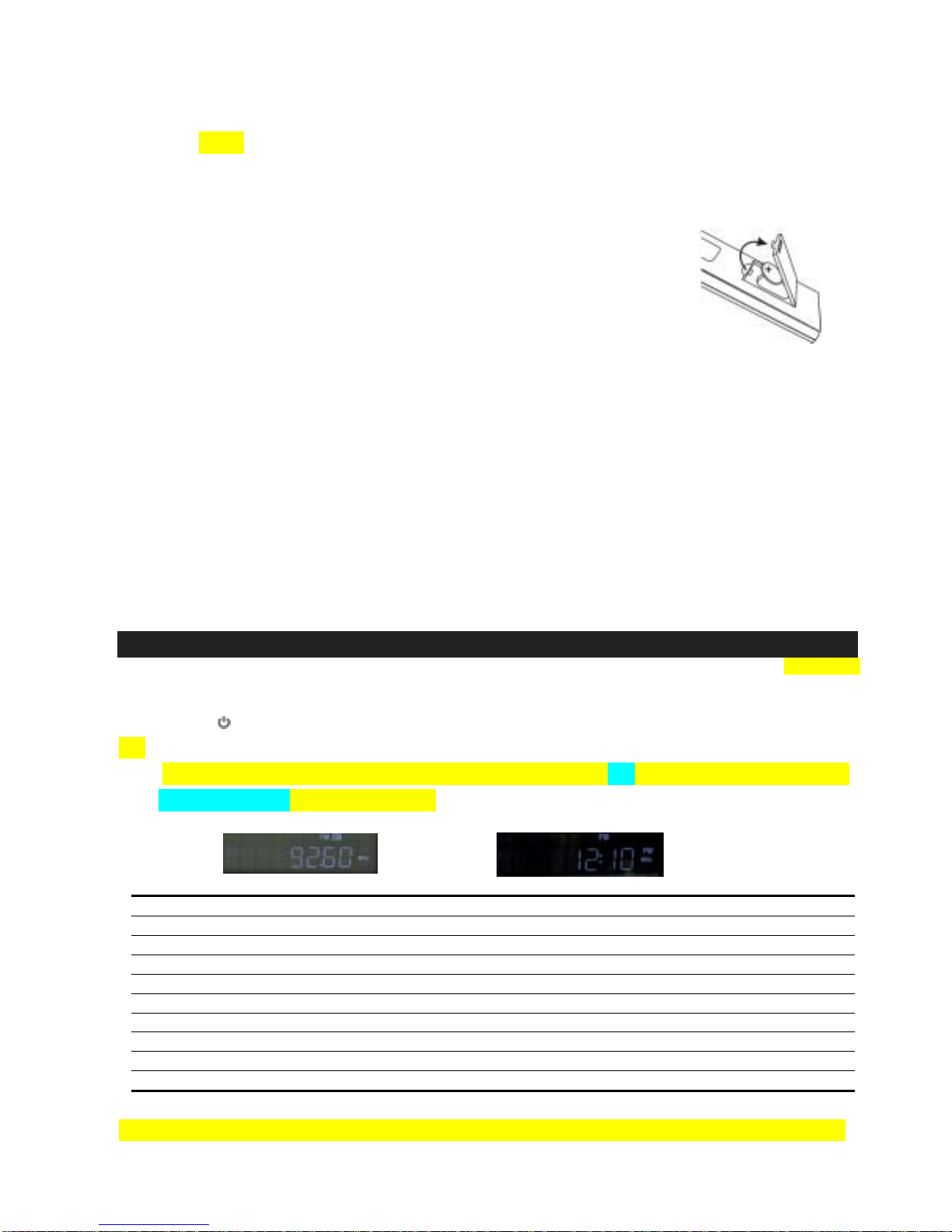

Remote Control Battery Replacement
Please replace your battery if the operating distance of the Remote Control drops drastically.
1. Remove the battery cover.
2. Install one new CR2025 Lithium battery into the battery compartment as
shown in the figure on the right.
3. Replace the battery cover.
CAUTION: The battery may leak or explode if incorrectly installed.
Battery Precautions
Follow these precautions when replacing the battery in this device.
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery
compartment. Reversed battery may cause damage to the device.
3. If the device is not to be used for a long period of time, remove the battery to prevent damage or
injury from possible battery leakage.
4. Do not dispose of battery in fire, battery may explode or leak.
RADIO OPERATION
The following procedures can be accomplished by using either the Remote or the controls on JiMS-520i.
Listening To The Radio
1. Press the Button to turn on the unit.
2. Press the FUNCTION Button to operate the unit i
n radio mode if required.
Note: The Display will change from displaying the radio frequency to the current time 1 minute after the
system enters the radio function mode.
TO: PRESS:
Switch between AM/FM band BAND Button repeatedly
Select FM MONO or ST mode SET/FM MODE Button repeatedly
Scan radio station automatically !or #Buttons and hold for 1 second
Stop auto-tuning !or #Buttons again
Scan radio station manually !or #Buttons repeatedly
Adjust the volume level (00~35) Volume + or - Buttons
Select the EQ EQ Button repeatedly until the desired EQ shown in the Display
Stop output from the speakers MUTE Button once
Resume output from the speakers MUTE Button again.
3. To check the current function mode, press the Volume +/- Buttons once. The Display will first show
