Booster BM-1750TVUSB User manual

BM-1750TVUSB
THE PERFECT SOUND
17" TFT LCD COLOR MONITOR WITH MULTI-MEDIA PLAYER
User's Manual
WARNING! HAZARD!
DO NOT OPERATE THIS UNIT UNLESS VEHICLE
IS PARKED IN SAFE AND LEGAL AREA.

Roofmounting monitor with multi-media player
GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
PANEL FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
BASIC OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
ACCESSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1
Roofmounting monitor with multi-media player

2

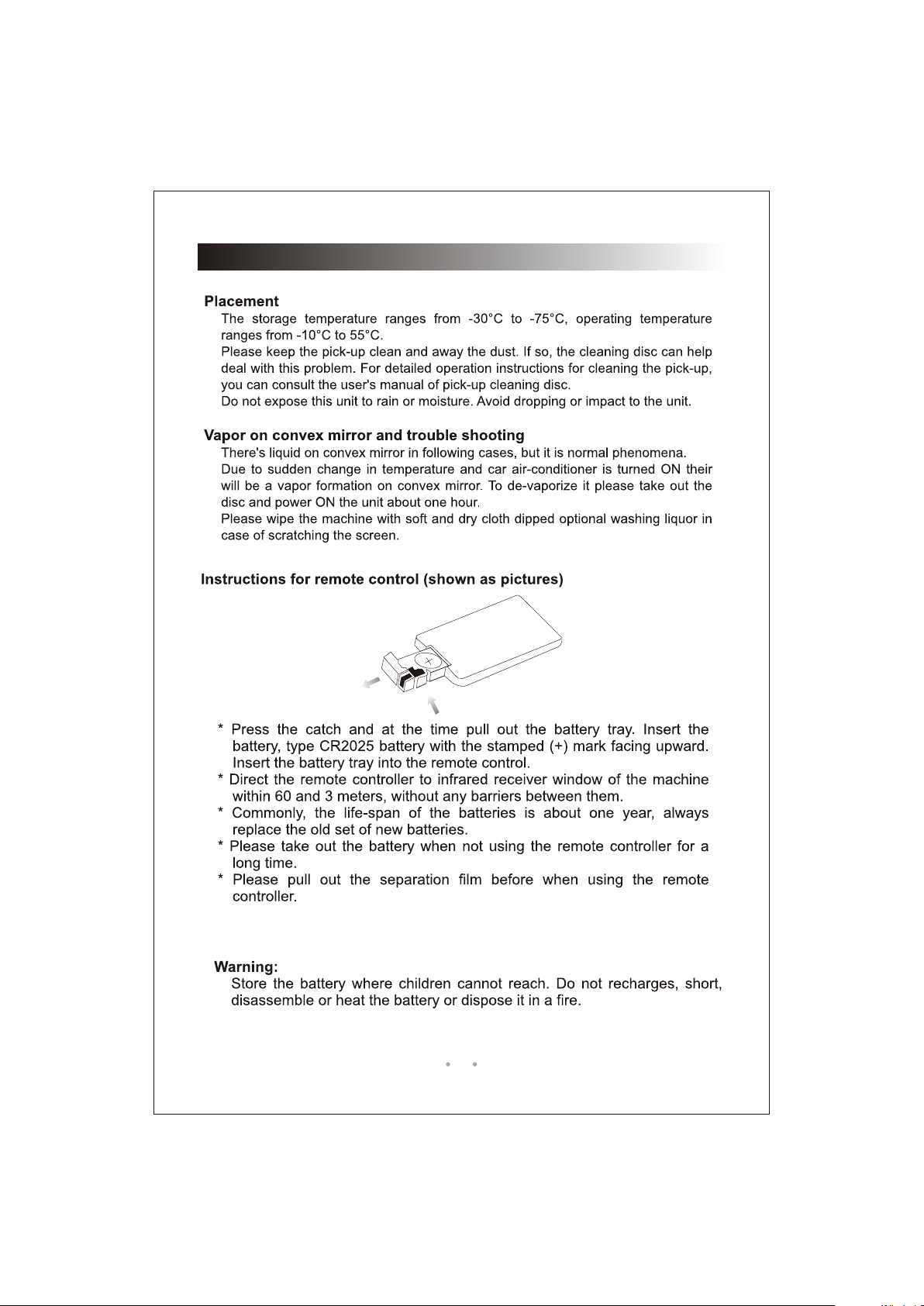

Roofmounting monitor with multi-media player
Push
Pull

3
Roofmounting monitor with multi-media player

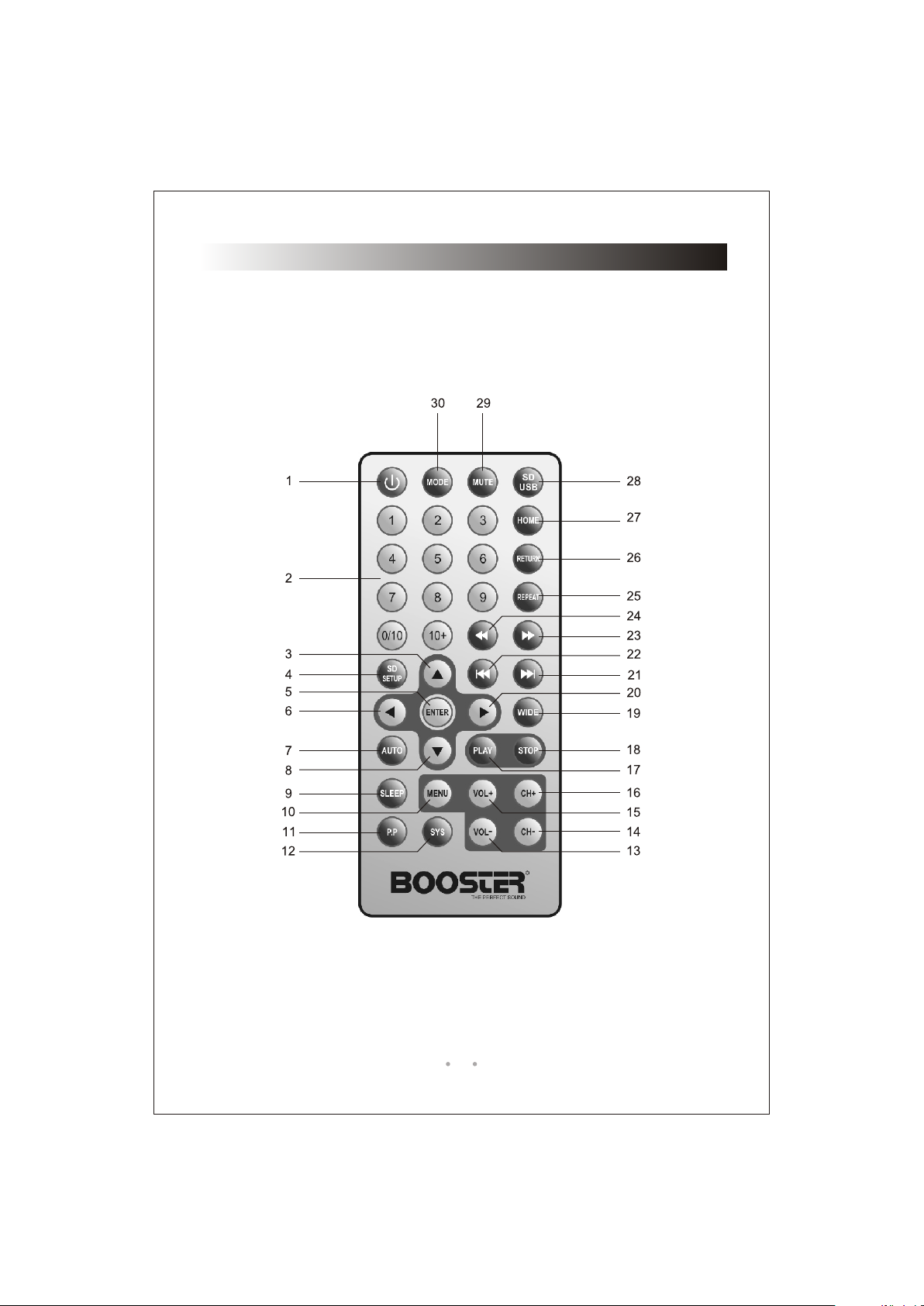

REMOTE CONTROL FUNCTION

1. POWER button: Press the POWER key to turn the power ON/OFF.
2. NUMBER button: In the SD/USB mode by pressing these button you can
directly select the program; In the TV mode, you can directly select the TV channel.
3. UPWARD button: In SD/USB mode, press it to select the menu or program.
4. SETUP button
5. ENTER button
6. LEFTWARD button: Press it to leftward select the menu or program.
7. AUTO button: No function
8. DOWNWARD button: In DVD/SD/USB mode, press it to select down the menu
or program.
9. SLEEP button: Time set.
10. MENU button: OSD Menu.
11. P.P button: Image mode.
12. SYS button: TV color system switch.
13/15. VOLUME button: Press the button to increase or decrease the volume.
14/16. CHANNEL button: In TV mode, press the button to search upwards or
downwards the TV channel.
17. PLAY button: Press once, it plays or pause.
18. STOP button: Press STOP for memory stop, press STOP twice to stop playing.
19. WIDE button: No function.
20. RIGHTWARD button: Press it to rightward select the menu or program.
21/22. PREVIOUS/NEXT button.
23/24. FAST BACKWARD/FAST FORWARD button.
25. REPEAT button: In the playing mode, press it to perform the repeated playing.
26. RETURN button.
27. HOME: In the SD or USB mode, press it to return the top-level menu.
28. SD/USB button: In the SD/USB media mode, press to switch SD or USB.
29. MUTE button: Press the key to turn on and of the volume output.
30. MODE button: Video switch.
4
Roofmounting monitor with multi-media player

5
Roofmounting monitor with multi-media player

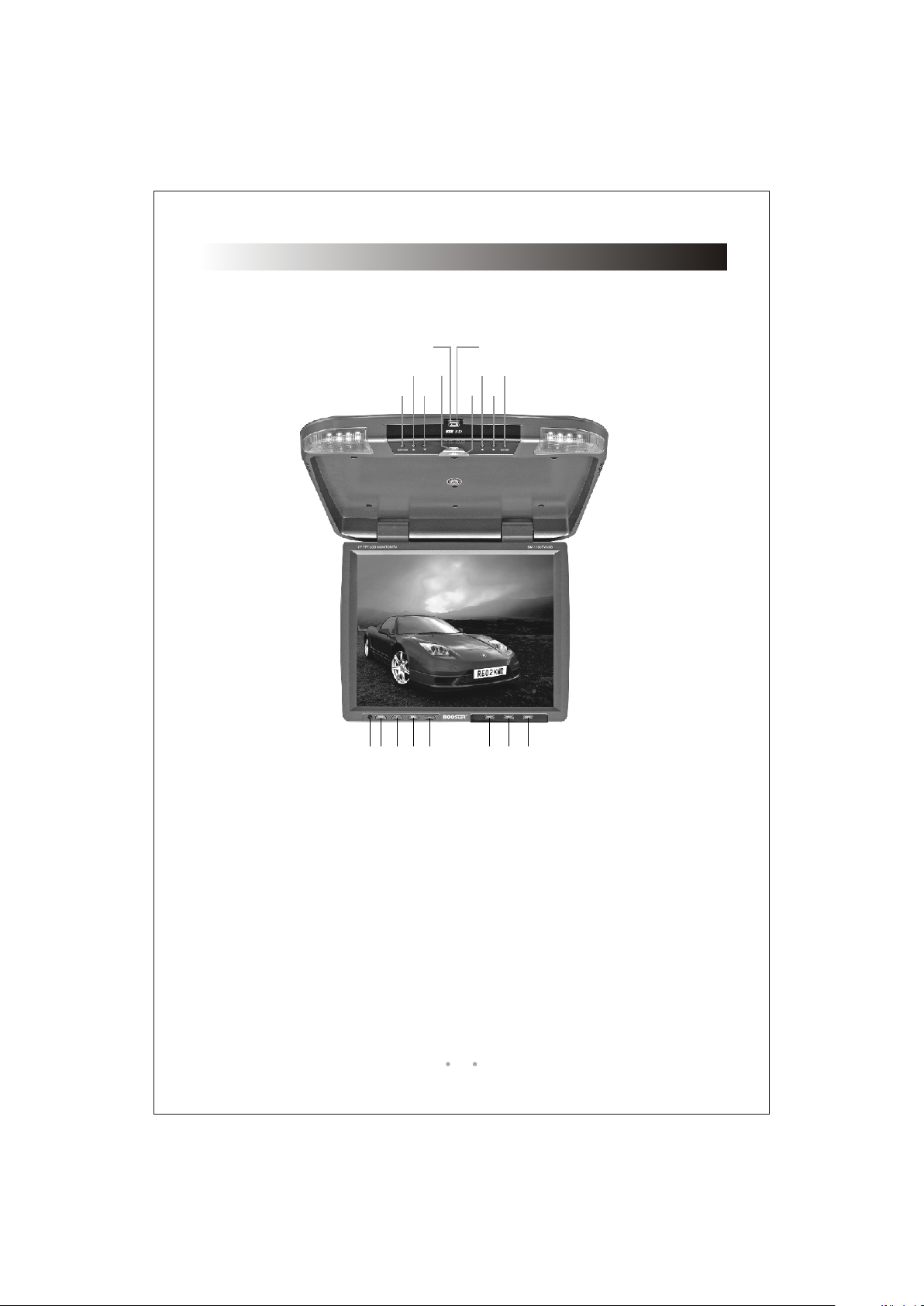

PANEL FUNCTION DESCRIPTION
1 2 3 4 56 7 8
16
15
14
13
12
11
10
9
USB PortSD Card Slot
1. REMOTE WINDOW
2. POWER BUTTON
3. VOLUME DOWN
4. MENU BUTTON
5. VOLUME UP
6. CH- ( IN TV MODE ,PRESS TO SELECT DOWN TV CHANNEL)
7. CH+ ( IN TV MODE ,PRESS TO SELECT UP TV CHANNEL)
8. TV/AV BUTTON (TV OR AV SWITCH)
9. ENTER BUTTON
10,11. RIGHT/LEFT DIRECTION CURSOR
12. OPEN (PRESS TO FLIP DOWN YOUR SCREEN)
13. LIGHT SWITCH AND TIME ADJUSTMENT
14,15. UP/DOWN MENU OR PROGRAM SELECTION
16. RETURN BUTTON

6
Roofmounting monitor with multi-media player
Note: This machine is suitable to some types of the car not all types.
key: LIGHT SWITCH / TIME ADJUSTMENT
A. Light switch
During initialization mode; Press shortly to switch on/off light.
B. Time adjustment
During any mode, Press 3 seconds to enter time adjustment mode.
The HOUR is twinkling, Press shortly to adjust the correct number
Press 3 seconds to finish hour adjustment and adjust MINUTE.
The MINUTE is twinkling, Press shortly to adjust the correct number.
Press 3 seconds again to finish time adjustment.

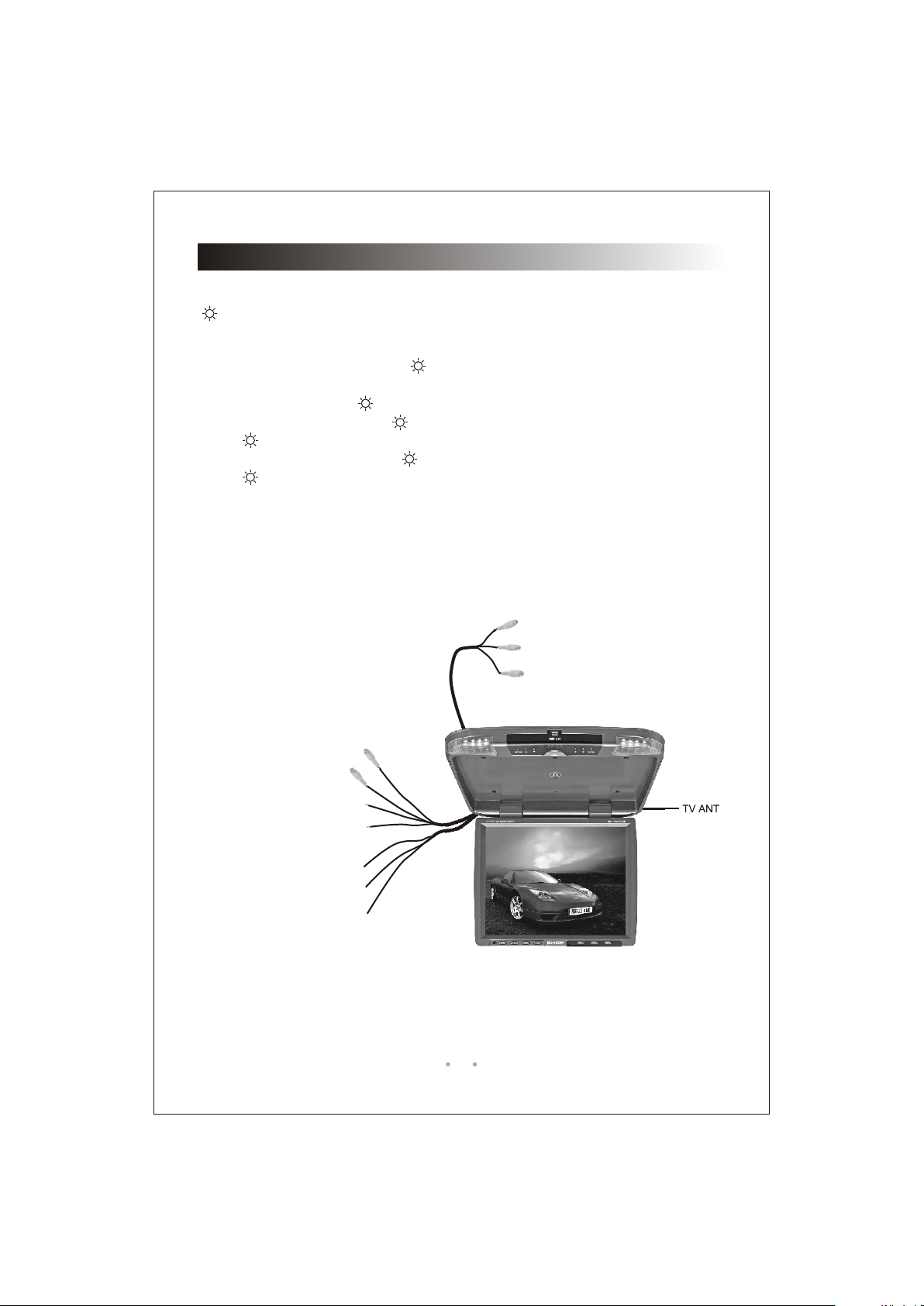

Wiring Diagram
YELLOW RCA (V OUT)
WHITE RCA (AUDIO OUT)
RED RCA (AUDIO OUT)
AV INPUT:
YELLOW RCA (VIDEO 1 IN)
YELLOW RCA ( VIDEO 2 IN)
POWER:
RED WIRE (+12V SWITCHED)
BLACK WIRE (-12V GROUND)
DOME LAMPS:
BLUE: GROUND
YELLOW WIRE: + DOOR SWITCH
RED WIRE: CONSTANT +12V
* FOR BETTER UNDERSTANDING ALL WIRES ARE PROPERLY TAGED.

7
Features:
1. The display unit has buit-in TV tuner.
2. Built-in USB 2.0 host and SD card reader.
3. Built-in wireless FM audio transmitter
4. Built-in IR audio transmitter
5. AV input channel
Basic operation
Roofmounting monitor with multi-media player

8
CONTRAST
BRIGHT
COLOR
SHARP
50
50
50
50
Roofmounting monitor with multi-media player
SELECT ADJUST
LANGUAGE
CALENDAR
FM
IR
SELECT ADJUST
PICTURE OPTION
ENGLISH
87.7 MHz
ON
50

9
Roofmounting monitor with multi-media player
TIME
ON TIME
OFF TIME
ATTENTION
CH-TIME
POSITION
SELECT ADJUST
CLOCK
POSITION
REMEMBER
BAND
SWAP
FINE
SEARCH
AUTO SEARCH
SELECT ADJUST
PRESET
50
22
ON
VHFH
20
248.25 MHz
COLOR--SYS
SOUND--SYS
BULE BACK
PAL
M
ON
SELECT ADJUST
SYSTEM

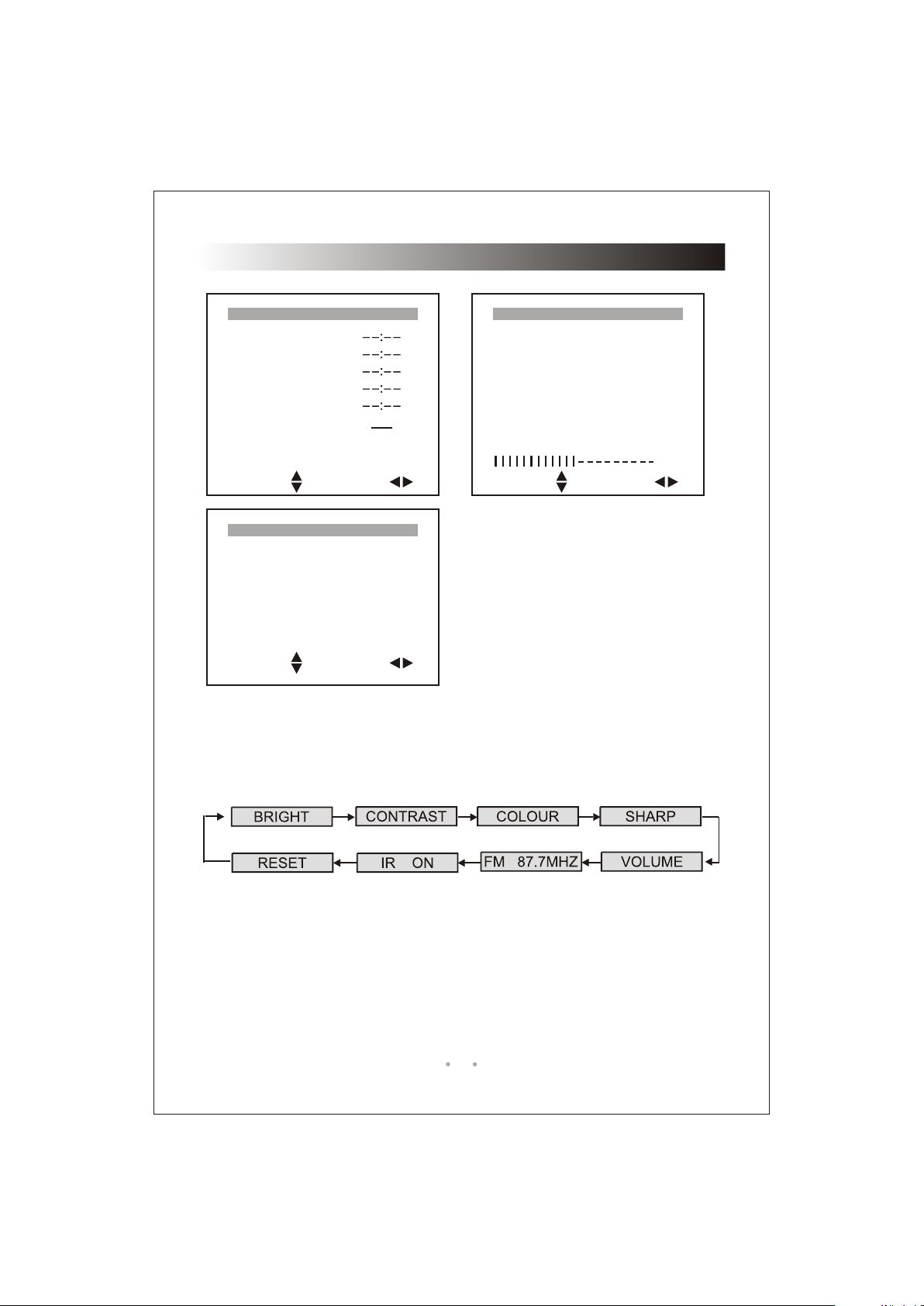

Press MENU button and select items which need to be adjusted like
brightness contrast ratio, select sub menu by pressing CH+/-, press
VOL+/- to adjust tem.
In SD/USB AV1 AV2 state, press MENU button the screen show as following:

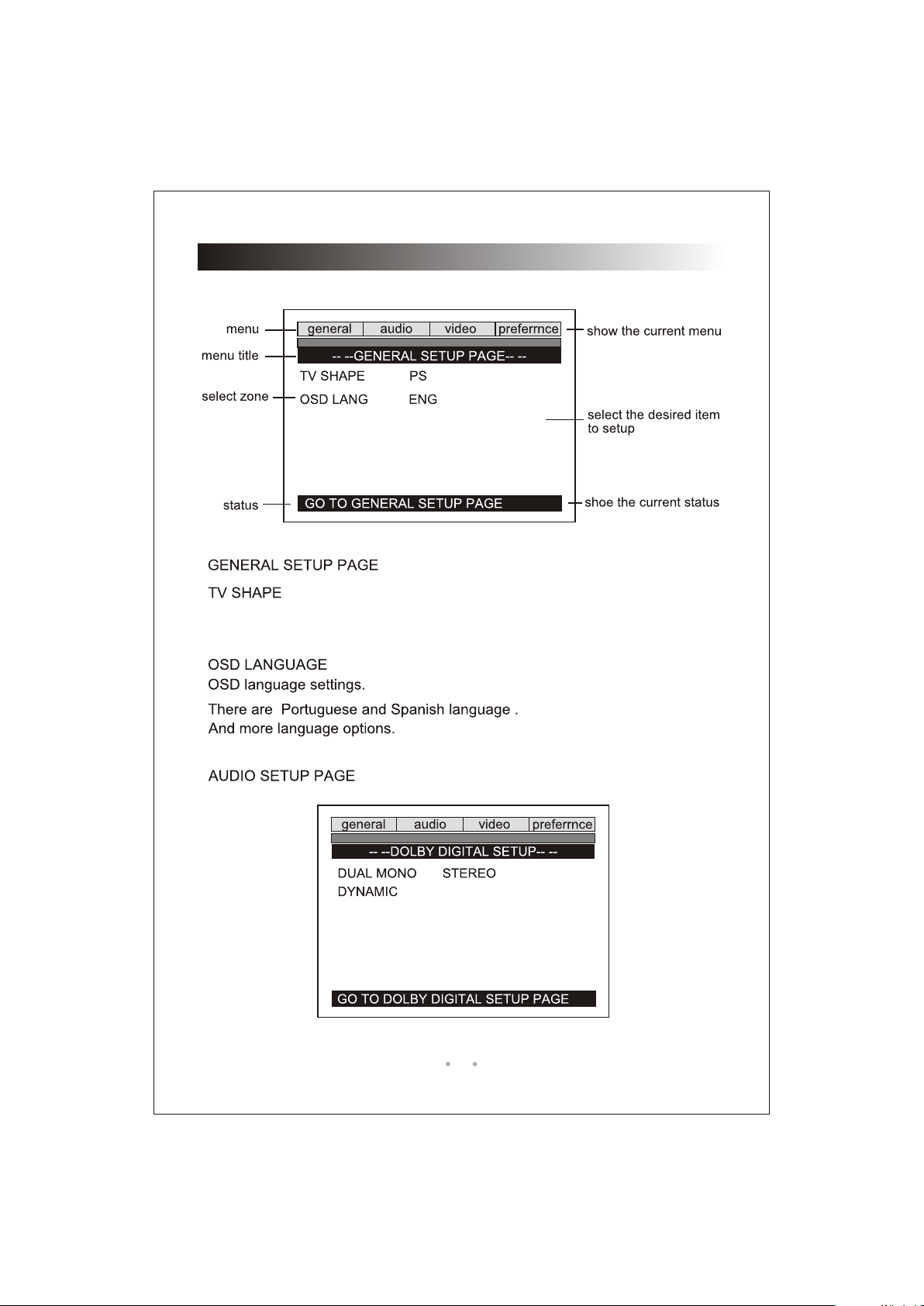

SD SETUP
Press SD SETUP to enter into setup page.
Move UP/DOWN button to select the desired item.
Move LEFT/RIGHT button to select the desired item.
Press ENTER button to confirm.

10

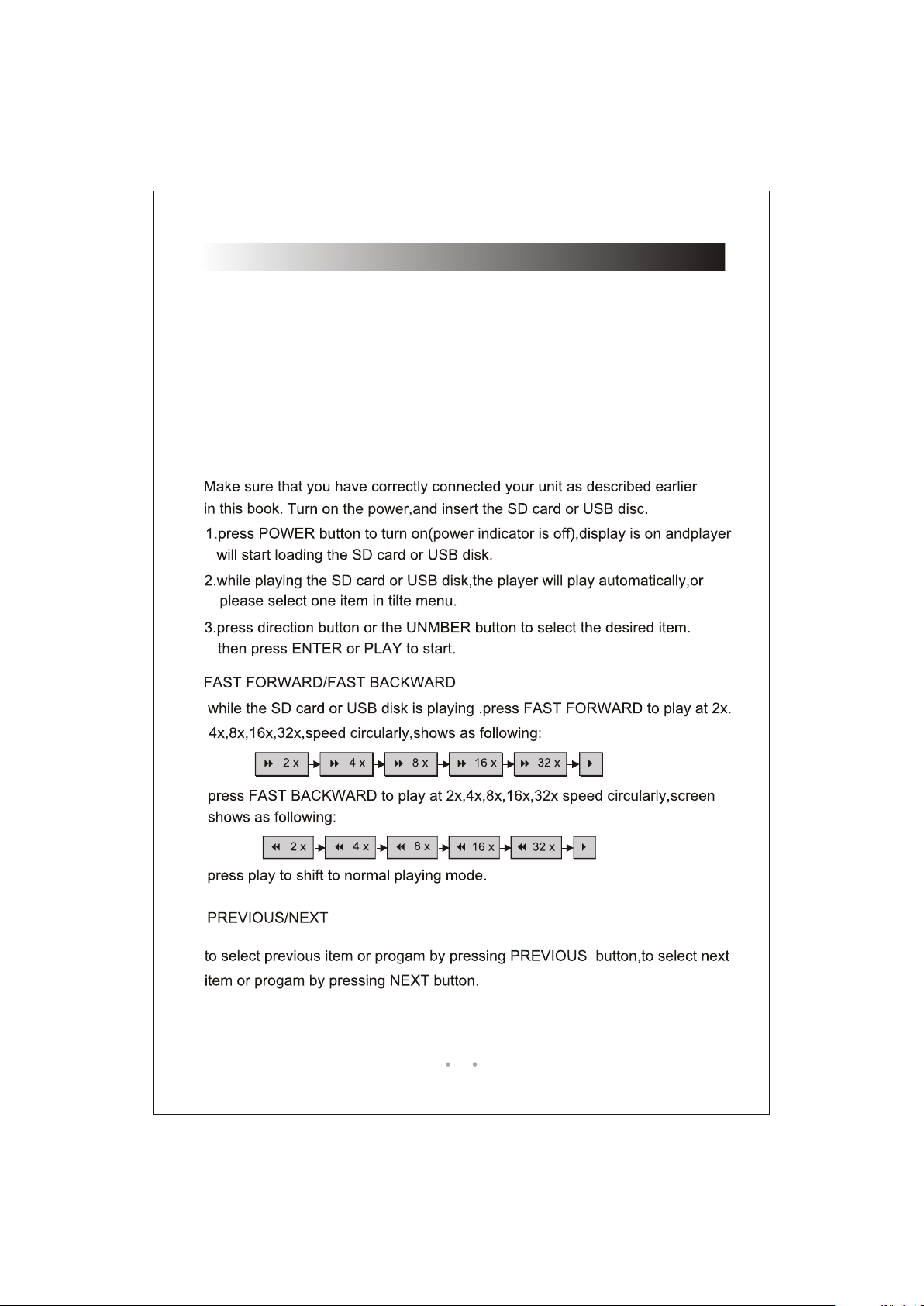

Roofmounting monitor with multi-media player
Because low-quality or pirated discs will result in bad effect, please play high
quality discs for your pleasant enjoying.

11
Roofmounting monitor with multi-media player

12
Roofmounting monitor with multi-media player
TV SETUP
Press MODE button to select TV.
Press MENU button and select "COLOR-SYS/SOUND-SYS" item, select
TV color system and audio system by pressing CH-/CH+, VOL-/VOL+ to
adjust them.
Press MENU button and select "AUTO SEARCH" item. it will automatic
search channel.
The cable TV program can be watched after it finish search.
Press CH-/CH+ to select TV channel.
Press VOL-/+ to adjust volume.
Voice mode choice: D/K B/G I M N.
Color mode choice: PAL NTSC SECAM PAL/M PAL/N.
TROUBLE SHOOTING
NO SOUND OR BAD SOUND EFFECT
Please check if cables are connected properly.
Please check audio shift setup.
Please adjust the receiving frequency to harmonized with the transmitting
frequency.
NO PICTURE
Check if cables are connected properly.
Video input is no t yet set up correctly.
The monitor is ON OR OFF.
POOR PICTURE
The color is not properly adjusted, please operate the remote controller to
adjust it.
The disc is scratched spotted.
THE REMOTE CONTROL DOES NOT WORK PROPERLY
There is an obstacle in the path of the remote control and unit.
Remove the obstacle, check if remote control point to receiver or not.
The batteries in the remote control are exhausted. Replace the batteries
with new ones.
NOTE: please contact with the dealer or approved service center help if the
troubles can't be solved by the methods offered.

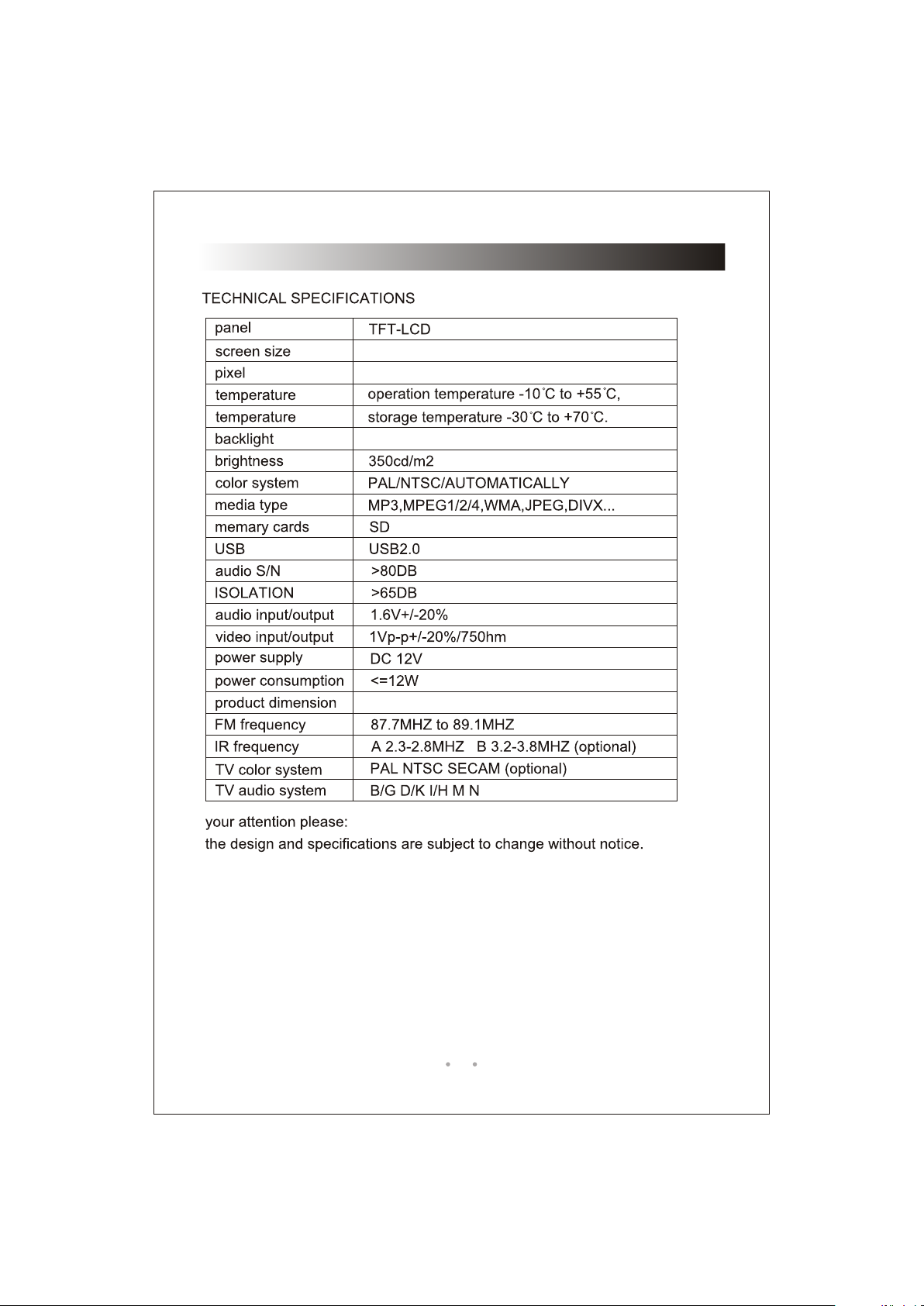

13
17 inch (4:3)
1280xRGBx1024
Roofmounting monitor with multi-media player
CCFL
418x422x50mm

14

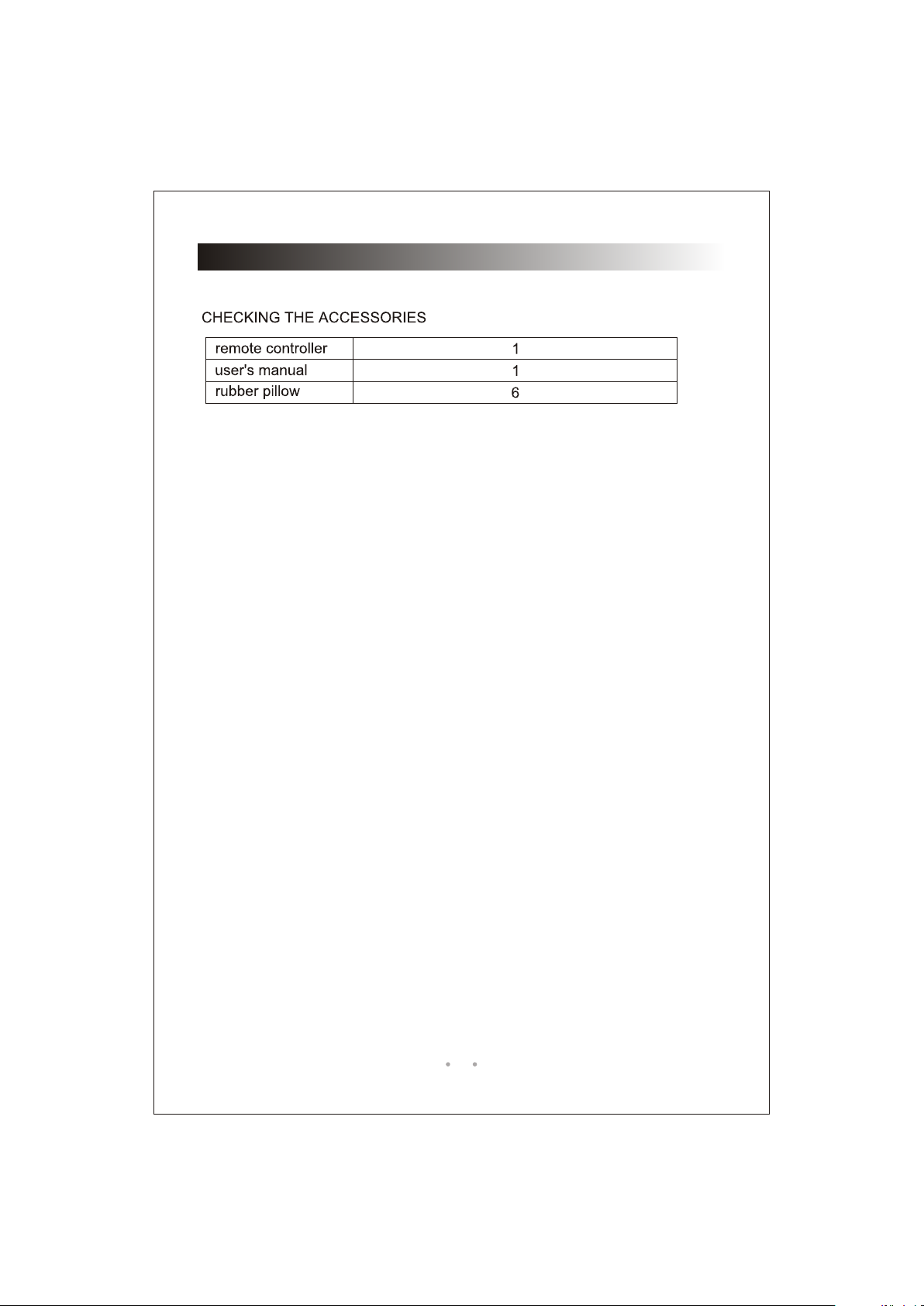

Roofmounting monitor with multi-media player
