Blaupunkt DVP 01C User manual

DVP 01C
Operating instructions
In Car Video

2
33 34
32
31 35 36
28 15 19 30 129
8
2
27
21
724 23 18 26 14
Pin
1 +VCC (IR)
2IR-data
3Ground (IR signal and cable
remote control)
4Signal (cable remote
control)
Pin
1 –
2Gr
ound
3IR-data
412V-24V
5Ground (IR signal and cable
remote control)
6Signal (cable remote
control)

3
DEUTSCH
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
ITALIANO
NEDERLANDS
SVENSKA
NORGE
SUOMI
TÜRKÇE
1
2
3
4
5
26
25
24
23
22
20
21
19
17
18
16
15
6
8
7
9
10
11
12
13
14

19
DEUTSCH
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
ITALIANO
NEDERLANDS
SVENSKA
NORGE
SUOMI
TÜRKÇE

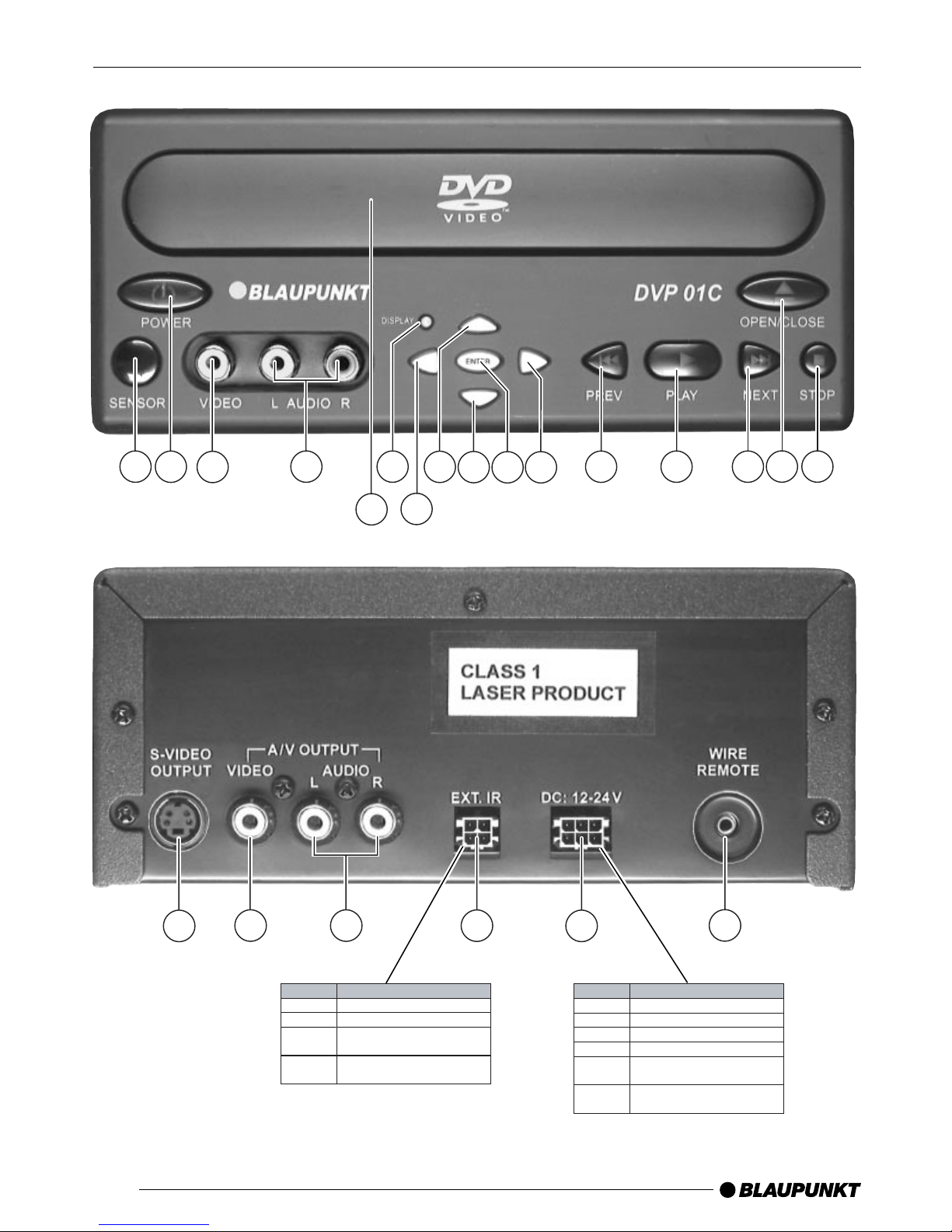

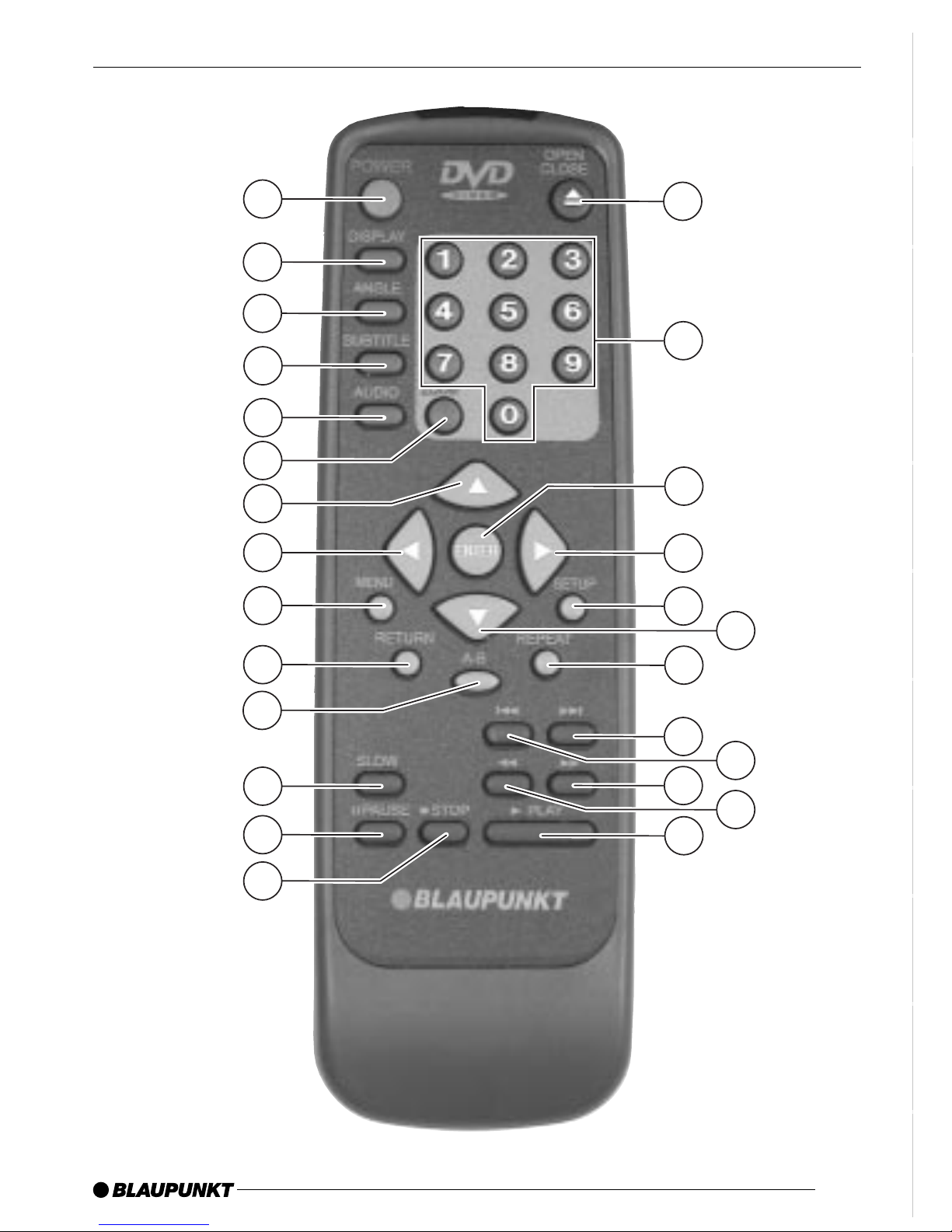

CONTROLS
1POWER button, to switch the
unit on/off
2Display button, to display/hide
the status bar on the monitor
3ANGLE button, to select a cam-
era angle
4SUBTITLE button, to select film
subtitles
5AUDIO button, to select the film
language
6ZOOM button, to enlarge a
screen section during playback
7button, to move the selection
marker in menus
8button, to move the selection
marker in menus
9MENU button, to open a DVD’s
main menu
:RETURN button, to exit a menu
item in a menu
;A-B button, to mark a custom
sequence on a DVD
<SLOW button, to start/stop slow
motion
=PAUSE button, to pause play-
back
>STOP button, to stop playback
?PLAY button, to start playback
@button, to fast rewind
Abutton, to fast forward
Bbutton, to skip to the begin-
ning of the chapter
Cbutton, to skip to the begin-
ning of the next chapter
DREPEAT button, to repeat a
chapter or a title in a film
Ebutton, to move the selection
marker in menus
FSETUP button, to open the
setup menu of the DVP 01C
Gbutton, to move the selection
marker in menus
HENTER button, to select menu
items
I0-9 buttons, to enter numbers
JOPEN/CLOSE button, to open
and close the drive tray
KDrive tray
LAUDIO inputs, to connect an ex-
ternal audio source
MVIDEO input, to connect an ex-
ternal video source
NSENSOR,IR remote control
sensor
OS-VIDEO OUTPUT,S-VHS out-
put
PVIDEO output, to connect a
monitor
QAUDIO outputs, to connect a
Blaupunkt audio system
REXT. IR, to connect an external
IR sensor (optional)
SDC 12V/24V input, to connect
the DVP 01C to a 12 V/24 V
voltage source
TWIRE REMOTE, to connect a
wire remote control (optional)

20
CONTENTS
Information............................. 21
Road safety ................................... 21
Installation.............................. 22
Mounting ....................................... 22
Electrical connection ..................... 22
Audio / video connection ............... 22
Remote control ...................... 22
Inserting batteries .......................... 22
DVD – video technology of
the future ............................... 23
Main functions........................ 23
Switching on/off ............................ 23
Inserting DVDs .............................. 23
Ejecting DVDs ............................... 24
Starting playback ........................... 24
On-screen display ......................... 24
Fast forward/reverse ..................... 24
Slow motion .................................. 25
Pausing and resuming playback ..... 25
Still image ..................................... 25
Skipping chapters ......................... 25
Repeating chapters, titles or
sequences .................................... 26
Resuming playback from the
beginning of the first title on
the DVD ........................................ 26
Displaying subtitles / selecting
the language ................................. 26
Selecting the playback language.... 27
Magnifying a screen section .......... 27
Changing the camera angle ........... 27
Setup menu ........................... 28
Opening the setup menu ............... 28
Selecting the playback language.... 28
Selecting the subtitle language ...... 28
Selecting the DVD menu language 28
Selecting the monitor settings ........ 29
Parental lock ................................. 29
Setting the colour television
standard of the TV set ................... 31
Displaying the camera angle .......... 31
DVD menu .............................. 32
Opening the DVD menu ................ 32
Selecting menu items in the
DVD menu .................................... 32
Closing the DVD menu .................. 32
CD and MP3 mode ................. 33
Specifications ........................ 33

21
DEUTSCH
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
ITALIANO
NEDERLANDS
SVENSKA
NORGE
SUOMI
TÜRKÇE
Thank you for choosing a Blaupunkt
product. We hope you enjoy using this
new piece of equipment.
Please read these operating instructions
before using the equipment for the first
time. The Blaupunkt editors are con-
stantly working on making the operat-
ing instructions clearer and easier to
understand. However, if you still have
any questions on how to operate the
equipment, please contact your dealer
or the telephone hotline for your coun-
try. You will find the telephone numbers
in the enclosed list of customer service
centres.
We provide a manufacturer guarantee
for our products bought within the Eu-
ropean Union. The guarantee conditions
are provided in the enclosed list of cus-
tomer service centres and on the
Internet at www.blaupunkt.com.
Road safety
Road safety has absolute prior-
ity. Only operate the device if the road
and traffic conditions allow you to do
so. Familiarise yourself with the de-
vice before setting off on your jour-
ney.
You should always be able to hear
police, fire and ambulance sirens
from afar. For this reason, set the
volume of whatever you are listen-
ing to during your journey to a rea-
sonable level.
INFORMATION
Risk of injury. The DVP 01C is a
CLASS 1 laser product. Never look
at the laser beam. Never try looking
inside the unit’s housing. Never open
the unit’s housing.
Never expose the DVP 01C to
direct sunlight or ambient tempera-
tures over 80°C, since this could re-
sult in damage to the DVP 01C and
the DVD.

22
INSTALLATION
Installation
Mounting
If you want to install the DVP 01C your-
self, please use the supplied installa-
tion brackets.
Notes:
Use the supplied screws to secure
the unit. Using other screws could
damagecomponentsinsidetheDVP
01C.
Please make sure that the connec-
tion cables are not squashed when
installing the unit.
Electrical connection
If the plug for connecting the voltage
supply is not already integrated in the
Blaupunkt connecting cable (special
accessory from the “Professional Line”),
use the 6-pin Molex plug and contacts
that are included.
When preparing the cable, please make
sure the polarity is correct. Connect the
cable to the voltage source and plug the
Molex connector into the 12 V/ 24 V S
jack at the back of the DVP 01C.
Audio / video connection
To connect the DVP 01C to your coach
system, use the cables available from
Blaupunkt (special accessories). Con-
nect the cables to the connections P
and Qat the back of the unit. Make
sure that the video and audio cables
correspond with the unit’s jacks.
Remote control
The supplied infrared (IR) remote control
gives you access to all of the unit’s func-
tions. The buttons located on the front of
the unit are labelled the same way and
offer the same functions as those on the
IR remote control. To ensure that the re-
mote control functions properly, point the
IR remote control at the IR sensor N
when you want to operate the controls.
If you install the DVP 01C in a concealed
place and want to operate it using the IR
remote control, you can install an exter-
nal IR receiver (special accessory) in a
clearly visible location in the vehicle and
connect it to the EXT. IR Rconnection
on the back of the unit.
Instead of the IR remote control, you can
also connect a Blaupunkt wire remote
control (available from the standard prod-
uct range) to the WIREREMOTE Tcon-
nection at the back of the unit. The wire
remote control only offers a limited range
of control functions.
You can also operate the main functions
of the DVP 01C using a Blaupunkt BCA/
CPA … control panel from the coach sys-
tem.
Inserting batteries
The IR remote control requires two AA-
type batteries to operate. They are sup-
plied with the unit.
➮Open the battery compartment at
the back of the remote control.
➮Insert the batteries as shown in the
diagram inside the battery com-
partment.
➮Close the battery compartment.
REMOTE CONTROL

23
DEUTSCH
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
ITALIANO
NEDERLANDS
SVENSKA
NORGE
SUOMI
TÜRKÇE
INTRODUCTION
DVD – video technology of
the future
DVD has not only become established
as a forward-pointing technology in the
area of video.After all, DVD does stand
for Digital “Versatile” Disc. DVDs have
the same format as audio CDs or CD-
ROMs but can store up to 17 gigabytes
of data. In comparison, a standard CD-
ROM can only store 650 megabytes.
This kind of storage capacity is large
enough for high-quality audio and video
recordings – and for a few extras.
A DVD video does not just contain the
film itself, it also includes extras like the
trailer or the “making of”. The film can
also be watched in various languages
and with various subtitles. You can con-
veniently access all of these functions
using the DVD’s own menu.
Main functions
You can also use the DVP 01C to play
DVDs, VCDs and SVCDs that conform
to the standards (not XSVCDs), as well
as normal audio CDs and MP3-CDs.
These operating instructions refer to
usage with DVDs. The button functions
for playing audio CDs are the same.
The DVP 01C is designed to play DVDs
with regional code 2. If the device is
designed for use with other regional
codes, labels at the back of these in-
structions and on the device will inform
you of this (1=US).
Switching on/off
To switch the unit on/off,
➮press the POWER button 1.
If the unit already contains a DVD when
you switch it on, the DVD’s menu will
appear automatically or playback will
begin. This depends on the DVD that is
inserted.
Inserting DVDs
➮To insert a DVD, press the OPEN/
CLOSE button J.
The DVD compartment tray opens.
➮Place the DVD with the printed
side uppermost in the tray’s recess.
➮Press the OPEN/CLOSE button J
again.
The DVD compartment tray slides shut.
The DVD’s menu will now appear on-
screen or playback will begin. This de-
pends on the DVD that is inserted.
MAIN FUNCTIONS

24
MAIN FUNCTIONS
Ejecting DVDs
➮Press the OPEN/CLOSE button
J.
The DVD compartment tray opens.
➮Remove the DVD from the tray.
To close the tray again,
➮press the OPEN/CLOSE button J
again.
Starting playback
Once you have inserted the DVD in the
device, the DVD menu appears or play-
back begins. This depends on the DVD
that is inserted.
After you have selected (if required) the
playback language, follow the menu in-
structions (“Start Film”).
➮Press the PLAY button ?.
Playback begins.
On-screen display
At any time you can view the various
settings provided by the DVD and the
current device mode in an on-screen
display.
The actual information shown in the dis-
play depends on the DVD that is in-
serted.
Some standard items of information are,
for instance:
●T 1/3: The first of three titles on the
DVD is currently being played.
●C 7/23: The seventh of 23 chapters
on the DVD is currently being
played.
●T 01:07:12: One hour, seven min-
utes and twelve seconds of the
current title’s playing time have
elapsed.
Activating the on-screen display
➮Press the DISPLAY button 2.
The on-screen display is shown at the
top edge of the screen.
Note:
Certain DVDs provide more settings
than can be displayed in one go in the
on-screen display. You can browse
through all of the available settings step-
by-step by repeatedly pressing the DIS-
PLAY button 2.
If you access certain functions, the on-
screen display will appear and disap-
pear again automatically. You can de-
activate the display again manually.
Hiding the on-screen display
➮Press the DISPLAY button 2re-
peatedly until the on-screen display
disappears.
Fast forward/reverse
You can fast search DVDs at twice, four
times, six times and eight times the nor-
mal playing speed.
Fast-forwarding
To fast forward or super-fast forward the
DVD,
➮press the button Arepeatedly
until the film is displayed at the re-
quired speed.

25
DEUTSCH
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
ITALIANO
NEDERLANDS
SVENSKA
NORGE
SUOMI
TÜRKÇE
MAIN FUNCTIONS
Fast-rewinding
To fast rewind or super-fast rewind the
DVD,
➮press the button @repeatedly
until the film is displayed at the re-
quired speed.
Stopping fast forwarding/rewinding
To stop fast forwarding/rewinding,
➮press the PLAY button ?.
The DVD will then be played at normal
speed.
Slow motion
You can slow down playback of the DVD
to half, a quarter or an eighth of the nor-
mal playback speed.
➮To decrease the playback speed,
press the SLOW button <once or
several times.
Every press of the button causes the
speed to be slowed down by half.
➮If you press the SLOW button <
three times, you can slow down the
playback speed to a maximum of
one eighth of the normal playing
speed.
To play the DVD at normal speed again,
➮press the PLAY button ?.
Pausing and resuming playback
Pausing playback
➮Press the STOP button >.
Playback is paused.
Resuming playback
➮Press the PLAY button ?.
Playback is resumed.
Still image
➮Press the PAUSE button =.
Playback is paused and is frozen as a
still image.
To continue playback, press the PAUSE
=or PLAY button ?.
Skipping chapters
Titles on a DVD may be divided into
several smaller chapters.
To skip to the next or any other subse-
quent chapter,
➮press the button Conce or
several times.
Playback will skip to the beginning of
the next or another subsequent chap-
ter accordingly.
To skip to the beginning of the current
or a previous chapter,
➮press the button Bonce or
several times.
Playback will skip to the beginning of
the current or another previous chapter
accordingly.

26
MAIN FUNCTIONS
Repeating chapters, titles or
sequences
Repeating chapters or titles
(REPEAT)
➮Press the REPEAT button Dto
repeat the current chapter.
➮Press the REPEAT button Da
second time to repeat the entire
title.
Cancelling REPEAT
➮Press the REPEAT button Dre-
peatedly until “REPEAT OFF” ap-
pears in the display.
Repeating custom sequences
➮Whilst the DVD is playing, press
the A-B button ;to mark the be-
ginning of the sequence.
➮Press the A-B button ;once
more to mark the end of the se-
quence.
The sequence that you selected will
be repeated.
Cancelling repeating the sequence
➮Press the A-B button ;to cancel
repeating the marked sequence.
Normal playback is then resumed.
Resuming playback from the
beginning of the first title on the
DVD
➮Press the STOP button >twice.
➮Press the PLAY button ?.
Playback will resume from the begin-
ning of the DVD.
Displaying subtitles / selecting
the language
To display subtitles,
➮Press the SUBTITLE button 4.
Subtitles are displayed. The on-screen
display appears. The current language
and the number of available subtitle lan-
guages are displayed.
To change the subtitle language,
➮press the SUBTITLE button 4
once or several times until subti-
tles appear in the required lan-
guage.
Note:
You can also use the DVD menu to
switch subtitles on/off or to select the
language in which they are displayed
(see DVD menu).
Deactivating subtitles
➮Press the SUBTITLE button 4
repeatedly until ”SUBTITLE OFF”
appears.

27
DEUTSCH
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
ITALIANO
NEDERLANDS
SVENSKA
NORGE
SUOMI
TÜRKÇE
Selecting the playback language
To select the playback language,
➮press the AUDIO button 5once
or several times.
The playback language changes. The
on-screen display appears. The current
language, the language number and the
number of available playback lan-
guages are displayed.
Note:
You can also use the DVD menu to
change the playback language (see
DVD menu).
Magnifying a screen section
You can magnify a section of the
screen in three steps up to four times
its normal size.
To magnify a screen section to one and
a half times its size,
➮press the ZOOM button 6once.
To magnify a screen section to twice
its size,
➮press the ZOOM button 6a sec-
ond time.
To magnify a screen section to four
times its size,
➮press the ZOOM button 6three
times.
To move the screen section horizon-
tally and vertically over any part of the
picture,
➮press one of the 8/ Gor
7/ Ebuttons.
Changing the camera angle
Some DVDs provide two or more dif-
ferent camera angles for the same
scene.
The number of the current camera an-
gle and the number of possible cam-
era angles is displayed next to the cam-
era symbol in the on-screen display.
To change the camera angle,
➮press the ANGLE button 3.
The scene will be displayed from the
next camera angle. The on-screen dis-
play appears.
Note:
In the setup menu, you can configure
the system to display a camera sym-
bol whenever additional camera angles
are available. For further information,
read the section entitled “Displaying
camera angles” in the “Setup menu”
chapter.
MAIN FUNCTIONS

28
Setup menu
You can configure the device’s set-
tings in the setup menu.
Opening the setup menu
If there is a DVD playing in the unit,
stop it playing.
➮Press the STOP button >twice.
To open the setup menu,
➮press the SETUP button F.
Selecting the playback language
➮Open the SETUP menu.
➮Press the 7/ Ebuttons to
select the “PREFERENCES” menu
item.
➮Confirm your choice by pressing
the ENTER button H.
➮Press the 7/ Ebuttons to
select the “AUDIO” menu item.
The currently selected language and
the available languages are displayed
next to the “AUDIO” menu item.
If you want to set another language,
➮press the button G.
➮Press the 7/ Ebuttons to
select the required language.
➮Confirm your choice by pressing
the SETUP button F.
The settings are saved and the setup
menu closes.
SETUP MENU
Selecting the subtitle language
➮Open the SETUP menu.
➮Press the 7/ Ebuttons to
select the “PREFERENCES” menu
item.
➮Confirm your choice by pressing
the ENTER button H.
➮Press the 7/ Ebuttons to
select the “SUBTITLE” menu item.
The currently selected language for the
subtitles and the available languages
are displayed next to the “SUBTITLE”
menu item.
If you want to set another language,
➮press the button G.
➮Press the 7/ Ebuttons to
select the required language.
➮Confirm your choice by pressing
the SETUP button F.
The settings are saved and the setup
menu closes.
Selecting the DVD menu
language
➮Open the SETUP menu.
➮Press the 7/ Ebuttons to
select the “PREFERENCES” menu
item.
➮Confirm your choice by pressing
the ENTER button H.
➮Press the 7/ Ebuttons to
select the “DISC MENU” menu
item.

29
DEUTSCH
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
ITALIANO
NEDERLANDS
SVENSKA
NORGE
SUOMI
TÜRKÇE
The currently selected language and the
available languages for the DVD menu
are displayed next to the “DISC MENU”
menu item.
If you want to set another language,
➮press the button G.
➮Press the 7/ Ebuttons to
select the required language.
➮Confirm your choice by pressing
the SETUP button F.
The settings are saved and the setup
menu closes.
Selecting the monitor settings
➮Open the SETUP menu.
➮Press the 7/ Ebuttons to
select the “GENERAL SETUP”
menu item.
➮Confirm your choice by pressing
the ENTER button H.
➮Press the 7/ Ebuttons to
select the “TV DISPLAY” menu
item.
The available monitor settings are dis-
played next to the “TV DISPLAY” menu
item:
●NORMAL/LB: The DVD player is
connected to a 4:3 monitor. The
widescreen picture covers the en-
tire width of the monitor and black
bars appear at the top and bottom
edges of the screen.
●NORMAL/PS: The DVD player is
connected to a 4:3 monitor. The
widescreen picture is displayed us-
ing the full height of the screen.
The left and right edges of the
widescreen picture are cut off auto-
matically.
●WIDE: The DVD player is con-
nected to a 16:9 monitor. The
widescreen picture is displayed
fully on-screen.
If you want to select another setting,
➮press the button G.
➮Press the 7/ Ebuttons to
select the required setting.
➮Confirm your choice by pressing
the SETUP button F.
The settings are saved and the setup
menu closes.
Parental lock
You can password protect the unit
against unauthorised use.
You can also specify a “rating level”.
”Ratinglevel”inthiscasemeansthat
certainDVDsincludeacodethatsets
the minimum age limit for persons
viewingthat particularDVD.If you set
a rating level that lies below the rating
level for the DVD that is inserted in the
drive, you will only be able to play that
DVD after you have entered the pass-
word.
Note:
Not all DVDs support the rating level
function.
SETUP MENU

30
The following list explains the rating level
numbering system:
Level 1: DVD playback is blocked.
Level 2-7: DVDs suitable for children
can be played. All others
are blocked.
Level 8: All DVDs can be played.
Note:
Some DVDs allow you to unlock locked
DVDs directly at the start with YES (EN-
TER) and the password. Other DVDs
first require you to change the rating
level in the setup menu before playing
the DVD. This depends on the DVD.
Setting the parental lock
To set the rating level,
➮open the SETUP menu.
➮Press the 7/ Ebuttons to
select the “PREFERENCES” menu
item.
➮Confirm your choice by pressing
the ENTER button H.
➮Press the 7/ Ebuttons to
select the “PARENTAL” menu item.
If you want to change the rating level,
➮press the button G.
You will be asked to enter the password.
If you have not set a password yet,
➮enter 3308 using the numerical
keypad 0-9 I.
Note:
The 3308 code is always valid and can
be used if ever you forget your pass-
word.
SETUP MENU
➮Press the 7/ Ebuttons to
select the required rating level 1 …
8.
➮Confirm your choice by pressing
the SETUP button F.
The settings are saved and the setup
menu closes.
Changing the password
To change the password,
➮open the SETUP menu.
➮Press the 7/ Ebuttons to
select the “PREFERENCES” menu
item.
➮Confirm your choice by pressing
the ENTER button H.
➮Press the 7/ Ebuttons to
select the “PASSWORD” menu
item.
If you want to change the password,
➮press the button G.
You will be asked to enter the password.
If you have not set a password yet,
➮enter 3308 using the numerical
keypad 0-9 I.
You will be asked to enter the new pass-
word twice.
➮enter the new password twice us-
ing the numerical keypad 0-9 I.
➮Confirm your choice by pressing
the SETUP button F.
The settings are saved and the setup
menu closes.

31
DEUTSCH
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
ITALIANO
NEDERLANDS
SVENSKA
NORGE
SUOMI
TÜRKÇE
Setting the colour television
standard of the TV set
To ensure an optimum picture quality,
in the DVD player’s settings menu set
the colour television standard used by
the connected monitor.
➮Open the SETUP menu.
➮Press the 7/ Ebuttons to
select the “GENERAL SETUP”
menu item.
➮Confirm your choice by pressing
the ENTER button H.
➮Press the 7/ Ebuttons to
select the “TV TYPE” menu item.
The currently set colour television
standard “PAL” or “NTSC” is displayed
alongside “TV TYPE”.
PAL is the standard used in Europe, and
NTSC is the standard used in America
and Asia.
Note:
If you set a standard that is not sup-
ported by your monitor, it may not be
able to display a picture.
If you want to select another setting,
➮press the button G.
➮Press the 7/ Ebuttons to
select the required setting.
➮Confirm your choice by pressing
the SETUP button F.
The settings are saved and the setup
menu closes.
Displaying the camera angle
You can set the system to display a “ ”
camera symbol whenever there is more
than one camera angle available on the
DVD. To do so, select the “ON” setting.
➮Open the SETUP menu.
➮Press the 7/ Ebuttons to
select the “GENERAL SETUP”
menu item.
➮Confirm your choice by pressing
the ENTER button H.
➮Press the 7/ Ebuttons to
select the “ANGLE MARK” menu
item.
If you want to select another setting,
➮press the button G.
➮Press the 7/ Ebuttons to
select the required setting.
➮Confirm your choice by pressing
the SETUP button F.
The settings are saved and the setup
menu closes.
SETUP MENU

32
DVD menu
The DVD menu is provided by the DVD
that you inserted in the player. After you
insert a DVD and playback begins, the
DVD menu appears on-screen auto-
matically.
Note:
The type of options offered in the
DVD menu depends on the particu-
lar DVD.
As an example, a DVD VIDEO might
offer the following options in its DVD
menu:
●You can choose between various
languages for playback and subti-
tles.
●Besides the actual film, you can
also watch the trailer that ran in
cinemas or on the TV to promote
the film, and you can watch the
film’s “making of”.
●A film is divided into several con-
secutive chapters. You can select a
chapter and start playback from
that point without having to fast for-
ward to that particular point in the
film as you would have to do if you
were watching a video cassette.
DVD MENU
Opening the DVD menu
➮Press the MENU button 9.
The DVD menu appears on-screen.
Note:
You do not have to stop or pause play-
back if you want to open the DVD menu.
Selecting menu items in the
DVD menu
➮Press the buttons to se-
lect the required menu item in the
DVD menu.
➮Confirm your choice by pressing
the ENTER button H.
➮After you confirm your choice, the
submenu opens. You can then use
the 8/ Gor 7/ Ebut-
tons and the ENTER button Hto
make your selection.
Closing the DVD menu
If you choose an appropriate menu item
in the DVD menu (e.g. the option to play
the film), the DVD menu closes auto-
matically and playback begins.

33
DEUTSCH
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
ITALIANO
NEDERLANDS
SVENSKA
NORGE
SUOMI
TÜRKÇE
SPECIFICATIONS
CD and MP3 mode
In addition to DVDs and video CDs, you
can also play audio CDs and MP3-CDs.
If you insert and play an audio CD, you
can use the play, search, pause and
repeat functions as described for DVD
mode.
If you want to play MP3-CDs, they must
be formatted in the “Joliet” or “ISO 9660”
format.
After you insert an MP3-CD, a menu
(Smart Navi) appears on-screen to help
you navigate through the CD’s contents.
You can then use the 8/ Gor
7/ Ebuttons and the ENTER but-
ton Hin the Smart-Navi menu to eas-
ily switch between tracks and directo-
ries.
Note:
You cannot change directories during
playback.
The other play, search, pause and re-
peat functions as described for DVD
mode can also be used in MP3 mode.
Specifications
Operating voltage: 12/24 V
Power consumption: ≤20 watts
Current consumption:
14.4 V: 950 mA
50 mA standby
28.8 V: 600 mA
40 mA standby
Operating temperature: -15°C to 60°C
Air humidity: 10% to 90%
Laser: 650 nm
Colour standards: PAL and NTSC
Video resolution:
720 pixels horizontal x 576 pixels
vertical (PAL)
720 pixels horizontal x 480 pixels
vertical (NTSC)
Frequency range:
Video: 5 MHz / - 2 dB
Audio: 20 Hz - 20 kHz
Video output level: 1 Vss, 75 Ω
Audio output level: 2 V eff, 100 Ω
Weight: 2.3 kg
Dimensions: 170 x 75 x 248
mm
Subject to changes.
CD AND MP3 MODE

/
03/03 CM/PSS - 8 622 403 514
Blaupunkt GmbH
