Macrom M-AN900 User manual

USER MANUAL
M-AN900
M-AN900DAB
ANDROIDANDROID
MULTIMEDIAMULTIMEDIA
MONITORMONITOR

- 2 -
Contents
Safety Precautions ............................................................................................................................. 1-2
Warning...................................................................................................................................................2
Product overview....................................................................................................................................3
Setting.....................................................................................................................................................4
Network and Internet.........................................................................................................................4
Car Infotainment ............................................................................................................................ 4-8
System ................................................................................................................................................9
Radio .....................................................................................................................................................10
DAB .......................................................................................................................................................11
Video......................................................................................................................................................12
Music.....................................................................................................................................................13
Bluetooth ........................................................................................................................................ 14-15
Navigation.............................................................................................................................................16
Connection view....................................................................................................................................16
Dual screen ..........................................................................................................................................16
Specifications .......................................................................................................................................17
Declaration of Conformity....................................................................................................................18

- 1 -
Safety Precautions
Never expose this unit, amplifier, and
speakers to moisture or water to prevent
electric sparks or fire.
Please don't change the fuse on the power
cord without professional guidance, using
improper fuse may cause damage to this unit
or even cause fire.
Please contact your nearest dealer if one of
the following symptoms is experienced:
(a). Water or other objects enters the unit.
(b). There is smoke.
(c). Peculiar smell.
Only connect the unit to a 12-volt power
supply with negative grounding.
MUTE
OK
MUTE
OK
Never install this unit where the operation &
condition for safe driving is impaired.
Never use the video display function in the
front when driving to prevent the violation of
laws & regulations and also to reduce the
risk of traffic accident except for using rear
view video camera.
MUTE
OK
MUTE
OK
MUTE
OK
MUTE
OK
Thank you for purchasing this product. Please
read through these operating instructions
so you will know how to operate your model
properly. After you’ve finished reading the
instructions, keep this manual in a safe place
for future reference.
To ensure safe driving, please adjust the
volume to a safe and comfortable level in
case of emergency situations.

- 2 -
1. Never disassemble or adjust the unit without any professional guidance.
For details, please consult any professional car shop / dealer for inquiry.
2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent
to wipe off the spot. Using a rough cloth and non-neutral detergent such as alcohol for cleaning
may result in scratching or decoloration to the monitor.
3. If any abnormal behavior of the unit is found, please refer to trouble shooting guide of this
manual. If no relevant information is found, please press the [RESET] key on the front panel to
resume factory default.
4. If you have parked the car in hot or cold weather for a long time, please wait until the
temperature in the car becomes normal before operating the unit.
5. Using the car heater in low temperature environment may result in moisture inside the unit, DO
NOT use the unit in this situation. Eject the disc and wipe off the moisture on the disc. If the unit
still doesn't work after a few hours, please contact the service center.
6. Do not impact the LCD monitor which could cause damage.
7. To prevent damage to the screen, avoid touching it with sharp objects.
8. To provide a clear demonstration and an alternative for easy understanding to the operation of
this unit, graphic illustrations are used.
However, some illustrations are different from the actual images displayed on the screen.
9. Operate the unit correctly according to this manual to prevent unnecessary problem. The
guarantee won't be valid if the problem is caused by inappropriate operation.
Safety Precautions

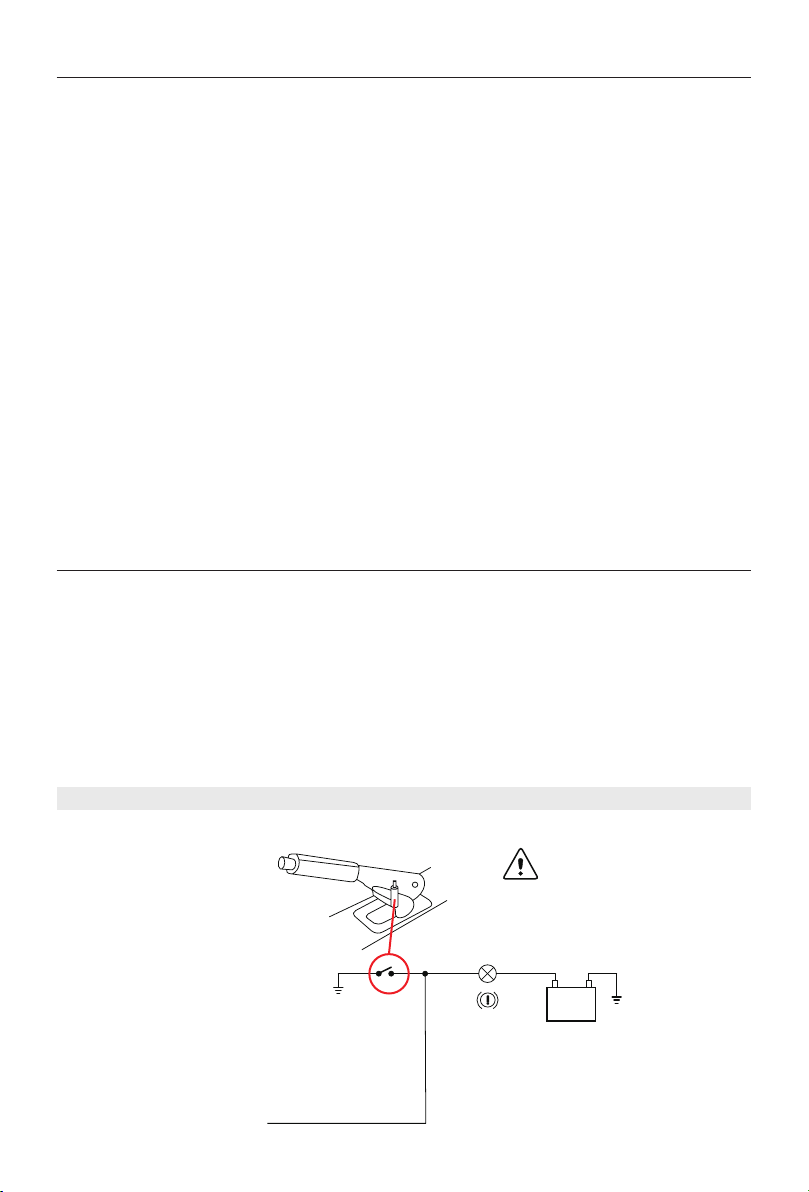

Detect parking brake
• In order to be able to install the android application, the handbrake connection must be
connected. Engage the parking brake for APP installation.
• Connect the cable "BRAKE" to the parking brake switch to view video files on the TFT monitor.
Engage the parking brake for viewing videos.
• When the parking brake is not engaged, the monitor displays "Warning!!!, Video playback is
disabled for your safety. Engage parking brake to watch video.", preventing the driver to watch
content while driving. The rear screens are not interested in this inhibition.
Importante note:
This connection is indispensable for the proper operation.
Warning
Brake light
Battery
Pink
Green with White
Black
Orange with white
Brown with white
Blue
SWC &
CAMERA IN
Camera IN
Video Out
PARKING
REVERSE
SWC GND
SWC2
SWC1
P.CONT
Video Out
Yellow
Yellow
To connect to
the Parking cable

- 3 -
Product overview
Through the home page you can access the functions of the multimedia unit.
Power On / Off the unit
When the unit is connected to the vehicle ignition system, press the front panel to turn on the unit.
To turn off the unit, remove the car ignition key.
2
3
4
57
1
6
1. Screen
Press the icon to turn off the screen. Touch the screen in any position to activate the view.
2. Navigation
Press the icon to go directly to the navigation function.
3. Audio control
Use the audio icon to adjust the sound system.
4. Brightness
Press the icon to access the screen brightness settings.
5. Interface colors
Allows access to the color settings of the user interface.
6. Source selection
Press the app to view Radio, Music, Video, USB Playback, or AVIN mode and other functions.
7. Cursor
Scroll left or right to switch between pages.
Playback mode and position memory
When the car is restarted, the system resumes the previous mode before switching off.
For the radio, it will resume the radio channel before switching off.
For music or video, it will resume playing the last song or video before turning it off.

- 4 -
Setting
1. Touch setting icon [ ] on the front panel to enter Settings interface. Select the corresponding
option to enter the corresponding settings option. Move the options bar up and down to find the
desired settings.
Note; some settings require activation via the On-OFF selector.
Rete e Internet
WI-FI
Select On to achieve the Wi-Fi, then select the desired
access points and insert the password.
Hostspot
Select On to achieve the Wi-Fi hotspot, then select the
desired Network name and insert the password.
Car Infotainment (Common)
Standby Time
This function allows to delay the switching off of the device
through the selected time.
Option bar

- 5 -

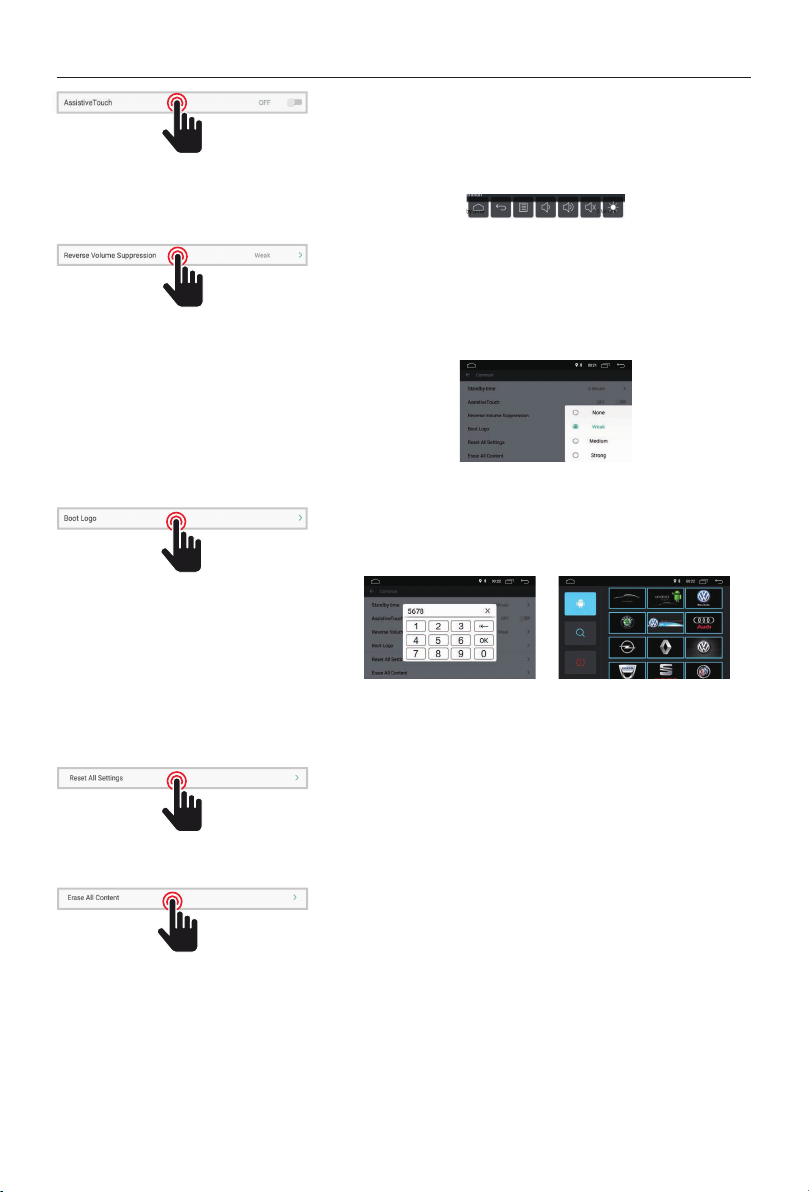

Car Infotainment (Common)
Boot logo
To select the welcome logo it is necessary to entre the
password (5678).
After selected the desiderd logo press (OK) to confirm the
logo update.
Assistive Touch
User can choose to on or off the touch assist. The touch
assist has 7 most commonly used options and is dispalyed
on top of the screen at the interface where it provides the
user easy maneuver of the unit.
Reset All Setting
In order to restore all factory setting, press the OK button
on popup dialogue. All your settings will be removed.
System Restore
By selecting the System restore, all application installed
by the user will be removed and the system will restore to
the factory settings.
Reverse Volume Suppression
In order to adjust the volume while you drive in reverse
mode, select one of four settings between None, Weak,
Medium and Strong.
The volume will be reduced according the selection.

- 6 -

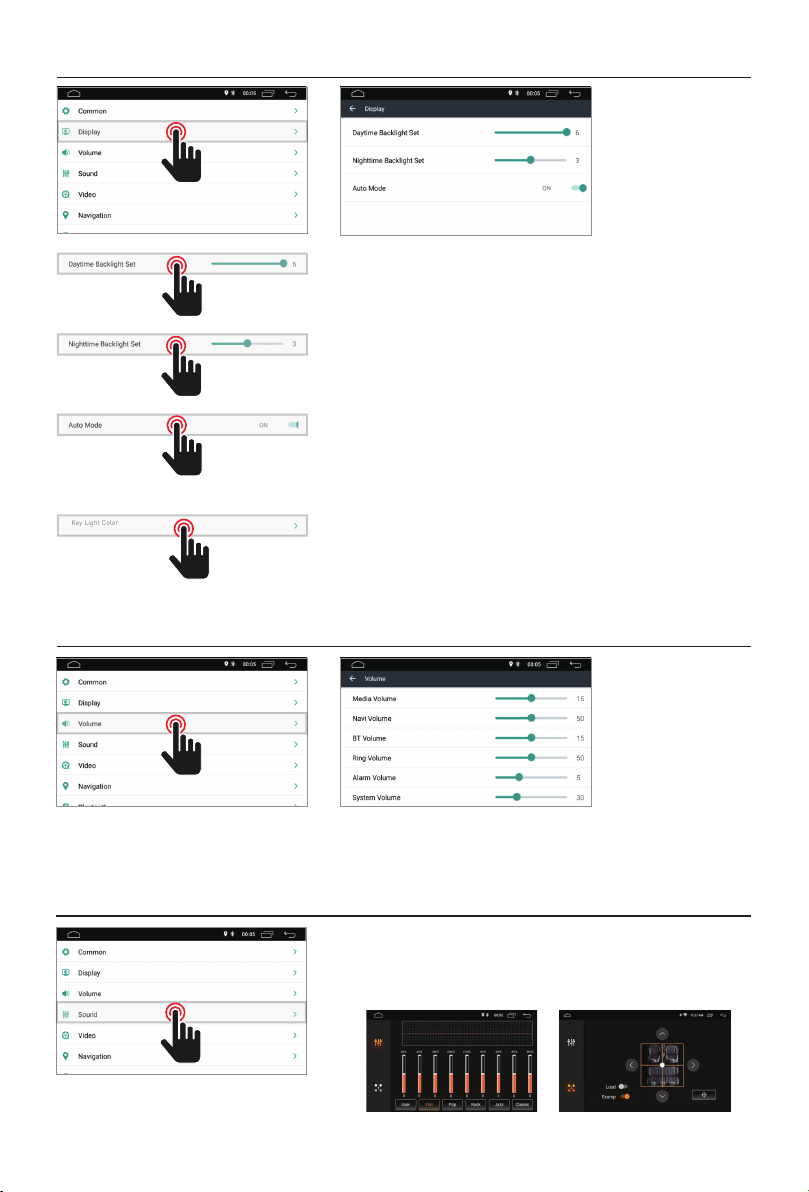

Car Infotainment (Common)
Daytime Backligth Set
Adjusts the brightness of the screen in day mode.
Nighttime Backligth Set
Adjust the brightness of the screen in night mode.
Auto Mode
When the vehicle lights are switched on, it is possible to
select automatically the brightness mode of the screen
according to the above settings.
Key Light Color Key Ligth Color
Allows you to select the color of illuminations keys.
Car Infotainment (Volume)
Volume
The volume level can be changed according to the selected
source.
Car Infotainment (Sound)
Sound
The sound can be modified through the graphic equalizer
and at the moment it is possible to modify the prostrate
point by using the four arrows.

- 7 -
Car Infotainment (Video)
Disable Video in Motion
Video playback is disabled for your safety. Engage parking
brake to watch video or select the switch in ON position.
Reversing Assistant Line
NOTE: This feature can only support certain car models.
By enabling this option at reverse position, the assistant line
will be shown at the display by moving the steering and aligned
in accordance to the steering movement during reverse.
Front Cam
Enabling this option, after having disengaged the reverse
gear, it will be possible to view the front camera for a time
between 3, 5 or 8 seconds.
Car Infotainmen (Navigation)
Autostart Navigation
Allows the user to set the automatic start of the navigation
system when the unit is turned on:
File Path
Allows the user to customize the navigation system
according to the installed applications.
Navi Mixed
Allows the user to mix the audio of the navigation system
with the audio of the media sources being played.
Reversing Warning Line
By enabling this option, while driving at reverse position
the assistent line will be shown at the display.
Air Conditioner
NOTE: This feature can only support certain car models.
By enabling this option, the air condition of the car will be
displayed during adjustment.

- 8 -

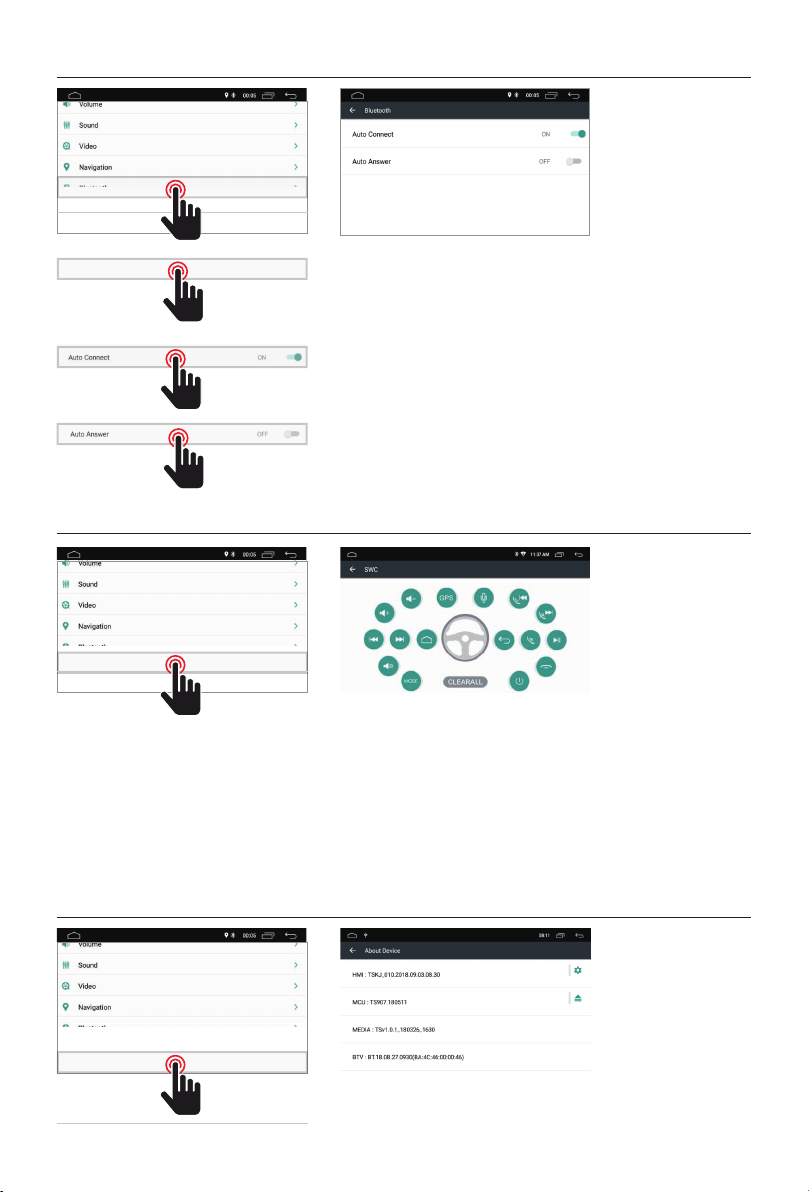

Car Infotainment (Bluetooth)
Auto Connect
By enabling this function, the unit will auto search and
auto connect with the last connected device.
Pin Code 0000
Bluetooth
SWC
About Device
Pin Code
To connect your Bluetooth device to the unit, you need to
pair the device to the unit. Pairing needs only to be done
once. Enter default password “0000”.
Auto Answer
By enabling this function, the unit will auto answer all
incoming calls.
Car Infotainmen (SWC)
Bluetooth
SWC
About Device
Steering Wheel Control Programming
Please follow the steps below to set the functions of your steering wheel.
1. Press CLEAR ALL before proceeding
2. Press a button on the steering wheel
3. Touch the corresponding feature of the control button on the touch screen.
4. When the control button turns blue, it means that the setup was successful.
5. Repeat the steps 2 - 4 to compleate all controll button setting avgailable on your steering wheel.
Car Infotainmen (About Device)
Bluetooth
SWC
About Device
Version Information
System information.
