Borringia Rise IIIS-130 User manual
Rise IIIS-130
Height adjustable
shower & commode
chair with tilt
User manual
Important information
Read user manual before taking this
product into use.
This user manual is intended as a guide
for caregivers and other users, as well as
technical personnel during servicing and
maintenance of the product.
Dato: 18-04-2017
Version: 2
Scan the QR code for more information
2
3
Contents
1PURPOSE AND SAFETY ___________________________________________ 4
PURPOSE ____________________________________________________ 4
SAFETY INSTRUCTIONS ___________________________________________ 4
BEFORE USE __________________________________________________ 5
TERMINOLOGY ________________________________________________ 6
TRANSPORT AND UNPACKING_______________________________________ 6
2FUNCTIONS ____________________________________________________ 7
PICTOGRAM AND FUNCTIONS_______________________________________ 7
BATTERY AND CHARGING _________________________________________ 7
EMERGENCY STOP ______________________________________________ 8
3SETTINGS ______________________________________________________ 9
SETTINGS OF THE CHAIR AND ACCESSORIES ______________________________ 9
4MAINTENANCE ________________________________________________ 10
CLEANING __________________________________________________ 10
STORAGE ___________________________________________________ 10
5CHECK, WARRANTY AND TROUBLESHOOTING _______________________ 11
ANNUAL CHECKS AND WARRANTY___________________________________ 11
TROUBLESHOOTING ____________________________________________ 12
6TECHNICAL DATA_______________________________________________ 12
7ENVIRONMENT AND QUALITY ____________________________________ 14
DISPOSAL ___________________________________________________ 14
QUALITY____________________________________________________ 14
SYMBOLS AND ABBREVIATIONS_____________________________________ 14
8ACCESSORIES __________________________________________________ 15
4
1PURPOSE AND SAFETY
This user manual describes the many possibilities of use and positions of Rise IIIS-130 shower
and commode chair, so that the need of the user is respected by daily care and the caregiver
achieves an ideal working position.
Purpose
The purpose of the Rise IIIS-130 is to transfer the user, so that the user and caregiver have an
easier approach to daily personal hygiene, such as:
Toileting, either in bathroom or other suitable places.
Showering, when the user has a shower or other kind of personal hygiene.
Remember: Always remember to take the user’s personal needs and conditions into account.
Use:
Rise IIIS-130 can be used in hospitals, nursing homes and for home care.
The lifting function is used in conjunction with transfer of the user from bed to the
chair, to adjust the height above the toilet or to give the caregiver the possibility to
adjust the working position.
The tilt function is often used for bathing, so the caregiver easily can wash the user.
The tilt forward facility can help the user to stand.
NOTE: Never use the product for other purposes, than described in the user manual.
Safety instructions
Important - Warning!
Read user manual and safety instructions before using the product.
The maximum capacity of 130 kg must NEVER be exceeded.
NEVER use the chair if there is suspicion of any defect (abnormal sound, loose
brackets etc.). In such cases it is important to find the cause and take the chair out of
service and contact a service technician, your dealer or Winncare Nordic ApS.
NEVER leave the user alone in the chair or lift higher than necessary.
Always fold the armrest down during use and take care for the user when the
armrest is folded up.
The footrests should always be folded up before the user sits or stands up from the
chair.
In use and by obstacles, e.g. if the chair is used in small rooms or over a door sill, it
must be ensured that the user sits quietly and keeps the arms inside the armrests to
prevent damage.
!
5
Under special circumstances a build-up of static electricity can occur (e.g. using on a
plastic floor or in very dry air). These conditions should be avoided, but are not
dangerous for the user.
Always brake the wheels if there is any danger of inadvertent movement e.g. on a
ramp or slope. For safety, It is always recommended to brake the wheels if it is
possible.
When using the chair with other equipment ensure that no dangerous situations can
occur. It could be if the straps from the sling get tangled around the wheels.
Make sure that the chair is correctly set for the user and either the user or caregiver
is injured during use. See chapter 1.3 –before use.
It is the responsibility of the caregiver, to ensure that the chair is used correct and safe.
Before use
The caregiver is responsible for ensuring that a check is carried out BEFORE the product is
used, and having received the necessary instructions for using.
Before use check following:
1) Check, that no parts are missing, and the product is assembled correct.
2) Check, that the accessories are mounted correctly, and suited the user.
3) Check the chair for abnormal sound, signs of wear, tear or other defects.
4) Try all functions on hand control.
If there is in any doubt concerning the use, please contact Winncare Nordic ApS for advice
and guidance.
6
Terminology
Transport and unpacking
The product is transported best by using the original packing or on a pallet. We recommend
that the packaging is kept, if the product is returned or in case of repair or annual check.
Check that all the parts are present and undamaged.
Any suspicion of damage or shortage should be reported to your dealer or Winncare Nordic
ApS.
Seat
Arm rest
Removable Back rest
Control box and
battery
Hand control
Lifting actuator
Steering handle
Frame
Foot support
Foot plate
Tilt actuator
7
2FUNCTIONS
Pictogram and functions

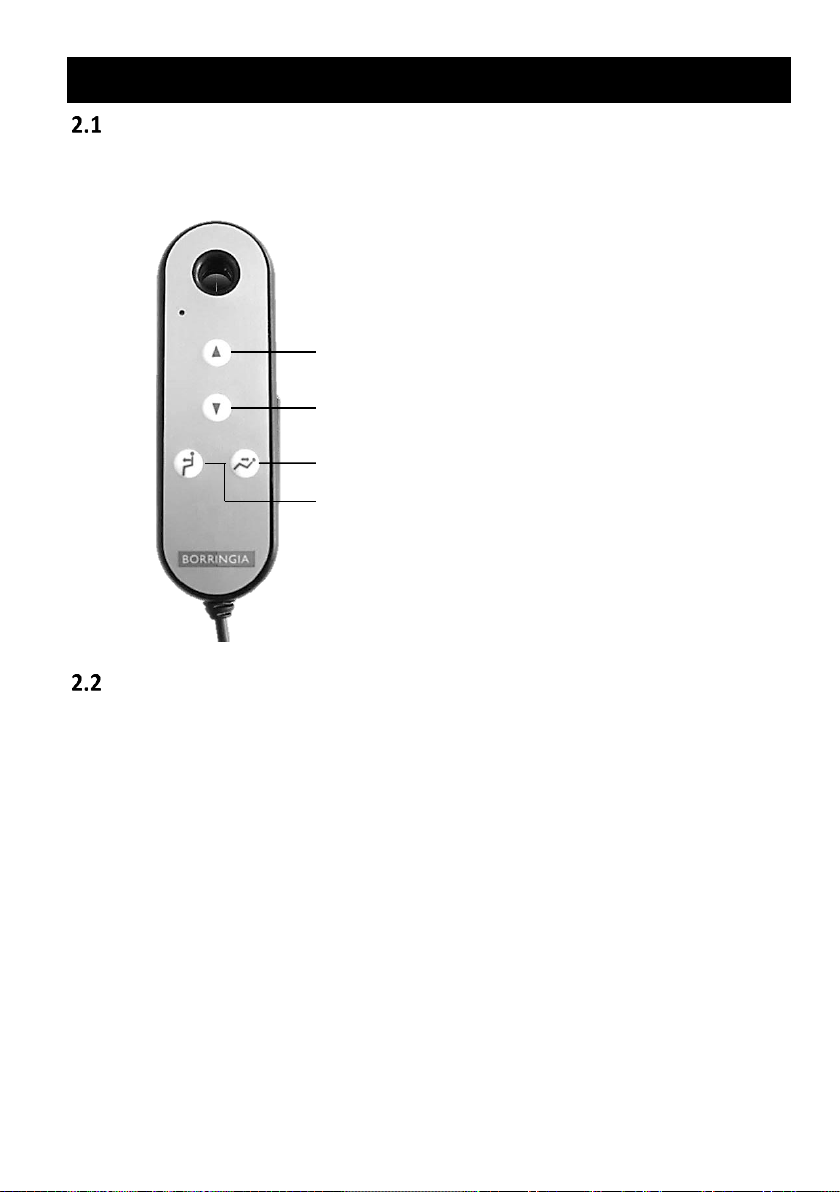

Hand control:
Battery and charging
The product is equipped with a battery, that requires regular charging from an external
charging station. It is recommended, that the battery is charged after use and every night.
Control box:
Battery and control box is equipped with a safety function, which will signal, when the
battery is about to run out of power.
LOW battery -
An acoustic alarm signal, when there are approx. 5 lifting
cycles left.
CRITICAL LOW battery-
The chair can only move downwards or stop the lifting- and
the tilt-functions completely.
(1)
By activating the lifting functions the
chair will lift up or down.
(2)
By activating the tilt function the chair
moves back in an angled position (-
30°).
(3)
By activating the tilt function the chair
moves forward in an angled position
(+7°).
(1)
(1)
(3)
(2)
8
Charging:
Charging the battery can only be done in an external charging station, which is plugged into a
standard electrical outlet. When the charger is connected, the yellow LED (2) will light up.
1. Remove the battery by turning the battery and then pull it out of the control box.
2. Push the battery into the charging station and turn it in the direction of the arrows
until the magnets lock the battery in place. The green LED (3) blinks during charging.
3. When the battery is fully charged, the green LED (3) lights permanently.
Emergency Stop
The removable battery also functions as an EMERGENCY STOP.
1. Pull the battery out of the control box (1) and all movements will stop.
2. Emergency stop is activated again, when the battery is placed into the control
box and turned clockwise.
If the emergency stop has been activated during use, the chair must be
checked for defects and those repaired before using the chair again.
If in doubt, contact your dealer or Winncare Nordic ApS.
1
!
2
3
9
3SETTINGS
Settings of the chair and accessories
Note: The chair should be adjusted, so that it is set for the
user.
Foot support:
The foot support is easily mounted by putting it into the
holder for the foot support and press down.
The foot support is removed by lifting it up
Foot plate:
1) The height of the foot plates can be adjusted by
loosening the hand screw, and then adjust the height of
the footplate.
2) Tighten the hand screw again.
3) The angle of the foot plate can be angled by loosening
the adjustable screw with the enclosed Allen key.
4) Tighten the screw when the angle is adjusted.
Headrest:
The height of the headrest is adjusted by loosening the hand
screw.
Note: On some models, the headrest can be angled and
adjusted in the height.
Armrest:
The armrests can be lifted along the backrest in booth sides,
which makes transfer situations more easy.
10
4MAINTENANCE
Cleaning
For daily cleaning the product can be cleaned with wet-wipes with anti-bacterial or cleaned
with hot water with a small quantity of household cleaning agent.
NOTE: Strong chemicals and other abrasive agents must not be used.
NOTE: If the chair is used for more than one person, the chair MUST be thoroughly cleaned
between users.
Removing / Set-on the seat
For a thorough cleaning, the seat can be removed, so that it is possible to clean the seat and
the frame.
1) Pull up the front of the seat and remove it.
2) Angle and slide the seat slightly towards the back to put it on again.
3) Press the seat into place. The seat is placed correct when it clicks.
Fig. 1
Fig. 2
Fig. 3
The chair tolerates to be cleaned in an automatic washer, requirement the
electrical parts are not flushed directly; it may damage the battery and the
control box.
Leave the battery in the control box during cleaning, because the battery
helps to prevent ingression of water.
If the chair is used as a toilet chair, ensure that the bedpan is correctly placed under the seat.
The bedpan and lid can be cleaned in a bedpan washer or according to relevant regulations.
Lubrication:
The piston of the actuator should be lubricated once a month with Vaseline or thin oil.
Storage
The product is intended for indoor use under normal temperatures +0 to +50 C° and a
relative humidity 40-90%.
!
11
5CHECK, WARRANTY AND TROUBLESHOOTING
Annual checks and warranty
The product must always be repaired and maintained by qualified personnel. It is the legal
owners’ duty to ensure that these checks are carried out on the product.
The following items is to be inspected during the annual check:
Seat tilt: Actuator runs both ways. Piston is lubricated. Actuator is mounted correct.
Locking rings are placed correct. O-ring is intact, lubricated and correct inserted.
Cables: Intact.
Backrest and clips: Intact and securely tightened.
Seat: Easy to remove and put back. PU surface is intact.
Arm rests and moving parts: Securely fastened, lubricated and moves easy up and
down. PU surface is intact. screws tightened (remember: Lock-Tight).
Footplates: Works up and down. Height adjustability works. Easy to remove.
Emergency stop: Works and releases again.
Lifting mechanism: Actuator runs both ways. Piston is lubricated. Actuator is
mounted correct. Locking rings are placed correct. O-ring is intact, lubricated and
correct inserted. Lifts from bottom to top with max SWL.
Hand Control: All functions must be checked.
Charging station: Intact. Lights works. charge function works.
Control Box: Correctly mounted. No visible defects.
Wheels: Wheels and brakes must be checked. Securely fastened.
Frame and Weldings: Must be checked for visual signs of cracks or deformations with
max. SWL.
If it is necessary to replace any parts due to wear or damage, Winncare Nordic ApS
recommends for safety reasons, to use original spare parts.
Warranty
There is a 2 years warranty on the chair, if the conditions of warranty are followed.
12
Troubleshooting
6TECHNICAL DATA
Fault:
Possible cause
Solution
The chair does not react
when the functions on
the hand control are
used.
The tilt function does not
react.
The plug from the lifting
actuator/ tilt function is
not correct inserted in
the control box.
Insert the plug.
The battery is not
correctly in place.
Check, that the battery is
correctly inserted in the control
box.
The battery is not fully
charged or defective.
Charge the battery (see section
2.2).
If this does not help, the battery
is defective and need to be
changed.
Defective hand control.
Try another hand control or order
a new from your dealer.
13
a) Height 1065-1480 mm
b) Width 570 mm
c) Length 880-1050 mm
d) Seat height 535-950 mm
e) Seat width 450 mm
f) Seat depth 430 mm
g) Height between armrest and seat 210 mm
h) Width between armrests 470 mm
i) Height to lower frame 150 mm
j) Height from seat to top of backrest 560 mm
k) Width of backrest 430 mm
l) Height of backrest 490 mm
m) Clearance 70 mm
Wheel ø100 mm
Turning radius 980 mm
Angle of tilt +7° to -30°
Weight 32 kg
Lifting properties:
Load capacity 130 kg
Lifting cycles 25-30 lift per. charging
Duty cycles 10%, max 2 min./18 min.
Electrical details:
Output voltage: 24V
Control box (Output): 250 VA
Battery capacity: 1,4Ah
Charging time: 5-8 hours (external charging station)
IP-class: IP65
14
7ENVIRONMENT AND QUALITY
The product has an expected life time of a minimum of 10 years under the assumption that
all recommended service checks has been carried out and that the normal maintenance has
been followed.
Disposal
Disposal of the product can be made through Winncare Nordic ApS, where
the product´s individual parts will be disposed in an environmentally friendly
way either through reuse or recycling.
Parts of the product contain environmentally damaging elements, if not handled in an
environmentally responsible way.
Quality
Winncare Nordic ApS is certified according to the quality standards ISO 9001 and ISO 13485.
These certifications mean that the product and the company complies with the international
standards for quality management and standards for traceability of medical products.
The product is classified as a Medical device class 1 product.
Symbols and abbreviations
The product must be recycled where possible.
Direct current
Double insulated
Type B, patient is not separated from the ground
Refer to user manual
Safe working load = (user + accessories)
SWL
15
8ACCESSORIES
047-00517
Bracket set for bedpan/complete
047-00910
Bedpan w. lid/stainless steel
047-00267
Anti-pressure pillow for toilet HMI 40663
047-00220
Positioning back rest w. built-in pillow
047-00322
Headrest w. flexible PU-padding
047-00359
Crossbar between the armrests
047-00058
Direction lock for rear wheel
047-00606
Elevating legrest/set
047-00355
Calf strap for footrest
047-00266
Soft cover for toilet seat
047-00265
PU-toilet seat w. narrow hole
047-00607
Torso-/Hip-/Leg Belt
047-00360
Swing-away Torso Support w. PU-padding
286-00442
Wheel d 125 with brake
047-00269
PU-Toilet seat w. hygiene cut (Standard)
717-10078
Back Rest for Rise III (Standard)
047-00363
Wheel d100/w. red brake & screw (Standard)
047-00608
Foot rest/swiveling/high adjustable
Table of contents
