Bosch Climate 5000 Series User manual

Bosch Four Way Cassette Ductless Single Split
Air Conditioner / Heat Pump
Climate 5000 Series
User Manual

2 |Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump User Manual
04.2019 |Bosch Thermotechnology Corp.
Data subject to change

User Manual Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump | 3
Bosch Thermotechnology Corp. |04.2019 Data subject to change
Table of Contents
1 Key to Symbols and Safety Instructions 4
1.1 Key to Symbols 4
1.2 Safety 4
2 Unit Specifications and Features 6
2.1 Unit Parts 6
2.2 Achieving Optimal Performance 7
2.3 Other Features 8
2.4 Setting Angle of Air Flow 8
3 Manual Operation (Without Remote) 9
3.1 How to Operate Your Unit Without the Remote Control 9
4 Care and Maintenance 10
4.1 Cleaning Precautions 10
4.2 Cleaning Your Air Filter 10
4.3 Maintenance – Long Periods of Non-Use 11
4.4 Maintenance – Pre-Season Inspection 11
5 Troubleshooting 12
5.1 Common Issues 12
5.2 Troubleshooting Tips 13
5.3 Error Codes 14
6 Disposal Guidelines 15

4 |Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump User Manual
04.2019 |Bosch Thermotechnology Corp.
Data subject to change
1 Key to Symbols and Safety Instructions
1.1 Key to Symbols
Warnings
Warnings in this document are identified by a
warning triangle printed against a grey background.
Keywords at the start of a warning indicate the type and seriousness
of the ensuing risk if measures to prevent the risk are not taken.
The following keywords are defined and can be used in this document:
DANGER indicates a hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor to moderate injury.
NOTICE is used to address practices not related to personal injury.
Important information
This symbol indicates important information where
there is no risk to people or property.
1.2 Safety
Please read safety precautions before installation
Incorrect installation due to ignoring instructions can cause serious damage or
injury.
For Multi Zone System, please refer to Multi Zone System installation manual.
WARNING: ELECTRICAL HAZARD
Do not modify the length of the power supply cord or use an
extension cord to power the unit.
Do not share the electrical outlet with other appliances.
Improper or insufficient power supply can cause fire or
electrical shock.
WARNING: INSTALLATION REQUIREMENTS
Installation must be performed by a licensed contractor,
and per the instructions in the installation manual. Improper
installation can cause water leakage, electrical shock, or fire.
In North America, installation must be performed in
accordance with the requirement of NEC (National Electric
Code) and CEC (Canadian Electric Code) by licensed and
qualified personnel only.
Only contact an licensed contractor for repair or
maintenance of this unit.
Only use the included accessories, parts, and specified
parts for installation. Using non-standard parts can cause
water leakage, electrical shock, fire, and can cause the unit
to fail.
Install the unit in a solid location that can support the unit’s
weight. If the chosen location cannot support the unit’s
weight, or the installation is not done properly, the unit may
drop and cause serious injury and/or damage.
WARNING:
This product can expose you to chemicals including Lead
and Lead components, which are known to the State
of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.
P65Warnings.ca.gov.

User Manual Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump | 5
Bosch Thermotechnology Corp. |04.2019 Data subject to change
WARNING: ELECTRICAL HAZARD
For all electrical work, follow all local and national wiring
standards, regulations, and the Installation Manual.
The power supply to the outdoor unit requires a service
disconnect at the unit. Only use a dedicated circuit. Never
share a power source connected to this system. Insufficient
electrical capacity or defects in electrical work can cause
electrical shock or fire.
For all electrical work, use the specified cables. Connect
cables tightly, and clamp them securely to prevent external
forces from damaging the terminal. Improper electrical
connections can overheat and cause fire, and may also
cause shock.
All wiring must be properly arranged to ensure that the
control board cover can close properly. If the control board
cover is not closed properly, it can lead to corrosion and
cause the connection points on the terminal to heat up,
catch fire, or cause electrical shock.
In certain functional environments, such as kitchens, server
rooms, etc., the use of specially designed air-conditioning
units is highly recommended.
If the power supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons such as a licensed electrician in order to avoid a
hazard.
The product must be properly grounded at the time of
installation, or electrical shock may occur.
CAUTION: BURN HAZARD
Do not install the unit in a location that may be exposed
to combustible gas leaks. If combustible gas accumulates
around the unit, it may cause fire.
Do not operate your air conditioner in a wet room such as a
bathroom or laundry room. Too much exposure to water can
cause electrical components to short circuit.
NOTICE: PROPERTY DAMAGE
Install condensate drainage piping according to the
instructions in this manual. Improper condensate drainage
may cause water damage to your home and property.
CAUTION: CONTAINS REFRIGERANT
This air-conditioning unit contains fluorinated gasses. For
specific information on the type of gas and the amount,
please refer to the relevant label on the outdoor unit itself.
Installation, service, maintenance and repair of this unit
must be performed by a certified technician.
Product removal and recycling must be performed by a
certified technician.
If the system has a leak-detection system installed, it must
be checked for leaks at least every 12 months.
When the unit is checked for leaks, proper record-keeping of
all checks is strongly recommended.

6 |Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump User Manual
04.2019 |Bosch Thermotechnology Corp.
Data subject to change
2 Unit Specifications and Features

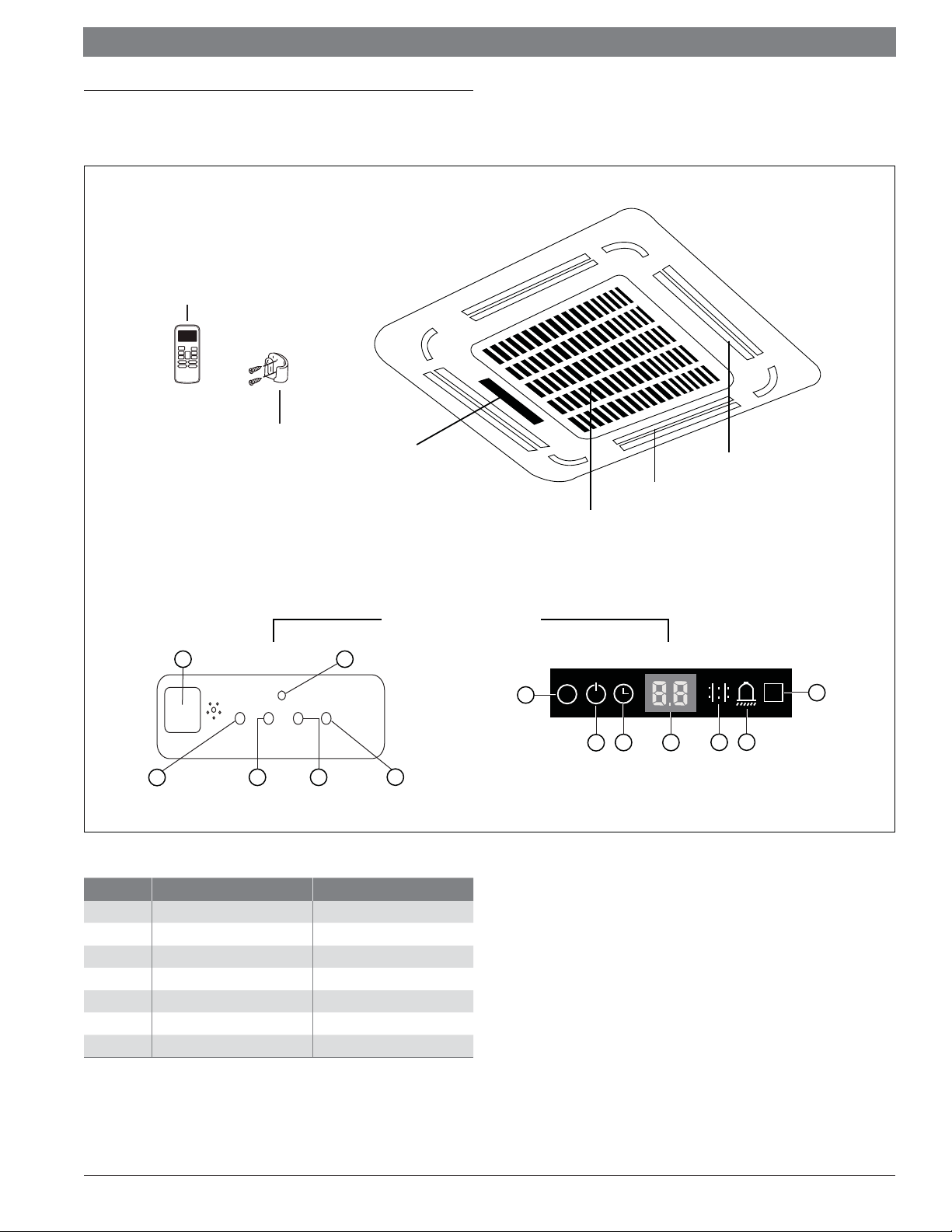

2.1 Unit Parts
Figure 1
Manual
OPERATION
TIMER
DEF./FAN.
ALARM
17
23 5 6
Cassette Display Information
9k~18k Models 24k~48k Models
1
23 4 56
7
Air inlet
Display panel
(location varies depending on model)
Louver
Air outlet
Remote Control
Remote Holder
Item# 9k~18kModels 24k~48k Models
1 Manual operation button Manual operation button
2 Operation indicator Operation indicator
3 Timer Timer
4 — LED display
5 Defrost / Fan mode Defrost / Fan mode
6 Alarm Alarm
7 Infrared receiver Infrared receiver
Table 1 Display Information

User Manual Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump | 7
Bosch Thermotechnology Corp. |04.2019 Data subject to change
2.2 Achieving Optimal Performance
Optimal performance for the COOL, HEAT, and DRY modes can be achieved in
the following temperature ranges. When your air conditioner is used outside of
these ranges, certain safety protection features will activate and cause the unit to
perform less than optimally.
Optimal performance temperature ranges
COOLmode HEATmode DRYmode
Room Temperature 17ºC - 32ºC 0ºC - 30ºC 10ºC - 32ºC
63ºF - 90ºF 32ºF - 86ºF 50ºF - 90ºF
Outdoor
Temperature
E-Star (9K ~ 24K) -25ºC - 50ºC -25ºC - 30ºC 0ºC - 50ºC
-13ºF - 122ºF -13ºF - 86ºF 32ºF - 122ºF
Hyper Heat (9K ~ 24K) -30ºC - 50ºC -30ºC - 30ºC 0ºC - 50ºC
-22ºF - 122ºF -22ºF - 86ºF 32ºF - 122ºF
LCAC (30K ~ 48K) -15ºC - 50ºC -15ºC - 30ºC 0ºC - 50ºC
5ºF - 122ºF 5ºF - 86ºF 32ºF - 122ºF
Table 2
When the outside temperature is below 0°C (32°F ), we strongly
recommend keeping the unit plugged in at all times to ensure smooth
ongoing performance. A base pan heater is used in the outdoor unit to
prevent ice build-up. Ice may build up if the unit is unplugged.
Figure 2
Keep blinds and curtains closed Keep doors and windows closed
Energy Saving Tips
DO NOT expose the unit to excessive temperature levels.
Keep curtains closed during heating and cooling operation.
Doors and windows should be kept closed to keep cool or warm air in the
room.
DO NOT place objects near the air inlet and outlet of the unit. This will
reduce the efficiency of the unit.
Set a timer and use the built-in SLEEP/ECONOMY mode if applicable.
If you don’t plan to use the unit for a long time, remove the batteries from
the remote control.
Clean the air filter every two weeks. A dirty filter can reduce cooling or
heating efficiency.
Adjust louvers properly and avoid direct airflow.

8 |Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump User Manual
04.2019 |Bosch Thermotechnology Corp.
Data subject to change
2.3 Other Features
Auto-Restart
If the unit loses power, it will automatically restart with the prior settings
once power has been restored.
Anti-mildew
When turning off the unit from COOL, AUTO (COOL), or DRY modes,
the air conditioner will continue operate at very low power to dry up
condensed water and prevent mildew growth.
Louver Angle Memory (some models)
When turning on your unit, the louver will automatically resume its former
angle.
Refrigerant Leakage Detection
The indoor unit will automatically display “EC” when it detects refrigerant
leakage.
For a detailed explanation of your unit’s advanced functionality (such as
TURBO mode and its self-cleaning functions), refer to the Remote
Control Manual.
2.4 Setting Angle of Air Flow
Setting vertical angle of air flow
While the unit is on, use the SWING /DIRECT button to set the direction (vertical
angle) of airflow.
1. Press the SWING /DIRECT button once to activate the louver. Each time you
press the button, it will adjust the louver. Press the button until the direction
you prefer is reached.
2. To make the louver swing up and down continuously, press and hold the
SWING/DIRECT button for 3 seconds. Press it again to stop the automatic
function.
When Timer On is set, the SWING function will be disabled.
Figure 3
Adjust up or down
Setting horizontal angle of air flow
CAUTION: PERSONAL INJURY
Do not put your fingers in or near the blower and suction
side of the unit. The high-speed fan inside the unit may
cause injury.

User Manual Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump | 9
Bosch Thermotechnology Corp. |04.2019 Data subject to change

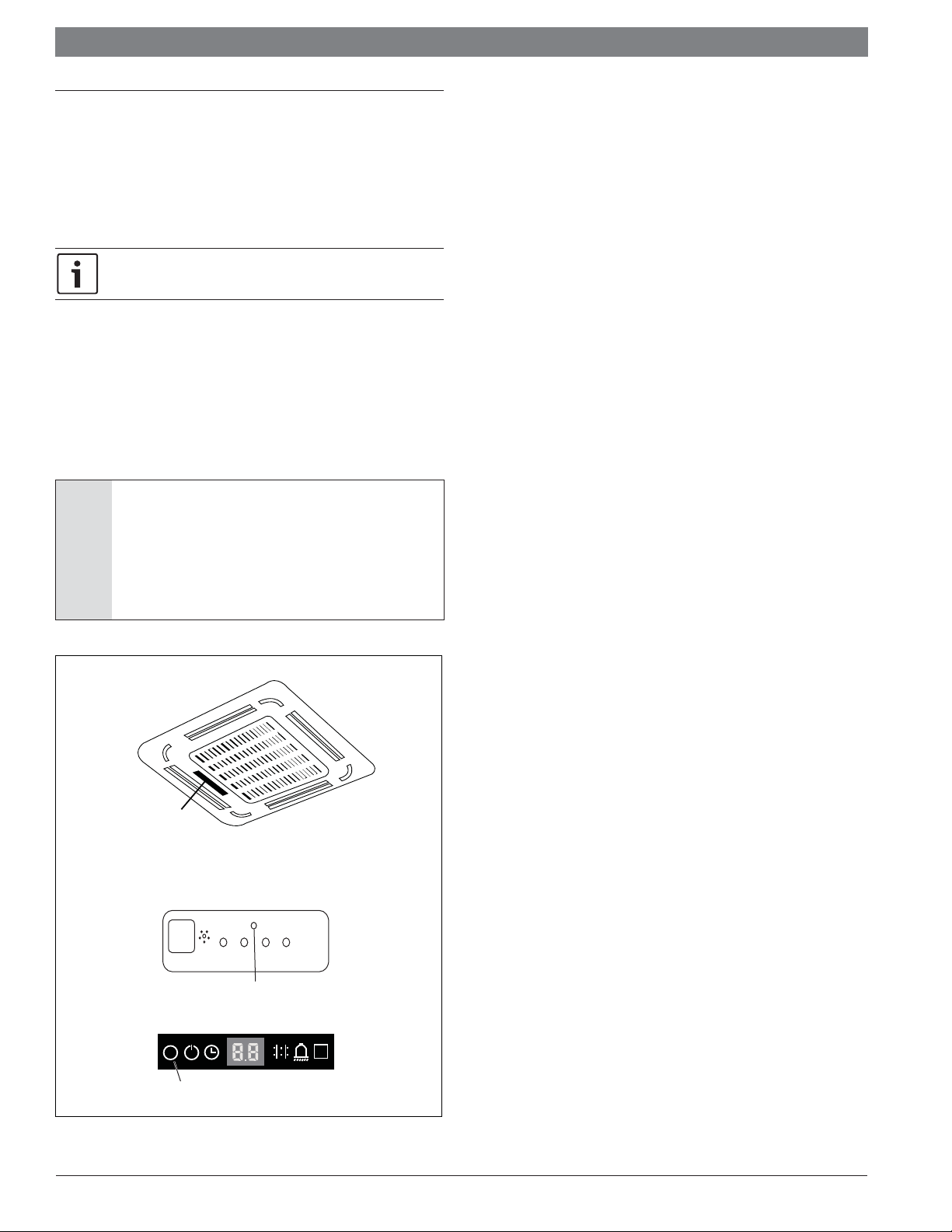

3 Manual Operation (Without Remote)
3.1 How to Operate Your Unit Without the Remote Control
In the event that your remote control fails to work, your unit can be operated
manually with the MANUAL CONTROL button located on the indoor unit. Note that
manual operation is not a long-term solution, and that operating the unit with your
remote control is strongly recommended.
Unit must be turned off before manual operation.
To operate your unit manually:
1. Press the MANUAL CONTROL button one time to activate FORCED AUTO
mode.
2. Press the MANUAL CONTROL button again to activate FORCED COOLING
mode.
3. Press the MANUAL CONTROL button a third time to turn the unit off.
NOTICE:
The manual button is intended for testing purposes and
emergency operation only. Please do not use this function
unless the remote is lost and it is absolutely necessary. To
restore regular operation, use the remote control to activate
the unit.
Figure 4
Display panel
(location varies
depending on model)
Manual control button
Display 24k~48k Models
Manual
OPERATION
TIMER
DEF./FAN.
ALARM
Display 9k~18k Models
Manual control button

10 |Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump User Manual
04.2019 |Bosch Thermotechnology Corp.
Data subject to change
4 Care and Maintenance
4.1 Cleaning Precautions
CAUTION:
Any maintenance and cleaning of outdoor unit must be
performed by qualified service personnel only.
Any unit repairs must be performed by qualified service
personnel only.
CAUTION: ELECTRICAL HAZARD
Always turn off your air conditioner system and disconnect its
power supply before cleaning or maintenance.
Do not use chemicals or chemically treated cloths to clean
the unit
Do not use benzene, paint thinner, polishing powder or
other solvents to clean the unit. They can cause the plastic
surface to crack or deform.
Do not use water hotter than 40°C (104°F) to clean the
front panel. This can cause the panel to deform or become
discolored.
4.2 Cleaning Your Air Filter
NOTICE:
Do not touch air freshening filter for at least 10 minutes
after turning off the unit.
CAUTION: ELECTRICAL HAZARD
Before changing the filter or cleaning, turn off the unit and
disconnect its power supply.
When removing filter, do not touch metal parts in the unit.
The sharp metal edges can cut you.
Do not use water to clean the inside of the indoor or outdoor
unit. This can destroy insulation and cause electrical shock.
Do not expose filter to direct sunlight when drying. This can
shrink the filter.
A clogged air conditioner can reduce the cooling efficiency of your unit, and can
also be bad for your health. Make sure to clean the filter once every two weeks.
1. Open decorative grille by pushing the two tabs toward center simultaneously.
2. Unplug the display panel cable from the control box on the main unit.
Figure 5
3. Unplug the display panel cable from the control box on the main unit.
Figure 6
4. Remove the air filter.
5. Clean dirt from the air filter using a vacuum cleaner or washing with water.
—If dirt is conspicuous, wash with a neutral detergent in lukewarm
water.
—If hot water (40°C /104°F or more) is used, it may be deformed.
Figure 7
AND /
OR
6. Rinse the filter with clean water and allow it to air-dry. DO NOT let the filter
dry in direct sunlight.
7. Reinstall the filter.
8. Connect display panel cable to the main unit.
9. Re-install decorative grille.

User Manual Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump | 11
Bosch Thermotechnology Corp. |04.2019 Data subject to change

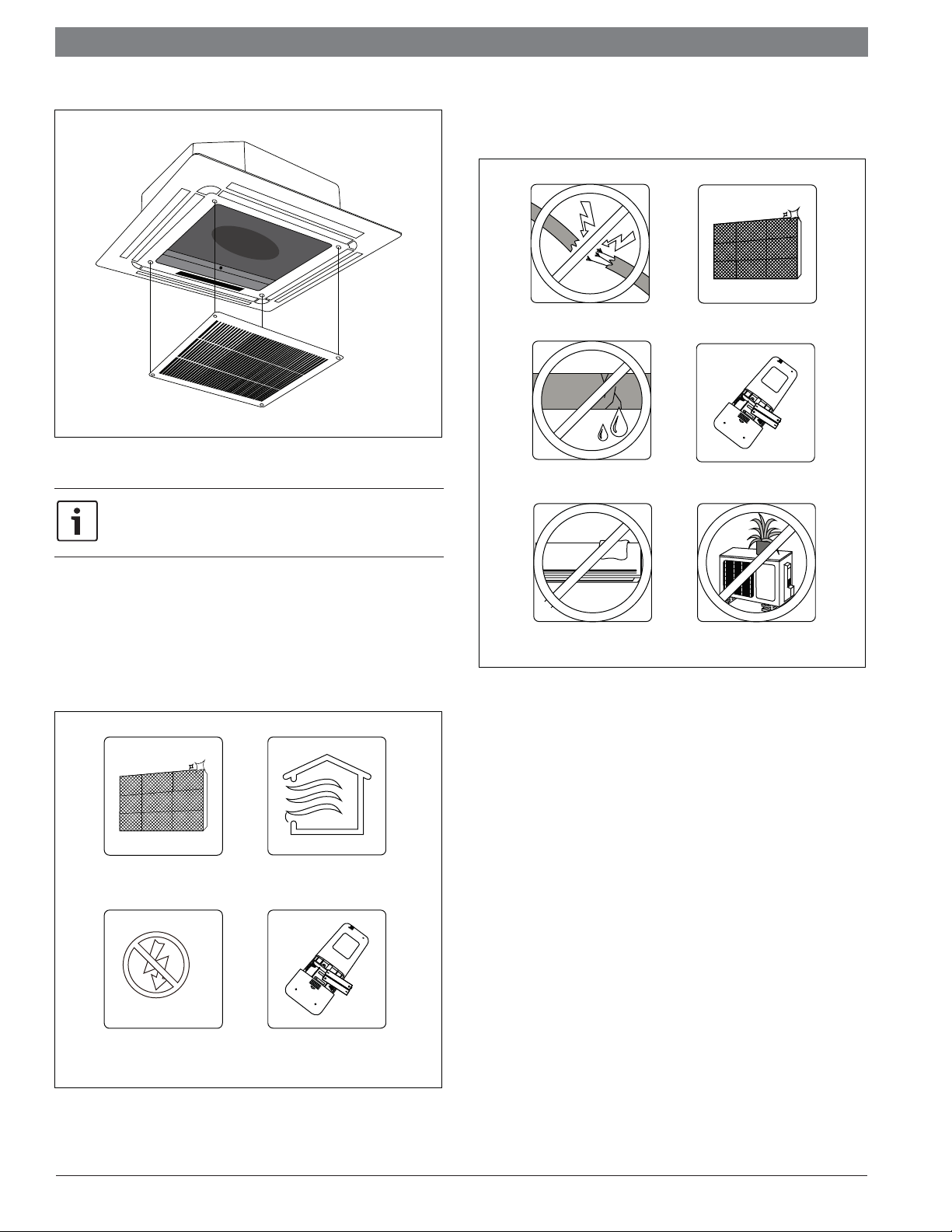

Figure 8
Auto-lifting decorative panel function can be activated by purchasing
additional accessories (special order required). Please contact local
dealer to find more information.
4.3 Maintenance – Long Periods of Non-Use
If you plan not to use your air conditioner for an extended period of time, do the
following:
Figure 9
Turn on FAN function until
unit dries out completely
Turn off the unit and
disconnect the power
Remove batteries
from remote control
Clean all filters
4.4 Maintenance – Pre-Season Inspection
After long periods of non-use, or before periods of frequent use, do the following:
Figure 10
Check for damaged wires Clean all filters
Check for leaks Replace batteries
Make sure nothing is blocking all air inlets and outlets

12 |Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump User Manual
04.2019 |Bosch Thermotechnology Corp.
Data subject to change
5 Troubleshooting
CAUTION: SYSTEM MALFUNCTION
If ANY of the following conditions occurs, turn off unit immediately!
The power cord is damaged or abnormally warm
You smell a burning odor
The unit emits loud or abnormal sounds
A power fuse blows or the circuit breaker frequently trips
Water or other objects fall into or out of the unit
DO NOT ATTEMPT TO FIX THESE YOURSELF! CONTACT A
QUALIFIED SERVICE PERSON IMMEDIATELY.
5.1 Common Issues
The following problems are not a malfunction and in most situations will not require
repairs.
Issue Possible Causes
Unit does not turn on when pressing ON/OFF button The Unit has a 3-minute protection feature that prevents the unit from overloading. The unit cannot be restarted within three
minutes of being turned off.
The indoor unit emits white mist In humid regions, a large temperature difference between the room’s air and the conditioned air can cause white mist.
The unit changes from COOL/HEAT mode to FAN mode
The unit may change its setting to prevent frost from forming on the unit. Once the temperature increases, the unit will start
operating in the previously selected mode again.
The set temperature has been reached, at which point the unit turns off the compressor. The unit will continue operating
when the temperature fluctuates again.
The indoor unit makes noises A rushing air sound may occur when the louver resets its position.
A squeaking sound may occur after running the unit in HEAT mode due to expansion & contraction of the unit’s plastic parts.
Both the indoor and outdoor units emit white mist When the unit restarts in HEAT mode after defrosting, white mist may be emitted due to moisture generated from the
defrosting process.
Both the indoor unit and outdoor unit make noises
Low hissing sound during operation: This is normal and is caused by refrigerant gas flowing through both indoor and outdoor
units.
Low hissing sound when the system starts, has just stopped running, or is defrosting: This noise is normal and is caused by
the refrigerant gas stopping or changing direction.
Squeaking sound: Normal expansion and contraction of plastic and metal parts caused by temperature changes during
operation can cause squeaking noises.
The outdoor unit makes noises The unit will make different sounds based on its current operating mode.
Dust is emitted from either the indoor or outdoor unit The unit may accumulate dust during extended periods of non-use, which will be emitted when the unit is turned on. This
can be mitigated by covering the unit during long periods of inactivity.
The fan of the outdoor unit does not operate During operation, the fan speed is controlled to optimize product operation.
Operation is erratic, unpredictable, or unit is unresponsive
Interference from cell phone towers and remote boosters may cause the unit to malfunction. In this case, try the following:
Disconnect the power, then reconnect.
Press ON/OFF button on remote control to restart operation.
The unit emits a bad odor
The unit may absorb odors from the environment (such as furniture, cooking, cigarettes, etc.) which will be emitted during
operations.
The unit’s filters have become moldy and should be cleaned.
Table 3
If a problem persists, contact a local dealer or a qualified service
provider. Provide them with a detailed description of the unit
malfunction as well as your model number and unit serial number.

User Manual Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump | 13
Bosch Thermotechnology Corp. |04.2019 Data subject to change
5.2 Troubleshooting Tips
When trouble occurs, please check the following points before contacting a
contractor.
Issue Possible Causes Solution
The unit
is not
working
Power failure Wait for the power to be restored
The power switch is off Turn on the power
The fuse is burned out Replace the fuse
Remote control batteries are dead Replace the remote control batteries
The unit’s 3-minute protection has been activated Wait three minutes after restarting the unit
Poor cooling
performance
Temperature setting may be higher than the ambient room temperature Lower the temperature setting
The heat exchanger on the indoor or outdoor unit is dirty Clean the affected heat exchanger
The air filter is dirty Clean filter according to instructions
The air inlet or outlet of either unit is blocked Turn the unit off, remove the obstruction and turn back on
Doors and windows are open Make sure that all doors and windows are closed
Excessive heat is generated by sunlight Close blinds and curtains
Poor heating
performance Cold air is entering through doors and windows Make sure that all doors and windows are closed during use
Table 4

14 |Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump User Manual
04.2019 |Bosch Thermotechnology Corp.
Data subject to change
5.3 Error Codes
Number Cause Operation indicator
flashes Timer indicator Error Code
1 Indoor EEPROM (Electrically Erasable Programmable Read-Only Memory) error 1 Off E0
2 Indoor and outdoor unit communication malfunction 2 Off E 1
3 Indoor fan speed malfunction 4 Off E3
4 Indoor room temperature sensor error 5 Off E4
5 Evaporator coil temperature sensor error 6 Off E5
6 Refrigerant leak detection system malfunction 7 Off EC
7 Water level alarm malfunction 8 Off EE
8 Dual indoor unit (twin model only) communication malfunction 9 Off E8
9 Other twin model malfunction 10 Off E9
10 Overload protection 1 On F0
11 Outdoor temperature sensor error 2 On F 1
12 Outdoor condenser pipe sensor error 3 On F2
13 Discharge air temperature sensor error 4 On F3
14 Outdoor EEPROM (Electrically Erasable Programmable Read-Only Memory) error 5 On F4
15 Outdoor fan speed (DC fan motor only) malfunction 6 On F5
16 Auto-lifting panel communication error 8 On F7
17 Auto-lifting panel malfunction 9 On F8
18 Auto-lifting panel is open 10 On F9
19 Inverter module IPM protection 1 Flash P0
20 High/Low voltage protection 2 Flash P 1
21 Compressor top overheating protection 3 Flash P2
22 Outdoor low temperature protection 4 Flash P3
23 Compressor drive error 5 Flash P4
24 Mode conflict 6 Flash P5
25 Compressor low-pressure protection 7 Flash P6
26 Outdoor IGBT sensor error 8 Flash P7
Table 5
9k~18k models do not have display to show error codes and Operation
and Timer Indicator will turn on / off and or flash according to above table
to show system malfunction.

User Manual Bosch Climate 5000 Series Four Way Cassette Ductless Single Split Air Conditioner / Heat Pump | 15
Bosch Thermotechnology Corp. |04.2019 Data subject to change
6 Disposal Guidelines
Components
Many parts in the Air Conditioner can be fully recycled in the end of the product
life. Contact your city authorities for information about the disposal of recyclable
products.
Refrigerant
At the end of the service life of this appliance and prior to it's environmental
disposal, a person qualified to work with refrigerant circuits must recover the
refrigerant from within the sealed system.
CAUTION: CONTAINS REFRIGERANT
Improper disposal of this appliance endangers your health
and is bad for the environment. Hazardous substances may
leak into the ground water and enter the food chain.
Disposing of this product correctly will help ensure that the
waste undergoes the necessary treatment, recovery and
recycling.

United States and Canada
Bosch Thermotechnology Corp.
65 Grove Street
Watertown, MA 02472
Tel: [phone]
Fax: [phone]
www.boschheatingandcooling.com
BTC 769003104 A /04.2019
