Bosch Climate 5000 Series User manual

Installation Instructions
Wall Mounted Ductless Split Air Conditioner/
Heat Pump
Climate 5000 Series
BTC 769103301 B / 06.2022
WARNING:
Installation must be performed by a licensed
contractor, and per the instructions in the
installation manual. Improper installation can
cause water leakage, electrical shock, or fire.
In North America, installation must
be performed in accordance with the
requirement of NEC (National Electric Code)
and CEC (Canadian Electric Code) by licensed
and qualified personnel only.
Only contact a licensed contractor for repair
or maintenance of this unit.

2|
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)

| 3
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
Table of Contents
1 Key to Symbols and Safety Instructions 4
1.1 Key to Symbols 4
1.2 Safety 4
2 Components 6
3 Installation Summary - Indoor Unit 7
4 System Components 8
5 Indoor Unit Installation 9
6 Outdoor Unit Installation 17
7 Refrigerant Piping Connection 22
7.1 Connection Instructions – Refrigerant Piping 22
7.2 Connecting Piping to Indoor Unit 24
7.3 Connecting Tubing to Outdoor Unit 24
8 Evacuation and Charging Process 25
8.1 Preparations and Precautions 25
8.2 Evacuation Instructions 25
8.3 Adding Refrigerant 26
9 Electrical and Refrigerant Leak Checks 27
9.1 Electrical Safety Checks 27
9.2 Refrigerant Leak Checks 27
10 Test Run 28
10.1 Before Test Run 28
10.2 Test Run Instructions 28
11 Display Codes (Indoor Unit) 29

4|
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
1 Key to Symbols and Safety Instructions
1.1 Key to Symbols
Warnings
Warnings in this document are identified by a
warning triangle printed against a grey background.
Keywords at the start of a warning indicate the type and seriousness
of the ensuing risk if measures to prevent the risk are not taken.
The following keywords are defined and can be used in this document:
DANGER indicates a hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor to moderate injury.
NOTICE is used to address practices not related to personal injury.
Important information
This symbol indicates important information where
there is no risk to people or property.
1.2 Safety
Please read safety precautions before installation
Incorrect installation due to ignoring instructions can cause serious damage or
injury.
WARNING: ELECTRICAL HAZARD
Do not modify the length of the power supply cord or use an
extension cord to power the unit.
Do not share the electrical outlet with other appliances.
Improper or insufficient power supply can cause fire or
electrical shock.
WARNING: INSTALLATION REQUIREMENTS
Installation must be performed by a licensed contractor,
and per the instructions in the installation manual. Improper
installation can cause water leakage, electrical shock, or fire.
In North America, installation must be performed in
accordance with the requirement of NEC (National Electric
Code) and CEC (Canadian Electric Code) by licensed and
qualified personnel only.
Only contact a licensed contractor for repair or maintenance
of this unit.
Only use the included accessories, parts, and specified
parts for installation. Using non-standard parts can cause
water leakage, electrical shock, fire, and can cause the unit
to fail.
Install the unit in a solid location that can support the unit’s
weight. If the chosen location cannot support the unit’s
weight, or the installation is not done properly, the unit may
drop and cause serious injury and/or damage.
WARNING:
This product can expose you to chemicals including Lead
and Lead components, which are known to the State
of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.
P65Warnings.ca.gov.

| 5
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
WARNING: ELECTRICAL HAZARD
For all electrical work, follow all local and national wiring
standards, regulations, and the Installation Manual.
The power supply to the outdoor unit requires a service
disconnect at the unit. Only use a dedicated circuit. Never
share a power source connected to this system. Insufficient
electrical capacity or defects in electrical work can cause
electrical shock or fire.
For all electrical work, use the specified cables. Connect
cables tightly, and clamp them securely to prevent external
forces from damaging the terminal. Improper electrical
connections can overheat and cause fire, and may also
cause shock.
All wiring must be properly arranged to ensure that the
control board cover can close properly. If the control board
cover is not closed properly, it can lead to corrosion and
cause the connection points on the terminal to heat up,
catch fire, or cause electrical shock.
In certain functional environments, such as kitchens, server
rooms, etc., the use of specially designed air-conditioning
units is highly recommended.
If the power supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons such as a licensed electrician in order to avoid a
hazard.
The product must be properly grounded at the time of
installation, or electrical shock may occur.
CAUTION: BURN HAZARD
For units that have an auxiliary electric heater, do not
install the unit within 1 meter (3 feet) of any combustible
materials.
Do not install the unit in a location that may be exposed
to combustible gas leaks. If combustible gas accumulates
around the unit, it may cause fire.
Do not operate your air conditioner in a wet room such as a
bathroom or laundry room. Too much exposure to water can
cause electrical components to short circuit.
NOTICE: PROPERTY DAMAGE
Install condensate drainage piping according to the
instructions in this manual. Improper condensate drainage
may cause water damage to your home and property.
CAUTION: CONTAINS REFRIGERANT
This air-conditioning unit contains fluorinated gasses. For
specific information on the type of gas and the amount,
please refer to the relevant label on the outdoor unit itself.
Installation, service, maintenance and repair of this unit
must be performed by a certified technician.
Product removal and recycling must be performed by a
certified technician.
If the system has a leak-detection system installed, it must
be checked for leaks at least every 12 months.
When the unit is checked for leaks, proper record-keeping of
all checks is strongly recommended.

6|
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)

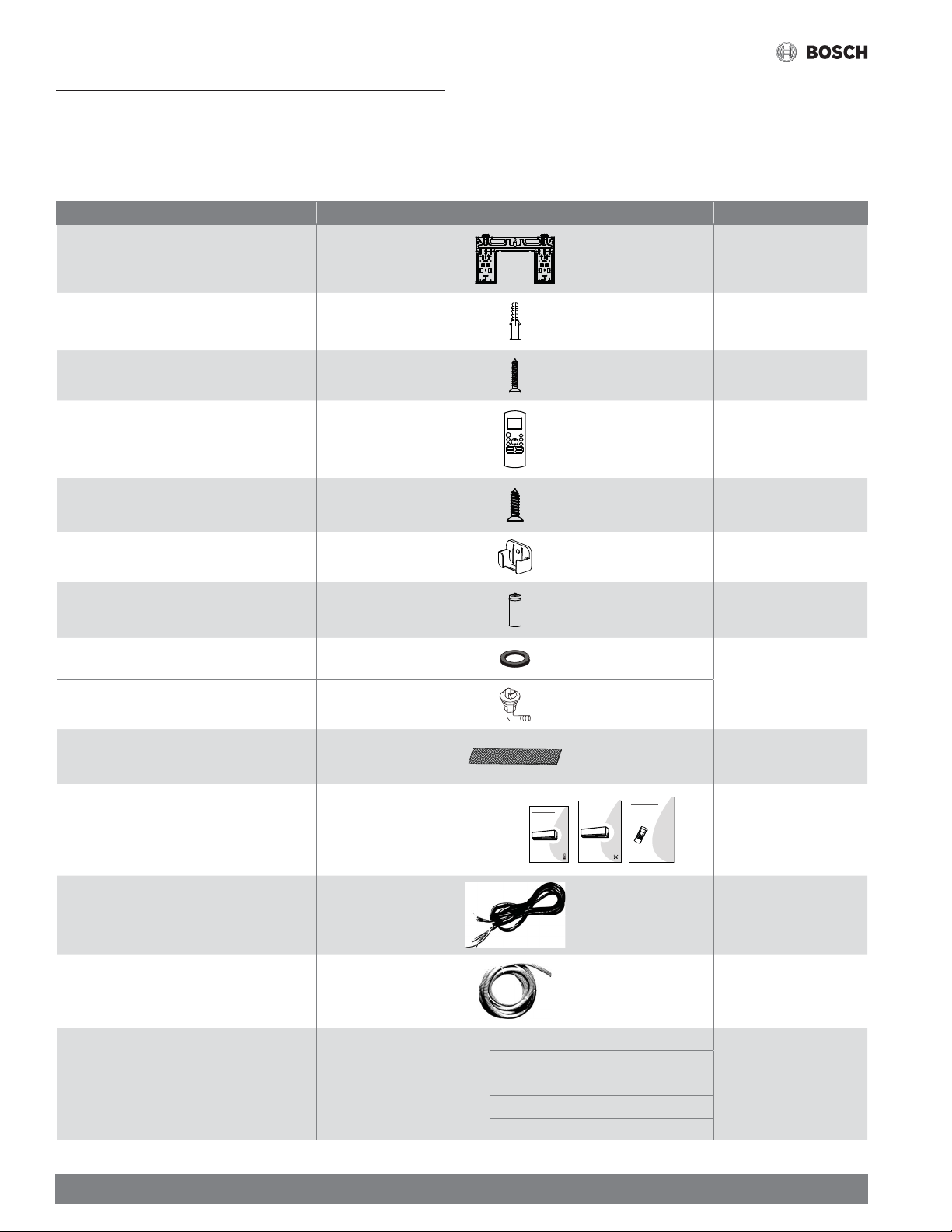

2 Components
The air conditioning / heat pump system comes with the following components.
Use all of the installation parts and components to install the air conditioner.
Improper installation may result in water leakage, electrical shock and fire, or cause
the equipment to fail.
Name Image Quantity
Mounting plate 1
Wall anchor 5
Mounting plate fixing screw ST3.9 X 25 5
Remote controller 1
Fixing screw for remote controller holder ST2.9 x 10 2
Remote controller holder 1
Dry cell battery AAA.LR03 2
Seal
1

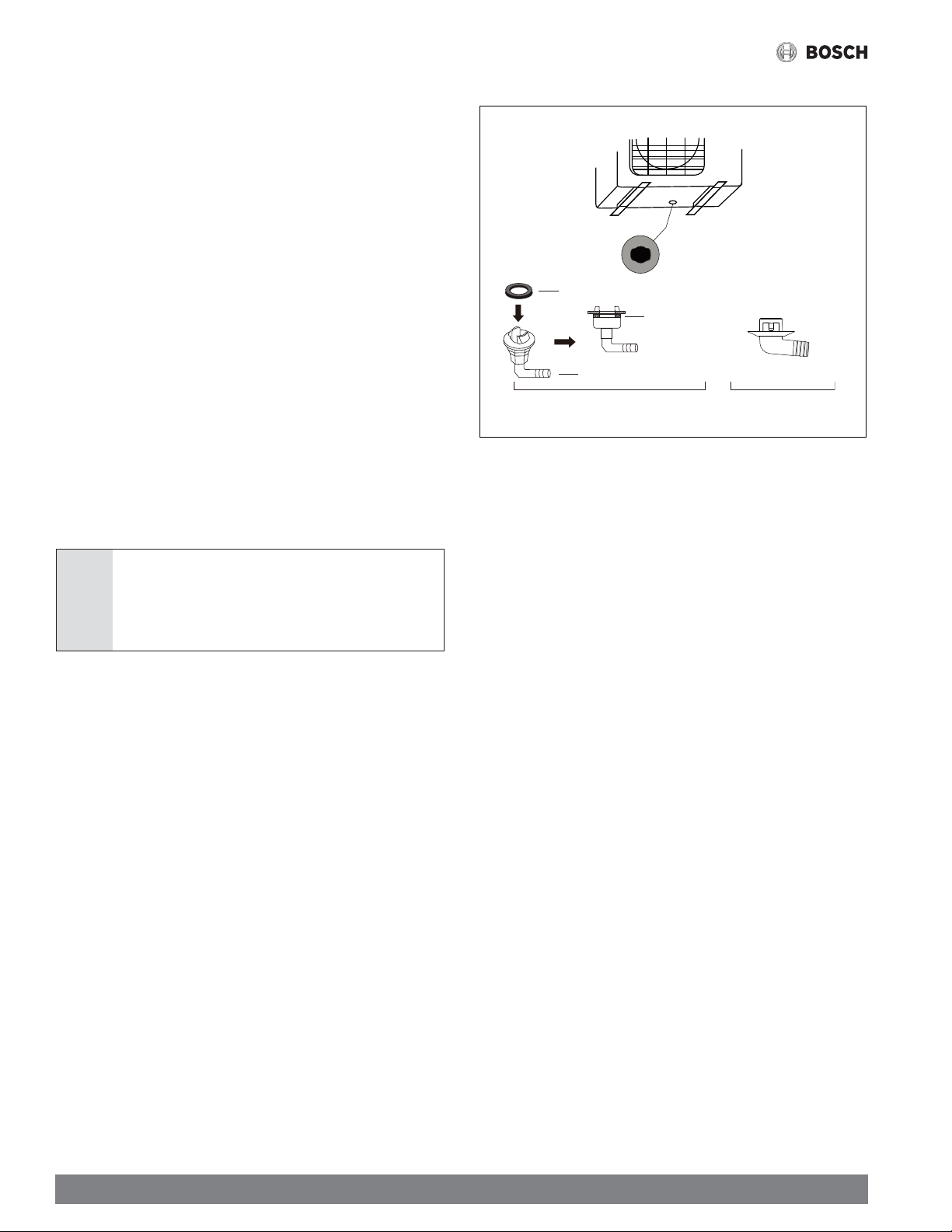

Drain joint
Air Filter 1
Documentation
Owner's manual
Installation manual
Remote controller user manual
INVERTERSPLIT-TYPE ROOMAIR CONDITIONER
CS78421-548-754
IMPORTANTNOTE:
Readthismanual carefully before installing
oroperatingyour new air conditioning
unit.Makesure to save this manual for
futurereference.
Owner’sManual
AuroraSeries
AllModel Numbers
INVERTERSPLIT-TYPE ROOMAIR CONDITIONER
CS78421-548-754
IMPORTANTNOTE:
Readthismanual carefully before installing
oroperatingyour new air conditioning
unit.Makesure to save this manual for
futurereference.
Installation Manual
Aurora Series
AllModel Numbers
INVERTERSPLIT-TYPE ROOM AIR CONDITIONER
CS78421-548-754
IMPORTANTNOTE:
Readthismanual carefully before installing
oroperatingyour new air conditioning
unit.Makesure to save this manual for
futurereference.
Remote controller
illustration
Aurora Series
AllModel Numbers
1 each
Signal/power cable 1
(15ft cable)
Drain hose 1
Connecting pipe assembly
Liquid side Φ6.35( 1/4in)
Parts not included. See
section 8.3 for detail.
Piping kits are available
as an accessory.
Φ9.52( 3/8in)
Vapor side
Φ9.52( 3/8in)
Φ12.7( 1/2in)
Φ 16( 5/8in)
Table 1

| 7
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
3 Installation Summary - Indoor Unit

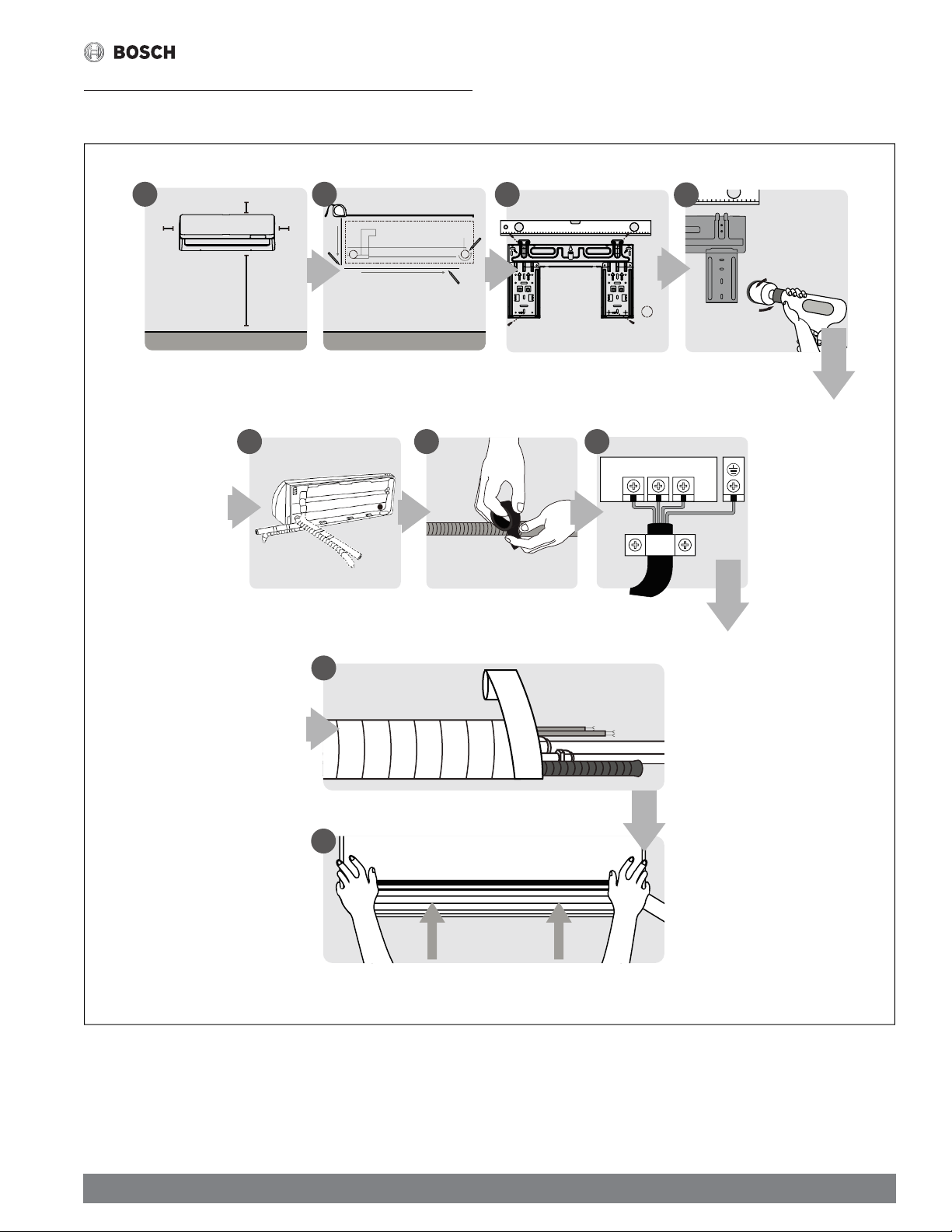

Figure 1
Mount Indoor Unit
(Page 16)
STEP8
Wrap Piping and Cable
(Page 16)
123
Prepare for Refrigerant Pipe
(Page 11)
Connect Wiring
(Page 14)
Prepare Drain Hose
(Page 13)
5 6 7
8
9
Select Installation Location
(Page 9)
Attach Mounting Plate
(Page 10)
Drill Wall Hole
(Page 10)
Determine Wall Hole Position
(Page 9)
1 2 34
12cm
(4.75in)
230cm
(90.55in)
12cm
(4.75in)
15cm (5.9in)

8|
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)

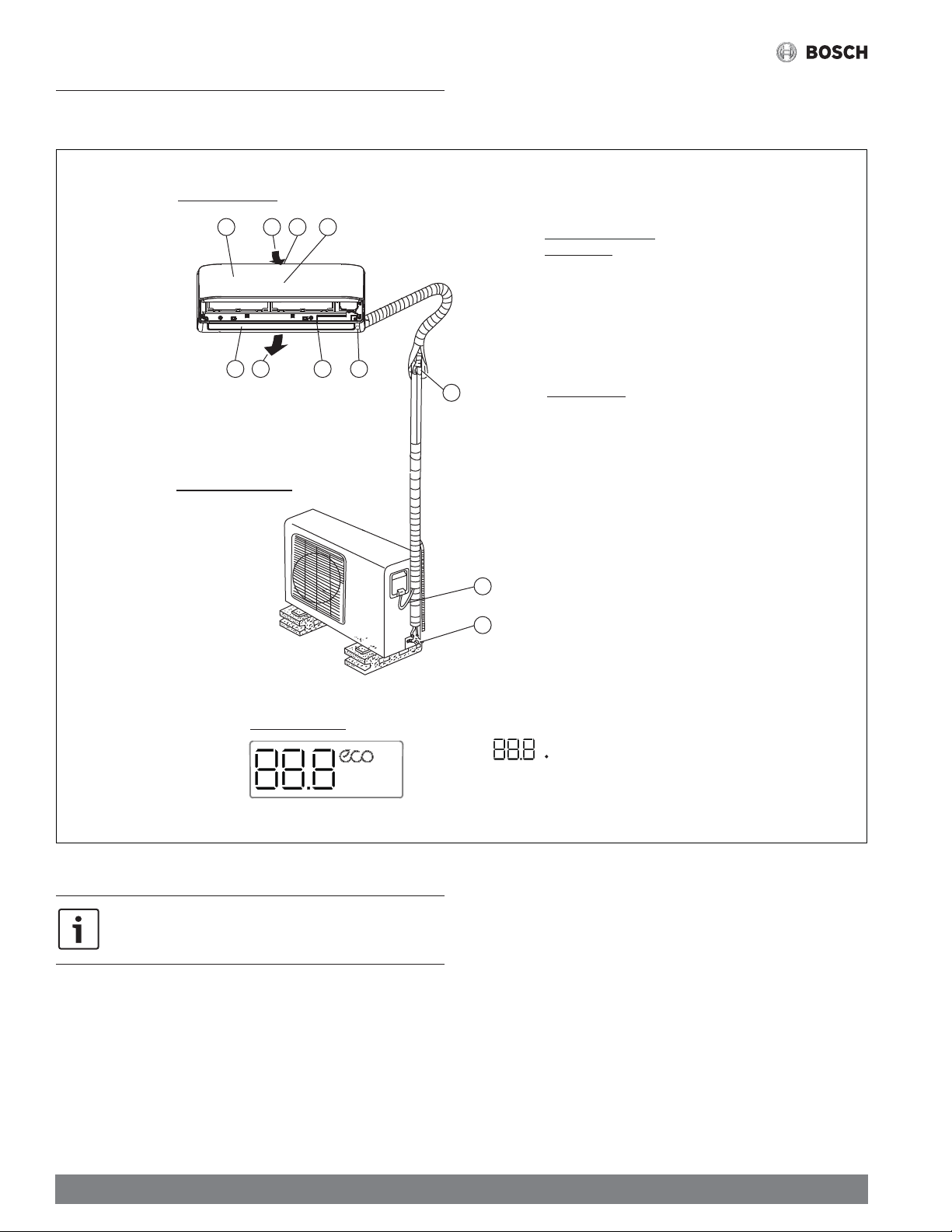

4 System Components
Figure 2
9. Refrigerant pipe
10. Signal/power cable
11. Service valve
Outdoor unit
1 Front panel
2. Air inlet
3. Air filter
4. Air outlet
5. Horizontal air flow grille
6. Vertical air flow louver(inside)
7. Display panel
Indoor unit
LED display
Displays temperature, operation features
and error codes
Outdoor unit
Indoor unit
Display
Part Descriptions
123
46
7
5
9
10
8
8. ECO intelligent eye
11
Illustrations in this manual are for explanatory purposes. The actual
shape of your indoor unit may be slightly different. The actual shape
shall prevail.

| 9
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)

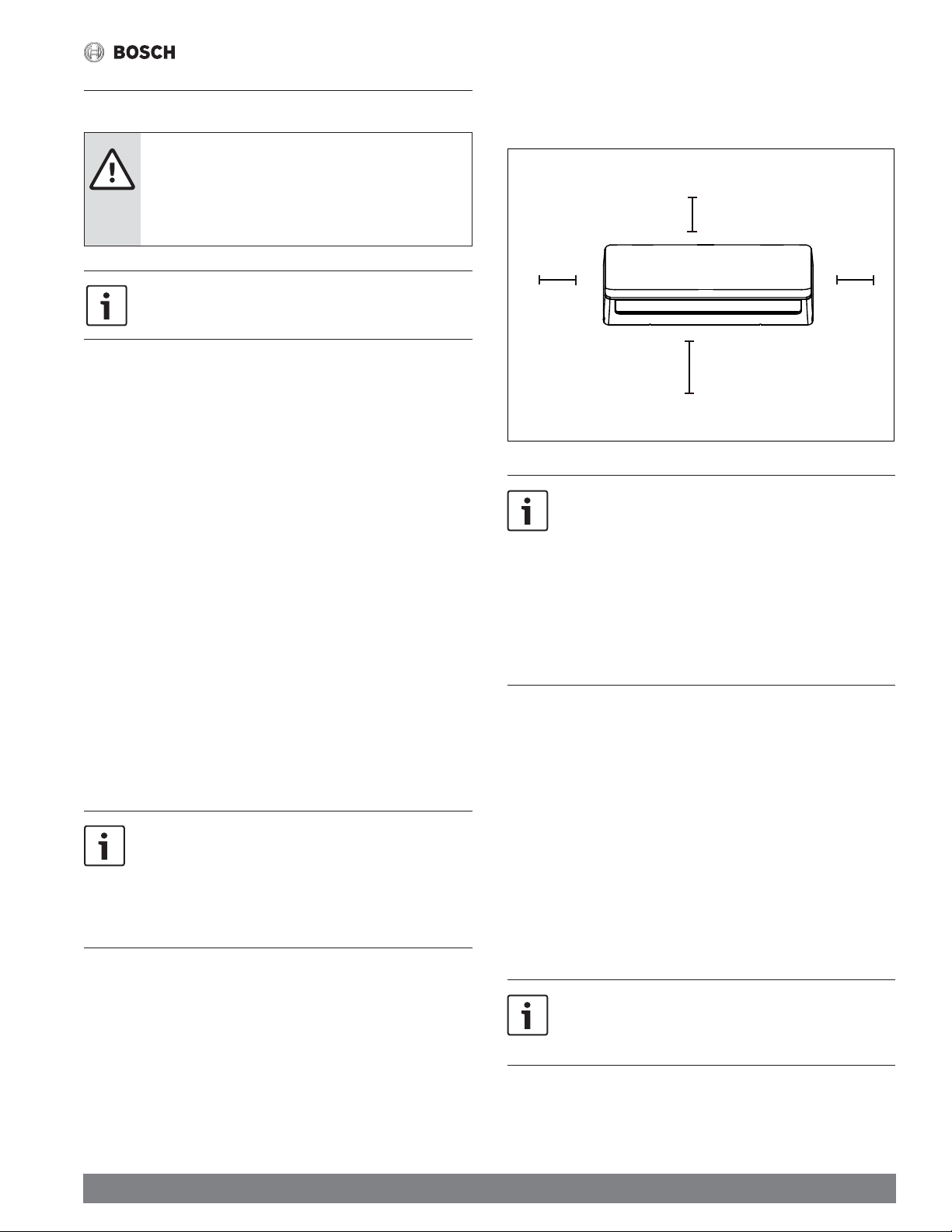

5 Indoor Unit Installation
WARNING: PERSONAL INJURY, PROPERTY DAMAGE
Install the unit in a solid location that can support the unit’s
weight. If the chosen location cannot support the unit’s
weight, or the installation is not done properly, the unit
may drop and cause serious injury and/or damage.
Before installing the indoor unit, refer to the label on the product box to
make sure that the model number of the indoor unit pairs with the model
number of the outdoor unit.
Step 1: Select installation location
Before installing the indoor unit, you must choose an appropriate location. The
following are standards that will help you choose an appropriate location for the
unit.
Proper installation locations meet the following standards:
—Good air circulation
—Convenient drainage of condensate
—Noise from the unit will not disturb other people
—Firm and solid foundation — the location will not vibrate
—Strong enough to support the weight of the unit
—A location at least three feet from all other electrical devices (e.g.,
TV, radio, computer)
DO NOT install unit in the following locations:
—Near any source of heat, steam, or combustible gas
—Near flammable items such as curtains or clothing
—Near any obstacle that might block air circulation
—Near the doorway
—In a location subject to direct sunlight
Note about wall hole:
While choosing a location, be aware that you should leave ample room
for a wall hole (see Drill wall hole for connective piping step) for the
signal/power cable and refrigerant piping that connect the indoor and
outdoor units. The default position for all piping is the right side of the
indoor unit (while facing the unit). However, the unit can accommodate
piping to both the left and right.
Refer to the following diagram (Fig. 3) to ensure prope clearance from walls, ceiling
and floor:
Figure 3
12cm (4.75in)
or more
2.3m (90.55in) or more
12cm (4.75in)
or more
15cm (5.9in) or more
If back holder to prop up the unit not necessary:
Finishing the pipe and cable connections before mounting the indoor
unit on the wall. If the installation height is limited, 5cm (1.96in) from
the ceiling is allowable, but this can lower product performance. To
ensure enough space to install and remove the top air filter, keep at least
10cm (3.93in) or more from the ceiling.
If back holder to prop up the unit necessary:
If connecting pipe and cable with front panel open, the minimum
distance from ceiling is 22cm (8.66in) or more, if connecting pipe and
cable without front panel (remove it) , the minimum distance from ceiling
is 11cm (4.33in) or more.
Step 2: Mounting plate installation
The mounting plate is the device on which you will mount the indoor unit.
1. Remove the screw that attaches the mounting plate to the back of the indoor
unit.
2. Place the mounting plate against the wall in a location that meets the
standards in the Select Installation Location step.(See Mounting Plate
Dimensions for detailed information on mounting plate sizes.)
3. Drill holes for mounting screws in places that:
—have studs and can support the weight of the unit
—correspond to screw holes in the mounting plate
4. Secure the mounting plate to the wall with the screws provided.
5. Make sure that mounting plate is flat against the wall.
If the wall is made of brick, concrete, or similar material, drill 5mm-
diameter (0.2in-diameter) holes in the wall and insert the sleeve anchors
provided. Then secure the mounting plate to the wall by tightening the
screws directly into the clip anchors.

10 |
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
Mounting plate dimensions
Different models have different mounting plates. In order to ensure that you have
ample room to mount the indoor unit, the diagrams to the right show different types
of mounting plates along with the following dimensions:
Width of mounting plate
Height of mounting plate
Width of indoor unit relative to plate
Height of indoor unit relative to plate
Recommended position of wall hole (both to the left and right of mounting
plate)
Relative distances between screw holes
Correct orientation of Mounting Plate
Make sure the mounting plate is level and not leaning to one side.
Figure 4
Mounting plate differences
Figure 5
6k, 9k & 12k Btuh Models
Indoor unit outline
795(31)
120(4.7)
Φ
pipe hole
65(2.5)
50(1.9)
Φ
pipe hole
65(2.5)
425(16.7)
295(11.6)
51(2.0)
40(1.6)
Figure 6
18k Btuh Model
Φ
FROM EDGE TO HOLE CENTER:50mm
FROM EDGE TO HOLE CENTER:95mm
150
100 100
965(38)
50(1.9)
95(3.7)
pipe hole
65(2.5)
Φ
pipe hole
65(2.5)
490(19.3)
322(12.7)
40(1.6)
40(1.5)
100
50
50 50
2
2
2
444
6
RECOMMAND
LIQUID GAS
BUBBLE
LEVEL
mm inch
mm
inch
Indoor unit outline
Figure 7
24k, 30k & 36k Btuh Models
FROM EDGE TO HOLE CENTER:50mm
FROM EDGE TO HOLE CENTER:70mm
570.7(22.5)
70(2.8)
1140(44.8)
50(1.9)
Φ
pipe hole
65(2.5)
Φ
pipe hole
65(2.5)
370(14.6)
50(1.9) 60(2.4)
BUBBLE
LEVEL
150
100
50 2
4
6
RECOMMAND
mm inch
100 100
50 50
2
2
44
LIQUID GAS
mm
inch
Indoor unit outline
When the gas side connective pipe is ⌀16mm(5/8in) or more, the wall
hole should be 90mm(3.54in).
Step 3: Drill wall hole for connection
You must drill a hole in the wall for refrigerant piping, the drainage pipe, and the
signal/power cable that will connect the indoor and outdoor units.
1. Determine the location of the wall hole based on the position of the mounting
plate. Refer to Mounting Plate Dimensions on the next page to help you
determine the optimal position. The wall hole should have a 65mm (2.5in)
diameter at least, and at a slightly lower angle to facilitate drainage.
2. Using a 65mm (2.5in) core drill, drill a hole in the wall. Make sure that the
hole is drilled at a slight downward angle, so that the outdoor end of the hole
is lower than the indoor end by about 5mm to 7mm (0.2-0.275in). This will
ensure proper water drainage. (See Fig. 4)
3. Place a protective wall sleeve (not included) in the hole. This protects the
edges of the hole and will help seal it when you finish the installation process.
CAUTION: ELECTRICAL SHOCK/PROPERTY DAMAGE
When drilling the wall hole, make sure to avoid wires,
plumbing, and other sensitive components.
Figure 8
Wall
Indoor Outdoor
mm
7-5
(0.2-0.3in)

| 11
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
Step 4: Prepare refrigerant piping
The refrigerant piping is inside an insulating sleeve attached to the back of the unit.
You must prepare the piping before passing it through the hole in the wall. Refer to
the Refrigerant Piping Connection section of this manual for detailed instructions
on pipe flaring and flare torque requirements, technique, etc.
Refrigerant piping can exit the indoor unit from four different angles:
Left-hand side
Left rear
Right-hand side
Right rear
Refer to Figure 9 for details.
Figure 9
Rear of indoor unit
NOTICE:
Be extremely careful not to crimp or damage the piping
while bending them away from the unit. Any deformations in
the piping will affect the unit’s performance.
If there is no refrigerant piping embedded in the wall, do the following:
1. Based on the position of the wall hole relative to the mounting plate, choose
the side from which the piping will exit the unit.
2. If the wall hole is behind the unit, keep the knock-out panel in place. If the
wall hole is to the side of the indoor unit, remove the plastic knock-out panel
from that side of the unit. (See Figure 10). This will create a slot through
which your piping can exit the unit. Use needle nose pliers if the plastic panel
is too difficult to remove by hand.
Figure 10
Knock-Out Panel
3. Slide the insulation back to expose the connection fittings. This serves two
purposes:
To facilitate the Refrigerant Piping Connection process
To facilitate Gas Leak Checks and enable you to check for kinks in
the refrigerant and condensate tubing.
4. Use the holder at the back of the unit to prop up the unit, giving you enough
room to connect the refrigerant piping, signal cable, and drain hose.
Figure 11 Unit Prop-Up Holder
5. Connect the indoor unit’s refrigerant piping to the refrigerant line set that will
join the indoor and outdoor units. Refer to the Refrigerant Piping Connection
section of this manual for detailed instructions.
6. Based on the position of the wall hole relative to the mounting plate,
determine the necessary angle of your piping.

12 |
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
7. Firmly hold the refrigerant piping at the base of the bend.
8. Carefully, with even pressure, bend the piping towards the hole. Do not kink
or damage the piping during the process.
If refrigerant piping is already embedded in the wall, do the following:
1. Hook the top of the indoor unit on the mounting plate.
2. Open and fix the position of the panel, then, open the covers of the two lock
blocks, unscrew the screw showed in the picture below, then hold both sides
of the lower panel in the place marked “PULL”, pull it upwards to release the
buckles, then take the lower panel down.
Figure 12
Open the cover
and unscrew the
screw
AUTO COOL

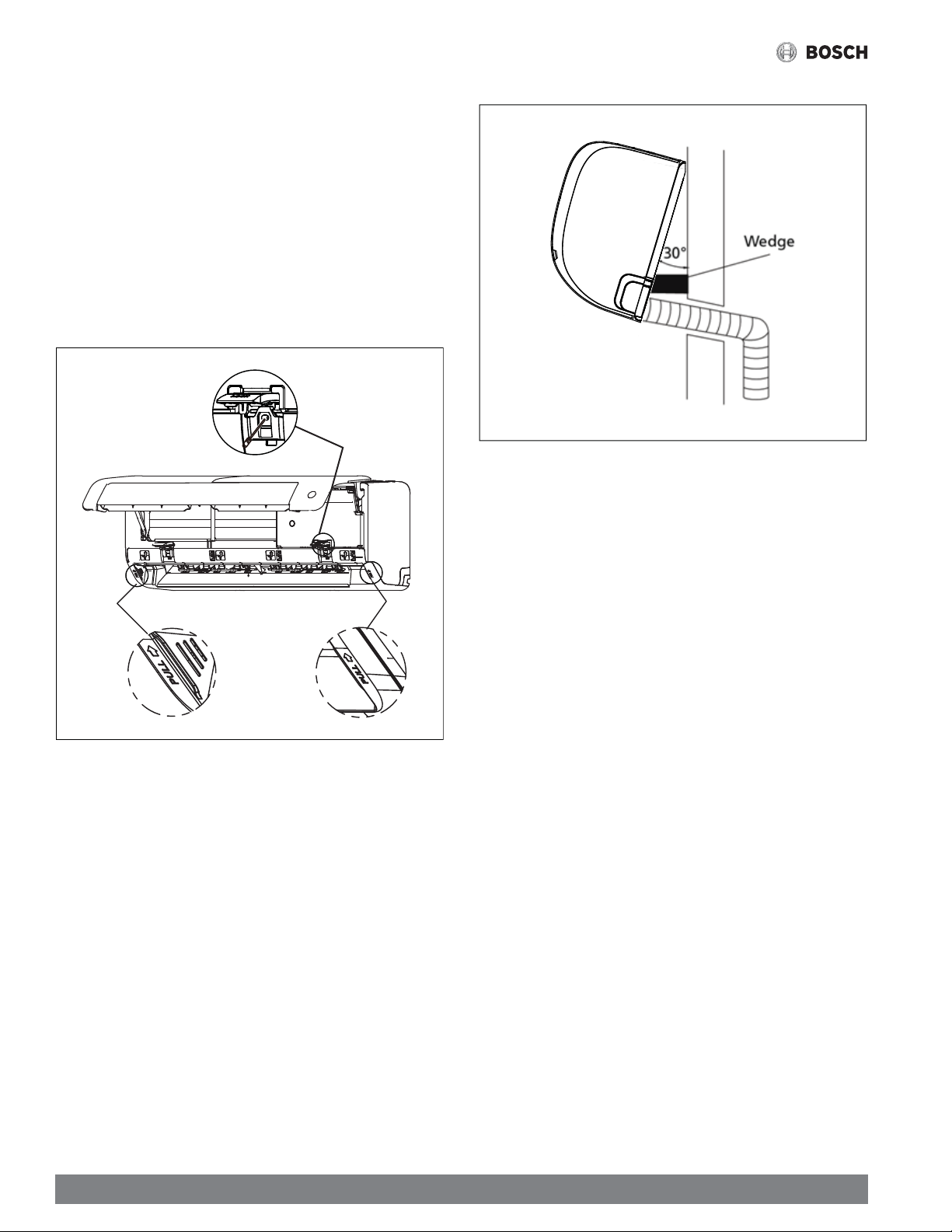

3. Use a bracket or wedge to prop up the unit, giving you enough room to
connect the refrigerant piping, signal/power cable, and drain hose. Refer to
Figure 13 for an example.
Figure 13
4. Connect drain hose and refrigerant piping (refer to Refrigerant Piping
Connection section of this manual for instructions).
5. Keep pipe connection point exposed to perform the leak test (refer to
Electrical Checks and Leak Checks section of this manual).
6. After the leak test, wrap the connection point with insulation tape.
7. Remove the bracket or wedge that is propping up the unit.
8. Using even pressure, push down on the bottom half of the unit. Keep
pushing down until the unit snaps onto the hooks along the bottom of the
mounting plate.

| 13
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
Step 5: Connect drain hose
By default, the drain hose is attached to the left-hand side of unit (when you’re
facing the back of the unit). However, it can also be attached to the right-hand side.
1. To ensure proper drainage, attach the drain hose on the same side that your
refrigerant piping exits the unit.
2. Attach drain hose extension (purchased separately) to the end of drain
hose.
3. Wrap the connection point firmly with Teflon tape to ensure a good seal and
to prevent leaks.
4. For the portion of the drain hose that will remain indoors, wrap it with foam
pipe insulation to prevent condensation.
5. Remove the air filter and pour a small amount of water into the drain pan to
make sure that water flows from the unit smoothly. If not, make adjustments
and test again to see if the condensate will flow freely.

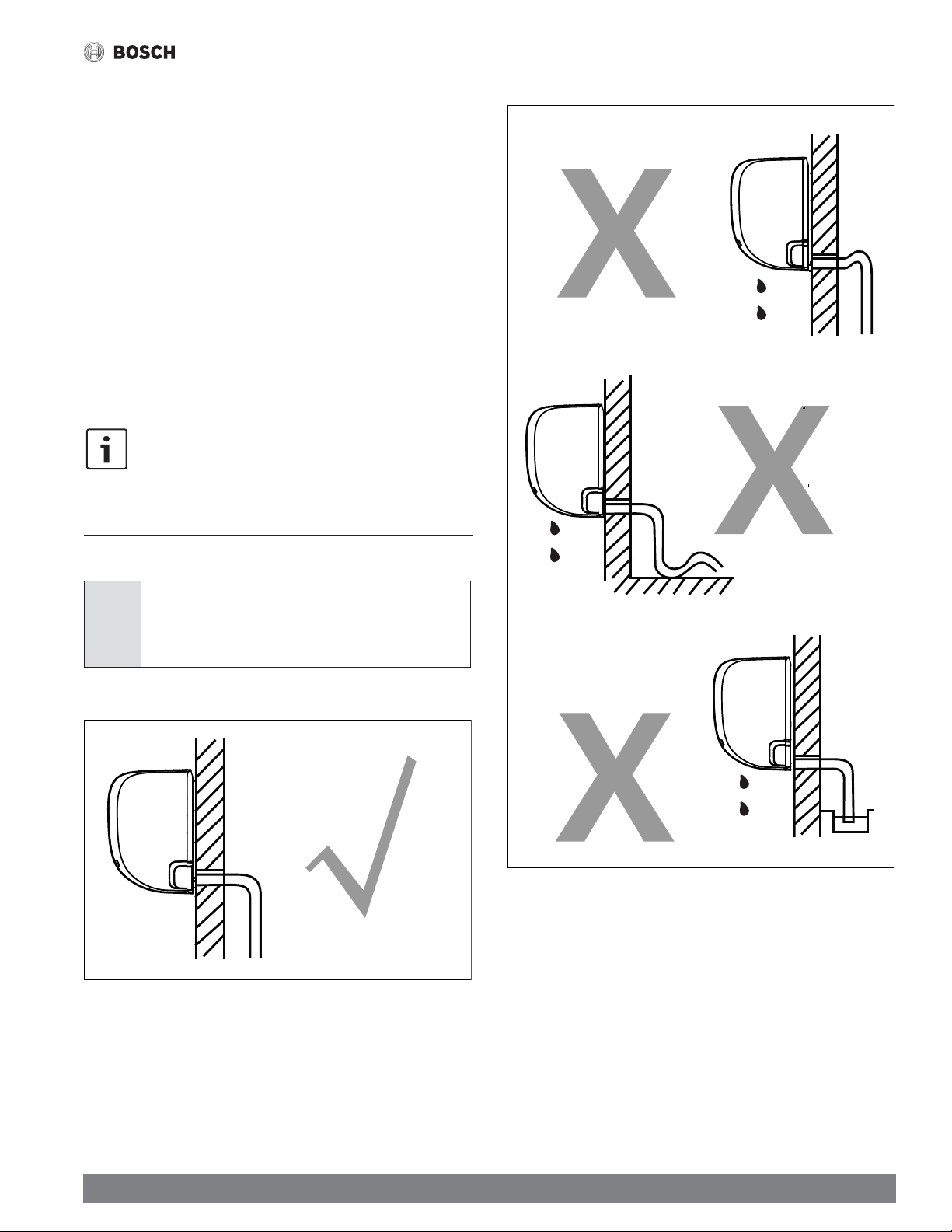

Make sure to arrange the drain hose according to Fig. 11 & 12:
DO NOT kink the drain hose.
DO NOT create a water trap.
DO NOT put the end of drain hose in water or a container that
will collect water.
NOTICE: Plug the unused drain hole
To prevent unwanted leaks you must plug the unused drain
hole with a rubber plug.
Figure 14
Make sure there are no
kinks or dents in drain
hose to ensure proper
drainage.
CORRECT
Figure 15
NOT CORRECT
Kinks in the drain hose
will create water traps.
NOT CORRECT
Do not place the end
of the drain hose in
water or in containers
that collect water. This
will prevent proper
drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.

14 |
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
Step 6: Connect signal/power cable
DANGER: ELECTRIC HAZARD
Before performing any electrical or wiring work, turn off the
main power to the system.
WARNING: ELECTRIC HAZARD
Before performing electrical work, read these regulations:
1. All wiring must comply with local and national
electrical codes, and must be installed by a licensed
electrician.
2. All electrical connections must be made according
to the Electrical Connection Diagram located on the
panels of the indoor and outdoor units.
3. If there is a serious safety issue with the power supply,
stop work immediately. Explain your reasoning to the
client, and refuse to install the unit until the safety
issue is properly resolved.
4. Power voltage should be within 90-110% of rated
voltage. Insufficient power supply can cause
malfunction, electrical shock, or fire.
5. When connecting power to fixed wiring, install a surge
protector and main power switch with a capacity of
1.5 times the maximum current of the unit.
6. When connecting power to fixed wiring, a switch or
circuit breaker that disconnects all poles and has
a contact separation of at least 1/8in (3mm) must
be incorporated in the fixed wiring. The licensed
electrician must use an approved circuit breaker.
7. Only connect the unit to an individual branch circuit
outlet. Do not connect another appliance to that
outlet.
8. Make sure to properly ground the outdoor unit. The
ground cable for the indoor unit shall be in the multi-
conductor cord that connects the outdoor unit to the
indoor unit.
9. Every wire must be firmly connected. Loose wiring can
cause the terminal to overheat, resulting in product
malfunction and possible fire.
10. Do not let wires touch or rest against refrigerant
tubing, the compressor, or any moving parts within
the unit.
The signal/power cable enables communication between the indoor and outdoor
units. You must first choose the right cable size before preparing it for connection.
Minimum Cross-Sectional Area of Power Cables
ApplianceAmps(A) AWG
10 18
13 16
18 14
25 12
30 10
Table 2
Choose the right cable size
The size of the power supply cable, fuse, and switch needed is determined by the
maximum current of the unit. The maximum current is indicated on the nameplate
located on the side panel of the unit. Refer to this nameplate to choose the right
cable, fuse, or switch.
Take note of fuse specifications
The air conditioner’s circuit board (PCB) is designed with a fuse
to provide overcurrent protection. The specifications of the fuse
are printed on the circuit board, for example: T3.15A/250VAC,
T5A/250VAC, etc.
1. Prepare the cable for connection:
—Using wire strippers, strip the rubber jacket from both ends of
signal/power cable to reveal about 40mm (1.57in) of the wires
inside.
—Strip the insulation from the ends of the wires.
—Using wire crimper, crimp u-type lugs on the ends of the wires.
2. Open the front panel of the indoor unit.
3. Using a screwdriver, open the wire box cover on the right side of the unit.
If a quick-connect cable is attached to the indoor unit's terminal block,
remove this cable and discard. This quick-connect cable is used in the
manufacturer production testing process.

| 15
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
Figure 16
YELLOW
Y/G
RED
BLUE(BLACK)
INDOOR UNIT
OUTDOOR UNIT
JX1
12
3
Wiring Schematic Example (refer to unit for actual schematic)
WARNING: ELECTRICAL HAZARD
All wiring must be performed strictly in accordance with the
wiring diagram located on the inside of the indoor unit's wire
cover.
4. Unscrew the cable clamp below the terminal block and place it to the side.
5. Facing the back of the unit, remove the plastic panel on the bottom left-
hand side.
6. Feed the signal wire through this slot, from the back of the unit to the front.
7. Facing the front of the unit, match the wire colors with the labels on the
terminal block, connect the u-lug and and firmly screw each wire to its
corresponding terminal.
Figure 17
First open the front panel, then remove
the lower panel.
Terminal
block
open the
Wire cover
Rat baffle(some units)
Knock-out
panel
Cable
clamp
WARNING: SYSTEM MALFUNCTION
Do not mix up live and wires not used. This is dangerous,
and can cause the air conditioning unit to malfunction.
8. Make sure every connection is secure, and use the cable clamp to fasten the
signal/power cable to the unit. Screw the cable clamp down tightly.
9. Replace the wire cover on the front of the unit, and the plastic panel on the
back.
The wiring connection process may differ slightly between units.

16 |
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
Step 7: Wrap piping and cables
Before passing the piping, drain hose, and the signal/power cable through the wall
hole, you must bundle them together to save space, protect them, and insulate
them.
1. Bundle the drain hose, refrigerant pipes, and signal/power cable according
to Figure 15.
Figure 18
Indoor Unit
Space behind unit
Refrigerant piping
Drain hose
Signal/power
cable
Insulation tape
CAUTION: FIRE HAZARD
Make sure that the drain hose is at the bottom of the bundle.
Putting the drain hose at the top of the bundle can cause
the drain pan to overflow, which can lead to fire or water
damage.
NOTICE
While bundling these items together, do not intertwine or
cross the signal/power cable with any other wiring.
2. Using adhesive vinyl tape, attach the drain hose to the underside of the
refrigerant pipes.
3. Using insulation tape, wrap the signal/power wire, refrigerant pipes, and
drain hose tightly together. Double-check that all items are bundled in
accordance with Figure 15.
Do not wrap ends of piping. When wrapping the bundle, keep the ends
of the piping unwrapped. You need to access them to test for leaks at
the end of the installation process (refer to Electrical Checks and Leak
Checks section of this manual).
Step 8: Mount indoor unit
If you installed new connective piping to the outdoor unit, do the following:
1. If you have already passed the refrigerant piping through the hole in the
wall, proceed to Step 4.
2. Double-check that the ends of the refrigerant pipes are sealed to prevent
dirt or foreign materials from entering the pipes.
3. Carefully pass the wrapped bundle of refrigerant pipes, drain hose, and
signal/power wire through the hole in the wall.
4. Hook the top of the indoor unit on the upper hook of the mounting plate.
5. Check that unit is hooked firmly on the mounting plate by applying slight
pressure to the left and right-hand sides of the unit. The unit should not
jiggle or shift.
6. Using even pressure, push down on the bottom half of the unit. Keep
pushing down until the unit snaps onto the hooks along the bottom of the
mounting plate.
7. Again, check that the unit is firmly mounted by applying slight pressure to
the left and the right-hand sides of the unit.

| 17
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
6 Outdoor Unit Installation
NOTICE
Below information only applies to the single zone
application. For the instructions for the Multi ODU
installation, please refer to the installation manual in the
Multi-zone ODU package.

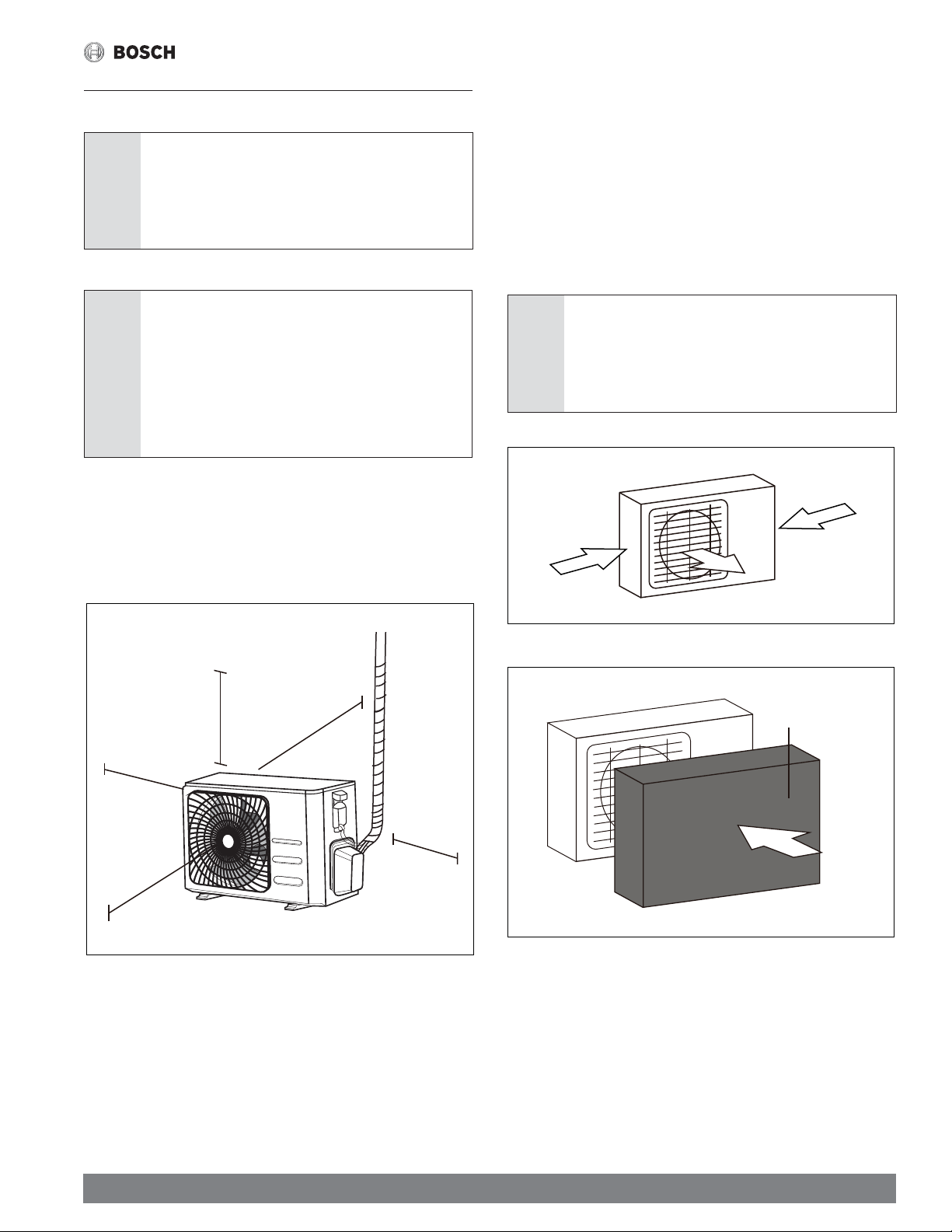

Step 1: Select installation location
NOTICE
If the unit is frequently exposed to heavy rain or snow:
—Build a shelter above the unit it to protect it from the
rain or snow. Be careful not to obstruct air flow around
the unit.
This unit is not designed for application in areas frequently
exposed to salty air (seaside) conditions..
Before installing the outdoor unit, you must choose an appropriate location. The
following are standards that will help you choose an appropriate location for the
unit.
Proper installation locations meet the following standards:
—Meets all spatial minimum requirements shown in Installation Space
Requirements ( Figure 17)
Figure 19
evoba)ni42
(
mc
0
6
60cm (24in)
on right
30cm (12in)
on left
200cm (79in)
in front
30cm (12in)
from back wall
—Good air circulation and ventilation
—Firm and solid—the location can support the unit and will not vibrate
—Noise from the unit will not disturb others
—Protected from prolonged periods of direct sunlight or rain
DO NOT install unit in the following locations:
—Near an obstacle that will block air inlets and outlets
—Near a public street, crowded areas, or where noise from the unit
will disturb others
—Near animals or plants that will be harmed by hot air discharge
—Near any source of combustible gas
—In a location that is exposed to large amounts of dust
—In a location exposed to excessive amounts of salty air
NOTICE
If the unit is exposed to heavy wind: Install unit so that air
outlet fan is at a 90° angle to the direction of the wind. If
needed, build a barrier in front of the unit to protect it from
extremely heavy winds. See Figures 18 and 19.
Figure 20
Strong wind
Strong wind
Figure 21
Strong
wind
Wind Baffle

18 |
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
Step 2: Install drain joint
Heat pump units require a drain joint. Before bolting the outdoor unit in place,
you must install the drain joint at the bottom of the unit. Note that there are two
different types of drain joints depending on the type of outdoor unit.
If the drain joint comes with a rubber seal (see Figure 20, pos. A ), do the following:
1. Fit the rubber seal on the end of the drain joint that will connect to the
outdoor unit.
2. Insert the drain joint into the hole in the base pan of the unit.
3. Rotate the drain joint 90° until it clicks in place facing the front of the unit.
4. Connect a drain hose extension (not included) to the drain joint to redirect
water from the unit during heating mode.
If the drain joint doesn’t come with a rubber seal (see Figure 20, pos. B), do the
following:
1. Insert the drain joint into the hole in the base pan of the unit. The drain joint
will click in place.
2. Connect a drain hose extension (not included) to the drain joint to redirect
water from the unit during heating mode.
NOTICE
In cold climates, make sure that the drain hose is as vertical
as possible to ensure swift water drainage. If water drains
too slowly, it can freeze in the hose and flood the unit.
Figure 22
Seal
Drain joint
(A) (B)
Base pan hole of
outdoor unit
Seal

| 19
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)

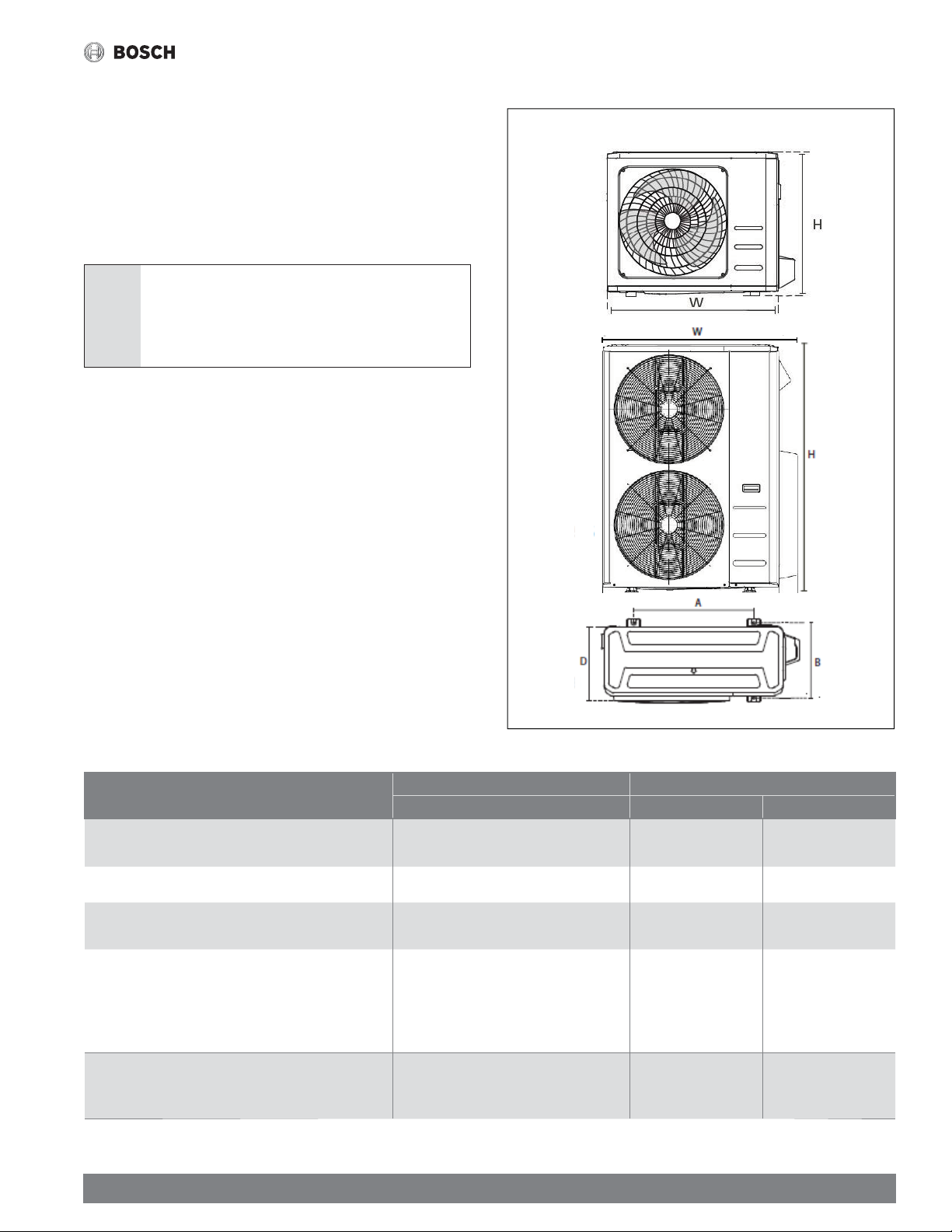

Step 3: Anchor outdoor unit
The outdoor unit can be anchored to to a commercially available mounting pad on
the ground or to a wall-mounted bracket (both sold separately).
Unit mounting dimensions
The following is a list of different outdoor unit sizes and the distance between their
mounting feet. Prepare the installation base of the unit according to the dimensions
below.
NOTICE: PROPERTY DAMAGE/SYSTEM FAILURE
Never mount this unit directly on the ground. It must be
anchored according to the guidance provided in these
instructions, and/or local building codes.
Outdoor Model OutdoorUnitDimensionsmm(in) MountingDimensions
W x H x D Distance A mm (in) Distance B mm (in)
BMS500-AAS012-0CSXRC, BMS500-AAS009-1CSXRC
BMS500-AAS012-1CSXRC 765x555x303 (30.1”x 21.8”x 11.9”) 454 (17.8”) 286(11.3”)
BMS500-AAS009-1CSXHC, BMS500-AAS012-1CSXHC 805x554x330 (31.7”x 21.8”x 13.0”) 511 (20.1”) 317(12.5”)
BMS500-AAS018-1CSXRC, BMS500-AAS018-1CSXHC
BMS500-AAM018-1CSXRC 890x673x342 (35.0”x 26.5”x 13.5”) 663 (26.1”) 348 (13.7”)
BMS500-AAS030-1CSXRC, BMS500-AAS036-1CSXLC
BMS500-AAS036-1CSXRC, BMS500-AAS024-1CSXRC
BMS500-AAS024-1CSXHC, BMS500-AAM027-1CSXRC
BMS500-AAM036-1CSXRC, BMS500-AAM018-1CSXHC
BMS500-AAM027-1CSXHC
946x810x410 (37.2”x 31.9”x 16.1”) 673 (26.5”) 403 (15.9”)
BMS500-AAS060-1CSXLB, BMS500-AAS048-1CSXLC
BMS500-AAM048-1CSXRC, BMS500-AAM036-1CSXHC
BMS500-AAM048-1CSXHC
952x1333x415 (37.5”x 52.5”x 16.34”) 634 (25.0“) 404 (15.9”)
Table 3
Figure 23
Outdoor Unit

20 |
Installation Instructions
Bosch Climate 5000 Series Wall Mounted Ductless Split Air Conditioner / Heat Pump (06.2022)
If you install the unit on a concrete mounting platform , do the following:
1. Mark the positions for four expansion bolts based on dimensions in the Unit
Mounting Dimensions chart.
WARNING: PERSONAL INJURY
When drilling into concrete, eye protection is recommended
at all times.
2. Pre-drill holes for expansion bolts.
3. Make sure mounting holes are clear of debris.
4. Place a nut on the end of each expansion bolt.
5. Hammer expansion bolts into the pre-drilled holes.
6. Remove the nuts from expansion bolts, and place outdoor unit on bolts.
7. Put washer on each expansion bolt, then replace the nuts.
8. Using a wrench, tighten each nut until snug.
If you will install the unit on a wall-mounted bracket , do the following:
NOTICE: PROPERTY DAMAGE
Before installing a wall-mounted unit, make sure that the
wall is made of solid brick, concrete, or of similarly strong
material. The wall must be able to support at least four times
the weight of the unit.
1. Mark the position of bracket holes based on dimensions in the Unit
Mounting Dimensions chart.
2. Pre-drill the holes in the wall for the expansion bolts.
3. Clean dust and debris away from holes.
4. Place a washer and nut on the end of each expansion bolt.
5. Thread expansion bolts through holes in mounting brackets, put mounting
brackets in position, and hammer expansion bolts into the wall.
6. Check that the mounting brackets are level.
7. Carefully lift unit and place its mounting feet on brackets.
8. Bolt the unit firmly to the brackets.
Reduce vibrations of wall mounted unit
If allowed, you can install the wall-mounted unit with rubber
gaskets to reduce vibrations and noise.
Step 4: Connect signal and power cables
The outside unit’s terminal block is protected by an electrical wiring cover on the
side of the unit. A comprehensive wiring diagram is printed on the inside of the
wiring cover.
Figure 24
EULB
BROWN
YELLOW OR BLACK
TO INDOOR UNIT
3
2LN
115VAC
POWER SUPPLY
DER
EULB
Y/G
1
Y/G
GRAY
BLACK
GRAY
3
2
1
BROWN
3
Wiring Schematic Example (refer to unit for actual schematic)
WARNING: ELECTRICAL HAZARD
Before performing electrical work, read these regulations:
1. All wiring must comply with local and national
electrical codes, and must be installed by a licensed
electrician.
2. All electrical connections must be made according
to the Electrical Connection Diagram located on the
panels of the indoor and outdoor units.
3. If there is a serious safety issue with the power supply,
stop work immediately. Explain your reasoning to the
client, and refuse to install the unit until the safety
issue is properly resolved.
4. Power voltage should be within 90-110% of
rated voltage. Insufficient power supply can cause
malfunction, electrical shock, or fire.
5. When connecting power to fixed wiring, install a surge
protector and main power switch with a capacity of
1.5 times the maximum current of the unit.
6. When connecting power to fixed wiring, a switch or
circuit breaker that disconnects all poles and has
a contact separation of at least 1/8in (3mm) must
be incorporated in the fixed wiring. The licensed
electrician must use an approved/listed circuit
breaker.
7. Only connect the unit to an individual branch /
dedicated circuit. Do not connect another appliance
to that circuit.
8. Make sure to properly ground the outdoor unit.
9. Every wire must be firmly connected. Loose wiring can
cause the terminal to overheat, resulting in product
malfunction and possible fire.
10. Do not let wires touch or rest against refrigerant
tubing, the compressor, or any moving parts within
the unit.
