Bosch UHO-HBPS User manual

UHO Camera Housing
UHO-HBPS | UHO-HBGS | UHO-HGS | UHO-HPS
en Installation Manual

Table of contents
1Safety 4
1.1 Safety message explanation 4
1.2 Safety precautions 4
1.3 Important safety instructions 5
1.4 FCC and ICES compliance 6
2Short information 7
3System overview 8
3.1 Available models 8
4Planning information 9
4.1 Parts list 9
4.2 Unpacking 10
4.3 Tools required 10
5Installation 11
5.1 Camera/lens requirements 11
5.2 Housing mounting 12
5.3 Opening the cover 12
5.4 Feed-through cables 13
5.4.1 Feed-through power cables 13
5.4.2 Feed-through wiring through the base 13
5.4.3 Feed-through wiring through the rear 13
5.5 Camera/Lens installation 14
5.5.1 Camera tray mount 14
5.5.2 Mounting the camera/tray in the housing 15
6Connection 16
6.1 Feed-through power connection 16
6.1.1 Incoming power safety earth connection 16
6.1.2 Incoming power wires 17
6.2 Camera connections 18
6.2.1 Camera video connections 18
6.2.2 Camera power connections 18
6.3 Housings with rear connectors 19
6.3.1 Connection – UHO – Rear housing video connection 19
6.3.2 Connection – UHO – Rear housing power connection 19
6.4 Final assembly 20
6.4.1 Camera operation 20
6.4.2 Closing the housing 20
6.4.3 Positioning sunshield 20
7Maintenance 21
7.1 Fuse replacement 21
8Decommissioning 22
UHO Camera Housing Table of Contents | en 3
Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418

Safety
Safety message explanation
Danger!
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
!
Warning!
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
!
Caution!
Indicates a hazardous situation which, if not avoided, could result in minor or moderate
injury.
Notice!
Indicates a situation which, if not avoided, could result in damage to the equipment or
environment, or data loss.
Safety precautions
!
Warning!
Hazardous voltage
Use caution when working inside the housing. Hazardous voltage is present in the housing
when connected to the AC supply. Do not touch the power terminals when the unit is
powered.
!
Caution!
Installation should only be performed by qualified service personnel in accordance with the
National Electrical Code (NEC 800 CEC Section 60) or applicable local codes.
!
Caution!
This device must be connected to earth (ground).
Safety (power) ground is indicated by the symbol.
!
Caution!
These units must be properly and securely mounted to a supporting structure capable of
sustaining the unit weight. Use care when selecting mounts or pan/tilts (not supplied) for
installation; the mounting surface and unit's weight should be carefully considered.
!
Caution!
To protect the device, the branch circuit protection must be secured with a maximum fuse
rating of 16A. This must be in accordance with NEC 800 (CEC Section 60).
1
1.1
1.2
4en | Safety UHO Camera Housing
2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems

Important safety instructions
Read, follow, and retain for future reference all of the following safety instructions. Follow all
warnings before operating the unit.
1. Clean only with a dry cloth. Do not use liquid cleaners or aerosol cleaners.
2. Do not install unit near any heat sources such as radiators, heaters, stoves, or other
equipment (including amplifiers) that produce heat.
3. Never spill liquid of any kind on the unit.
4. Take precautions to protect the unit from power and lightning surges.
5. Adjust only those controls specified in the operating instructions.
6. Operate the unit only from the type of power source indicated on the label.
7. Unless qualified, do not attempt to service a damaged unit yourself. Refer all servicing to
qualified service personnel.
8. Install in accordance with the manufacturer's instructions in accordance with applicable
local codes.
9. Use only attachments/accessories specified by the manufacturer.
Power disconnect - Units have power supplied whenever the power cord is inserted into the
power source. The power cord is the main power disconnect for all units.
All-pole power switch - Incorporate an all-pole power switch, with a contact separation of at
least 3 mm, into the electrical installation of the building. If it is needed to open the housing,
use this all-pole switch as the main disconnect device for switching off the voltage to the unit.
Coax grounding:
– Ground the cable system if connecting an outside cable system to the unit.
– Connect outdoor equipment to the unit's inputs only after this unit has had its grounding
plug connected to a grounded outlet or its ground terminal is properly connected to a
ground source.
– Disconnect the unit's input connectors from outdoor equipment before disconnecting the
grounding plug or grounding terminal.
– Follow proper safety precautions such as grounding for any outdoor device connected to
this unit.
Section 810 of the National Electrical Code, ANSI/NFPA No.70, provides information regarding
proper grounding of the mount and supporting structure, grounding of the coax to a discharge
unit, size of grounding conductors, location of discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
1.3
UHO Camera Housing Safety | en 5
Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418

FCC and ICES compliance
FCC & ICES Information
(U.S.A. and Canadian Models Only)
This device complies with part 15 of the FCC Rules. Operation is subject to the following
conditions:
– this device may not cause harmful interference, and
– this device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules and ICES-003 of Industry Canada. These
limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and
radiates radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his expense.
Intentional or unintentional modifications, not expressly approved by the party responsible for
compliance, shall not be made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult the dealer or an experienced
radio/television technician for corrective action.
The user may find the following booklet, prepared by the Federal Communications
Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This
booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock
No. 004-000-00345-4.
1.4
6en | Safety UHO Camera Housing
2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems

Short information
This manual has been compiled with great care and the information it contains has been
thoroughly verified. The text was correct at the time of printing, however, the content can
change without notice. Bosch Security Systems accepts no liability for damage resulting
directly or indirectly from faults, incompleteness or discrepancies between this manual and
the product described.
Trademarks
All hardware and software product names used in this document are likely to be registered
trademarks and must be treated accordingly.
More information
For more information please contact the nearest Bosch Security Systems location or visit
www.boschsecurity.com
2
UHO Camera Housing Short information | en 7
Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418

System overview
Available models
These outdoor camera housings are available in several versions. The variants are input power
supply, fitted connectors and temperature control. All models are equipped with a heater and
a sunshield. The maximum camera/lens size (H x W x D) for all models is 91 x 81 x 262 mm
(3.6 x 3.2 x10.3 in).
– UHO-HBGS and UHO-HBPS models have a blower (fan).
– UHO-HGS and UHO-HBGS models have feed-through holes for power and signal cabling.
– UHO-HPS and UHO-HBPS models have a 4-pin power connector and a BNC connector
instead of feed-through holes.
The following models are available:
Model Input voltage Connection Temperature control
UHO-HBGS-11 24 VAC Feed-through Fan
UHO-HBGS-51 230 VAC Feed-through Fan
UHO-HBGS-61 115 VAC Feed-through Fan
UHO-HGS-11 24 VAC Feed-through Passive
UHO-HGS-51 230 VAC Feed-through Passive
UHO-HBPS-11 24 VAC Power and BNC connectors Fan
UHO-HBPS-51 230 VAC Power and BNC connectors Fan
UHO-HPS-51 230 VAC Power and BNC connectors Passive
All models have an internal +12 VDC power supply available for the camera. Alternatively, the
input voltage is also available to power the camera.
3
3.1
8en | System overview UHO Camera Housing
2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems

Planning information
Parts list
Quantity Item Material
1 Housing Aluminum
1 Spacer, 4 mm ABS
1 Spacer, 9 mm ABS
1 Screw, 1/4-20 x 3/8 in. Stainless Steel
1 Screw, 1/4-20 x 3/4 in. Stainless Steel
3 Screw, tamper-resistant M3.5 T15
1 Wrench, tamper-resistant M3.5 T15
1 Camera clamp Stainless Steel
1 Camera clamp (for spacer) ABS
2 Washer, flat M6 Stainless Steel
2 Washer, spring M6 Stainless Steel
3 Plug M4 Silicone
UHO-HGS AND UHO-HBGS models
Quantity Item Material
2 Cable gland, 3/8-in. NPT with locking nut Polyamide / neoprene
1 Cable gland, 1/2-in. NPT with locking nut Polyamide / neoprene
1 Cable gland, M20 x 1.5 Polyamide / neoprene
UHO-HBPS-11 model
Quantity Item Material
1 4-pin cable connector, Male ABS
UHO-HPS-51 and UHO-HBPS-51 models
Quantity Item Material
1 4-pin cable connector, Female ABS
4
4.1
UHO Camera Housing Planning information | en 9
Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418

Unpacking
This equipment should be unpacked and handled with care. If an item appears to have been
damaged in shipment, notify the shipper immediately.
Verify that all parts are included. If any items are missing, notify your Bosch Security Systems
Sales or Customer Service Representative.
The original packaging is the safest container in which to transport the unit and can be used if
returning the unit for service.
Tools required
– Small flat blade screwdriver
– Phillips screwdriver (#1)
– Adjustable wrench
– Wire cutter/stripper/crimper tool
4.2
4.3
10 en | Planning information UHO Camera Housing
2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems

Installation
!
Caution!
Installation should only be performed by qualified service personnel in accordance with the
National Electrical Code (NEC 800 CEC Section 60) or applicable local codes.
!
Caution!
These units must be properly and securely mounted to a supporting structure capable of
sustaining the unit weight. Use care when selecting mounts or pan/tilts (not supplied) for
installation; the mounting surface and unit's weight should be carefully considered.
Camera/lens requirements

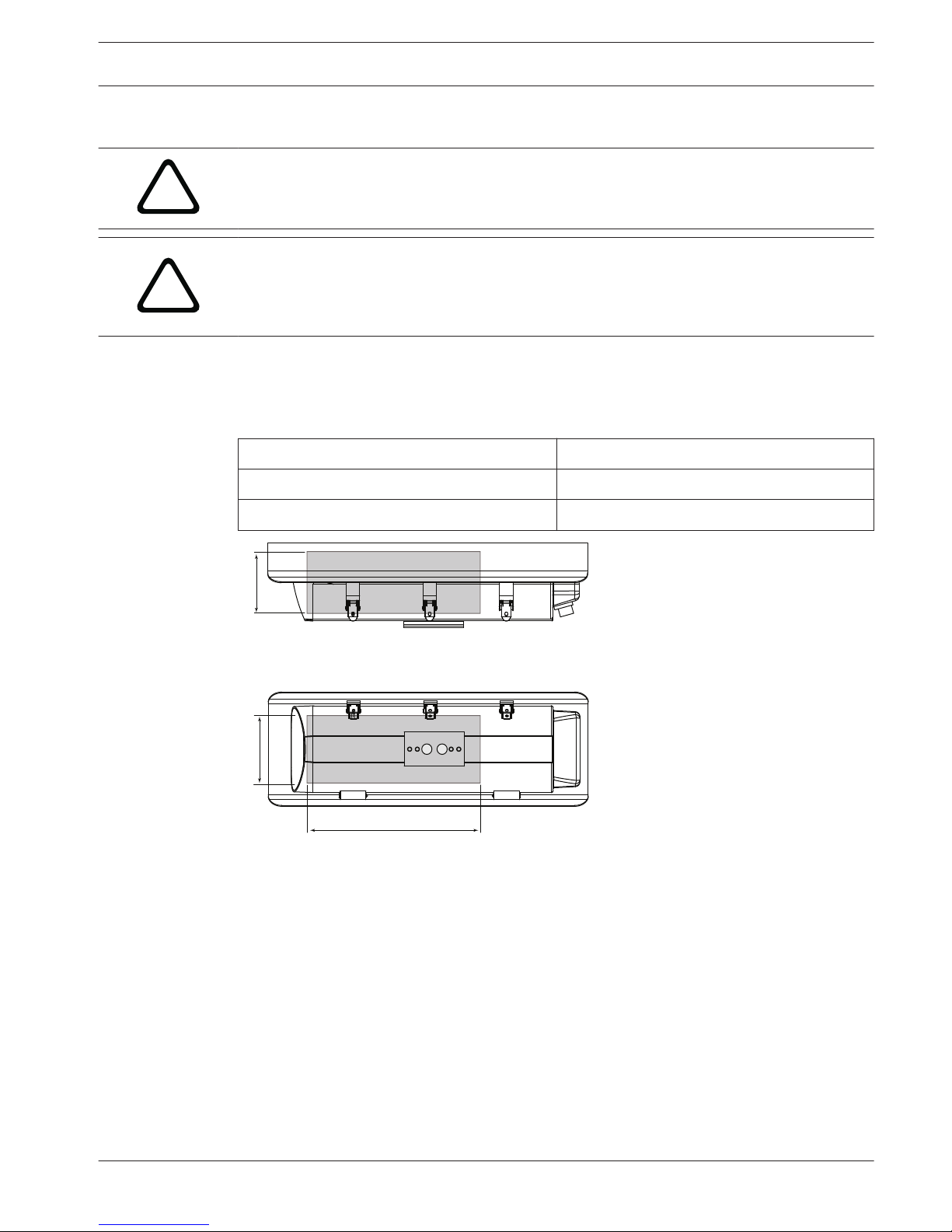

The camera/lens combination to be built into the housing must meet the following
requirements:
Maximum power consumption 10 W
Maximum weight 1 kg (2.2 lb)
Maximum size (H x W x D) 91 x 81 x 262 mm (3.6 x 3.2 x 10.3 in)
262 (10.3)
81 (3.2) 91 (3.6)
mm (in)
5
5.1
UHO Camera Housing Installation | en 11
Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418

Housing mounting
1. Use two 1/4-20 x 0.50 in. screws and two 1/4 in. spring washers to mount the housing to
a mount or a pan/tilt. The spring washers must be used for a secure connection.
2. The outermost set of 1/4-20 threaded holes (2) are for mounting to feed-through mounts,
and the innermost 1/4-20 threaded holes (1) are for mounting to all other mounts and
pan/tilts.
Opening the cover
!
Caution!
The heater will be hot when in operation.
Do not touch! Always ensure that the heater is off and cool before working on the camera.

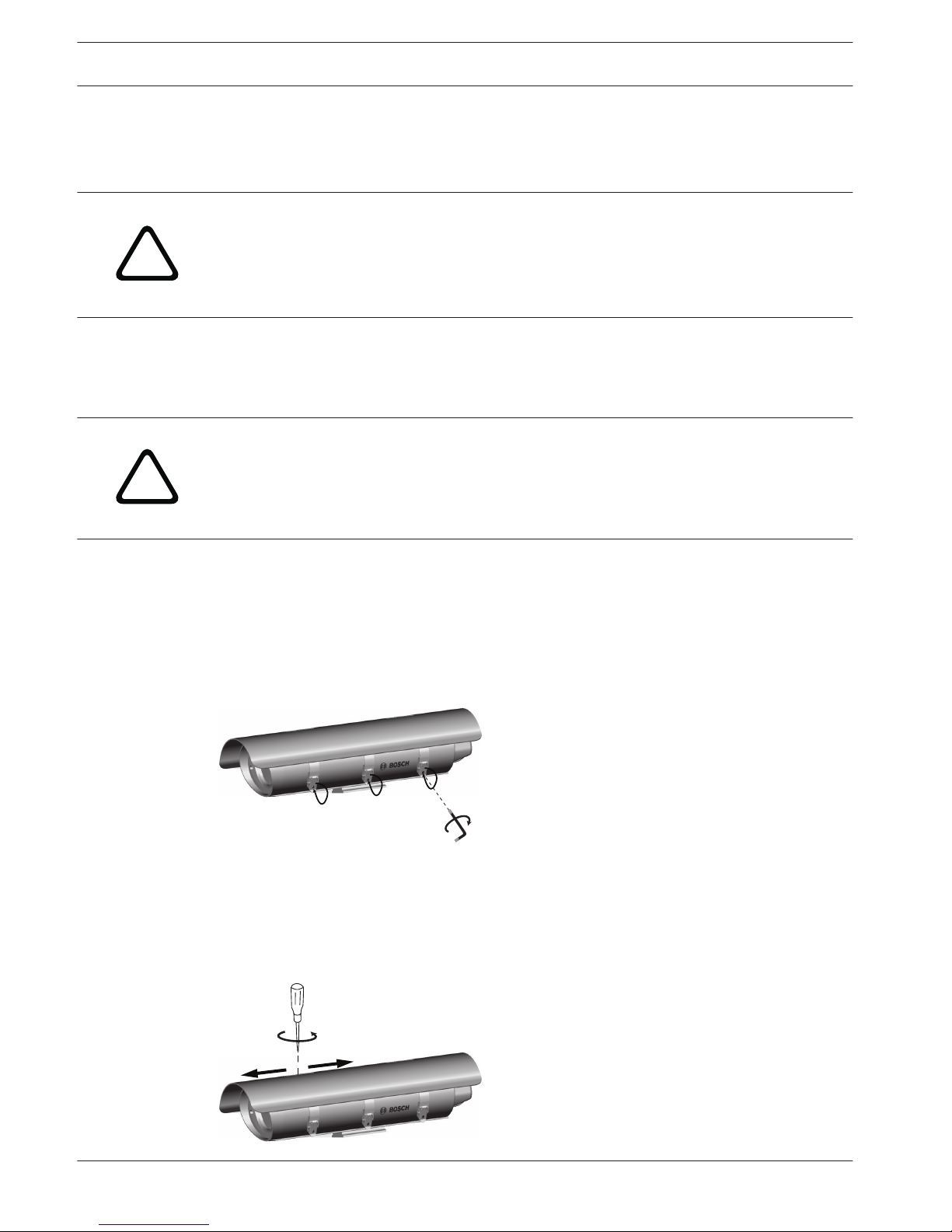

Open the cover by unlatching the three latches (1) on the side of the housing. If the optional
tamper-resistant screws have been installed, use the supplied wrench to remove the screws
before opening the latches.
5.2
5.3
12 en | Installation UHO Camera Housing
2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems

Feed-through cables
Feed-through power cables
Power into the housings must be supplied using type UL Standard SJ cord (or better)
acceptable for outdoor use. Installation must conform to NEC 400-4 CEC rule 4-010 and be
marked with OUTDOOR, W, or W-A.
The supplied cable glands have the following specifications:
Gland type Cable clamping range
3/8-in. NPT 4.5 to 7.9 mm Ø
1/2-in. NPT 5.8 to 10 mm Ø
M20 x 1.5 3.5 to 8 mm Ø
Feed-through wiring through the base
To feed cabling through the base of the housing:
1. Remove the two dome plugs located at the bottom the housing.
2. Screw the two 3/8-in NPT fittings into the foot of the housing.
3. Attach the foot of the housing to the mount.
4. Feed the power and video cables through separate cable glands into the housing.
5. Ensure that the holes in the rear are covered with the rubber plugs provided.
Feed-through wiring through the rear
The rear holes allow cable to be fed through the supplied glands or the direct connection of
conduit fittings.
1. Remove the dome plugs located at the rear the housing.
2. Screw the cable glands into the holes at the rear of the housing. The holes accept either
3/8‑in NPT or 1/2‑in NPT cable glands or conduit fittings. (The M20 x 1.5 cable gland can
also be used.)
3. Feed the power and video cables through separate cable glands into the housing.
4. Ensure that the holes in the bottom of the housing are covered with the rubber plugs
provided.
5.4
5.4.1
5.4.2
5.4.3
UHO Camera Housing Installation | en 13
Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418

Camera/Lens installation
Camera tray mount
1. Loosen the two screws holding the camera tray in the housing. Slide the tray backwards
and remove from the housing.
2. Attach the lens to the camera. (If the lens length can vary, make sure that it is fully
extended.)
3. Use the 1/4-20 x 3/8 in. screw, the flat washer and the steel camera clamp to secure the
camera to the camera tray.
1/4-20 x 3/8 in.
Low profile cameras
For low profile camera/lens assemblies use different combinations of the 9 mm and the 4 mm
plastic spacers to ensure that the camera lens is in the center of the window.
With the spacers, use the 1/4-20 x 3/4 in. screw, the spring washer, and plastic clamp (or
second spacer) as necessary to attach the camera/lens to the camera tray.
9 mm
1/4-20 x 3/4 in.
4 mm
5.5
5.5.1
14 en | Installation UHO Camera Housing
2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems

Mounting the camera/tray in the housing

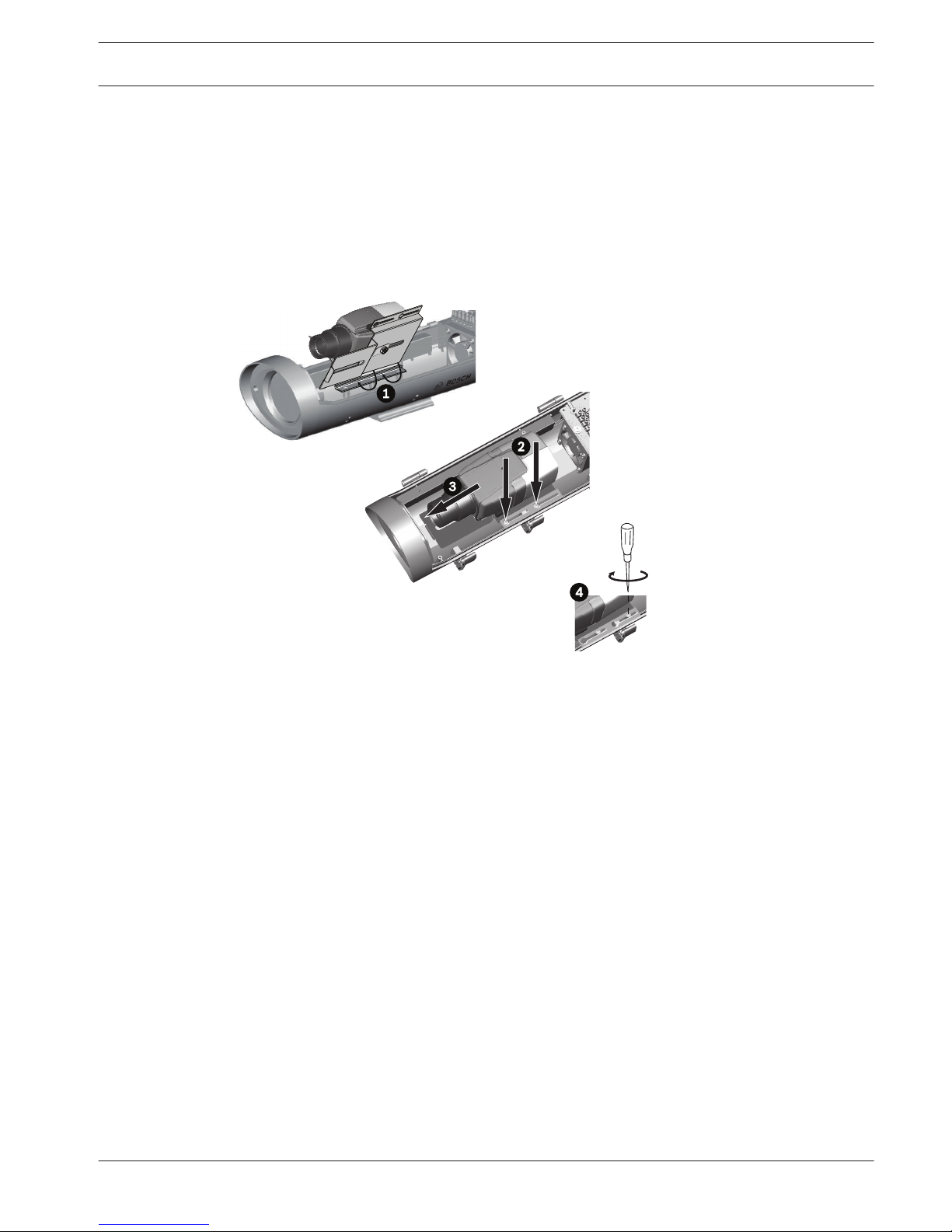

1. Slightly tilt the camera/lens tray assembly and slide it in under the rail that is located
under the heater on the right side of the housing.
2. Lower the tray so that the holes at the side fit over the two screws of the housing.
3. Slide the entire assembly forward approximately 5 mm (0.2 in.) from the front of the
window.
4. Tighten the two screws to lock the tray in place.
2x
5.5.2
UHO Camera Housing Installation | en 15
Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418

Connection
Feed-through power connection
!
Caution!
To protect the device, the branch circuit protection must be secured with a maximum fuse
rating of 16A. This must be in accordance with NEC 800 (CEC Section 60).
!
Caution!
The external ground wire must always be connected to the main ground post inside the
housing.
Incoming power safety earth connection

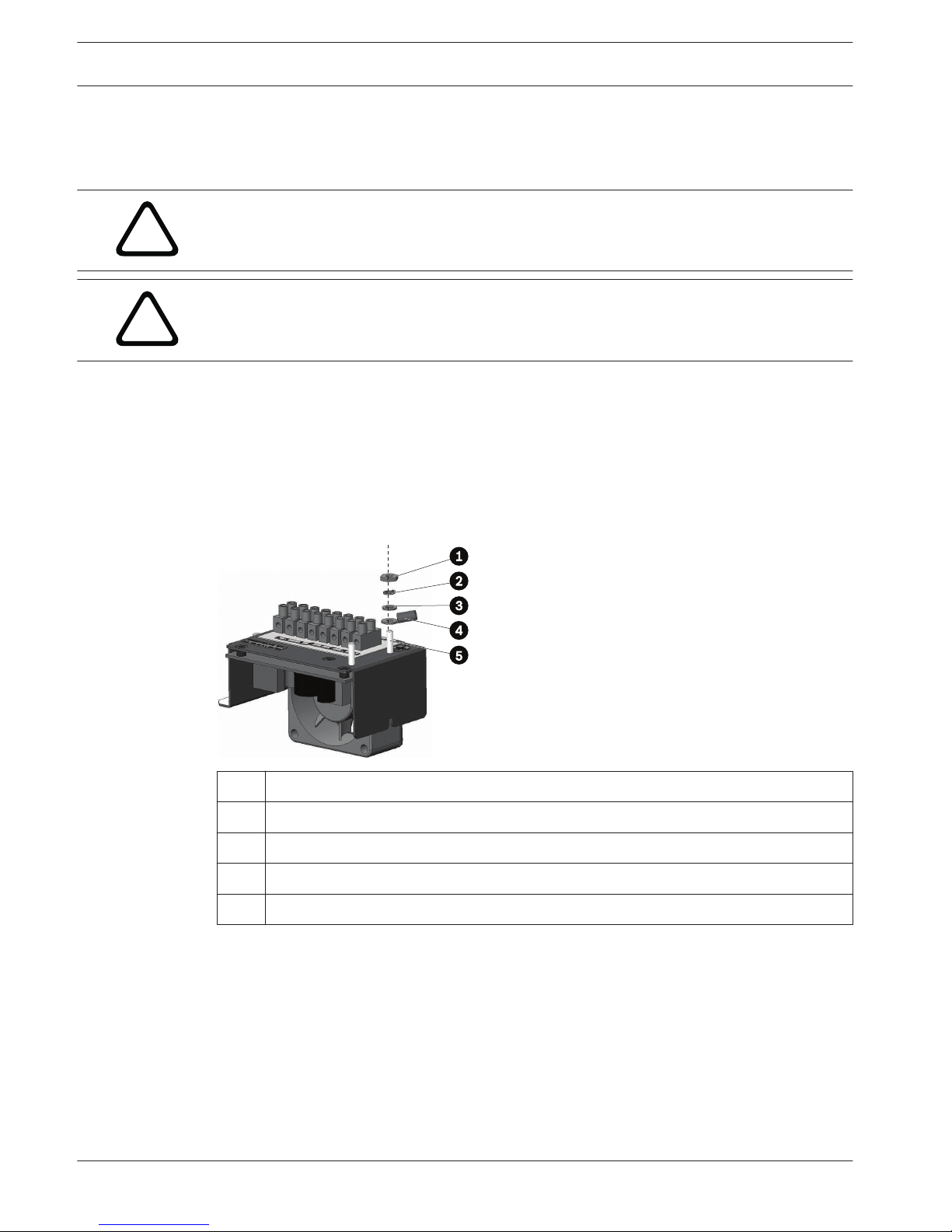

Connect the incoming power safety earth wire to the grounding post on the PCB bracket
assembly as follows:
1. A terminal lug (4) is provided for connecting the incoming power safety earth wire.
2. Remove the nut, the washers, and the ground wire lug from the grounding post (5).
3. Strip the incoming power safety earth wire and crimp into the lug.
4. Reattach the ground connections in the order shown:
1 Nut
2 Lock washer
3 Flat washer
4 Input power ground lug
5 Grounding post
6
6.1
6.1.1
16 en | Connection UHO Camera Housing
2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems

Incoming power wires
The terminal block accepts wire ranging from 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG). When
using larger wire sizes, splice to a smaller size wire at the terminal block end. The splice may
need to be enclosed in a junction box if it does not pass through the fittings.
1. Strip no less than 6 mm (0.25 in.) and no more than 8 mm (0.31 in.) of insulation away
from the power supply wires. Do not nick the wires.
2. Connect the incoming power wires to the AC input connectors (3) on the terminal block
as shown in the following figure:
Gx
LN L
AC INPUT AC OUT DC12v OUT
N
GLN
Callout Function
1 Power cable input to housing:
- G (green/yellow) Earth wire
- L (blue) power wire
- N (brown) power wire
2 Power input grounding post
3 AC power input terminal block connectors
4 AC power output to camera
5 12 VDC power output to camera
6 Fuse
6.1.2
UHO Camera Housing Connection | en 17
Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418

Camera connections
Camera video connections
Connect the video (and data) cable directly to the camera.
Camera power connections
Connect power to the camera as follows (refer to wiring diagram):
– For 12 VDC cameras:
– Connect the DC12V OUT connections on the terminal block (5) to the 12 VDC inputs
of the camera.
– For 24 VAC cameras:
– Connect the 24VAC OUT connections on the terminal block (4) to the 24 VAC inputs
of the camera.
– For 120 VAC and 230 VAC cameras:
– Cut the power cord coming from the camera making sure that there is enough left to
reach the terminal block.
– Strip no less than 6 mm (0.25 in.) and no more than 8 mm (0.31 in.) of insulation
away from the power supply wires. Do not nick the wires.
– Connect the camera power cord wires to the 120VAC OUT (or 230VAC OUT)
connections (4) of the terminal block.
6.2
6.2.1
6.2.2
18 en | Connection UHO Camera Housing
2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems

Housings with rear connectors
Connection – UHO – Rear housing video connection
A BNC connector is provided on the rear of the housing. Connect the analog video cable to
this connector.
Connection – UHO – Rear housing power connection
The housings with the rear connectors already mounted are supplied with a 4-pin cable
connector for the power cable.
– The 230 VAC models have a male panel connector. A female cable connector is provided.
– The 24 VAC models have a female panel connector. A male cable connector is provided.
Mount the 4-pin cable connector onto the power cable:
1. Cable diameter must be between 6 mm (0.24 in) and 12 mm (0.47 in).
2. Strip no less than 6 mm (0.24 in) and no more than 8 mm (0.32 in) of insulation away
from the wire. Do not nick the wires.
3. Insert the power cord through the back shell assembly and strain relief.
4. The cable connector terminals accept wire ranging from 0.75 mm² to 2.5 mm² (18 AWG to
14 AWG).
5. Connect the power input wires to the numbered screw terminals on the mating connector
according to the table.
Connector terminal number Function Wire color
1 AC neutral Blue
2 AC live Brown
3 No Connection (do not use) -
4 Ground Green/yellow
6. Assemble the cable connector and plug it into the power receptacle on the housing.
6.3
6.3.1
6.3.2
UHO Camera Housing Connection | en 19
Bosch Security Systems Installation Manual 2014.10 | 5.0 | F.01U.167.418

Final assembly
Camera operation
!
Warning!
Hazardous voltage
Use caution when working inside the housing. Hazardous voltage is present in the housing
when connected to the AC supply. Do not touch the power terminals when the unit is
powered.
Verify operation of the camera and lens before final assembly. Adjust the camera orientation,
focal length (if applicable) and focus as necessary (refer to the camera installation manual).
Closing the housing
!
Caution!
Always securely tighten all fittings to ensure a liquid-tight seal. Failure to do so could allow
water to enter the housing and damage the units. If a sealant is used, ensure that it is a
neutral cure type. Sealants that release acetic acid may harm electronics. Use drip loops on
the wiring outside the housing.
– Pull any excess wire out of the housing and tighten the cable glands. The tightening force
required is approximately 1 to 1.5 turns past the point where the gland starts to grip the
wire. Failure to correctly tighten the glands could result in water ingress.
– Ensure that all holes are covered with the rubber plugs provided.
– Close the cover and secure the latches. Optional tamper-resistant screws are provided
with the housing. If desired, secure the latch using these three screws and the provided
tamper-resistant wrench.
3x
Close
Positioning sunshield
1. Loosen the two screws (M4 x 10) on the top of the housing.
2. Slide the sunshield to the desired position. It has a range of 50 mm (2 in).
3. Tighten the screws to lock the sunshield into position.
4. If the sunshield is not installed, seal the two screw holes with the plugs supplied.
2x
Sunshield
6.4
6.4.1
6.4.2
6.4.3
20 en | Connection UHO Camera Housing
2014.10 | 5.0 | F.01U.167.418 Installation Manual Bosch Security Systems
