Bosch TES50129RW User manual

TES 501..
en Operating instructions
fr Notice d’utilisation
nl Gebruiksaanwijzing
pl Instrukcja obsługi
cs Návod k použití
ru Инструкция по
эксплуатации
TES501_Heft1_RW.indb 1 14.09.2011 16:10:09

Included in delivery (see page 7) / Contenu de la livraison (voir page 24)
Leveringsomvang (zie pagina 41) / Zakres dostawy (patrz strona 58)
Rozsah dodávky (informace naleznete na straně 77)
Объем поставки (см. стр. 94)
E-Nr. ……… FD… …
GH *HEUDXFKV DQOHLWXQJ
HQ 2SHUDWLQJLQV WUXFWLRQV
IU 1RWLFHG·XWLOLVDW LRQ
LW ,QVWUX]LRQLS HUO·XVR
7(6
1
2
3 4 5
en English 6
fr Français 23
nl Nederlands 40
pl Polski 57
cs Čeština 76
ru Русский 93
TES501_Heft1_RW.indb 2 14.09.2011 16:10:11

A
9
11
12
13
14
15
16
17
1 2 3
10
4
5
6
78
TES501_Heft1_RW.indb 3 14.09.2011 16:10:17

D
C
B
19
18
20
8e
6e
8a 8b
8c
6a 6c
6b
6d 8d
TES501_Heft1_RW.indb 4 14.09.2011 16:10:20

E
5b
5d
5c
5a
TES501_Heft1_RW.indb 5 14.09.2011 16:10:22

Robert Bosch Hausgeräte GmbH
6 en
Dear Coffee Connoisseur,
Congratulations on purchasing this fully
automatic espresso machine from Bosch.
Safety instructions
Please read the operating instructions
carefully and keep them for future refer-
ence. Please pass on these manuals to
the new owner if you sell the appliance.
This fully automatic espresso machine is
designed for preparation of small
amounts of coffee for domestic use or
for use in non-commercial, household-
like environments, such as staff kitchens
in shops, ofces, agricultural and other
small businesses or for use by guests at
bed-and-breakfast establishments, small
hotels and similar residential facilities.
¡ Risk of electric shock
Connect and operate the appliance only in
accordance with the specications on the
rating label.
Do not use if either the power cord or the
appliance is damaged.
Use indoors at room temperature only.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or in-
struction concerning use of the appliance by
a person responsible for their safety.
Keep children away from the appliance.
Children should be supervised to ensure
that they do not play with the appliance.
In the event of malfunction, unplug the ap-
pliance immediately.
To avoid potential hazards, repairs such as
replacing a damaged cord should only be
performed by our service personnel.
Contents
Included in delivery .....................................7
At a glance..................................................7
Controls ......................................................8
− Power on/off switch O / I ..........................8
− Service button A ....................................8
− Steam button B ......................................8
− Start button C .........................................8
− LED display .............................................8
− “Coffee strength” rotary knob ..................9
− “Drink selection” rotary knob ...................9
− Milk frother ..............................................9
Before using for the rst time......................9
Water filter ................................................10
Settings..................................................... 11
− Water hardness ..................................... 11
− Automatic switch-off ..............................12
− Setting the brewing temperature ...........12
− Adjusting the grind settings ...................12
Preparation using coffee beans ................13
Preparation using ground coffee ..............13
Dispensing hot water ................................13
Preparing milk froth ..................................14
Maintenance and daily cleaning ...............14
− Cleaning the milk frother .......................15
− Cleaning the brewing unit......................16
Tips on saving energy ..............................17
Service programme ..................................17
Frost protection.........................................18
Accessories ..............................................18
Disposal ....................................................18
Guarantee.................................................19
Simple troubleshooting .............................20
Technical specications ............................22
TES501_Heft1_RW.indb 6 14.09.2011 16:10:22

7
TES501.. 08/2011
en
At a glance
Figures A, B, C, D and E on the fold-out
pages
1 Bean container
2 Aroma cover
3 Selector for grind setting
4 Drawer
(ground coffee / cleaning tablet)

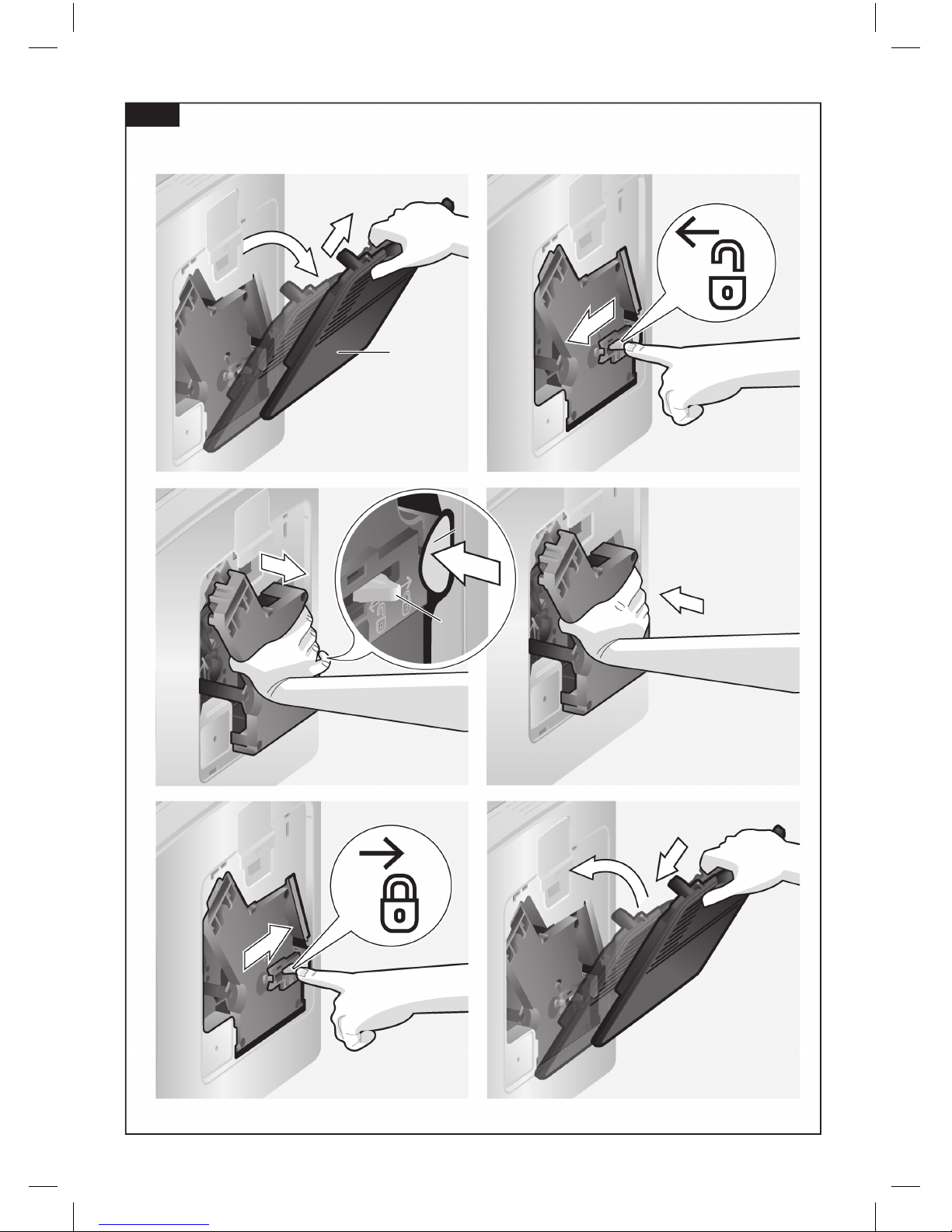

5 Brewing unit (Figure E)
a) Brewing unit
b) Door
c) Pushbutton
d) Lock
6 Milk frother (Figure C)
a) Steam valve
b) Metal sleeve
c) Frothing tube
d) Steam nozzle
e) Air hole
7 Height-adjustable coffee outlet
8 Drip tray (Figure D)
a) Panel
b) Coffee grounds container
c) Drip tray for coffee outlet
d) Grate for coffee outlet
e) Float
9 Power on/off switch O / I
10 Start button C
11 Steam button B
12 Service button A
13 “Coffee strength” rotary knob
14 “Drink selection” rotary knob
15 LED display
16 Removable water tank
17 Water tank lid
18 Measuring spoon
(insertion aid for water lter)
19 Storage compartment for
measuring spoon
20 Power cable with storage compartment
Never immerse the appliance or power cord
in water.
Do not reach into the grinding unit.
Use the appliance only in frost-free rooms.
¡ Risk of scalding
The milk frother outlet (6) gets very hot.
After use, allow to cool down rst before
touching.
Use this appliance only after the milk frother
(6) has been fully assembled and installed.
¡ Risk of suffocation
Do not allow children to play with packaging
material.
Included in delivery
(see overview image at the start of the
operating instructions)
1 TES501 fully automatic
espresso machine
2 Operating instructions
3 Water hardness testing strips
4 Measuring spoon
5 Grease (tube)
TES501_Heft1_RW.indb 7 14.09.2011 16:10:22

Robert Bosch Hausgeräte GmbH
8 en
Controls
Power on/off switch O / I
The power on/off switch O / I (9) is used to
switch the appliance on or to switch it off
completely (power supply off).
Important: Before switching off, run the
rinse programme or use the service button
(12) to switch off.
Service button A
When the service button (12) is pressed
briey, the appliance rinses and switches
off. If the service button (12) ashes, the
service programme needs to be run. Press
and hold the service button (12) to start
the service programme. The service button
(12) ashes while the service programme is
running and turns off when the programme
has ended.
Steam button B
Press the steam button (11) to generate
steam for frothing milk.
Start button C
Press the start button (10) to start preparing
a drink. Press again during drink prepara-
tion to stop the dispensing process early.
LED display
The various LEDs light up and ash to indi-
cate the following:
D lights up The water tank is empty and
needs to be relled.
D ashes The water lter is exhausted
and needs to be replaced.
E lights up The bean container is empty
and needs to be relled.
F lights up The steam valve needs to be
opened or closed.
F ashes Depending on the setting,
steam or hot water is coming
out of the milk frother.
G lights up When G is selected using
the “coffee strength” rotary
knob, the symbol lights up
while ground coffee is being
dispensed.
H lights up The drip tray is missing or has
not been inserted correctly.
Insert the drip dray.
H ashes The trays are full. Empty the
trays and reinsert them.
I lights up The brewing unit door is open.
Close the door.
I ashes Remove and clean the brew-
ing unit.
TES501_Heft1_RW.indb 8 14.09.2011 16:10:22

9
TES501.. 08/2011
en
“Coffee strength” rotary knob
This rotary knob (13) is used
to adjust the coffee strength
or select the setting for pre-
ground coffee.
h
to
g
G
Very mild
Mild
Medium
Strong
Ground coffee
“Drink selection” rotary knob
This rotary knob (14) is
used to select the required
beverage and quantity. It is
also used to change user
settings.
a
to
c
Small espresso
Espresso
Small café crème
Café crème
Large café crème
b
to
d
2 small espressos
2 espressos
2 small café crèmes
2 café crèmes
2 large café crèmes
Milk frother
Pull the milk frother (6a) out to open it and
push it back in to close it.
Before using for
the  rst time
General
Fill the water tank with fresh, uncarbonated
water only and preferably use only beans
or coffee blends suitable for fully automatic
espresso and coffee machines. Do not
use coffee beans that have been glazed,
caramelised or treated with other additives
containing sugar, since they will block the
brewing unit.
The water hardness setting can be adjusted
on this appliance. The factory setting for the
water hardness is 4. Check the hardness
of the water you use with the enclosed test
strip. If the test reveals a value other than
4, change the setting on the appliance ac-
cordingly after switching on (see “Settings”,
“Water hardness” on page 11).
Setting up the appliance
1. Place the fully automatic espresso ma-
chine on a  at, water-resistant surface
that can take its weight. The ventila-
tion slots on the appliance must not be
covered.
2. Pull out the mains plug from the cable
compartment (20) and plug it in. Adjust
the length of the cable by pushing it
back in and pulling it out. To do this,
place the appliance with its back  ush
with the edge of the work surface and
either pull the cable downwards or
push it upwards.
3. Assemble the milk frother. Only use the
appliance when the milk frother (6) is
completely assembled and  tted.
TES501_Heft1_RW.indb 9 14.09.2011 16:10:24

Robert Bosch Hausgeräte GmbH
10 en
4. Lift the water tank lid (17).
5. Remove and rinse the water tank (16)
and ll it with fresh cold water. Do not ll
above the max mark.
6. Replace the water tank (16) and push it
rmly downwards into place.
7. Close the water tank lid (17).
8. Fill the bean container (1) with coffee
beans (for preparation using ground
coffee see „Preparation using ground
coffee“ on page 13).
9. Press the power on/off switch O / I (9) to
switch on the appliance. LED D ashes
and LED F lights up.
10. Place a container under the milk frother
outlet (6).
11. Carefully pull out the milk frother (6)
to open it. The appliance rinses out
the milk frother (6) with water. LED F
ashes.
12. When LED F lights up constantly,
press in the milk frother (6) to close it.
The appliance heats up and rinses. Some
water will run out of the coffee outlet. When
buttons A (12), B (11) and C (10) light
up, the appliance is ready for use.
Switching off the appliance
If the appliance has not been used for
an hour, it rinses automatically and then
switches off (the length of time can be ad-
justed, see “Settings”, “Automatic switch-off”
on page 11).
Exception: The appliance switches off with-
out rinsing if only hot water or steam was
dispensed.
To switch the appliance off manually before
this, press the service button (12). The ap-
pliance rinses and switches off.
Note: If the appliance is being used for the
rst time, the service programme has been
run, or the appliance has not been oper-
ated for a long period, the rst beverage will
not have the full aroma and should not be
consumed.
When the fully automatic espresso machine
is rst used, you will achieve a suitably thick
and stable “crema” only after the rst few
cups have been dispensed.
If the appliance is in use for a long period of
time, water droplets will form on the ventila-
tion slits. This is normal.
Water lter
Using a water lter can prevent a build-up
of limescale deposits.
A new water lter must be rinsed before it
can be used. To do this, proceed as follows:
1. Press the water lter rmly into the emp-
ty water tank with the aid of the measur-
ing spoon (18).
2. Fill the water tank (16) with water up to
the max mark.
3. Turn the rotary
knob (13) to position
4. Press and hold buttons B (11) and A
(12) simultaneously for at least
5 seconds. Either “off” or “on”
lights up.
5. Press the start button (10) to select “on”.
6. Press and hold the start button (10) for
at least 5 seconds to conrm. All of the
LEDs light up briey.
7. LED D ashes and LED F lights up.
8. Place a container with a capacity of 0.5
litres under the milk frother outlet (6).
9. Pull out the milk frother (6) to open it.
LED F ashes.
10. Water will now ow through the lter and
rinse it.
11. When LED F lights up constantly,
press in the milk frother (6) to close it.
12. Empty the container.
The appliance is ready to use again.
TES501_Heft1_RW.indb 10 14.09.2011 16:10:24

11
TES501.. 08/2011
en
Information: Rinsing the  lter simultane-
ously activates the setting for the change
 lter display (= LED D  ashes).
The  lter is no longer effective when the
change  lter display appears, or at the
latest after two months. It needs to be re-
placed for reasons of hygiene and so that
there is no build-up of limescale (this could
damage the appliance). Replacement  lters
can be obtained from retailers (TCZ7003) or
from customer service (467873). If no new
 lter is inserted, change the setting for the
 lter (see "Water hardness”).
Information: You can use the  lter indicator
to mark the month in which you inserted the
 lter. You can also mark the month in which
you will need to replace the  lter next (at
the latest after two months).
Information: If the appliance has not been
used for a prolonged period (for example,
when you are on vacation), the existing  lter
should be rinsed before the appliance is
used again. To do so, dispense a cup of hot
water and pour it away.
Settings
You can customize the settings on the
appliance.
You can make the following adjustments:
Water hardness
The water hardness setting can be adjusted
on this appliance. It is important to set the
water hardness correctly so that the ap-
pliance can accurately indicate when it is
time to run the descale process. The factory
setting for the water hardness is 4. You can
establish the water hardness either by us-
ing the test strip provided or by asking your
local water provider.
Dip the test strip in the water brie y, shake
it gently and check the result after one
minute.
Level Water hardness
German (°dH) French (°fH)
1
2
3
4
1-7
8-14
15-21
22-30
1-13
14-25
26-38
39-54
If you wish to change the default degree of
water hardness, or if you have inserted a
water  lter, proceed as follows:
1. Turn the rotary
knob (13) to position
2. Press and hold buttons B (11) and A
(12) simultaneously for at least 5 sec-
onds. The set water hardness is indi-
cated by the number of LEDs that now
light up.
3. Now press the start button (10) repeat-
edly until the required water hardness
is indicated, e. g., for water hardness 3,
LEDs D, E and F will light up.
4. Press and hold the start button (10) for
at least 5 seconds. The set number of
LEDs will light up to indicate that the se-
lected water hardness has been saved
successfully.
TES501_Heft1_RW.indb 11 14.09.2011 16:10:24

Robert Bosch Hausgeräte GmbH
12 en
Important: If a water lter is used (special
accessory order no. 461732), proceed as
follows, see „Water lter“ on page 10.
Note: If no button is pressed within 90 sec-
onds, the appliance switches to stand-by
mode without saving the new settings. In
this case, the previously saved water hard-
ness setting is retained.
Automatic switch-off
Here you can set the period of time after
which the appliance should switch off au-
tomatically following the last drink prepa-
ration. A time between 15 minutes and 4
hours can be set. The default time is 1 hour,
but this can be shortened to save energy.
1. Turn the rotary
knob (13) to position
2. Press and hold buttons B (11) and A
(12) simultaneously for at least 5 sec-
onds. The time after which the appliance
should switch off is indicated by the
number of LEDs that now light up.
3. Now press the start button (10) repeat-
edly until the required number of LEDs
light up to indicate the switch-off time:
D = 15 minutes
D and E = 30 minutes
D, E and F = 45 minutes
D, E, F and G = 1 hour
D, E, F, G and H = 2 hours
D, E, F, G, H and I = 4 hours
4. Press and hold the start button (10) for
at least 5 seconds. The set number of
LEDs will light up to indicate that the
selected switch-off time has been saved
successfully.
Note: If no button is pressed within 90 sec-
onds, the appliance switches to stand-by
mode without saving the new settings. In
this case, the previously saved switch-off
time is retained.
Setting the brewing temperature
The brewing temperature can also be set.
1. Turn the rotary
knob (13) to position
2. Press and hold buttons B (11) and
A (12) for at least 5 seconds. The set
brewing temperature is indicated by the
number of LEDs that now light up.
3. Now press the start button (10) repeat-
edly until the required number of LEDs
light up to indicate the temperature:
LED D = low
LED D and E = medium
LED D, E,and F = high
4. Press and hold the start button (10) for
at least 5 seconds. The set number of
LEDs will light up to indicate that the
selected temperature has been saved
successfully.
Note: If no button is pressed within 90
seconds, the appliance switches to stand-
by mode without saving the new settings.
In this case, the previously saved brewing
temperature setting is retained.
Adjusting the grind settings
The selector (3) for grind setting adjusts the
grind settings from coarse to ne.
Caution
Adjust the grinding unit only while it is run-
ning! Otherwise the appliance may be dam-
aged. Do not reach into the grinding unit.
TES501_Heft1_RW.indb 12 14.09.2011 16:10:24

13
TES501.. 08/2011
en
● With the grinding unit running, adjust the
selector (3) from ne (a: turn anticlock-
wise) to coarse (b: turn clockwise).
a b
Information: The effects of the new grind
setting will not become apparent until after
the second cup of coffee.
Tip: Choose a ner grind for dark roasted
beans and a coarser grind for lighter beans.
Preparation using coffee
beans
This fully automatic espresso machine
grinds beans freshly for each brew.
Tip: If possible, use only beans for fully
automatic coffee and espresso machines.
For optimal quality, deep-freeze the beans
or store in a cool place in sealed containers.
Coffee beans can be ground while frozen.
Important: Fill the water tank (16) with
fresh water every day. The water tank (16)
should always contain sufcient water for
operating the appliance.
Different coffee drinks can be prepared
quite simply at the press of a button.
Preparation
The appliance must be ready for use.
1. Place the pre-warmed cup(s) under the
coffee outlet (7).
Tip: For a small espresso, always pre-
heat the cup, e.g. using hot water.
2. Select the required coffee and the re-
quired quantity by turning the upper
rotary knob (14).
3. Select the required coffee strength by
turning the lower rotary knob (13).
4. Press the start button (10).
The coffee is brewed and then dispensed
into the cup(s).
Press the start button (10) again to stop the
brewing process early.
Preparation using ground
coffee
This fully automatic espresso machine can
also be operated using ground coffee (not
instant coffee powder).
Important: Fill the water tank (16) with
fresh water every day. The water tank (16)
should always contain sufcient water for
operating the appliance.
Preparation
1. Open the drawer (4).
2. Put ground coffee into the drawer (maxi-
mum two level measuring spoons).
Caution: Do not use whole beans or
instant coffee.
3. Close the drawer (4).
4. Turn the bottom rotary knob (13) to the
symbol G.
5. Press the start button (10).
The coffee is brewed and ows into the cup.
Dispensing hot water
¡ Risk of burns!
The milk frother (6) gets very hot. Hold the
milk frother (6) by the plastic part only.
The appliance must be ready for use.
1. Place a pre-heated cup or glass under
the milk frother outlet (6).
2. Pull out the milk frother (6) to open it.
The appliance heats up. Hot water runs
out of the milk frother outlet (6) for about
40 seconds.
TES501_Heft1_RW.indb 13 14.09.2011 16:10:25

Robert Bosch Hausgeräte GmbH
14 en
3. Stop the process by pushing in the milk
frother (6).
Preparing milk froth
¡ Risk of burns!
The milk frother (6) gets very hot. Hold the
milk frother (6) by the plastic part only.
Tip: You can froth the milk  rst and then
dispense coffee, or froth the milk separately
and pour it onto the coffee.
The appliance must be ready for use.
1. Press button B (11).
Button B  ashes and the appliance
now heats up for approximately 20
seconds.
2. As soon as button and LED F lights
up, immerse the milk frother so that it
reaches the bottom of a cup or glass
that is one-third  lled with milk.
3. Pull out the milk frother (6) to open it.
¡ Risk of burns!
Escaping steam is very hot and may cause
liquids to sputter. Do not touch the metal
sleeve or aim it at anyone.
4. Froth the milk.
5. Push the milk frother (6) in to close it.
Tip: For optimal milk froth, if possible use
cold milk with a fat content of at least 1.5 %.
Important: Dried milk residue is dif cult
to remove, so the milk frother (6) must be
cleaned with lukewarm water immediately
after use.
Maintenance and daily
cleaning
¡ Risk of electric shock
Unplug the appliance before cleaning it.
Never immerse the appliance in water.
Do not use a steam cleaner.
● Wipe the housing with a soft, damp cloth.
● Do not use abrasive cloths or cleaning
agents.
● Always remove any traces of limescale,
coffee, milk and descaler immediately.
Such residue can cause corrosion.
● Pull the drip tray (8c) with the coffee
grounds container (8b) forwards and out.
Remove the panel (8a) and grate (8d).
Empty and clean the drip tray and coffee
grounds container.
● Remove the drawer (4) and clean.
● Remove  oat (8e) and clean with a damp
cloth.
● Do not put the following items in the
dishwasher: panel (8a),  oat (8e),
drawer (4), brewing unit (5a).
● The following items are dishwasher-safe:
drip tray (8c), coffee grounds container
(8b), grate (8d), aroma cover (2) and
measuring spoon (18).
● Wipe out the inside of the appliance (tray
holders and drawer).
TES501_Heft1_RW.indb 14 14.09.2011 16:10:25

15
TES501.. 08/2011
en
Important: The drip tray (8c) and coffee
grounds container (8b) should be emp-
tied and cleaned daily to prevent mould
developing.
Note: If the appliance is cold when switched
on with the power on/off switch O / I (9) or if
it switches off automatically after coffee has
been dispensed, the appliance performs an
automatic rinse.
Important: If the appliance is not used for
a prolonged period (for example, when you
are on vacation), clean the entire appliance
thoroughly, including the milk system and
brewing unit.
Cleaning the milk frother
The milk frother (6) must be cleaned after
each use in order to remove residues.
Important: Let the milk frother cool down
before you remove it.
Dismantle the milk frother for cleaning:
1. To remove, take hold of the metal sleeve
and pull it downwards and off.
2. Twist the steam nozzle (6d) anticlock-
wise and remove it.
1
2
6d
3. Remove the frothing tube (6c).
6c
4. Clean the individual parts with a deter-
gent solution and a soft brush. If neces-
sary, soak in a warm detergent solution.
Clean the air hole (6e) thoroughly.
6e
5. Rinse all parts with clean water and dry.
6. Fit the steam nozzle (6d) and frothing
tube (6c) back into the metal sleeve.
1 2
6d6c
7. Twist the steam nozzle clockwise until
the marks are aligned.
TES501_Heft1_RW.indb 15 14.09.2011 16:10:28

Robert Bosch Hausgeräte GmbH
16 en
8. Attach the milk frother to the steam
valve. Check that the red mark on the
steam valve is covered.
¡ Risk of scalding
Only use the appliance when the milk froth-
er (6) is completely assembled and  tted.
Cleaning the brewing unit
Clean the brewing unit regularly.
To pre-clean the brewing unit automatically:
Press the service button (12) brie y. The
appliance will rinse if coffee was dispensed
previously. It then switches off.
In addition to the automatic cleaning pro-
gramme, the brewing unit (5a) should be
removed regularly for cleaning (Figure E at
the beginning of the instructions).
1. Press the power on/off switch O / I (9) to
switch off the appliance. All lights go off.
2. Open the door (5b) to the brewing unit.
3. Slide the red lock (5d) on the brewing
unit completely to the left.
4. Press the red pushbutton (5c), grasp the
brewing unit by the recessed grips and
withdraw it from the appliance.
5. Rinse the brewing unit (5a) thoroughly
under running water.
Important: Do not clean with detergent or
other cleaning agents and do not put it in
the dishwasher.
6. Wipe out the inside of the appliance
thoroughly with a damp cloth and re-
move any coffee residues.
7. Allow the brewing unit (5a) and the inte-
rior of the appliance to dry.
8. Reinsert the brewing unit (5a) fully into
the appliance.
9. Slide the red lock (5d) fully to the right
and close the door (5b).
Note: After cleaning thoroughly, the seals
on the brewing unit should be greased
regularly to keep them in ideal condition.
Apply a thin layer of the special grease
intended for this purpose (order no. 311368)
all around the seals.
TES501_Heft1_RW.indb 16 14.09.2011 16:10:31

17
TES501.. 08/2011
en
Tips on saving energy
● The fully automatic espresso machine
switches off automatically after one hour
(default setting). The default time of one
hour can be shortened (see “Settings”,
“Automatic switch-off” on page 11).
● Switch off the fully automatic espresso
machine when not in use. To do this,
press the service button (12). The appli-
ance rinses and switches off.
● If possible, do not interrupt coffee or milk
froth dispensing. Stopping a process
prematurely results in higher energy con-
sumption and the drip tray lls up more
quickly.
● Descale the appliance regularly to avoid
a build-up of limescale. Limescale residue
results in higher energy consumption.
Service programme
Duration: approx. 35 minutes
Depending on use, the service button (12)
ashes at certain intervals.
The appliance should be cleaned and
descaled immediately using the service
programme. If the service programme is
not run as instructed, the appliance may be
damaged.
Caution
Follow the instructions for using the descal-
ing and cleaning agents for each service
programme. Please observe the safety
instructions on the packaging of the cleaning
agent.
Never interrupt the service programme.
Do not drink the liquids.
Never use vinegar, vinegar-based products,
citric acid or citric acid-based products.
Never put descaling tablets or other descal-
ing agents in the drawer (4).
Specially developed and suitable descal-
ing and cleaning tablets are available
from retailers or customer service.
Order number Retailer Customer
service
Cleaning
tablets
TCZ6001 310575
Descaling
tablets
TCZ6002 310967
Important: If there is a water lter in the
water tank (16), it must be removed before
starting the service programme.
To start the service programme, press and
hold the service button (12) for at least
5 seconds.
Information: The service button (12) ash-
es while the programme is running.
LED H lights up.
● Empty the drip tray (8) and reinsert it.
The appliance rinses twice.
LED G lights up.
● Open the drawer (4).
● Drop a Bosch cleaning tablet into the
drawer (4) and close it.
● Press the start button (10).
LED D lights up.
● Fill the empty water tank (16) with luke-
warm water up to the 0.5l mark and then
dissolve two Bosch descaling tablets in
this water.
● Press the start button (10).
The service programme will now run for
approximately 10 minutes.
TES501_Heft1_RW.indb 17 14.09.2011 16:10:31

Robert Bosch Hausgeräte GmbH
18 en
LED h lights up.
● Place a container with a capacity of at
least 0.5 litres under the milk frother
outlet (6).
● Pull out the milk frother (6) to open it.
The service programme will now run for
approximately 12 minutes.
LED D lights up.
● Rinse the water tank (16) and rell it with
fresh water up to the max mark.
● Press the start button (10).
The service programme will now run for
approximately 30 seconds and rinse the
appliance.
LED h lights up.
● Push the milk frother (6) in to close it.
The service programme will now run for
approximately 8 minutes.
LED H lights up.
● Empty the drip tray (8) and reinsert it.
If you are using a lter, reinsert it now.
The appliance has been cleaned, descaled
and is ready for use again.
Frost protection
¡ To avoid damage caused by frost
during transport and storage, the ap-
pliance must be completely emptied
rst.
Information: The appliance must be ready
for use and the water tank (16) lled.
1. Place a large container under the milk
frother outlet (6).
2. Press the steam button (11).
LED h ashes and the appliance now
heats up for approximately 20 seconds.
3. If LED h lights up, open the milk frother
(6) by pulling it out and release steam
for about 15 seconds.
4. Press the power on/off switch O / I (9) to
switch off the appliance.
5. Empty the water tank (16) and the drip
tray (8).
Accessories
The following accessories are available
from retailers or from customer service:
Order number Retailer Customer
service
Cleaning
tablets
TCZ6001 310575
Descaling
tablets
TCZ6002 310967
Water lter TCZ7003 467873
Grease (tube) – 311368
TES501_Heft1_RW.indb 18 14.09.2011 16:10:31

19
TES501.. 08/2011
en
Disposal
Dispose of packaging in an environmentally-
friendly manner. This appliance is labelled
in accordance with the European Directive
2002/96/EG relating to waste electrical and
electronic equipment – WEEE. The directive
provides the framework for the EU-wide
take-back and disposal of end-of-life
appliances. Please ask your specialist
retailer about current disposal facilities.
Guarantee
The guarantee conditions for this appliance
are as dened by our representative in the
country in which it is sold. Details regarding
these conditions can be obtained from the
dealer from whom the appliance was pur-
chased. The bill of sale or receipt must be
produced when making any claim under the
terms of this guarantee.
Right of modication reserved.
A
TES501_Heft1_RW.indb 19 14.09.2011 16:10:31

Robert Bosch Hausgeräte GmbH
20 en
Problem Cause Remedy
Grinding unit does not grind
the beans.
Beans are not falling into
the grinding unit (beans too
oily).
Gently tap the bean con-
tainer (1). Change the type
of coffee if necessary.
When the bean container
(1) is empty, wipe it with a
dry cloth.
No hot water dispensed. The milk frother (6) is soiled. Clean the milk frother (6),
see “Maintenance and daily
cleaning”.
Too little or no milk froth. The milk frother (6) is soiled. Clean the milk frother (6),
see “Maintenance and daily
cleaning”.
Build-up of limescale in the
appliance.
Descale the appliance.
Milk unsuitable for frothing. Use milk with a fat content
of at least 1.5%.
The milk frother (6) is not
assembled correctly.
Wet the milk frother parts
and press together rmly.
Coffee dispensing slows to
a trickle or stops completely.
The grind setting is too ne
or the pre-ground coffee is
too ne.
Adjust the grinding unit to
a coarser setting or use
coarser pre-ground coffee.
Build-up of limescale in the
appliance.
Descale the appliance.
Coffee has no “crema”. Unsuitable type of coffee. Use a type of coffee with a
higher proportion of robusta
beans.
The beans are no longer
fresh.
Use fresh beans.
The grind setting is not suit-
able for the beans.
Adjust the grind setting to
ne.
Coffee is too “acidic”. The grind setting is too
coarse or the pre-ground
coffee is too coarse.
Adjust the grinding unit to a
ner setting or use ner pre-
ground coffee.
Unsuitable type of coffee. Use a darker roast.
If you are unable to solve the problem, please call the hotline.
Simple troubleshooting
TES501_Heft1_RW.indb 20 14.09.2011 16:10:31
