Bosch PHW206FAU User manual

Carl-Wery-Straße 34
81739 München
Robert Bosch Hausgeräte GmbH
Internet:: http://www.bosch-hausgeraete.de
This cooktop is for use with Natural Gas and Universal LPG
PHW206FAU
PHL206FAU
PPH626B90A
PPQ726B90A
Cod. 9000005546 C

Dear customer,
We would like to thank and congratulate you for your choice.
This practical modern appliance has been made using materials of
the highest quality, which have been put through the strictest of
Quality Controls during manufacture and meticulously tested to
ensure that they meet all of your cooking demands.
We kindly ask you to read and follow these simple instructions
in order to guarantee first-class results from the very start. This
booklet contains important information not only concerning use,
but also concerning your own personal safety and maintenance of
the appliance.
Our products need to be carefully packed to protect them during
transportation. All the material used for packing is considered
essential for this purpose and is also completely recyclable. You
too can contribut towards protecting the environment by disposing
of this material at your nearest recyclable refuse collection point.
Do not dispose of used cooking oil down the kitchen sink. Oil may
seriously damage the environment. Dispose of it in a closed container
at your nearest collection point or, failing this, dispose of it in your
rubbish bin. Although this last solution is far from perfect, your oil
will be taken to a controlled refuse dump where it will not be allowed
to pollute water. You and your children will appreciate it.
Render your old appliance useless before disposing of it at your
nearest recyclable refuse collection centre.
Your local authority will be pleased to inform you where your nearest
centre is.
2

CONTENT
4Safety considerations
For your safety
What to do if yo smell gas
Warnings
Installation
Preparing to install
Clearances
Installation of cooktop into Kitchen bench
Installation procedure
Connection
Electrical connection
Gas connection
To change injectors
Minimum flame adjustment
Injector size chart
Operating instructions
Burner ignition & control
Burner location
User instructions
Warnings concerning cooking
Cleaning and maintenance
Service
Trouble shooting
Wiring diagram
8
9
9
7
7
6
6
4
4
4
10
11
11
12
12
13
13
13
14-15
16
17
18
19
18
Conversion front Nat. Gas to Universal LPG
3

Safety considerations
•  If the information in this manual is not followed exactly, a
fire or explosion may result causing property damage, personal
injury or death.
• Do not store articles on or against this appliance.
• Do not store flammable material near this appliance.
• Do not spray aerosols in the vicinity of this appliance while
it is in operation.
• Do not try to light the appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Inmediately call your gas supplier from a neighbour’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by an authorised
person.
1. Do not allow the flame to extend beyond the edge of  the
cooking utensil. This instruction is based on safety considera-
tions.
2. Do not forget that the unit becomes hot when in use. 
Common sense is important. Just because the flame is out,
does not mean parts cannot still be hot.
3. This appliance shall not be used for space heating. 
This instruction is based on safety considerations.
4. Be sure to disconnect the electrical supply before disass-
embly of the appliance.
5. Keep the appliance area clear and free from  combustible
materials, gasoline and other flammable vapours and liquids.
6. This appliance must be installed in a position with the proper
level of ventilation. Do not obstruct the flow of combustion and
ventilation air.
7. Cabinets installed above the gas cooktop must have a
minimum clearance of 650 mm (24”).
8. The gas pressure regulator supplied with the appliance 
must be installed in line with the gas pipe. (N.G. only)
9. For pressure testing in excess of 3.5 kPa (1/2 psig) the
appliance and its individual shutoff valve must be disconnected
from the gas suply piping system.
For your safety
What to do if you
smell gas
Warnings
10. Important. When using a very large pot, leave a gap of at
least 50 mm (2”) to avoid damaging any parts in bench top
wood, plastic or other non-heat resistant materials. Never leave
oil or hot fat unattended. 4

11.The surfaces on heating and cooking appliances get hot
when in use. Be careful. Keep children away from the

12.Only use your appliance for the preparation of food and
 for room-heating purposes.
13.This appliance leaves the factory set for the gas supply
14. Do not tamper inside the appliance. If necessary, call your
local Service Centre.
15. Overheated fat or oil can easily catch fire. Never leave the

 Cover the receptacle to smother the flames and turn
the hob off.
17. In the event of a fault, cut the gas and electricity supplies
to the appliance. Call our Service Centre to repair the fault.
18. Do not use unstable or uneven-based receptacles on
cooking plates or burners. They may accidentally tip over.
19. If a gas supply knob/valve jams, do not force it. Call your
official Service Centre immediately for them to repair or replace
it.
20. The illustrations used in this booklet are only intended as
a guide.
21. If your hob is supplied with a glass cover, do not subject
it to excessive force. If the glass should become detached
 call the Service Centre immediately for them
to repair or repplace it.
22. While using your gas should avoid draughts and spillages
of cold liquids. As these may cause the glass to break.
Note: To avoid jeopardising the electrical safety of the appliance,
it is forbidden to use high-pressure or steam jet cleaning

SHOULD THE RELEVANT CONDITIONS NOT BE
PROPERLY SATISFIED, THE INSTALLER, AND NOT
THE MANUFACTURER, SHALL HELD LIABLE.
indicated on the data plate. Call the Service Centre
if it needs to be altered.
appliance.
never
BURNS!
from the hob,
devices.
16. Never pour water on burning fat or oil. DANGER OF
appliance unattended when cooking food with fat or oil, e.g.
chips.
23. Grids become very hot during use. When operating the
appliance control knobs, take care not to make contact
with the grids.
caravans.
24. Do not use this appliance neither in marine craft nor in
infirm persons without supervision. Young children should
be supervised to ensure they do not play with this appliance.

Make sure you keep these instructions for use and assembly in
a safe place, so that you can hand them on with the
This appliance is not intented for the use by young children or
appliance if it ever changes owner.
5

30
30
Pressure
test point
130
80
Pressure
test point
Installation
Before connecting the unit, check whether the local
connection conditions (type of gas) are compatible with
the unit’s setting. Observe any special conditions imposed
by local suppliers (utilities). The specifications of this
cooktop are stated on the data label located on the
bottom of the cooktop base.
1
490
+
-
1
min 50
min 600
520
43
560
+
-
1
Gas inlet
connection
30
30
Pressure
test point
130
80
Pressure
test point
95
30
Gas inlet
connection
43
490
+
-
1
min 50
min 600
560
+
-
1
512 702
1a
min 100
min 1
50
an accessible location near the hotplate if the data
A duplicate data label is supplied for adhesion to
accessed when the hotplate is installed.
label on the base of the hotplate cannot be
590
Universal LPG Universal LPG
Natural gas Natural gas
This installation must conform with the following:
• Manufacturer’s Installation instructions
• Local Gas Fitting Regulations
• Municipal Building Codes,
• AGAInstallation Code for Gas Burning Appliances. 
• S.A.A. Wiring Code
• Local Electrical Regulations
• Any other statutory regulations
These built-in hobs are intended to be inserted in a
benchtop cutout.
the appliance.
Preparing to
install
(AS 5601 - 2004 - Gas Installations).
Statutory
requirements
Refer to the AGA Installation Code for piping size details.
Before you begin, turn off the gas and electricity supply.
Only an officially authorised technician should connect

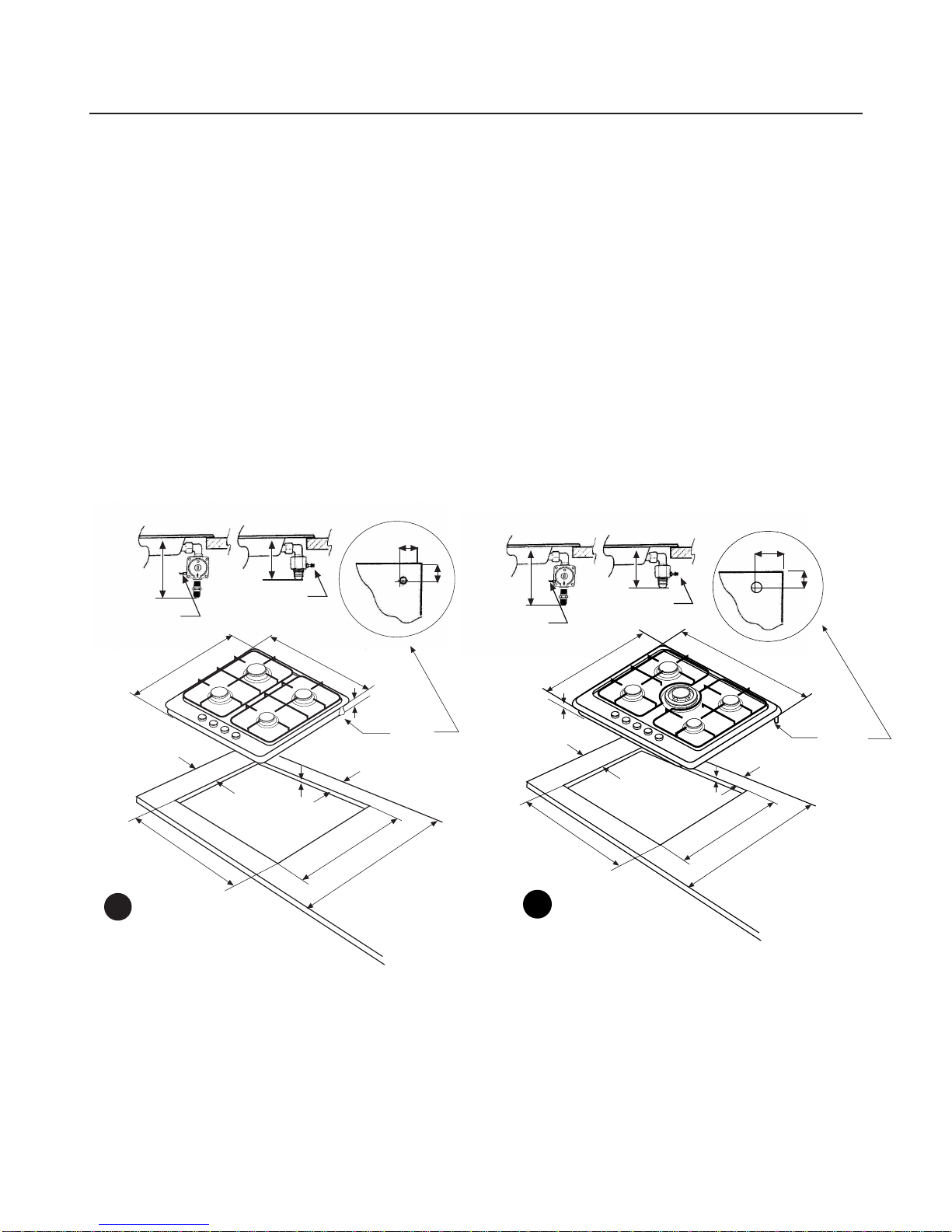

Installation dimensions are shown in Fig.1-1a.
min 30 / max 60 min 30 / max 60
6

A range hood fitted above the top must be installed
according to the installation instructions for the range
hood. A minimum distance of 650 mm is required for a
range hood and 750 mm for an exhaust fan.

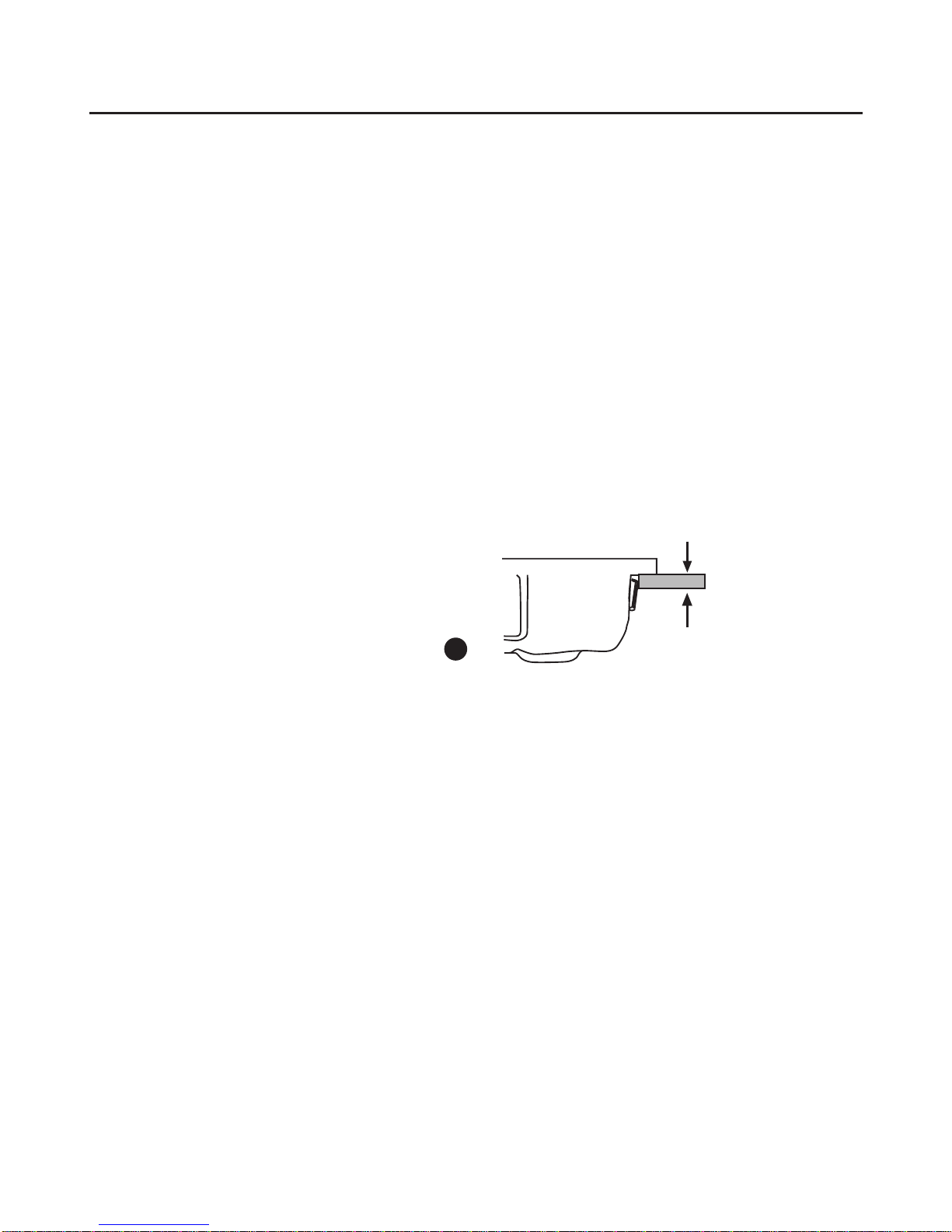

Minimum thickness of benchtop is 30 mm. See Fig. 2.
Installation procedure:
Clearances
2
Installation of
cooktop into the
kitchen bench
30 mm
minimum
Any adjoining wall surface situated within 200mm from the
edge of any hob burner must be a suitable non-com-
If the base of the hotplate can be touched, a protecting
shield must be fitted. This shield must be at least
10mm from the lowest part of the hotplate and must
be capable of withstanding the appliance temperatures.
bustible material for a height of 150mm for the entire
length of the hob. Any combustible construction above
the hotplate must be at least 650mm above the top of
the burner and no cons
above the top of the truction shall be within 450mm
.
burner
A minimum depth of 50mm from the top of the worktop
surface must be provided for the appliance.
1. For cutout dimensions and clearances refer
2. a) If the clamps and the selfadhesive seal (lower edge
of the hob) are already fitted (depending on the model),
keeps the entire work surface watertight and prevents
spilage from leaking into cupboards underneath. Slightly
do not under any circumstance remove them. The seal
losen the retaining screws of the clamps positioned at
the bottom of the cooktop.
b) If the clamps and the selfadhesive seal have not
the gas burner covers from your cooking hob and turn it
upside down. Now fit the selfadhesive seal supplied
with the appliance onto the lower edge of the hob. Take
the clamps and screw them into the lower point designed
been fitted in the factory, remove the pan support and
for this purpose. See Fig. 3.
Side clearances: If the distance measured from the
periphery of the
nearest burner to any vertical surface
is less than 200 mm, the surface shall be protected in
accordance with clauses 5.12.1.1 & 5.12.1.2 of AS 5601.
Fig.1.
7

4.Once the hob is fitted you should turn the clips and
4
tighten the screw as shown in Fig. 4.
that the hob is resting on its entire perimeter.
3. Place the hotplate on top of the bench cut-out and
press down firmly on all edges at the same time to ensure
3
3
8

Connection
Installation continued
Electrical:
An electrical 10 amp socket needs to be within 1 m of the
hotplate to allow electrical connection. The socket must remain
accessible after installation of the appliance.
Important note:
Gas:
During the planning stage, consider the position of supply
The hob must be connected to the gas supply with upstream
connection of an isolation valve in accordance with the respec-
tively valid regulations. We recommend that the isolation valve
be fitted prior to the cooktop to enable isolation of cooktop
times.
To find out the factory set gas type, see bottom of cooktop next
to gas connection.
Remove plastic cap from gas supply line prior to installation.
1/2
Direction of gas flow is indicated on the rear of the regulator.
Use pipe compound or thread sealant, properly theaded pipes
and careful assembly procedure so that there is no cross
threading, etc., which might cause damage or leakage.
Make sure that all connections peformed are free of leakage.
In either of the cases, do not move or twist the L-tube from its
factory-set position.
If for some reason, the L-tube should be twisted, it is necessary
to make sure that this area is properly sealed. Make sure that
all connections performed are free of leakage.
The manufacture does not accept any liability for leakage on
connections performed by the installer or if the L-tube is moved
Natural gas connection
Pressure
test point R 1/2”Pressure
test point.
5
R 1/2”
For position of the inlet connection refer Fig.1-1a.
or twisted.
connections.
6
" connection as per Fig. 5. and Fig. 6.
from gas supply. The valve must be easily accessible at all
R
Fit regulator (N.G.) or a test point (Universal LPG) directly
to the
Universal LPG connection
This appliance is connected to the mains (240 VAC) by means
of the connecting lead which must be fixed to the kitchen unit
to prevent it from coming into contact with hot parts of the hob
(or an oven installed underneath) and remain accessible after
installation of the cooktop.
When making this connection make
sure that the lead cannot come into contact with hot parts
of the hob.
Important: This appliance must be earthed. When connecting
the cooktop ensure that the earth wire is connected first and
that all wires are connected to the correct terminals.
9

with a hose assembly that complies with AS/NZS 1869 (AGA
Approved), 10mm ID, class Bor D, no more than 1,2m long
and in accordance with AS5601. Ensure that the hose does
WARNING: Ensure that the hose assembly is restrained
from accidental contact with the flue outlet of an under-
bench oven.
and water. DO NOT use a naked flame for detecting leaks.
Turn gas taps to low flame position and observe stability of
the flame for each burner individually and all together. Adhere
the duplicate data plate to an accessible location near the
hotplate.
the user on the In case the
operate correctly after all checks have
been carried out, refer to the authorised service provider
in your area.
not contact the hot surfaces of the hotplate, oven, dishwasher
or any other appliance that may be installed underneath or
next to the hotplate. The hose should not be subjected to
abrasion, kinking or permanent deformation and should be
able to be inspected along its entire length with the cooktop
in the installed position. Unions compatible with the hose fittings
must be used and all connections tested for gas leaks.
The supply connection point shall be accessible with the
appliance installed.
Before Leaving- Check all connections for gas leaks with soap
ensure correct operation of gas valves, burners and ignition.
Ignite all burners both individually and concurrently to
gas line:
A. The hotplate can be connected with rigid pipe as
B. Flexible Hose: If installing with a hose assembly, install
When satisfied with the hotplate, please instruct
liability for direct or indirect damage caused by wrong
appliance fails to
connection, leakage or improper installation. When being
correct method of operation.
repaired, the appliance must always be disconnected from
It should be expressly noted that we cannot accept any
the mains supply; if required, notify our customer service.
There are two ways to carry out the connection to the main
specified in AS5601 table 3.1.
10

Before conversion the cooktop must be disconnected
from the electricity and gas valves must be turned to the
OFF position.
1 Remove the trivets, burner caps and burner heads. 
2 Change the injectors using a 7-mm socket wrench 
and be sure to tighten them down properly so that 
3 Re-assemble the burner component parts in reverse 
order.
Natural Gas
Burner Injector
size
(mm)
Injector
size
(mm)
Hourly Gas
(MJ)
Small
Medium
Large
wok (Center)
wok (Left front)
0.90
1.18
1.60
1.65
0.50
0.67
0.85
0.97
0.93
To change injectors
All work involved in installation, setting and adaptation
to a different gas type must be carried out by authorised
personnel from our Service Centre and must comply
with current regulations and the conditions laid down by
the local gas company.
Request change-over injectors from our customer service
deparment (refer injector chart below for sizes).
Coverting the cooktop
from Nat.Gas to
NOTE: it is not necessary to adjust the primary air control
on these burners.
6
7 mm
1.65
Hourly Gas
(MJ)
4,0
13,0
Refer Fig. .
7
they are fully airtight. Refer Fig. .
8
8
7
Universal LPG
Universal LPG
11
3,25
6,5 6,25
12,0 10,0
13,0 13,25
10,8
Consumption Consumption

5 To adjust the minimum flame for N.G. replace the 
control knob onto the spindle, light the gas and turn 
the control knob to the small flame position. Screw 
the adjustment screw anti-clockwise to estabilish a 
minimum stable flame position. The flame should 
remain alight and not burn back to the injector when 
the valve is turned quickcly from ‘Full On’ to the 
“Minimum flame” position and back a few times.
screw must be fully tightened down clockwise.
6 valve shaft: in the event of damage, change the entire 
valve.
9
10
1 Turn the control knob to minimum.
2 Remove the control knob from the valve spindle. 
3
4 The adjustment screw is positioned at the rear lower 
Minimum flame adjustment.
efit the control knob. Never dismount the 
R
Apply pressure with the tip of the screwdriver to
release the thread toward the tap's adjusting screw.
Refer Fig.10.
.Refer Fig.9
section of the valve.
To adjust the minimum flame position for ULPG the 
12

Burner locations
1. Medium burner 4. Small burner
2. Medium burner 5. Rapid burner
3. Wok burner 6. Control Knobs
Operating instructions
1 5
3
4
66
1
2
5
4
3
12
11
Burner ignition &
control Depress control knob and turn anti-clockwise to “High
flame”position. Hold the knob down for a few seconds
until the flame ignites. Keep control knob depressed for
a few seconds to activate the flame failure device. If
ignition fails, depress knob again and wait for ignition.
intensity.
All burners are fitted with a flame failure device which
shuts off the gas supply if the flame extinguishes for
any reason. To re-ignite, wait 30 seconds for any unburnt
gas to disperse before repeating the ignition procedure
described above.
To turn off the gas supply to a burner turn the control
burner.
“Low flame” graphic= lowest output
Burner
Position
Graphic
knob clockwise to the “OFF” position. (Refer Fig. )
12
12
If ignition fails depress knob and try again. If flame is
Turn anti-clockwise to set the flame to the desired
not established in 15 seconds release the control
knob and open a door and wait 1 minute before
attempting a new ignition procedure.
If the ignition sparkers are dirty, this makes the burners
harder to light, so you should keep them as clean
“High flame” graphic= higest output
as possible. Clean them using a small brush and
The control knob is used to adjust the flame of the gas
remember that the ignition sparkers must be treated
very gently.
13


For safety and economic gas usage you should always 
use the correct pan on the correct burner.Flames should 
not protrude beyond the base of the pan. You will save 
energy, time and money by always placing the correct 

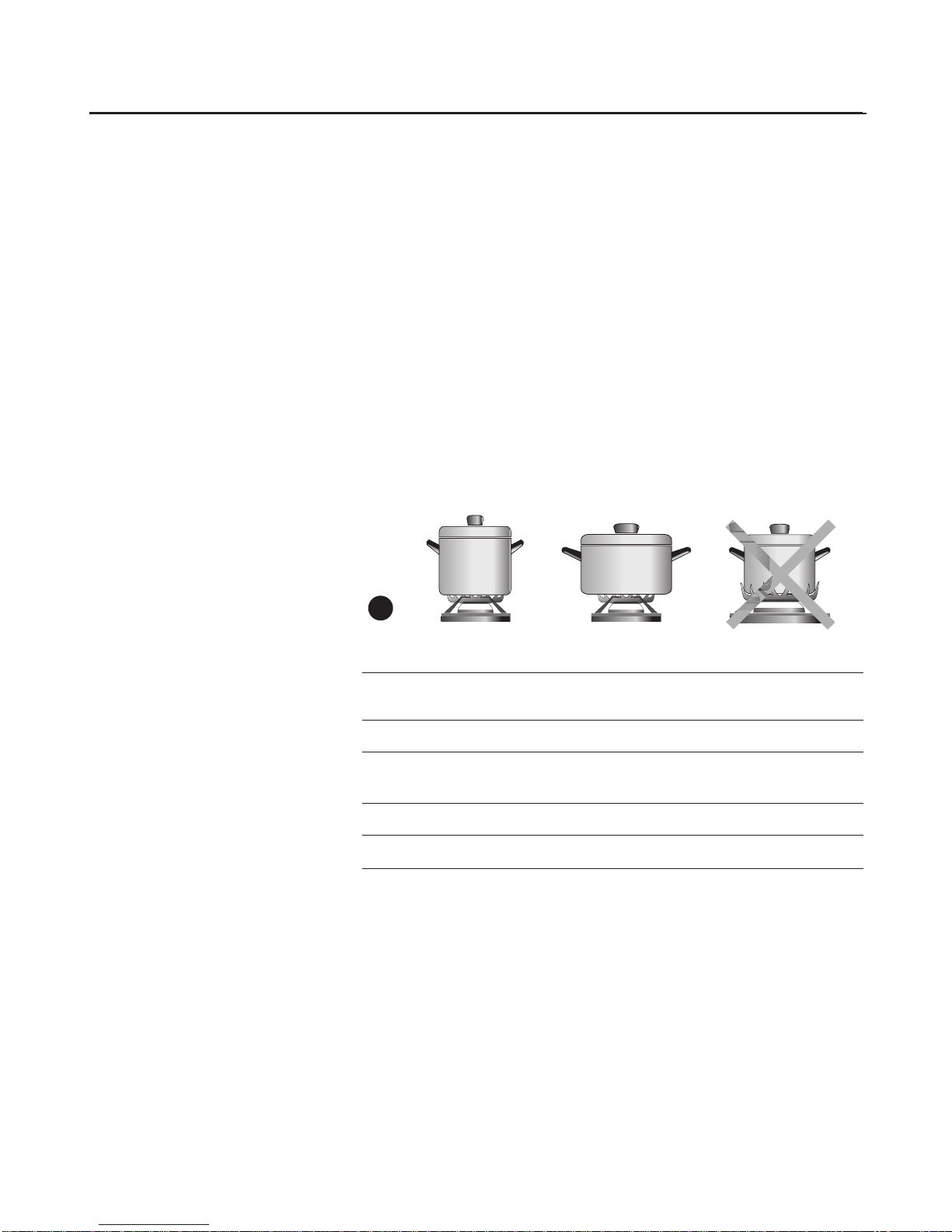

The chart below gives the correct pan usage for each burner
User Instructions 
For safety and economic gas usage you should always 
use the correct pan on the correct burner.Flames should 
not protrude beyond the base of the pan. You will save 
energy, time and money by always placing the correct 
pan size on the correct gas ring. See fig. 15.

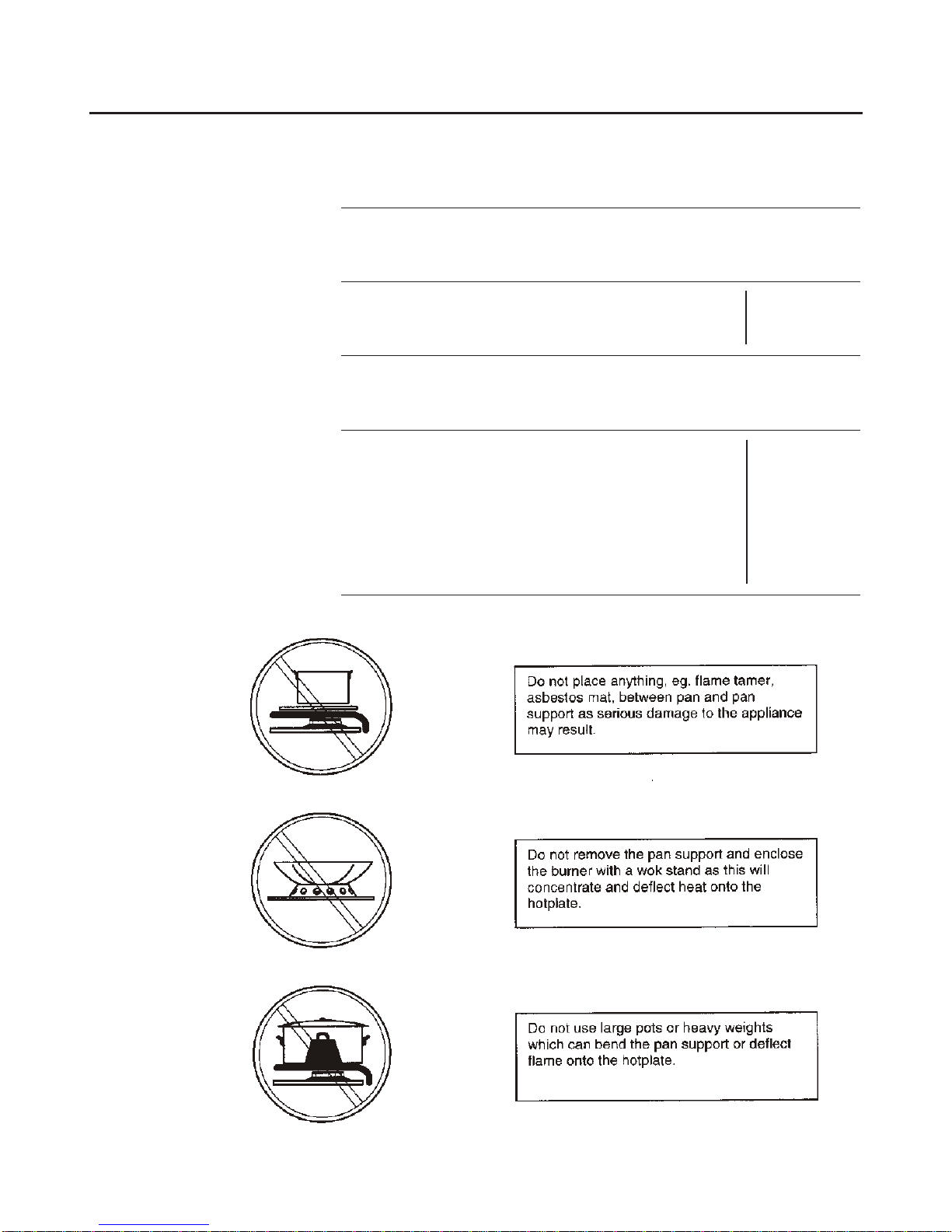

The chart below gives the correct pan usage for each burner
Burner Recomended
pan diameter Minimum
pan diameter
Small burner 100-120 mm. 100 mm.
Medium
burner 120-200 mm. 120 mm.
220-260 mm. 220 mm.Wok burners
220-260 mm. 220 mm.Large burner
User Instructions 
Use “High flame” setting to bring the pan to the boil, then 
adjust the flame between “High flame” and “Low flame” 
to maintain the required pan temperature.
Important:
The use of a cooktop leads to the production of heat and 
moisture in the kitchen .For this reason make sure that 
the room is properly ventilated.Keep natural ventilation 
mechanical ventilation device(e.g. a range  hood or 
overhead exhaust fan). An orangy flame is normal and 
simply indicates the presence of salt in the atmosphere 
(from cooking). If the flame has yellow patches, this is 
Boiling burners 
 hood or 
not a fault (of any kind).
such as windows, open or provide a 
openings,
pan size on the correct gas ring. See fig. .
14
14

an extra wok trivet. This trivet must be used when using

concave receptacles such as woks, etc.
non-use or misuse of this additional pan support.
Depending on the model, the hotplate is supplied with
 
than 26 cm diameter, griddle plates and all kinds of
an extra coffee support. This support is for use only
The manufacturer cannot be held responsible for the
with the small burner when supporting receptacles
with a diameter of less than 10 cm.
the wok burner for receptacles with diameters of more
The manufacturer cannot be held responsible for the
Depending on the model, the hotplate is supplied with
non-use or misuse of these additional pan supports.
Wok trivet
Coffee support
14


15
Cooking
recommendations Very high /High Medium Low
Wok burner Boiling, grilling, Reheating and keeping
browning, and Asian things hot, cooked and
food (wok). pre-cooked dishes.
Large Steaks, omelettes, Rice, white Steaming,
burner frying. sauce and and
ragout. vegetables.
Medium Steaming potatoes, Reheating, keeping
burner fresh vegetables, things hot and making
stews and pasta. tasty casseroles.
Small Melting:
and slow
caramels. cooking: butter, chocolate
vegetables and jelly.
fruits and
Casseroles, rice
frozen
products.
burner pudding and Defrosting

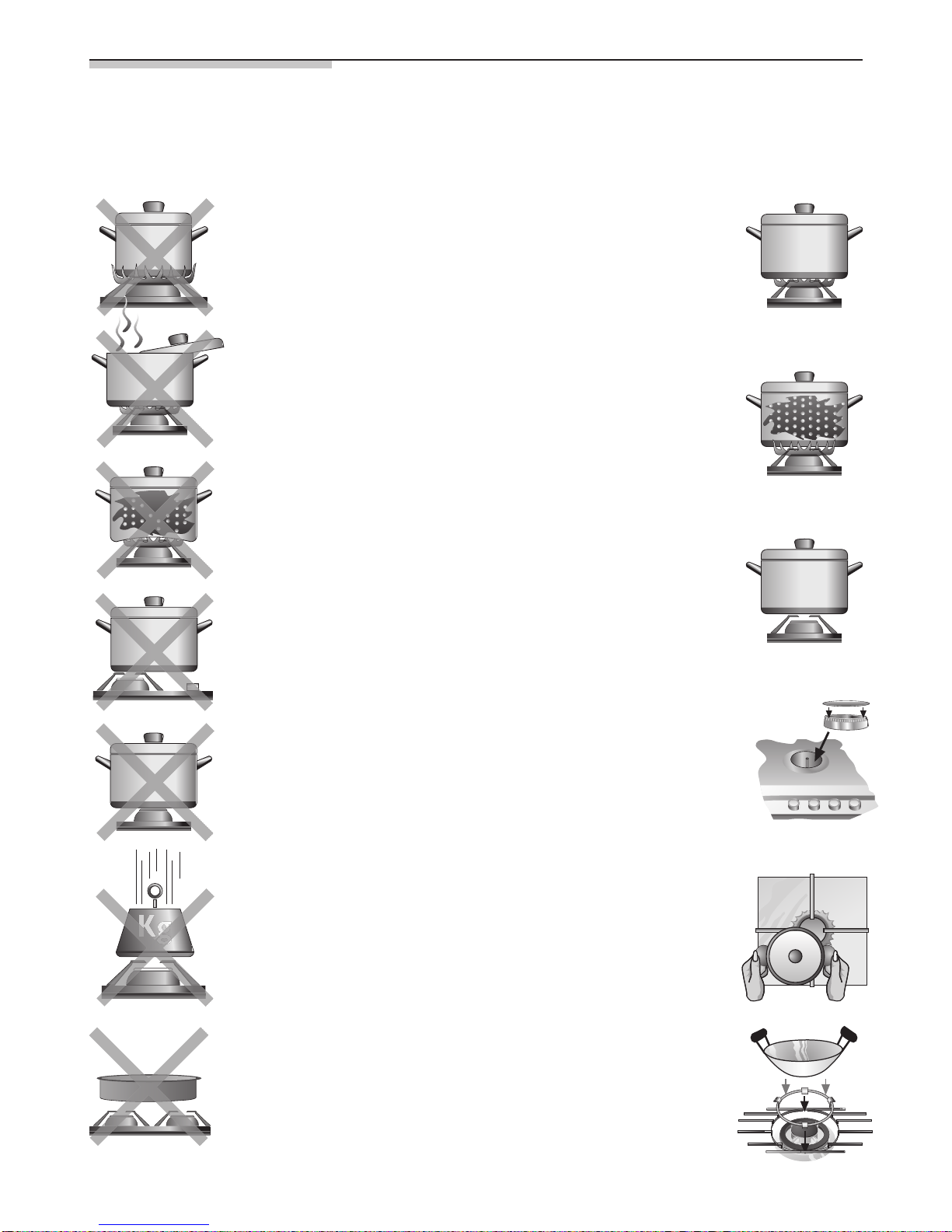

DON'Ts DOs
Do not place receptacles on
burners off centre. They
could tip over.
Do not use wide-based re-
ceptacles on the burners
nearest to the controls.
When centred on the bur-
ner, they could touch the
controls or raise the tempe-
rature in the area. This may
damage the hob.
Do not place receptacles
directly on top of burners.
Do not use excessive weig-
hts or strike the hob with Handle receptacles on the
care.
Warnings concerning cooking:
Do not use receptacles with
uneven bases. They leng-
then cooking times and in-
Only use thick-,flat-based
frying pans
Do not cook without lids or
with lids only partially cove-
ring receptacles. You are
wasting energy.
Always use lids.
Always place recepta-
 in the middle of

Always place receptacle

Make sure that the metal
grids and the tops of the
burners are correctly posi-
tioned before using them.
Do not cook without lids or
with lids only partially cove-
ring receptacles. You are

Do not use receptacles with
uneven bases. They leng-
then cooking times and in-
Do not place receptacles on
burners off centre. They
Do not use wide-based re-
ceptacles on the burners
nearest to the controls.
When centred on the bur-
ner, they could touch the
controls or raise the tempe-
rature in the area. This may

Do not use receptacles with
uneven bases. They leng-
then cooking times and in-
Do not place receptacles on
burners off centre. They
Do not use wide-based re-
ceptacles on the burners
nearest to the controls.
When centred on the bur-
ner, they could touch the
controls or raise the tempe-
rature in the area. This may
Do not place receptacles
directly on top of burners.
Do not place receptacles
directly on top of burners.
Do not use excessive weig-
hts or strike the hob with
Do not use small recepta-
cles on large burners. The
flame should not touch the
sides of receptacles.
Always use suitably sized
receptacles on each bur-
ner. This helps avoid ex-
cessive gas consumption
and prevents receptacles
from getting tarnished.
Do not use two burners or
heat sources for a single
Do not use baking trays,
earthenware dishes, etc...
at full heat for a long time
Only use one recipient per
burner. Use the extra

saucepans,
and casseroles.
cles
burners.
crease energy consumption.
on the pans support.
hob with
heavy objects.
recipient.
.
burner.
16
metal grid on the wok

Do not use scouring
powder, over cleaner
sprays or abrasive pads
that may scratch the glass.
Never use sharp objects
such as knives or wire wool
to remove the remains of
food that has become en-
crusted onto the surface.
Do not use knives, scra-
pers or similar implements
metal surrounds.
Do not slide recipients over
Grains of sand, which may,
for example, come from
cleaning vegetables, can
scratch the glass surface.

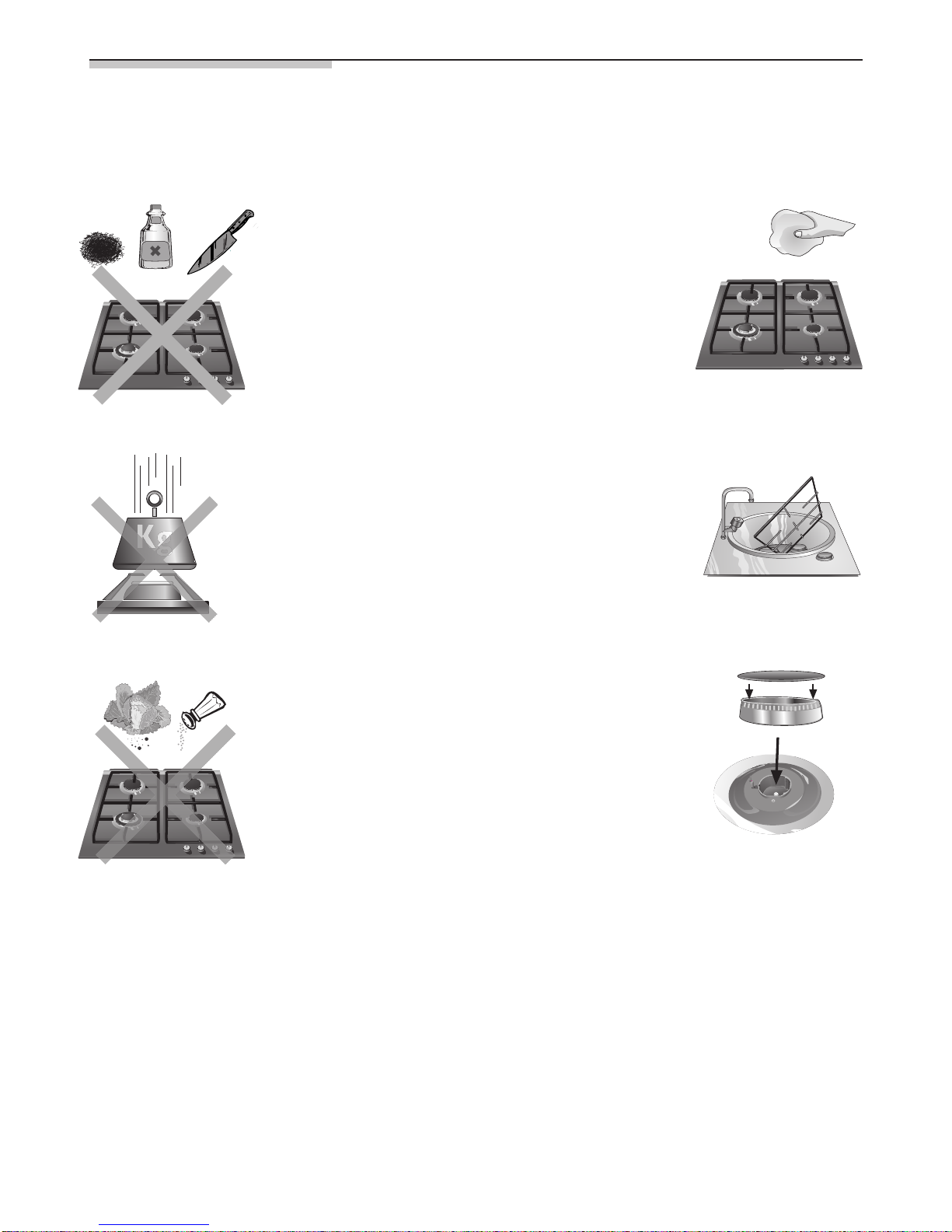

Cleaning and maintenance:
The high temperatures suffered by the cover on the triple-flame burner ring and the
stainless steel parts on your hob (plate rings, grease trays, area around burners, etc)
may become discoloured over time. This is NORMAL. Clean them after use with a
product suitable for stainless steel.
After washing the pans support, dry them thoroughly before cooking with them again.
The presence of droplets of water or dampness at the beginning of the cooking process
may damage the enamel surface.
Be careful with the feet on the metal grids when cleaning them; if they are detached,
the grid may scratch the glass next time it is used.
DON'Ts DOs
Clean the surface of the
heating elements once
they have cooled down,
each time they are used.
Even small amounts of dirt
burn when it is switched
on again.
The burners and pans su-
pport must be cleaned re-
gulary to keep them clean.
This is done by submer-
ging them in soaply water
and scrubbing them them
with a non-metal brush to
keep the holes and slits
free from obstruction so
they can give a perfect
flame.
Dry the burner covers
whenever wet or damp.
After cleaning and drying
the burners, make sure
that the covers are proper-
ly in position on the flame
diffuser.
Once the appliance is
cold, clean it with a spon-
ge and soapy water.
Do not use scouring
powder, over cleaner
sprays or abrasive pads
that may scratch the glass.
Never use sharp objects
such as knives or wire wool
to remove the remains of
food that has become en-
crusted onto the surface.
Do not use knives, scra-
pers or similar implements
metal surrounds.
Do not slide recipients over
Grains of sand, which may,
for example, come from
cleaning vegetables, can
scratch the glass surface.
Cleaning and maintenance:
The high temperatures suffered by the cover on the triple-flame burner ring and the
stainless steel parts on your hob (plate rings, grease trays, area around burners, etc)
may become discoloured over time. This is NORMAL. Clean them after use with a
product suitable for stainless steel.
After washing the pans support, dry them thoroughly before cooking with them again.
The presence of droplets of water or dampness at the beginning of the cooking process
may damage the enamel surface.
Be careful with the feet on the metal grids when cleaning them; if they are detached,
the grid may scratch the glass next time it is used.
Do not use scouring
powder, over cleaner
sprays or abrasive pads
that may scratch the glass.
Never use sharp objects
such as knives or wire wool
to remove the remains of
food that has become en-
crusted onto the surface.
Do not use knives, scra-
pers or similar implements
metal surrounds.
Do not slide recipients over
Grains of sand, which may,
for example, come from
cleaning vegetables, can
scratch the glass surface.
Cleaning and maintenance:
The high temperatures suffered by the cover on the triple-flame burner ring and the
stainless steel parts on your hob (plate rings, grease trays, area around burners, etc)
may become discoloured over time. This is NORMAL. Clean them after use with a
product suitable for stainless steel.
After washing the pans support, dry them thoroughly before cooking with them again.
The presence of droplets of water or dampness at the beginning of the cooking process
may damage the enamel surface.
Be careful with the feet on the metal grids when cleaning them; if they are detached,
the grid may scratch the glass next time it is used.
-rings of the burners or the
for cleaning the joins
between the glass and the
scratch it. Similarly, do not
drop hard or sharp objects
the glass as they may
onto the glass. Avoid
Knocking any part of the
edge of the cooking plate.
17

It is not always necessary to call the Service Centre. In
some cases, you may be able to solve the problem
yourself. This table contains some useful information.
Important:
Only authorised personnel from the Service Centre are
qualified to work on the main gas and electric systems.
Service
Trouble shooting
chart

.
Yellow tipping of the hob burner flame.
Sooting up of cooking utensils.
Burners not lighting properly.
Burners failing to remain alight.
Any of the following are considered to be abnormal operation and may require
servicing:
Gas valves, which are difficult to turn in case the appliance fails to operate correctly,
contact the authorised service provider in your area.
...If none of the electrical
systems work? • Faulty fuse. • Check the fuse in the
main fuse box and
• The automatic circuit breaker
or mains differential has been
triggered.
•Check to see if the circuit
breaker or a differential has

...If the electronic ignition
system does not work? •There may be food or cleaning product particles between the
spark plugs and the burners.
...If the flame on the burners is
not evenly distributed? not been assembled properly.
.

•Clean the gas ports on the

...If the gas flow does not seem
normal or there is no gas flow

•The isolation valve is closed.
•If the gas is supplied from a
gas bottle, it may be empty.
• Open the isolation valve.
•Replace the gas bottle with

...If the kitchen smells of gas? •One of the valves has been
left open.

•Check to see if a valve has

•Check that the coupling on
the gas bottle is in order.
What´s wrong Possible cause Solution
•The gap between the spark
be cleaned carefully.
...If the safety cut-off devices
on the different burners do not
work? kept pressed in for long enough.
•The burner ports are dirty.
•Once ignited, keep the
control pressed in for a few
seconds.
•Clean the burner ports.
• Power turned off. • Turn power on.
replace if faulty.
•Put the components in their
correct positions.
burners.
a full one.
been left open.
been triggered in the mains
supply box.
•The control knob has not been
•The burners are wet.
plug and the burner needs to
carefully.
•The burner covers are not
•Dry the burner covers
•Make sure that the burner
covers are correctlypositioned correctly. positioned.
• The burners may not be
are dirty
totally dry. •Dry the burners more
•The burner components have
thoroughly (be particularly
careful with single-piece
•The gas ports on the burners
burners).
at all?
•Possible leak on the gas bottle.
coupling.
18

A
B
C
E
CD
L N
A. Switch
B. Blue wire
C. Brown wire
D. Terminal
E. Ignition module
Wiring diagram
Robert Bosch Hausgeräte GmbH CIF: A-28-893550
FD
Gas type
Test point pressure (kPa)
NG LP
1,0 2,75
Injectors sizes (mm)
LHF
LHR
RHF
RHR
Centre 1,65 0,97
0,90 0,50
1,18 0,67
1,18 0,67
1,60 0,85
HGC (MJ)
lectrical compliance
AGA approval number
Preinstalled NG
In compliance with AS 3100
Robert Bosch Hausgeräte GmbH CIF: A-28-893550
Gas type
Test point pressure (kPa)
NG LP
1,0 2,75
Injectors sizes (mm)
LHF
LHR
RHF
RHR
1,65 0,93
1,18 0,67
0,90 0,50
1,60 0,85
HGC (MJ)
lectrical compliance
AGA approval number
Preinstalled NG
In compliance with AS 3100
-Nr
Made in Spain
6962 Made in Spain
6962
19
42,00 39,00 35,50 30,30
FD
-Nr
PHL206FAU PHW206FAU
PPH626B90A
PPQ726B90A
