Bosch GLI 14,4 V-LI User manual

Robert Bosch GmbH
Power Tools Division
70745 Leinfelden-Echterdingen
Germany
www.bosch-pt.com
1 609 929 T65 (2009.02) O / 84 ASIA
GLI Professional
14,4 V-LI | 18 V-LI
en Original instructions
cn 正本使用说明书
tw 正本使用說明書
ko 사용 설명서 원본
th หนังสือคู่มือการใช้งานฉบับต้นแบบ
id Petunjuk-Petunjuk untuk
Penggunaan Orisinal
vi BΩng hõëng dÿn nguy›n bΩn
fr Notice originale
ar
fa
ΕΎϤϴϠόΗϞϴϐθΘϟ΍ΔϴϠλϷ΍
Ϡλ΍ έΎ ίήσ ΎϤϨϫ΍έ
OBJ_DOKU-16603-001.fm Page 1 Monday, February 16, 2009 10:47 AM

1 609 929 T65 | (16.2.09) Bosch Power Tools
2|
English . . . . . . . . . . . . . . . . . . . . Page 6
中文 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 页17
中文. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 頁24
󳝓󰽤󲞫 󱱫 31
ภาษาไทย. . . . . . . . . . . . . . . . . . . . . . . . . . . หน้า 38
Bahasa Indonesia. . . . . . . . . Halaman 47
Tiøng Vi·t . . . . . . . . . . . . . . . . . . . Trang 55
Français . . . . . . . . . . . . . . . . . . . Page 63
. . . . . . . . . . . . . . . . . . . . . . . . . 71
. . . . . . . . . . . . . . . . . . . . . . . . 77
v
v
v
v
cc
cc 
ΔΤϔλ
vÝ—U
ϪΤϔλ
OBJ_BUCH-938-001.book Page 2 Monday, February 16, 2009 11:35 AM

| 3
Bosch Power Tools 1 609 929 T65 | (16.2.09)
GLI 18 V-LI
Professional
5 4
2
1
6
3
OBJ_BUCH-938-001.book Page 3 Monday, February 16, 2009 11:35 AM

1 609 929 T65 | (16.2.09) Bosch Power Tools
4|
A
1
7
7
6
8
9
OBJ_BUCH-938-001.book Page 4 Monday, February 16, 2009 11:35 AM

| 5
Bosch Power Tools 1 609 929 T65 | (16.2.09)
B
3
OBJ_BUCH-938-001.book Page 5 Monday, February 16, 2009 11:35 AM

1 609 929 T65 | (16.2.09) Bosch Power Tools
6| English
en
Safety Notes
Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in elec-
tric shock, fire and/or serious injury.
fDo not open the battery. Danger of short-circuiting.
Protect the battery against heat, e. g., also against contin-
uous sun irradiation and fire. There is danger of explosion.
fWhen battery pack is not in use, keep it away from other metal
objects like paper clips, coins, keys, nails, screws, or other small
metal objects that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns
or a fire.
fIn case of damage and improper use of the battery, vapours may
be emitted. Provide for fresh air and seek medical help in case
of complaints. The vapours can irritate the respiratory system.
fRecharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create
a risk of fire when used with another battery pack.
fWhen the battery is defective, liquid can escape and come into
contact with adjacent components. Check any parts concerned.
Clean such parts or replace them, if required.
fUse cordless worklight only with specifically designated battery
packs. Use of any other battery packs may create a risk of injury
and fire.
Functional Description
While reading the operating instructions, unfold the graphics page of
the cordless working light and leave it open.
OBJ_BUCH-938-001.book Page 6 Monday, February 16, 2009 11:35 AM

English | 7
Bosch Power Tools 1 609 929 T65 | (16.2.09)
Product Features
The numbering of the product features refers to the illustration of the
cordless worklight on the graphics page.
1Lamp head
2On/Off switch
3Handle
4Battery unlocking button
5Battery*
6Relase button for lamp head
7Light bulb
8V-groove
9Spare light bulb
*Accessories shown or described are not part of the standard delivery scope
of the product. A complete overview of accessories can be found in our
accessories program.
Technical Data
Cordless Worklight GLI 14,4 V-LI
Professional
GLI 18 V-LI
Professional
Article number 3 601 D37 T.. 3 601 D37 S..
Rated voltage V= 14.4 18
Lighting duration, approx. h33
Weight according to
EPTA-Procedure 01/2003 kg 0.7 0.7
Please observe the article number on the type plate of your cordless worklight.
The trade names of the individual cordless worklights may vary.
OBJ_BUCH-938-001.book Page 7 Monday, February 16, 2009 11:35 AM

1 609 929 T65 | (16.2.09) Bosch Power Tools
8| English
Assembly
Battery Charging (Accessory)
fUse only the battery chargers listed on the accessories page.
Only these battery chargers are matched to the lithium ion battery
of your cordless worklight.
Note: The battery is supplied partially charged. To ensure full capac-
ity of the battery, completely charge the battery in the battery charg-
er before using your power tool for the first time.
The lithium ion battery can be charged at any time without reducing
its service life. Interrupting the charging procedure does not damage
the battery.
The lithium ion battery is protected against deep discharging by the
“Electronic Cell Protection (ECP)”. When the battery is empty, the
cordless worklight is switched off by means of a protective circuit.
Do not continue to press the On/Off switch after
the cordless worklight has been automatically
switched off. The battery can be damaged.
The battery is equipped with a NTC temperature control which allows
charging only within a temperature range of between 0 °C and 45 °C.
A long battery service life is achieved in this manner.
Observe the notes for disposal.
Removing the Battery
The battery 5has two locking levels, which are supposed to prevent
the battery from falling out in case of unintentionally pressing the bat-
tery unlocking button 4. As long as the battery is inserted into the
cordless worklight, it is held in position by means of a spring.
W ARN I N G
OBJ_BUCH-938-001.book Page 8 Monday, February 16, 2009 11:35 AM

English | 9
Bosch Power Tools 1 609 929 T65 | (16.2.09)

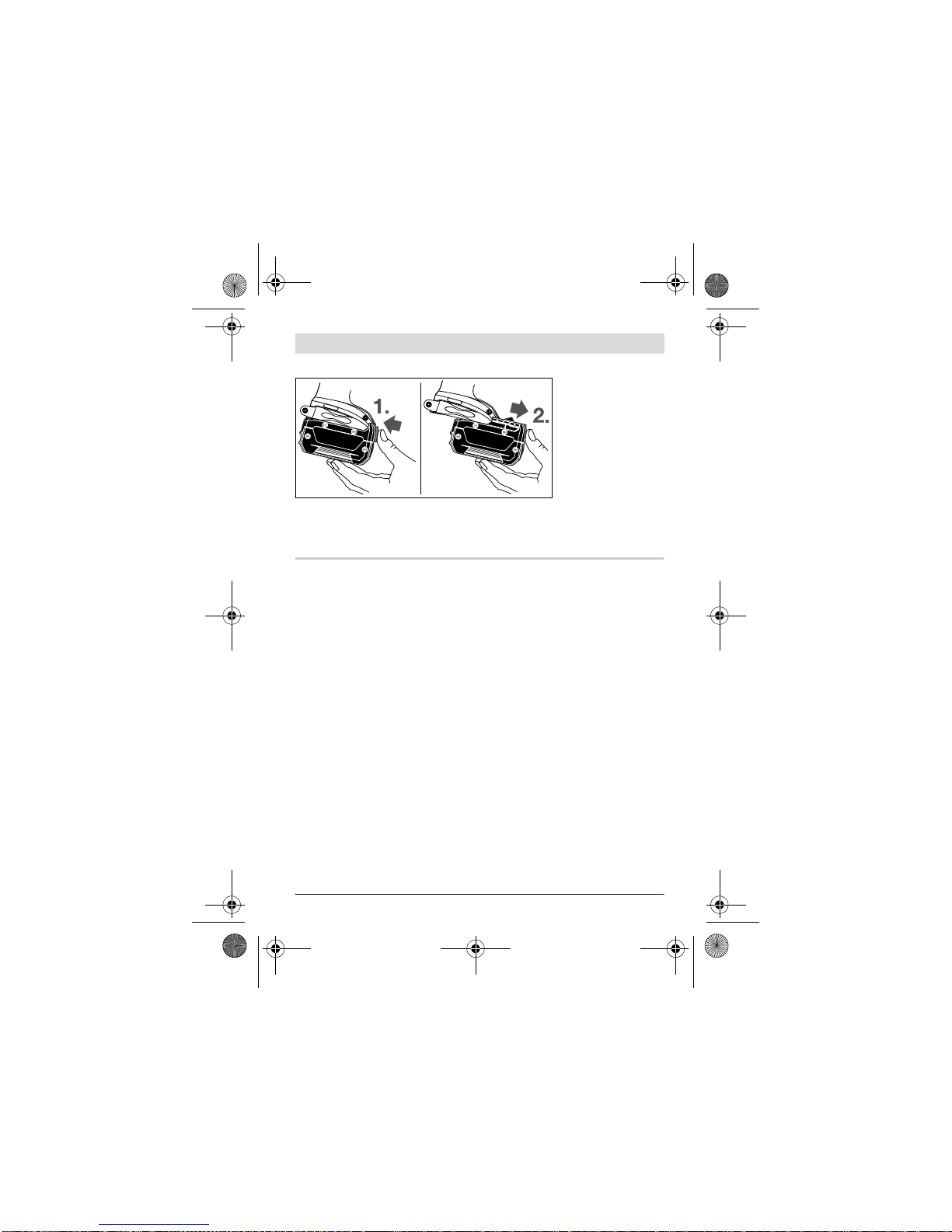

To remove the battery 5, press the battery unlocking button 4and
pull the battery out of the cordless worklight toward the rear. Do not
exert any force.

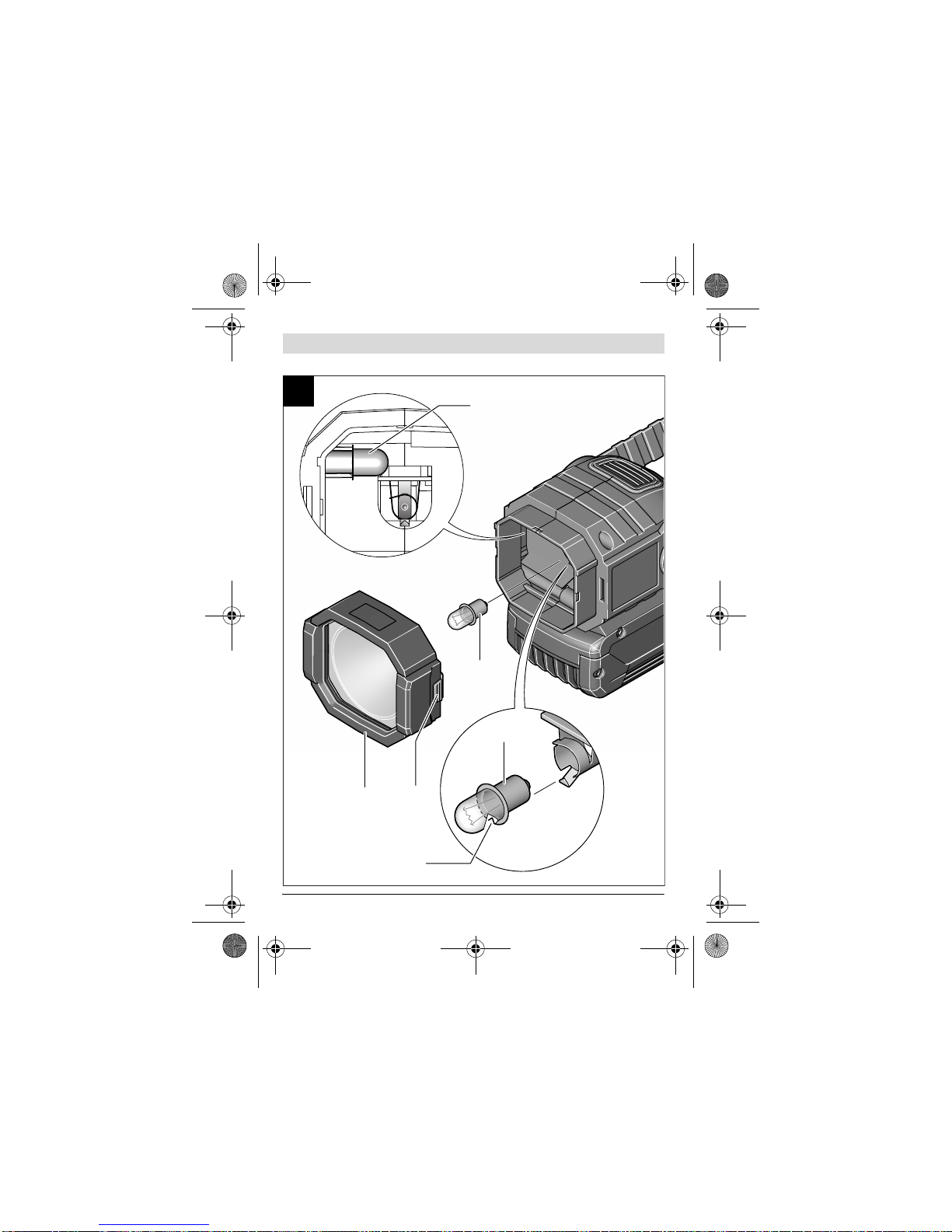

Changing the Light Bulb (see figure A)
fBefore any work on the cordless worklight, remove the battery.
fExercise caution when changing the light bulb! Do not touch the
hot light bulb. Allow the light bulb to cool down for at least 10
minutes. Danger of burns from the hot light bulb.
Note: Use a soft cloth for changing the light bulb. Make sure not to
touch the glass bulb with your bare fingers. Otherwise, the light bulb
can become damaged.
–Press the release buttons 6and remove the lamp head 1.
–Turn the light bulb 7until the V-groove 8in the light bulb 7corre-
sponds with the V-groove in the lamp socket and then pull out the
light bulb 7.
–A spare light bulb 9is located in the lamp head 1.
–Insert the new light bulb 7and turn until locked.
–Mount the lamp head 1again.
OBJ_BUCH-938-001.book Page 9 Monday, February 16, 2009 11:35 AM

1 609 929 T65 | (16.2.09) Bosch Power Tools
10 | English
Operation
Starting Operation
Inserting the Battery
fUse only original Bosch lithium ion batteries with the voltage
listed on the nameplate of your cordless worklight. Using other
batteries can lead to injuries and pose a fire hazard.
Insert the charged battery 5from the rear into the base of the cord-
less worklight. Press the battery completely into the base until the
red stripe can no longer be seen and the battery is securely locked.
Switching On and Off
To start the cordless worklight, press the On/Off switch 2.
To switch off the cordless worklight, press the On/Off switch 2again.
Protection Against Deep Discharging
The lithium ion battery is protected against deep discharging by the
“Electronic Cell Protection (ECP)”. When the battery is empty, the
cordless worklight is switched off by means of a protective circuit.
Working Advice

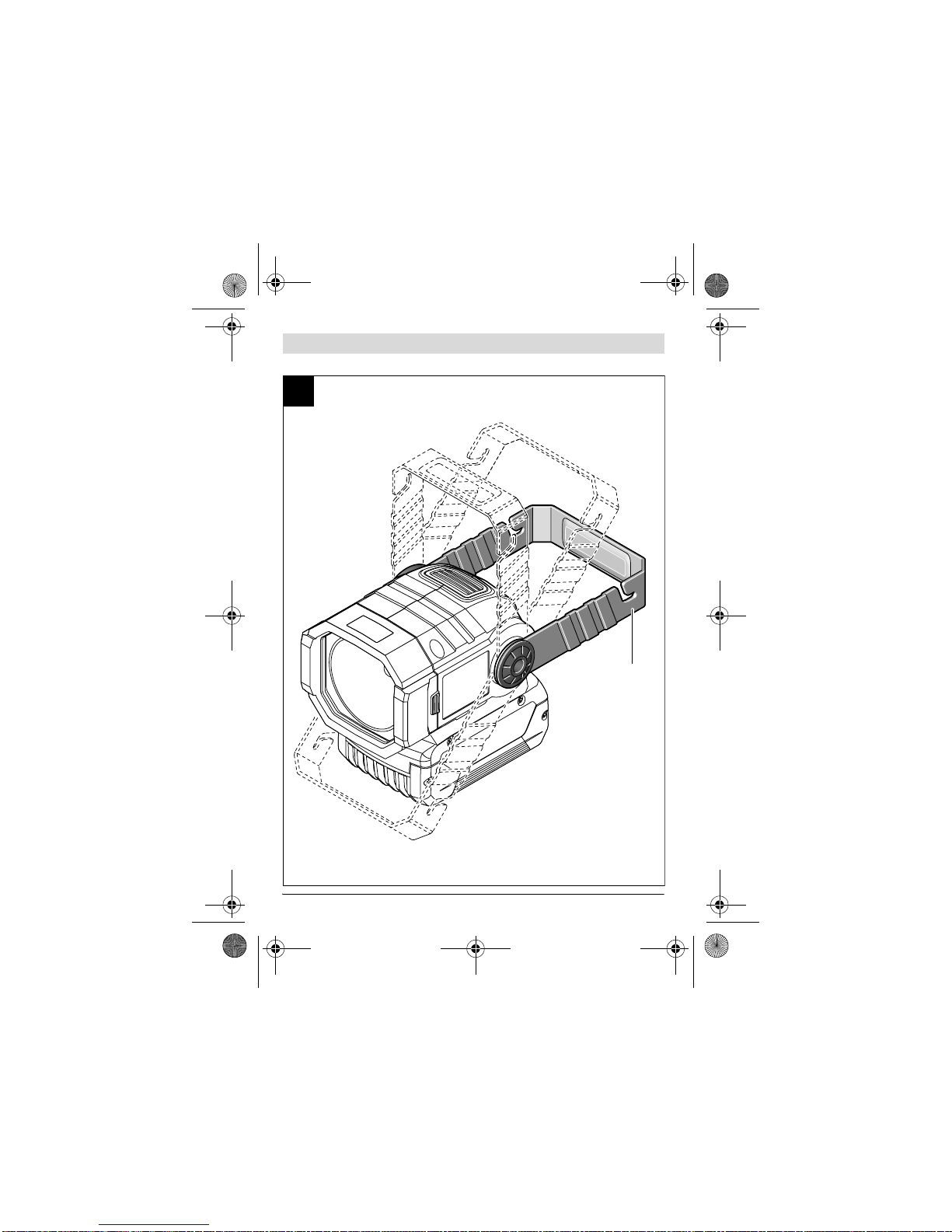

Changing the Handle Position (see figure B)
The position of the handle 3can be changed. Rotate the handle 3un-
til it engages in one of the 4 possible positions.
OBJ_BUCH-938-001.book Page 10 Monday, February 16, 2009 11:35 AM

English | 11
Bosch Power Tools 1 609 929 T65 | (16.2.09)
Maintenance and Service
Maintenance and Cleaning
When the battery is no longer operative, please refer to an authorised
after-sales service agent for Bosch power tools.
The cordless worklight is maintenance-free and and contains no com-
ponents that must be replaced or maintained.
To avoid damage, clean the plastic lens of the cordless worklight only
with a dry, soft cloth. Do not use cleaning agents or solvent.
If the cordless worklight should fail despite the care taken in manu-
facturing and testing procedures, repair should be carried out by an
authorized after-sales service agent for Bosch power tools.
In all correspondence and spare parts orders, please always include
the 10-digit article number given on the nameplate of the cordless
worklight.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concerning main-
tenance and repair of your product as well as spare parts. Exploded
views and information on spare parts can also be found under:
www.bosch-pt.com
Our customer consultants answer your questions concerning best
buy, application and adjustment of products and accessories.
People’s Republic of China
Website: www.bosch-pt.com.cn
OBJ_BUCH-938-001.book Page 11 Monday, February 16, 2009 11:35 AM

1 609 929 T65 | (16.2.09) Bosch Power Tools
12 | English
China Mainland
Bosch Power Tools (China) Co., Ltd.
567, Bin Kang Road
Bin Jiang District 310052
Hangzhou, P.R.China
Service Hotline: [phone]
Tel.: [phone]
Fax: [phone]
HK and Macau Special Administrative Regions
Robert Bosch Hong Kong Co. Ltd.
21st Floor, 625 King’s Road
North Point, Hong Kong
Customer Service Hotline: [phone]
Fax: [phone]
E-Mail: inf[email protected]
www.bosch-pt.com.cn
Indonesia
PT. Multi Tehaka
Kawasan Industri Pulogadung
Jalan Rawa Gelam III No. 2
Jakarta 13930
Indonesia
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected].id
www.multitehaka.co.id
OBJ_BUCH-938-001.book Page 12 Monday, February 16, 2009 11:35 AM

English | 13
Bosch Power Tools 1 609 929 T65 | (16.2.09)
Phillippines
Robert Bosch, Inc.
Zuellig Building
Sen. Gil Puyat Avenue
Makati City 1200, Metro Manila
Philippines
Tel.: [phone]
www.bosch.com.ph
Malaysia
Robert Bosch (SEA.) Pte. Ltd.
No. 8a, Jalan 13/6
46200 Petaling Jaya,
Selangor,
Malaysia
Tel.: [phone]
Fax: [phone]
E-Mail: [e-mail]
Toll Free Tel.: [phone]
Fax: [phone]
www.bosch.com.sg
Thailand
Robert Bosch Ltd.
Liberty Square Building
No. 287, 11 Floor
Silom Road, Bangrak
Bangkok 10500
Tel.: [phone] – 18 88 (10 lines)
Fax: [phone]
Robert Bosch Ltd., P. O. Box 2054
Bangkok 10501, Thailand
OBJ_BUCH-938-001.book Page 13 Monday, February 16, 2009 11:35 AM

1 609 929 T65 | (16.2.09) Bosch Power Tools
14 | English
Bosch Service – Training Centre
2869-2869/1 Soi Ban Kluay
Rama IV Road (near old Paknam Railway)
Prakanong District
10110 Bangkok
Thailand
Tel.: [phone] – 4
Fax: [phone]
Fax: [phone]
Singapore
Robert Bosch (SEA.) Pte. Ltd.
38 C Jalan Pemimpin
Singapore 915701
Republic of Singapore
Tel.: [phone]
Fax: [phone]
www.bosch.com.sg
Vietnam
Robert Bosch (SEA) Pte. Ltd – Vietnam
Representative Office
Saigon Trade Center, Suite 1206
37 Ton Duc Thang Street,
Ben Nghe Ward, District 1
HCMC
Vietnam
Tel.: [phone]
Fax: [phone]
OBJ_BUCH-938-001.book Page 14 Monday, February 16, 2009 11:35 AM

English | 15
Bosch Power Tools 1 609 929 T65 | (16.2.09)
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: [phone]
Fax: + 61 (01300) 307 045
Inside New Zealand:
Phone: [phone]
Fax: [phone]
Outside AU and NZ:
Phone: [phone]
www.bosch.com.au
Transport
The battery is tested according to UN document
ST/SG/AC.10/11/Rev.3 Part III, subsection 38.3. It has effective pro-
tection against internal overpressure and short circuiting as well as
devices for the prevention of violent rupture and dangerous reverse
current flow.
The lithium-equivalent content in the battery is below applicable limit
values. Therefore, the battery is not subject to national or internation-
al regulations pertaining to dangerous mediums, neither as an indi-
vidual component nor when inserted into a machine. However, the
regulations governing dangerous goods may be relevant when trans-
porting several batteries. In this case, it can be necessary to comply
with special conditions (e.g., concerning the packaging). For more in-
formation, please refer to the instruction sheet (in English) under the
following Internet address: http://purchasing.bosch.com/en/start/
Allgemeines/Download/index.htm.
OBJ_BUCH-938-001.book Page 15 Monday, February 16, 2009 11:35 AM

1 609 929 T65 | (16.2.09) Bosch Power Tools
16 | English
Disposal
The machine, accessories and packaging should be sorted for envi-
ronmental-friendly recycling.
Battery packs/batteries:
Li-ion:
Please observe the instructions in section “Trans-
port”, page 15.
Do not dispose of battery packs/batteries into household waste, fire
or water. Battery packs/batteries should be collected, recycled or
disposed of in an environmental-friendly manner.
Subject to change without notice.
OBJ_BUCH-938-001.book Page 16 Monday, February 16, 2009 11:35 AM

中文 | 17
Bosch Power Tools 1 609 929 T65 | (16.2.09)
cn
安全规章
阅读所有的警告提示和指示。如未确实遵循警告提示和指示，可
能导致电击、火灾並且 / 或其他的严重伤害。
f切勿打开蓄电池。可能造成短路。
蓄电池必须远离高温，例如长期的日晒和火焰等。有爆炸的危险。
f不使用的蓄电池必须远离回形针，硬币，钥匙，钉子，螺丝或其它的小型金
属物体。上述物体可能连接蓄电池上的触点引起短路。蓄电池的两个触点如
果发生短路，可能烧毁其它物品或引起火灾。
f如果蓄电池损坏了，或者未按照规定使用蓄电池，蓄电池中会散发出有毒蒸
汽。工作场所必须保持空气流通，如果身体有任何不适必须马上就医。蓄电
池散发的蒸汽会刺激呼吸道。
f只能使用机器制造商推荐的充电器为蓄电池充电。不可以使用针对某些特定
蓄电池的充电器，为其它的蓄电池充电，可能引起火灾。
f损坏的蓄电池会渗漏出液体，并且污染其它的零件。检查被污染的零件。 清
洁这些零件，必要时得换新零件。
f只能使用本充电式照明装备的专用蓄电池。使用了不合适的蓄电池可能造成
工作意外并引起火灾。
功能解说
翻开标示了充电式照明装备详解图的折叠页。阅读本使用说明书时必须翻开折叠
页参考。
OBJ_BUCH-938-001.book Page 17 Monday, February 16, 2009 11:35 AM

1 609 929 T65 | (16.2.09) Bosch Power Tools
18 | 中文
插图上的机件
机件的编号和充电式照明装备详解图上的编号一致。
1灯头
2起停开关
3提杆
4蓄电池的解锁按键
5蓄电池*
6灯头的解锁按键
7灯泡
8V形槽
9备用灯泡
*图表或说明上提到的附件，并不包含在基本的供货范围中。本公司的附件清单中有完整的附
件供应项目。
技术数据
充电式照明装备 GLI 14,4 V-LI
Professional
GLI 18 V-LI
Professional
物品代码 3 601 D37 T.. 3 601 D37 S..
额定电压 V= 14,4 18
照明的使用时间约为 小时 33
重量符合 EPTA-Procedure
01/2003 公斤 0,7 0,7
务必认清充电式照明装备铭牌上的购物号。同一个照明装备可能有不同的商品名称。
OBJ_BUCH-938-001.book Page 18 Monday, February 16, 2009 11:35 AM

中文 | 19
Bosch Power Tools 1 609 929 T65 | (16.2.09)
安装
为蓄电池充电 （附件）
f只能使用附件页上标示的充电器。只有这款充电器才能够为充电式照明装备
上的锂离子蓄电池充电。
指示：蓄电池在交货时只完成部分充电。首度使用电动工具之前，必须先充足蓄
电池的电以确保蓄电池的功率。
可以随时为锂离子蓄电池充电，不会缩短电池的使用寿命。如果充电过程突然中
断，也不会损坏电池。
本锂离子蓄电池配备了 "Electronic Cell Protection (ECP) (电子充电室保护装置 )"，
可以防止蓄电池过度放电。电池的电量如果用尽了，保护开关会自动关闭充电式
照明装备。
在蓄电池自动关闭之后，切勿继续按住起停开关。这样可能损坏蓄
电池。
蓄电池上安装了 NTC-温度监控装置。当温度位在摄氏 0 到45 度间时，才能进
行充电。所以能够大大地延长蓄电池的使用寿命。
请注意有关作废处理的规定。

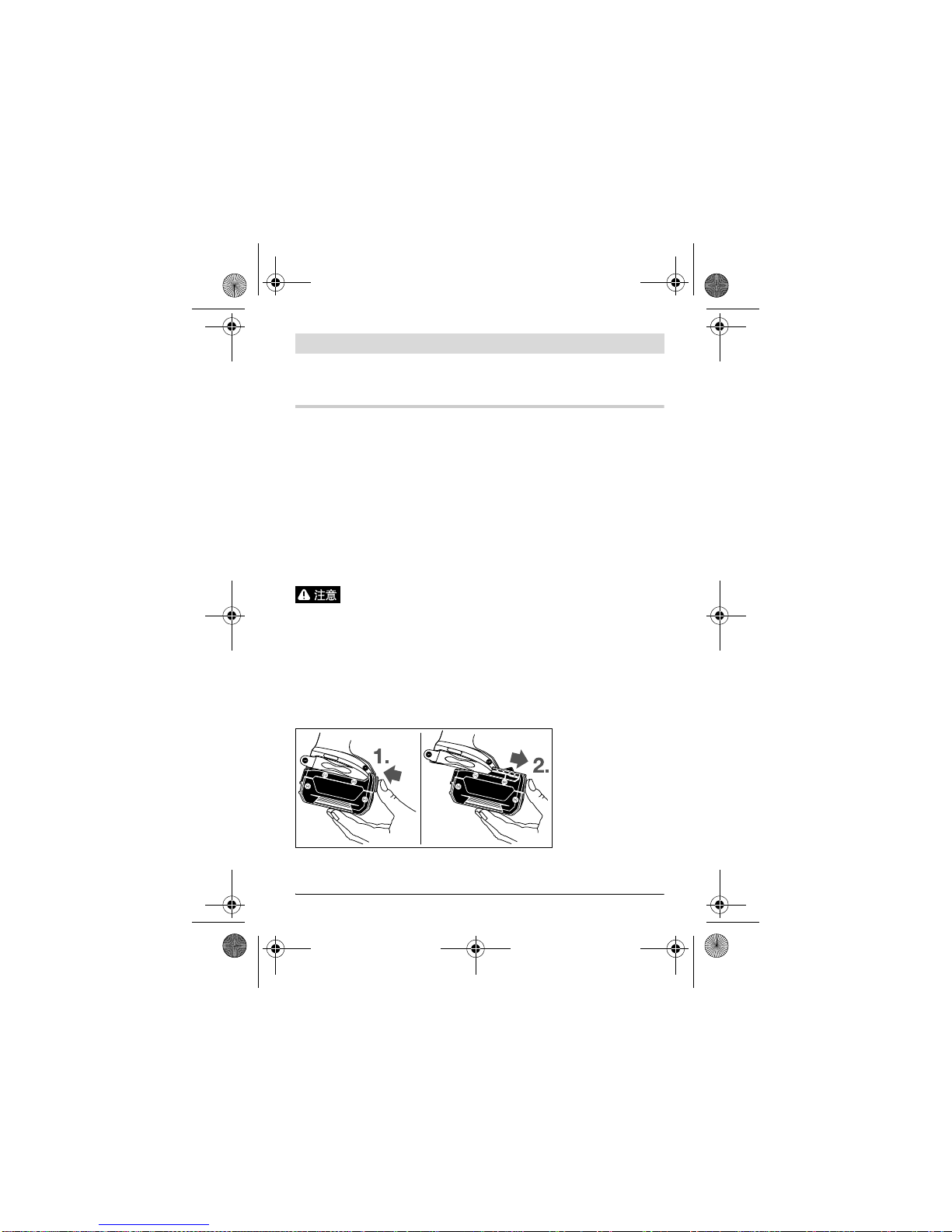

取出蓄电池
蓄电池 5被双重锁定，这样可以防止因为不注意地错按了蓄电池的解锁按键 4，
而导致蓄电池掉落。在蓄电池被装入照明设备中后，便会被弹簧固定住。
拆卸蓄电池 5时，先按住解锁按键 4并从充电式照明装备中向后拉出蓄电池。切
勿强行拉出蓄电池。
OBJ_BUCH-938-001.book Page 19 Monday, February 16, 2009 11:35 AM

1 609 929 T65 | (16.2.09) Bosch Power Tools
20 | 中文
更换灯泡 （参考插图 A）
f在充电式照明装备上进行任何换修的工作之前，得先取出蓄电池。
f更换灯泡时请留心！不要触摸炙热的灯泡。至少得先让灯泡冷却 10 分钟。您
可能会被炙热的灯泡烫伤。
指示：更换灯泡时得使用柔软的布。不可以直接用手触摸玻璃罩。这样可能会损
坏灯泡。
–按下解锁按键 6并取出灯头 1。
–拧转灯泡 7，让灯泡 7上的 V形槽 8和灯泡支撑上的 V 形槽对齐，接著再拉出
灯泡 7。
–灯头 1中有一个备用的灯泡 9。
–安装好新的灯泡 7，拧入灯泡至灯泡锁牢为止。
–再度装回灯头 1。
操作
操作机器
安装蓄电池
f只能使用博世原厂的锂离子蓄电池。蓄电池的电压必须和充电式照明装备铭
牌上规定的电压一致。使用其它厂牌的蓄电池可能造成伤害并导致火灾。
把蓄电池 5从后面推入照明装备的底座中。要把蓄电池完全推入底座中，必须推
压至无法看见红色条纹并且确定蓄电池已经牢牢地卡住为止。
开动 / 关闭
按下起停开关 2可以开动充电式照明装备。
再度按下起停开关 2即可以关闭充电式照明装备。
OBJ_BUCH-938-001.book Page 20 Monday, February 16, 2009 11:35 AM
