Bosch DINION IP starlight 7000 HD User manual

DINION IP 7000 HD
NBN-71022 | NBN-71027 | NBN-71013
en Installation manual

Table of contents
1Safety 5
1.1 Safety message explanation 5
1.2 Safety precautions 5
1.3 Important safety instructions 6
1.4 FCC and ICES compliance 7
1.5 Notices 8
2Short information 9
3System overview 10
3.1 DINION IP 7000 family 10
3.2 Using the camera 11
3.3 Operation with external systems 12
4Planning 13
4.1 Unpacking 13
4.2 Contents 13
4.3 System requirements 13
5Installation 14
5.1 Lens mounting 14
5.2 Mounting the camera 16
5.3 Local storage 17
6Connection 18
6.1 Network (and PoE power) 18
6.2 Auxiliary power 20
6.3 Alarm 22
6.4 Audio 24
6.5 Video monitor 25
6.6 Data 26
7Configuration 27
7.1 Setting the field of view 27
7.1.1 Camera install wizard 27
7.1.2 Using the install wizard 28
7.2 True Day/Night switching 30
7.3 Camera configuration 31
7.3.1 Bosch Video Client 31
DINION IP 7000 HD Table of Contents | en 3
Bosch Security Systems 2014.09 | v1.0 | AM18-Q0674

7.4 Browser connection 32
7.4.1 Establishing the connection 32
7.4.2 Protected network 32
8Troubleshooting 33
8.1 Function test 33
8.2 Resolving problems 33
8.3 Testing the network connection 37
8.4 Customer service 37
8.5 Terminal program 38
9Maintenance 40
9.1 Cleaning 40
9.2 Repair 40
9.3 Reset 40
10 Decommissioning 41
10.1 Transfer 41
10.2 Disposal 41
11 Technical data 42
11.1 Specifications (NBN-71022) 42
11.2 Specifications (NBN-71027) 45
11.3 Specifications (NBN-71013) 48
11.4 Common specifications 51
4en | Table of Contents DINION IP 7000 HD
2014.09 | v1.0 | AM18-Q0674 Bosch Security Systems

Safety
Safety message explanation
!
Caution!
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
Notice!
Indicates a situation which, if not avoided, could result in
damage to the equipment or environment, or data loss.
Safety precautions
!
Caution!
The Low Voltage power supply unit must comply with EN/UL
60950. The power supply must be a SELV-LPS unit or a SELV -
Class 2 unit (Safety Extra Low Voltage - Limited Power Source).
!
Caution!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code
(NEC 800 CEC Section 60) or applicable local codes.
!
Caution!
This device must be connected to earth (ground).
Safety (power) ground is indicated by the symbol.
1
1.1
1.2
DINION IP 7000 HD Safety | en 5
Bosch Security Systems 2014.09 | v1.0 | AM18-Q0674

Important safety instructions
Read, follow, and retain for future reference all of the following
safety instructions. Follow all warnings before operating the
unit.
1. Clean only with a dry cloth. Do not use liquid cleaners or
aerosol cleaners.
2. Do not install unit near any heat sources such as radiators,
heaters, stoves, or other equipment (including amplifiers)
that produce heat.
3. Never spill liquid of any kind on the unit.
4. Take precautions to protect the unit from power and
lightning surges.
5. Adjust only those controls specified in the operating
instructions.
6. Operate the unit only from the type of power source
indicated on the label.
7. Unless qualified, do not attempt to service a damaged unit
yourself. Refer all servicing to qualified service personnel.
8. Install in accordance with the manufacturer's instructions in
accordance with applicable local codes.
9. Use only attachments/accessories specified by the
manufacturer.
10. Connect the earth terminal of the camera to the system
earth of the installation to ensure correct safety and
EMC/RFI protection.
1.3
6en | Safety DINION IP 7000 HD
2014.09 | v1.0 | AM18-Q0674 Bosch Security Systems

FCC and ICES compliance
FCC & ICES Information
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
– reorient or relocate the receiving antenna;
– increase the separation between the equipment and
receiver;
– connect the equipment into an outlet on a circuit different
from that to which the receiver is connected;
– consult the dealer or an experienced radio/TV technician
for help.
Intentional or unintentional modifications, not expressly
approved by the party responsible for compliance, shall not be
made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult the
dealer or an experienced radio/television technician for
corrective action.
The user may find the following booklet, prepared by the
Federal Communications Commission, helpful: How to Identify
and Resolve Radio-TV Interference Problems. This booklet is
available from the U.S. Government Printing Office, Washington,
DC 20402, Stock No. 004-000-00345-4.
1.4
DINION IP 7000 HD Safety | en 7
Bosch Security Systems 2014.09 | v1.0 | AM18-Q0674

Notices
Notice!
Optical elements are sensitive and should be protected at all
times. Do not allow objects to come into contact with glass
surfaces and do not touch optical elements with your fingers.
Notice!
Video loss is inherent to digital video recording; therefore,
Bosch Security Systems cannot be held liable for any damage
that results from missing video information.
To minimize the risk of losing information, we recommend
multiple, redundant recording systems, and a procedure to
back up all analog and digital information.
Notice!
We recommend that memory cards only be used for local
storage of alarm recordings.
1.5
8en | Safety DINION IP 7000 HD
2014.09 | v1.0 | AM18-Q0674 Bosch Security Systems

Short information
This manual has been compiled with great care and the
information it contains has been thoroughly verified. The text
was correct at the time of printing, however, the content can
change without notice. Bosch Security Systems accepts no
liability for damage resulting directly or indirectly from faults,
incompleteness or discrepancies between this manual and the
product described.
Trademarks
All hardware and software product names used in this document
are likely to be registered trademarks and must be treated
accordingly.
More information
For more information please contact the nearest Bosch Security
Systems location or visit www.boschsecurity.com
2
DINION IP 7000 HD Short information | en 9
Bosch Security Systems 2014.09 | v1.0 | AM18-Q0674

System overview
DINION IP 7000 family
The DINION IP 7000 family consists of high-performance HD
surveillance cameras with superior imaging qualities:
– DINION IP 7000 HD for intelligent HD surveillance
– DINION IP dynamic 7000 HD for high dynamic range scenes
– DINION IP starlight 7000 HD for high-performance in
challenging low light conditions
These IP cameras operate as network video servers and transmit
video and control signals over Ethernet LANs and the Internet.
The integrated encoder uses H.264 compression technology to
give clear images while reducing bandwidth and storage
requirements.
The cameras are easy to install and ready to use, and are
eminently suitable for integration into large video surveillance
systems.
Content-Based Imaging Technology
Content-Based Imaging Technology (C-BIT) is used to radically
improve image quality in all lighting conditions and to identify
areas for enhanced processing. The camera examines the scene
using intelligent video analytics and provides feedback to re-
tune the image processing. This provides better detail in the
areas that matter and better all-round performance.
Hybrid operation
A surge-protected analog video output allows full hybrid
operation. This means that high resolution IP video streaming
and an analog video output via an SMB connector are available
simultaneously. The hybrid functionality offers an easy migration
path from legacy CCTV to a modern IP-based system.
3
3.1
10 en | System overview DINION IP 7000 HD
2014.09 | v1.0 | AM18-Q0674 Bosch Security Systems

System integration
The camera conforms to the ONVIF (Open Network Video
Interface Forum) Profile S specification. This guarantees
interoperability between network video products regardless of
manufacturer.
Third-party integrators can easily access the internal feature set
of the camera for integration into large projects. Visit the Bosch
Integration Partner Program (IPP) website
(ipp.boschsecurity.com) for more information.
Using the camera
To access the features of the camera, use a web browser. The
browser provides live viewing of the camera streams in the
interface window, and also allows you to access and change the
extensive list of settings and parameters for camera
configuration. Refer to the software manual for more
information on the browser interface.
The camera recording and storage functions include local alarm
recording and recording to iSCSI-based systems. The camera
can also use the Bosch Video Recording Manager (VRM) to
control recording and storage. Integration with the many Bosch
recording solutions is seamless.
3.2
DINION IP 7000 HD System overview | en 11
Bosch Security Systems 2014.09 | v1.0 | AM18-Q0674

Operation with external systems
Using a web browser to access the camera’s video streams and
functions is the most direct way of using the camera. The
Bosch Video Client can be downloaded and used for multiple-
camera viewing, playback and configuration. A Bosch
Video Security App is also available for remote viewing.
If the camera is used in larger surveillance systems, the Bosch
Video Management System offers a perfect integrated solution.
Third-party integrators can easily access the internal feature set
of the camera for integration into large projects. Access to IVA
metadata is available to integrators via RTSP.
When connected to external systems, many of the camera
configuration parameters are controlled by the system and not
by the settings made via a web browser.
Bosch Video Client
The Bosch Video Client is a free Windows application for
viewing, operating, controlling, and administering surveillance
cameras and installations at remote locations. It offers a user-
friendly interface for easy live viewing of multiple cameras,
playback, forensic search and export.
Download the latest version of the application from:
http://downloadstore.boschsecurity.com/
Bosch Video Management System
The Bosch Video Management System is a unique enterprise IP
video surveillance solution that provides seamless management
of digital video, audio and data across any IP network. It is
designed to work with Bosch security products as part of a total
video surveillance management system.
3.3
12 en | System overview DINION IP 7000 HD
2014.09 | v1.0 | AM18-Q0674 Bosch Security Systems

Planning
Unpacking
This equipment should be unpacked and handled with care. If an
item appears to have been damaged in shipment, notify the
shipper immediately.
Verify that all parts are included. If any items are missing, notify
your Bosch Security Systems Sales or Customer Service
Representative.
The original packaging is the safest container in which to
transport the unit and can be used if returning the unit for
service.
Contents
The packaging contains:
– DINION IP 7000 camera
– Sensor protection cap (mounted on camera)
– Power connector
– Data/Alarm connector
– C/CS lens mount adapter
– Identification labels
– Quick install instructions
System requirements
– Computer with Windows XP/Vista/7 operating system,
network access, and Microsoft Internet Explorer web
browser version 9.0 or later (32-bit)
-or-
– Computer with network access and reception software, for
example Bosch Video Client and Bosch Video Management
System
4
4.1
4.2
4.3
DINION IP 7000 HD Planning | en 13
Bosch Security Systems 2014.09 | v1.0 | AM18-Q0674

Installation

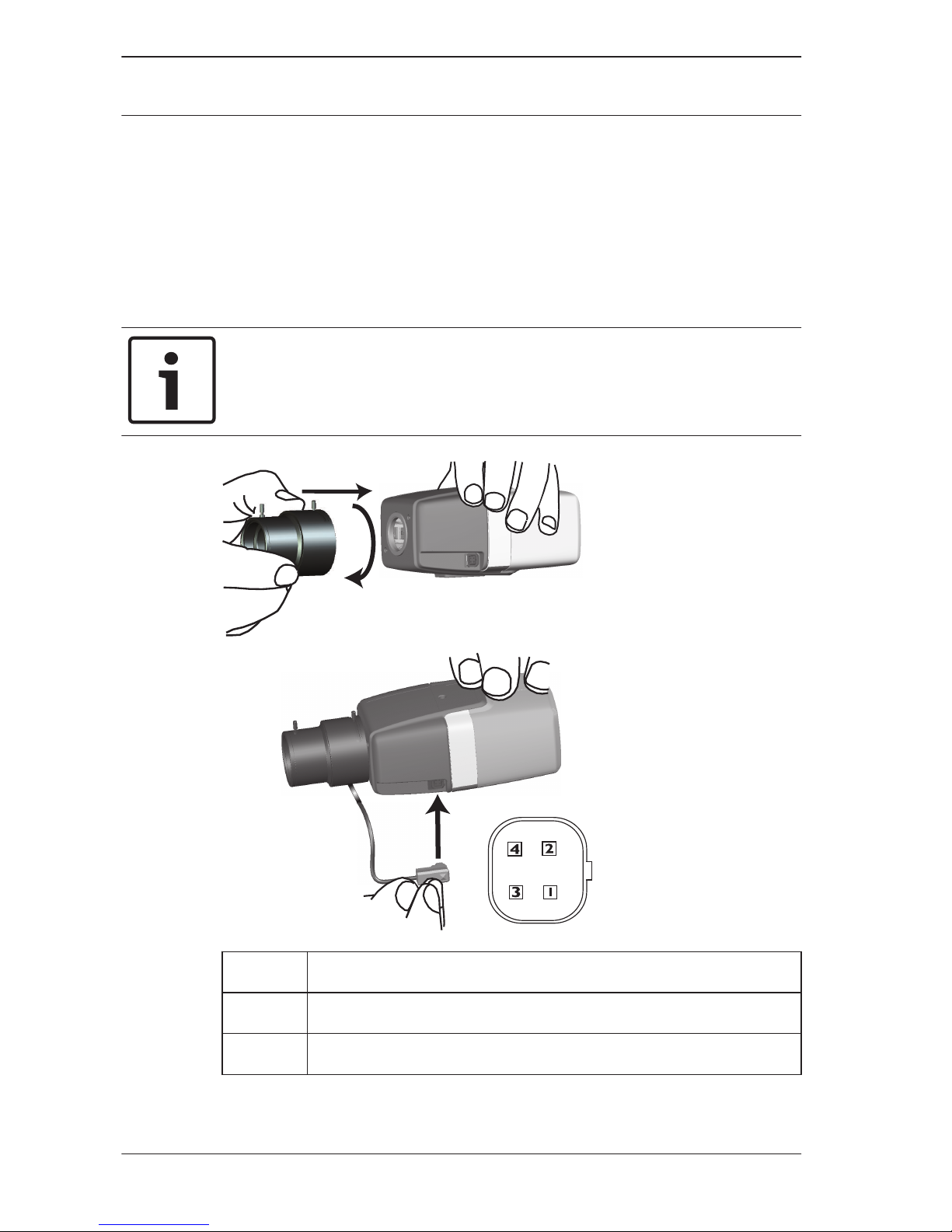

Lens mounting
This procedure is only required for cameras not having a factory
fitted lens.
Notice!
Lenses weighing more than 0.5 kg (1.1lbs) must be separately
supported.
Pin DC iris lens
1 Damp -
2 Damp +
5
5.1
14 en | Installation DINION IP 7000 HD
2014.09 | v1.0 | AM18-Q0674 Bosch Security Systems

Pin DC iris lens
3 Drive +
4 Drive -
1. Remove the sensor protection cap from the camera (if
present).
2. Screw the lens onto the camera using the CS or C‑mount
(use the adapter ring to attach a C-mount lens).
3. Plug the lens connector into the camera (it automatically
detects the type of lens).
If a short circuit is detected on the lens connector, the lens
circuit is automatically disabled to avoid internal damage. In
this case, remove the lens connector and check the pin
connections.
DINION IP 7000 HD Installation | en 15
Bosch Security Systems 2014.09 | v1.0 | AM18-Q0674

Mounting the camera
Notice!
Do not expose the image sensors to direct sunlight.
Do not obstruct the free flow of air around the camera.
1/4”-20 UNC
The camera can be mounted either from the top or from the
bottom (1/4" 20 UNC thread).
5.2
16 en | Installation DINION IP 7000 HD
2014.09 | v1.0 | AM18-Q0674 Bosch Security Systems

Local storage
Notice!
Local storage on SD cards should only be used for alarm
recording. To minimize the risk of losing information, use
multiple, redundant recording systems and a procedure to back
up all digital information.
4 5 6 4 5 6
1 2 3 1 2 3
|
|
- +
MENU
CVBS
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
1. Unscrew the card slot cover.
2. Slide the memory card into the slot until it locks in place.
3. Screw the cover into place to seal the slot.
5.3
DINION IP 7000 HD Installation | en 17
Bosch Security Systems 2014.09 | v1.0 | AM18-Q0674

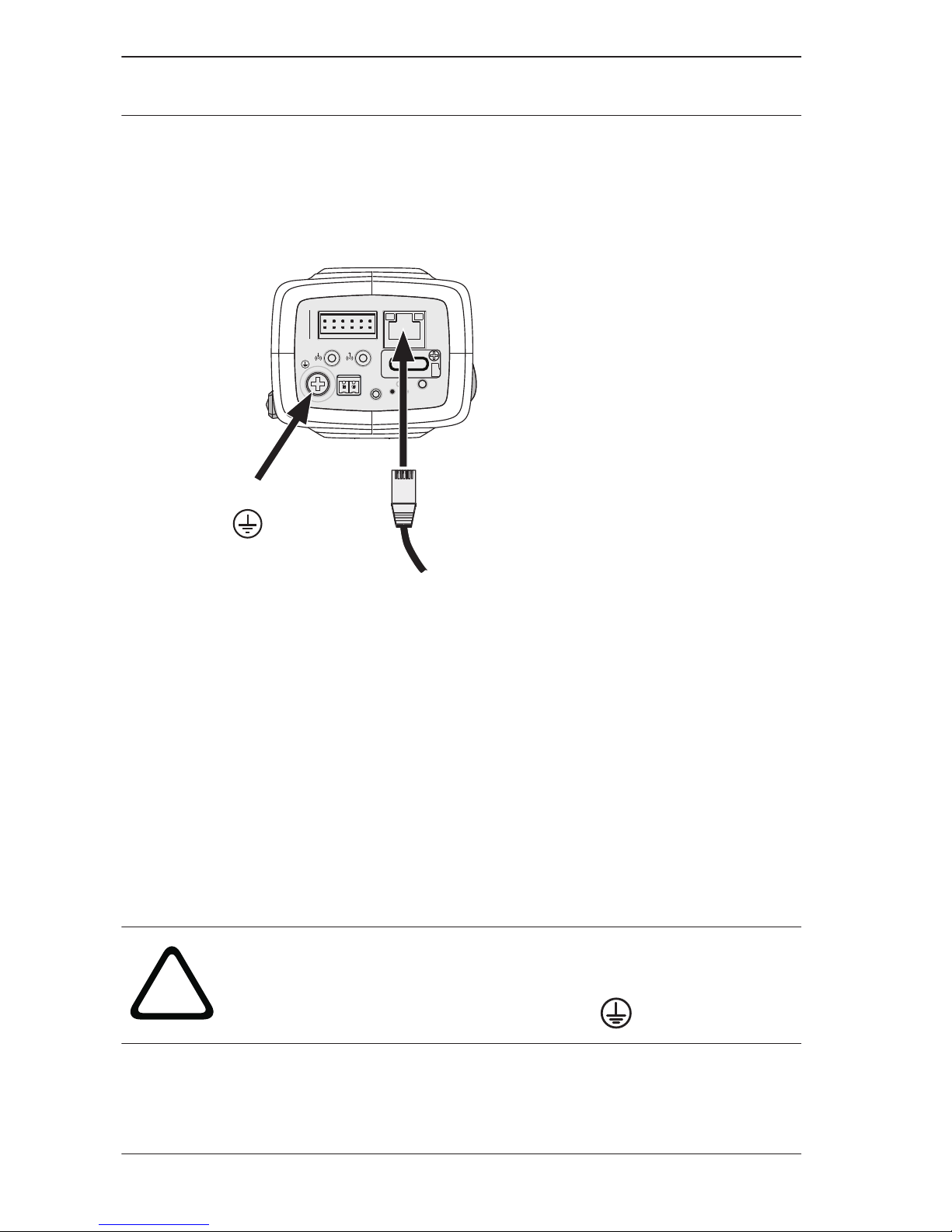

Connection
Network (and PoE power)
4 5 6 4 5 6
1 2 3 1 2 3
|
|
12VDC
- +
CVBS
24VAC
MENU
SD
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
Ethernet (PoE)
STP Cat 5e
RJ45
Earth
1. Connect the earth terminal of the camera to the system
earth of the installation to ensure correct safety and
EMC/RFI protection
2. Connect the camera to a 10/100 Base-T network:
– Use STP Category 5e cable with RJ45 connectors (the
camera network socket is Auto MDIX compliant).
– Power can be supplied to the camera via the Ethernet
cable compliant with the Power-over-Ethernet
standard.
The LEDs beside the Ethernet connection indicate Power (red),
IP connection (green) and IP traffic (green flashing).
!
Caution!
This device must be connected to earth (ground).
Safety (power) ground is indicated by the symbol.
6
6.1
18 en | Connection DINION IP 7000 HD
2014.09 | v1.0 | AM18-Q0674 Bosch Security Systems

Notice!
Use only PoE approved devices.
Power-over-Ethernet can be connected at the same time as a
12 VDC or 24 VAC power supply. If auxiliary power (12 VDC or
24 VAC) and PoE is applied simultaneously, the camera selects
the auxiliary input and shuts off PoE.
DINION IP 7000 HD Connection | en 19
Bosch Security Systems 2014.09 | v1.0 | AM18-Q0674

Auxiliary power
!
Caution!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code
(NEC 800 CEC Section 60) or applicable local codes.
!
Caution!
The Low Voltage power supply unit must comply with EN/UL
60950. The power supply must be a SELV-LPS unit or a SELV -
Class 2 unit (Safety Extra Low Voltage - Limited Power Source).
5 mm
4 5 6 4 5 6
1 2 3 1 2 3
|
|
12VDC
- +
CVBS
24VAC
MENU
µSD
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
Earth
Connect an approved power supply unit with a rated supply
voltage of 24 VAC or 12 VDC as follows:
1. Strip back 5 mm (0.2 in) of insulation on the power supply
cable (must be 16-22 AWG stranded wire or 16-26 AWG
solid wire).
2. Connect the earth terminal of the camera to the system
earth of the installation to ensure correct safety and
EMC/RFI protection.
6.2
20 en | Connection DINION IP 7000 HD
2014.09 | v1.0 | AM18-Q0674 Bosch Security Systems
