Bosch VDN-5085 User manual

FLEXIDOME 5000 AN
VDN-5085
en Installation Manual

FLEXIDOME 5000 AN Table of Contents | en 3
Bosch Security Systems Installation Manual AM18-Q0648 | v1.0 | 2013.03
Table of Contents
1Safety 5
1.1 Safety precautions 5
1.2 Important safety instructions 6
1.3 Connection in outdoor applications 7
1.3.1 Safety precautions 7
1.4 Important notices 8
1.5 FCC information 9
1.6 UL certification 10
1.7 Bosch notice 10
2 Introduction 11
2.1 Features 11
3 Installation 12
3.1 Unpacking 12
3.2 Disassembly 13
3.3 Mounting the unit 14
3.3.1 Mounting tips 15
3.3.2 Flush mounting 15
3.3.3 Surface mounting 16
4 Connection and set-up 19
4.1 Power and video connections 19
4.2 Setting up the camera 20
4.2.1 Camera positioning 20
4.2.2 Menu navigation 21
4.2.3 Focal length and focus 23
4.2.4 Heater 23
4.2.5 Closing the unit 24
5 Configuration 25
5.1 Menus 25
5.1.1 Top level menus 25
5.1.2 Menu navigation 26
5.2 Pre-defined modes 27

4en | Table of Contents FLEXIDOME 5000 AN
AM18-Q0648 | v1.0 | 2013.03 Installation Manual Bosch Security Systems
5.3 Day/Night switching 28
5.4 Camera control communication (Bilinx) 28
5.5 Main menu structure 29
5.5.1 Mode submenu 29
5.5.2 Exposure submenu 30
5.5.3 Day/Night submenu 32
5.5.4 Enhance / Dynamic Engine submenu 34
5.5.5 Color submenu 36
5.5.6 VMD submenu 37
5.5.7 Image Adjustment submenu 38
5.6 Install menu structure 39
5.6.1 Language submenu 40
5.6.2 Lens Wizard submenu 40
5.6.3 Synchronization submenu 41
5.6.4 Connections submenu 41
5.6.5 Test signal submenu 42
5.6.6 Camera ID submenu 42
5.6.7 Privacy masking submenu 44
5.6.8 Flip submenu 44
5.6.9 Defaults submenu 45
6Troubleshooting 46
6.1 Resolving problems 46
6.2 Customer service 47
7 Maintenance 48
7.1 Repairs 48
7.1.1 Transfer and disposal 48
8 Technical Data 49
8.1 Specifications 49
8.1.1 Dimensions 51
8.1.2 Accessories 53

FLEXIDOME 5000 AN Safety | en 5
Bosch Security Systems Installation Manual AM18-Q0648 | v1.0 | 2013.03
1Safety
1.1 Safety precautions
DANGER!
High risk: This symbol indicates an imminently hazardous
situation such as "Dangerous Voltage" inside the product.
If not avoided, this will result in an electrical shock, serious
bodily injury, or death.
WARNING!
Medium risk: Indicates a potentially hazardous situation.
If not avoided, this could result in minor or moderate bodily
injury.
CAUTION!
Low risk: Indicates a potentially hazardous situation.
If not avoided, this could result in property damage or risk of
damage to the unit.

6en | Safety FLEXIDOME 5000 AN
AM18-Q0648 | v1.0 | 2013.03 Installation Manual Bosch Security Systems
1.2 Important safety instructions
Read, follow, and retain for future reference all of the following
safety instructions. Heed all warnings on the unit and in the
operating instructions before operating the unit.
1. Cleaning - Generally, using a dry cloth for cleaning is
sufficient but a moist, fluff-free cloth or leather shammy
may also be used. Do not use liquid cleaners or aerosol
cleaners.
2. Heat Sources - Do not install the unit near any heat
sources such as radiators, heaters, stoves, or other
equipment (including amplifiers) that produce heat.
3. Water - Never spill liquid of any kind on the unit.
4. Lightning - Take precautions to protect the unit from
power and lightning surges.
5. Controls adjustment - Adjust only those controls specified
in the operating instructions. Improper adjustment of
other controls may cause damage to the unit.
6. Power sources - Operate the unit only from the type of
power source indicated on the label.
7. Servicing - Unless qualified, do not attempt to service this
unit yourself. Refer all servicing to qualified service
personnel.
8. Replacement parts - Use only replacement parts specified
by the manufacturer.
9. Installation - Install in accordance with the manufacturer's
instructions and in accordance with applicable local codes.
10. Attachments, changes or modifications - Only use
attachments/accessories specified by the manufacturer.
Any change or modification of the equipment, not
expressly approved by Bosch, could void the warranty or,
in the case of an authorization agreement, authority to
operate the equipment.

FLEXIDOME 5000 AN Safety | en 7
Bosch Security Systems Installation Manual AM18-Q0648 | v1.0 | 2013.03
1.3 Connection in outdoor applications
1.3.1 Safety precautions
Coax grounding: If an outside cable system is connected to the
unit, ensure that the system is grounded.
U.S.A. models only: Section 810 of the National Electrical Code,
ANSI/NFPA No.70, provides information regarding proper
grounding of the mount and supporting structure, grounding of
the coax to a discharge unit, size of grounding conductors,
location of discharge unit, connection to ground electrodes,
and requirements for the grounding electrode.
Power lines: An outdoor system should not be located in the
vicinity of overhead power lines, electrical lights, or power
circuits, or where it may contact such power lines or circuits.
When installing an outdoor system, extreme care should be
taken to keep from touching power lines or circuits, as this
contact may be fatal. U.S.A. models only - refer to the National
Electrical Code Article 820 regarding installation of CATV
systems.
12 VDC/24 VAC power source: This unit is intended to operate
with a limited power source, this power source must comply
with EN60950. User supplied wiring, from 12 VDC/24 VAC
supply to unit, must be in compliance with electrical codes
(Class 2 power levels). Do not ground the 12 VDC/24 VAC
supply at the terminals or at the unit's power supply terminals.
Connection: The unit has connection terminals on flying leads.
In wet or outdoor installations make use of the VDA-455SMB
accessory or use a field wiring box with Nema 4 or IP66
protection level or better. Make the connections inside the
water tight compartment. After connections are made ensure
that the watertight compartment is tightly closed and cables
and conduits are properly sealed to prevent ingress of water.

8en | Safety FLEXIDOME 5000 AN
AM18-Q0648 | v1.0 | 2013.03 Installation Manual Bosch Security Systems
1.4 Important notices
Disposal - Your Bosch product was developed and
manufactured with high-quality material and components that
can be recycled and reused. This symbol means that
electronic and electrical appliances, which have reached the
end of their working life, must be collected and disposed of
separately from household waste material. Separate collecting
systems are usually in place for disused electronic and
electrical products. Please dispose of these units at an
environmentally compatible recycling facility, per European
Directive 2002/96/EC
CAUTION!
The Low Voltage power supply unit must comply with EN/UL
60950. The power supply must be a SELV-LPS unit or a SELV -
Class 2 unit (Safety Extra Low Voltage - Limited Power Source).

FLEXIDOME 5000 AN Safety | en 9
Bosch Security Systems Installation Manual AM18-Q0648 | v1.0 | 2013.03
1.5 FCC information
FCC & ICES Information
(U.S.A. and Canadian Models Only)
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
– reorient or relocate the receiving antenna;
– increase the separation between the equipment and
receiver;
– connect the equipment into an outlet on a circuit different
from that to which the receiver is connected;
– consult the dealer or an experienced radio/TV technician
for help.
Intentional or unintentional modifications, not expressly
approved by the party responsible for compliance, shall not be
made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult
the dealer or an experienced radio/television technician for
corrective action.
The user may find the following booklet, prepared by the
Federal Communications Commission, helpful: How to Identify
and Resolve Radio-TV Interference Problems. This booklet is
available from the U.S. Government Printing Office,
Washington, DC 20402, Stock No. 004-000-00345-4.

10 en | Safety FLEXIDOME 5000 AN
AM18-Q0648 | v1.0 | 2013.03 Installation Manual Bosch Security Systems
1.6 UL certification
Disclaimer
Underwriter Laboratories Inc. ("UL") has not tested the
performance or reliability of the security or signaling aspects of
this product. UL has only tested fire, shock and/or casualty
hazards as outlined in UL's Standard(s) for Safety for Information
Technology Equipment, UL 60950-1. UL Certification does not
cover the performance or reliability of the security or signaling
aspects of this product.
UL MAKES NO REPRESENTATIONS, WARRANTIES, OR
CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR
SIGNALING-RELATED FUNCTIONS OF THIS PRODUCT.
1.7 Bosch notice
More information
For more information please contact the nearest Bosch Security
Systems location or visit www.boschsecurity.com

FLEXIDOME 5000 AN Introduction | en 11
Bosch Security Systems Installation Manual AM18-Q0648 | v1.0 | 2013.03
2 Introduction
2.1 Features
The FLEXIDOME 5000 Day/Night WDR camera is a small,
discreet, surveillance dome containing a high-performance
camera with integral varifocal lens. It uses a wide dynamic
range 960H CCD sensor for outstanding picture performance.
This surveillence dome can be mounted to an electrical box, to
a wall, to a ceiling or in a corner. The sturdy construction and
the high impact-resistant polycarbon dome protect the camera
module from damage.
The camera is easy to install and ready to use, and offers the
best solution for demanding scene conditions. Features
include:
– 1/3-inch 960H CCD sensor with wide dynamic range
– True Day/Night performance with switchable IR filter
– 720TVL sensor resolution
– High Dynamic Range
– Indoor and outdoor use
– IP66 and NEMA 4X compliant
– High-impact, vandal resistant (IK10)
– Privacy zones
– Detail enhancement
– Bilinx (bi-directional coaxial communication)
– Wide operating temperature range
–Lenswizard
– Six pre-programmed operation modes
– Dynamic noise reduction
– Multiple language on-screen display
– Built-in test pattern generator

12 en | Installation FLEXIDOME 5000 AN
AM18-Q0648 | v1.0 | 2013.03 Installation Manual Bosch Security Systems
3 Installation
3.1 Unpacking
Unpack carefully and handle the equipment with care.
The packaging contains:
– FLEXIDOME 5000 camera
– Important safety instructions
– Quick install instructions
– CD-ROM
– Installation instructions
– Adobe Acrobat Reader
– Plastic bag with mounting hardware (three SX8 4.5-6 mm
mounting plugs and three matching mounting screws), and
special screwdriver bit for tamper-resistant screws
– Plastic bag with two black rubber grommets for surface
mount box
– Lens adjustment cap
If equipment has been damaged during shipment, repack it in
the original packaging and notify the shipping agent or supplier.
WARNING!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code
NEC800 (CEC Section 60) or applicable local codes.
CAUTION!
The camera module is a sensitive device and must be handled
carefully.

FLEXIDOME 5000 AN Installation | en 13
Bosch Security Systems Installation Manual AM18-Q0648 | v1.0 | 2013.03
3.2 Disassembly

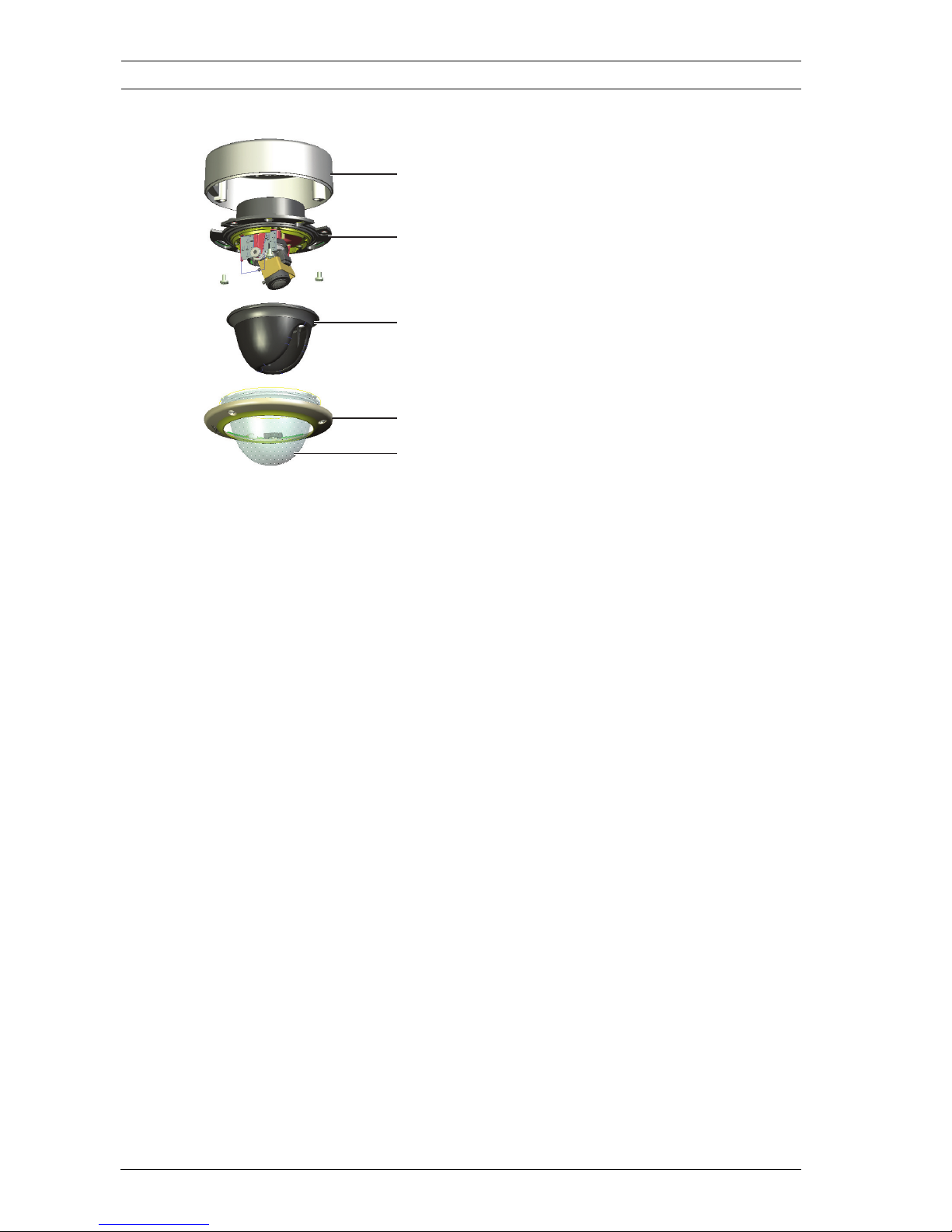

The flush-mount version consists of the following parts:
The surface-mount version consists of the following parts:
Figure 3.1 Flush-mount
Camera module and mounting base
Inner liner (with sealing ring)
Trim ring
Dome

14 en | Installation FLEXIDOME 5000 AN
AM18-Q0648 | v1.0 | 2013.03 Installation Manual Bosch Security Systems
To disassemble the unit proceed as follows:
1. Use the special screwdriver bit to loosen the three tamper-
resistant screws in the trim ring (the screws remain in
place).
2. Remove the trim ring and dome by pulling them from the
base.
3. Remove the inner liner (with sealing ring) by pulling it off
of the base.
4. Remove the pink protective foam.
3.3 Mounting the unit
There are several ways to mount the unit. The method of
mounting depends on the type of surface and whether other
mounting hardware, such as an electrical box, a surface box or
other accessories are used.
Note:
Figure 3.2 Surface-mount
Surface mounting box
Camera module and mounting base
Inner liner (with sealing ring)
Trim ring
Dome

FLEXIDOME 5000 AN Installation | en 15
Bosch Security Systems Installation Manual AM18-Q0648 | v1.0 | 2013.03
If the unit is to be surface mounted, then use the Surface Mount
Box (SMB). The SMB is sold as a separate item (VDA-455SMB)
or is included with the unit with the surface mount option.
Other mounting accessories are also sold separately.
3.3.1 Mounting tips
– Use the mounting hole template to assist in marking the
correct position for the camera to be mounted.
– Refer to the dimensions on the mounting hole template to
find the exact position of the screw holes and the entry
hole for the cables.
– Partially screw in two screws for the keyholes and use
them to temporarily hang the camera while the
connections are made.
3.3.2 Flush mounting
Figure?3.3?Flush mounting - hollow surface
1. Solid surface (pre-drill three 8mm holes and fit supplied
plugs)
2. Three screws (supplied with camera)
3. Integrated camera unit and base
4. Cables

16 en | Installation FLEXIDOME 5000 AN
AM18-Q0648 | v1.0 | 2013.03 Installation Manual Bosch Security Systems

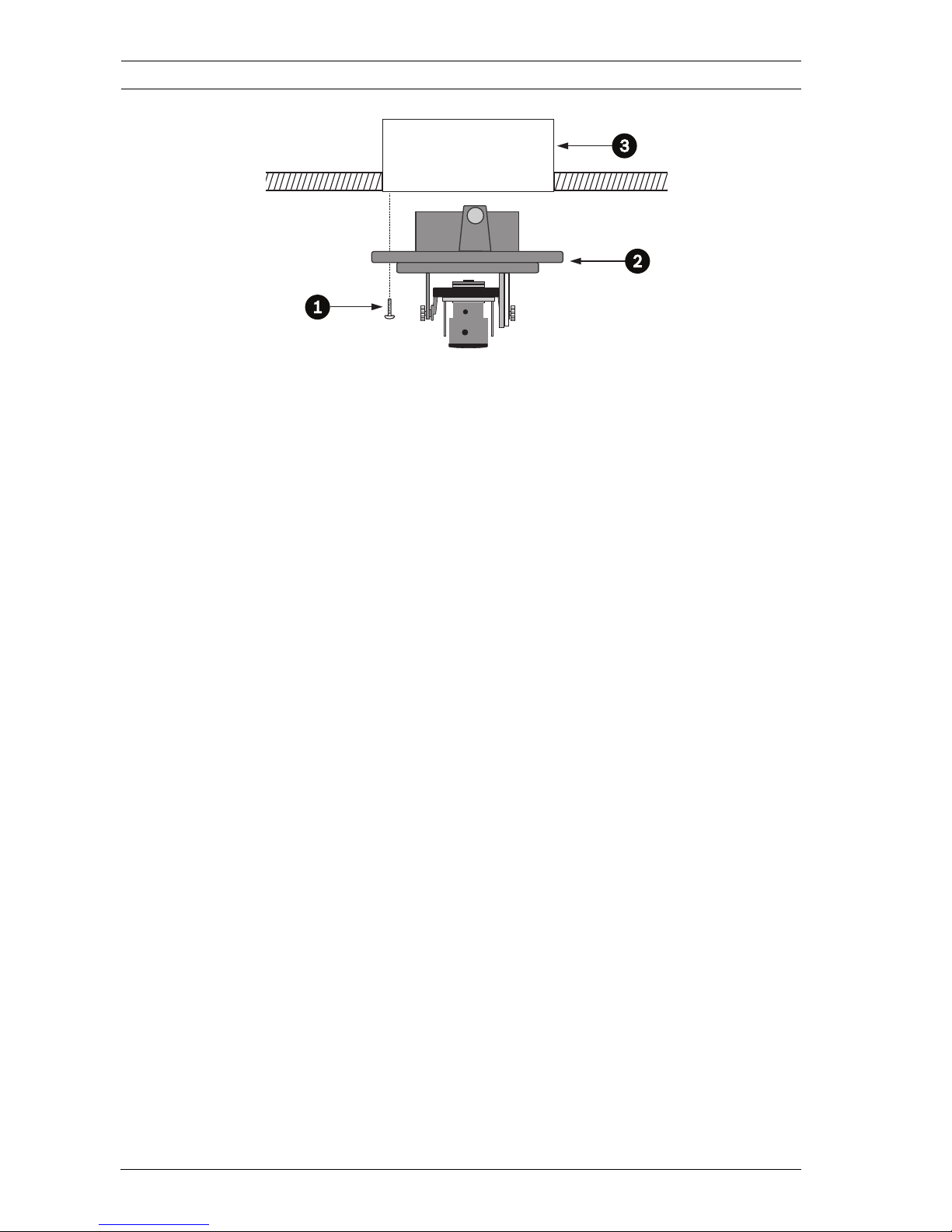

Figure?3.4?Flush mounting - electrical box (4S)
3.3.3 Surface mounting
When using the surface mounting box:
– With a side connection, remove the cap covering the side
entrance.
With a rear connection, leave the cap in place.
– Attach the conduit to the mounting box.
– Release the two clips at the bottom of the watertight
connection compartment to remove it from the mounting
box.
– Open the cover of the watertight compartment in the
mounting box by releasing the five clips.
– Run the power and video cables through separate rubber
grommets into the watertight compartment.
– Run the cable from the camera into the watertight
compartment through the supplied grommet.
– Make the connection inside the watertight compartment
and clip on the cover to seal it.
1. Two screws (not supplied)
2. Integrated camera unit and base
3. 4S electrical box

FLEXIDOME 5000 AN Installation | en 17
Bosch Security Systems Installation Manual AM18-Q0648 | v1.0 | 2013.03

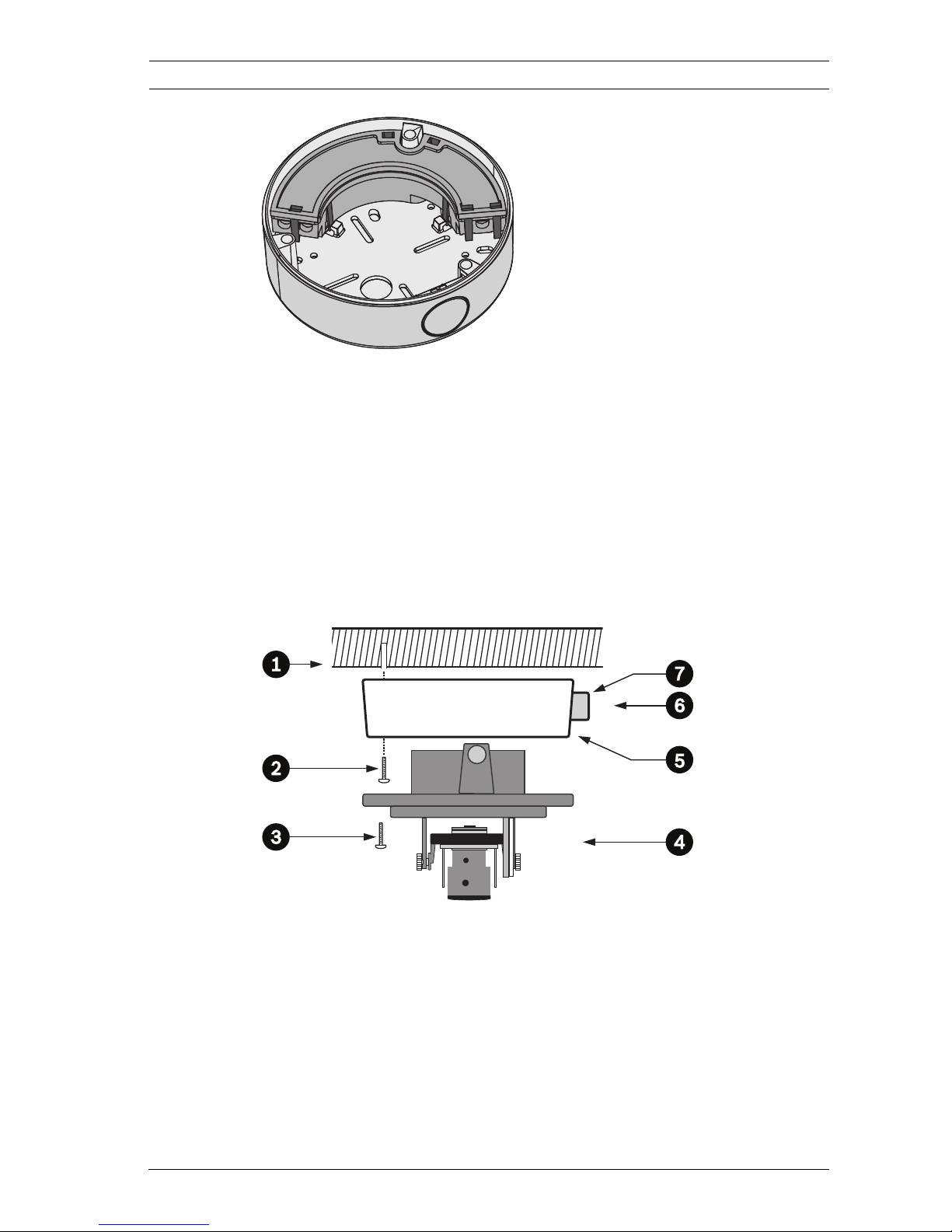

Figure 3.5 Surface mounting box VDA-455SMB
Note:
To ensure a watertight cable entry, use round cables of
between 5 and 6 mm (0.2 - 0.24 inches) for power and video
connection.
Note:
Use some silicon spray on the cable to help slide the grommets
onto it.
Figure?3.6?Surface mounting - side connection
1. Solid surface (pre-drill three 8mm holes and fit supplied
plugs)
2. Three screws (supplied with camera)
3. Three screws (M5, supplied)
4. Integrated camera unit and base
5. Surface mounting box (VDA-455SMB)

18 en | Installation FLEXIDOME 5000 AN
AM18-Q0648 | v1.0 | 2013.03 Installation Manual Bosch Security Systems

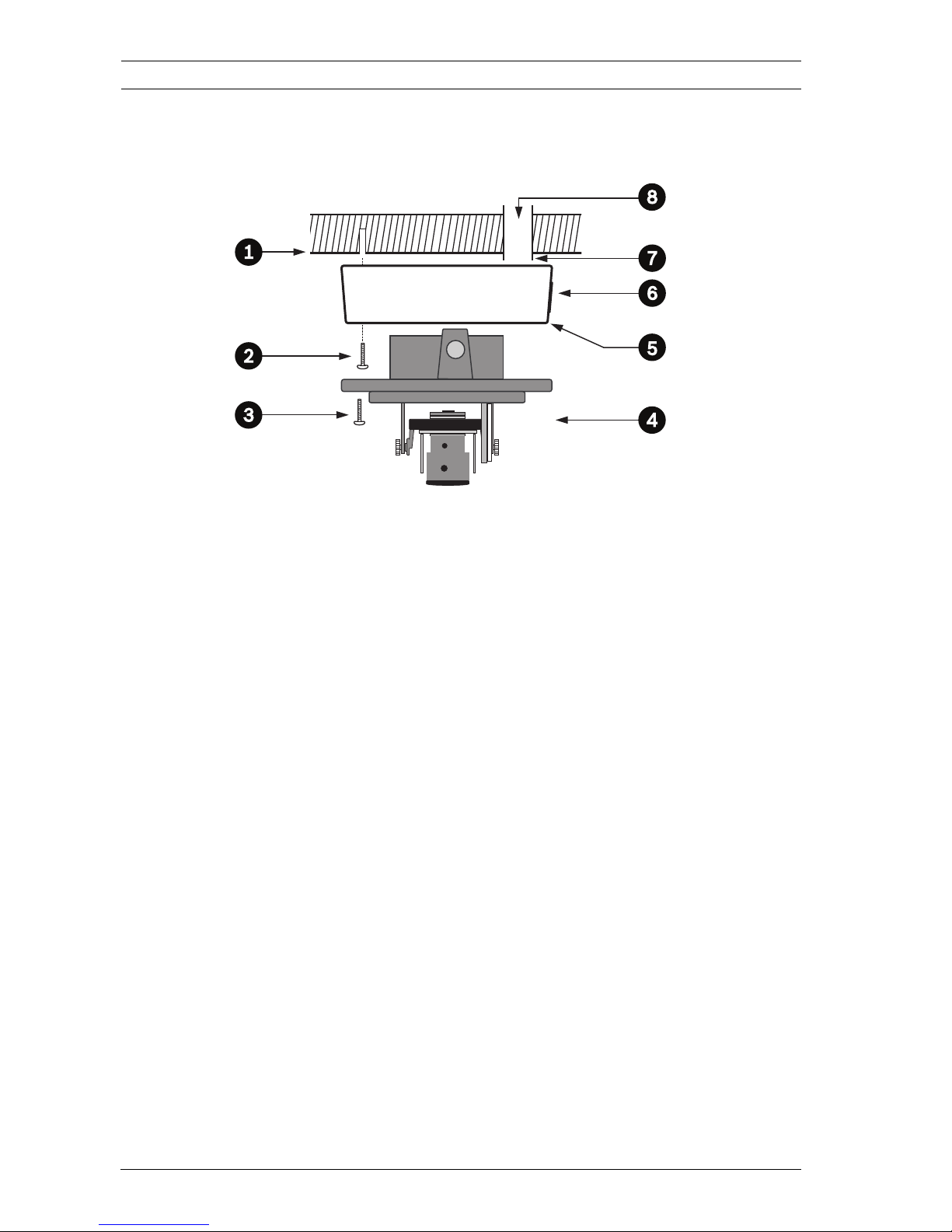

Figure?3.7?Surface mounting - rear connection
6. Cables
7. Conduit
1. Solid surface (three pre-drilled 8mm holes and fit supplied
plugs)
2. Three screws (supplied with camera)
3. Three screws (M5, supplied)
4. Integrated camera unit and base
5 Surface mounting box (VDA-455SMB)
6. Cap (remove for side-entry cables)
7. Conduit
8. Cables

FLEXIDOME 5000 AN Connection and set-up | en 19
Bosch Security Systems Installation Manual AM18-Q0648 | v1.0 | 2013.03
4 Connection and set-up
4.1 Power and video connections
The wiring harness has a BNC connector to accept the video
coax cable (with male BNC connector) and two stripped low
voltage power wires for connection to a power connector. A
UTP adapter (VDA-455UTP) is available as an optional accessory
to allow a UTP video cable to be connected to the BNC
connector.
The easiest way to connect the cables is as follows:
1. Bring the building connections through the surface cable
hole so that they hang clear.
2. Partially insert two screws into the pre-drilled holes (or
adapter plate).
3. Using one of the keyholes, hang the mounting base of the
camera module on one screw temporarily; tilt the base
slightly to gain access to the cable connections.
4. Connect the BNC connector of the camera module to the
video coax cable.
5. Connect the stripped power wires (red +, brown –) to the
power supply connector.
Note
For a DC supply the polarity is important. Incorrect polarity
does not damage the camera but it will not switch on.
6. In damp environments ensure that the connections are
sealed. (The surface mounting box and the other mounting
accessories have a sealed compartment for this purpose.)
7. Push the connections back through the surface cable hole.
8. Secure the mounting base of the camera module to the
surface with three screws.

20 en | Connection and set-up FLEXIDOME 5000 AN
AM18-Q0648 | v1.0 | 2013.03 Installation Manual Bosch Security Systems
4.2 Setting up the camera
4.2.1 Camera positioning
To assist in setting up the camera, connect a monitor to the
miniature 2.5 mm jack socket (2). This socket provides a
composite video signal (with sync). An optional cable (code
number S1460) is available for making this connection. When
the S1460 cable is attached, there is no video available on the
BNC connector to avoid interference.

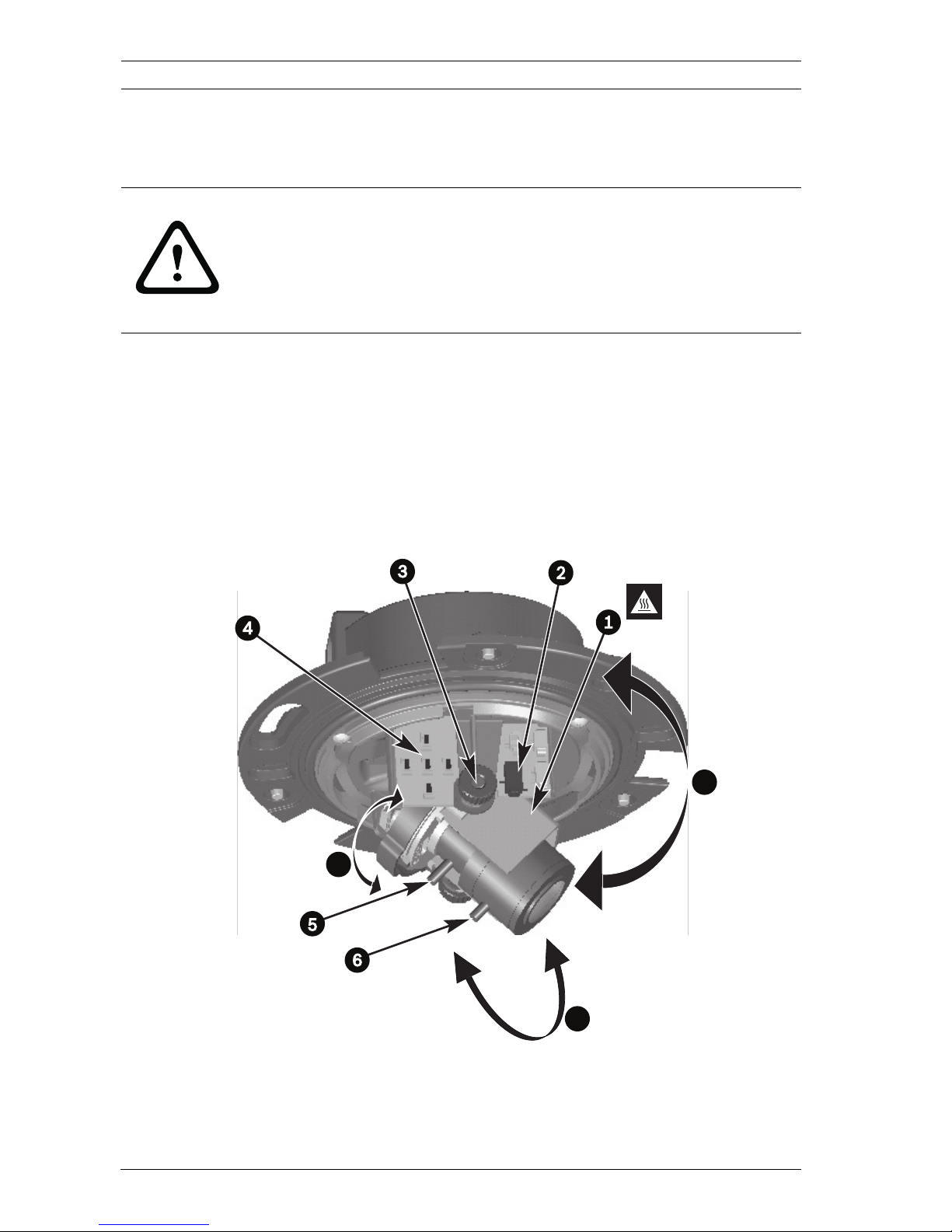

Figure 4.1 Camera parts
CAUTION!
The Heater will be hot when in operation - Do not touch.Always
switch the heater off when working on the camera, refer to
Section 4.2.4 Heater, page 23 and Section 5.6.4 Connections
submenu, page 41.
1. Heater
2. Monitor jack socket
A
B
C
