Bosch PRAESENSA PRA-CSLW Operating and maintenance instructions

PRAESENSA
Digital Public Address and Emergency Sound System
PSP-D00097 | Wall mount adapter PRA-CSLW
PSP-D00098 | Wall mount adapter PRA-CSLW + PRA-CSE
en
Quick Installation Manual

Bosch Security Systems B.V. Quick Installation Manual Version-01 | 2021
PRAESENSA PSP-D00097 / PSP-D00098
en | 2

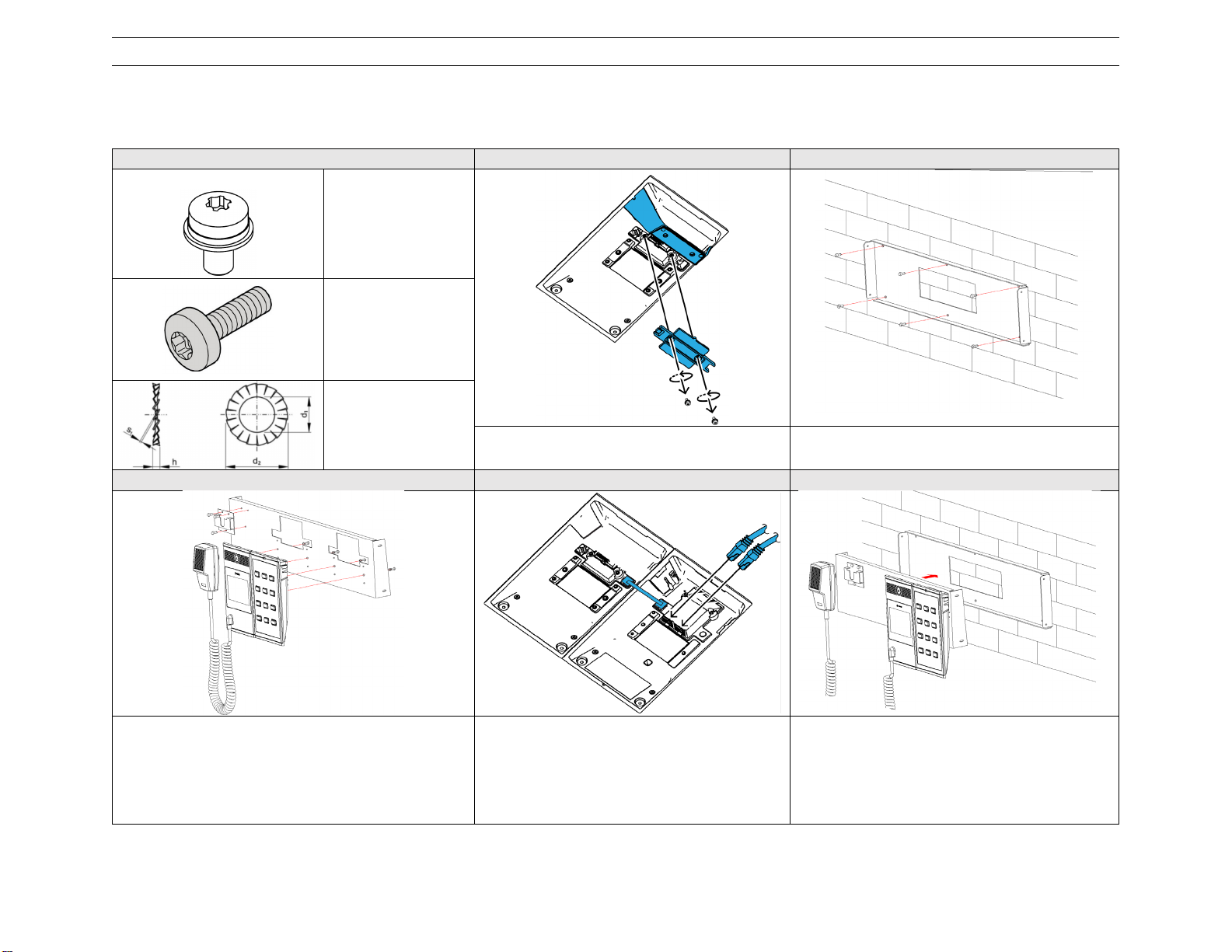

Installation PSP-D00097 | Wall mount adapter PRA-CSLW
1 |
2 |
3 pieces
Combi screw
M3x6 TORX
6 pieces
Pan head screw
M4x8 TORX
6 pieces
Lock washer
4.3x8
Remove the bracket and the connector
cover from the PRA-CSLW
Mount the wall mount adaptor against the
wall
3 |
4 |
5 |
Assemble the call station and microphone
clamp to the call station adaptor
Use one or two shielded Gb‑Ethernet
cables (preferably CAT6A F/UTP) with
RJ45 connectors to connect the call station
to a PSE port, with PoE enabled.
Assemble the call station adaptor to the
wall mount adaptor
2x screw M4x8 + lock washer 4.3x8
3x combi screw M3x6
4x screw M4x8 + lock washer 4.3x8
6x screw

Bosch Security Systems B.V. Quick Installation Manual Version-01 | 2021
PRAESENSA PSP-D00097 / PSP-D00098
en | 3
Installation PSP-D00098 | Wall mount adapter PRA-CSLW + PRA-CSE
1 |
2 |
3 pieces
Combi screw
M3x6 TORX
8 pieces
Pan head screw
M4x8 TORX
8 pieces
Lock washer
4.3x8
Remove the bracket and the connector
cover from the call station and extension
Mount the wall mount adaptor against the
wall
3 |
4 |
5 |
Assemble the call station,extension and
microphone clamp to the call station adaptor
Use one or two shielded Gb‑Ethernet
cables (preferably CAT6A F/UTP) with
RJ45 connectors to connect the call station
to a PSE port, with PoE enabled.
Connect the short RJ12‑cable between the
call station and the extension.
Assemble the call station adaptor to the
wall mount adaptor
4x screw M4x8 + lock washer 4.3x8
3x combi screw M3x6
4x screw M4x8 + lock washer 4.3x8
6x screw

Bosch Security Systems B.V. Quick Installation Manual Version-01 | 2021
PRAESENSA PSP-D00097 / PSP-D00098
en | 4
Bosch Security Systems B.V.
Torenallee 49
5617 BA Eindhoven
The Netherlands
www.boschsecurity.com
© Bosch Security Systems B.V., 2021
