Bosch Professional GIS 500 User manual

Robert Bosch Power Tools GmbH
70538 Stuttgart
GERMANY
www.bosch-pt.com
1 609 92A 5H0 (2019.12) T / 113
en Original instructions
es Manual original
pt Manual de instruções original
zh 正本使用说明书
zh 原始使用說明書
ko 사용 설명서 원본
th หนังสือคู่มือการใช้งานฉบับต้นแบบ
id Petunjuk-Petunjuk untuk Penggunaan
Orisinal
vi Bản gốc hướng dẫn sử dụng
1 609 92A 5H0
GIS 500 Professional

2 |
English ...................................................Page 5
Español ................................................ Página 23
Português do Brasil..................................... Página 37
中文 ....................................................... 页48
繁體中文.................................................. 頁59
한국어 ...............................................페이지 68
ไทย...................................................... หน้า 78
Bahasa Indonesia..................................... Halaman 91
Tiếng Việt............................................... Trang 102
1 609 92A 5H0 | (16.12.2019) Bosch Power Tools

| 3

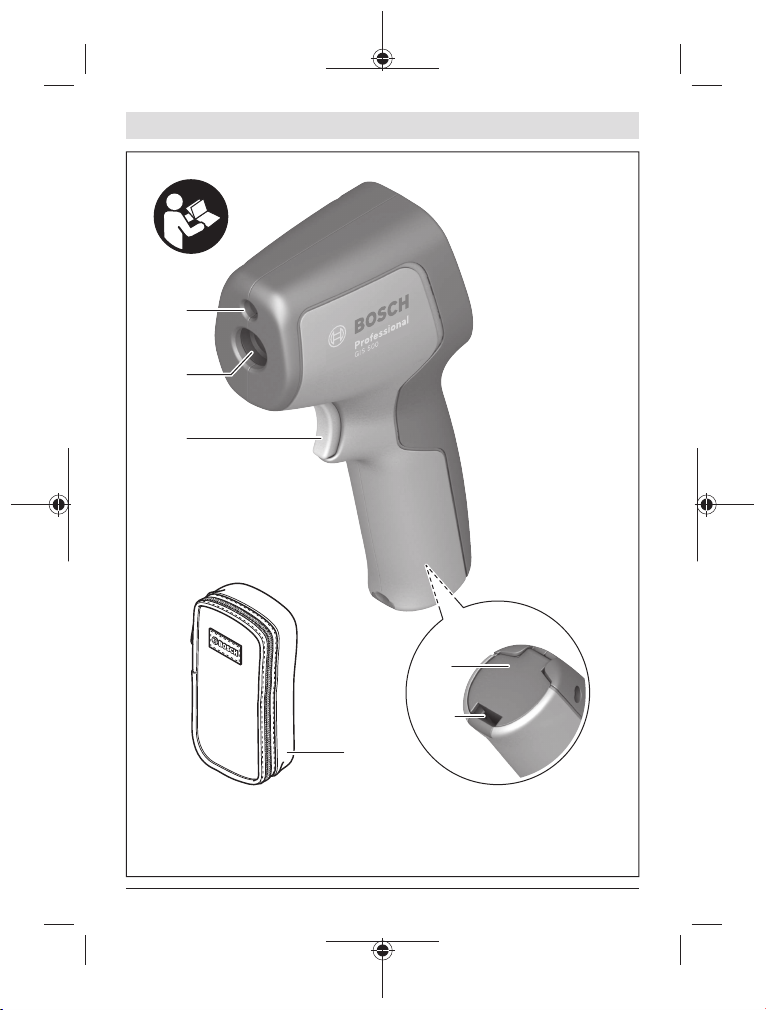

GIS 500
(1)
(2)
(3)
(4)
(5)
(11)
Bosch Power Tools 1 609 92A 5H0 | (16.12.2019)

4 |
°C
(6)
(7)
(10)
(9)
(8)
(h)
(i)
(e)
(d)
(c)
(a)
(b)
(b)
(f)
(g)
1 609 92A 5H0 | (16.12.2019) Bosch Power Tools

English | 5
English
Safety instructions
All instructions must be read and observed in order for the meas-
uring tool to function safely. The safeguards integrated into the
measuring tool may be compromised if the measuring tool is not
used in accordance with these instructions. Never make warning
signs on the measuring tool unrecognisable. SAVE THESE IN-
STRUCTIONS FOR FUTURE REFERENCE AND INCLUDE THEM WITH THE MEASUR-
ING TOOL WHEN TRANSFERRING IT TO A THIRD PARTY.
uWarning! If operating or adjustment devices other than those specified here are
used or other procedures are carried out, this can lead to dangerous exposure to
radiation.
uThe measuring tool is delivered with a warning label (marked in the illustration
of the measuring tool on the graphics page).
uIf the text on the warning label is not in your native language, cover it with the la-
bel supplied, which is in your language, before initial commissioning.
Do not direct the laser beam at persons or animals and do not
stare into the direct or reflected laser beam yourself. You could
blind somebody, cause accidents or damage your eyes.
uIf laser radiation hits your eye, you must close your eyes and immediately turn
your head away from the beam.
uDo not make any modifications to the laser equipment.
uDo not use the laser goggles as protective goggles. The laser goggles make the
laser beam easier to see; they do not protect you against laser radiation.
uDo not use the laser goggles as sunglasses or while driving. The laser goggles do
not provide full UV protection and impair your ability to see colours.
Bosch Power Tools 1 609 92A 5H0 | (16.12.2019)

6 | English
uHave the measuring tool serviced only by a qualified specialist using only ori-
ginal replacement parts. This will ensure that the safety of the measuring tool is
maintained.
uDo not let children use the laser measuring tool unsupervised. They could acci-
dentally dazzle someone.
uDo not use the measuring tool in explosive atmospheres which contain flam-
mable liquids, gases or dust. Sparks may be produced inside the measuring tool,
which can ignite dust or fumes.
uThe measuring tool may not be 100% accurate for technological reasons. Envir-
onmental factors (e.g. dust or steam in the area being measured), temperature fluctu-
ations (e.g. from fan heater) as well as the nature and condition of the surfaces being
measured (e.g. highly reflective or transparent materials) can distort measurement
readings.
uProtect the measuring tool, particularly the area around the infrared lens and
laser, from moisture and snow. The reception lens could fog up and distort the
measurements. Incorrect settings on the tool and other atmospheric influences may
make the measurements inaccurate. Otherwise, object temperatures could be shown
to be hotter or colder than they are, which may present a danger if touched.
uTemperature measurements will only be correct if the emissivity setting
matches the emissivity of the object. Otherwise, object temperatures could be
shown to be hotter or colder than they are, which may present a danger if touched.
uTake the batteries out of the measuring tool when it is being stored or transpor-
ted. Persons are at risk of being blinded if the on/off switch is unintentionally
pressed.
Product Description and Specifications
Please observe the illustrations at the beginning of this operating manual.
Intended Use
The measuring tool is intended for contactless measurement of surface temperature.
The measuring tool must not be used for temperature measurement on persons and an-
imals or for other medical purposes.
The measuring tool is not suitable for surface temperature measurement of gases or li-
quids.
The measuring tool is not intended for temperature measurement of food.
The measuring tool is suitable for indoor use.
1 609 92A 5H0 | (16.12.2019) Bosch Power Tools

English | 7
Product Features
The numbering of the product features shown refers to the illustration of the measuring
tool on the graphic page.
(1) Laser beam outlet aperture
(2) Infrared beam reception lens
(3) Measuring button
(4) Battery compartment cover
(5) Locking mechanism of the battery compartment cover
(6) Laser warning label
(7) Serial number
(8) Mode button Mode
(9) On/off button
(10) Display
(11) Protective bag
Display elements
(a) Battery indicator
(b) Display °C
(c) Emissivity
(d) Current measured value for surface temperature
(e) Previous measured value for surface temperature
(f) Indicator for temperature below −30 °C
(g) Indicator for temperature above 500 °C
(h) SCAN indicator
(i) Error warning
Technical data
Surface temperature measuring tool GIS 500
Article number 3 601 K83 4..
Measuring range −30 °C to +500 °C
Unit of measurement °C
Bosch Power Tools 1 609 92A 5H0 | (16.12.2019)

8 | English
Surface temperature measuring tool GIS 500
Measuring accuracy (typical)A)
−30°C ≤ t ≤ −10°C ±(1.8 °C+0.1×|t|°C)B)
−10°C < t < 0 °C ±2.8 °CC)
0 °C ≤ t < 100 °C ±1.8 °CC)
100 °C ≤ t ≤ 500 °C ±1.8 %C)
Optics (ratio=measuring distance : measuring spot)D)E) 12:1
Operating temperature −5°C to +50°C
Storage temperature −20°C to +70°C
Max. altitude 2000m
Relative air humidity max. 90%
Pollution degree according to IEC61010-1 2F)
Laser class 2
Laser type 650 nm, <1mW
Laser point divergence 1.5 mrad
Batteries 2×1.5V LR6(AA)
Operating time, approx. 9h
Weight according to EPTA-Procedure01:2014 0.22 kg
1 609 92A 5H0 | (16.12.2019) Bosch Power Tools

English | 9
Surface temperature measuring tool GIS 500
Dimensions (length× width× height) 171 × 101 × 54 mm
A) This applies at an ambient temperature of between 21°C and 25°C and an emissivity of 0.95.
At an ambient temperature T of between –5 °C and 21 °C the measuring accuracy varies by
±0.1×|T–21|°C for surface temperatures below 100 °C and
±0.1×|T–21|% for surface temperatures above 100 °C.
At an ambient temperature T of between 25 °C and 50 °C the measuring accuracy varies by
±0.1×|T–25|°C for surface temperatures below 100 °C and
±0.1×|T–25|% for surface temperatures above 100 °C.
B) At a measuring distance of 0.1–0.3 m from the surface
C) At a measuring distance of 0.75–1.25 m from the surface
D) Refers to infrared measurement, see figure:
1,5 cm
8,3 cm
0,18 m
1 m
E) Values in accordance with the Association of German Engineers' VDI/VDE 3511 part 4.3 stand-
ard (publication date July 2005); applies for 90% of the measuring signal.
In all areas beyond the values detailed in the technical data, deviations are possible in measure-
ment readings.
F) Only non-conductive deposits occur, whereby occasional temporary conductivity caused by
condensation is expected.
Assembly
Inserting/changing the batteries
It is recommended that you use alkaline manganese batteries to operate the measuring
tool.
To open the battery compartment cover(4), press the locking mechanism(5) and lift
open the battery compartment cover. Insert the batteries. When inserting the batteries,
ensure the polarity is correct according to the representation on the inside of the battery
compartment cover.
The battery indicator(a) shows the batteries' state of charge:
Bosch Power Tools 1 609 92A 5H0 | (16.12.2019)

10 | English
Indicator Capacity
67% to 100%
34% to 66%
15minutes...<33%
Maximum 15 minutes
If the battery indicator(a) flashes with the empty battery symbol, the batteries must be
replaced.
Always replace all the batteries at the same time. Only use batteries from the same man-
ufacturer and which have the same capacity.
uTake the batteries out of the measuring tool when you are not using it for a pro-
longed period of time. The batteries can corrode and self-discharge during pro-
longed storage.
Operation
Starting Operation
uProtect the measuring tool from moisture and direct sunlight.
uDo not expose the measuring tool to any extreme temperatures or variations in
temperature. For example, do not leave it in a car for extended periods of time. In
case of large variations in temperature, allow the measuring tool to adjust to the ambi-
ent temperature before putting it into operation. The precision of the measuring tool
may be compromised if exposed to extreme temperatures or variations in temperat-
ure.
uMake sure that the measuring tool is correctly acclimatised. In case of large vari-
ations in temperature, acclimatisation can take up to 30 minutes. This may be the
case, for example, if you first perform a measurement in the cool cellar and then go up
to the warm attic.
uAvoid hard knocks to the measuring tool or dropping it. After severe external influ-
ences and in the event of abnormalities in the functionality, you should have the
measuring tool checked by an authorised Bosch after-sales service agent.
uDo not close or cover the reception lens (2) or the laser outlet aperture(1).
1 609 92A 5H0 | (16.12.2019) Bosch Power Tools

English | 11
Switching on/off
The following options are available for switching on the measuring tool:
– Switch on the measuring tool using the on/off button(9). The measuring tool will be
ready to use again following a brief start-up sequence. No measurement is initiated at
this stage and the laser is still switched off.
– Switch on the measuring tool using the measuring button(3). After briefly pressing
the measuring button(3), the measuring tool will be ready to take measurements
following a brief start-up sequence. If you press and hold the measuring button(3)
for more than three seconds, the laser will be switched on after the start-up sequence
and the measuring tool will immediately begin measuring.
uNever leave the measuring tool unattended when switched on, and ensure the
measuring tool is switched off after use. Others may be dazzled by the laser beam.
uDo not direct the laser beam at persons or animals and do not stare into the laser
beam yourself (even from a distance).
To switch off the measuring tool, press the on/off button(9).
If no button on the measuring tool is pressed for approx. 1 minutes, the measuring tool
will automatically switch off to preserve battery life.
Measurement preparations
Adjusting the emissivity
To determine the surface temperature, the tool performs a contactless measurement of
the natural infrared thermal radiation emitted by the object at which the tool is aimed.
For optimum measuring results, the emissivity setting (see "Emissivity", page14) on
the measuring tool must be checked before every measurement and adapted to the ob-
ject being measured if necessary.
When the measuring tool is switched on for the first time, the high emissivity setting is
activated by default. If the emissivity is changed, all the measured values will be erased.
The emissivity setting remains saved when the measuring tool is switched off.
You can select from three different emissivity settings on the measuring tool. The follow-
ing overview shows commonly used materials of a similar emissivity for each emissivity
setting; note that these are examples and not an exhaustive list. Because the emissivity
of a material is dependent on a variety of factors and is therefore variable, the details in
the following overview serve only as guide values.
Bosch Power Tools 1 609 92A 5H0 | (16.12.2019)

12 | English
High emissivity: Concrete (dry), brickwork (red, rough), sand-
stone (rough), marble, PVC flooring, plastic (PE, PP, PVC), rub-
ber, anodised aluminium (matt), woodchip wallpaper, carpet,
laminate, tiling (matt), parquet flooring (matt), paint (black,
matt), radiator paint, wood, glass
Medium emissivity: Enamel, granite, cast iron, sand, fireclay
Low emissivity: Cork, porcelain (white), paint (slightly reflect-
ive)
The following emissivity gradings are used:
– High emissivity grading: Approx. 0.95
– Medium emissivity grading: Approx. 0.85
– Low emissivity grading: Approx. 0.75
To change the emissivity setting, press the button Mode(8) repeatedly until the emissiv-
ity indicator(c) shows the required emissivity for the next measurement.
uTemperature measurements will only be correct if the emissivity setting
matches the emissivity of the object. Otherwise, object temperatures could be
shown to be hotter or colder than they are, which may present a danger if touched.
Measuring surface
The infrared radiation of the measuring surface is determined during the contactless
measurement of the surface temperature.
The laser point marks the approximate centre of the measuring surface. For an optimum
measurement reading, position the measuring tool so that the laser beam meets the
measuring surface perpendicularly to this point.
uDo not direct the laser beam at persons or animals and do not stare into the laser
beam yourself (even from a distance).
Increasing the distance between the measuring tool and the object being measured in-
creases the size of the measuring surface. At a distance of 1m, the measuring surface is
approx. 8.3cm in size if the laser beam is perpendicular to a flat measuring surface.
1 609 92A 5H0 | (16.12.2019) Bosch Power Tools

English | 13
At a surface temperature of −10°C to +500°C, the optimum measuring distance is
between 0.75m and 1.25m. Below −10°C, the optimum measuring distance is
between 10cm and 30cm.
The displayed reading is the average value of all temperatures measured within the
measuring surface.
uStand back from very hot objects. There is a risk of burns.
uDo not hold the measuring tool directly against hot surfaces. The heat can damage
the measuring tool.
Information about the measuring conditions
Highly reflective or glossy surfaces (e.g. glossy tiles, stainless steel fronts or cooking
pots) can affect the surface temperature measurement. If necessary, mask the area to be
measured with a dark, matt adhesive tape that conducts heat well. Allow the tape to ac-
climatise briefly on the surface.
Measuring through transparent materials (e.g. glass or transparent plastics) is funda-
mentally not possible.
Consequently, the more suitable and stable the measuring conditions are, the more ac-
curate and reliable the measurement readings are.
Infrared temperature measurement is impaired by smoke, steam or dusty air.
It is therefore important to ventilate the room prior to measuring, especially when the air
is contaminated or steamy. For example, do not perform measurements in a bathroom
immediately after the shower has been used.
Once ventilated, allow the room to reacclimatise a while until it returns to the usual tem-
perature.
Measuring functions
Individual measurements
Briefly pressing the measuring button(3) once switches the laser on and actuates a
single measurement.
The measuring process can take up to half a second and is indicated by the SCAN(h) in-
dicator lighting up. Once the measurement has been completed, the laser switches off
automatically, the indicator SCAN disappears and both the most recent measurement
reading and the reading before it are shown on the display.
Continuous measurement
For continuous measurements, press and hold the measuring button(3). The laser re-
mains switched on and the indicatorSCAN appears in the display. Using slow move-
ments, aim the laser at each of the surfaces to be measured, one by one.
Bosch Power Tools 1 609 92A 5H0 | (16.12.2019)

14 | English
The indicator on the display is continually updated. As soon as you let go of the measur-
ing button(3), the measurement is stopped, the indicatorSCAN disappears and the
laser is switched off.
The most recent measurement reading and the reading before it are shown on the dis-
play.
Errors – causes and corrective measures
Measuring tool not acclimatised
The measuring tool has been subjected to extreme fluctuations in temperature and did
not have sufficient time to adjust.
Ambient temperature outside the operating temperature range
The ambient temperature is too high or too low for the measuring tool to operate.
Surface temperature outside the measuring range
The indicator flashes if the surface temperature of the object being measured in the
measuring area is too high (above 500°C, see indicator(g)) or too low (below −30°C,
see indicator(f)). The temperature of this object cannot be measured. Aim the laser at
another object and start a new measurement.
Internal error
If the measuring tool has an internal fault, Err is shown on the display and the (i) sym-
bolflashes. To reset the software, remove the batteries, wait a few seconds and then re-
insert the batteries.
If the error persists, have the measuring tool checked by a Bosch customer service
agent. Do not open the measuring tool yourself.
Glossary of terms
Emissivity
The emissivity of an object depends on the material and the structure of its surface. It in-
dicates whether a particular object emits a high or low level of infrared thermal radiation
(in comparison to other objects of the same temperature).
1 609 92A 5H0 | (16.12.2019) Bosch Power Tools

English | 15
Maintenance and Service
Maintenance and Cleaning
uCheck the measuring tool before each use. If the measuring tool is visibly damaged
or parts have become loose inside the measuring tool, safe function can no longer be
ensured.
Only store and transport the measuring tool in a suitable container, such as the original
packaging. Do not affix any stickers near to the sensor on the measuring tool.
Always keep the measuring tool clean and dry to ensure optimum, safe operation.
Never immerse the measuring tool in water or other liquids.
Wipe off any dirt using a dry, soft cloth. Do not use any detergents or solvents.
When cleaning the measuring tool, ensure that no liquids enter the tool.
Clean the reception lens(2) and laser outlet aperture(1) very carefully:
Ensure that there is no lint on the reception lens or the laser outlet aperture. Do not at-
tempt to remove dirt from the reception lens using pointed objects, and do not wipe over
the reception lens (risk of scratching). If necessary, you can carefully blow away dirt us-
ing oil-free compressed air.
If repairs are required, send in the measuring tool in its original packaging.
After-Sales Service and Application Service
Our after-sales service responds to your questions concerning maintenance and repair of
your product as well as spare parts. You can find explosion drawings and information on
spare parts at: www.bosch-pt.com
The Bosch product use advice team will be happy to help you with any questions about
our products and their accessories.
In all correspondence and spare parts orders, please always include the 10‑digit article
number given on the nameplate of the product.
Cambodia
Robert Bosch (Cambodia) Co., Ltd
Unit 8BC, GT Tower, 08th Floor, Street 169,
Czechoslovakia Blvd, Sangkat Veal Vong
Khan 7 Makara, Phnom Penh
VAT TIN: 100 169 511
Tel.: [phone]
Tel.: [phone]
www.bosch.com.kh
Bosch Power Tools 1 609 92A 5H0 | (16.12.2019)

16 | English
People’s Republic of China
China Mainland
Bosch Power Tool (China) Co. Ltd.
Bosch Service Center
567, Bin Kang Road
Bin Kang District
Hangzhou, Zhejiang Province
China 310052
Tel.: [phone] / 5588
Fax: [phone] x 5566# / 5588#
E-Mail: [email protected]
www.bosch-pt.com.cn
HK and Macau Special Administrative Regions
Robert Bosch Co. Ltd.
21st Floor, 625 King’s Road
North Point, Hong Kong
Customer Service Hotline: [phone]
Fax: [phone]
E-Mail: [email protected]
www.bosch-pt.com.hk
India
Bosch Service Center
69, Habibullah Road, (Next to PSBB School), T. Nagar
Chennai–600077
Phone: [phone]
Bosch Service Center
18, Community Center
Phase 1, Mayapuri
New Delhi–110064
Phone: [phone]
Indonesia
PT Robert Bosch
Palma Tower 10th Floor
Jalan RA Kartini II-S Kaveling 6
Pondok Pinang, Kebayoran Lama
Jakarta Selatan 12310
Tel.: [phone]
www.bosch-pt.co.id
1 609 92A 5H0 | (16.12.2019) Bosch Power Tools

English | 17
Malaysia
Robert Bosch Sdn. Bhd.(220975-V) PT/SMY
No. 8A, Jalan 13/6
46200 Petaling Jaya
Selangor
Tel.: [phone]
Toll-Free: 1800 880188
Fax: [phone]
E-Mail: [email protected]
www.bosch-pt.com.my
Pakistan
Robert Bosch Middle East FZE – Pakistan Liaison Office
2nd Floor Plaza # 10, CCA Block, DHA Phase 5
Lahore, 54810
Phone: [phone]
Email: [email protected]
Philippines
Robert Bosch, Inc.
28th Floor Fort Legend Towers,
3rd Avenue corner 31st Street,
Fort Bonifacio, Global City,
1634 Taguig City
Tel.: [phone]
Fax: [phone]
www.bosch-pt.com.ph
Singapore
Powerwell Service Centre Ptd Ltd
Bosch Authorised Service Centre (Power Tools)
4012 Ang Mo Kio Ave 10, #01-02 TECHplace
Singapore 569628
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
www.powerwellsc.com
www.bosch-pt.com.sg
Thailand
Robert Bosch Ltd.
FYI Center Tower 1, 5th Floor,
Bosch Power Tools 1 609 92A 5H0 | (16.12.2019)

18 | English
2525 Rama IV Road, Klongtoei,
Bangkok 10110
Tel.: [phone]
Fax: [phone]
www.bosch.co.th
Bosch Service – Training Centre
La Salle Tower Ground Floor Unit No.2
10/11 La Salle Moo 16
Srinakharin Road
Bangkaew, Bang Plee
Samutprakarn 10540
Tel.: [phone]
Fax: [phone]
Vietnam
Branch of Bosch Vietnam Co., Ltd in HCMC
14th floor, Deutsches Haus, 33 Le Duan
Ben Nghe Ward, District 1, Ho Chi Minh City
Tel.: [phone]
Fax: [phone]
Hotline: [phone]
Email: [email protected]
www.bosch-pt.com.vn
Bahrain
EA Juffali and Brothers for Technical Equipment Company.
Kingdom of Bahrain, Al Aker - Block 0624 - Road 2403 - Building 0055D
Phone: [phone]
Fax: [phone]
Email: [email protected]
Egypt
RBEG-LLC
22 Kamal Eldin Hussein
Sheraton Heliopolis
11799 Cairo
E-mail: [email protected]
Iran
Robert Bosch Iran
3rd Floor, No 3, Maadiran Building
Aftab St., Khodami St., Vanak Sq.
1 609 92A 5H0 | (16.12.2019) Bosch Power Tools

English | 19
Tehran 1994834571
Phone: [phone]
Iraq
Sahba Technology Group
Al Muthana airport road
Baghdad
Phone Bagdad: [phone]
Phone Dubai: [phone]
Email: [email protected]
Jordan
Roots Arabia – Jordan
Al-Hurriyah Street, Al-Muqabalein
Amman 11623, Jordan
P.O. Box: 110068
Tel. : [phone]
E-mail: [email protected]
Kuwait
Shuwaikh Industrial Area, Block 1, Plot 16, Street 3rd
P.O. Box 164 – Safat 13002
Phone: +965 - 2496 88 88
Fax: +965 - 2481 08 79
E-mail: [email protected]
Lebanon
Tehini Hana & Co. S.A.R.L.
P.O. Box 90-449
Jdeideh 1202 2040
Dora-Beirut
Phone: [phone]
Email: [email protected]
Libya
El Naser for Workshop Tools
Swanee Road, Alfalah Area
Tripoli
Phone: [phone]
Oman
Malatan Trading & Contracting LLC
P.O. Box 131, Ruwi, Muscat
Bosch Power Tools 1 609 92A 5H0 | (16.12.2019)

20 | English
Postal Code: 112, Sultanate of Oman
Phone: [phone]/4901
Mob: [phone]
Fax: [phone]
E-Mail: [email protected]
Qatar
International Construction Solutions W L L
P. O. Box 51, Doha
Phone: [phone]
Fax: [phone]
Email: [email protected]
Saudi Arabia
Juffali Technical Equipment Co. (JTECO)
P.O.Box: 1049 – Jeddah 21431 – KSA
Jeddah: 00966(0)126920770 – Ext433
Riyadh: 00966(0)114093976 – Ext-30/34/39
Dammam: 00966(0)138339565
E-mail: [email protected]
Syria
Dallal Establishment for Power Tools
Damascus. Baramkeh street - Ibn Amer street,
Phone: [phone] or 009631122414009
Mobile: [phone]
Email: [email protected]
United Arab Emirates
Central Motors & Equipment,
P.O. Box 26255, Dubai
Dubai: 00971(0)43090920/3090930
Abu Dhabi: 00971(0)24017745
Sharjah: 00971(0)65932777
Al Ain: 00971(0)37157419
E- Mail: [email protected]
Yemen
Abu Alrejal Trading Corporation
P.O. Box : 17024 , Zubeiry St.
Sana'a, Yemen
Tel: [phone]
1 609 92A 5H0 | (16.12.2019) Bosch Power Tools
