Bosch BCC100 Service manual

Advanced Settings Guide
Bosch Connected Control
BCC100 Thermostat
BTC 469302103 A / 01.2022

2|
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)

| 3
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
Table of Contents
1 Thermostat Features and Functionality 4
1.1 Home Screen Settings 4
1.1.1 Heating Set Point 4
1.1.2 Cooling Set Point 4
1.1.3 Auto Heating/Cooling Set Point 5
1.2 Weather 5
1.2.1 Current Weather 5
1.2.2 Weather Next 10 Hours 6
1.2.3 Weather Next 5 Days 6
1.3 Schedule 6
1.3.1 Available Schedules 6
1.3.2 Edit Schedule 6
1.4 Device Settings 7
1.4.1 Wi-Fi Select 7
1.4.2 Wi-Fi Search 7
1.4.3 Wi-Fi On/Off 7
1.4.4 Message 7
1.4.5 Brightness 8
1.4.6 Timeout 8
1.4.7 Screen Lock 8
1.4.8 Date Format 8
1.4.9 Time Format 9
1.4.10 Account Information 9
1.4.11 System Information 9
1.5 System Settings 10
1.5.1 Fan Settings 10
1.5.1.1 Auto 10
1.5.1.2 On 10
1.5.1.3 Circulation 10
1.5.2 Humidity Control 10
1.5.3 Select Degree C or F 10
1.5.4 Low Space Temperature Monitor 11
1.5.5 High Space Temperature Monitor 11
1.5.6 Reset Heating and Cooling Runtime 11
1.5.7 Air Filter 12
1.5.8 Water Pad 12
1.5.9 System Update 12
1.5.10 Unit Configuration 13
1.5.10.1 Compressor Configuration 13
1.5.10.2 Auxiliary Heating 13
1.5.10.3 Humidifier Control 14
1.5.10.4 DeHumidification Control 14
1.5.10.5 Fossil Fuel Fan Control 15
1.5.10.6 Reversing Valve Energize Method 15
1.5.10.7 Balance Point 16
1.5.10.8 Changeover Delay 16
1.6 Advanced Settings 16
1.6.1 Fan On Delay in Heating 16
1.6.2 Fan On Delay in Cooling 17
1.6.3 Minimum Run Time 17
1.6.4 Anti Short Cycle (ASC) Timer 18
1.6.5 Cycle Time 18
1.6.6 Zero Energy Band 18
1.6.7 Second Stage Latching 19
1.6.8 Stage Delay 19
1.6.9 Stage Temp 20
1.6.10 Factory Reset 20
2 App Features 21
2.1 Location 21
2.2 Add Schedule 21
2.3 Device Log 22
3 Staging Logic 23
3.1 Staging Timers 23
3.2 Staging Temp 23
4 WSHP Fault Codes 23
4.1 High Pressure Alarm 23
4.2 Low Pressure Alarm 23
4.3 Condenser Coil Freeze Alarm 23
4.4 Condensate Alarm 23
4.5 Brown Out Alarm 23
4.6 Evaporator Coil Freeze Alarm 23
5 Action Codes 24
5.1 Humidity Calibration (HC) 24
5.2 Relative Humidity Hysteresis (HSD) 24
5.3 Initial Setup (IS) 24
5.4 Sensor Calibration (SC) 24
5.5 Sensitivity Level (SS) 25
5.6 Staging (ST) 25

4|
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1 Thermostat Features and Functionality
1.1 Home Screen Settings
This section is for settings that can be adjusted from the home screen of the
thermostat. Clicking on any of the options on the home screen will also take you to
the Mode section of the System Settings.
1.1.1 Heating Set Point
This feature establishes the space temperature to be maintained during heating
operations. This option is skipped for A/C Equipment.
Option: 45°F to 99°F
Default: 68°F
1. Click on System Icon at left side of Home screen.
Figure 1
2. Select Heat on System Screen.
Figure 2
3. Exit System screen (press ‘x’ in top right corner).
4. On Home screen use +/- to Increase/Decrease the heating set point.
Figure 3
1.1.2 Cooling Set Point
This feature establishes the space temperature to be maintained during cooling
operations.
Option: 45°F to 99°F
Default: 78°F
1. Click on System Icon at left side of Home screen.
Figure 4
2. Select Cool on System Screen.
Figure 5
3. Exit System screen (press ‘x’ in top right corner).
4. On Home screen use +/- to Increase/Decrease the cooling set point.
Figure 6

| 5
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.1.3 Auto Heating/Cooling Set Point
This feature establishes the space temperature deadband to be maintained by
both heating and cooling operations. Within these setpoints there will be no
heating or cooling. The deadband between heating and cooling setpoints cannot be
configured less than 5°F.
Option: 45°F to 99°F
Cooling Default: 78°F
Heating Default: 68°F
1. Click on System Icon at left side of Home screen.
Figure 7
2. Select Auto on System Screen.
Figure 8
3. Exit System screen (press ‘x’ in top right corner).
4. On Home screen use +/- to change heating and cooling set points.
Figure 9
5. Select Heat or Cool field, and use +/- to Increase/Decrease the set points.
Figure 10
1.2 Weather
This section allows the user to view the weather. To access, connect the device to
Wi-Fi, go to the menu, and select weather
1.2.1 Current Weather
This feature provides information on the current weather based on location.
A connection to Wi-Fi is required, and this information can only be
viewed if Location permission is enabled and the thermostat has been
registered.
1. Main Menu
2. Weather
3. Select Current
Figure 11

6|
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.2.2 Weather Next 10 Hours
This option provides information on the weather forecast for next 10 hours
A connection to Wi-Fi is required.
1. Main Menu
2. Weather
3. Select Today
Figure 12
1.2.3 Weather Next 5 Days
This option provides information on the weather forecast for next 5 days.
A connection to Wi-Fi is required.
1. Main Menu
2. Weather
3. Select 5-Days
Figure 13
1.3 Schedule
This section allows the user to select and edit a schedule for their system. To access
the Schedule section, choose the menu, and select “Schedule”. To add and remove
schedules, you must use the app.
1.3.1 Available Schedules
This option allows the user to select previously created custom schedules
1. Main Menu
2. Schedule
3. Select a schedule
Figure 14
1.3.2 Edit Schedule
This feature lets the user edit a previously created schedule. Within this section, the
user set multiple schedules within a day, copy schedules and delete schedules.
1. Main Menu
2. Schedule
3. Select a Schedule
4. Select “Setup”
5. Select a day
6. Edit start times
7. Edit heat and cool temps
Figure 15

| 7
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.4 Device Settings
The Device Settings are for settings that pertain to the BCC100 device itself. The
user can access the device settings by selectiong this section in the menu.
1.4.1 Wi-Fi Select
This section allows the user to select between the available Wi-Fi sources in the
area to establish a Wi-Fi connection.
1. Main Menu
2. Device Settings
3. Wi-Fi
4. Select the magnifying glass
Use the Up and Down keys to find and select the desired Wi-Fi network.
Figure 16
1.4.2 Wi-Fi Search
This sections allows the user to search for the Wi-Fi source if it does not appear on
the list.
1. Main Menu
2. Device Settings
3. Wi-Fi
4. Select SSID
Type the name of the desired Wi-Fi network using the keyboard.
Figure 17
1.4.3 Wi-Fi On/Off
This feature allows the user to switch the Wi-Fi on and off from the device.
1. Main Menu
2. Device Settings
3. Wi-Fi
4. Select Power OFF
Figure 18
1.4.4 Message
This screen provides the user with alert message from the thermostat. Includes
System alerts (e.g. software updates) and Service alerts (e.g. Change Filter).
1. Main Menu
2. Device Settings
3. Messages
Figure 19

8|
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.4.5 Brightness
This feature allows the user to adjust the brightness of the thermostat.
Options: High , Medium, Low
Default: High
1. Main Menu
2. Device Settings
3. Screen
4. Select Brightness option
Figure 20
1.4.6 Timeout
Allows the user to set the screen time out schedule for the thermostat. If there’s no
activitiy within this time the screen goes blank.
Options: 20sec, 1 min, 3 min
Default: 1 min
1. Main Menu
2. Device Settings
3. Screen
4. Timeout
5. Select the timeout option
Figure 21
1.4.7 Screen Lock
Allows the user to set a 4-digit numeric passcode to lock screen. Once set, the
BCC100 will prompt user to re-enter password when trying to access touchscreen
of thermostat.
Options: On/Off
Default: Off
1. Main Menu
2. Device Settings
3. Screen
4. Screen Lock
5. Select Screen Lock option
Figure 22
1.4.8 Date Format
Gives the user options to select the date format as per their choice.
Options: MM/DD/YYYY, DD/MM/YYYY, YYYY/MM/DD
Default: MM/DD/YY
1. Main Menu
2. Device Settings
3. Date & Time
4. Select the Date Format
Figure 23

| 9
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.4.9 Time Format
This feature allows the user to select the time format.
Options: 12hrs and 24hrs
Default: 12hrs
1. Main Menu
2. Device Settings
3. Date & Time
4. Select Time format
Figure 24
1.4.10 Account Information
Provides the user with Account ID, Created Date, and Geo Location. All three fields
can be changed by clicking the “Change” button.
1. Main Menu
2. Device Settings
3. Device Information
4. Account
Figure 25
1.4.11 System Information
Provides the user information on the thermostat hardware and software including:
Model, Software Version, HD version, MAC ID.
1. Main Menu
2. Device Settings
3. Device Information
4. System
Figure 26

10 |
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.5 System Settings
This section allows the user to change settings related to the HVAC system in their
building. To access these settings, select menu, and choose “System Settings”.
1.5.1 Fan Settings
This section allows the user to select one of three available Fan modes. Auto, On
and Circulation.
Default: Auto
1. Main Menu
2. System Settings
3. Mode
4. Fan
1.5.1.1 Auto
In this mode the fan will only run during heating or cooling operation.
1.5.1.2 On
In this mode the fan will be continuously on, even if the system mode has been set
to Off.
Figure 27
1.5.1.3 Circulation
This feature gives the user the option to circulate air within the conditioned space.
The fan will cycle On and Off depending on the On time and Off time specified in the
setup page. User can also choose to set a schedule during which the fan will cycle.
If the user chooses no schedule the Fan will continuously cycle.
Figure 28
1.5.2 Humidity Control
This feature allows a user with a properly installed and wired humidifier accessory
to choose how the system controls humidity and set the relative humidity set point.
Selecting No disables the humidity control function.
Options: Yes/No; 30% to 90%
Default: No; 50%
1. Main Menu
2. System Settings
3. Mode
4. Select Accessory
5. Select Enable Automatic Humidity control
Use the Up and Down keys to select Humidity Level.
Figure 29
1.5.3 Select Degree C or F
This feature establishes the unit for temperature.
Options: °F or °C
Default: °F
1. Main Menu
2. System Settings
3. Temperature
4. Unit
Figure 30

| 11
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.5.4 Low Space Temperature Monitor
This feature establishes the minimum space temperature that will be allowed. If
the space temperature falls below the established value, the thermostat will bring
on the equipment in heating mode; even if the thermostat’s operation mode is set
to “OFF”. The normal heating cycle as determined by all the User Setup Features
will be followed (this includes the staging sequence, minimum run time, and cycle
time).
This option is skipped for A/C equipment.
Options: On/Off; 45°F to 70 °F
Default: Off; 50°F
1. Main Menu
2. System Settings
3. Temperature
4. Alert
5. Click LOW text box
Use the Up and Down keys to select the Low Stage Temperature.
Figure 31
1.5.5 High Space Temperature Monitor
This feature establishes the maximum space temperature that will be allowed. If
the space temperature rises above the established value, the thermostat will bring
on the equipment in cooling mode even if the thermostat’s operation mode is set
to “OFF”. The normal cooling cycle as determined by all the User Setup Features
will be followed (this includes the staging sequence, minimum run time, and cycle
time).
Options: On/Off; 70°F to 99°F
Default: Off; 99°F
1. Main Menu
2. System Settings
3. Temperature
4. Alerts
5. Click HIGH text box
Use the Up and Down keys to select the High Stage Temperature.
Figure 32
1.5.6 Reset Heating and Cooling Runtime
This feature allows the user to reset heating or cooling runtime. Selecting "Yes" will
reset the respective runtime to Zero and Starting date to the current date.
1. Main Menu
2. System Settings
3. Run Time
4. Reset (Heating or cooling)
Figure 33

12 |
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.5.7 Air Filter
This feature allows the ability to establish the number of days of operation of the
HVAC equipment between filter changes. The thermostat will send a notification to
the user to change the Air Filter of their system based on the set period.
Options: 15 Days to 360 Days
Default: 90 days
1. Main Menu
2. System Settings
3. Run Time
4. Air Filter
5. Select setup
Use the Up and Down keys to adjust the Replacement Time Period.
Figure 34
1.5.8 Water Pad
This feature allows the ability to establish the number of days of operation of the
HVAC equipment with humidifier option, between water (evaporator) pad changes.
The thermostat will send a notification to the user to change the Water Pad of their
system based on the set period.
Options: 15 Days to 360 Days
Default: 90 days
1. Main Menu
2. System Settings
3. Run Time
4. Water Pad
5. Select setup
Use the Up and Down keys to adjust the Replacement Time Period.
The system configuration must have the Humidifier Accessory chosen
for this feature to be available.
Figure 35
1.5.9 System Update
This option is used to update the device with the latest firmware version if the
automatic update is unsuccessful.
1. Main Menu
2. System Settings
3. System Update
4. Download the most recent update
Figure 36

| 13
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.5.10 Unit Configuration
This section allows the user to select the configuration of their system. The user
can choose between Fossil Fuel, Heat Pump,Dual Fuel, Electric, and no Heating.
Once the user is in the System Settings, select Unit Configuration to access this
selection.
1.5.10.1 Compressor Configuration
This feature establishes the number of compressors stages that the equipment is
using.
Options: Fossil Fuel Stage(s) 1 and 2, Air Conditioner Stage(s) 0, 1 and 2
Default: Fossil Fuel Stage 1 Air Conditioner Stage 1
1. Main Menu
2. System Settings
3. Unit Configuration
4. Heat Type
5. Stages
Depending on the Heat type chosen, the options available may vary.
Figure 37
1.5.10.2 Auxiliary Heating
This function allows for an automatic shift from compressor heat to auxiliary
heating (e.g. electric heat) when a Heat pump system is used.
This option is only for heat pumps.
Enables additional heating stage if compressor cannot satisfy the
current heating set point.
Options: Enable and Disable
Default: Disable
1. Main Menu
2. System Settings
3. Unit Configuration
4. Heat Type (select Heat Pump)
5. Setup
Auxiliary Heating (under Heat Type)
Figure 38

14 |
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)

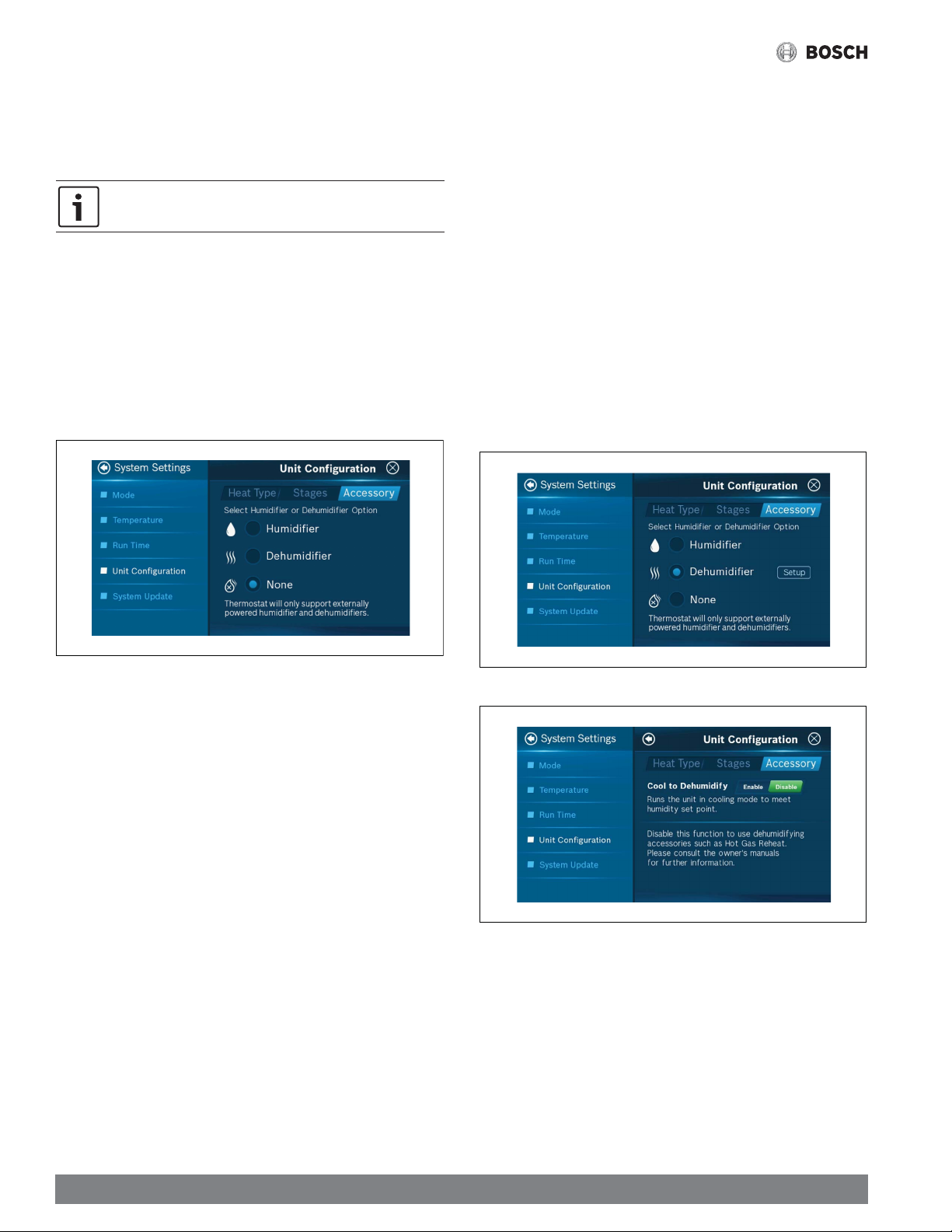

1.5.10.3 Humidifier Control
This feature enables the use of a humidifier. The setup technician must set
the humidity set point to establish the desired humidity level that should be
maintained. The humidifier will only be activated during a heating call.
This option is skipped for A/C equipment.
Options: Humidifier, Dehumidifier and None
Default: Dehumidifer
1. Main Menu
2. System Settings
3. Unit Configuration
4. Accessory
5. Select Humidifier
Figure 39
1.5.10.4 DeHumidification Control
This feature allows the ability to enable cool-to-dehumidify functionality (if the
HVAC equipment includes this feature) or to disable the functionality and operate
hot gas reheat (if the HVAC equipment is equipped with this feature). When cool-to-
dehumidify functionality is enabled, the cooling equipment will remain on until the
humidity set point is met or the over cooling temperature has been reached. The
over cooling temperature is the permissible number of degrees below the set point
that the user will allow in an attempt to better dehumidify the space.
Options: Enable and Disable
Default: Disable
1. Main Menu
2. System Settings
3. Unit Configuration
4. Accessory
5. Dehumidifier
6. Setup
Figure 40
Figure 41

| 15
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.5.10.5 Fossil Fuel Fan Control
This feature allows the user to decide which device controls the fan. When
Appliance is selected there will be no Fan calls (G calls) from the thermostat during
heating.
Options: Appliance and Thermostat
Default: Appliance
1. Main Menu
2. System Settings
3. Unit Configuration
4. Heat Type (Select Fossil Fuel)
5. Select Appliance or Thermostat
Figure 42
1.5.10.6 Reversing Valve Energize Method
Based on user selection, this parameter is used to set the reversing valve logic,
based on heat pump design, to control the flow of refrigerant.
Selecting cool will energize the reversing valve during cooling operations (O).
Selecting heat will energive the reversing valve during heating operations (B).
Options: Cool and Heat
Default: Cool
1. Main Menu
2. System Settings
3. Unit Configuration
4. Heat type (Select Heat Pump)
5. Select Setup
OR
1. Main Menu
2. System Settings
3. Unit Configuration
4. Heat type (Select Dual Fuel)
5. Select Setup
6. Heat Pump
Figure 43

16 |
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.5.10.7 Balance Point
This feature allows the user to set the outdoor temperature for which the dual fuel
system changes between Heat Pump heating and Furnace heating
Options: 5°F to 60°F
Default: 40°F
1. Main Menu
2. System Settings
3. Unit Configuration
4. Heat Type (Select Dual Fuel)
5. Heat Pump
6. Select the Balance Point box
Use the Up and Down keys to select Balance Point Temperature
Figure 44
1.5.10.8 Changeover Delay
This feature allows the user to adjust the time delay implemented when switching
from one heating source to the other during dual fuel operation.
Options: 45 sec to 300 sec
Default: 45 sec
1. Main Menu
2. System Settings
3. Unit Configuration
4. Heat Type (Select Dual Fuel)
5. Heat Pump
6. Select the Changeover Delay box
Figure 45
1.6 Advanced Settings
The Advanced Settings are for the specific settings about how the system operates.
Here is also where the installer/contractor can access settings not available to
the homeowner. The Advanced Settings are accessed by clicking on Menu, then
Advanced Settings.
1.6.1 Fan On Delay in Heating
This feature allows the ability to delay the fan motor from energizing for a specified
amount of time while in the heating mode.
This option is skipped for A/C equipment.
Options: 0 Seconds to 120 Seconds.
Default: 0 Seconds
1. Main Menu
2. Advanced Settings
3. Heating & Cooling
4. Enter Professional Access code “1886”
5. Fan Delay
6. Select On
Use the Up and Down keys to select Fan Delay.
Figure 46

| 17
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.6.2 Fan On Delay in Cooling
This feature allows the ability to delay the fan motor from energizing for a specified
amount of time while in the cooling mode.
Options: 0 Seconds to 120 Seconds.
Default: 0 Seconds
1. Main Menu
2. Advanced Settings
3. Heating & Cooling
4. Enter Professional Access code “1886”
5. Fan Delay
6. Select On
Use the Up and Down keys to select Fan Delay.
Figure 47
1.6.3 Minimum Run Time
This feature establishes the minimum allowable run time for the compressor. The
minimum run time prevents short run time and lengthens the life of the compressor.
The compressor will continue to run for the specified number of minutes even if the
set point is reached.
Minimum run time is the number of seconds the thermostat will call for heating
or cooling to ensure a comfortable cycling rate. Setting the System to Off or the
opposite system call will override the timer and immediately terminate the heating
or cooling call.
The minimum run time (MRT) upper limit is tied to the Stage Delay Timer (SDT)
setting (600s or 10min by default). The upper limit for MRT may be set as high as
90 minutes, if the SDT is set accordingly.
Options: 180 seconds to Stage Delay Timer Setting (600 seconds/10
minutes by default, but can be set up to 90 minutes)
Default: 300 Seconds
1. Main Menu
2. Advanced Settings
3. Heating & Cooling
4. Enter Professional Access code “1886”
5. Min. Run Time
Use the Up and Down keys to select the minimum run time.
Figure 48

18 |
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.6.4 Anti Short Cycle (ASC) Timer
The minimum off time is the number of seconds after a call and before a new
heating or cooling call can be initiated.
Options: 0 to 300 seconds
Default: 300 seconds
1. Main Menu
2. Advanced Settings
3. Heating & Cooling
4. Enter Professional Access Code “1886”
5. Anti Short Cycle
Figure 49
1.6.5 Cycle Time
The minimum off time is the number of seconds after a call and before a new
heating or cooling call can be initiated.
Options: 60 to 300 seconds
Default: 180 seconds
1. Main Menu
2. Advanced Settings
3. Heating & Cooling
4. Enter Professional Access code “1886”
5. Cycle Time
Figure 50
1.6.6 Zero Energy Band
This feature establishes the temperature differential at which a heating or cooling
call occurs. The room temperature will need to drop by this value from the heating
setpoint for a heating call to occur. For cooling, the room temperature will need to
be raised by this value.
Options: 0.5°F to 2°F
Default: 1 °F.
1. Main Menu
2. Advanced Settings
3. Heating & Cooling
4. Enter Professional Access code “1886”
5. Zero Energy Band
Use the Up and Down keys to select the range.
Figure 51

| 19
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.6.7 Second Stage Latching
This feature establishes how the HVAC Equipment will stage down. If the unit
possess multiple stages of heating or cooling, the ability of controlling the stage
down process can be beneficial. With this feature disabled, once the set point is
met, the thermostat will stage down to the previous stage. After the stage delay, if
the set point is still satisfied, the thermostat will stage down once again. With this
feature enabled, once the set point has been satisfied, all stages will be turned off
and the thermostat will go into standby mode.
Options: Enable and Disable
Default: Disable
1. Main Menu
2. Advanced Settings
3. Installer Access
4. Enter Professional Access Code “1886”
5. Enter Action code ”ST”
6. Latching
Figure 52
1.6.8 Stage Delay
After the thermostat has been continuously calling for a time equal to the selected
time period, the Stage Delay Timer automatically up stages the heating or cooling.
The timer will not upstage cooling if the indoor temperature is below the selected
temperature. Similarly, it will not upstage heating if the indoor temperature is above
the selected temperature. Neither upstaging for cooling or heating will occur if the
space temperature is within the Zero Energy Band.
Options: 3 minutes to 90 minutes.
Default: 10 min
1. Main Menu
2. Advanced Settings
3. Installer Access
4. Enter Professional Access Code “1886”
5. Enter Action code “ST”
6. Select Stage Delay
Use the Up and Down keys to select the Stage Delay.
Figure 53

20 |
Advanced Settings Guide
Bosch Connected Control BCC100 Thermostat (01.2022)
1.6.9 Stage Temp
This feature allows the thermostat to determine how quickly it needs to command
the next stage of heating based upon the temperature differential.
Options: 0°F to 15°F
Default: 5°F
1. Main Menu
2. Advanced Settings
3. Installer Access
4. Enter Professional Access Code “1886”
5. Enter Action code “ST”
6. Select Stage Temp
Figure 54
1.6.10 Factory Reset
This function allows the user to reset the thermostat to initial factory settings.
1. Main Menu
2. Advanced Settings
3. Select Factory Reset
Select “Yes” to confirm Reset or “No” to cancel.
Figure 55
