MGV520B USER'S MANUAL
QUICK INSTALLATION GUIDE
BWETOOTH" (AUDIO STREAMING) I 240 WATTS
MARINE DIGITAL MEDIA AM/FM RECEIVER

Mounting Bracket Mounting Studs
MGV520B
Please read through User's Manual carefully
to learn proper operation of your receiver.
Save User’s Manual for future reference.
Thank you for purchasing this
:10~~
AUDIO SYSTEMS
Bluetooth Marine Digital Media
AM/FM Receiver
//
//
Machine Screws
(4pcs)
[[J [[J
User Manual Warranty Card
( INFORMATION TO THE USER
0 Bluetooth '
The Bluetooth®word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use
of such marks is under
license. Other trademarks and trade names are those
of their
respective owners.

( IMPORTANT SAFETY PRECAUTIONS )
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
•Do not turn up the volume so high that you can't hearwhat's
around you.
• Use caution
or temporarily discontinue use in potentially
hazardous situations.
•Do not operate mobile video equipment while driving a motorized
vehicle -safe driving and safety consideration of others should
always be your highest priority.
•Set
your volume control at a low setting, then slowly increase the
sound until you can hear it comfortably without distortion, or ear
discomfort.
"In the event you should notice smoke, strange noises or odor from
this product, or any other abnormal signs, immediately turn off the
power and consult your dealer or the nearest authorized
BOSSAUDIO Service Center Using this product in this condition
may result in permanent damage to the system.

MGV520B
MGV520B
MGV520B
BEFORE YOU START
( INSTALLATION PRECAUTIONS
Always consult with a professional installer
Do not attempt to install or service this product by yourself.
Installation
or servicing of this product by persons without
professional training and experience in electronic equipment and mo-
torized vehicle accessories may be dangerous and could expose you
to the risk of electric shock, injury or other hazards
• Refer any repairs to a qualified BOSS AUDIO SYSTEMS Service
Center
• The should be wired directly
to a vehicles battery
• When
wiring directly to the vehicles battery, be sure to disconnect
the batteries negative terminal wire before starting any wiring
procedures, ifextending the main power primary wire, it is
suggested that an optional fuse and fuse holder(not included) with
minimum rating of 15 Amperes be in-line with the positive battery
terminal
• The ground cable length
should be as short as possible, if
extending from you battery, be sure to use a proper gauge rating for
the length of the run, use only high quality copper primary type wire
• The has a IPX6 weather resistant design, it should not
be submerged in or underwater underany circumstances
• Do not use abrasive cleaning materials on the lens or bezel
• Use only the installation parts provided with the

"\

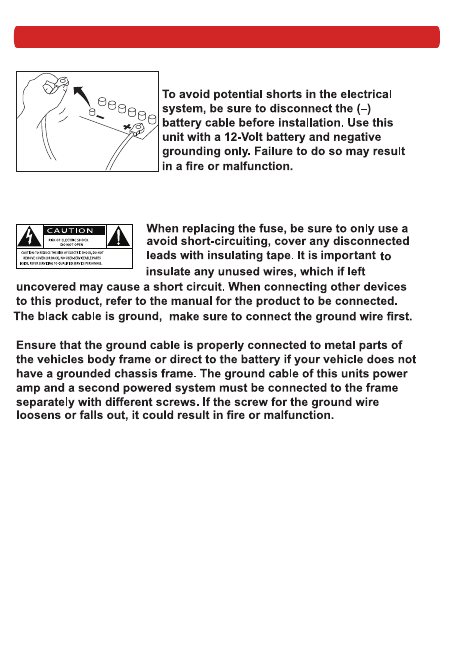

8 To avoid potential
shorts in the electrical
s 8a8
8 system, be sure
to disconnect the(-)
-,c, 8 battery cable before installation. Use this
unitwith a 12-Volt battery and negative
grounding only. Failure
to do so may result
~----~~-~ in a fire or malfunction.
I
/1- ► •i'iil•I/MI Al Wh~n replaci~g th~ fuse, be sure t~ only use a
_...._L "' ' "' ,:,,'=: _.A.. avoid short-c1rcu1tmg, cover any disconnected
-~-=::: '::::::' leads with insulating tape. It is important to
""' ,.. insulate any unused wires, which if left
uncovered may cause a short circuit. When connecting other devices
to this product, refer to the manual for the product to be connected.
The black cable
is ground, make sure to connect the ground wire first.
Ensure that the ground cable is properly connected
to metal parts of
the vehicles body frame or direct to the battery if your vehicle does not
have a grounded chassis frame. The ground cable of this units power
amp and a second powered system
must be connected to the frame
separately with differentscrews. If the screw for the ground wire
loosens or falls out, it could result in fire or malfunction.

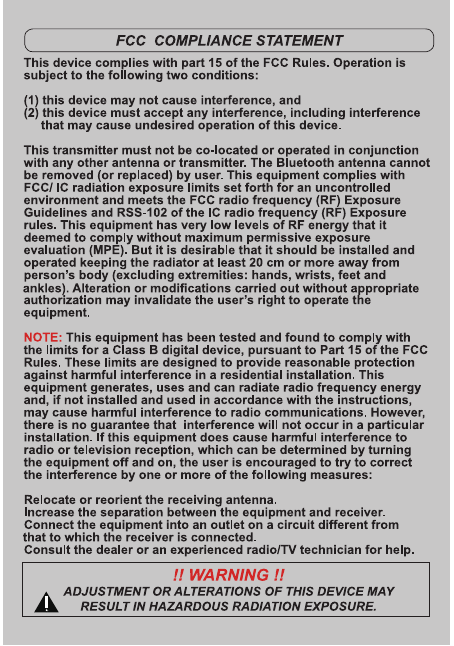

FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of this device.
This
transmitter must not be co-located or operated in conjunction
with any other antenna or transmitter. The Bluetooth antenna cannot
be removed (or replaced) by user. This equipment complies with
FCC/ IC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure
Guidelines and RSS-102
of the IC radio frequency (RF) Exposure
rules. This
equipment has very low levels of RF energy that it
deemed to comply without maximum permissive exposure
evaluation (MPE). But it is desirable that it should be installed and
operated keeping the radiator
at least 20 cm or more away from
person's body (excluding extremities: hands, wrists, feet and
ankles). Alteration
or modifications carried out without appropriate
authorization
may invalidate the user's right to operate the
equipment.
NOTE: This
equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These
limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause
harmful interference to radio communications. However,
there
is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Relocate
or reorient the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect
the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
!! WARNING!!
A ADJUSTMENT ORALTERATIONS OF THIS DEVICE MAY
~ RESULT IN HAZARDOUS RADIATION EXPOSURE.

3"/76mm
1
Use the screws through mounting holes
2
3
0
9'1Bd¥il#,f:U•111,'11Md P#iiM.P

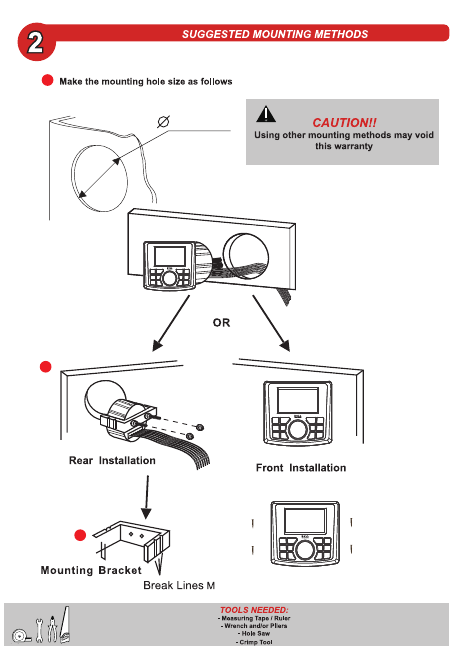

• Make the mounting hole size as follows
•
•
A CAUTION!!
Using other mounting methods may void
this warranty
=e l
Front Installation
TOOLS NEEDED:
--~=~=r
-HoleS-
·Crin,pTool

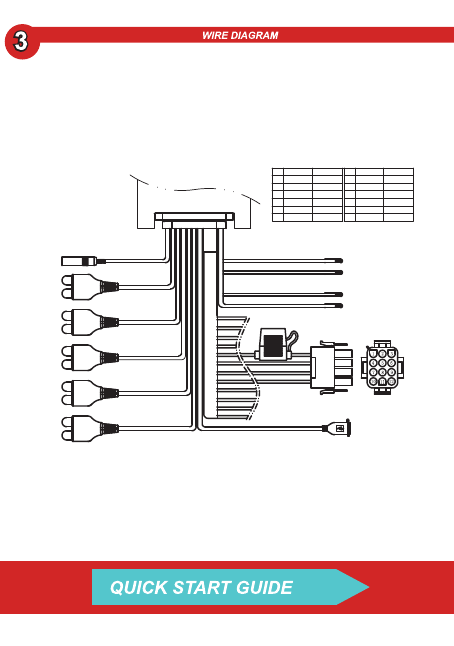

Black
Bullet Socket
Reverse Input
Fuse 15A
USB Socket
Ant Socket
Violet/White
Main Output Wire
1
2
3
4
5
6
7
8
9
10
11
12
Bullet Socket Function
No Colour Function No Colour Function
Red
White/B
White
Yellow
Grey/B
Grey
Acc
FL-
FL+
Constant
FR-
FR+
Blue
Green/B
Green
Black
Purple/B
Purple
Remote
RL-
RL+
Gnd
RR-
RR+
White
L Output
Red
R Output
Yellow
Video Input
White
L Input
Red
R Input
White
Sub Output
Red
Sub Output
White
L Output
Red
R Output
Orange
Rear Camera
Input
Illumination Input
Orange
Rear Camera Output
Red/White
Aux Power Output
Red/Violet
Brown
Yellow
Green
White
Black
Audio input
Video In
Sub Output
Rear Output
Front Output
0
11 I 111 I I
QUICK STARTGUIDE

GETTING STARTED
All rights reserved. No part of this publication may be reproduced, distributed, or
transmitted in any form or by any means, including photocopying, recording, or
other electronic or mechanical methods, without the prior written permission of
BOSSAUDIO SYSTEMS Inc.

MODE
1. Long press and then long press to enter
"AUTO" and "MANUAL" search station
switching mode, short press when "AUTO"
is displayed, enter automatic downward
search for radio stations; when "MANUAL"
is displayed, short press again, and manually
downward Search stations
1. Long press and then long press to enter
"AUTO" and "MANUAL" search station
switching mode, short press when "AUTO"
is displayed, enter automatic downward
search for radio stations; when "MANUAL"
is displayed, short press again, and manually
downward Search stations
2. After entering "AUTO" and "MANUAL"
mode for about 5 seconds, there is no
operation to search for radio stations, it
will automatically exit and display the
current frequency information.
2. After entering "AUTO" and "MANUAL"
mode for about 5 seconds, there is no
operation to search for radio stations, it
will automatically exit and display the
current frequency information.
[ID
utton Control Fuctions
Button working condition operation MGV550B functlonal description
Power
OFF
short oress
no function
Power ON
long press POWER OFF
ROTARY
snort press
EQ
KNOB turn
rloht
Volume Increase
Idle Mode
turn left Volume decrease
Power ON
short press Switch functlon:RADIO-USB-BT-AUX/AV
long press no function
h
RADIO
short press
Back to main menu
USB
short press Back to main menu
-
RADIO
snon press v1aeo npu
or rear view 1,;-amera
USB
short press Video Input for rear view Camera
*
RADIO
short press ighting power supply output
long press no unction
~I
RADIO
short press no function
USB/BT
short press play/stop
short press Automatic up Search Radio
~
RADIO
long press
BT
short press Choose the
next song
long press no function
USB
short press Choose the next song
ong press Fast forwar selections
short press Automatic down Search Radio
RADIO
long press
i...
BT
short press Choose the
last song
long press no function
USB
short press Choose the
last sona
long press Fast backward selections
