OWNER’S MANUAL
This manual covers all truck-mounted snowplows manufactured by BOSS
Snowplow. As this manual includes both Power-V and Straight Blade
snowplow information, some of the data contained within may not apply to
your snowplow.
Use the table of contents, on the following pages, to locate the information
specific to your snowplow.
BOSS Products reserves the right under its continuous product improvement policy to change construction or design details and
furnish equipment when so altered without reference to illustrations or specifications used herein.
This product is covered under one or more of the following patents:
2,137,853 5,568,694 6,035,944 6,108,946 6,170,178 6,467,199 6,134,814 7,437,839
Other Patents Pending MSC09607-9

TABLE OF CONTENTS
3
WARNINGS ............................................................................................................................................. 6
POWER-V SNOWPLOWS .................................................................................................................. 8
POWER-V RECOMMENDED PUSH BEAM HEIGHT ................................................................................. 9
BUMPER STOP ADJUSTMENT / COUPLER SPRING PIN CAUTION .................................................... 10
SNOWPLOW MOUNTING INSTRUCTIONS............................................................................................. 11
SNOWPLOW REMOVAL INSTRUCTIONS............................................................................................... 12
CONTROLLERS ........................................................................................................................................ 13
ROUTINE MAINTENANCE........................................................................................................................ 21
PUTTING YOUR PLOW INTO STORAGE ................................................................................................ 22
TAKING YOUR PLOW OUT OF STORAGE ............................................................................................. 23
SNOWPLOWING PREPARATIONS.......................................................................................................... 24
PLOWING PRACTICES............................................................................................................................. 26
PLOWING TIPS ......................................................................................................................................... 33
OPTIONAL EQUIPMENT & ACCESSORIES ............................................................................................ 35

TABLE OF CONTENTS (CONT’)
4
STRAIGHT BLADE SNOWPLOWS .............................................................................................. 43
STRAIGHT BLADE RECOMMENDED PUSH BEAM HEIGHT ................................................................. 44
SPORT DUTY RECOMMENDED PUSH BEAM HEIGHT ......................................................................... 45
COUPLER SPRING PIN CAUTION........................................................................................................... 46
SNOWPLOW MOUNTING INSTRUCTIONS............................................................................................. 47
SNOWPLOW REMOVAL INSTRUCTIONS............................................................................................... 48
CONTROLLERS ........................................................................................................................................ 49
ROUTINE MAINTENANCE........................................................................................................................ 56
PUTTING YOUR PLOW INTO STORAGE ................................................................................................ 57
TAKING YOUR PLOW OUT OF STORAGE ............................................................................................. 58
SNOWPLOWING PREPARATIONS.......................................................................................................... 59
PLOWING PRACTICES............................................................................................................................. 61
PLOWING TIPS ......................................................................................................................................... 67
OPTIONAL EQUIPMENT & ACCESSORIES ............................................................................................ 69
GENERAL SNOWPLOW INFORMATION (POWER-V AND STRAIGHT BLADE) ....... 79
HEADLIGHT AIMING PROCEDURE......................................................................................................... 80
HYDRAULIC POWER UNIT FILL PROCEDURE ...................................................................................... 82
TROUBLESHOOTING GUIDE................................................................................................................... 85
RECOMMENDED BOLT TORQUE ........................................................................................................... 96
WARRANTY............................................................................................................................................... 97

5
A REVOLUTION AGAINST SNOW
Congratulations on purchasing the finest snowplow made. BOSS sets the standard for quality, reliability,
craftsmanship, and performance. Our products are designed, built, and proven in Michigan’s rugged Upper
Peninsula, where winter is a way of life. And we back it all up with exceptional customer service and
satisfaction. We’re not just setting the standard. We’re leading the way.
BOSS SNOWPLOW has been carefully designed and built for years of carefree performance. With its
simple attaching system, BOSS can be attached or removed in seconds. For safety, BOSS includes
hydraulic pressure relief to prevent damage by overstress. Where A-Frame and moldboard fatigue are a
common problem on conventional plows, a BOSS PLOW will stand up to severe plowing conditions.
To keep your BOSS PLOW in top shape, take a few minutes to study this manual. It will show you how to
use and service BOSS, familiarize you with all of its parts, and give you helpful tips on plowing snow.
If you have further questions, your local BOSS PLOW DEALER is the person to talk to. They know your
plow well and want your complete satisfaction.

6
Serious injury or death can result if you do not follow these instructions and procedures which are
outlined further within your owner’s manual
Read this manual carefully before operating this snowplow.
Always follow the vehicle manufacturer’s recommendations relating to snowplow installation.
For recommended vehicle models refer to the BOSS online Plow Selector tool at
www.bossplow.com.
Vehicles equipped with air bags are designed such that the air bags will be activated in a
frontal collision equivalent to hitting a solid barrier (such as a wall) at approximately 14 mph or
more, or, roughly speaking, a frontal perpendicular collision with a parked car or truck of
similar size at approximately 28 mph or more. Careless or high speed driving while plowing
snow, which results in vehicle decelerations equivalent to or greater than the air bag
deployment threshold described above, would deploy the air bag.
Many newer trucks are equipped with air bags. DO NOT under any circumstances disable or
remove or relocate any sensors or other components related to the operation of the air bags.
When transporting, position plow so as not to block vision or plow headlights.

7
DO NOT change blade position when traveling.
DO NOT exceed 40 mph when transporting plow.
DO NOT exceed 14 mph when plowing.
Always lower blade when vehicle is not in use.
Make sure plow is properly attached before moving vehicle.
To comply with Federal Regulations and to assure a safe vehicle, the Front Gross Axle Weight
Rating (FGAWR), Rear Gross Axle Weight Rating (RGAWR), and the Gross Vehicle Weight
Rating (GAWR) must not be exceeded at any time.
Due to the variety of equipment that can be installed on this vehicle, it is necessary to verify
that the Front Gross Axle Weight Rating (FGAWR), Rear Gross Axle Weight Rating (RGAWR),
and the Gross Vehicle Weight Rating (GAWR) are not exceeded at any time. This may require
weighing the vehicle and adding ballast as necessary. It may also limit payload capacity of the
vehicle. It is the operator’s responsibility to verify that these ratings are not exceeded.

8
POWER-V
This section contains information that
applies to the following plow models:
7’6” Steel Power-V XT
8’2” Steel Power-V XT
8’2” Steel Power-V DXT
8’2” Poly Power-V XT
8’2” Poly Power-V DXT
8’2” Stainless Power-V DXT
9’2” Steel Power-V XT
9’2” Steel Power-V DXT
9’2” Poly Power-V XT
9’2” Poly Power-V DXT
9’2” Stainless Power-V DXT
10’0” Steel Power-V DXT

Power-V Recommended Push Beam Height
9

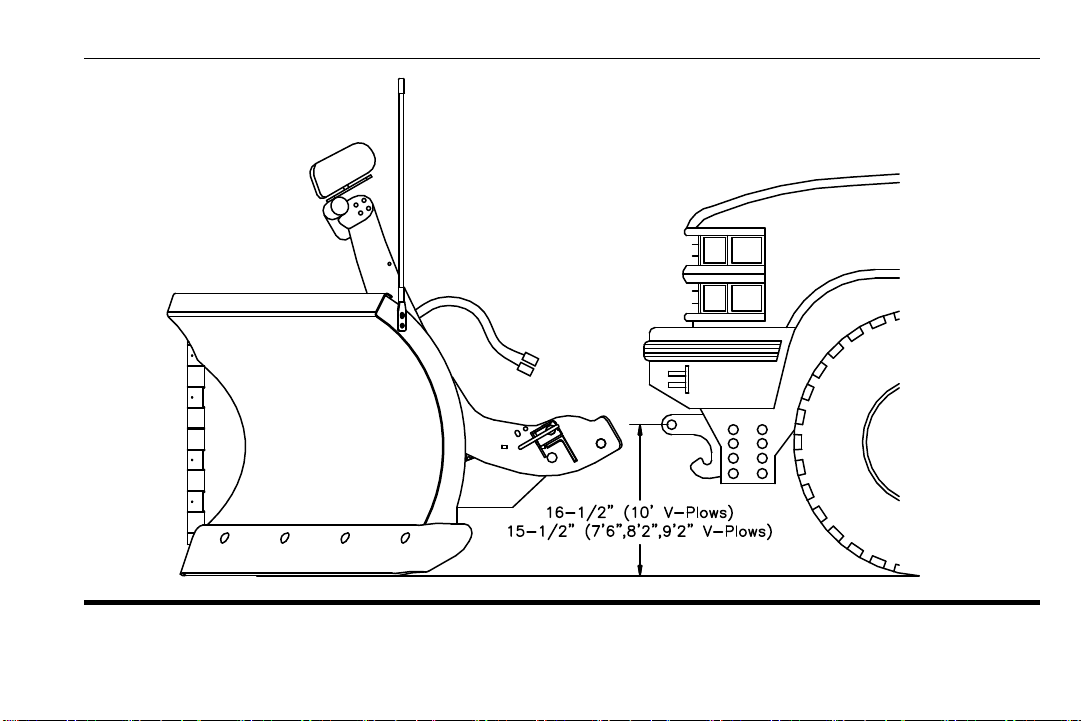

Figure 1. Recommended Power-V Push Beam Height G10364

Bumper Stop Adjustment / Coupler Spring Pin Caution
10

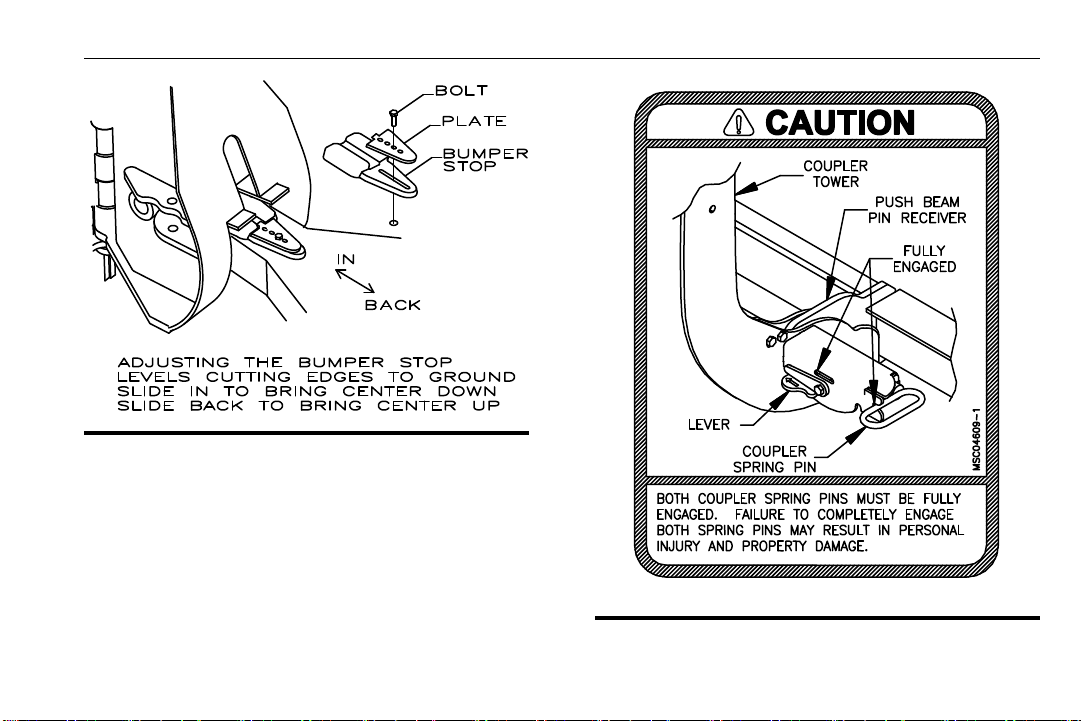

Figure 2. Bumper Stop Adjustment G10669
Figure 3. Spring Pin Caution G10366

Power-V Mounting Instructions
11

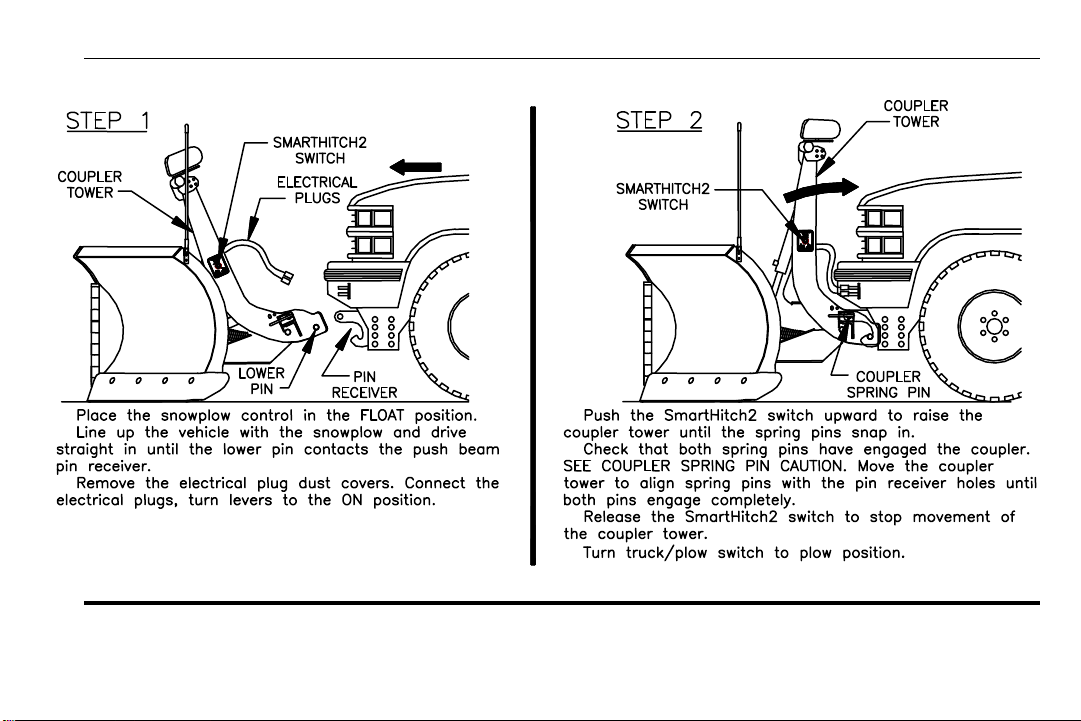

Figure 4. Snowplow Mounting Instructions G10349








Power-V Removal Instructions
12

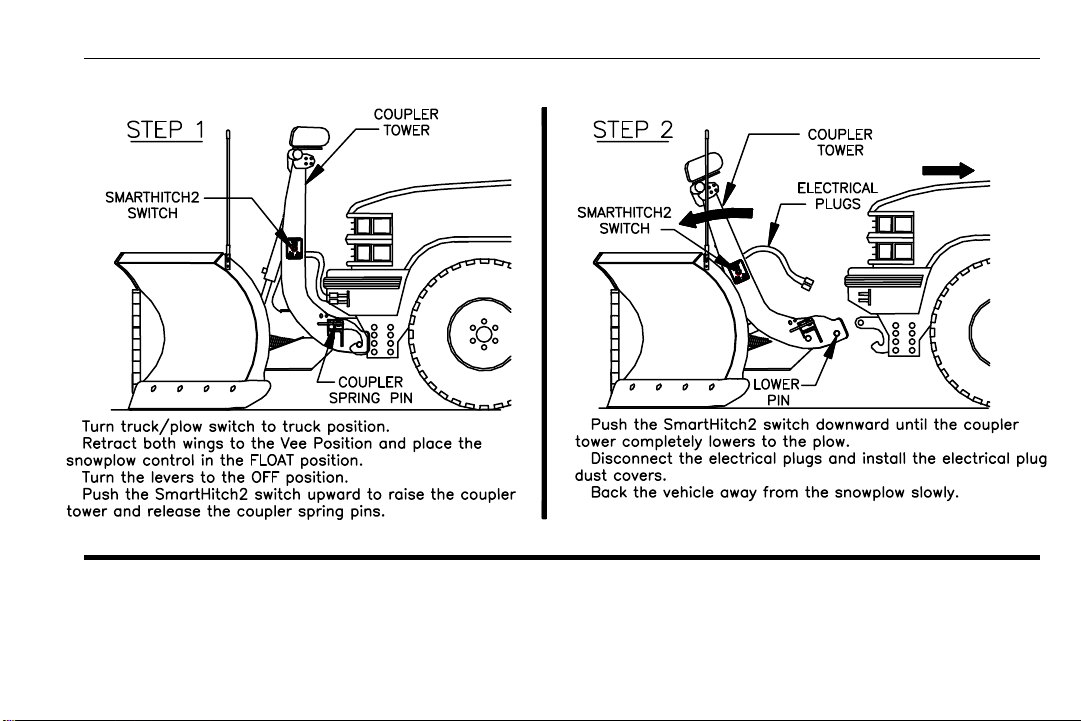

Figure 5. Snowplow Removal Instructions G10350








Power-V Controllers
13
Joystick Control Operating
Instructions

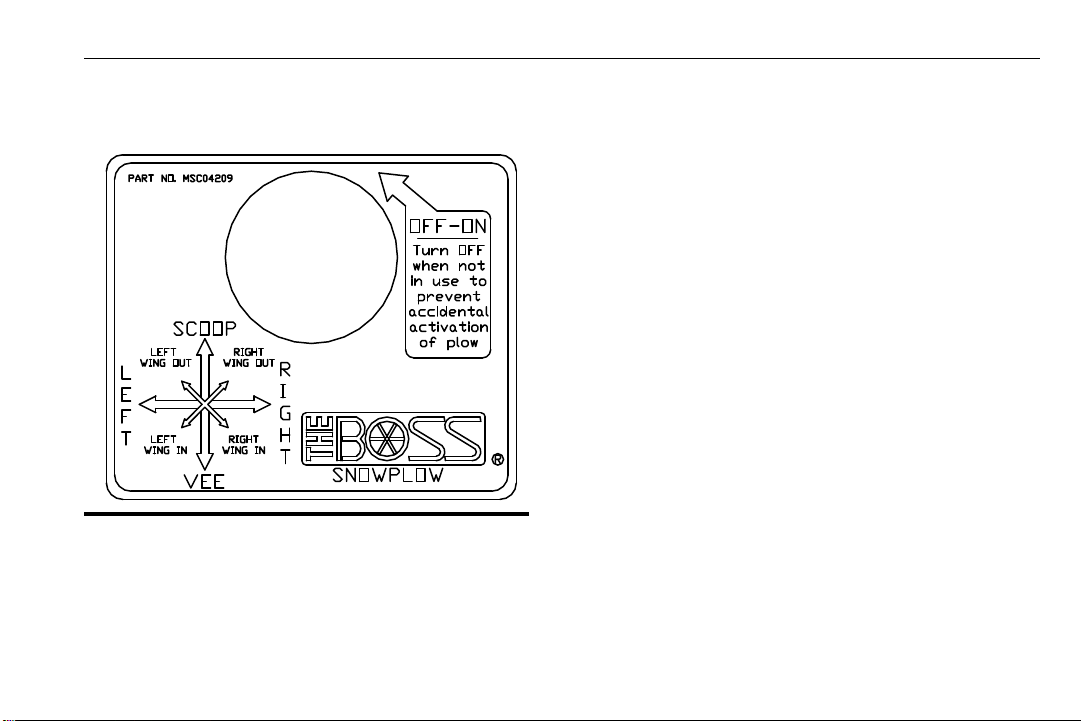

Figure 6. Power-V Control Operation G10157
1. Toggle the ON/OFF switch to the ON
position. A red indicator light will illuminate on
the switch. The joystick is now active.
2. To RAISE the blade of the plow, toggle the
switch on the joystick handle upward.
3. To LOWER the blade of the plow, toggle the
switch on the joystick handle downward.
4. To FLOAT the blade along the contour of the
plowing surface, toggle the switch on the
joystick handle downward until the switch
reaches the detent position. (You will feel the
switch click into the detent position.) The
switch will stay in the FLOAT position until
the switch is physically re-centered.
5. To move the RIGHT wing OUT, push the
controller stick diagonally to the right and
forward.
6. To move the LEFT wing OUT, push the
controller stick diagonally to the left and
forward.
7. To SCOOP (Both LEFT and RIGHT wings
OUT), push the controller stick directly
forward.

Power-V Controllers
14
8. To move the RIGHT wing IN, pull the
controller stick diagonally to the right and
backward.
9. To move the LEFT wing IN, pull the controller
stick diagonally to the left and backward.
10. To angle the entire blade LEFT (Right Wing
out –Left Wing In) push the controller stick
directly to the left.
11. To angle the entire blade RIGHT (Right Wing
in –Left Wing out) push the controller stick
directly to the right.
12. The control should be turned off when not in
use. It can then be unplugged and stored.
Note: The raise/lower button can be rotated for
right hand or left hand operation by pulling up on
the controller stick and rotating to the desired
position.

Power-V Controllers
15
JOYSTICK CONTROL
UNIVERSAL MOUNTING KIT MSC04026
Figure 7. Joystick Control Universal Mounting Kit Components G10109

Power-V Controllers
16
JOYSTICK CONTROL
UNIVERSAL MOUNTING KIT MSC04026
COMPONENTS
Reference Number
Description
Part Number
40A
Joystick, Intermediate Mounting Bracket
MSC04028
40B
Joystick, Mounting Bracket
MSC04029
40C
Joystick, Spring Clip
MSC04027
40D
Pad, Foam
MSC04038
Fastener Kit, Joystick
HDW05549
A
Screw, #8-32 X 1/4 Machine Black
B
Washer, #10 Flat Washer Black
C
Nut, #8-32 X 3/16 Alum Binding Post

Power-V Controllers
17
Control
Operating Instructions

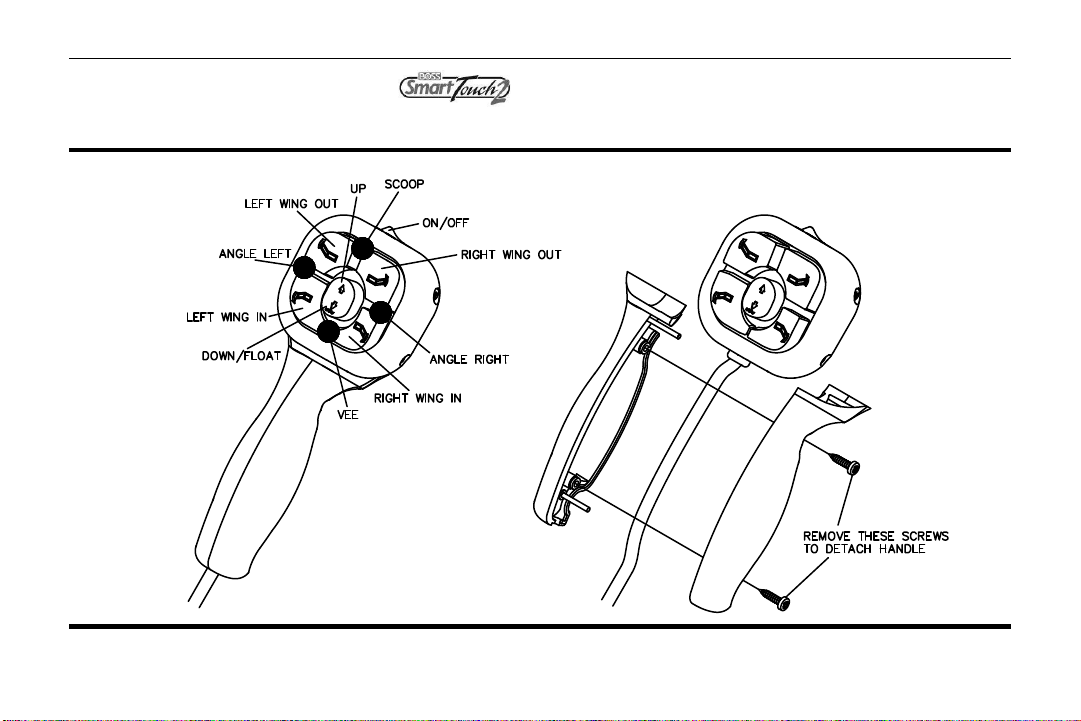

Figure 8. Power-V Control Instructions G10365

Power-V Controllers
18
ON/OFF: Push the ON/OFF switch to the left ON
position to turn the control on. Green LED indicators
will light up on the control. Push the ON/OFF switch
to the right OFF position to turn the control off.
RAISE: To raise the blade of the plow, quickly press
the center button upward twice. You can also press
and hold the center button upward until the blade is
fully raised.
LOWER: To lower the blade of the plow, quickly
push the center button downward twice. You can also
press and hold the center button downward until the
blade is fully lowered.
FLOAT: The plow will automatically activate the
FLOAT feature when the center button is quickly
pressed downward twice. (The center LED indicator
will turn RED). You can also press and hold the
center button downward for 2 seconds. (The center
LED indicator will turn RED). Press the raise button
to turn the FLOAT function off.
“What Is FLOAT?”: The FLOAT feature allows the
plow blade to follow the contour of the ground. Press
the raise button to turn FLOAT function off.
Note: The control MUST be in FLOAT to use
SmartHitch2TM to attach or detach the snowplow.
ANGLE LEFT: To plow snow to the left, press and
hold the left wing out and left wing in buttons
simultaneously until the blades are fully angled.
ANGLE RIGHT: To plow snow to the right, press
and hold the right wing out and right wing in buttons
simultaneously until the blades are fully angled.
VEE: To create the Vee shape with the plow blades,
press both the left wing in and right wing in buttons
simultaneously until the blades are fully retracted.
SCOOP: To create the Scoop shape with the plow,
press both the left wing out and right wing out buttons
simultaneously until the blades are fully extended.
Note: The control should be turned off when not in
use. It can then be unplugged and stored.
SLEEP mode: If the controller is ON but not used for
20 minutes, the automatic SLEEP mode will be
activated. The controller LED lights will flash green
and red when the controller is in SLEEP mode. Turn
the controller OFF to deactivate SLEEP mode.

Power-V Controllers
19
Control
Swivel Mount Kit
Mounting Instructions

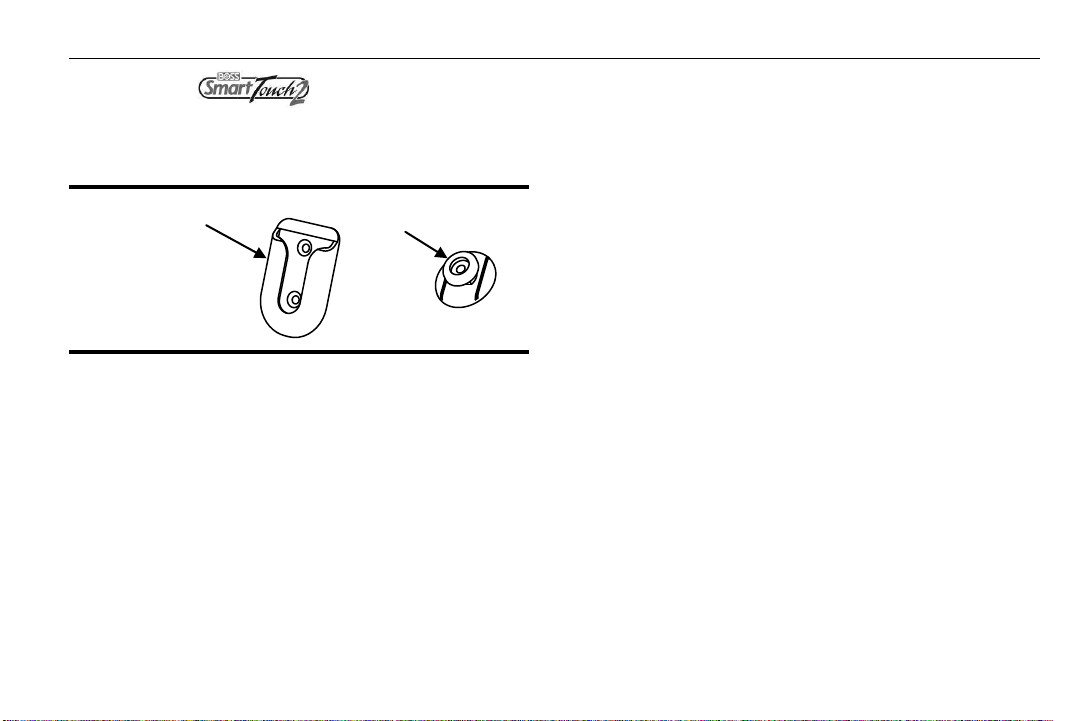

Figure 9. SmartTouch2TM Mounting Hardware G10311
1. Remove the Swivel Mount and Tab from the
MSC05058 Swivel Mount Kit.
2. Use the enclosed alcohol wipe to clean a spot
on the vehicle interior where you want to place
the SmartTouch2TM Control. Wipe dry
immediately with a cloth or paper towel.
3. Do not apply when the surface temperatures
are lower than +60˚F (Working temperature
range of the adhesive is -40˚F to +200˚F).
4. Peel off the paper backing on one side of the
adhesive and apply to Swivel Mount. Apply
maximum pressure to all areas.
5. Apply the Swivel Mount onto the spot of the
interior that was just cleaned. (MAKE SURE
IT IS IN THE CORRECT PLACE) Once it is
placed it cannot be removed without
destroying the adhesive.
6. Clean the back of the SmartTouch2TM Control
with the alcohol wipe.
7. Peel off adhesive backing of tape, apply to
Tab, and press firmly.
8. Remove remaining backing and apply the
Tab to the back of the SmartTouch2TM
Control. Apply pressure for 30 seconds.
SWIVEL
TAB

Power-V Controllers
20
NOTICE
After attaching the Swivel Mount, let it sit
unused for 72 hours before attaching the
SmartTouch2TM Control to allow the adhesive
to bond to the surface and insure secure
mounting.
9. Place SmartTouch2TM Control on the Swivel
Mount.
Note: Other mounting options are available. See
the Power-V Optional Equipment & Accessories
Section of this manual. Contact your BOSS
Snowplow dealer for more information.

Power-V Maintenance
21
Your BOSS PLOW is designed for heavy-duty, rugged service with minimal maintenance. To ensure that it
gives you the same high performance year after year, please use it properly and observe the following
maintenance precautions.
Inspect the following on a regular basis:
1. All fasteners, pins, retainers, nuts and bolts for tightness. See Recommended Bolt Torque located in this manual.
2. All hydraulic lines and connections for wear and leakage.
3. Hydraulic cylinders for leakage, rods for rust or pitting.
4. Cutting edge wear.
5. Plow shoe wear (If installed).
6. Hydraulic oil level (CAUTION: DO NOT OVERFILL). Fill using BOSS Snowplow High Performance
Hydraulic Fluid or equivalent. See Hydraulic Power Unit Fill Procedure located in this manual.
7. Control Harness and Power/Ground Cable Connectors for corrosion. Apply dielectric grease at least
once a month during the plow season.
8. Apply grease to coupler spring pins.
