Introduction
Wheneveryouneedservice,genuineBOSSparts,or
additionalinformation,contactanAuthorizedService
DealerorBOSSCustomerServiceandhavethe
modelandserialnumbersofyourproductready.
Writethenumbersinthespaceprovided.
Date
Purchased
ModelNo.
SerialNo.
BladeCrate
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafety-alertsymbol
(Figure1),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.
g000502
Figure1
1.Safety-alertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Contents
Safety.......................................................................3
Preparation.........................................................3
Operation............................................................3
SafetyandInstructionalDecals..........................3
Setup........................................................................4
InstallingtheTripStopsandUrethane
Blade...............................................................4
InstallingthePushFrame...................................4
MountingthePlow..............................................5
ProductOverview.....................................................7
Controls.............................................................7
Operation..................................................................7
MountingthePlow..............................................7
RemovingthePlow.............................................7
OperatingTips...................................................8
Maintenance.............................................................9
RecommendedMaintenanceSchedule(s).............9
...........................................................................9
Maintenance..........................................................9
FlippingorReplacingtheCuttingEdge...............9
Storage...................................................................10
StoringthePlow...............................................10
RemovingthePlowfromStorage......................10
Troubleshooting.......................................................11
Schematics.............................................................12
©2020—BOSSProducts
P .O.Box787
IronMountain,MI498012
Contactusatwww.bossplow.com.
PrintedintheUSA
AllRightsReserved

Safety
Improperuseormaintenancebytheoperatoror
ownercanresultininjury.Toreducethepotential
forinjury,complywiththesesafetyinstructions
andalwayspayattentiontothesafety-alert
symbol,whichmeans:Caution,Warning,or
Danger—personalsafetyinstruction.Failureto
complywiththeinstructionmayresultinpersonal
injuryordeath.
Preparation
•ReadtheOwner’sManualbeforeoperatingor
servicingtheplow.
•Ensurethatonlytrainedpersonnelinstalland
performmaintenanceontheequipment.
•Keepyourhands,feet,andclothingawayfrom
movingpartsandmountingpoints.
•Ensuretheplowisproperlyattachedtothe
machinebeforemovingit.
Operation
•Whentransportingthemachine,positiontheplow
soasnottoblockyourvision.
•Donotchangethebladepositionwhentraveling.
•Alwayslowerthebladewhenthemachineisnot
inuse.
•Neverputanypartofyourbodybetweentheplow
andthemachine.
•Donotoperatethemachinewhileill,tired,or
undertheinuenceofalcoholordrugs.
•Donotusetheplowforanypurposeotherthan
plowingsnow.
•Neverrideorliftpersonsontheplow.
•Donotoperatetheplowonasteepincline.
•Alwayskeepbothhandsonthehandlebarswhile
operatingthemachineandplow.
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decalmsc23037
MSC23037
1.Warning—readtheOwner’sManual.5.Warning—shutofftheengine,removethekey,andreadthe
Owner’sManualbeforeperformingmaintenance.
2.Warning—alloperatorsshouldbetrainedbeforeoperating
themachine.
6.Crushinghazard—donotstandbetweentheplowandvehicle
duringmaintenance.
3.Warning—couplermustbelockedbeforeplowing.7.Warning—donotexceed8km/h(5mph)whenplowing.
4.Warning—couplermustbeunlockedtoremovetheplow.8.Warning—lowertheplowwhenthevehicleisnotinuse.
3

Setup
InstallingtheTripStops
andUrethaneBlade
1.Attachthetripstopstothebladeusing2
hex-headbolts(5/8–11x3inches)and2nylon
locknuts(5/8–11x3inches)asshowninFigure
2.
Important:Donotovertightentheboltsand
nuts;ensurethatthetripstopscanpivot
freely.
g334229
Figure2
1.Bolt(5/8–11x3inches)3.Nylonlocknut(5/8–11x3
inches)
2.Tripstop
2.Removeanddiscardthebolts,washers,and
nutssecuringthesteelcuttingedgetothe
bottomoftheplow.Discardthecuttingedge.

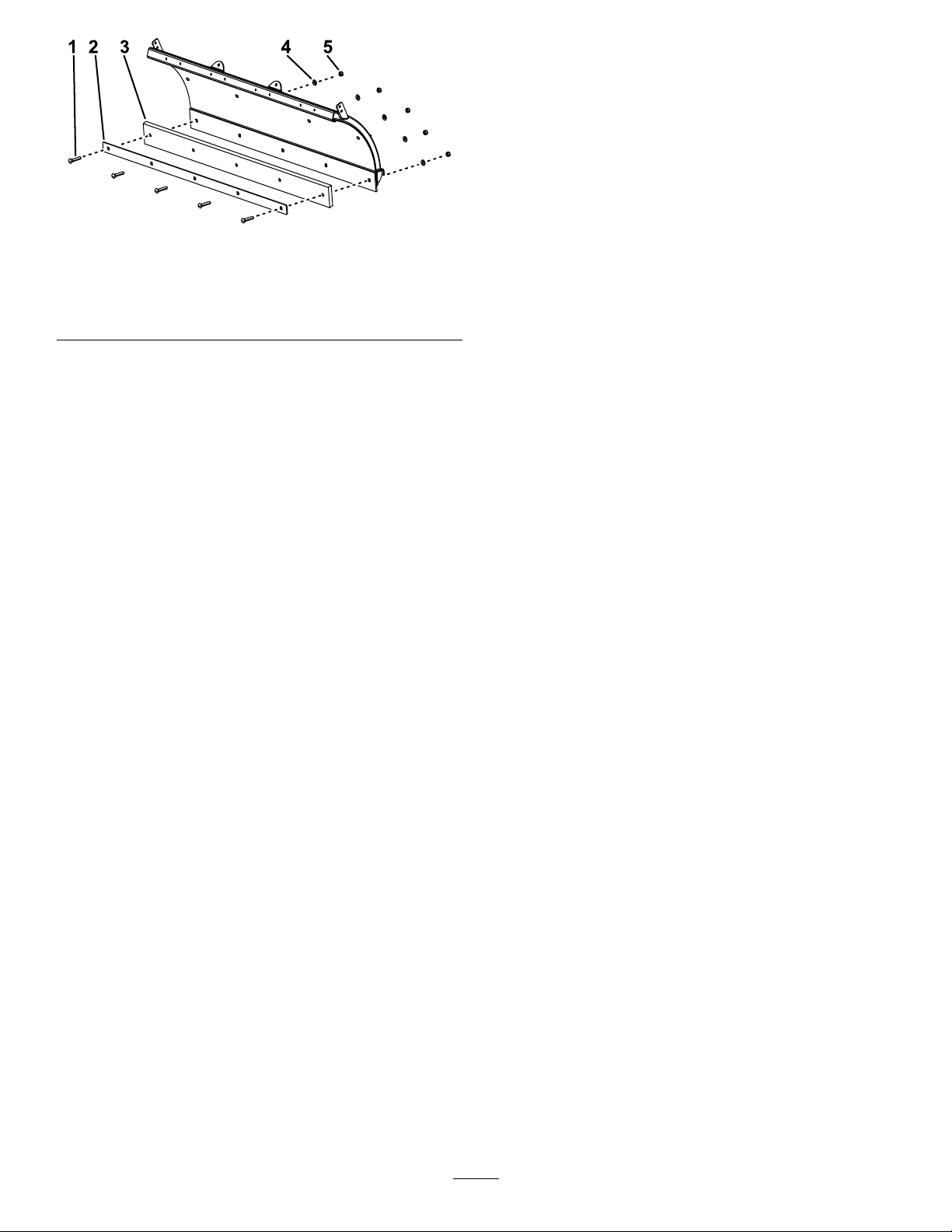

3.Securethemetalstrapandurethanebladetothe
plowusing5carriagebolts(1/2inch),5washers
(1/2inch),and5toplocknuts(Figure3).
Note:Donottightentheboltsandlocknutsat
thistime.
g334230
Figure3
1.Carriagebolt(1/2inch)4.Washer(1/2inch)
2.Metalstrap5.Toplocknut
3.Urethaneblade
4.Slidetheurethanebladesothatitisushwith
thesidesoftheplow.
5.Tightentheboltsuntiltherubberbeginsto
squish.
InstallingthePushFrame
1.Attachthepushframetotheplowusing2bolts
(5/8–11x3-1/2inches)and2nylonlocknuts
(5/8inch)asshowninFigure4.
Important:Donotovertightentheboltsand
nuts;ensurethatthepushframecanpivot
freely.
g334231
Figure4
1.Bolt(5/8–11x3-1/2
inches)
3.Nylonlocknut(5/8inch)
2.Pushframe
4

2.Hookthe2tripspringsthroughtheholesonthe
pushframe(Figure5).
g334232
Figure5
1.Eyebolt3.Nylonlocknut(1/2inch)
2.Washer(1/2inch)4.Tripspring
3.Hooktheotherendsofthetripspringsto2
eyebolts(Figure5).
4.Insertthethreadedendoftheeyeboltsthrough
theholesontheplowbladeandsecurethem
using2washers(1/2inch)and2nylonlocknuts
(Figure5).
5.Tightenthenylonlocknutsuntilthereisagapof
0.8mm(1/32inch)betweenthetripspringcoils.
6.Looselyattachthepinchanneltothepush
frameusing4bolts(3/8inch),8washers(3/8
inch),and4nylonlocknuts(3/8inch)asshown
inFigure6.
Note:Donottightentheboltsandnuts.
g037038
Figure6
1.Pinchannel3.Washers(3/8inch)
2.Bolt(3/8inch)4.Nylonlocknut(3/8inch)
MountingthePlow
Note:YoumustrstinstalltheGrandstandLowFlow
HydraulicandQuickAttachkitsbeforemountingthe
plow.
1.Ensurethattheplowissittingupright,withthe
kickstandlowered(Figure7).
g334233
Figure7
1.Plowcoupler3.Couplerpin
2.A-framecoupler
2.LowertheA-frameonthemachinecompletely;
refertoControls(page7).
3.SlowlydriveforwarduntiltheA-framecoupler
contactstheplowcoupler(Figure7).
4.RaisetheA-frameuntilthecouplerpinlocksinto
place(Figure8).
Note:Ensurethatthecouplerpinalsoinserts
throughtheholeinthepinchannelontheplow
coupler(Figure8).
g244392
Figure8
1.Pinchannel3.Quickdisconnects
2.Couplerpin
5

5.Movingbackandforthbetweenbolts,secure
thepinchannelinplacebytorquingtheboltsto
42N∙m(31ft-lb).
Note:Ensurethatthepinslideseasilyinand
out.
6.LowertheA-frameuntiltheplowrestsonthe
ground.
7.Shutoffthemachineengine,waitforallmoving
partstostop,engagetheparkingbrake,and
removethekey.
8.Connecttheangle-cylinderhydraulichosesto
thequickdisconnectsonthemachine(Figure8).
9.Raisethekickstand.
10.Startthemachine.
11.Usethecontrolstomovetheplowinall
directionstocyclethehydraulicuid.
Note:Ifthebladehosescontacttheplow
frame,adjustthe90°ttingsupward.
12.Withthehydrauliccylinderfullyextended,shut
offtheengineandwaitforallmovingpartsto
stop.
13.Cleantheareaaroundthecapandthellerneck
ofthehydraulictank(Figure9).
g031401
Figure9
1.Hydraulic-tankcap2.Filllevel
14.Removethecapfromthellerneck,andadd
uidtothereservoiruntilitreachesthelllevel
(Figure9).
Important:DonotusestandardBOSS
hydraulicuidinthissystem.Refertoyour
GrandstandMultiForceOperator’sManual
fortheappropriatehydraulicuid.
Note:Theuidlevelshouldbeatthefullmark
withtheliftcylinderfullyextended.
15.Installthecaponthellerneck.
16.Repeatsteps11through15untilallofthe
hydrauliccylindersextendandretractsmoothly.
Note:Ifthehydrauliccylindersdonotextend
andretractsmoothly,thereisstillairinthe
hydrauliclines.
WARNING
Hydraulicuidescapingunderpressure
canpenetrateskinandcauseinjury.
•Ifhydraulicuidisinjectedintothe
skin,itmustbesurgicallyremoved
withinafewhoursbyadoctorfamiliar
withthistypeofinjury.Gangrenemay
resultifthisisnotdone.
•Keepyourbodyandhandsawayfrom
pinholeleaksornozzlesthateject
high-pressurehydraulicuid.
•Usecardboardorpapertond
hydraulicleaks.
•Safelyrelieveallpressureinthe
hydraulicsystembeforeperforming
anyworkonthehydraulicsystem.
•Makesurethatallhydraulic-uid
hosesareingoodcondition,and
allthatthehydraulicconnections
andttingsaretightbeforeapplying
pressuretothehydraulicsystem.
6

ProductOverview
Controls
g037041
Figure10
1.A-frameswitch2.Angleswitch
•Movetheleftswitchupordowntoraiseorlower
theplow.
•Movetherightswitchleftorrighttoangletheplow.
Kickstand
g037042
Figure11
1.Kickstandspringpin
Thekickstandkeepstheplowuprightforeaseof
mountingandstorage.T oraiseorlowerthekickstand,
pullthekickstandspringpinandmovethekickstand
tothedesiredposition.Releasethespringpintolock
thekickstandinplace.
Operation
MountingthePlow
Note:YoumustrstinstalltheGrandstandLowFlow
HydraulicandQuickAttachkitsbeforemountingthe
plow.
1.Ensurethattheplowissittingupright,withthe
kickstandlowered(Figure12).
g334233
Figure12
1.Plowcoupler3.Couplerpin
2.A-framecoupler
2.LowertheA-frameonthemachinecompletely;
refertoControls(page7).
3.SlowlydriveforwarduntiltheA-framecoupler
contactstheplowcoupler(Figure12).
4.RaisetheA-frameuntilthecouplerpinlocksinto
place(Figure12).
5.LowertheA-frameuntiltheplowrestsonthe
ground.
6.Shutoffthemachineengine,waitforallmoving
partstostop,engagetheparkingbrake,and
removethekey.
7.Connecttheangle-cylinderhydraulichosesto
thequickdisconnectsonthemachine(Figure
12).
8.Raisethekickstand.
9.Startthemachineandusethecontrolstomove
theplowinalldirectionstoensurethattheplow
isfunctioningnormally.
RemovingthePlow
1.Parkthemachineonalevelsurface,shutoffthe
engine,waitforallmovingpartstostop,engage
theparkingbrake,andremovethekey.
7

2.Disconnecttheangle-cylinderhydraulichoses
fromthequickdisconnectandattachthemto
eachother(Figure13).
g037043
Figure13
1.Plowhoses3.Quickdisconnects
2.Couplerpin
3.Pullthecouplerpintoreleasethecouplers
(Figure13).
4.Startthemachineandraisetheplowuntilthe
kickstandcanbeloweredalltheway.
5.Lowerthekickstand;refertoKickstand(page7).
6.LowertheA-frameuntilthecouplersdisconnect.
7.Slowlybackawayfromtheplow.
OperatingTips
•Becomefamiliarwiththeareayouareplowing;
hiddenobstructionssuchascurbsandpipescan
damageyourplowormachine.
•Donotletsnowaccumulate;alwaysplowwiththe
storm.
•Lowertheplowwhennotinusetopreventpossible
injury.
•Alwaysplowatasafespeedincaseyouhithidden
obstructions.
•Whentransportingthemachine,donotblockyour
visionwiththeplow.
•Donotchangetheplowpositionwhileplowing.
•Ensurethatthekickstandisraisedbeforeplowing
topreventdamagetotheplowormachine.
•Formoreplowingtips,visitwww.bossplow.com.
8

Maintenance
RecommendedMaintenanceSchedule(s)
MaintenanceService
IntervalMaintenanceProcedure
Aftertherst2hours•Tightenallhardware.
Beforeeachuseordaily
•Checkthehydrauliccylinders.
•Checkthehydrauliclinesandhoses.
•Checkthehydraulic-uidlevel;refertoyourGrandstandMultiForceOperator’s
Manual.
•Checkthewireharnessconnectors.
•Allfasteners,pins,retainers,nuts,andbolts.
•Checkthecuttingedgeforwear.
Beforestorage•Greasethehydrauliccylinderrods.
Monthly•Applydielectricgreasetothewireharnessconnectors(duringplowingseason).
Yearly•Replacethehydraulicuid;refertoyourGrandstandMultiForceOperator’sManual.
Maintenance
•Checkthehydrauliclinesandhosesdailyfor
leaks,kinkedlines,loosemountingsupports,wear,
loosettings,weatherdeterioration,andchemical
deterioration.Makeallnecessaryrepairsbefore
operating.
•Checkthehydrauliccylindersdailyforleaks,rust,
orpittingontherods.Makeallnecessaryrepairs
beforeoperating.
•Checkthewireharnessconnectorsdailyfor
corrosionanddamage.
•Applydielectricgreasetothewireharness
connectorsmonthly,duringplowingseason.
•Checkthecuttingedgedailyforwear.Ifthecutting
edgeisworndowneitheriporreplaceit;referto
FlippingorReplacingtheCuttingEdge(page9).
•Checkallfasteners,pins,retainers,nuts,andbolts
dailytoensurethattheyaresecure.Torquethem
totheappropriatevalueiftheyareloose.
FlippingorReplacingthe
CuttingEdge
Theurethanecuttingedgewearsdownovertime,but
canbeippedforextendeduse.Oncethecutting
edgehasbeenworndownpastthelogo,itmustbe
ipped(Figure14).Ifthecuttingedgehasalready
beenipped,replacethecuttingedge;contactan
authorizedBOSSdealerformoreinformation.
g037044
Figure14
1.Wearline
1.Removethebolts,washers,toplocknuts,and
metalstrapsecuringtheurethanecuttingedge
tothebottomoftheplow.
2.Flipthecuttingedgeover.
Note:Ifthecuttingedgehasalreadybeen
ipped,discarditanduseanewedge.
3.Securethemetalstrapandcuttingbladetothe
plowusingthepreviouslyremovedhardware
(Figure15).
Note:Donottightentheboltsandlocknutsat
thistime.
9

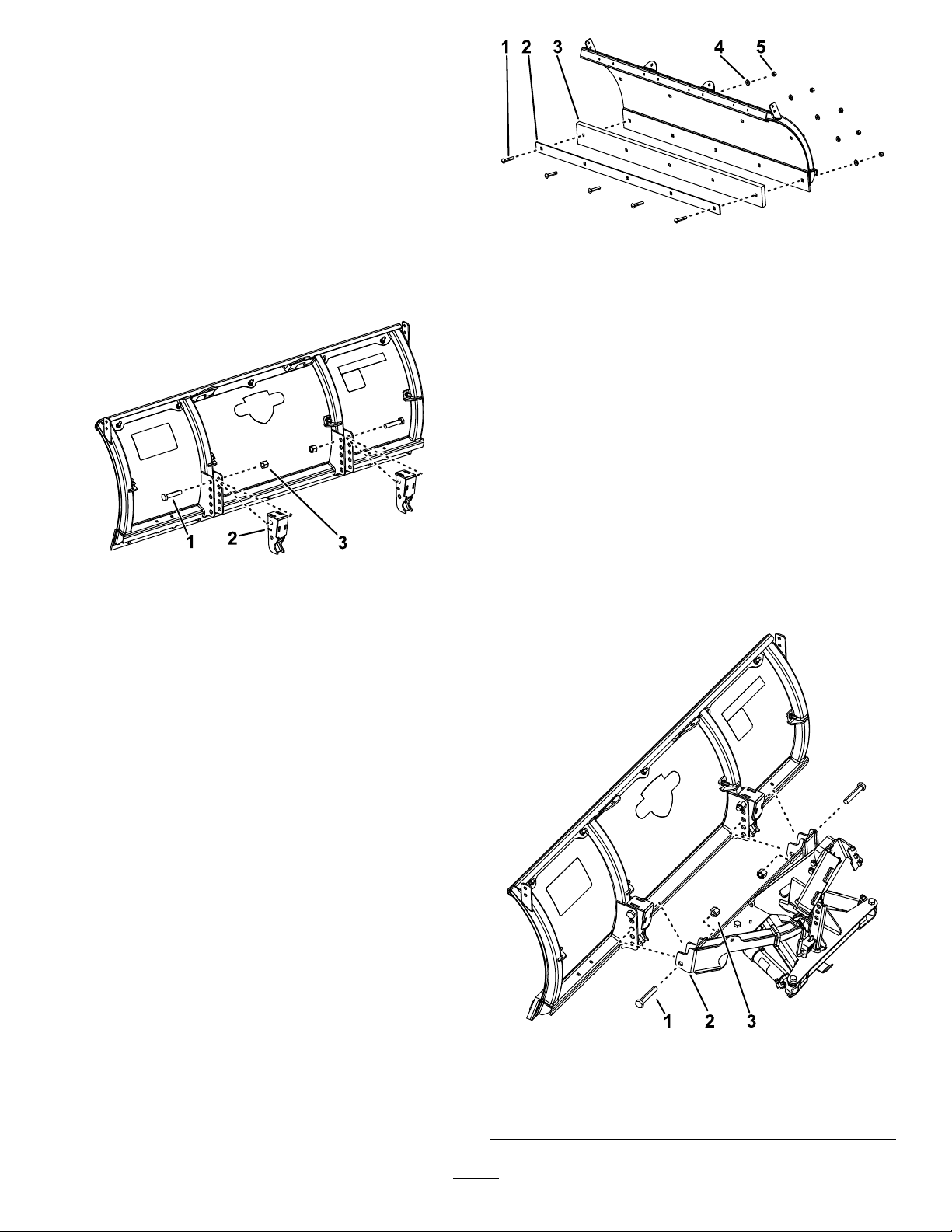

g334230
Figure15
1.Carriagebolt(1/2inch)4.Washer(1/2inch)
2.Metalstrap5.Toplocknut
3.Urethaneblade
4.Slidethecuttingbladesothatitisushwiththe
sidesoftheplow.
5.Tightentheboltsuntiltherubberbeginsto
squish.
Storage
StoringthePlow
1.Drivetheplowtoyourstoragelocationand
removetheplow;refertoRemovingthePlow
(page7).
2.Greaseanyexposedmetalonthehydraulic
cylinders.
3.Lightlysandandusetouch-uppaintonpainted
areasthatarescratched,chipped,orrusted.
4.Loosenthetripsprings.
RemovingthePlowfrom
Storage
1.Checkthetorqueofallfasteners,pins,retainers,
nuts,andbolts;tightenasnecessary.
2.Checkthehydrauliclinesandhosesforcracks
orleaks.
3.Checkthehydraulicuidlevel;refertoyour
GrandstandMultiForceOperator’sManual.
4.Checkthecuttingedgeforwear.
5.Tightenthetripsprings.
6.Lightlysandandusetouch-uppaintonpainted
areasthatarescratched,chipped,orrusted.
7.Attachtheplowtothemachine;referto
MountingthePlow(page7).
8.Movetheplowthroughitsrangeofmotionto
checkthehydrauliccylinderrods.
10

Troubleshooting
ProblemPossibleCauseCorrectiveAction
1.Thehydraulicmanifoldwiresarenot
connectedproperly.
1.Checkthewiresonthehydraulic
manifold;refertothehydraulic
manifoldschematic.
2.ThehydraulicvalveorLOWERcoilis
bad.
2.Whileloweringtheplow,checkfor
voltagebetweenthewhiteandbrown
wiresfortheLOWERcoil.Ifvoltage
ispresent,replacetheLOWERcoilor
valve.
Theplowdoesnotlower.
3.Thewireharnessisbad.3.Whileloweringtheplow,checkfor
voltagebetweenthewhitewireson
theconnectorsbetweenthecontroller
andwireharness.Ifvoltageispresent,
repairorreplacethewireharness.
1.Thehydraulicmanifoldwiresarenot
connectedproperly.
1.Checkthewiresonthehydraulic
manifold;refertothehydraulic
manifoldschematic.
2.ThehydraulicvalveorRAISEcoilis
bad.
2.Whileraisingtheplow,checkfor
voltagebetweentheorangeandbrown
wiresfortheRAISEcoil.Ifvoltage
ispresent,replacetheRAISEcoilor
valve.
Theplowdoesnotraise.
3.Thewireharnessisbad.3.Whileraisingtheplow,checkfor
voltagebetweentheorangewireson
theconnectorsbetweenthecontroller
andwireharness.Ifvoltageispresent,
repairorreplacethewireharness.
1.TheANGLELEFTorANGLERIGHTvalve
isbad.
1.Checkthevalvesonthehydraulic
manifold.Ifavalveiscontaminated,
cleanorreplaceit.
Theplowangleswhileplowing.
2.Thepressurereliefvalveisbad.2.Checkthepressurereliefvalve.Ifthe
valveiscontaminated,cleanorreplace
it.
1.Thehydraulicuidlevelislow.1.Checkthehydraulicuidlevel;refer
toyourGrandstandMultiForce
Operator’sManual.
2.Thehydraulicmanifoldwiresarenot
connectedproperly.
2.Checkthewiresonthehydraulic
manifold;refertothehydraulic
manifoldschematic.
Theplowdoesnotangleoranglesslowly.
3.TheANGLELEFTorANGLERIGHTvalve
isbad.
3.Checkthevalvesonthehydraulic
manifold.Ifavalveiscontaminated,
cleanorreplaceit.
1.Thehoseisbad.1.Checkthehoseforleaks.Applythread
lockingcompoundtotheconnectionor
replacethehose.
2.Thecylinderisbad.2.Replacethecylinder.
Oilleaksfromthehydrauliccylinders.
3.Thecylinderrodispitted.3.Polishtherodwithsteelwool.
11

Schematics
g037075
ElectricalSchematic(Rev.0)
12

g037128

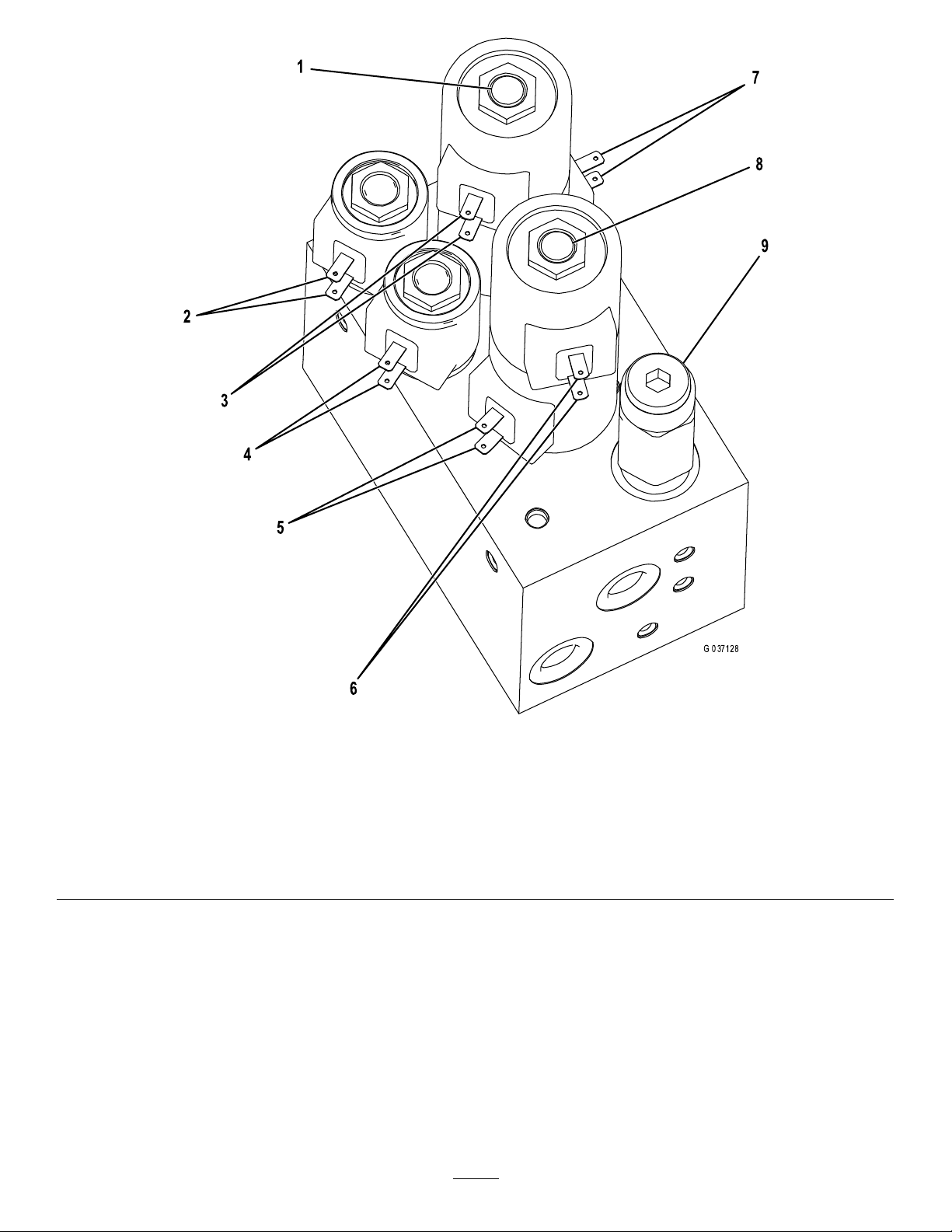

1.RAISE/LOWERvalve6.Anglerightcoil(red)
2.Floatcoil(blue)7.Raisecoil(orangewire)
3.Lowercoil(white)8.ANGLERIGHT/LEFTvalve
4.Floatcoil(redandblack)9.Pressurereliefvalve
5.Angleleftcoil(green)
HydraulicManifold(Rev.0)
13

Notes:

BOSSProducts
CommercialWarranty
Whatthiswarrantycovers:
Thiswarrantycoversdefectsinmaterialandworkmanshipexceptassetforthbelow.
Whoiscovered:
Theoriginalpurchaserfromanauthorizeddealer.
Forhowlong:
CompleteProduct:2yearsfromthedateofpurchase.
Labor:2yearsfromthedateofpurchaseforcompleteproduct.
Parts:1yearfromthedateofpurchase.(noLabor)
WhatBOSSProductswilldo:
BOSSProductswill,atitssoleoption,repairorreplacedefectivepartsatnocharge.
Whatyoumustdoforwarrantyservice:
Toobtainwarrantyservice,purchasermustreturnthedefectiveproducttoanyauthorizedBOSSProductsdealer(preferablytheonefromwhomthe
productwaspurchased)withinthewarrantyperiod.Purchasermustbeabletoverifytheoriginalpurchasedate.Alltransportationcoststoandfromthe
dealerwillbetheresponsibilityofthepurchaser.T olocatetheauthorizedBOSSdealernearesttoyou,calltollfree:[phone].
Whatisnotcovered:
1.Expendablepartssuchashoses,plowshoes,cuttingedges,pins,nuts,bolts,bladeguides,etc.
2.ProductsrepairedoralteredbyanyoneotherthananauthorizedBOSSProductsdealer.
3.Productswhichhavebeensubjecttomisuse,negligence,accident,improperinstallation,maintenance,care,orstorage.
4.ProductsmountedonvehiclesotherthanthoselistedintheBOSSSnowplowApplicationChartandSelectionGuide.
5.BOSSProductsdoesnotassumeliabilityfordamagetoyourmotorvehicleresultingfromtheattachmentoruseofanyBOSSproducts.Vehiclerisk
isthesoleresponsibilityofthepurchaser.
LimitsofBOSSProductsLiabilityare:
BOSSProducts’liabilityisexpresslylimitedtorepairorreplacementofdefectiveparts.BOSSProductsshallnotbeliableforconsequential,
incidental,orcontingentdamageswhatsoever,evenifdamagesarecausedbythenegligenceorfaultofBOSSProducts.Theforegoing
warrantiesareexclusiveandinlieuofallotherexpressandimpliedwarrantiesincluding,butnotlimitedto,theimpliedwarrantiesof
merchantabilityandtnessforaparticularpurpose.
Thiswarrantydoesnotapplyifyoupurchasedyourproductforpersonal,family,orhouseholduse.Inthiscase,refertotheBOSSProductsLimited
ConsumerWarranty.
BOSSProductsisadivisionof
TheT oro®Company
P .O.Box7872010TheBOSSWay
IronMountain,MI49801
RevA

BOSSProducts
ConsumerWarranty
Whatthiswarrantycovers:
Thiswarrantycoversdefectsinmaterialandworkmanshipexceptassetforthbelow.
Whoiscovered:
TheoriginalretailpurchaserofaBOSSproductwhopurchasesitforpersonal,family,orhouseholduse.
Forhowlong:
CompleteProduct:2yearsfromthedateofpurchase.
Labor:2yearsfromthedateofpurchaseforcompleteproduct.
Parts:1yearfromthedateofpurchase.(noLabor)
WhatBOSSProductswilldo:
BOSSProductswill,atitssoleoption,repairorreplacedefectivepartsatnocharge.
Whatyoumustdoforwarrantyservice:
Toobtainwarrantyservice,purchasermustreturnthedefectiveproducttoanyauthorizedBOSSProductsdealer(preferablytheonefromwhomthe
productwaspurchased)withinthewarrantyperiod.Purchasermustbeabletoverifytheoriginalpurchasedate.Alltransportationcoststoandfromthe
dealerwillbetheresponsibilityofthepurchaser.T olocatetheauthorizedBOSSdealernearesttoyou,calltollfree:[phone].
Whatisnotcovered:
1.Expendablepartssuchashoses,plowshoes,cuttingedges,pins,nuts,bolts,bladeguides,etc.
2.ProductsrepairedoralteredbyanyoneotherthananauthorizedBOSSProductsdealer.
3.Productswhichhavebeensubjecttomisuse,negligence,accident,improperinstallation,maintenance,care,orstorage.
4.ProductsmountedonvehiclesotherthanthoselistedintheBOSSSnowplowApplicationChartandSelectionGuide.
5.BOSSProductsdoesnotassumeliabilityfordamagetoyourmotorvehicleresultingfromtheattachmentoruseofanyBOSSproducts.Vehiclerisk
isthesoleresponsibilityofthepurchaser.
LimitsofBOSSProductsLiabilityare:
BOSSProducts’liabilityisexpresslylimitedtorepairorreplacementofdefectiveparts.BOSSProductsshallnotbeliableforconsequential,
incidental,orcontingentdamageswhatsoever,evenifdamagesarecausedbythenegligenceorfaultofBOSSProducts.Theforegoing
warrantiesareexclusiveandinlieuofallotherexpressandimpliedwarrantiesincluding,butnotlimitedto,theimpliedwarrantiesof
merchantabilityandtnessforaparticularpurpose.
Statelaws:
Somestatesdonotallowexclusionofincidentalorconsequentialdamagesorthelimitationsonhowlonganimpliedwarrantylasts,sotheselimitationsor
exclusionsmaynotapplytoyou.Thiswarrantygivesyouspeciclegalrightsandyoumayalsohavetheotherrightswhichvaryfromstatetostate.
Thiswarrantydoesnotapplyifyoupurchasedyourproductforpersonal,family,orhouseholduse.Inthiscase,refertotheBOSSProductsLimited
ConsumerWarranty.
BOSSProductsisadivisionof
TheT oro®Company
P .O.Box7872010TheBOSSWay
IronMountain,MI49801
RevA
