Boston Acoustics Horizon HS 225 User manual

OWNER’S MANUAL / SAFETY INSTRUCTIONS / COMPLIANCE INFORMATION
Boston Horizon Speakers
HS 40 HS 50 HS 60
HS 225 HS 450 HS 460
A Boston P.O.P. Product Make it your own...

2
Specications HS 40 HS 50 HS 60
Frequency Range: 86Hz – 25kHz 65Hz – 25kHz 56Hz – 25 kHz
Recommended Amplier 10 – 100 watts 10 – 125 watts 10 – 150 watts
Sensitivity: 89dB [2.8v at 1m] 89dB [2.8v at 1m] 89dB [2.8v at 1m]
Nominal Impedance: 8 ohms 8 ohms 8 ohms
Crossover Frequency: 2,400Hz 2,400Hz 2,400Hz
Woofer: 41/2” (114mm) copolymer 51/4” (133mm) copolymer 61/2” (165mm) copolymer
DCD with Phase Plugs DCD with Phase Plugs DCD with Phase Plugs
and MagnaGuard® and MagnaGuard and MagnaGuard
Tweeter: 1” (25mm) Kortec® 1” (25mm) Kortec 1” (25mm) Kortec
Soft Dome Soft Dome Soft Dome
Dimensions (H x W x D): 87/8x 61/2x 515/16” 111/16 x 81/8x 73/8” 1311/16 x 10 x 91/16”
(224 x 164 x 151mm) (281 x 205 x 187mm) (347 x 254 x 230mm)
Weight: 41/2lbs (2kg) 61/2lbs (2.9kg) 91/4lbs (4.2kg)
HS 225 HS 450 HS 460
Frequency Range: 80Hz – 25kHz 46Hz – 25kHz 46Hz – 25kHz
Recommended Amplier: 15 – 175 watts 15 – 200 watts 15 – 250 watts
Sensitivity: 89dB [2.8v at 1m] 89dB [2.8v at 1m] 89dB [2.8v at 1m]
Nominal Impedance: 8 ohms 8 ohms 8 ohms
Crossover Frequency: 2,400Hz 2,600Hz 2,800Hz
Woofers: Dual 51/4” (133mm) copolymer Dual 51/4” (133mm) plus Dual 61/2” (165mm) plus
DCD with Phase Plugs MBOS Rear Port MBOS Rear Port
and MagnaGuard
Passive Radiators: Dual 61/2” (165mm) copolymer Dual 7”(178mm) copolymer
DCD with Phase Plugs DCD with Phase Plugs
Tweeters: 1”(25mm) Kortec Soft Dome 1” (25mm) Kortec Soft Dome 1” (25mm) Kortec Soft Dome
Dimensions (H x W x D): 6
15/16 x 191/4x 63/4” 393/8x 107/8x 811/16” 433/16 x 117/8x 99/16”
(174 x 488 x 170 mm) (999 x 275 x 221 mm) (1096 x 302 x 242 mm)
Weight: 11 lbs (5kg) 19.8 lbs (8.9kg) 24.8 lbs (11.25kg)

3
Introduction
Boston Acoustics Horizon Series Speakers
Thank you for choosing Boston Acoustics. These speakers incorporate high-quality components that produce the famous
Boston sound. The speakers are ideally suited for use in a 5.1 channel high-quality home theater or music system.
Boston Horizon Series Speakers are designed to sound as good as they look. With their elegantly slim proles and the soft
smooth radiuses of their back cabinets, Boston Horizon Series speakers complement the décor of any room and oer
no-compromise audio excellence.
Features
HS 40, HS 50, and HS 60 2-way bookshelf speakers
• 41/2, 51/4, or 61/2” woofer
• 1” soft dome tweeter
• Deep Channel® Design (DCD) woofers for more bass from less amplier power
• Reduced Bae Diraction Design (RBDD) for wider, smoother dispersion
• MagnaGuard® video shielding
• 5-way gold-plated binding posts
• Adjustable feet
• Built-in wall-mounting brackets
• Soft-touch nish with color-coordinated rubber trim
HS 225 2-way LCR speaker
• Dual 51/4” woofers
• 1” soft dome tweeter
• Deep Channel Design (DCD) woofers for more bass from less amplier power
• Reduced Bae Diraction Design (RBDD) for wider, smoother dispersion
• MagnaGuard video shielding
• 5-way gold-plated binding posts
• Adjustable feet
• Built-in wall-mounting brackets
• Soft-touch nish with color-coordinated rubber trim
HS 450 and HS 460 2-way oorstanding speakers
• Dual 51/4” or dual 61/2” woofers with passive radiators
• 1” soft dome tweeter
• Deep Channel Design (DCD) woofers for more bass from less amplier power
• Maximized Bass Output System (MBOS) for improved bass acoustics
• Reduced Bae Diraction Design (RBDD) for wider, smoother dispersion
• 5-way gold-plated binding posts
• Soft-touch nish with color-coordinated rubber trim

4
Unpacking the System
Carefully unpack the speakers. If there is any sign of damage from transit, report it immediately to your dealer and/or delivery
service. Keep the shipping carton and packing materials for future use.
HS 40, HS 50 and HS 60 with
removable feet attached
HS 450 and HS 460
HS 225 with removable feet attached
shown in both center channel and
surround speaker conguration
Turn foot 90° and reinstall
Mount other foot
Placement Options
HS 450 and HS 460 – These speakers are primarily designed as the left and right speakers in both a stereo and a multi-
channel system. Visit Boston Acoustics.com/placement for diagrams explaining the proper placement of loudspeakers.
Bookshelf Models – HS 40, HS 50, HS 60, and HS 225 These speakers are easily placed on a
tabletop, shelf, or wall-mounted. The speakers are congured for tabletop/shelf use when you rst
unpack the system. The HS 225 speaker will have one foot installed that will keep your speaker
level when used in the vertical position. Refer to the diagram below for adjusting the HS 225 for
horizontal use as a center channel speaker.
There are 2 sets of holes on each foot; by using the upper of the two holes,
the speakers will have a slight forward angle for use on a high
shelf. When the feet on the back of your speakers
are removed, the speakers are easy to wall-mount.

5
The Boston Horizon bookshelf models are designed to easily mount on the wall using the keyhole slot(s) on the back of the
speaker. When mounting the speakers to the wall, use the supplied rubber bumpers. You must remove the attached foot to
wall-mount your speakers. Remove the thumbscrew from the back of the foot. It is slotted for easy removal with a screwdriver
or a coin.
The keyhole mounting option is similar to hanging a picture frame on a wall. Install a screw into the sheetrock, making sure
to go into a stud, and hang the speaker onto the screw head. If a stud is not available a sheetrock anchor should be used to
support the weight of the speaker.
Use the lower screw hole
for vertical speaker position
Use the lower screw hole
for vertical speaker position Rubber Bumper
Speaker tilts forward
when upper foot mounting
screw hole is used
Speaker tilts forward
when upper foot mounting
screw hole is used
Keyhole Mount
Rubber Bumper
NOTE: You are responsible for the correct selection and use of mounting hardware (available through hardware stores) that
will ensure the proper and safe wall-mounting of the speakers.
Speaker Connections
After your speakers are properly placed, you are ready to wire your system. First, turn o all system power. We recommend
18-gauge wire or thicker for runs up to 25 feet (8m), and 16-gauge wire or thicker for longer runs. Separate the rst few inches
of the wire conductors. Strip o 1/2”(12mm) of insulation from the ends of each speaker wire to expose the two conductors
and tightly twist the wire strands. Please see the illustration below for guidance connecting the wires to your speakers. For
connection to your receiver, please refer to its owner’s manual.
Keyhole Mount
HS 450 HS 450
HPS Subwoofer
HS 50HS 50
HS 225
A typical 5.1 surround sound system
with an HPS subwoofer

6
Important!
To ensure the best performance, observe polarities when making speaker connections, (as shown in the illustration).
Connect each + terminal on the back of the amplier or receiver to the respective + (red) terminal on each speaker. Connect
the – (black) terminals in the same way. If the connections are not made correctly it can cause poor bass response and imag-
ing. Also, to avoid short circuits that may damage your equipment be careful not to let any of the bare wires touch each other.
Operation
When using the Horizon speakers in a Dolby® Digital or DTS™ home theater system, make sure all speakers are set to“Small”.
When using the system in a Dolby Pro Logic® home theater system, make sure the receiver’s center channel mode is set to
“Normal.”
Some Dolby Digital-equipped receivers/processors oer dierent setup options for each source or surround mode (e.g., CD-
stereo, videotape, Dolby Digital, Pro Logic). In each case, follow your equipment’s instructions to ensure that the subwoofer
output is turned on and that the speakers are set to “Small” in each mode.
The HS 450 and 460 can be set to “Large”and may produce a more full sound by doing so. Try both settings and use the one
that sounds best with the broadest range of source material.
If your receiver has adjustable crossover settings, we recommend the subwoofer crossover be set between 80Hz and 120Hz.
Refer to the owner’s manual for your AV receiver for any additional recommendations on system operation.
NOTE: A Boston Acoustics powered subwoofer will add impact and realism to both music and lm soundtracks. Contact
your Boston Acoustics dealer for recommendations on subwoofer models for your application.

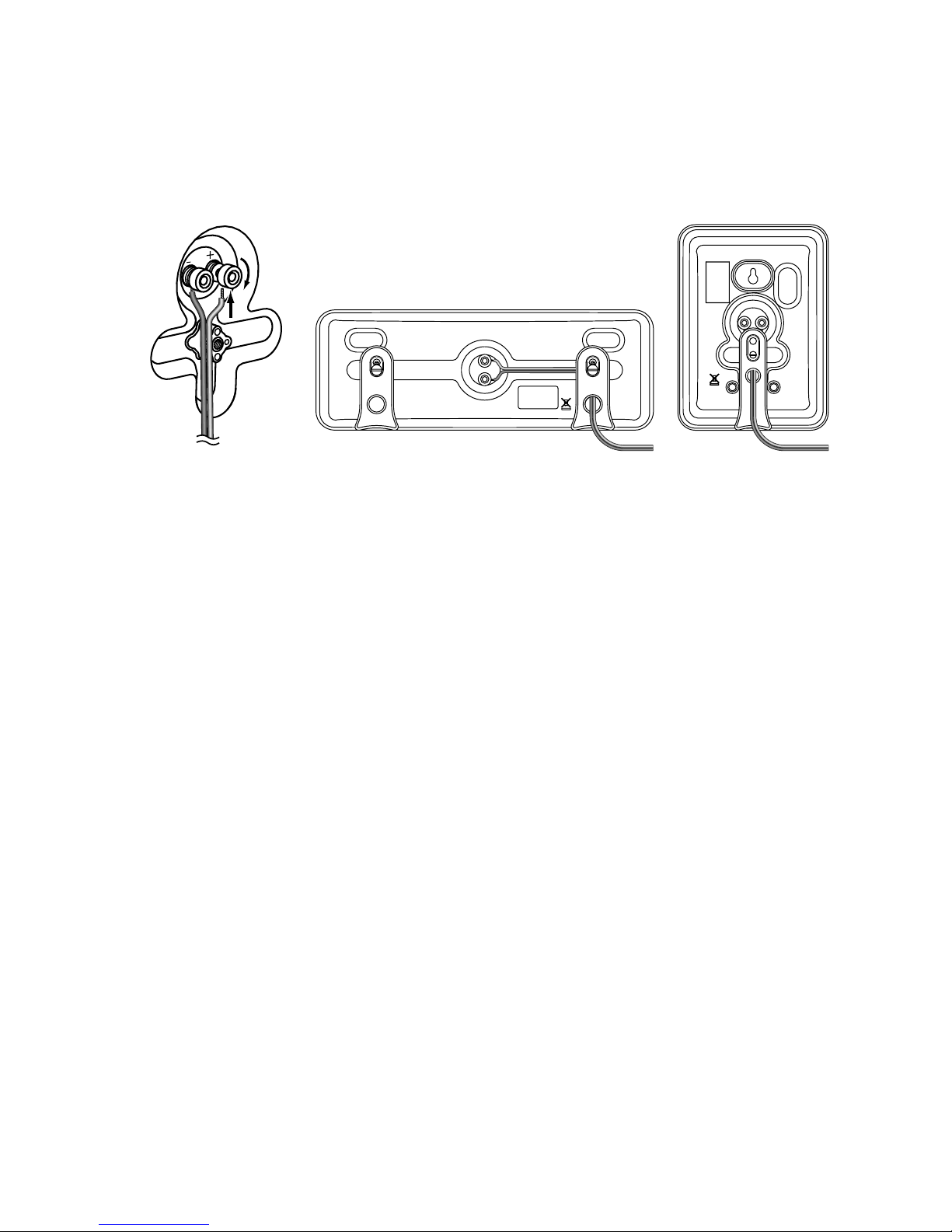

Wires can be routed through the feet and
the channels in the back of the speaker

7
Maintenance And Service
All wiring connections should be inspected and cleaned or remade at least once a year.
If a problem does occur, make sure that all connections are properly made, secure and clean. If a problem occurs in one
loudspeaker, rewire that speaker in a dierent location within the system. Should the problem persist, then the problem is
within the speaker. If the speaker sounds ne in the new position it is a strong indication of a more in depth issue with the
electronics in the system. In the event that your speakers ever needs service, contact your local Boston Acoustics dealer
or visit www.bostonacoustics.com for a list of dealers in your area.
Limited Warranty
Boston Acoustics warrants to the original purchaser of our HS Series speakers that they will be free of defects in materials and
workmanship for a period of 5 years from the date of purchase.
Your responsibilities are to install and use them according to the instructions supplied, to provide safe and secure transporta-
tion to an authorized Boston Acoustics service representative, and to present proof of purchase in the form of your sales slip
when requesting service.
Excluded from this warranty is damage that results from abuse, misuse, improper installation, accidents, shipping, or repairs/
modications by anyone other than an authorized Boston Acoustics service representative.
This warranty is limited to the Boston Acoustics product and does not cover damage to any associated equipment. This
warranty does not cover the cost of removal or reinstallation. This warranty is void if the serial number has been removed or
defaced. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
If Service Seems Necessary
First, contact the dealer from whom you purchased the product. If that is not possible, write to:
Boston Acoustics, Inc.
300 Jubilee Drive
Peabody, MA 01960 USA
Or contact us via e-mail at:
[email protected]
We will promptly advise you of what action to take. If it is necessary to return an HS Series speaker to the factory, please ship it
prepaid. After it has been repaired, we will return it freight prepaid in the United States and Canada.
For EU Customers Only
This symbol found on the product indicates that the product must not be disposed of with household waste. In-
stead, it may be placed in a separate collection facility for electronic waste or returned to a retailer when purchasing
similar product. The producer paid to recycle this product. Doing this contributes to reuse and recycling, minimizes
adverse eects on the environment and human health and avoids any nes for incorrect disposal.
Boston Acoustics continually strives to update and improve its products. The specications and construction details are
subject to change without notice.
