BOTH LIGHTING SMART DJ 6x18w RGBWA UV 6in1 User manual

- 1 -
LED-6-PAP
SMART DJ 6x18w RGBWA UV 6in1 wireless DMXLED UPLIGHT
Please read over this manual before operating the light

- 2 -
Most important: FIRST CHARGE THE FIXTURES FOR 6-8 Hours on the First Charge
before use. Plug in Power cord. Turn off Power Switch and Turn off other switch to
charge.
Introduction
Unpacking: Thank you for purchasing this product, all products has been thoroughly tested and has
been shipped in perfect operating condition. Carefully check the shipping carton for damage that may
have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all accessories necessary to operate the unit has arrived intact. In the case
damage has been found or parts are missing, please contact the manufacturer or your dealer for further
instructions. Do not return this unit to your dealer without first contacting.
Introduction: The Light is a DMX intelligent and battery powered LED par light. This par light is light
weight and compact which makes it a great piece for mobile DJ‟s and clubs.
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or
moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself;
doing so will void your manufactures warranty. In the unlikely event your unit may require service
please contact the manufacturer or your dealer.
PLEASE recycle the shipping carton whenever possible.
General Instructions
To optimize the performance of this product, please read these operating instructions carefully to
familiarize you with the basic operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please keep this manual with the unit, for
future reference.
Notice :please pay attention to ventilation, to prevent the
battery overheat cause burning When charging.

- 3 -
1.Notes
Please carefully read the instructions, it contains assembly, operation,
maintenance and other important information.
Circuit board may not overlap pile,please put gently, not abandonment, to prevent
deformation of the circuit board, component damage,s pads off and other adverse
conditions.
Power input range between 12-36V, different light board power input will
vary,please counsel before use, avoid the use of improper power supply or
motherboard situation
burned lamp beads, resulting in unnecessary economic losses.Do not
reverse the anode and
cathode power supply.
It should take PCB board when assemble and install,do not covet convenience
of lifting and operating for a part,to avoid pad off or damage as stress .
All terminals should be connected correctly and according to process
requirements.Pay attention to distinguish the direction and polarity
Try not to plug any electrical or cable to operate, to avoid short circuit or component
damage.
Try to make anti-static treatment.
Operating errors or other man-made defects or burned are not within the scope of
return, need to charge repair costs of corresponding elements.
2.Product Features
DMX512 console control，can be controlled via signal cable and 2.4G wireless DMX
signal
Master-slave control is available online via the signal line or 2.4G wireless
WiFi phone operation control, support Android 2.3 or later, Apple iOS 4.3 or later (This
feature applies to WiFi motherboard)
Phone APP Name: LED WIFI(Language: software automatically recognizes the
Chinese or English according to the system)
Static color choices (6 colors, dimming 0-255) + strobe function (speed adjustable
0-20)
Macro Color: 32 colors available
Color automatically change function（Speed 1-20）
Color gradually change function （Speed 1-20）
Color Suddenly change function （Speed 1-20）
Strobe with red background, strobe with a green background , strobe with blue
background, Strobe with a yellow background Speed 1-20）
3 kinds of sound active function (Suddenly change 、Suddenly change+Gradually
change 、Strobe ）+ Sound sensitivity(0-100),can be controlled via Menu and IR
remote.2.4G wireless electronic switch, can be turned on or off its power via the
menu，there is to know whether open or closed wireless module through the upper
left corner icon
WiFi module electronic switch,can be turned on or off its power via the menu, there
is to know whether open or closed WiFi module through the upper left corner icon
Balance settings，make appropriate adjustment brightness of 6 colors （also

- 4 -
has fine-turn current function） ，value is（127-255）
Top right corner of the LCD display is battery icon, can be set on or off icons appear,
if product without battery, can be set off.
Screen-savers setting: can be set as normally open or turn off the display back-light
after 5 seconds, 10 seconds, 15 seconds after turning off the display back-light.
Button automatically lock: can turn on or off through the menu settings
Infrared remote control feature set: can be turned on or off through the menu
settings
一OPERATING INSTRUCTIONS…SKEMATIC DIAGRAM
MENU
Main Menu Function Selects / exits the submenu
UP
Selects the previous menu / parameter increment
DOWN
Selects the next menu / parameter decrement
ENTER
Confirm the selected function / Go to the next menu
level

- 5 -
Menu Display：
DMX512
DMX512 international general signal control, use UP and DOWN to
adjust address code.
Shows
Auto Color :Colorful color jump changing of auto
running, use up and down to adjust speed of the fastest auto
running, 1 is the slowest.
Auto Fade：Gradual magic changing of auto running, use
up
and down to adjust speed of the auto running.
Auto Sudden： Colorful color pulse changing of auto
running, use up and down to adjust speed of the auto
running.
Auto Strobe： flash control（0-99）
Wi-Fi Mode APP： Press the Enter key, then you can turn
on WIFI
Sound
Sound Mode1
Sound Mode2
Sound Mode3
Sound Mode4
Sound activated mode, use up and down to adjust sensitivity of sound
activated. 100 is the highest sensitivity, 1 is the lowest sensitivity.
Color
Custom Color
Static Color

- 6 -
Set
DMX channel6CH/10CH
2.4g wireless ON/OFF
Infrared ON/OFF
Display backlight LCD0-100％
LCD Close time LCD ON/OFF
Open5S,10S,15S,30S.
Restore factory 8888
MANUAL 6666
Temperature ON/OFF
Battery ON/OFF
Background Color LCD
Help
Name: 6 Color
Version:V4.0
DMX Channel
Run Time
User Time
Temperature
二DMX 512 Channel List
6CH Mode:
Channel
Address
Function
1
0~255
Red dimming
2
0~255
Green dimming
3
0~255
Blue dimming
4
0~255
White dimming
5
0~255
Amber dimming
6
0~255
UV dimming

- 7 -
10CH Mode:
Channel
Address
Function
1
0~255
Dimming,channel 9(0~9)
2
0~255
Red, the maximum value determined by the total dimming
3
0~255
Green, the maximum value determined by the total dimming
4
0~255
Blue, the maximum value determined by the total dimming
5
0~255
White, the maximum value determined by the total dimming
6
0~255
Amber, the maximum value determined by the total dimming
7
0~255
UV, the maximum value determined by the total dimming
8
0~255
Function Speed
9
0~8
0-8 closed light
170~209
Sound activated
210~239
Sound pulse + strobe
240~255
Sound strobe
10
0~255
The function of this channel depends on the value of channel 9:
When channel 9 is between 10 and 49, this channel is used to
select the color
When the 9th channel in 101 ~ 250 (jump, gradient, mutation), then
the channel control speed: 0 the slowest, 255 fastest

- 8 -
三SPECIFICATIONS
Voltage: AC90-245V, 50/60HZ
IP Rate: IP44
Light source: 6*18W 6-IN-1 LED s
LED life time: 100000 hours
High-effect environmental protection Lithium battery module, battery
charging time: 6 hours
Battery working time: 10 hours
Net weight: 2.6kg
Dimension: 21.5CM*21.5CM*25.5CM
Beam angle: 25°45°

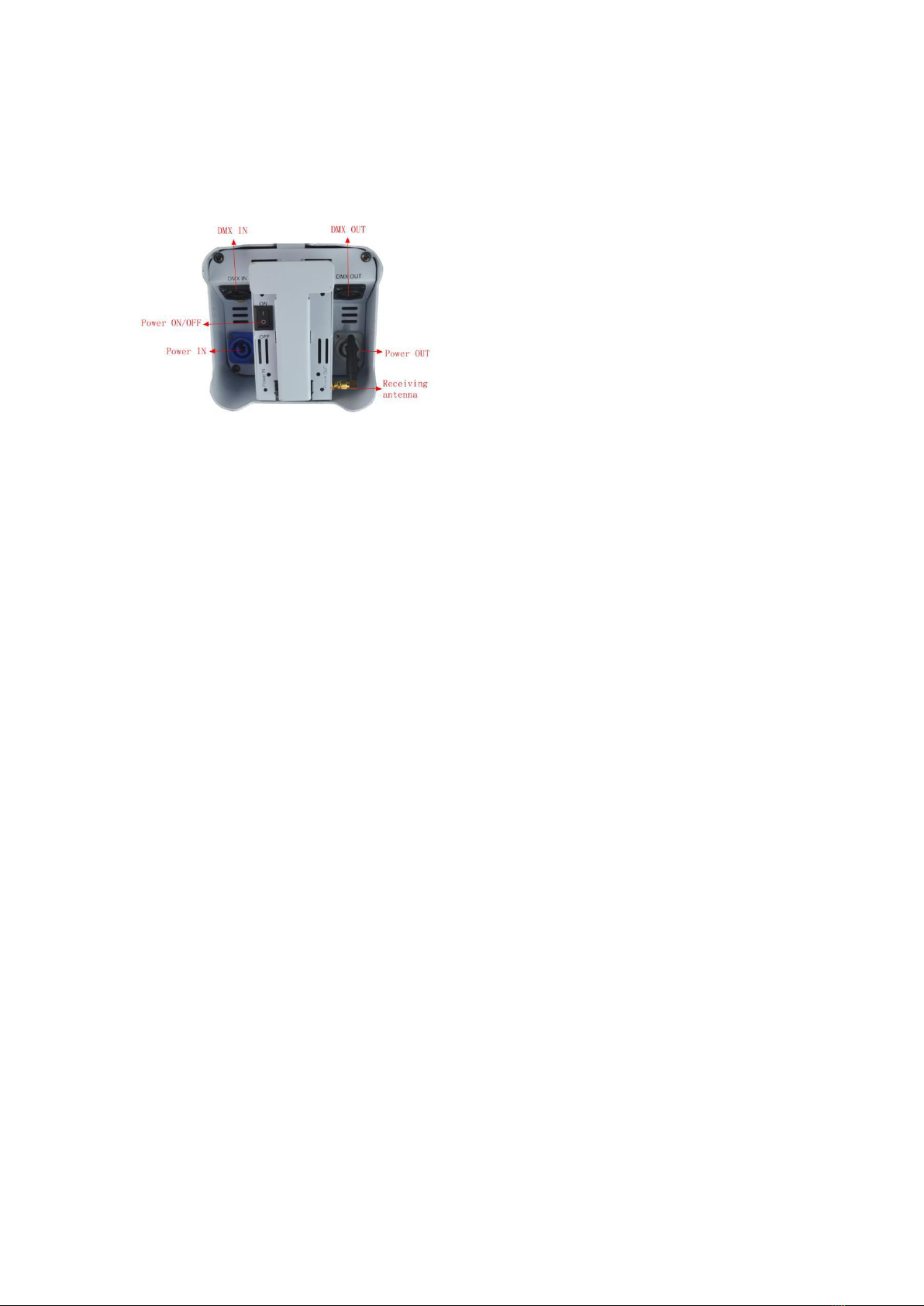

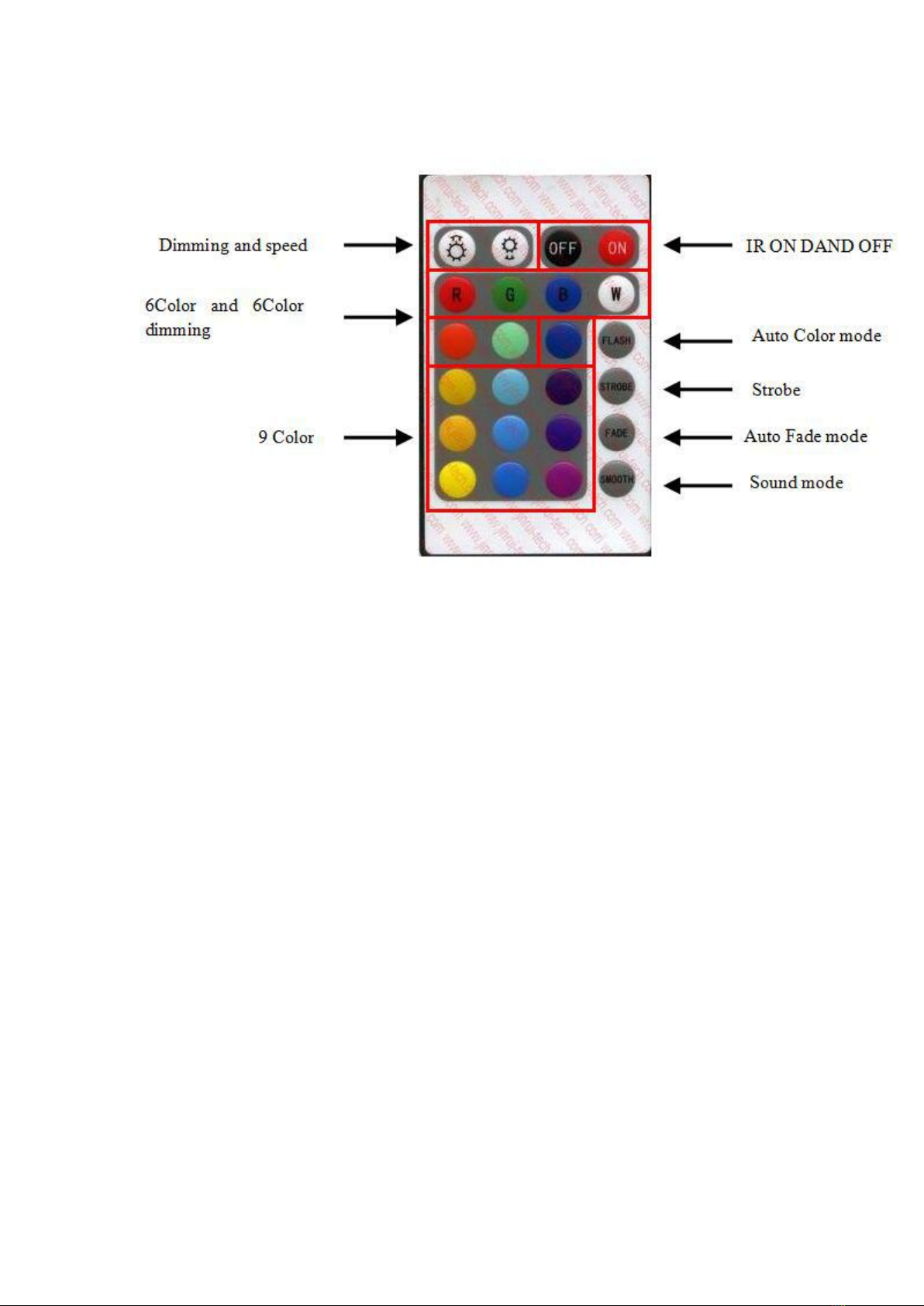

四IRC Remote Functions

- 9 -
五WIRELESS CONTROL
1、LED DISPLAY
2、126 frequency band without interference automatically selected to ensure
communication reliability.
3、7 groups of ID codes are settable, the user can use seven groups of separated
wireless networks in one place without any interference.
4、Communication distance Diameter: 500M (open area)
5、Working frequency: 2.4G ISM, 126 full-band
6、Maximum transmit power: 20dBm
7、Receiver sensitivity: -94dBm
OPETATING INSTRUCTIONS:
1、ID code and LED color corresponding relationship:
● 1：RED……………………………RED
● 2：GREEN………………………GREEN
● 3：RED+GREED………………YELLOW
● 4：BLUE…………………………BLUE
● 5：RED+BLUE…………………PURPLE
● 6：GREEN+BLUE………………CYAN
● 7：RED+GREED+BLUE………WHITE
2、 Press the button to display the current ID setting, and then you can do ID setting.
You press it one time, ID value will plus 1.

- 10 -
3、Working status：
● LED ON: NO DMX OR WIRELESS SIGNAL
● RED LED FLASH：SENDING
● GREEN LED FLASH：RECEIVING
4、Radio frequency ……………………… 2.400-2.525G, total is 126 frequency
bands, they will be selected automatically without setting.
5、ID codes ...... "1-7" groups of ID codes, press “frequency” to adjust them. Only
the transceivers with the same ID codes can be communicated with each other.
ESTABLISHMENT OF COMMUNICATION:
1、The transceivers are electrified.
2、Press "frequency" to set the transceivers which are needed to be communicated
to the same ID. If you want to use more than one group of wireless network in
one place, the ID codes should be different for each network.
3、When the transceivers receive DMX signal they will select frequency without
interference to send data and red LED will flash. The receivers will change the
communication bands upward until it receives correct data with the same ID
code and the green LED will flash, DMX data changed faster, the LED flash
faster.
4、Then the communication will be established.
六2.4G WIFI CONTROL BY BOTH IOS AND ANDROID
SYSTEM MOBILE PHONE
Use your phone to scan and download

- 11 -
The app automatically recognizes your language

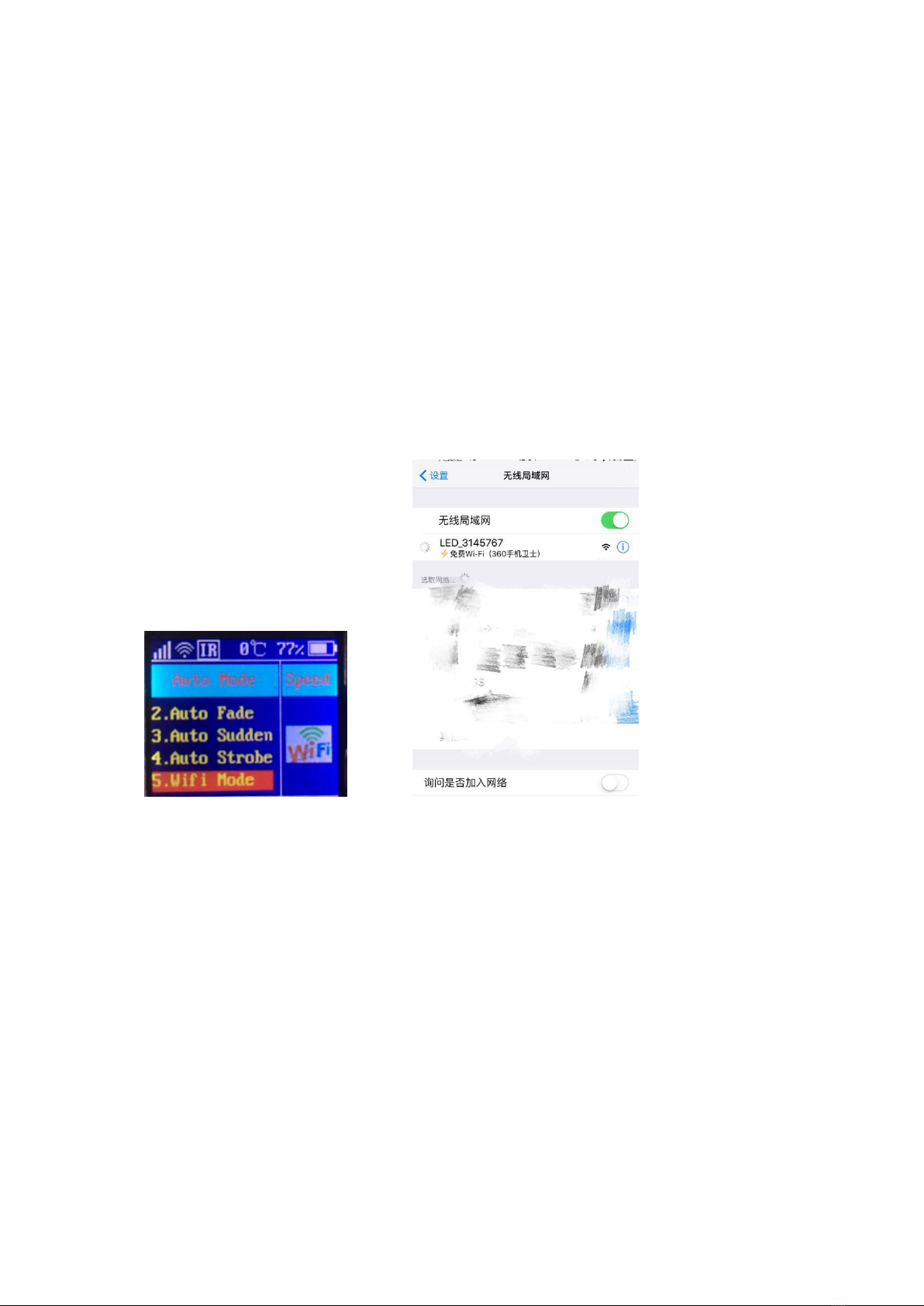

On "User Settings" screen, press Enter and move the Up/Down key to select
"Wi-Fi" (Wi-Fi mode). Press Enter. There will be a Wi-Fi icon, indicating that the
Wi-Fi module is activated.
Then, you may proceed to connect your phone. Open the Settings of your
phone and find the wireless network WLAN accesses. The device to be
connected to is shown as led_xxx.as. See the picture

- 12 -

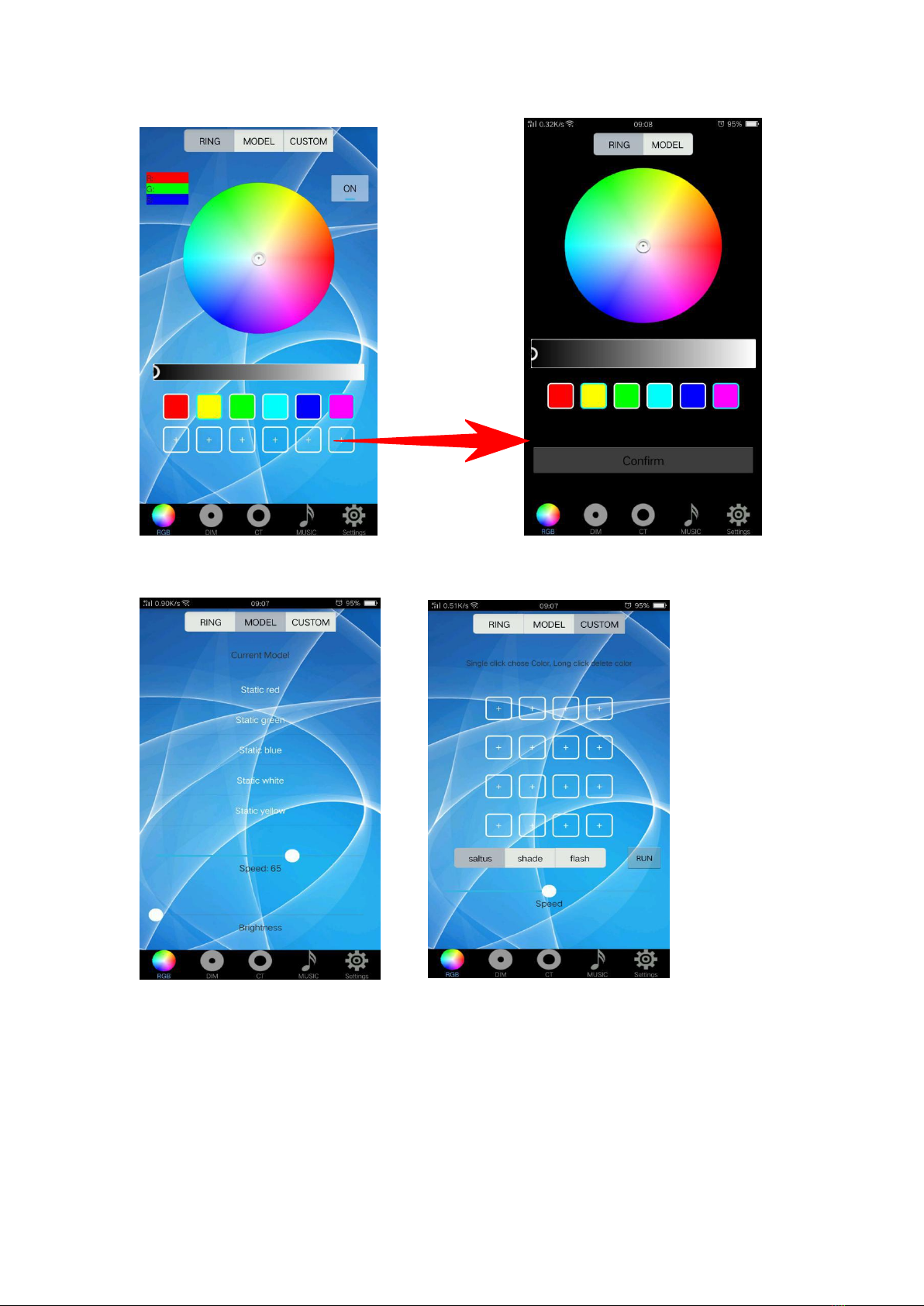

Long Press +
Add music, according to the song melody color mode

- 13 -
Add router timing control
