Bounce LED NOVANEON Reflex V1620 User manual

Reflex V1620
NOVANEON RANGE

NOVANEON RANGE
Novaneon Reflex is a vertically flexible outdoor LED strip light designed
to emulate the look of traditional glass-moulded neon. Suitable for
signage/lettering applications as well as large-format architectural
installations. Its silicone-based housing is UV stable, weathertight and
highly flexible, perfect for outdoor projects.
12W/m (12V)
POWER OUTPUT
5 Years
WARRANTY
5.0m
MAXIMUM LENGTH
IP67 (Outdoor)
IP RANK
2700K
6500K
Red
Blue
Yellow
COLOUR / TEMPERATURES AVAILABLE

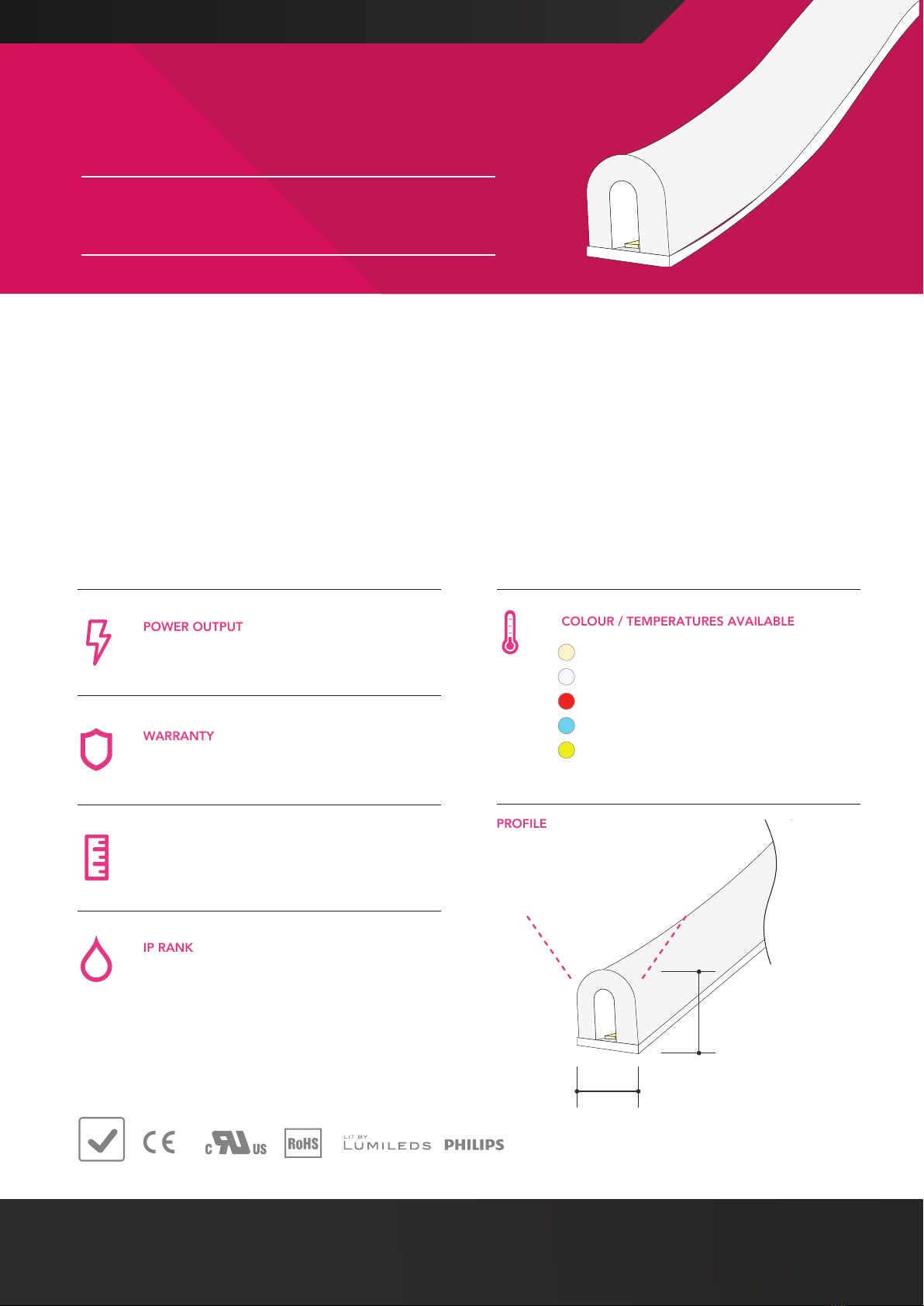

PROFILE
Novaneon Reflex V1620
SALES & SUPPORT
PH 02 9517 3222 | E [email protected]
www.bounceled.com
2700K / 6500K
Red / Blue / Yellow / Pink / Green
2700K / 6500K
Red / Green / Blue / Yellow / RGB
2700K / 6500K
Red / Blue / Yellow
9.0W/m (12V)
9.0W/m (12V)
12W/m (12V)
12W/m (12V)
12W/m (12V)
12W/m (12V)
330lm/m
330lm/m
350lm/m
350lm/m
350lm/m
350lm/m
5YR
5YR
5YR
5YR
5YR
5YR
07 x 12 mm (5m)
07 x 12 mm (5m)
11 x 20 mm (5m)
11 x 20 mm (5m)
16 x 20 mm (5m)
16 x 20 mm (5m)
NOVANEON RANGE
Pivot 0712
Reflex H1120
Reflex V1620
2700K / 6500K
Red / Blue / Yellow / Pink / Green
2700K / 6500K
Red / Green / Blue / Yellow / RGB
2700K / 6500K
Red / Blue / Yellow
9.0W/m (12V)
9.0W/m (12V)
12W/m (12V)
12W/m (12V)
12W/m (12V)
12W/m (12V)
330lm/m
330lm/m
350lm/m
350lm/m
350lm/m
350lm/m
5YR
5YR
5YR
5YR
5YR
5YR
07 x 12 mm (5m)
07 x 12 mm (5m)
11 x 20 mm (5m)
11 x 20 mm (5m)
16 x 20 mm (5m)
16 x 20 mm (5m)
NOVANEON RANGE
Pivot 0712
Reflex H1120
Reflex V1620
(1000 lm/m)
(1000 lm/m)
(106 lm/m)
(76 lm/m)
(728 lm/m)
155°
AVERAGE
VIEWING ANGLE
16
20
EZI

Ø100 mm
CURVE
CAPABILITY
50 mm
MINIMUM CUT LENGTH
SALES & SUPPORT
PH 02 9517 3222 | E [email protected]
www.bounceled.com
2700K / 6500K
Red / Blue / Yellow / Pink / Green
2700K / 6500K
Red / Green / Blue / Yellow / RGB
2700K / 6500K
Red / Blue / Yellow
9.0W/m (12V)
9.0W/m (12V)
12W/m (12V)
12W/m (12V)
12W/m (12V)
12W/m (12V)
330lm/m
330lm/m
350lm/m
350lm/m
350lm/m
350lm/m
5YR
5YR
5YR
5YR
5YR
5YR
07 x 12 mm (5m)
07 x 12 mm (5m)
11 x 20 mm (5m)
11 x 20 mm (5m)
16 x 20 mm (5m)
16 x 20 mm (5m)
NOVANEON RANGE
Pivot 0712
Reflex H1120
Reflex V1620
2700K / 6500K
Red / Blue / Yellow / Pink / Green
2700K / 6500K
Red / Green / Blue / Yellow / RGB
2700K / 6500K
Red / Blue / Yellow
9.0W/m (12V)
9.0W/m (12V)
12W/m (12V)
12W/m (12V)
12W/m (12V)
12W/m (12V)
330lm/m
330lm/m
350lm/m
350lm/m
350lm/m
350lm/m
5YR
5YR
5YR
5YR
5YR
5YR
07 x 12 mm (5m)
07 x 12 mm (5m)
11 x 20 mm (5m)
11 x 20 mm (5m)
16 x 20 mm (5m)
16 x 20 mm (5m)
NOVANEON RANGE
Pivot 0712
Reflex H1120
Reflex V1620

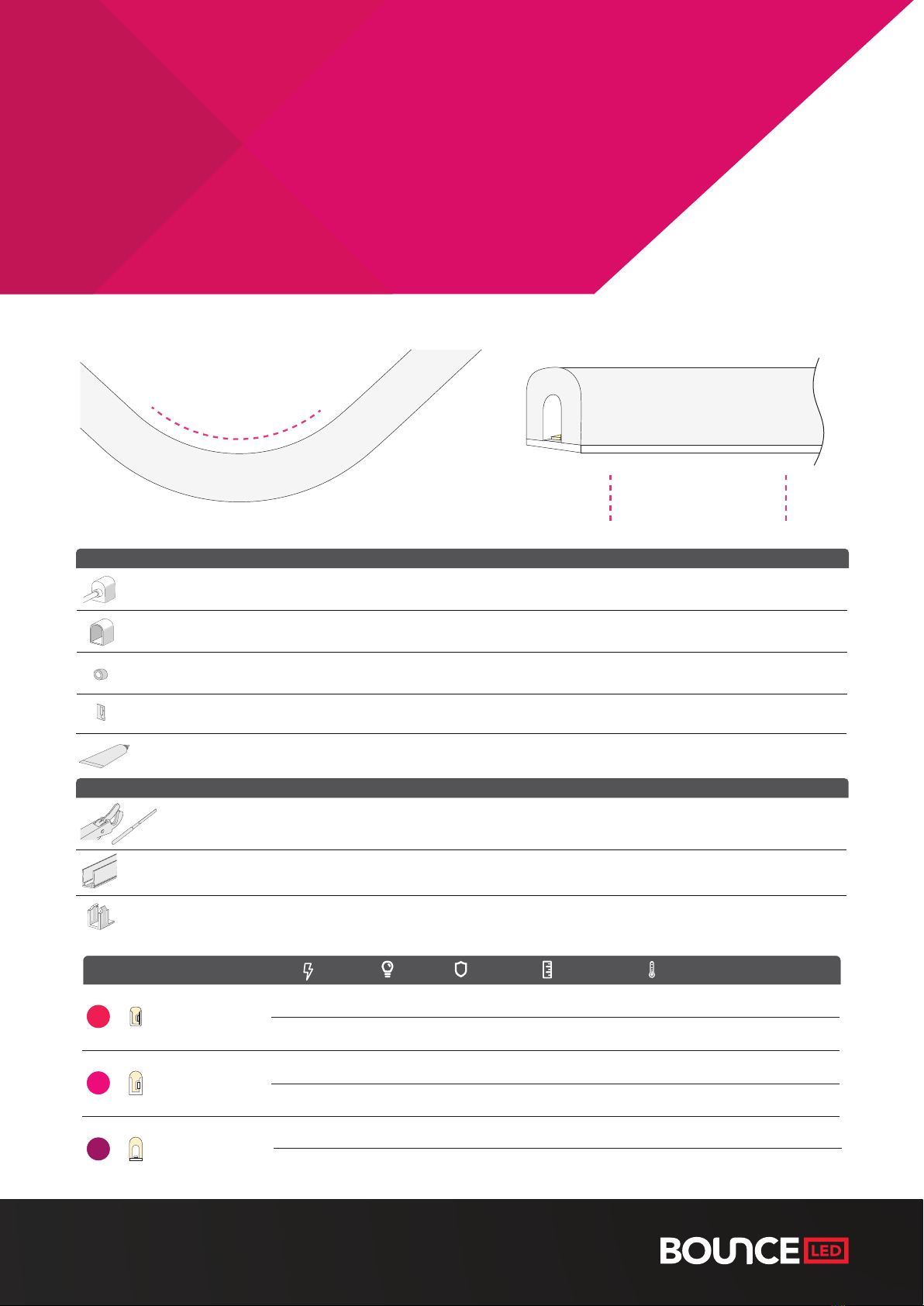

REFLEX ACCESSORY PACK
1x LEFT SIDE, 1x RIGHT SIDE POWER CONNECTORS
NOVANEON SHEARS AND SCRAPER TOOL
ACCESSORIES
2x END CAPS
4x PC TERMINALS
2x METAL RINGS
Seal and connect end of Novaneon strip to power
Seals the end of Novaneon length not requiring power connection
Provides additional seal to power connector cable
Inserts to prevent spread of excess sillicone to LED strip
SILICONE GREASE To lubricate and seal end caps and connectors
Shears cut easily through Novaneon
Scraper separates the silicone housing from the internal strip
ALUMINIUM MOUNTING TRACK Press fit mounting track (1000mm). Available in straight or bendable
CLEAR MOUNTING CLIPS Transparent installation clips

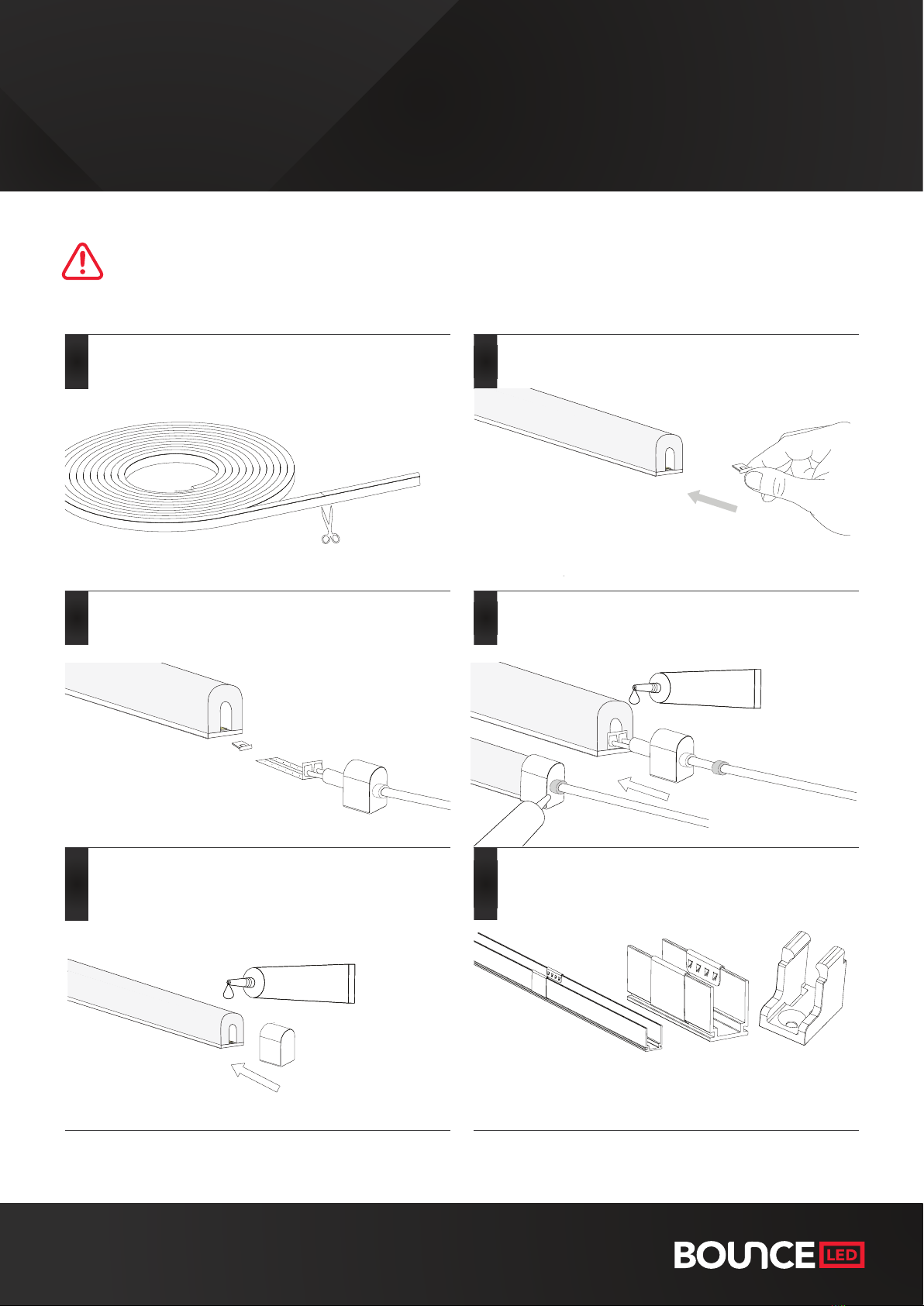

Installation Guide
Cut material to length required using Novaneon Shears (cut only
at intervals marked on the side of the casing).
1 2
3 4
Novaneon strip can be mounted using Aluminium Track or clear
clips. When handling strip, take care to only bend horizontally and
do not twist/stretch strip as this may damage internal components.
5 6
WARNING Please read these instructions completely and carefully.
Risk of electrical shock. Disconnect power before servicing or installing product
SALES & SUPPORT
PH 02 9517 3222 | E [email protected]
www.bounceled.com.au
Install clear PC terminals to both ends of Novaneon to prevent
glue leaking to LED units.
Choose Left or Right Side Connect and Insert Contact Strip.
Insert Contact strip into cut end of Novaneon. Where the PCB is
on the left side of the strip, use a left connector, where it is on
the right side, use a right connector.
Slide Cover Over to Seal
Apply silicone glue to cut end of strip, and slide cover over. Next,
apply silicone over the end of the cap and push metal ring over.
Clean excess silicone with a clean cloth. Silicone will cure in 4 hours.
Install End Caps
Apply silicone glue to cut end of strip, and slide end cap over.
Clean up excess silicone with a clean cloth. Silicone will cure in 4
hours.

PLEASE CONTACT US FOR FURTHER WARRANTY INFORMATION
PH 02 9517 3222 | E [email protected]
www.bounceled.com.au
LED Product Warranty
LIMITED WARRANTY | Subject to change without notice
Bounce LED is committed to providing defect-free products that will give the purchaser years of trouble-free operation. All
production facilities maintain strict quality assurance standards and our products are have been designed and thoroughly
tested ensure the highest quality.
Bounce LED products are warranted to meet the performance criteria outlined in the written data sheets and specifications
and are to be free from defects in materials and workmanship for the warranty period stated. Should any LED products fail to
perform as specified during the warranty period, Bounce LED will replace all defective product in accordance with the terms
and conditions.
Modules must be installed with qualified constant voltage SMPS with international certificate to guarantee warranty.
TERMS AND CONDITIONS
This warranty is based on reasonable indoor or outdoor usage in architectural and/or signage applications for image
identification, when installed and used in accordance with instructions from Bounce LED. Normal operating conditions are
defined as 8-12 hours per day, 7 days per week, continuous use in typical outdoor heat and humidity, and environmental
conditions as stated in our product specification.
All LED systems, to varying degrees, have some amount of light degradation over the life of the product. Bounce LED designs
all of its LED systems to minimise this light degradation but considers this a normal part of LED technology.
This warranty is valid when the LED products of Bounce LED are properly installed and wired in accordance with all
instructions, building codes, the latest domestic and international safety agencies that are recognised as having applicable
safety requirements.
Any improper use in conditions that are not stated in Bounce LED’s written data sheets and instruction, or stated herein,
including the use of third party dimming, flashing or other effect devices, extreme environmental conditions or any other
unintended usage will void this warranty.
LIMITATION OF LIABILITY
Bounce LED is committed to making high quality lighting products. Returning of defective products will help us monitor and
further improve product quality. Repair or replacement of the product is the sole remedy available.
Under no circumstance shall Bounce LED be liable for any incidental or consequential loss or damage whatsoever arising out
of, or in any way related to any defect in or non-performance of the products. No warranty of merchantability or fitness for a
particular purpose is made or implied.
Furthermore, Bounce LED shall not be responsible for any other costs, including installation or field support labour or loss of
profits, income or revenue. Additionally, any drawing, layout, quotation or other communication regarding suggested product
type, amount of usage is for reference only and should be treated as an estimate.
Bounce LED shall not be responsible for minimum illumination levels or other performance criteria that is not stated in Bounce
LED’s written data sheets and instructions, or stated herein.
Bounce LED reserves the right to test and examine all products returned under this warranty to evaluate proper usage,
determine the cause of failure, and make a determination, in its sole judgement whether the products are defective and
covered by this warranty.
