Brandt FE 222 User manual

Using your oven
Model: FE 222
99625772_GB_A.qxd 21/02/03 10:41 Page 1

Throughout this manual, indicates safety recommendations,
indicates advice to help you make the
best use of your oven
2
Contents
Introduction P.3
Your oven
How it works P.4
Accessories P.5
Safety recommendations P.6
How to install your oven
Electrical connections P.7-8
Dimensions for installation use P.9
How to use your oven
The oven programmer P.10
How to set the clock P.11
How to cook straightaway P.12
How to programme the cooking P.12-14
How to use the timer P.15
How to cook with the grill P.15
Cooking methods P.16-17
Changing a bulb P.18
Looking after your oven P.19
Troubleshooting P.20
99625772_GB_A.qxd 21/02/03 10:41 Page 2

Introduction
Dear Customer,
Thank you for buying a BRANDT oven.
Our design staff have produced a new generation of kitchen equipment,
to make everyday cooking a pleasure.
You will find that the clean lines and modern look of your Brandt oven
blends in perfectly with your kitchen décor. It is easy to use and per-
forms to a high standard.
Brandt also makes a range of products that will enhance your kitchen
such as hobs, extractor hoods, built-in dishwashers and refrigerators.
There are models to complement your new Brandt oven.
Of course, we make every effort to ensure that our products meet all
your requirements, and our Customer Service department is at your
disposal, to answer all your questions and to listen to all your sugges-
tions (details at the end of this booklet).
Brandt has always been a leader in the development of new products,
thus enhancing the quality of everyday life by providing increasingly
efficient products, that are easy to use, respect the environment, and are
attractive and reliable.
The BRANDT name.
3
GB
99625772_GB_A.qxd 21/02/03 10:41 Page 3

4
Your oven
55
75
100
125
150
180
210
240
270
5
3
1
4
5
3
21
1
25
3
4
Temperature control
Programme selector
Function selector
Light
Shelf positions
OVEN FEATURES
99625772_GB_A.qxd 21/02/03 10:41 Page 4

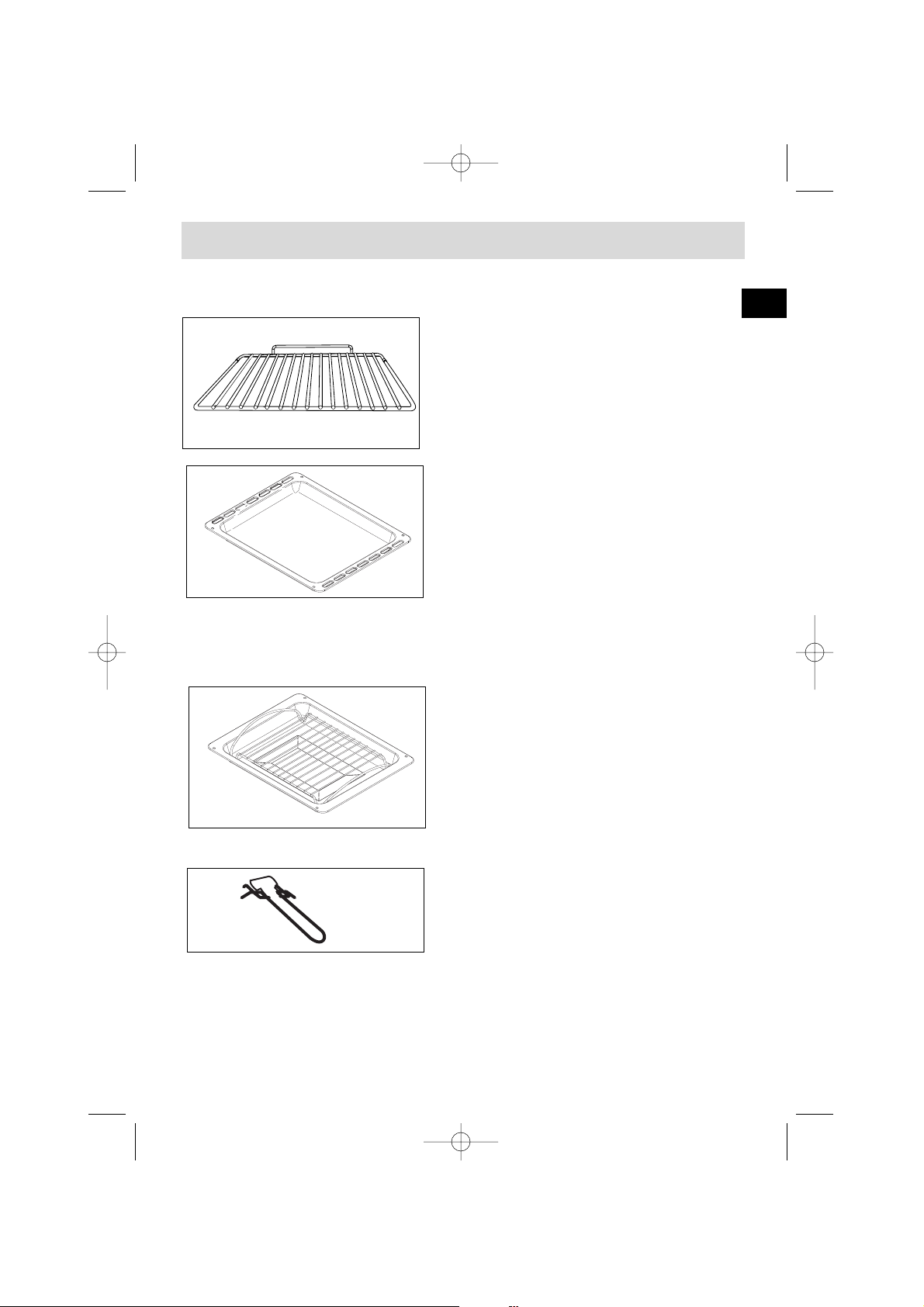

Accessories (Depending on model)
5
Anti-tip safety shelf
Food can either be placed on the shelf in a
dish or cake tin for cooking or browning, or
may be placed directly on the shelf itself.
Multi-purpose baking tray
This tray has a raised edge and can be used
for baking pastries (choux buns, meringues,
small cakes, flaky pasties, etc).
Joints should not be cooked in this tray
uncovered because fat could spit all over the oven sides.
Grill Pan
With special trivet for grilling
The pan can be used for collecting juices
when cooking with the grill element by itself
or with the oven set to pulsed grill (grill and
fan). It is particularly useful as a large roas-
ting tray for meat and vegetables.
Never cook with the grill pan sitting on the bottom of the oven.
Grill pan handle
GB
99625772_GB_A.qxd 21/02/03 10:41 Page 5

6
Safety recommendations
Please read these instructions before installing and using your oven.
The oven has been designed for domestic use only for cooking food. No asbestos
has been used in its construction.
USING FOR THE FIRST TIME:
Before you use your oven for the first time, leave it empty and, with the door
closed, turn it on to maximum temperature and let it heat up for 15 minutes.
This "burns off the newness of the oven". During this time there may be same
smell from the mineral wool that insulates the oven and there could be some
smoke. This is perfectly normal.
NORMAL USE:
- Always close the door properly. The oven is fitted with a seal designed to
work with a closed door.
- Never lean or let anyone sit on the oven door when it is open.
- The oven parts and accessories can become hot when the door is
left partially open and the grill on. Always keep children at a safe distance.
- When the oven is on it will get hot. Take care not to touch the heating
elements inside the oven.
- Always protect your hands with oven gloves or something similar when
removing food, accessories or containers from the oven.
- Do not line your oven or the grill pan with kitchen foil. The metal will increa-
se the heat produced and could ruin the food and damage the enamel.
- Never use a spray or a high-pressure washer to clean the oven.
- During self-cleaning, surfaces can become hotter than in normal use.
Children must be kept at a distance.
99625772_GB_A.qxd 21/02/03 10:41 Page 6

7
How to install your oven
Electricity meter (mains)
(20A, single-phase
220-240 V alternating
current 50 Hz)
Socket
2 -pin with earth
220-240 V single phase
alternating current supply
Electrical connections
• Before connecting your oven, make sure you are using the correct size cable.
The cross-section should be the same as the cable connected to the oven. Use a
16-amp fuse.
Connecting cable
approx 1.50 m.
long
Fused 16A or differential
circuit breaker
GB
99625772_GB_A.qxd 21/02/03 10:41 Page 7

How to insta
8
We cannot accept any liability in the event of an accident
resulting from non-existent or faulty earthing.
• The supply cable (H05 RR-F, H05 RN-F or H05 W-F) must be long enough to allow
the oven to rest on the floor in front of its housing.
With the oven sitting on the floor and disconnected:
• Open the trapdoor at the bottom right hand side at the back of the oven by
removing the 2 screws and swinging the door away.
• Remove the sheath from each wire in the new cable up to 12 mm.
• Twist the ends carefully together.
• Unscrew the terminal screws and remove the wires that need changing.
• Pass the new cable through the wire clamp to the right of the terminals.
• Connect the wires up in accordance with the markings on the terminals.
• Make sure all wires are trapped under the screws.
• The brown wire (live) going to terminal marked L.
• The green and yellow wire (earth) going to the one marked .
• The blue wire (neutral) going to the terminal marked N.
• Tighten the screws and check, by tugging on each wire, that they are firmly connected.
• Tighten the clamp to hold the cable.
• Close the trapdoor using the two screws.
The electrical connections are made before the oven is installed in its housing.
• The oven must be connected using an approved 3-core cable (live, neutral and
earth ) with 1.5 mm square conductors. This should be connected via a 3- pin-
socket (live, neutral, and earth to the main supply which should be should be a
220-240V, alternating single-phase current. If the oven is not connected using a
plug and socket, it must be connected to a multi-pole switch with a minimum gap
of 3 mm between contacts. The earth wire (green and yellow) should be connected
to the terminal marked with the earth symbol on the appliance and to the earth
in the switch.
• Where the oven is connected using a separate plug and socket this must be
accessible after the oven has been installed.
• The neutral wire (blue) of the oven must be connected to the neutral in the main supply.
Fitting new wiring and/or changing cables.
99625772_GB_A.qxd 21/02/03 10:41 Page 8

9
all your oven
If you are unsure about fitting this oven yourself please use a
qualified electrician.

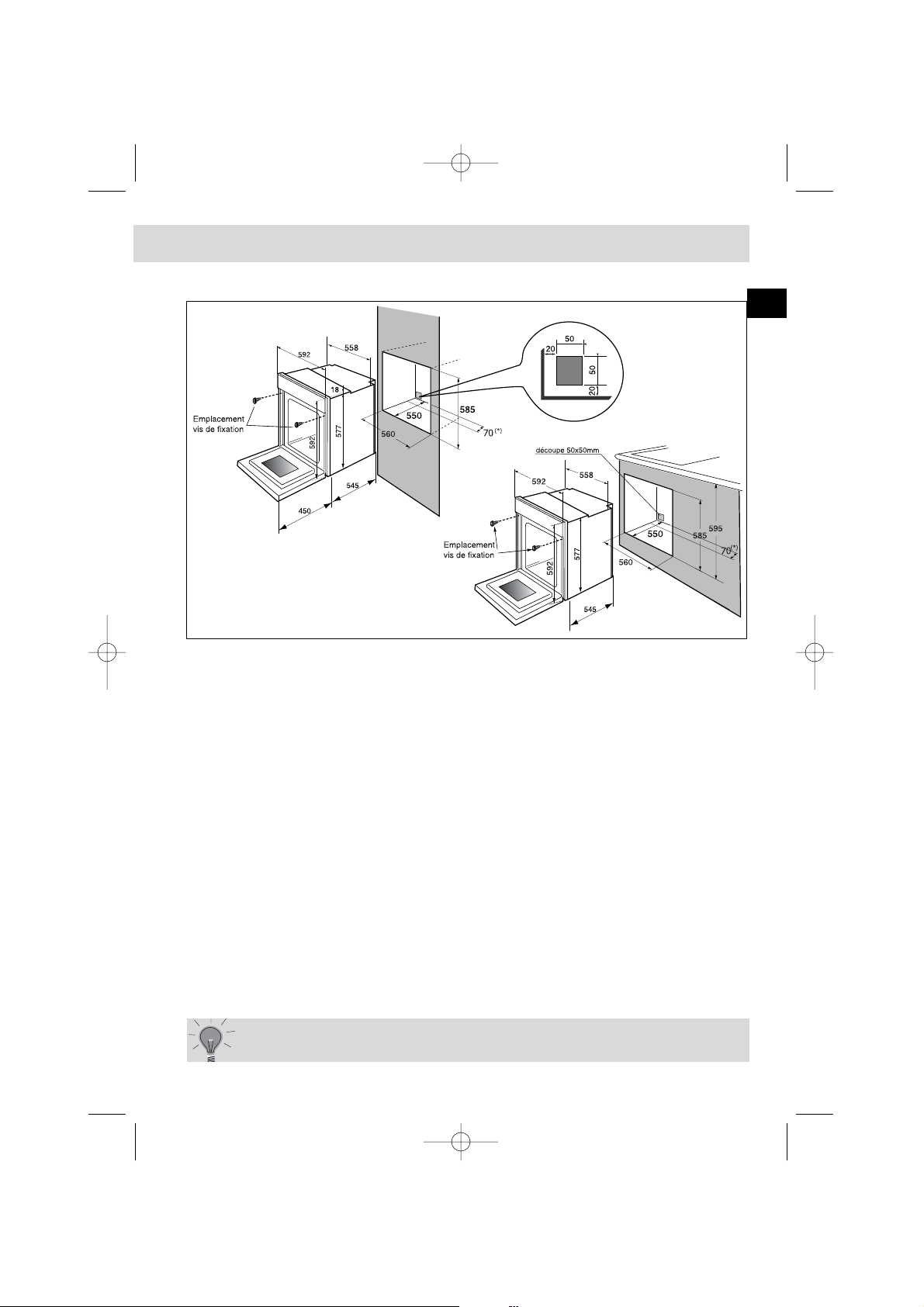

Dimensions for installation use
The oven may be housed either under a work surface or built into a
column that is open* or closed with a suitable opening.
Your oven works at its best and produces excellent results when cooking and clea-
ning itself, if its air circulation is not compromised:
• The oven must be centred in the unit so that there is a minimum distance of 5
mm between it and the surrounding unit.
• The housing unit or its outer surface must be capable of withstanding heat.
• To ensure the oven rests firmly in the housing, screw it to the housing unit using
the holes on the side uprights provided (see diagram).
To do this:
1) Remove the rubber stoppers masking the fixing holes.
2) To prevent the housing unit splintering, drill two holes 3 mm in diameter in the wall of the
housing unit opposite the fixing holes.
3) Attach the oven using the two screws.
4) Conceal the hole using the rubber stoppers. (These also help to cushion the
closing of the oven door).
(*) If the housing unit is open at the back, the gap must not be more
than 70 mm.
GB
99625772_GB_A.qxd 21/02/03 10:41 Page 9

How to use
1. The oven programmer
Clock and cooking time display
Cooking time symbol
End of cooking time symbol
Separate minute minder
Button for setting automatic programmes
Buttons for adjusting the time
Reset clock (press both buttons together)
1
2
3
4
5
8
67
PROGRAMME SETTINGS
1
2
3
4
567
8
10
99625772_GB_A.qxd 21/02/03 10:42 Page 10

11
e your oven

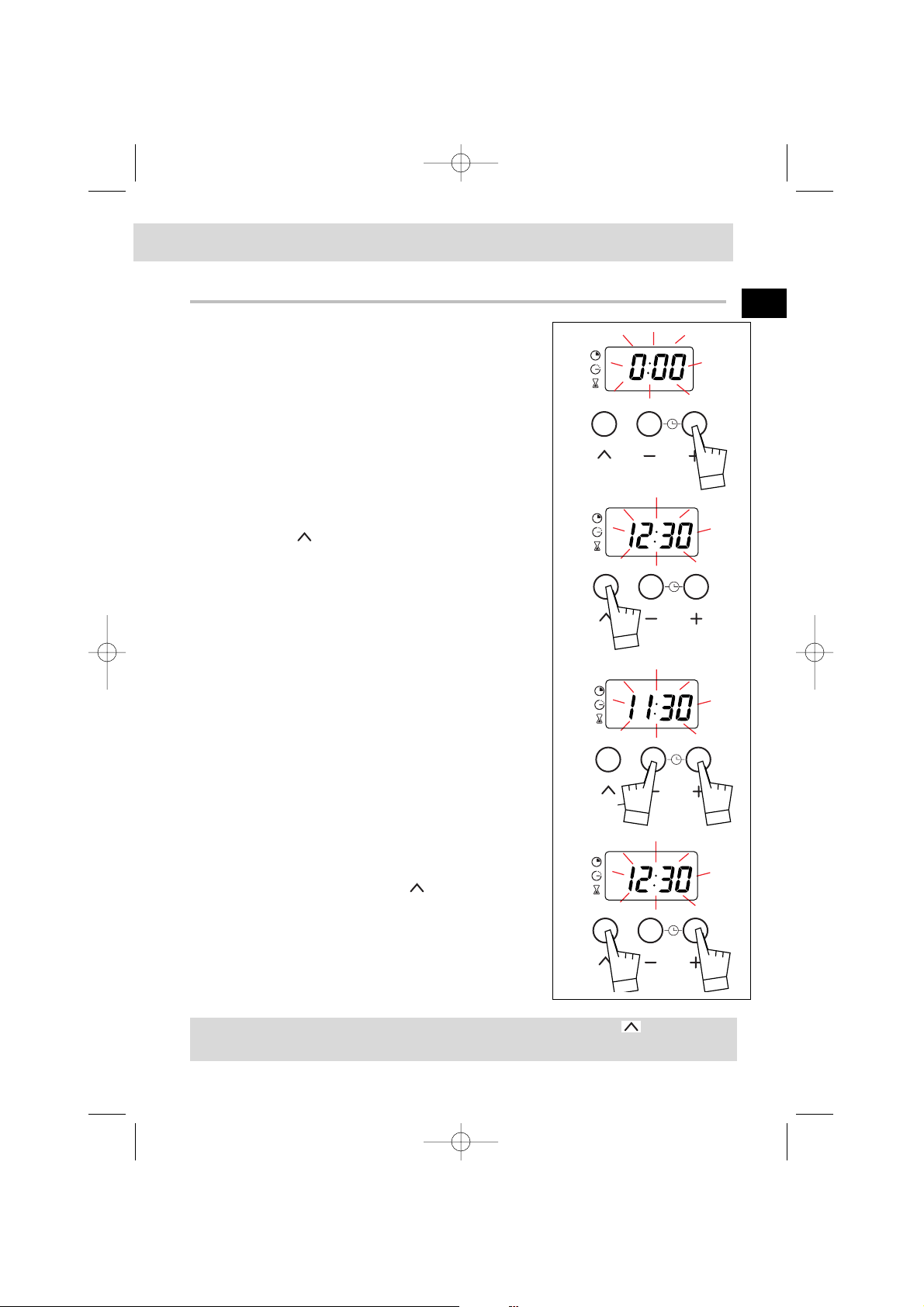

a) When the oven is first switched
on at the mains
• The display blinks.
• Press on the + and - buttons until the correct
time is shown (Keeping a finger on the button,
rather than tapping it, is quicker)
• Press button to confirm the time.
The example shows 12.30
b) Altering the clock
• Press on both + and - buttons together for a few
seconds until the display blinks.
• Adjust the time using the + and - buttons.
• Confirm the time by pressing .
2. How to set the clock
If you forget to confirm the time by pressing button , the oven
will do it automatically after a few seconds.
GB
99625772_GB_A.qxd 21/02/03 10:42 Page 11

How to use
12
55
75
100
125
150
180
210
240
270

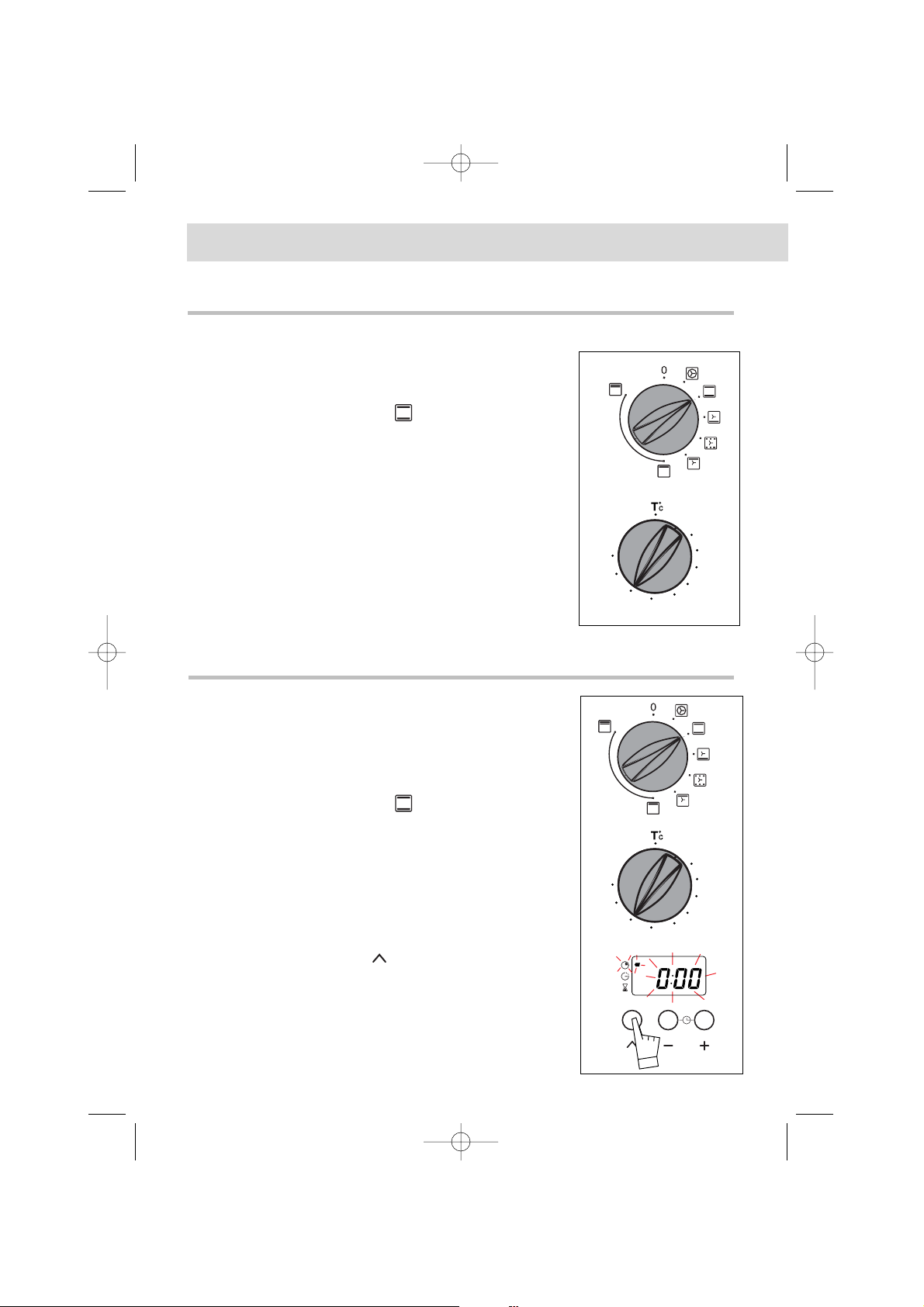

The timer display only shows the time of day. It should not be blinking.
• Choose how you want to cook your food:
Turn the dial until it is indicating your choice.
The example chosen is " ".
• Choose the temperature you want to cook at:
Turn the dial (thermostat) to the temperature
recommended for the food you are cooking.
The example shows 210°.
• When you have done both these the oven heats up
and the temperature light glows.
After cooking, the cooling fan will continue to work for a
while in order to cool the oven down.
3. How to cook straightaway
4. How to programme the cooking
a) To finish cooking at a set time (after tur-
ning the oven on manually) :
• Choose how you want to cook your food.
Turn the dial until it is indicating your choice
The example chosen is " ",
• Choose the temperature you want to cook at:
Turn the dial (thermostat) to the temperature
recommended for the food you are cooking.
The example here is 210°.
• Choose how long you want the food to cook.
Press once on the button.
The clock shows 0:00 and the cooking time symbol
blinks. You can now instruct the oven how long to cook
for.
55
75
100
125
150
180
210
240
270
99625772_GB_A.qxd 21/02/03 10:42 Page 12

• Press the + and - buttons until your chosen time is
shown.
The example shows 30 minutes.
The count-down starts as soon as you stop
pressing the + and - buttons.
• The oven heats up and the temperature light
glows
The cooking time symbol glows steadily and the time
of day is displayed again.
When the cooking time is over (the pre-programmed
time ends),
- The oven switches off,
- The cooking time symbol goes out,
- The display shows 0:00
- The oven gives a series of bleeps for several minutes.s
To stop the bleeper, press any button on the oven front. The time is displayed
again.
b) How to delay the start for a timed cooking
period (to set the oven to come on and switch off when
you are out automatic cooking)
• For this operation, you choose the length of
cooking time and when you want the food to be
ready. The oven itself works out when to start
cooking. Set the temperature and select the
cooking method.
The example shows" ",
and the temperature is 210°.
•Now press once on the button.
The display shows 0:00 and the cooking time symbol
blinks.
13
e your oven
55
75
100
125
150
180
210
240
270
GB
99625772_GB_A.qxd 21/02/03 10:42 Page 13

After you have programmed in the times you can still:
- Change the length of cooking time
- Check how much time is left for the food to cook
by pressing « »
- Cancel the programme by keeping your finger on the « »
button until you hear a beep.
Warning! At this point you must switch the temperature and
method controls off; otherwise the oven will start warming up
again.
• Press the + and - buttons to enter the length
of time the food is to cook for.
The example shown is 25 minutes
As soon as you press the + button the blinking stops.
• Now press the button until the timer display
starts blinking again. At the same time, you will
notice the end of cooking symbol blinks too.
• You can now enter the time you want the cooking
to finish using the + and - buttons.
The example shows cooking to stop
at 1 pm (13:00)
If you forget to confirm use time , the oven automati-
cally confirms it after a few seconds.
The oven works out when to switch on so that the food
finishes cooking at the time selected.
When the oven switches on, the end of cooking symbol
will go out and the cooking time symbol will come on.
At the chosen time for the cooking to stop
- The oven switches off,
- The cooking time symbol goes out,
- The display shows 0:00
- The oven gives a series of bleep for several minutes.
To stop the bleeping, press any of the buttons on the panel. The time of day
will then be displayed again.
14
How to use your oven
99625772_GB_A.qxd 21/02/03 10:42 Page 14

15
Your oven is fitted with a separate minute minder.
It is not connected to the oven's
programmes.You can use it just like a kitchen
timer.
• Press the button several times until the timer
symbol and the display time blink .
5. How to use the minute minder
• Select the time (minutes and seconds) you want by
pressing the + and - buttons. The seconds are
counted in 30-second intervals.
Keeping your finger on the button is quicker than tap-
ping it.
The countdown starts almost straight after the time
chosen appears in the display.
At the end of the period a series of pips sounds and the display shows 0:00.
To stop the pips, press any button.
You can alter or switch the timer off at any time.
6. How to cook with the variable grill
Grill with adjustable power from 30 to 100%
• Turn the temperature selector to max (270°).
• Turn the function selector and adjust the power accor-
ding to your cooking method from min. "" to max
"".
55
75
100
125
150
180
210
240
270
How to use your oven
GB
99625772_GB_A.qxd 21/02/03 10:42 Page 15

16
Pulsed grill
Cooking is done alternately by the
top element and by the fan.
Conventional oven
Food is cooked by a top and bottom
element. No fan.
No pre-heating re
and succulent joi
appearance. Lar
ted by placing dir
the multi-purpose
rail to catch the j
Pre-heating need
temperature.
Do not place any t
there is an elemen

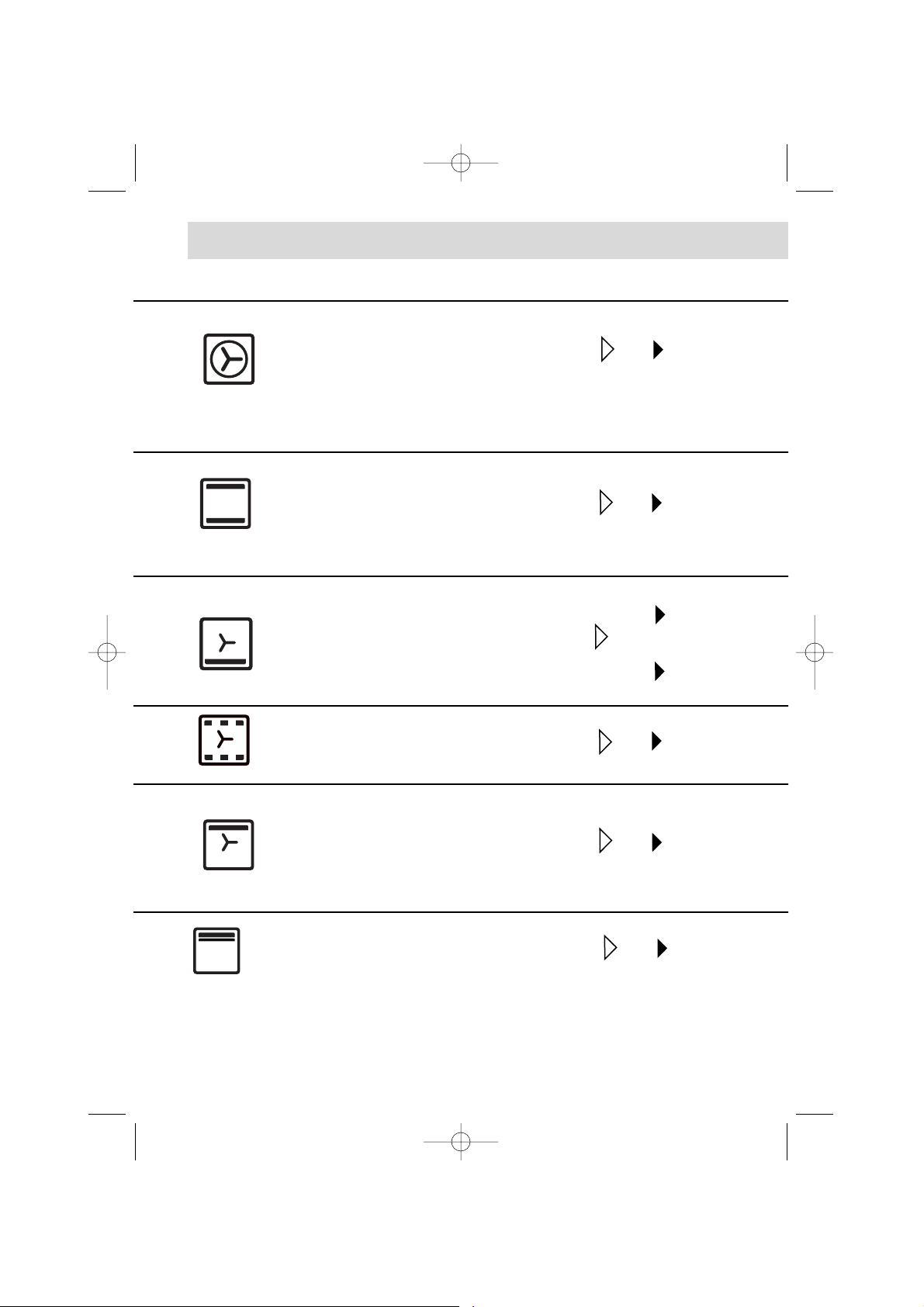

Symbol Feature De
Cooking
Fan oven
A heating element at the back of
the oven and the fan help cook the
food.
No pre-heating n
a relatively short
biscuits on sever
Warming oven
Heating from top + bottom elements
with fan.
Stays warm
*·Cooking methods referred to in the information about energy labelling in accorda
*
Adjustable grill
Cooking is done by the top element
only. No fan.
Pre-heat for 5 m
Slide the grill pa
grill.
Pulsed bottom oven
Food is cooked by the bottom ele-
ment and the pulsed-air fan.
Cooking from be
Place the wire sh
the base.
99625772_GB_A.qxd 21/02/03 10:42 Page 16

required. Suitable for poultry
oints that have a spit-roasted
rge joints can be accommoda-
irectly on the shelf and using
se baking tray on the bottom
juices.
ded to reach the required
trays, shelves and the base as
ent under the enamel.
escription
methods
Recommended for food requiring slow,
careful cooking such as game and braising
joints. Ideal for sealing red meat joints and
simmering covered casseroles whose
contents have been partially cooked on the
hob first.
necessary except for food with
rt cooking time (e.g. small
eral shelves).
17
Recommendations
Reduce temperatures by 20°C to 30°C. For
cooking on one shelf the time will be the same.
Recommended to prevent meat drying out, and
for cooking vegetables and fish and food placed
on up to 3 shelves, where cooking time will be
longer.
For all poultry and joints, sealing and
thoroughly cooking gigot lamb chops, and
sides of beef. Also good for cooking fish in
breadcrumbs.
ance with European Standard EN50304 and the European Directive 2002/40/EC
The power is adjustable from 30 to 100%. For effi-
cient cooking, we recommend using higher power
levels.
minutes.
an onto the rail beneath the
Recommended for dishes with a lot of liquid
(quiches and fruit pies) as the pastry base is
cooked through. Use also for food that rises
(bread and cakes) and uncovered soufflés.
Do not place any trays shelves on the base as
there is an element under the enamel
elow with gentle top heat.
shelf on the last shelf position from
GB
Recommended for leaving breads to rise
(keeping temperature below 40ºC), keeping
dishes warm and thawing food.
99625772_GB_A.qxd 21/02/03 10:42 Page 17

18
• The light bulb is housed in the ceiling of your oven.
a) Unscrew the protective shade (see
diagram).
b) Unscrew the bulb in the same direction.
The bulb used is a:
- 15 W
- 220-240 V
- 300°C
- E 14 screw-fitting bulb
c) Change the bulb, replace the shade and
switch your oven back on at the mains.
Changing a bulb
bulb fitting
unscrew cover
It is easier to unscrew the shade and bulb if you wear a rubber
glove.
Warning! Switch off the power at the main switch before
attempting to change the bulb. Leave the oven to cool if
necessary.
99625772_GB_A.qxd 21/02/03 10:42 Page 18

Always allow the oven to cool down before attempting to remove the
panels. Check the cooking selector is at OFF.
Side panels (1)
Undo the rail clip (2) at the front by lifting it up
(
Diagram A ). Pull the rail unit toward you, lifting it
slightly to unclip the rear catch ( Diagram B ). Pull it out
of the 2 holes (3) of the catalytic panels and the oven
casing. Remove the catalytic panel (1). Reverse opera-
tions to replace panel and rail
unit.
Back panel (4)
Undo and remove the screw
(5) at the top of the back
panel. Tip the panel towards
you so you can remove it
from the oven case. Reverse this operation to replace
the panel.
Looking after your oven
Installing and changing the catalytic panels
Cleaning the inside
Your oven is self-cleaning. The outer shell is lined with removable panels
covered in a special microporous enamel known as catalytic enamel. This coating
helps eliminate dirt and grease. Splashes are attracted to the tiny holes where
they are gradually burnt off. Unfortunately, the coating cannot do the same to
sugary substances which is why the bottom of the oven, where these are likely
to collect, does not have the same enamel finish.
You are strongly advised,
- Never use wire brushes or any other pointed or cutting implement.
- Never use any scouring material.
- When grilling, a lot of fat can be spat onto the walls of the oven. However, the
temperature will not be enough to burn them off completely while you are
grilling.
To overcome this problem remove all shelves etc. and leave the oven on for 20
to 30 minutes at the highest temperature possible after you have finished
cooking. If any trace remains it will be burnt off when you use the oven the next
few times.
B
A
1
3
4
2
5
Always check that the oven is off before you clean the inside.
19
GB
99625772_GB_A.qxd 21/02/03 10:42 Page 19

20
Troubleshooting
If you're not sure that your oven is working properly, it doesn't necessarily
mean that there's a problem. In all cases, check the following points:
If you realize that.. Possible causes what should you do?
The oven isn't heating.
• The oven isn't connected
to the power supply.
• The fuse has blown.
• The temperature selected
is too low.
• The thermostat is faulty.
- Connect to power supply.
- Change the fuse, checking
that it is 16A.
- Increase the temperature
selected.
- Contact the After-Sales
Service.
The temperature light
does not go out. • Faulty thermostat.
- Contact the After-Sales
Service.
The light inside the oven
isn't working.
• The lamp is unusable.
• The oven isn't connected
to the power supply or the
fuse has blown.
- Change the bulb.
- Connect to power supply
or change fuse.
The cooling fan keeps
working after the oven is
turned off.
• The fan is still working an
hour after cooking has
stopped,
• If it has not stopped after
1 hour
- Open the door to help the
oven cool down more
quickly.
- Contact the After-Sales
Service.
Copy here the details that are on your oven manufacturer's plate:
MADE IN FRANCE
220 - 240V ~ 50 Hz
BRANDT APPLIANCES SAS
7 rue Henri Becquerel
92500 RUEIL MALMAISON
99625772_GB_A.qxd 21/02/03 10:42 Page 20
