BRAVILOR BONAMAT Type I CHILL-003 User manual

EN
CHILLER
WATER DISPENSER
Type I / Type II
Operating Instructions
Type I
Type II
This document is applicable to the model numbers:
DCHILL−003
DCHILL−004 www.bravilor.com

EN
2013 BravilorBonamat
All rights reserved.
No part of this document may be reproduced and/or published by means of print, photoprint, microfilm
or any other means without prior written permission from the manufacturer. The foregoing applies
also to the figures and/or diagrams contained herein.
The information provided in this document is based on general data that we were aware of at the time
of publication, relating to constructions, properties of materials and working methods, and this
document is therefore subject to modifications. For this reason, the instructions presented here should
merely be seen as a set of guidelines for installing, using and maintaining the device indicated on the
front page of this document.
This document is valid for the standard version of the device. Consequently, the manufacturer cannot
be held liable for any damage resulting to a device supplied to you with specifications that deviate from
the standard version.
Although this document was compiled with the greatest possible care and attention, the manufacturer
cannot be held responsible for any errors contained within this document or for any of the
consequences that may derive from these errors.
PLEASE TAKE SOME TIME TO READ THIS DOCUMENT AND THE SAFETY BROCHURE
(700.403.713) CAREFULLY BEFORE USING THE DEVICE.
ALWAYS STORE BOTH DOCUMENTS IN THE VICINITY OF THE DEVICE.

EN
ECopyright Bravilor Bonamat B.V. III
FOREWORD
Using this document
BEFORE USE OF THE APPARATUS FIRSTLY READ THE SAFETY BROCHURE (700.403.713).

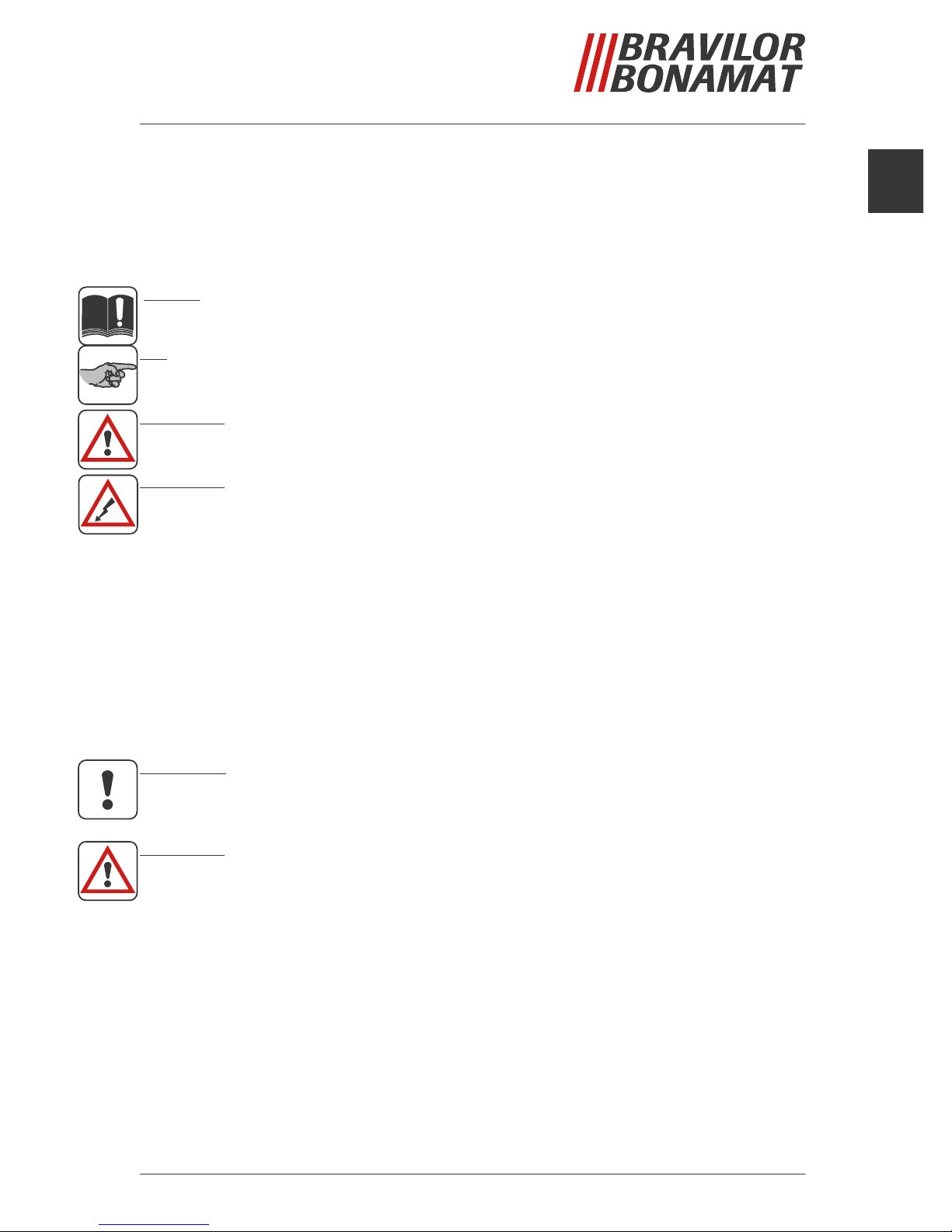

Pictograms and symbols
This document contains the following pictograms and symbols:
READ!
Read the safety manual (700.403.713).
TIP
Suggestions and advice for conducting the procedures in question more easily.
WARNING
Procedures which −if they are not conducted with due care and attention−may result in serious
damage to the device or physical injury.
WARNING
Danger: electric current.
Service and technical support
Please contact your dealer for information relating to specific settings, maintenance or repair activities
that are beyond the scope of this document. Your dealer is always prepared to assist you. Please
ensure that you have the following data available:
−model code
−type number
−serial number
These data are found on the device identification label.
Conditions of warranty
The conditions of warranty applicable to this machine form part of the terms of delivery.
CAUTION!
The apparatus is not to be used by children or persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction. Children must not to play with the apparatus.
WARNING
nWork on and repairs to the electrical system and the cooling system are strictly reserved for service
engineers with the appropriate authorisation and training.

Table of contents
EN
ECopyright Bravilor Bonamat B.V.
IV
FOREWORD I. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using this document I. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pictograms and symbols I. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service and technical support I. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Conditions of warranty I. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1. Introduction 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 A brief overview of the device 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1.1 General description 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1.2 Main components 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Technical data 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 General 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Transport dimensions and weights 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Dimensions 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4 Electrical system 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.5 Water system 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.6 Pressure for Carbonation system 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.7 Refrigerant 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.8 Recommended cleaning fluids and liquid disinfectants 2. . . . . . . . . . . . . .
3. Installation 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Unpacking 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 Installation 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2.1 Connection to the water mains (drinking water) 3. . . . . . . . . . . . . . . . . . . . . . . . .
3.2.2 Connection to the electricity supply 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2.3 Filter installation and replacement (optional) 4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2.4 Using the device the first time 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. Everyday usage 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 Signalling and display 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 Operation 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.1 Drawing off cold water 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. Maintenance by specially autorized personnel 6. . . . . . . . . . . . . . . . . . . .
5.1 General cleaning 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 Flushing the water system 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2.1 Chiller (Type I) 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2.2 Chiller with CO2 (Type II) 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3 Cleaning the cold water system 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3.1 Cleaning Procedure 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3.1.1 Chiller (Type I) 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3.1.2 Chiller (Type II) 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6. Programming 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1 Programming buttons 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1.1 Temperature setting function 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1.2 Filter−replacement / Cleaning setting and reset function 8. . . . . . . . . . . . . . . . . .
6.2 Protection function 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.1 Compressor protection 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.2 Water source low pressure protection 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.3 Power failure memory function 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.4 ”E1” protection function 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7. Correcting malfunctions 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1 General 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2 Display messages and their meaning 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EN
ECopyright Bravilor Bonamat B.V. 1
1. INTRODUCTION
READ!
Read the safety manual (700.403.713)
1.1 A brief overview of the device
1.1.1 General description
The CHILLER is a cold water (type I) or a cold sparkling water device (type II), specially designed for
anyone who enjoys drinking a refreshing beaker of cool and/or sparkling water. The device can supply
(2−3 Gal.) of chilled water per hour.
The device’s settings are electronically controlled. The control system is equipped with three
programming buttons that can be used to adjust the settings (water temperature (2x) and filter−replacement
status (1x)).
Once it has been programmed in accordance with the specific criteria and requirements, the device can
be operated simply with the aid of the water outlet button located at the front of the device.
In front, the device is equipped with one or two operation buttons.
1.1.2 Main components
The device comprises the following main components (see fig. 1 )
Description Type
p
I II
1. Front panel n n
2. Cold water button n n
3. Cold sparkling water button n
4. Water outlet n n
5. Drip tray n n
6. Condenser n n
7. Power outlet n n
8
CO2inlet connector n
8
.Cold water tank drain + water level n
9. Rubber foot n n
10. PCB control box n n
11. Water filter head n n
12. Water source inlet n n
13. Water filter bottle optional
6.
7.
8.
9.
10.
11.
12.
1.
2.
3.
4.
5.
Fig. 1 Principal components and Control organs

EN
ECopyright Bravilor Bonamat B.V.2
2. TECHNICAL DATA
READ!
Read the safety manual (700.403.713)
2.1 General
Type I (Model Chill−003) : Standard
Type II (Model Chill−004) : With CO2
Weight (without water) : 16 Kg / 38.6 lb
2.2 Transport dimensions and weights
Transport dimensions (l x h x w) : 19.69 x 17.13 x 14.17 (inch)
Transport weight : 17.5 Kg / 38.6 lb
2.3 Dimensions
Device dimensions (l x h x w) : 17.72 x 14.96 x 11.02 (inch)
2.4 Electrical system
TIP
−See the identification label for correct values.
Supply voltage and Frequency : 120 V~ / 60 Hz
Input power
Chill−003 : 228 W
Chill−004 : 240 W
Input current
Chill−003 : 1.9 A
Chill−004 : 2.0 A
Low water pressure protected switch : 100 kPa (Min. operation pressure)
Class : 1
2.5 Water system
Min. water pressure (supply) : 150 kPa (1.5 Bar)
Max. water pressure (supply) : 600 kPa (6 Bar)
Cold−water reservoir volume : 0.4 Gal
Hourly capacity cooling system : approx. 2−3 Gal/hour, at a water−supply
temperature of 77 F
Water temperature adjustable range : 41 −68 F
2.6 Pressure for Carbonation system
Input CO2pressure : 300 −400 kPa (3.0 −4.0 Bar)
2.7 Refrigerant
R134a : 2.87 fl oz
2.8 Recommended cleaning fluids and liquid disinfectants
Cleaning agent for the exterior : normal, non−abrasive or corrosive detergent.
Liquid disinfectants for the
cold−water reservoir and outlet : CoolerClean Rinse (www.coolerclean.com) hydrogen peroxide solution (5%)
CAUTION!
−Before use, first read the instructions on the packaging of the cleaning agent.

EN
ECopyright Bravilor Bonamat B.V. 3
3. INSTALLATION
READ!
Read the safety manual (700.403.713)
3.1 Unpacking
DVerify that the device is complete.
−Chiller
−1 drip−tray + grille
−1 water−connection hose
−1 Connecting cable
−Water filter (optional)
−1 CO2inlet pipe 1/4” (Type II only)
−CO2bottle and decompression valve (Type II only) provided by dealer
−these operating instructions
DIf components are missing or damaged, please contact your dealer.
3.2 Installation
CAUTION!
−Do not place the device with its back against a heat source (i.e. heaters).
−Make sure that there is sufficient space around the apparatus for ventilation.
DInstall the drip−tray in front of the device.
3.2.1 Connection to the water mains (drinking water)
DConnect the device to the water supply system (drinking water) using an easily accessible manually
operated tap. Use the connection hose supplied.
CAUTION!
−Ensure the water hose is connected well, ensuring no leakage.
−When not used for a long time, please shut off the water supply.
3.2.2 Connection to the electricity supply
WARNING
nSupply voltages may differ from one country to the next. Please ensure that the device is suitable
for connection to your local network. The identification label contains data relating to supply voltage
and frequency.
DConnect the device to the electricity supply to ensure a continuous supply of electricity. This
maintains the operation of the cooling system and the water filter’s counter remains active.
DEnsure that the device is correctly earthed.

EN
ECopyright Bravilor Bonamat B.V.4
3.2.3 Filter installation and replacement (optional)
AB
DRotate like the right arrow (B) to open the filter.
DRotate like the left arrow (A) to lock the filter.
3.2.4 Using the device the first time
TIP
−The first time the device is used, it makes use of the default factory settings. At a later date,
authorized personnel can change these settings if required.
−The control system equates with a power failure memory function. See Chapter 6.
−The first time the device is used, it takes approx. 30 minutes before the water has reached the
desired temperature.
DActivate the device by putting the plug into the socket. The display then shows the temperature.
The water tank will be filled until the water level is reached. Press the up or down button to set the
desired temperature.
DWait approx. 3 minutes until the reservoir has filled.
DClean your Chiller following §5.2 (Flushing the water system)
DNow only remove the plug from the socket for maintenance repairs or long periods of inactivity.

EN
ECopyright Bravilor Bonamat B.V. 5
4. EVERYDAY USAGE
READ!
Read the safety manual (700.403.713)
During use, the default factory setting may not be considered to be correct or adequate for the situation
in which the device is being used. These settings can be adjusted −by personnel with the appropriate
authorization−in accordance with the instructions in Chapter 6.
Consequently, the present chapter (4.) only describes normal, everyday use of the device by any user.
Periodic maintenance activities for personnel with the appropriate authorization are described in Chapter 5.

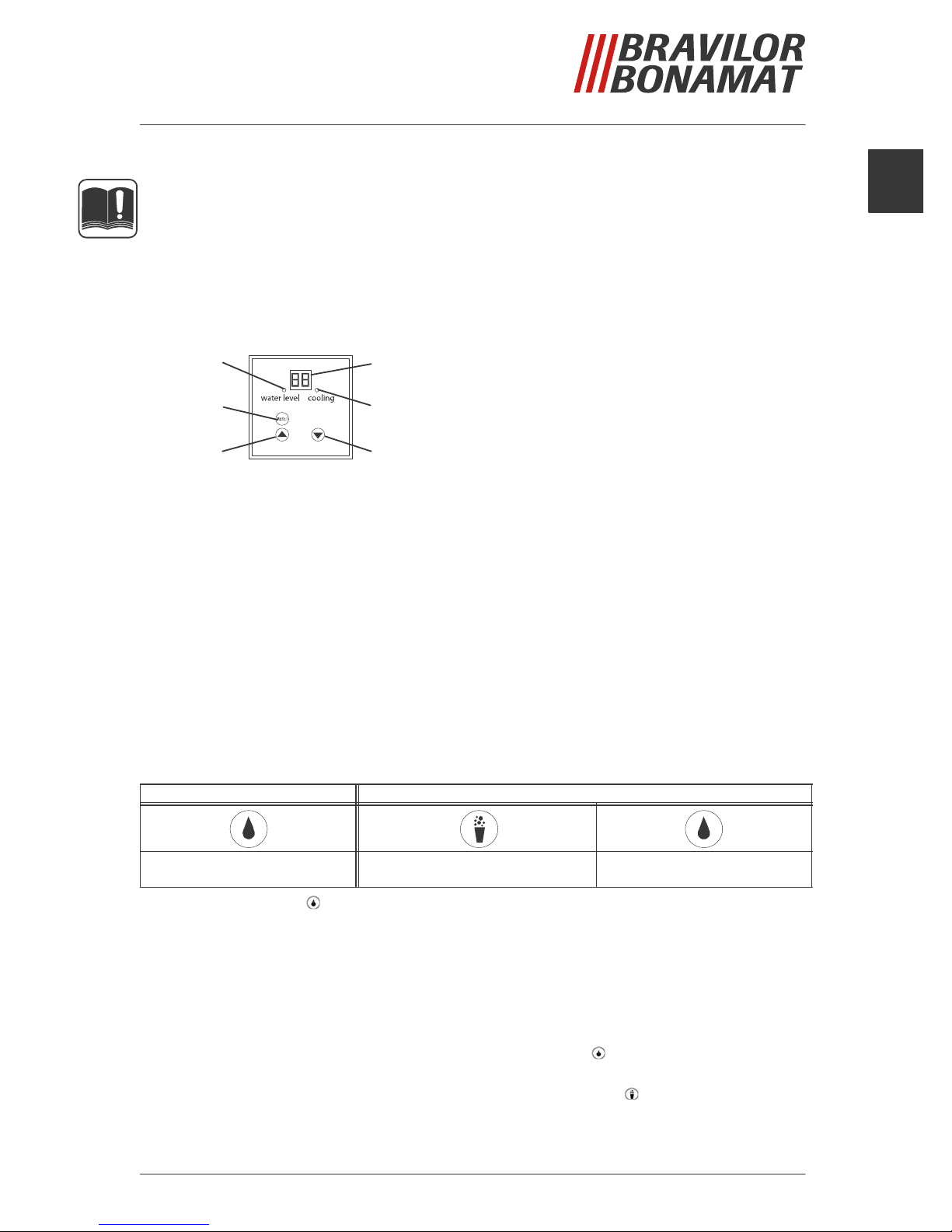

4.1 Signalling and display
1
2
3
6
5
4

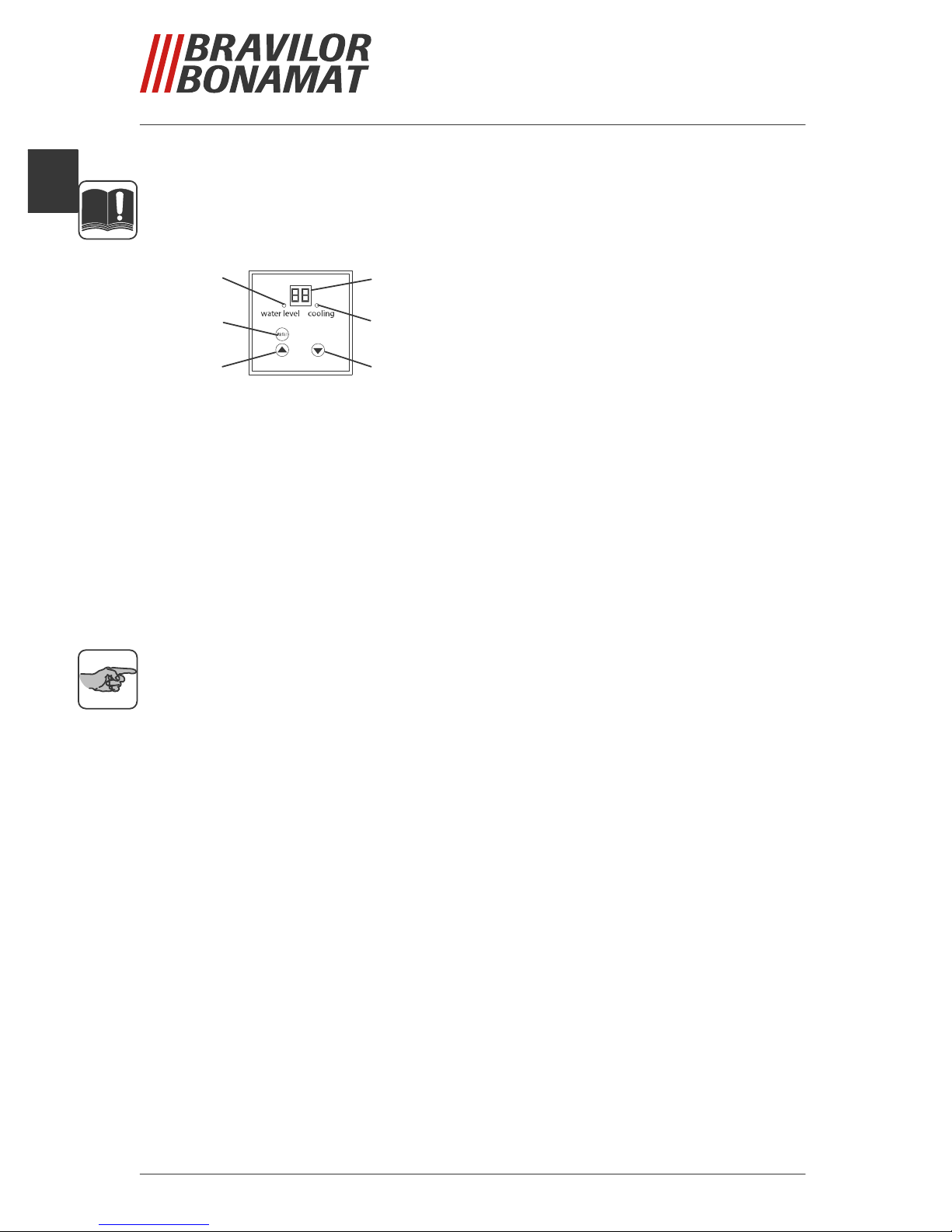

Fig. 2 Signalling and display
1. Water level light
2. Reset button
3. Temperature set (up)
4. Temperature set (down)
5. Cooling run light
6. Display
The following data can be read off the device during operations:
DWater level light (red) : Off −> normal
: On −> level too low
DCooling running light : Off −> setting temperature reached
: On −> cooling
DDigital display
A. Value −> set temperature
B. Flashing value −> cooling (actual temperature)
C. Alternately temp/C−code −> cleaning/filter−replacement time is up
D. Flashing C−code −> when setting the cleaning/filter−replacement time
E. Error code (E)
Type I Type II
Cold water button /
Operation button light Sparkling water button Cold water button / Operation button light
DCold water button light
1. The cold water button light will always be ON in blue when device is running normally.
2. The cold water button light will flash when cleaning/filter−replacement time is up.
3. The cold water button light will go off when something wrong with the temperature sensor.
4.2 Operation
4.2.1 Drawing off cold water
When water has reached the set temperature:
DPlace a cup under the water outlet and press the cold water button to draw off a refreshing
cup of cold water.
DPlace a cup under the water outlet and press the sparkling water button to draw off a
refreshing cup of sparkling water (Type II only).

EN
ECopyright Bravilor Bonamat B.V.6
5. MAINTENANCE BY SPECIALLY AUTORIZED
PERSONNEL
READ!
Read the safety manual (700.403.713)
5.1 General cleaning
DClean the exterior of the device with a damp cloth (if necessary, use a non−abrasive cleaning agent).
DUse a vacuum Cleaner to clean the grille at the rear of the device.
5.2 Flushing the water system
Flush the water system with clean water if you have not used it to draw off water for one to two weeks.
5.2.1 Chiller (Type I)
1. Use button 2 to draw−off approximately 16.9 fl oz of water.
2. Wait until the water has reached the set temperature (about 30 minutes).
The device is ready for use.
5.2.2 Chiller with CO2(Type II)
1. Use button 3 to draw−off the contents of the CO2tank until only CO2gas escapes from the outlet
(101.44 fl oz).
2. Use button 2 to draw−off approximately 16.9 fl oz of water.
3. Wait until the water has reached the set temperature (about 30 minutes).
The device is ready for use.
5.3 Cleaning the cold water system
The cold water reservoir should be cleaned:
A. When the device has not been used for a relatively long period of time.
B. When the water that is drawn off has an unusual taste.
C. At least every six months or when the cleaning−/ replace filter indicator (C1) is flashing.
5.3.1 Cleaning Procedure
Before cleaning make sure the following items are available:
DCleaning kit (2 x 1.7 fl oz cleaning agent and 1 spray bottle of cleaning agent)
DCleaning cartridge (3M AP2−E)
WARNING
nBefore use carefully read the instructions of the drinking−water disinfectant to be used first.
5.3.1.1 Chiller (Type I)
1. Close the water tap.
2. Fill the cleaning cartridge with the two bottles of detergent.
3. Connect the cleaning cartridge to the Chiller.
4. Turn the water tap open.
5. Use button 2 to draw off approximately 8.45 fl oz of water.
6. Wait for about 30 minutes, the Chiller will now fill with the cleaning agent.
7. Use the spray bottle to clean the outlet, during the filling process.
8. Remove the cleaning cartridge and empty the water present.
9. Again, use button 2 to draw off approximately 8.45 fl oz of water.
10. If a water filter is connected it should also be replaced now (see § 3.2.3).
11. Reset the timer for cleaning (see § 6.1.2).
The device is ready for use.
