Breckwell Classic Cast SPC4000 User manual

WARNING: If your appliance is not properly installed a house fire may result. For your safety,
follow the installation directions. Contact local building or fire officials about restrictions and
installation inspection requirements in your area.
PLEASE read this entire manual before installation and use of this pellet fuel-burning room heater.
Failure to follow these instructions could result in property damage, bodily injury, or even death.
Save these instructions.
PROFESSIONAL INSTALLATION IS HIGHLY RECOMMENDED
Breckwell
227 Industrial Park Road
P.O. Box 151 South Pittsburg, TN 37380
[phone] • www.breckwell.com 10/2013
852020C-1904E
Classic Cast SPC4000
Classic Cast SPC4000
OWNER’S MANUAL
OWNER’S MANUAL
The French version is available for download from the site Breckwell: http://www.breckwell.com/
La version française est disponible pour téléchargement à partir du site Breckwell: http://www.breckwell.com/
U.S. Environmental Protection Agency
Certified to comply with 2015 particulate emissions standards.

2
MAIL YOUR WARRANTY CARD TODAY
To receive full warranty coverage, you will
need to show evidence of the date you
purchased your stove. We suggest that you
attach your sales invoice to this page, and fill
in the form on the left, so that you will have all
the information you need in one place should
the need for service or information occur.
Thank you for purchasing your pellet burning stove, you are now prepared to burn wood in the most efficient,
convenient way possible. To achieve the safest, most efficient and most enjoyable performance from your
stove, you must do three things: 1) Install it properly; 2) Operate it correctly; and 3) Maintain it regularly. The
purpose of this manual is to help you do all three.
PLEASE read this entire manual before installation and use of this pellet fuel-burning room heater. Fail-
ure to follow these instructions could result in property damage, bodily injury or even death.
Keep this manual handy for future reference.
This stove has been independently tested to ASTM E1509-12 Standard Specification for Room Heaters, Pellet
Fuel Burning Type 1, ULC-S627 Standard for Solid Fuel Room Heaters, and Oregon Administrative Rules for
Mobile Homes (814-23-900 through 814-23-909) and Installation as a Stove Heater.
This pellet stove, when installed, must be electrically grounded in accordance with local codes, or in the ab-
sence of local codes, with the National Electrical Code, ANSI/NFPA 70.
The authority having jurisdiction (such as municipal building department, fire department, fire preven-
tion bureau, etc.) should be consulted before installation to determine the need to obtain a permit.
This appliance is designed specifically for use only with pelletized wood. It is designed for residential installa-
tion according to current national and local building codes as a freestanding room heater. It is also approved as
a mobile home heater which is designed for connection to an outside combustion air source.
The stove will not operate using natural draft or without a power source for the blower systems and fuel feed
system and must not be burned with any type of coal (see PROPER FUEL).
This stove is designed to provide the optimum proportions of fuel and air to the fire in order to burn free of
smoke and soot. Any blockage of the air supply to or from the stove will seriously degrade its performance and
will be evidenced by a smoking exhaust and a sooting window. For best operation the ash content of the pellet
fuel should be less than 1% and the calorific value approximately 8200 BTU/LB. Avoid high ash content fuels
because this will rapidly fill up the burn pot and eventually cut off the combustion air supply.
Commercial and industrial installations of this pellet toves should not be used since operational control is often
not well managed in these settings.
INTRODUCTION
INTRODUCTION
INFORMATION IMPORTANTE
Model: ____________________________
Style: ____________________________
Serial Number:_____________________
Date: ____________________________
This manual describes the installation and operation of the Breckwell, SPC4000 wood heater. This heater
meets the 2015 U.S. Environmental Protection Agency's crib wood emission limits for wood heaters sold after
May 15, 2015. Under specific test conditions this heater has been shown to deliver heat at rates ranging from
6,569 to 34,785 Btu/hr.

3
Do not operate your stove if you smell smoke
coming from it. Turn it off, monitor it, and call your
dealer.
Never use gasoline, gasoline-type lantern fuel, kero-
sene, charcoal lighter fluid, or similar liquids to start
or “freshen up” a fire in this stove. Keep all such
liquids well away from the stove while in use.
Never block free airflow through the open vents of
the stove.
Keep foreign objects out of the hopper.
The stove will not operate during a power outage.
If an outage does occur, check the stove for smoke
spillage and open a window if any smoke spills into
the room.
Disconnect the power cord before performing any
maintenance or repairs on the stove.
NOTE: Turning the stove “off” does not disconnect
all power from the stove.
During the start up period; 1) DO NOT open the
viewing door; 2) DO NOT open the damper more
than ¼”; 3) DO NOT add pellets to the burnpot by
hand; 4) DO NOT use the Fuel Feed button (unless
you are priming the auger after running out of pel-
lets) as a dangerous condition could result.
Do not unplug the stove if you suspect a malfunc-
tion. Turn the stove off, periodically inspect it, and
call your dealer.
Never try to repair or replace any part of the stove
unless instructions are given in this manual. All
other work should be done by a trained techni-
cian.
Do not throw this manual away. This manual has
important operating and maintenance instructions
that you will need at a later time. Always follow the
instructions in this manual.
Do not place clothing or other flammable items on
or near the stove.
The viewing door must be closed and latched
during operation.
Do not operate the stove if the flame becomes
dark and sooty or if the burnpot overfills with
pellets. Turn the stove off, periodically inspect it,
and call your dealer.
Hot while in operation. Keep children, clothing,
and furniture away. Contact may cause skin
burns. Educate all children of the danger of a
high temperature stove. Young children should be
supervised when they are in the same room as
the stove.
If the stove is installed in a room without air
conditioning, or in an area where direct sunlight
can shine on the unit, it is possible this can cause
the temperature of the stove to rise to operational
levels; one of the sensors could then make the
stove start on its own. It is recommended that the
stove be unplugged when not in use for extended
amounts of time (i.e. during the summer months).
Contact your local building officials to obtain a per-
mit and information on any installation restrictions
or inspection requirements in your area. Notify your
insurance company of this stove as well.
This unit must be properly installed to prevent the
possibility of a house fire. The instructions must be
strictly adhered to. Do not use makeshift methods or
compromise in the installation.
Your stove requires periodic maintenance and
cleaning. Failure to maintain your stove may lead to
smoke spillage in your home.
This stove must be connected to a standard 120
V., 60 Hz grounded electrical outlet. Do not use an
adapter plug or sever the grounding plug. Do not
route the electrical cord underneath, in front of, or
over the stove.
The exhaust system should be checked, at a min-
imum, at least twice a year for any build up of soot
or creosote.
This is a pressurized exhaust system. We sug-
gest sealing all vent connector joints with 500°F
(260°C) RTV silicone sealant to ensure consistent
performance and to avoid smoke spillage. We
also suggest that all horizontal connector joints be
sealed with UL-181-AP foil tape.
Allow the stove to cool before carrying out any
maintenance or cleaning. Ashes must be disposed
in a metal container with a tight lid and placed
on a no combustible surface well away from the
home structure.
This stove is designed and approved for pelletized
wood fuel only. Any other type of fuel burned in
this heater will void the warranty and safety listing.
When installed in a mobile home, the stove must
be bolted to the floor, have outside air, and NOT
BE INSTALLED IN A BEDROOM (Per H.U.D.
requirements). Check with local building officials.
This Company grants no warranty, implied or
stated, for the installation or maintenance of
your stove, and assumes no responsibility of
any consequential damage(s).
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS

4
SPECIFICATIONS
Width: 25 ¼”
Height: 29 ½”
Depth: 24 ¼”
Weight: 340 lbs.
Flue size: 3” or 4”
Hopper Capacity: Up to 40 lbs.
(this can vary widely depending on pellet size, length, and
diameter)
EPA status: exempt
Burn time: 1 lb. to 4 ½ lbs. per hour
BTU range: 8,200 to 40,000
Approved installations: mobile home, alcove, conventional
PREPARATION
Factory packaging must be removed, and some minor
assembly work is required prior to installation. Access to
the rear of the stove is necessary.
NOTE: Normally, your dealer will perform these functions.

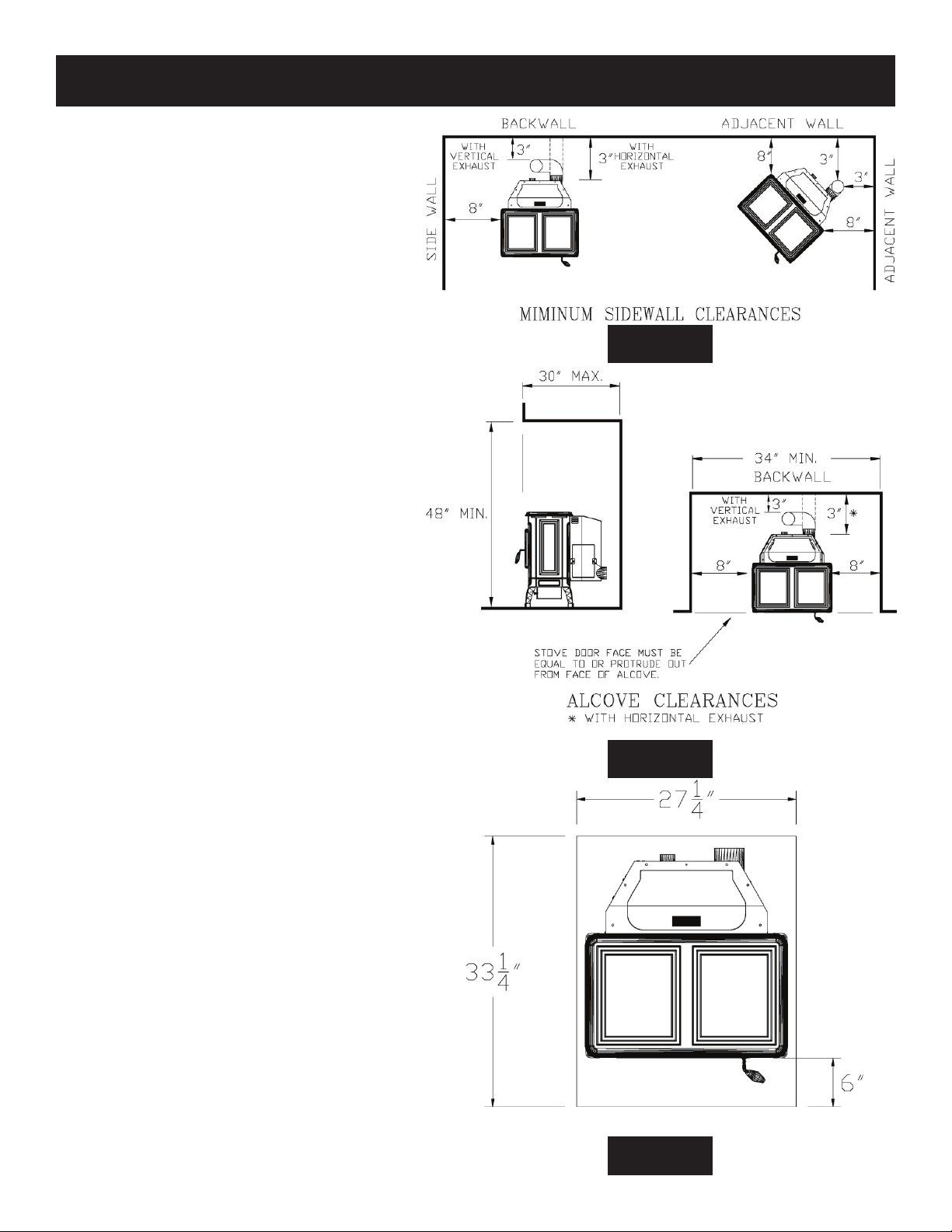

CLEARANCES
Your appliance has been tested and listed for installation
in residential, mobile home and alcove applications.
FLOOR PROTECTION: Freestanding installations, mini-
mum
27 ¼” wide by 33 ¼” deep. The stove must be placed on
a continuous (grouted joints) noncombustible material
such as ceramic tile, cement board, brick, 3/8” millboard
or equivalent, or other approved or listed material suited
for floor protection.
THE MATERIAL(S) USED MUST HAVE, OR COMBINE
TO HAVE, A MINIMUM INSULATIVE RATING OF ‘R1’.
NOTE: ceramic tile, or any tile, requires a continuous
sheet beneath to prevent the possibility of embers falling
through to the combustible floor if cracks or separation
should occur in the finished surface, this would include
floor protection for Built-in raised hearths. Check local
codes for approved alternatives.
Clearances are measured from the sides, back and face
(door opening) or stove body (refer to fig. 3).
DO NOT USE MAKESHIFT MATERIALS OR COMPRO-
MISES IN THE INSTALLATION OF THIS UNIT.
INSTALL VENT WITH CLEARANCES SPECIFIED BY
THE VENT MANUFACTURER.
VISIBLE SMOKE
The amount of visible smoke being produced can be
an effective method of determining how efficiently the
combustion process is taking place at the given settings.
Visible smoke consist of unburned fuel and moisture
leaving your stove. Learn to adjust the air settings of your
specific unit to produce the smallest amount of visible
smoke. Wood that has not been seasoned properly and
has a high wood moisture content will produce excess vis-
ible smoke and burn poorly.
FLOOR PROTECTION
INSTALLATION
INSTALLATION
FIGURE 1
FIGURE 2
FIGURE 3

5
COMBUSTION AIR SUPPLY
For a mobile home installation the stove must be connected to an outside
source of combustion air. A 2” inside diameter metallic pipe, either flexible
or rigid, may be attached to the inlet at the stove’s rear (refer to figure 4).
A rodent guard (minimum ¼” wire mesh)/wind hood must be used at the
terminus (refer to figure 5). All connections must be secured and airtight by
either using the appropriately sized hose clamp and/or UL-181-AP foil tape.
For mobile home installations only: 2” inside diameter pipe may be used
for the first 5 feet of combustion air supply run. From 5 to 10 feet use 2 ¾”
inside diameter pipe. No combustion air supply may exceed 10 feet.
Sources of Outside Combustion Air
a. In fireplaces
• Chimney top.
• Ash clean out door.
b. For freestanding installations
• A hole in floor near stove rear terminating only in a ventilated
crawl space.
• A hole in the wall behind the stove.
WHEN OUTSIDE AIR IS NOT USED
If outside air is not used, it is important that combustion air is easily
available to the air inlet. A closeable outside air register can be used in
tightly insulated homes. In insert installations, flashing vents should not be
restricted. The flashing should not necessarily seal the fireplace face.
VENTING
Your appliance is certified for use with listed TYPE L-Vent, 3” or 4” diam-
eter in size. The stove was tested with Simpson Duravent brand. Class
“A” chimney is not required. Refer to the instructions provided by the vent
manufacturer, especially when passing through a wall, ceiling or roof.
This is a pressurized exhaust system. We suggest sealing all vent connec-
tor joints with 500°F (260°C) RTV silicone sealant to ensure consistent per-
formance and to avoid smoke spillage. We also suggest that all horizontal
connector joints be sealed with UL-181-AP foil tape.
It is strongly recommended that you have a minimum of 6’ of vertical pipe in
your exhaust system. For best performance of the stove limit the number
of elbows and horizontal pipe as much as possible
FOLLOW L-VENT CHIMNEY MANUFACTURER’S INSTALLATION IN-
STRUCTIONS.
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING AN-
OTHER APPLIANCE.
DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYS-
TEM OF THIS UNIT.
INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANU-
FACTURER.
IMPORTANCE OF PROPER DRAFT
Draft is the force which moves air from the appliance up through the
chimney. The amount of draft in your chimney depends on the length of the
chimney, local geography, nearby obstructions and other factors. Too much
draft may cause excessive temperatures in the appliance. Inadequate draft
may cause backpuffing into the room and ‘plugging’ of the chimney.
Inadequate draft will cause the appliance to leak smoke into the room
through appliance and chimney connector joints.
An uncontrollable burn or excessive temperature indicates excessive draft.
Take into account the chimney’s location to insure it is not too close to
neighbors or in a valley which may cause unhealthy or nuisance conditions.
INSTALLATION
INSTALLATION
FIGURE 4
FIGURE 5

6
EQUIVALENT VENT LENGTH (EVL)
The longer the run of pipe in your installation (both with inserts and freestandings), the more restriction there is in the system. There-
fore, larger diameter pipe should be used.
• Use 4” pipe if you have more than 15 feet of equivalent vent length.
• Horizontal runs shall not exceed 10 feet of EVL.
• It is recommended that vertical runs be a minimum of 8 feet.
• To calculate EVL, use the following conversions:
90º elbow or “T” = 5 equivalent feet
45º elbow = 3 equivalent feet
Horizontal Pipe Run = 1 equivalent foot per actual foot
Vertical Pipe Run = 0.5 equivalent foot per actual foot
NOTE: At altitudes above 3,000 feet, we suggest the use of 4” diameter vent at an EVL of 7 feet or more.
INSTALLATION
A. HORIZONTALLY THROUGH WALL (refer to Figure 6)
NOTE: See “VENTING” and follow L-Vent chimney manufacturer’s instructions.
1. Position stove, adhering to clearances shown in Figures 1 & 2.
2. Locate position of hole in wall; directly behind stove exhaust vent (refer to figure 4).
3. Always maintain 3” clearance from combustible materials.
4. Install L-Vent wall thimble per L-Vent manufacturer’s instructions.
5. Attach enough piping to penetrate and extend at least 6” beyond exterior walls. An 8-foot vertical pipe run is suggested where pos-
sible to reduce the possibility of smoke spill age in the event of a loss of negative pressure.
6. Attach cap and seal outside wall thimbles with non-hardening waterproof mastic.
7. Termination should not be located so that hot exhaust gases can ignite trees, shrubs, or grasses or be a hazard to children. Ex-
haust gases can reach temperatures of 500ºF and cause serious burns if touched.
Locate terminations: a) not less than 3 feet above any forced
air inlet located within 10 feet; b) not less than 4 feet below
or horizontally from, or one foot above, any door, window or
gravity air inlet into any building; c) not less than two feet
from an adjacent building and not less than 7 feet above
grade when located adjacent to a public walkway.
INSTALLATION
INSTALLATION
FIGURE 6

7
B. VERTICALLY WITH NEW CHIMNEY SYSTEM (Refer to Figure 7)
NOTE: See “VENTING” and follow L-Vent chimney manufacturer’s instructions.
OPTION: To achieve a center vertical installation a 45º elbow and a clean-out tee can
be used to offset the pipe from the exhaust outlet to the rear center of the stove.
OPTION: Install L-Vent elbow in place of clean-out tee. Locate stove. Drop plumb bob
to center of tee outlet, mark point on ceiling. Install ceiling support and L-Vent pipe per
L-Vent manufacturer’s instructions.
1. Always maintain 3” clearance from combustible materials. When passing through
additional floors or ceilings, always install firestop spacer.
2. After lining up for hole in roof, cut either around or square hole in roof, always
3” larger all the way around pipe. Install upper edge and sides of flashing under
roofing materials, nail to the roof along upper edge. Do not nail lower edge. Seal
nail heads with non-hardening waterproof mastic.
Apply non-hardening, waterproof mastic where the storm collar will meet the vent and
flashing. Slide storm collar down until it sits on the flashing. Seal and install cap.
C. VERTICALLY INTO EXISTING CHIMNEY SYSTEM
Adapters are available to adapt from 3” L-Vent to 6” or 8” Class-A chimney. (Figure 8a)
As an alternative, 3” or 4” L-Vent can be run inside existing chimney to termination.
(Figure 8b)
This is the preferred method.
Follow guidelines for equivalent vent length.
INSTALLATION
INSTALLATION
FIGURE 7
FIGURE 8a FIGURE 8b

8
D. VERTICALLY INTO EXISTING MASONRY FIREPLACE
NOTE: See “VENTING” and follow L-Vent chimney manufacturer’s
instructions.
1. Have the masonry chimney inspected by a qualified chimney
sweep or installer to determine its structural condition.
2. You will need a pipe length equal to the chimney height from the
hearth. If outside combustion air is to be used, you will need a
pipe length equal to the chimney height plus 18 inches.
3. Install a blanking plate and the chimney pipe, and if used the
outside air pipe, as shown in Figure 9.
4. Attach the L-Vent adapter, a section of pipe and clean out tee,
making sure the clean out tee is centered in the chimney flue
area.
5. Position the stove, adhering to the clearances in Figures 1 & 2.
6. Measure and build chimney top plate. Cut out holes for chim-
ney pipe, and if used the outside air pipe. Install and seal with
non-hardening mastic to prevent water leakage. Install vent cap.
E. INSTALLATION THROUGH SIDE OF MASONRY CHIMNEY
NOTE: See “VENTING” and follow L-Vent chimney manufacturer’s
instructions.
1. Position the stove, adhering to the clearances in Figures 1 & 2.
Mark the center of the hole where the pipe is to pierce the mason-
ry chimney.
2. It will be necessary to break out the masonry around the location
of the pipe center mark. Use a 4-inch diameter hole for 3-inch
pipe and 5-inch diameter hole for 4-inch pipe.
3. Measure and build chimney top plate. Cut out holes for chimney
pipe, and if used the outside air pipe.
4. Install the tee on the bottom of the vertical pipe system and lower
it down the chimney until the center branch of the tee is level with
the center of the hole in the masonry, as shown in Figure 10.
5. Install and seal the top plate from step 3 with non-hardening mas-
tic. Slip the storm collar over the pipe, and while holding the pipe
at the proper elevation, affix the collar with a minimum of three
¼” stainless steel sheet metal screws. Seal all joints and seams
around the collar.
6. Connect the horizontal pipe by pushing it through the hole in the
masonry and lining it up with the branch in the tee.
Push the pipe into the tee while twisting it to lock it into the tee.
7. If desired, once the horizontal pipe is in place, the space be-
tween the pipe and masonry may be filled with
high-temperature grout.
8. Install the trim collar. An adjustable pipe length and adapter may
be needed to finish the connection to the stove.
INSTALLATION
INSTALLATION

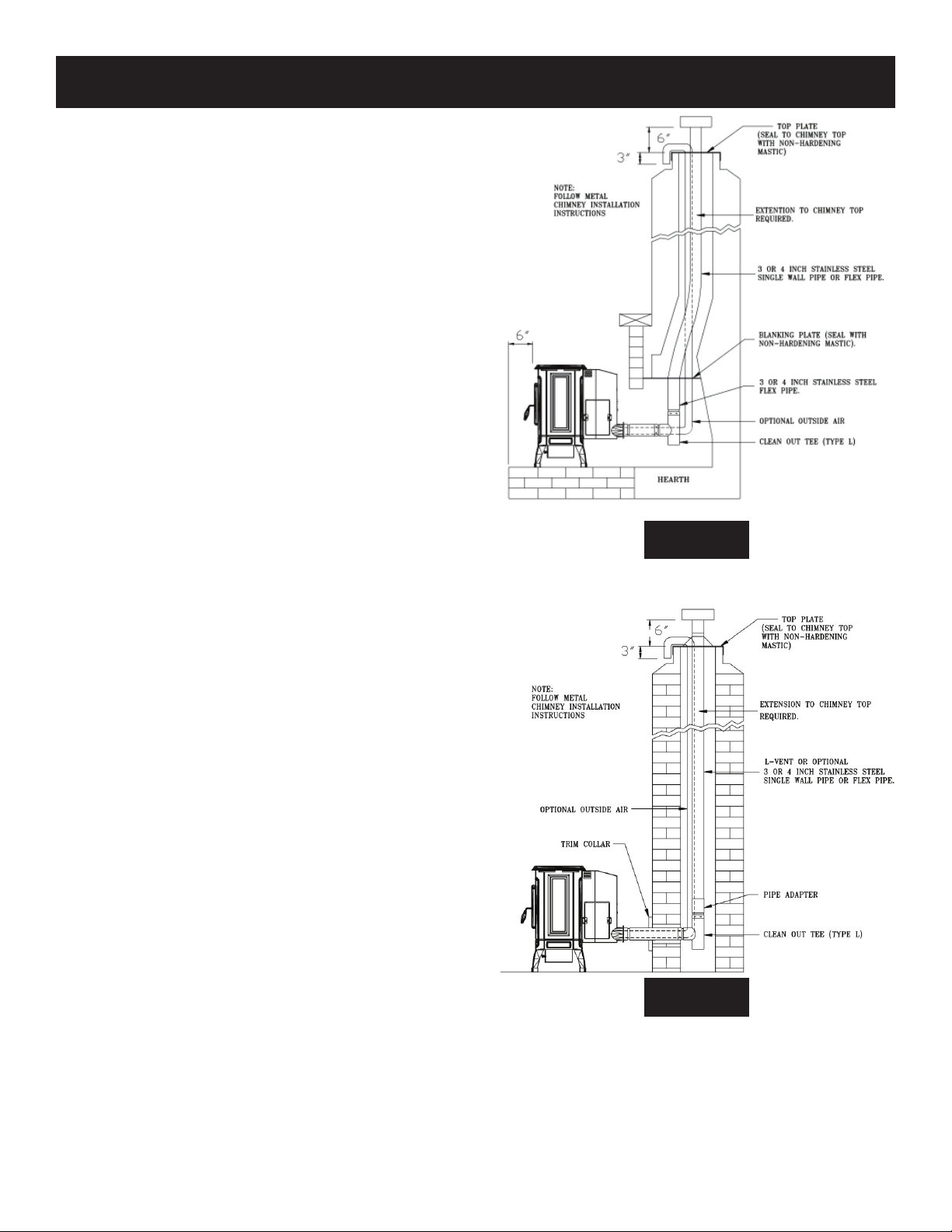

FIGURE 9
FIGURE 10

9
ELECTRICAL INSTALLATION
This stove is provided with a 6-foot grounded electrical cord extending from the rear of the stove.
We recommend connecting to a good quality surge protector that is plugged into a standard three-prong, 120V, 60 Hz electri-
cal outlet.
Do NOT connect the unit to a GFCI socket.
Voltage variations can lead to serious performance problems. The stoves electrical system is designed for 120V AC with no more than
5% variation. This company cannot accept responsibility for poor performance or damage due to inadequate voltage. If connected to an
older, two-prong outlet, a separate ground wire should be run to a proper ground (refer this to a qualified technician). Always route the
electrical cord so that it will not come in contact with any hot part of the stove.
SPECIAL MOBIL HOME REQUIREMENTS
WARNING: DO NOT INSTALL IN A SLEEPING ROOM.
NOTE: Installation should be in accordance with the Manufactured Home and Safety Standard (HUD), CFR 3280, Part 24
For installation in a mobile home, an outside source of combustion air must be used
(See “COMBUSTION AIR SUPPLY”).
The appliance must be grounded to the steel chassis of the home with 8 Ga. copper wire using a serrated or star washer to penetrate
paint or protective coating to ensure grounding.
The appliance must be securely fastened to the floor of the mobile home through the two holes in the rear of the stove using 2, ¼” lag
bolts that are long enough to go through both a hearth pad, if used, and the floor of the home. (See figure 11)
Refer to “VENTING” for proper exhaust configurations
CAUTION:
THE STRUCTURAL INTEGRITY OF THE MO-
BILE HOME FLOOR, WALL AND CEILING/
ROOF MUST BE MAINTAINED.
INSTALLATION
INSTALLATION
BOLT HOLES
FIGURE 11

10

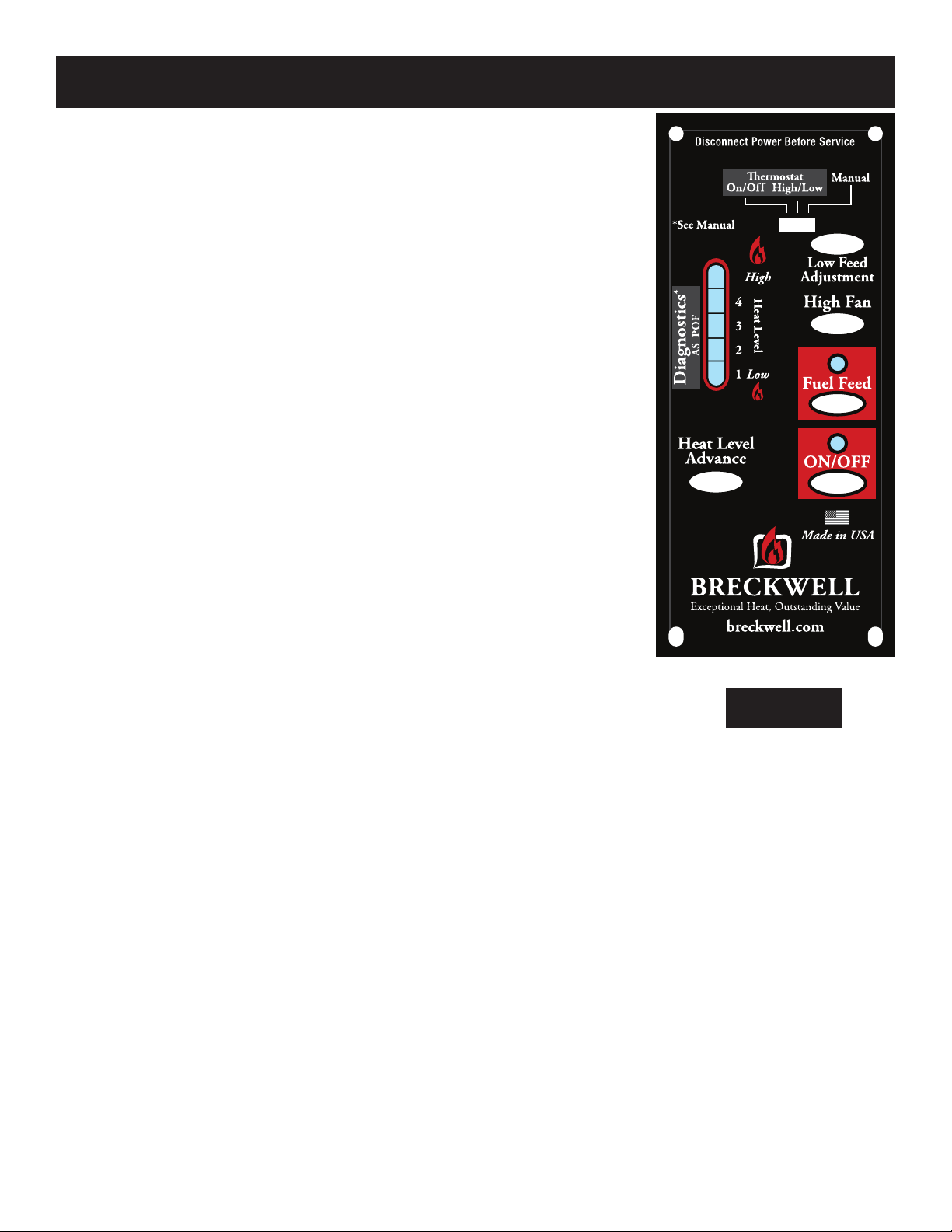

PANEL CONTROLS (See Figure 12)
The blowers and automatic fuel supply are controlled from a panel on the left-hand side of the
furnace. The control panel functions are as follows.
a. ON/OFF SWITCH
• When pushed the stove will automatically ignite. No other firestarter is necessary. The
igniter will stay on for at least 10 and up to 15 minutes, depending on when Proof of Fire is
reached. The fire should start in about 5 minutes.
• The green light located above the On/Off button (in the On/Off box) will flash during the
ignition start-up period. (See figure 12)
• The Feed Rate Advance is inoperable during the ignition start period. When the red light
continuously stays on the Feed Rate Advance can be adjusted to achieve the desired heat
output.
NOTE: If the stove has been shut off, and you want to re-start it while it is still warm, the “on/off”
button must be held down for 2 seconds.
b. FUEL FEED SWITCH
• When the “Fuel Feed” button is pushed and held down the stove will feed pellets continu-
ously into the burnpot.
• While the stove’s auger system is feeding pellets the amber light (in the “Fuel Feed” box)
will be on. (See figure 12)
CAUTION: DO NOT USE THIS CONTROL DURING NORMAL OPERATION BECAUSE IT
COULD SMOTHER THE FIRE AND LEAD TO A DANGEROUS SITUATION.
c. HIGH FAN SWITCH
• The room air fan speed varies directly with the feed rate. The “HIGH FAN” switch overrides
this variable speed function. It will set the room air blower speed to high at any feed rate
setting.
• When the “HIGH FAN” button is pushed the room air fan will switch to its highest setting.
• When this button is pushed again the room air fan will return to its original setting based on
the Feed Rate Advance setting.
d. RESET TRIM
Different size and quality pellet fuel may require adjustment of the “1” feed setting on the Feed
Rate Advance bar graph. This is usually a one-time adjustment based on the fuel you are using.
The “RESET TRIM” button when adjusted will allow for 3 different feed rate settings for the #1 feed setting only. To adjust simply push
the “RESET TRIM” button while the stove is operating at setting “1” and watch the bar graph.
• When the “1” and “3” lights are illuminated on the bar graph the low feed rate is at its “lowest” setting. (approx. 0.9 pounds per
hour)
• When the “1” light is illuminated on the bar graph the low feed rate is at its “normal” setting.
• When the “1” & “4” lights are illuminated on the bar graph the low feed rate is at its “highest” setting.
NOTE: When the stove is set on “1” the “reset trim” values will be shown on the Feed Rate Advance bar graph. For example if the Re-
set Trim is set to its lowest setting every time the stove is set to low the “1” and “3” lights will be illuminated on the bar graph.
e. HEAT LEVEL ADVANCE
• This button when pushed will set the pellet feed rate, hence the heat output of your stove. The levels of heat output will incremen-
tally change on the bar graph starting from level “1” to “4”.
NOTE: When dropping more than 2 heat level settings (i.e. 4 to 1) push the ‘High Fan’ button and allow the room air fan to run at that
setting for at least 5 minutes to prevent the stove from tripping the high temp thermodisk. If the high temp thermodisk does trip see
“SAFETY FEATURES”.
CAUTION: THE “4” SETTING IS DESIGNED FOR TEMPORARY USE ONLY. IF USED FOR EXTENDED PERIODS, IT CAN SHORT-
EN THE LIFE EXPECTANCY OF THE UNITS COMPONENTS. AVOID USE AT THIS SETTING FOR MORE THAN ONE HOUR AT A
TIME.
OPERATION
OPERATION
5
FIGURE 12

11
PROPER FUEL
This heater is designed to burn only PFI Premium grade pellets. This appliance can also burn pellets rated as standard after May 16,
2015
DO NOT BURN:
1. Garbage;
2. Lawn clippings or yard waste;
3. Materials containing rubber, including tires;
4. Materials containing plastic;
5. Waste petroleum products, paints or paint thinners, or asphalt products;
6. Materials containing asbestos;
7. Construction or demolition debris;
8. Railroad ties or pressure-treated wood;
9. Manure or animal remains;
10. Salt water driftwood or other previously salt water saturated materials;
11. Unseasoned wood; or
12. Paper products, cardboard, plywood, or particleboard. The prohibition against burning these materials does not prohibit the use
of fire starters made from paper, cardboard, saw dust, wax and similar substances for the purpose of starting a fire in an affected
wood heater.
Burning these materials may result in release of toxic fumes or render the heater ineffective and cause smoke.
THIS STOVE IS APPROVED FOR BURNING PELLETIZED WOOD FUEL ONLY! Factory-approved pellets are those ¼” or 5/16” in
diameter and not over 1” long. Longer or thicker pellets sometimes bridge the auger flights, which prevents proper pellet feed. Burning
wood in forms other than pellets is not permitted. It will violate the building codes for which the stove has been approved and will void
all warranties. The design incorporates automatic feed of the pellet fuel into the fire at a carefully prescribed rate. Any additional fuel in-
troduced by hand will not increase heat output but may seriously impair the stoves performance by generating considerable smoke. Do
not burn wet pellets. The stove’s performance depends heavily on the quality of your pellet fuel. Avoid pellet brands that display these
characteristics:
a. Excess Fines – “Fines” is a term describing crushed pellets or loose material that looks like sawdust or sand. Pellets can be
screened before being placed in hopper to remove most fines.
b. Binders – Some pellets are produced with materials to hold them together, or “bind” them.
c. High ash content – Poor quality pellets will often create smoke and dirty glass. They will create a need for more frequent mainte-
nance. You will have to empty the burnpot plus vacuum the entire system more often. Poor quality pellets could damage the auger.
This company cannot accept responsibility for damage due to poor quality pellets. Your dealer can recommend a good quality
pellet dealer in your area.
PRE-START-UP CHECK
Remove burnpot, making sure it is clean and none of the air holes are plugged. Clean the firebox, and then reinstall burnpot. Clean
door glass if necessary (a dry cloth or paper towel is usually sufficient). Never use abrasive cleaners on the glass or door. Check fuel in
the hopper, and refill if necessary.
NOTE: The hopper can hold up to 40 lbs. of pellets.
BUILDING A FIRE
Never use a grate or other means of supporting the fuel. Use only the approved burnpot.
During the start up period:
1. DO NOT open the viewing door.
2. DO NOT open the damper more than ¼”.
3. DO NOT add pellets to the burnpot by hand.
4. DO NOT use the Fuel Feed button (unless you are priming the auger after running out of pellets).
A dangerous condition could result.
NOTE: During the first few fires, your stove will emit an odor as the high temperature paint cures or becomes seasoned to the metal.
Maintaining smaller fires will minimize this. Avoid placing items on stovetop during this period because paint could be affected.
OPERATION
OPERATION

12
OPERATION
OPERATION
THE HOTROD AUTOMATIC FIRESTARTER
a. Fill hopper and clean burnpot.
b. Press “Power” button. Make sure light is on.
c. The damper should be completely closed or open no more than ¼” during start-up. This will vary depending on your installation
and elevation. Once fire is established adjust for desired flame increasing the amount the damper is open as the heat setting is
increased. (See “DAMPER CONTROL”)
d. Adjust feed rate to desired setting by pressing “Feed Rate Advance” button.
If fire doesn’t start in 15 minutes, press “Power”, wait a few minutes and start procedure again.
DAMPER CONTROL
The damper control rod on the stove’s lower left side adjusts the combustion air. This control is necessary due to the varied burn char-
acteristics of individual installations, different pellet brands and pellet feed rates. It allows you to improve the efficiency of your stove.
Providing correct combustion air will reduce the frequency of cleaning your glass door and prevent the rapid buildup of creosote inside
your stove and chimney.
You should adjust the damper based on the fire’s appearance. A low, reddish, dirty fire can be improved by pulling the damper out
slightly. A “blow torch” fire can be improved by pushing the damper in a bit.
As a general rule, on lower feed rate settings, the damper should be in farther. On higher feed rates, the damper should be more open.
Through trial and error, you will find the best setting. Consult your dealer if you need help.
NOTE: On “1”, damper should be either completely closed or out approximately ⅛” to ¼”. If damper is out too far, it can cause the fire to
go out.
OPENING DOOR
If the door is opened while the stove is in operation it must be closed within 30 seconds or the stove will shut down. If the stove shuts
down push the “Power” button to continue the operation of your stove.
ROOM AIR FAN
When starting your stove the Room Air Fan will not come on until the stove’s heat exchanger warms up. This usually takes about 10
minutes from start-up.

13
RE-STARTING A WARM STOVE
If the stove has been shut off, and you want to re-start it while it is still warm, the “on/off” button must be held down for 2 seconds.
IF STOVE RUNS OUT OF PELLETS
The fire goes out and the auger motor and blowers will run until the stove cools. This will take 30 to 45 minutes.
After the stove components stop running the “Power” and the BAR GRAPH lights stay on for 10 minutes.
After the 10 minutes the “3” light on the bar graph will flash and the “Power” light will go off.
To restart, refill hopper, press “Power” button, and then press “Fuel Feed” button until pellets begin to fall into burnpot.
REFUELING
We recommend that you not let the hopper drop below ¼ full.
KEEP HOPPER LID CLOSED AT ALL TIMES EXCEPT WHEN REFILLING. DO NOT OVERFILL HOPPER.
MAINTENANCE TOOL
A tool has been provided to help with the following functions:
a. Stirring pellets in hopper – unlike liquids in a tank, pellets do not drain evenly into the auger. Bridging across the opening can
occur. Pellets can hang up on the sides of the hopper. Occasionally “stirring” the hopper can help.
NOTE: To help prevent bridging of pellets, common wax paper can be rubbed on the sidewalls and bottom of the hopper.
b. Cleaning heat exchanger tubes – see instructions in “CLEANING”.
c. Scrape ashes from burnpot.
SHUTDOWN PROCEDURE
Turning your stove off is a matter of pressing the “Power” control panel switch. The red light will go out. The blowers will continue to
operate until internal firebox temperatures have fallen to a preset level.
SAFETY FEATURES
a. Your stove is equipped with a high temperature thermodisc. This safety switch has two functions.
1. To recognize an overheat situation in the stove and shut down the fuel feed or auger system.
2. In case of a malfunctioning convection blower, the high-temperature thermodisc will automatically shut down the auger, pre
venting the stove from overheating.
NOTE: The thermodisc will reset itself once the stove has cooled. The manufacturer recommends that you call your dealer if this occurs
as this may indicate a more serious problem. A service call may be required.
b. If the combustion blower fails, an air pressure switch will automatically shut down the auger.
NOTE: Opening the stove door for more than 30 seconds during operation will cause enough pressure change to activate the air
switch, shutting the fuel feed off. Close the door and press “On/Off” button to continue operation of your stove.
OPERATION
OPERATION
FIGURE 13

14
a. Hot while in operation. Keep children, clothing, and furniture away. Contact may cause skin burns.
b. If you notice a smoldering fire (burnpot full but no visible flame) AND a heavy smoke buildup in firebox, im mediately TURN
OFF the stove, but DO NOT unplug it. Do not open the door, change the damper setting or tamper with any controls on the
stove. Wait until firebox clears, and blowers shut down, do as instructed in “PRE-START-UP CHECK” and “BUILDING A FIRE”,
then attempt to restart the fire. If the problem persists contact your dealer.
c. WARNING: DO NOT ADD PELLETS TO THE BURNPOT BY HAND AT ANY TIME, A DANGEROUS CONDITION COULD RE-
SULT.
d. WARNING: DURING THE START UP CYCLE; 1) DO NOT OPEN THE VIEWING DOOR; 2) DO NOT OPEN THE DAMPER
MORE THAN ¼”; 3) DO NOT USE THE FUEL FEED BUTTON (UNLESS PRIMING THE AUGER AFTER RUNNING OUT OF
PELLETS). A DANGEROUS CONDITION COULD RESULT.
e. Pellets should be stored in a dry place. The pellets should not be stored within 12” of the stove.
f. DO NOT STORE OR USE FLAMMABLE LIQUIDS, ESPECIALLY GASOLINE, IN THE VICINITY OF YOUR STOVE. NEVER USE
A GAS OR PROPANE TORCH, GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID
OR SIMILAR FLUIDS TO START OR “FRESHEN UP” A FIRE IN THIS HEATER.
g. WARNING: DO NOT OVERFIRE THIS STOVE. This may cause serious damage to your stove and void your warranty. It also may
create a fire hazard in your home. IF ANY EXTERNAL PART OF THE UNIT BEGINS TO GLOW, YOU ARE OVERFIRING. Imme-
diately press the “POWER” switch on the control panel.
h. KEEP ALL LOOSE OR MOVEABLE HOUSEHOLD COMBUSTIBLES, SUCH AS FURNITURE, DRAPES, TOYS, ETC. AT
LEAST THREE FEET FROM THE OPERATING STOVE.
i. Maintain proper ventilation. It is important that adequate oxygen be supplied to the fire for the combustion process. Modern houses
are often so well insulated that it may become necessary to open a window slightly or install an outside air vent to provide sufficient
combustion air.
j. Since heating with a solid fuel is potentially hazardous, even with a well made and thoroughly tested stove, it would be wise to
install strategically placed smoke detectors and have a fire extinguisher in a convenient location, near an exit.
k. Do not open stove door when operating unless necessary. This will create a dirty, inefficient burn and could allow smoke spillage or
sparks to escape.
l. Do not permit operation by young children or those unfamiliar with stove’s operation.
m. Do not service or clean this appliance without disconnecting the power cord.
n. Do not abuse the door glass by striking, slamming or similar trauma. Do not operate the stove with the glass removed,
cracked or broken.
o. If the stove is installed in a room without air conditioning, or in an area where direct sunlight can shine on the unit, it is
possible this can cause the temperature of the stove to rise to operational levels; one of the sensors could then make the
stove start on its own. It is recommended that the stove be unplugged when not in use for extended amounts of time (i.e.
during the summer months).
p. This wood heater has a manufacturer-set minimum low burn rate that must not be altered. It is against federal regulations
to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating instructions in this
manual.
q. Attempts to achieve heat output rates that exceed heater design specifications can result in permanent damage to the
heater.
PLEASE READ THIS!
OPERATING SAFETY PRECAUTIONS
OPERATION
OPERATION

15
OPTIONAL THERMOSTAT
A thermostat may help you maintain a constant house temperature auto-
matically. A millivolt thermostat is required. A fixed wall mount or a hand
held model can be used. The control panel can be set up two ways to
operate your stove in thermostat mode.
NOTE: YOUR THERMOSTAT SHOULD BE INSTALLED BY AN AUTHO-
RIZED DEALER OR SERVICE PERSON.
THERMOSTAT INSTALLATION
• A MILLIVOLT THERMOSTAT IS REQUIRED.
• Unplug stove from power outlet.
• Remove control board from stove.
• The two thermostat wires connect to the terminal block on the lower
left side of the back of the control board. (See figure 14)
• Insert the wires in the terminal side and tighten the two screws.
MODES
TO SWITCH BETWEEN ANY OF THE THREE MODES THE STOVE
MUST BE SHUT OFF, THE NEW MODE SELECTED, AND THE STOVE
RESTARTED.
MANUAL MODE
• USE THIS MODE EXCLUSIVELY IF YOU DO NOT CONNECT AN
OPTIONAL THERMOSTAT
• In this mode the stove will operate only from the control panel as
detailed in the “OPERATION” section of this owner’s manual.
HIGH/LOW THERMOSTAT MODE
• USE THIS MODE ONLY IF YOU CONNECT A THERMOSTAT
• When engaged in this mode the stove will automatically switch
between two settings. When warm enough, it will switch to the #1 or
low setting. The room air blower will also slow to its lowest speed.
• The Heat Level Advance setting on the bar graph will stay where it
was initially set. When the house cools below the thermostat setting,
the stove will switch to the feed rate of the heat level advance set-
ting.
ON/OFF THERMOSTAT MODE
• USE THIS MODE ONLY IF YOU CONNECT A THERMOSTAT
• In this mode when the home is warm enough the stove will shut off.
The fans will continue to run until the stove cools.
• When the home cools below the thermostat setting, the stove will
auto matically restart and run at the last feed rate setting.
NOTE: When in “high/low” or “on/off” thermostat mode –
• Do not operate the stove higher than the #3 setting.
• Set damper control rod approximately ¼” to ½” out. This will vary
depending on elevation and weather conditions. Observe stoves
operation and adjust damper as necessary.
THERMOSTAT INSTALLATION
THERMOSTAT INSTALLATION
On/O High/Low Manual
FIGURE 14

16
FAILURE TO CLEAN AND MAINTAIN THIS UNIT AS INDICATED CAN
RESULT IN POOR PERFORMANCE AND SAFETY HAZARDS. NEVER
CLEAN WHEN HOT.
NOTE: Inspect burn pot periodically to see that holes have not become
plugged, if so, clean thoroughly.
ASH REMOVAL
Ashes should be placed in a metal container with a tight-fitting lid. The
closed container or ashes should be placed on a noncombustible surface
or on the ground, well away from all combustible materials pending final
disposal. If ashes are disposed of by soil burial or otherwise locally dis-
persed, they should be retained in the closed container until all cinders
have thoroughly cooled.
ASH DISPOSAL

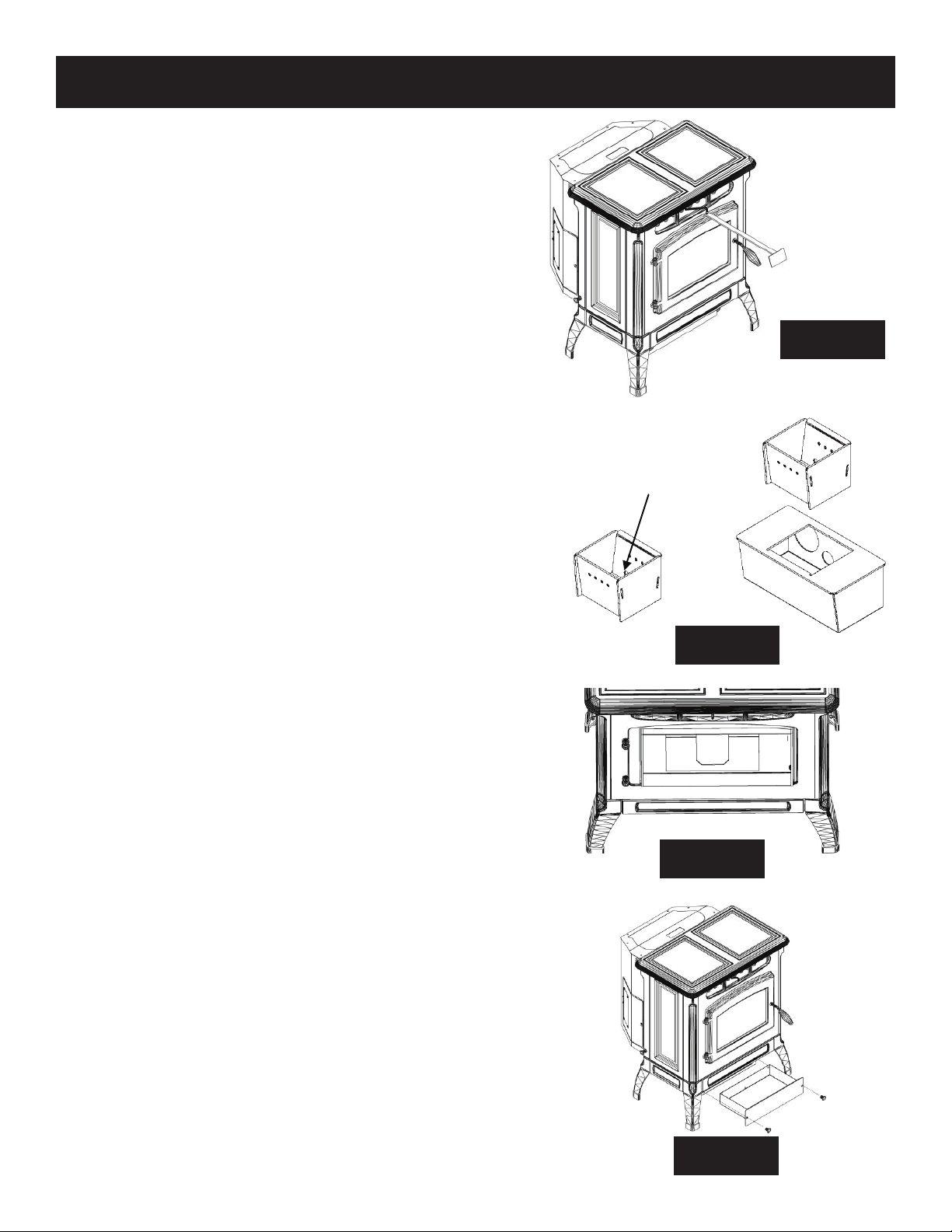

This furnace has an ash bin located below the firebox. To remove ashes:
a. Make sure fire is out and firebox is cool.
b. With the door closed clean heat exchanger tubes. (See “CLEANING”
and Figure 15).
c. Open door and remove the optional imitation log set, if in use. Remove
the burnpot’s inner section by grasping it and pulling straight up (see
Figure 16).
d. Empty ashes from inner section into the ash bin through the opening in
the bottom of the firebox. Scrape inner section with cleaning tool. Make
sure holes are not plugged.
e. Scrape ash in firebox into the ash bin through the opening in the
bottom of the firebox or vacuum to remove ashes (see Figure 17).
WARNING: Make sure ashes are cool to the touch before using a
vacuum. See “VACUUM USE”.
f. Periodically remove and empty ash bin (see Figure 18) by unscrewing
the two knobs on the front of it and pulling it straight out. Dispose of
ashes properly. (See “ASH REMOVAL” above)
g. Replace ash bin, making sure to tighten the knobs and maintaining a
good seal.
h. Replace inner section into burnpot; make sure it is level and pushed all
the way back down and that the igniter hole is to the rear when it is rein
stalled (see Figure 16).
i. Make the burnpot is level and pushed all the way back in when it is
rein stalled. If the collar on the burnpot attached to the fresh air tube
is not pushed back to meet the firebox wall, the Hot Rod will not work
properly.
SMOKE AND CO MONITORS
Burning wood naturally produces smoke and carbon monoxide(CO) emis-
sions. CO is a poisonous gas when exposed to elevated concentrations for
extended periods of time. While the modern combustion systems in heaters
drastically reduce the amount of CO emitted out the chimney, exposure to
the gases in closed or confined areas can be dangerous. Make sure you
stove gaskets and chimney joints are in good working order and sealing
properly to ensure unintended exposure. It is recommended that you use
both smoke and CO monitors in areas having the potential to generate CO.
VACUUM USE
If a vacuum is used to clean your unit, we suggest using a vacuum de-
signed for ashes. (We recommend LoveLess Ash Vac, 1-800-568-3949 Ext.
#27)
Some regular vacuums and shop vacs leak ash into the room. Your vacuum
or shop vac may have a special filter or bag available to eliminate this
leakage.
MAINTENANCE
MAINTENANCE
Igniter Hole
FIGURE 15
FIGURE 16
FIGURE 17
FIGURE 18

17
CLEANING
a. Heat Exchange Tubes – Your stove is designed with a built-in heat
exchange tube cleaner. This should be used every two or three days
to remove accumulated ash on the tubes, which reduces heat trans-
fer on this furnace. Insert the handle end (with hole) of the cleaning
tool onto the cleaning rod (refer to figure 15). The cleaner rod is
located in the grill above the stove door. Move the cleaner rod back
and forth several times to clean the heat exchanger tubes. Be sure to
leave tube cleaner at the rear of the stove.
b. Interior Chambers – Four ash doors and two upper baffles in the fire-
box in your modle can be removed for periodic cleaning (Figure 19).
These doors allow access to the chamber surrounding the firebox.
NOTE: When removing the upper baffles do not remove the screws; just
loosen them enough to allow the baffles to be removed.
Periodically, you must vacuum ashes from this chamber. In some cases
you will need to remove creosote, which can accumulate rapidly under
certain conditions. A small wire brush can be used. It is important to
remove this creosote because it is highly combustible. INSPECT BEHIND
THESE CLEANING PLATES AT LEAST ONCE PER TON OF PELLETS
BURNED UNTIL YOU ARE FAMILIAR WITH HOW ASHES AND CREO-
SOTE ACCUMULATE WITH YOUR OPERATING PRACTICES. Use the
small wire brush to also clean the inside of the chamber walls, above the
access doors.
BLOWERS
DANGER: RISK OF ELECTRIC SHOCK. DISCONNECT POWER BE-
FORE SERVICING UNIT.
Cleaning – Over a period of time, ashes or dust may collect on the blades
of both the combustion blower and convection blower. Periodically the
blowers should be vacuumed clean as these ashes can impede perfor-
mance. Creosote can also accumulate in the combustion blower. This
needs to be brushed clean. The convection blower is accessed by remov-
ing the stove’s left side panel. The combustion blower can be accessed
by removing the stove’s right side panel. The convection blower is on the
left (facing stove), and the combustion blower is on the right.
NOTE: When cleaning, be careful not to dislodge balancing clip on con-
vection blower or to bend fan blades. Some stove owners lightly spray an
anti-creosote chemical on the fire to help reduce creosote formation within
the stove.
Baffle Plates
Ash Doors
Air Switch Tube
MAINTENANCE
MAINTENANCE
Auger Shaft
Auger Shaft
Combustion Blower
Combustion Blower
POF Thermodisc
POF Thermodisc
Air Switch
Air Switch
Combustion Blower
Combustion Blower
Auger Motor
Auger Motor
Convection
Convection
Blower
Blower
High Temp
High Temp
Thermodisc
Thermodisc
FIGURE 19
FIGURE 20
FIGURE 21

18
CHIMNEY CLEANING
a. Creosote Formation – When any wood is burned slowly, it produces tar and other organic vapors, which combine with expelled
moisture to form creosote. The creosote vapors condense in the relatively cool chimney flue or a newly started fire or from a
slow-burning fire. As a result, creosote residue accumulates on the flue lining. When ignited, this creosote makes an extremely hot
fire, which may damage the chimney or even destroy the house. Despite their high efficiency, pellet stoves can accumulate creo-
sote under certain conditions.
b. Soot and Fly Ash: Formation and Need for Removal - The products of combustion will contain small particles of fly ash. The
fly ash will collect in the exhaust venting system and restrict the flow of the flue gases. Incomplete combustion, such as occurs
during startup, shutdown, or incorrect operation of the room heater will lead to some soot formation which will collect in the exhaust
venting system. The exhaust venting system should be inspected at least once every year or ton of pellets burned to determine if
cleaning is necessary.
c. Inspection and Removal – The chimney connector and chimney should be inspected annually or per ton to determine if a
creosote or fly ash build-up has occurred. If creosote has accumulated, it should be removed to reduce the risk of a chimney fire.
Inspect the system at the stove connection and at the chimney top. Cooler surfaces tend to build creosote deposits quicker, so it is
important to check the chimney from the top as well as from the bottom.
The creosote should be removed with a brush specifically designed for the type of chimney in use. A qualified chimney sweep can per-
form this service. It is also recommended that before each heating season the entire system be professionally inspected, cleaned and,
if necessary, repaired.
To clean the chimney, detach the vent at the combustion blower transition where it is attached to the blower.
RECOMMENDED MAINTENANCE SCHEDULE
Use this as a guide under average-use conditions. Gasket around door and door glass should be inspected and repaired or replaced
when necessary. (See “REPLACEMENT PARTS”)
REMOVAL AND REPLACEMENT OF BROKEN DOOR GLASS
While wearing leather gloves (or any other gloves suitable for handling broken glass), carefully remove any loose pieces of glass from
the doorframe. Dispose of all broken glass properly. Return the damaged door to your dealer for repair or replacement. This unit’s door
uses a 5/8” diameter rope gasket.
Neither the appliance owner nor any other unauthorized person(s) should replace the door glass. An authorized dealer must perform all
repairs involving door glass.
Daily Weekly Annually or per Ton
Burn Pot Stirred Emptied
Glass Wiped Cleaned
Combustion Chamber Brushed
Ashes Emptid
Interior Chambers Vacuumed
Heat Exchange Tubes Two passes
Combustion Blower Blades Vacuumed/Brushed
Convection Blower Impeller Vacuumed/Brushed
Vent System Cleaned
Gaskets Inspected
Hopper (end of season) Emptied and Vacuumed
MAINTENANCE
MAINTENANCE

19
When your stove acts out of the ordinary, the first reaction is to call for help. This guide may save time and money by enabling you to
solve simple problems yourself. Problems encountered are often the result of only five factors: 1) poor fuel; 2) poor operation or mainte-
nance; 3) poor installation; 4) component failure; 5) factory defect. You can usually solve those problems related to 1 and 2. Your dealer
can solve problems relating to 3, 4 and 5. Refer to diagrams on page 17 to help locate indicated parts.
For the sake of troubleshooting and using this guide to assist you, you should look at your heat level setting to see which
light is flashing.
** CAUTION – UNPLUG THE STOVE FROM ALL POWER PRIOR TO ATTEMPTING TO SERVICE THE UNIT! **
STOVE SHUTS OFF AND THE # 2 LIGHT FLASHES
Possible Causes: Possible Remedies: (Unplug stove first when possible)
1. Airflow switch hose or stove
attachment pipes for hose are blocked.
Unhook air hose from the air switch and blow through it. If
air flows freely, the hose and tube are fine. If air will not flow
throw the hose, use a wire coat hanger to clear the blockage.
2. The air inlet, burnpot, interior combustion
air chambers, combustion blower, or exhaust pipe
are blocked with ash or foreign material.
Follow all cleaning procedures in the maintenance
section of the owner’s manual.
3. The firebox is not properly sealed. Make sure the door is closed and that the gasket is in good
shape. If the ash door has a latch, make sure the ash door is
properly latched and the gasket is sealing good. If the stove has
just a small hole for the ashes to fall through under the burnpot,
make sure the slider plate is in place to seal off the firebox floor.
4. Vent pipe is incorrectly installed. Check to make sure vent pipe installation
meets criteria in owner’s manual.
5. The airflow switch wire connections are bad. Check the connectors that attach the gray wires to the air switch.
6.. 6. The gray wires are pulled loose at the
Molex connector on the wiring harness
Check to see if the gray wires are loose at the Molex connector.
7. Combustion blower failure. With the stove on, check to see if the combustion blower is
running. If it is not, you will need to check for power going
to the combustion blower. It should be a full current. If
there is power, the blower is bad. If there is not, see #8.
8. Control board not sending power to combustion blower.
If there is no current going to the combustion blower,
check all wire connections. If all wires are properly
connected, you have a bad control board.
9. Control board not sending power to air switch. There should be a 5-volt current (approximately) going to
the air switch after the stove has been on for 30 seconds.
10. Air switch has failed (very rare). To test the air switch, you will need to disconnect the air
hose from the body of the stove. With the other end still
attached to the air switch, very gently suck on the loose end
of the hose (you may want to remove the hose entirely off
the stove and the air switch first and make sure it is clear). If
you hear a click, the air switch is working. BE CAREFUL,
TOO MUCH VACUUM CAN DAMAGE THE AIR SWITCH.
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE

20
STOVE SHUTS OFF AND THE #3 LIGHT FLASHES
Possible Causes: Possible Remedies: (Unplug stove first when possible)
1. The hopper is out of pellets. Refill the hopper.
2. The air damper is too far open for a low feed setting. If burning on the low setting, you may need to close the damper
all the way (push the knob in so it touches the side of the stove).
3. The burnpot is not pushed
completely to the rear of the firebox.
Make sure that the air intake collar on the burnpot
is touching the rear wall of the firebox.
4. The burnpot holes are blocked. Remove the burnpot and thoroughly clean it.
5. The air inlet, the interior chambers, or
exhaust system has a partial blockage.
Follow all cleaning procedures in the maintenance
section of the owner’s manual.
6. The hopper safety switch has failed or hopper is open. When operating the unit, be sure the hopper lid is closed so
that the hopper safety switch will activate. Check the wires
leading from the hopper safety switch to the control panel
and auger motor for secure connections. Use a continuity
tester to test the hopper safety switch; replace if necessary.
7. The auger shaft is jammed. Start by emptying the hopper. Then remove the auger motor
by removing the auger pin. Remove the auger shaft inspection
plate in the hopper so that you can see the auger shaft. Gently
lift the auger shaft straight up so that the end of the auger shaft
comes up out of the bottom auger bushing. Next, remove the
two nuts that hold the top auger biscuit in. Then rotate the
bottom end of the auger shaft up towards you until you can lift
the shaft out of the stove. After you have removed the shaft,
inspect it for bent flights, burrs, or broken welds. Remove any
foreign material that might have caused the jam. Also, check
the auger tube for signs of damage such as burrs, rough spots,
or grooves cut into the metal that could have caused a jam
8. The auger motor has failed. Remove the auger motor from the auger shaft and try to
run the unit. If the motor will turn the shaft is jammed on
something. If the motor will not turn, the motor is bad.
9. The Proof of Fire (POF) thermodisk has malfunctioned. Temporarily bypass the POF thermodisk by disconnecting
the two brown wires and connecting them with a short piece
of wire. Then plug the stove back in. If the stove comes on
and works, you need to replace the POF thermodisk. This
is for testing only. DO NOT LEAVE THE THERMODISC
BYPASSED. Your blowers will never shut off and if the fire
went out the auger will continue to feed pellets until the
hopper is empty if you leave the POF thermodisk bypassed.
10. The high limit thermodisk has tripped or is defective. Wait for the stove to cool for about 30 - 45 minutes. It should
now function normally. If not use the owner’s manual to locate
the high limit thermodisk. To test if the thermodisk is bad, you
can bypass it as described previously for the POF thermodisk.
11. The fuse on the control board has blown. Remove the control board. On the back there is one fuse.
If it appears to be bad, replace it with a 5 Amp 125 Volt
fuse. Plug the stove back in and try to run the unit.
12. The control board is not sending power to the
POF thermodisk or other auger system components.
There should be a 5-volt (approximately) current going to the
POF thermodisk after the stove has been on for 10 minutes.
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
