brenton achiever User manual

Assembly instructions and
warranty information
Instructions pour l’assemblage et
information sur la garantie
Instrucciones para el ensamblaje e
información sobre la garantía
achiever
desk set
bureau avec classeur
escritorio con
archivador
Date Manufactured / Date de fabrication / Fecha de manufactura: ____________
Lot # / Nombre de sort / Número de lote: ____________
Brenton Studio is a registered trademark of OMX, Inc.
© 2019 Office Depot, Inc. All Rights Reserved.
9242162
version 1019
200 lb
supports up to
supporter jusqu’à
soporta hasta

Call Us First!
DO NOT RETURN TO STORE.
For immediate help with assembly or product information call our toll-free number:
1-800-949-9974 Mon-Fri 8am to 8pm EST.
Our staff is ready to provide assistance.
Damaged or missing parts ship from our facility in 1-2 business days.
Thank you for purchasing this product. We trust that you will be completely satisfied with your product
for years to come. This product is backed by a 1 year limited warranty and has been crafted with
today’s lifestyles in mind.
Customer Service 1-800-949-9974
Warning
Children climbing on furniture. A child may try
to reach a toy or other object by climbing on
furniture. Children will play and be active near
a TV.
Risk of injury or death. A child climbing
on a piece of furniture or playing with a
TV can cause it to tip over.
Never allow children to climb on or play with
furniture. Do not place toys, food, etc. on the
top shelves and/or drawers. Children may try
to climb to reach them out of curiosity.
Overloaded drawers and/or shelves.
Improper loading can cause furniture to be
top-heavy.
Risk of injury or damage to furniture
and/or equipment. Overloaded drawers
and/or shelves can break.
Refer to your assembly manual for
maximum weight capacities. Load drawers
and shelves from the bottom to the top.
Place heavier items in lower drawers
and/or shelves. Unload drawers and
shelves from the top to the bottom before
moving the furniture.
Placing a TV on furniture that is not
designed to support a TV.
Risk of injury or death. TVs can be very
heavy. The weight and location of the picture
tube tends to make them unbalanced and
prone to tipping forward.
This product is not designed to support a TV.
Improperly moving furniture. Risk of injury or damage to furniture and/or
equipment. Furniture can tip over if not
moved carefully over obstacles or across a
changing floor surface (ex: from a wood floor
to carpeted floor).
Do not push furniture, especially on
carpeted floor. Have someone help you lift
the item and place it in its new location.
Remove any glass tops, shelves or doors
before moving.
Please use your furniture correctly and safely. Improper use can cause safety hazards,
or damage to your furniture or household items. Carefully read the following chart.
Look out for: What can happen: How to avoid:
Date Purchased: _____________
The maximum recommended weight allowance is 200 lbs (90.7 kg) for desk top surface.
The maximum recommended weight allowance is 80 lbs (36.3 kg) for file cabinet top surface.
The maximum recommended weight allowance is 10 lbs (4.53 kg) for fabric bin. Record date of
purchase below and save this booklet for future reference. Call for parts & service 1-800-949-9974.
For customer support, Vendor Sticker can be found under the top panel toward the front end.
NOTES:
• Please read the instruction sheets completely before assembly.
• Remove all parts from carton and ensure all parts are included prior to assembly.
• Assemble the product on the carton or carpet to prevent scratching the product.
• Examine all packaging material and remove staples before discarding carton.
• Be careful not to cross-thread screws.
• Do not use power tools.

Qty.
Qté
Cantidad
AA 1
BB 2
CC 2
DD 1
E
Desk Top
Dessus de bureau
Tapa de escritorio
Desk Leg
Pied de bureau
Pata de escritorio
Desk Bottom Stretcher
Entretoise inférieure de bureau
Soporte inferior de escritorio
Desk Upper Stretcher
Entretoise supérieure de bureau
Soporte superior de escritorio

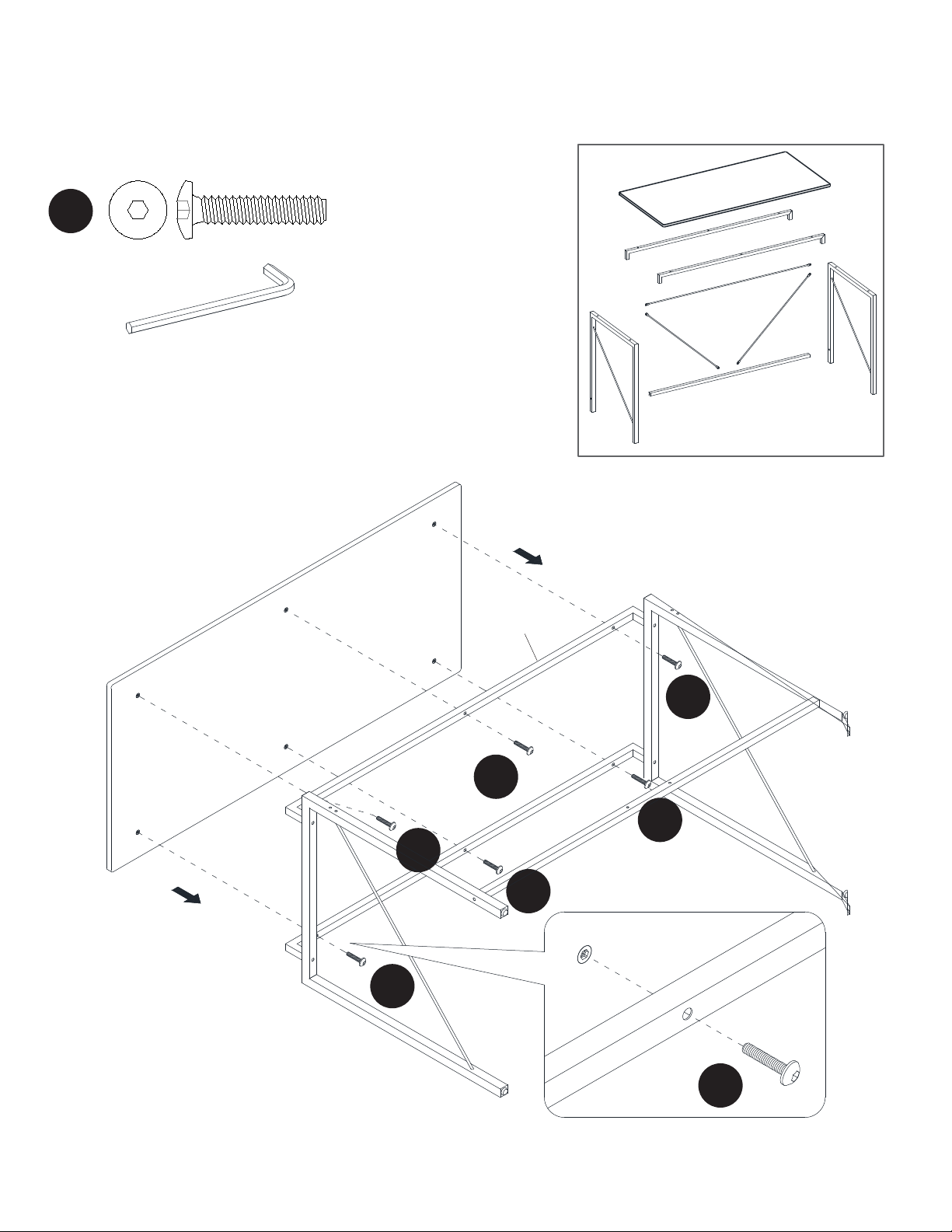

1
F
1
GG
1
HH
1
II
2
JJ
3
3
KK
Desk Short Metal Bar
Barre de métal courte de bureau
Barra metal corto de escritorio
File Cabinet Left Leg
Pied gauche de caisson de classement
Pata izquierda de archivador
File Cabinet Crossbar
Entretoise de caisson de classement
Barra soporte de archivador
Fabric Bin
Bac en tissu
Casillero de tela
Bin Flooring
Fond de de bac
Piso de casillero

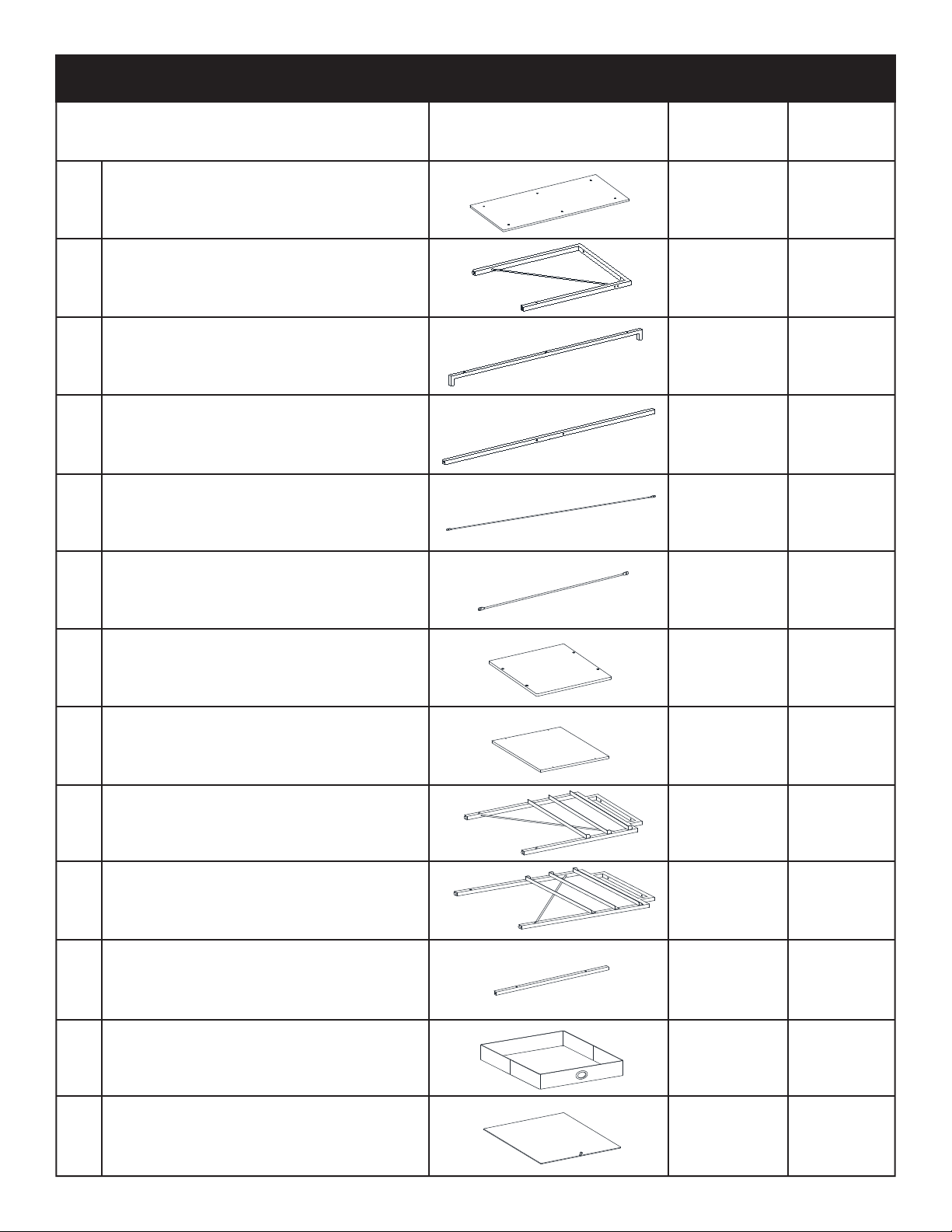

PARTS LIST LISTE DES PIÈCES LISTA DE PIEZAS
Name / Nom / Nombre Part / Pièce / Pieza Spare
Épargner
Sobrante
Desk Long Metal Bar
Barre de métal longue de bureau
Barra metal largo de escritorio
File Cabinet Top Panel
Panneau supérieur de caisson de classement
Tapa de archivador
2
1
File Cabinet Bottom Panel
Panneau supérieur de caisson de classement
Tapa de archivador
File Cabinet Right Leg
Pied droite de caisson de classement
Pata derecha de archivador
M
L

1
1
1
1
SIZE COMPARISON CHART
TABLEAU DE COMPARAISON DE TAILLES
TABLA DE COMPARACIÓN DE TAMAÑOS
Qty.
Qté
Cantidad
AA1 6
AA2 14
AA3 6
A4 4
C1 1
5/8" Bolt
Boulon de 15 mm
Tornillo de 15 mm
Hex Wrench
Clé hexagonale
Llave hexagonal
1 3/16" Bolt
Boulon de 30 mm
Tornillo de 30 mm
1” Screw
Vis 25 mm
Tornillo de 25 mm
1 3/4" Bolt
Boulon de 45 mm
Tornillo de 45 mm
PARTS LIST LISTE DES PIÈCES LISTA DE PIEZAS
Name / Nom / Nombre Part / Pièce / Pieza Spare
Épargner
Sobrante
AA1
AA2
AA3
A4
5/8" Bolt
Boulon de 15 mm
Tornillo de 15 mm
1 3/16" Bolt
Boulon de 30 mm
Tornillo de 30 mm
1 3/4" Bolt
Boulon de 45 mm
Tornillo de 45 mm
1” Screw
Vis 25 mm
Tornillo de 25 mm

1
AA2
AA2
AA2
AA2
AA2
AA2
C1
x4
II
JJ
II KK
KK
II
JJ
KK

KK
HH
2
x4
HH
A4
A4
A4
A4
II
JJ
A4

C1
x4
3
GG
AA2
II
JJ
GG
GG
JJ
DO NOT overtighten the bolts.
NE PAS serrer à fond les boulons.
NO apriete demasiado los tornillos.
AA2
AA2
AA2
AA2
AA2

4
M
L
L
L
M

CC
CC
CC
BB
BB
BB
C1
x4
5
CC
CC
AA3
AA3
AA3
AA3
AA3
AA3

BB BB
BB
DD
DD
C1
x2
6
DD
The holes face outward.
Les trous face à l’extérieur.
Los agujeros miran hacia afuera.
AA3
AA3
AA3
AA3

AA2
AA2
AA2
AA2
AA2
AA2
AA2
AA2
AA
AA
CC
CC
C1
7
AA
x6
DO NOT overtighten the bolts.
NE PAS serrer à fond les boulons.
NO apriete demasiado los tornillos.

AA1
AA1
AA1
AA1
AA1
AA1
AA1
AA1
C1

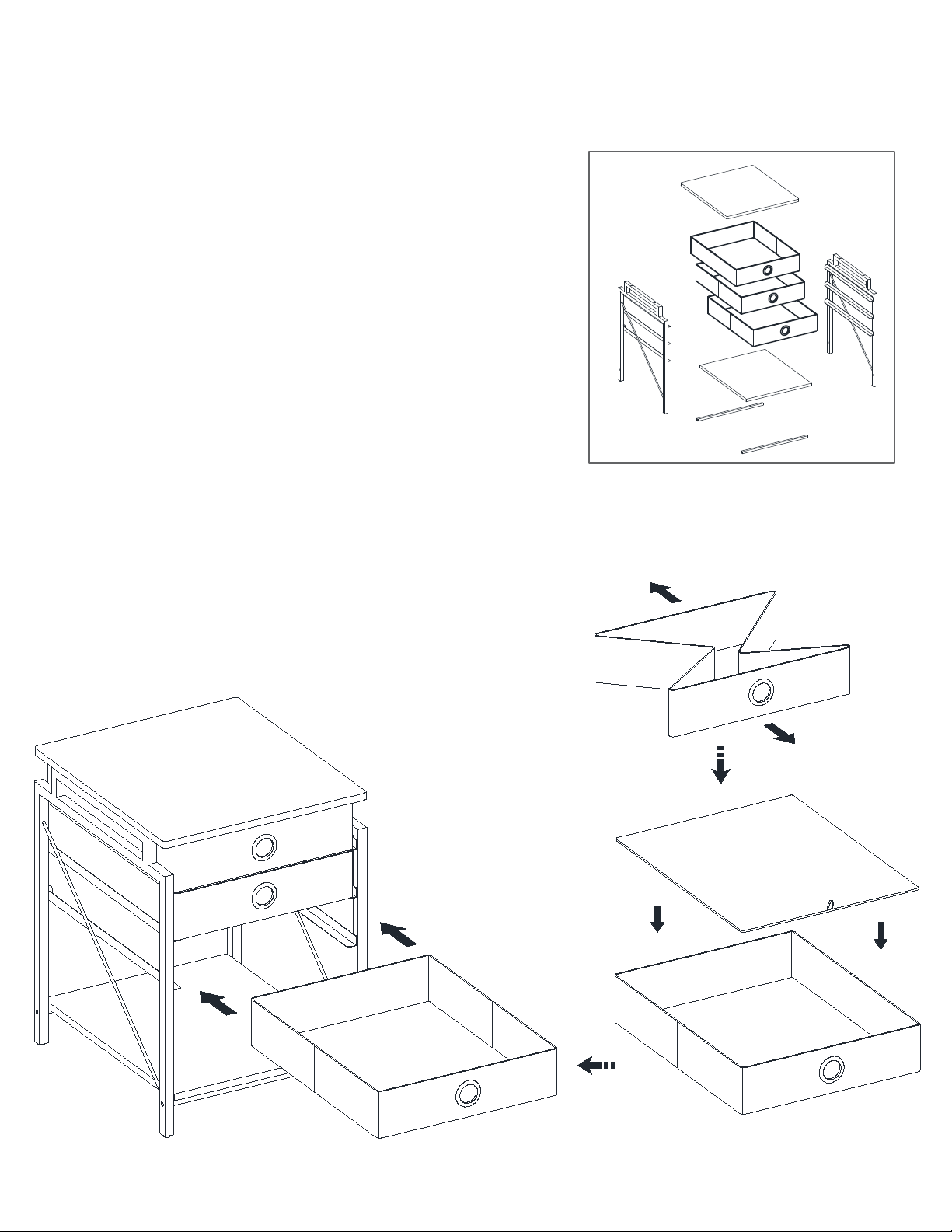

8
x6
E
F
F
E
F
F
BB
F
F
E
DD
