INTRODUCTION
Thank you for selecting this weather station with 3-in-1 professional sensor. This system gathers and
automatically uploads accurate and detailed weather data to Weather Underground and Weathercloud
website - the famous weather service which allows weather observers to upload their local weather data with
automated personal weather stations (PWS) - at which you can access and upload your weather data freely.
This product o󰀨ers professional weather observers or serious weather enthusiasts robust performance with
a wide range of options and sensors. You will get your own local forecast, high/lows, totals and averages for
virtually all weather variables without using a PC.
This Weather Station which transmits outdoor temperature, humidity and wind data, which can add to a
sensor array of maximum 7 units, transmits your temperature & humidity to the console. Both sensors are
fully assembled and calibrated for your easy installation. They send data at a low power radio frequency to
the console from up to 150m/450 feet away (line of sight).
In the console, a high-speed processor is embedded to analyze the received weather data and these real-
time data can be published to Wunderground.com and weathercloud.net through your home Wi- router.
The console can also synchronize with internet time server to keep the time and weather data time stamp
of high precision. The color background LCD display shows informative weather readings with advanced
features, such as high/low alert alarm, di󰀨erent weather index, and MAX/MIN records. With calibration and
moon phase feature, this system is truly a remarkably personal yet professional weather station for your own
backyard.
NOTE:
This instruction manual contains useful information on the proper use and care of this product. Please read
this manual through to fully understand and enjoy its features, and keep it handy for future use.
OVERVIEW

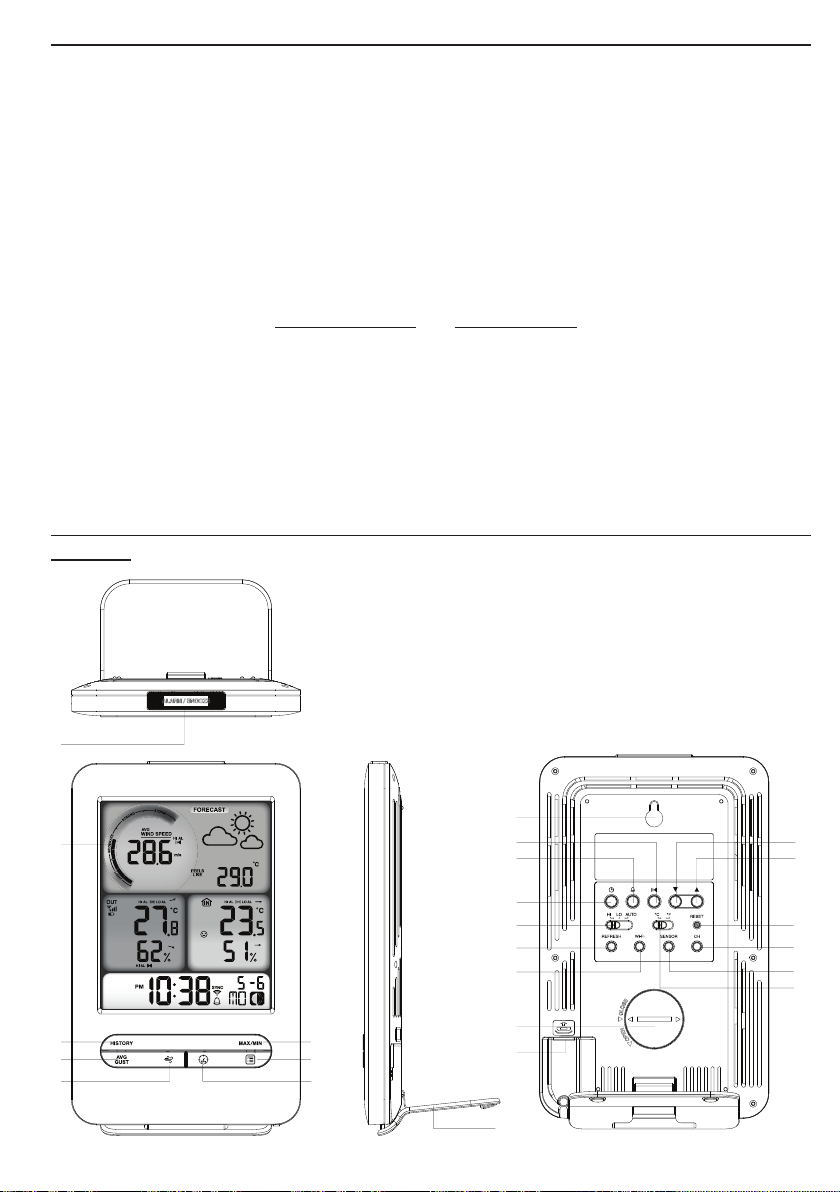

CONSOLE
1
2
3
4
6
7
5
8
12
13
10
14
21
20
19
15
16
23
24
17
18
22
11
9
Manual_7002535_WS-Wind-Sensor-3in1_en-de_BRESSER_v072019a.indb 5 04.09.2019 12:27:02

6
1. [ ALARM / SNOOZE ] key
2. LCD display
3. [ HISTORY ] key
4. [ AVG / GUST ] key
5. [ WIND ] key
6. [ MAX / MIN ] key
7. [ INDEX ] key
8. [ BARO ] key
9. Table stand
10. Wall mounting holder
11. [ ALERT ] key
12. [ ALARM ] key
13. [ CLOCK SET ] key
14. [ HI / LO / AUTO ] key
15. [ REFRESH ] key
16. [ WI-FI ] key
17. Battery door
18. USB Power socket
19. [ ] key
20. [ ] key
21. [ RESET ] key
22. [ CHANNEL ] key
23. [ SENSOR ] key
24. [ °C / °F ] slide switch
LCD DISPLAY
1
2
3
4
5
6
Display section:
1. Wind speed
2. Outdoor temperature & humidity
3. Time, calendar & moon phase
4. Weather forecast,
5. Baro and weather index
6. Indoor / channel temperature & humidity
WIRELESS 3-IN-1 WEATHER SENSOR
1. Wind cups (anemometer)
2. Radiation shield
3. Battery compartment
4. Bottom case
5. Mounting clamps for bottom case
6. LED indicator
7. [ RESET ] key
3
6
4
5
2
7
1
Manual_7002535_WS-Wind-Sensor-3in1_en-de_BRESSER_v072019a.indb 6 04.09.2019 12:27:02

7
INSTALLATION AND SETUP
INSTALL WIRELESS 3-IN-1 PROFESSIONAL SENSOR
Your wireless 3-in-1 sensor measures wind-speed, temperature and humidity for you. It’s assembled and
calibrated for your easy installation.
1. Turn the top case anti-clockwise to open. Step 1
2. Remove the battery door.
3. Insert 3x AA size batteries into the battery
compartment, then close the battery door.
NOTE
Make sure you insert the batteries in right way
according to the polarity information marked on
the battery compartment. Once installed, the LED
indicator ashes and start transmit the signals.
Step 2Step 3
4. Twist the Top case clockwise. Step 4
5. Insert the top side of the pole to the botton of the
Mounting clamps
6. Place the nut in the hexagon hole of the clamps,
then insert the screw in other side and then
tighten it by the screw driver.
NOTE:
Ensure the pole indicator align the clamps
screw hole.
Step 5 Step 6
7. Mount the clamps to the 3-in-1 sensor bottom
case with the big screws and nuts Step 7
Manual_7002535_WS-Wind-Sensor-3in1_en-de_BRESSER_v072019a.indb 7 04.09.2019 12:27:02

8

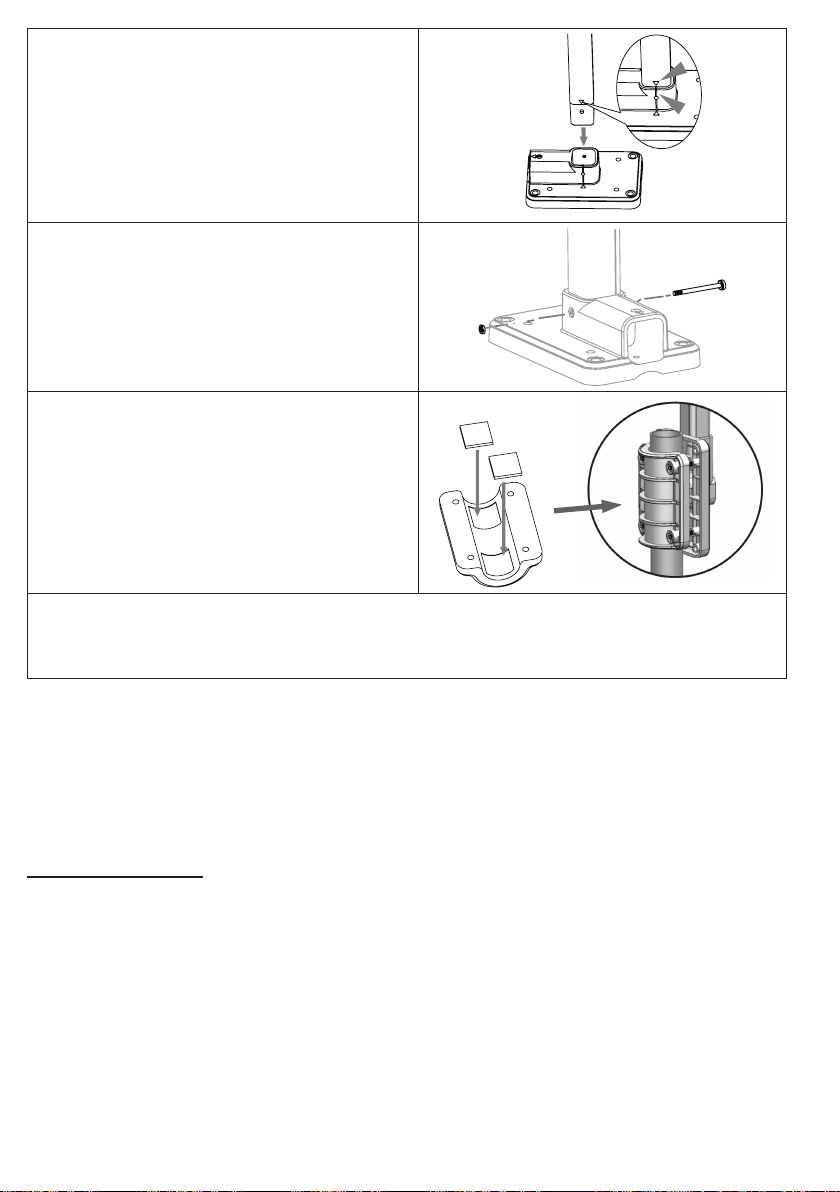

8. Insert the other side of the pole to the square
hole of the plastic stand
NOTE:
Ensure the pole and stand's indicator align.
Step 8
9. Place the nut in the hexagon hole of the stand,
then insert the screw in other side and then
tighten it by the screw driver.
Step 9
10. Add rubber pads before mount on the pole.
NOTE
Pole not included
Step 10
MOUNTING GUIDELINES
- Secure the clamps (included) to a post or pole.
- Install the sensor at least 1.5m o󰀨 the ground for better and more accurate wind measurements.
- Choose an open area within 150 meters from the LCD display console.
NOTE:
- After replacing the batteries of the wireless sensor or the unit fails to receive wireless sensor signal of a
specied channel, you need to press and hold [ SENSOR ] key on the console to pair this sensor again.
- Avoid placing the transmitter in direct sunlight, rain or snow.
- The building material and the position of the receiver and transmitter a󰀨ect the e󰀨ective range. So try
various locations to obtain the best result.
- Place the units away from metal objects and electrical appliances to minimize the interference. Position
the receiver and transmitter within the e󰀨ective transmission range: 150m in usual circumstances.
SETUP THE CONSOLE
INSTALL THE BACKUP BATTERY
1. Remove the battery door of the console.
2. Insert a new CR2032 battery as per the polarity information marked on the battery compartment.
3. Replace the battery door.
NOTE:
The backup battery can backup: Time & Date, Max/Min & Past 24 hours weather records, Alert setting
values, o󰀨set value of weather data and Sensor(s) channel history.
The built-in memory can backup: Router setting and Weather server setting
Manual_7002535_WS-Wind-Sensor-3in1_en-de_BRESSER_v072019a.indb 8 04.09.2019 12:27:02

9
POWER UP THE CONSOLE
1. Plug the power adapter USB plug to power
up the main unit.
2. Once the main unit power up, all the
segments of the LCD will be shown.
3. The console will automatically start AP mode.
USB socket
NOTE:
If no display appears on the LCD after you plug the adaptor, press [ RESET ] key by using a pointed object.
TABLE STAND INSTALLATION
The unit is designed for desktop or wall mount for easy viewing. follow the steps below to hook the table
stand on the botton of the console.
Step 1 Step 2
SET LCD DISPLAY VIEWING ANGLE
Press [ ] or [ ] key in normal mode to adjust LCD viewing angle to t table stand or wall mount
situation.
PAIRING WIRELESS 3-IN-1 WEATHER SENSOR & CONSOLE
After insert of batteries, the console will automatically search and connect the wireless 3-in-1 sensor (the
sensor antenna icon blinking).
Once the connection is successful, antenna icon and readings for outdoor temperature & humidity and wind
speed will appear on the LCD.
CHANGING BATTERIES AND MANUAL PAIRING OF SENSOR
Whenever you changed the batteries of the wireless 3-in-1 sensor, pairing must be done manually.
1. Change all the batteries to new ones in the sensor.
2. Press [ SENSOR ] key on the console.
3. Press [ RESET ] key on the wireless 3-in-1 sensor.
PAIRING ADDITIONAL WIRELESS SENSOR(S) & CONSOLE (OPTIONAL)
This console can support up to 7 additional wireless sensor(s). You can press [SENSOR ] key to search
the on display channel's sensor manually. Once your sensor paired up, the sensor signal strength indicator
and weather reading will appear on your console display.
NOTE:
- The additional wireless sensor(s) is not included.
- This console can support di󰀨erent type of additional wireless sensor, e.g. soil moisture and pool sensor.
Check with your retailer for more detail.
Manual_7002535_WS-Wind-Sensor-3in1_en-de_BRESSER_v072019a.indb 9 04.09.2019 12:27:02

10
CREATE WEATHER SERVER ACCOUNT & SETUP WI-FI CONNECTION
The console can upload weather data to WUnderground and / or Weathercloud through WI-FI router. you
can follow the step below to setup your device.
NOTE:
The Weather Underground and Weathercloud website are subject to change.
CREATE WEATHER UNDERGROUND ACCOUNT
1. In https://www.wunderground.com click the "Join" on the top right corner to open the registration page.
Follow the instructions to create your account.
NOTE:
Use the valid email address to register your account.
2. After you have created your account and completed the Email validation, please go back to the
WUndergound web page to login. Then, click “My Profi le” button on the top to open the drop-down
menu and click "My Weather Station".
3. In "My Weather Station" page bottom, please the "Add New Device" button to add your device.
4. Follow their instruction to enter your station information, in the Step "Tell Us More About Your Device",
enter a Name for your weather station, then choose “Other” in “Device Hardware” section.  ll in other
the other information and select "I Accept" to accept Weather underground's privacy terms, then click
“Next” to create your station ID and key.

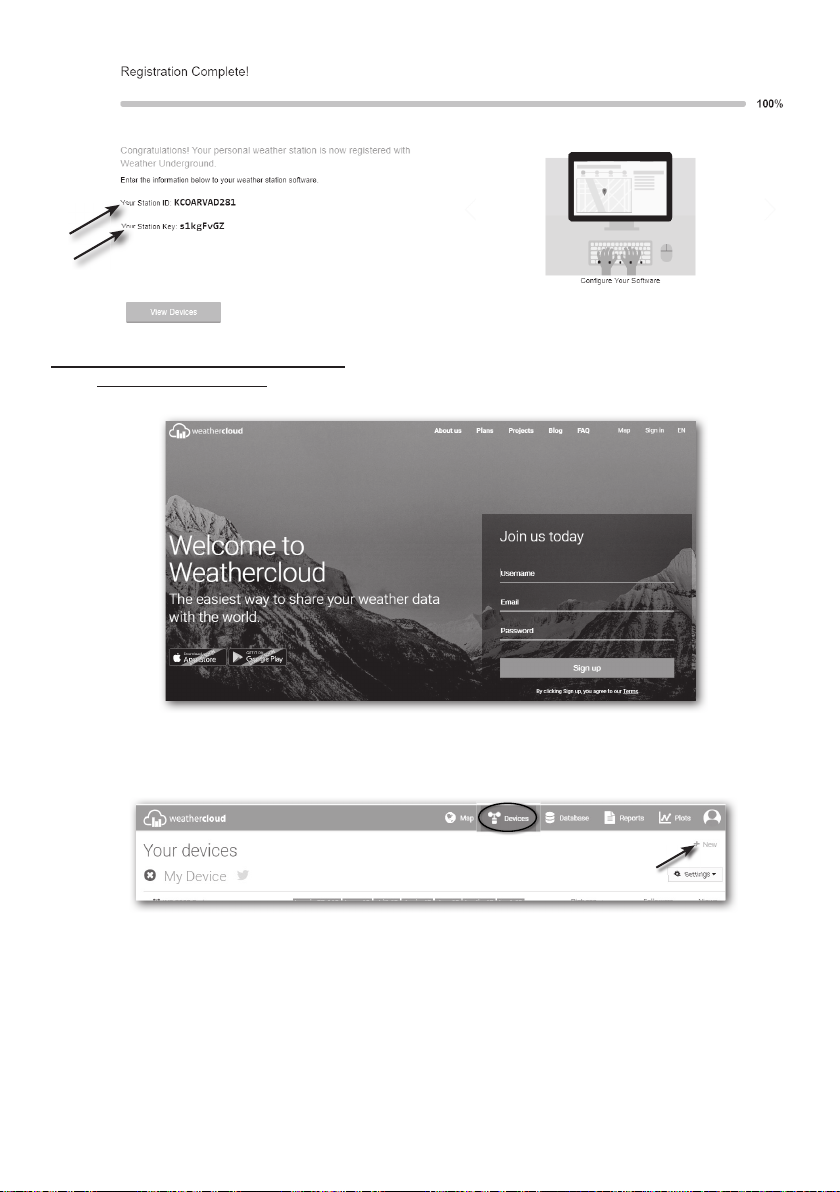

Manual_7002535_WS-Wind-Sensor-3in1_en-de_BRESSER_v072019a.indb 10 04.09.2019 12:27:03
