English ............................. 4
Deutsch ........................... 18

4 / 36
1 Imprint (German)
Bresser GmbH
Gutenbergstr. 2
46414 Rhede
Germany
www.bresser.de
For any warranty claims or service inquiries, please refer to
the information on "Warranty" and "Service" in this docu-
mentation. We ask for your understanding that unsolicited
returns cannot be processed.
Errors and technical changes excepted.
© 2022 Bresser GmbH
All rights reserved.
The reproduction of this documentation - even in extracts -
in any form (e.g. photocopy, print, etc.) as well as the use
and distribution by means of electronic systems (e.g. image
file, website, etc.) without the prior written permission of
the manufacturer is prohibited.
The designations and brand names of the respective com-
panies used in this documentation are generally protected
by trade, trademark and/or patent law in Germany, the
European Union and/or other countries.
2 Validity note
This documentation is valid for the products with the follow-
ing article numbers:
7000025000000
Manual version: 1122
Manual designation:
Manual_7000025000000_Thermo-Hygro-Quadro-Neo_en-
de_BRESSER_v112022a
Always provide information when requesting service.

5 / 36
3 About this Instruction Manual
NOTICE
These operating instructions are to be considered a
component of the device.
Read the safety instructions and the instruction manual
carefully before using this device.
Keep these instruction manual in a safe place for future ref-
erence. If the device is sold or passed on, the instruction
manual must be passed on to any subsequent owner/user
of the product.

6 / 36
4 Parts overview and scope of delivery
+
+
AAA/LR03
AAA/LR03
AAA/LR03 +
CH1
CH
3 2 1
°C/°F
AAA/LR03 AAA/LR03
+
+
2
3
4
8
9
7
10
11
65
1
13
12
14
15
16
17
18
19
B
A
Illustration1: All parts of base station (top) and wireless sensor (bottom)
1 Display* (base station) 2 [SNOOZE / LIGHT] button
3 [UP ] button 4 [DOWN] buttons
5 [ROOM] buttons (1-3) 6 Wall mount (base station)
7 [RESET] knob 8 [SET] button
9 [ALARM] button 10 Battery compartment (base sta-
tion)
11 Stand (foldable) 12 Temperature display
13 Channel display 14 Humidity display

7 / 36
15 Function indicator 16 Wall mount (wireless sensor)
17 [°C/°F] button 18 Channel slider
19 Battery compartment (wireless
sensor)
Delivery content
Base station (A), wireless sensor (3 pcs.)(B)
Also required (not included):
9 pcs. Mignon batteries (1.5V, type AAA/LR03), small Phillips
screwdriver
*For more information, refer to the chapter "Screen display"

8 / 36
5 Screen display
DST
AM
4
135
6
7
8
9
11
10
14
2
12
16
17
18
20
19
13
15

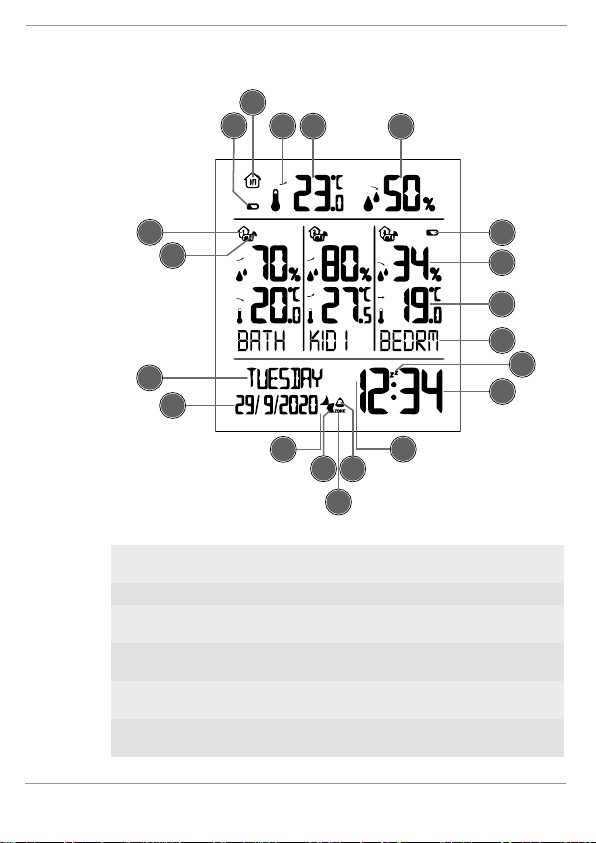

Illustration2: Indications on the display of the base station
1 Battery status (base station) 2 Symbol for the indoor dis-
play
3 Trend arrow 4 Indoor temperature
5 Indoor humidity (in %) 6 Battery status (wireless
sensor)
7 Outdoor humidity (wireless
sensor)
8 Outdoor temperature
(wireless sensor)
9 Room description (for
sensor location)
10 Symbol for active snooze
function
11 current time or alarm time 12 AM/PM display in 12-hour
mode

9 / 36
13 Symbol for enabled alarm 14 Symbol for active time zone
setting
15 Radio clock signal reception
icon
16 Symbol for active daylight
saving time
17 Current date 18 Current day of the week
19 Symbol for connection to
the wireless sensor
20 Channel of the radio sensor
6 Before commissioning
NOTICE
Avoid connection faults!
In order to avoid connection problems between the devices,
the following points must be observed during commission-
ing.
1. Place the base unit (receiver) and sensor (transmitter)
as close together as possible.
2. Connect the power supply to the base unit and wait un-
til the indoor temperature is displayed.
3. Establish power supply for the sensor.
4. Set up/operate the base unit and sensor within the ef-
fective transmission range.
5. Make sure that the base unit and the radio sensor are
set to the same channel.
When changing the batteries, always remove the batteries
from both the base unit and the sensor and reinsert them in
the correct order so that the radio link can be re-estab-
lished. If one of the two devices is operated via a mains
power connection, the power connection must also be
briefly disconnected for this device when the batteries are
changed. If, for example, only the batteries in the sensor
are replaced, the signal may subsequently not be received
at all or not be received correctly.

10 / 36
Note that the actual range depends on the respective con-
struction materials used for the buildings as well as the re-
spective position of the base unit and the outdoor sensor.
External influences (various radio transmitters and other
sources of interference) can greatly reduce the possible
range. In such cases, we recommend finding other locations
for both the base unit and the outdoor sensor. Sometimes
moving the sensor by just a few centimeters is enough!
7 Setting up power supply
Base unit
1. Remove the battery compartment cover.
2. Insert the batteries into the battery compartment.
Make sure that the battery terminals are correctly
aligned (+/-).
3. Replace the battery compartment cover.
4. Wait until indoor temperature is displayed on the base
unit.
Wireless sensor
5. Remove the screws on the battery compartment cover
with a suitable Phillips screwdriver and remove the bat-
tery compartment cover.
6. Move the channel slider to the desired channel.
NOTICE!This Thermo-Hygrometer can be operated
with up to 3 wireless sensors. Each connected wireless
sensor must be operated on a different channel. If only
one wireless sensor is connected, it should be operated
on channel 1.
7. Insert the batteries into the battery compartment.
Make sure that the battery terminals are correctly
aligned (+/-).
8. Replace and screw on the battery compartment cover.

11 / 36
8 Battery level indicator
1. When the level of the batteries in the base station or in
the wireless sensor reaches a critical level, the battery
level symbol appears in the appropriate area on the
display.
2. When replacing one set of batteries, always remove the
batteries from the other part of the unit and reinsert
them in the correct order (see chapter "Setting up
power supply"). Replace the batteries to be changed in
the corresponding part of the device with a completely
new set with full capacity. This ensures that the connec-
tion between the devices will be reestablished again
correctly.
9 Automatic time setting
After the power has been restored, the unit automatically
searches for the radio signal. It takes approximately 3-8
minutes for this process to be completed.
If the radio signal is received correctly, the date and time
are set automatically and the reception symbol is displayed.
If no radio signal has been received, proceed as follows:
1. Press the DOWN button for approx. 2 seconds to initi-
ate the reception of the radio signal again.
2. Press the DOWN button for approx. 2 seconds to initi-
ate the reception of the radio signal again.
3. If still no radio signal is received, the time must be set
manually.
10 Manual time setting
NOTICE!A manual time setting cannot be made when the
time signal search is active (the corresponding symbol
flashes). Wait until the time signal search is completed to
make the manual time setting.

12 / 36
1. Press the SET button for approx. 3 seconds to enter the
time setting mode.
2. Digits to be set are flashing.
3. Press UP or DOWN button to change the value.
4. Press the SET button to confirm and switch to the next
setting.
5. Settings sequence: Hours > Minutes > 12/24 hour mode
> Year > Month > Day > Time zone > Language
6. Finally, press the SET button to save the settings and
exit settings mode.
*The language setting refers to the days of the week as well
as to the room names. Available languages: English, Ger-
man, French, Spanish, Italian, Danish, Swedish
11 Time zone setting
The time zone is set as part of the manual time setting. You
can also find more detailed information in the chapter
"Manual time setting".
1. Press the SET button for approx. 3 seconds to enter the
time setting mode.
2. Press the SET button several times until the display
shows the setting for the time offset (the factory setting
is '00').
3. Press UP or DOWN button to select the desired time de-
viation in hours (-23 up to +23 hours).
4. Press the SET button for approx. 3 seconds to confirm
the selected time deviation.
12 Alarm setting
NOTICE!The alarm setting cannot be made when the time
signal search is active (the corresponding symbol flashes).
Wait until the time signal search is completed to be able to
set the manual alarm.

13 / 36
1. Press the Alarm button to display the alarm time.
2. Press the Alarm button for approx. 2 seconds to enter
the alarm time settings mode.
3. Digits to be set are flashing.
4. Press UP or DOWN button to change the value.
5. Press the ALARM button to confirm the entry and move
to the next setting.
6. Settings sequence: Hours > minutes
7. Finally, press the ALARM button to save the settings
and exit the settings mode.
Enable/disable the alarm
8. In normal display mode, press the ALARM button to dis-
play the currently set alarm time. The alarm time and
the alarm status (ON/OFF) are displayed.
9. Press the UP button to activate the wake-up call (ON).
The symbol will displayed on the LCD.
10. Press the SET button again to deactivate wake-up call.
The symbol is no longer displayed.
13 Snooze function
1. When the alarm tone sounds, press the SNOOZE/LIGHT
button on the top of the base station to activate the
snooze function. The alarm sounds again after 5
minutes.
2. When the alarm sounds, press any other button to stop
the alarm until the set alarm time is reached again.
3. If no button is pressed, the alarm is automatically
switched off after 2 minutes.
NOTICE!The snooze function can be reactivated up to seven
times before the alarm is automatically stopped.

14 / 36
14 Change room name
NOTICE!The room name cannot be changed when the time
signal search is active (the corresponding icon flashes). Wait
until the time signal search is completed to be able to
change the room name.
1. Press the ROOM button of the desired wireless sensor.
The room name flashes.
2. Press the ROOM button repeatedly to select one of the
5 preset room names. Alternatively, continue with 3. or
wait approx. 5 seconds until the change has been saved
automatically. The display stops flashing.
3. Press the UP button to switch to the entry of a free
room designation. "_" flashes.
4. Press the UP button until the desired input value
flashes. Possible input values: A-Z, 0-9, _ > < / * -
5. Press the ROOM button again to switch to the next in-
put value and enter it as described under 4.
6. Finally, press the ROOM button to save the entry. If no
entry is made within 5 seconds, the settings made up to
this point are automatically saved. In both cases the
display stops flashing and the free input is stored.
15 Receiving measurements automatically
Once batteries are installed, the base station will display the
measurement readings. Readings from the remote sensor
will be displayed within 3 minutes after powering it on.
16 Display change °C/°F
•Base unit
In normal display mode, press the DOWN button to toggle
between °C and °F.
•Wireless sensor
Open the battery compartment.

15 / 36
Press the °C/°F button to toggle between °C and °F.
Close the battery compartment.
17 Trend arrow indicators
123
1 Rising 2 Steady
3 Falling
The temperature and humidity trend indicator shows the
trends of changes in the forthcoming few minutes. Arrows
indicate a rising, steady or falling trend.
18 MAX/MIN weather data
The maximum and minimum readings for indoor and out-
door temperature as well as for the humidity are stored by
the base station over a period of 24 hours:
1. Press the UP button several times to display the stored
values one after the other.
2. Display sequence: Maximum values (MAX) > Minimum
values (MIN) > Current values
3. Press the UP button for approx. 2 seconds to perman-
ently delete all stored readings.
NOTICE!If the recording range for a value is undershot,
'LL.L' is shown in the display. If the recording range is ex-
ceeded, 'HH.H' is shown in the display.
19 Backlight
Press SNOOZE/LIGHT button to activate backlight for 5
seconds.

16 / 36
20 Disposal
Dispose of the packaging materials according to its type. In-
formation on proper disposal can be obtained from the muni-
cipal waste disposal service provider or environmental agency.
Do not dispose of electronic devices in the household
garbage!
According to the European Directive 2012/19/EU on Waste
Electrical and Electronic Equipment and its transposition into
national law, used electrical equipment must be collected sep-
arately and recycled in an environmentally sound manner.
Batteries and rechargeable batteries must not be disposed of
with household waste. You are legally obliged to return used
batteries and accumulators and can return them after use
either at our sales outlet or in the immediate vicinity (e.g. in the
trade or in municipal collection points) free of charge.
Batteries and accumulators are marked with a crossed-out
dustbin and the chemical symbol of the pollutant, "Cd" stands
for cadmium, "Hg" stands for mercury and "Pb" stands for lead.
21 Warranty
The regular warranty period is 2 years and starts on the day
of purchase. To benefit from an extended voluntary war-
ranty period as indicated on the gift box, registration on our
website is required.
You can consult the full guarantee terms as well as informa-
tion on extending the guarantee period and details of our
services at www.bresser.de/warranty_terms.
22 EC declaration of conformity
Bresser GmbH hereby declares that the radio equipment
type with item number 7000025000000 is in compliance with
Directive 2014/53/EU. The full text of the EC Declaration of

17 / 36
Conformity is available at the following web address:
www.bresser.de/download/7000025000000/
CE/7000025000000_CE.pdf
23 UKCA declaration of conformity
A "Declaration of Conformity" in accordance with the applic-
able directives and relevant standards has been issued by
Bresser GmbH The full text of the UKCA Declaration of Con-
formity is available at the following web address:
www.bresser.de/download/7000025000000/
UKCA/7000025000000_UKCA.pdf
Bresser UK Ltd. • Suite 3G, Eden House, Enterprise Way,
Edenbridge, Kent TN8 6HF, Great Britain

18 / 36
1 Impressum
Bresser GmbH
Gutenbergstr. 2
46414 Rhede
Germany
www.bresser.de
Für etwaige Gewährleistungsansprüche oder Serviceanfra-
gen verweisen wir auf die Informationen zu „Garantie“ und
„Service“ in dieser Dokumentation. Wir bitten um Verständ-
nis, dass unaufgeforderte Rücksendungen nicht bearbeitet
werden können.
Irrtümer und technische Änderungen vorbehalten.
© 2022 Bresser GmbH
Alle Rechte vorbehalten.
Die Reproduktion dieser Dokumentation – auch auszugs-
weise – in irgendeiner Form (z.B. Fotokopie, Druck, etc.) so-
wie die Verwendung und Verbreitung mittels elektronischer
Systeme (z.B. Bilddatei, Website, etc.) ohne eine vorherige
schriftliche Genehmigung des Herstellers ist nicht gestattet.
Die in dieser Dokumentation verwendeten Bezeichnungen
und Markennamen der jeweiligen Firmen sind im Allgemei-
nen in Deutschland, der Europäischen Union und/oder wei-
teren Ländern waren-, marken- und/oder patentrechtlich
geschützt.
2 Gültigkeitshinweis
Diese Dokumentation ist gültig für die Produkte mit den
nachfolgend aufgeführten Artikelnummern:
7000025000000
Anleitungsversion: 1122
Bezeichnung dieser Anleitung:
Manual_7000025000000_Thermo-Hygro-Quadro-Neo_en-
de_BRESSER_v112022a

19 / 36
Informationen bei Serviceanfragen stets angeben.
3 Zu dieser Anleitung
HINWEIS
Diese Bedienungsanleitung ist als Teil des Gerätes zu
betrachten!
Lesen Sie vor der Benutzung des Geräts aufmerksam die Si-
cherheitshinweise und die Bedienungsanleitung.
Bewahren Sie diese Bedienungsanleitung für die erneute
Verwendung zu einem späteren Zeitpunkt auf. Bei Verkauf
oder Weitergabe des Gerätes ist die Bedienungsanleitung
an jeden nachfolgenden Besitzer/Benutzer des Produkts
weiterzugeben.

20 / 36
4 Teileübersicht und Lieferumfang
+
+
AAA/LR03
AAA/LR03
AAA/LR03 +
CH1
CH
3 2 1
°C/°F
AAA/LR03 AAA/LR03
+
+
2
3
4
8
9
7
10
11
65
1
13
12
14
15
16
17
18
19
B
A
Abb.1: Alle Teile der Basisstation (oben) und des Funksensors (unten)
1 Display* (Basisstation) 2 SNOOZE/LIGHT-Taste
3 UP-Taste 4 DOWN-Taste
5 ROOM-Tasten (1-3) 6 Aufhängevorrichtung (Basisstati-
on)
7 RESET-Knopf 8 SET-Taste
9 ALARM-Taste 10 Batteriefach (Basisstation)
11 Standfuß (ausklappbar) 12 Temperaturanzeige
13 Kanalanzeige 14 Luftfeuchtigkeitsanzeige
