Bresser Quadro Individio User manual

Weather Station · Wetterstation ·
Quadro Individio
EN Instruction manual
DE Bedienungsanleitung

DE
Besuchen Sie unsere Website über den folgenden QR Code oder Weblink um weitere
Informationen zu diesem Produkt oder die verfügbaren Übersetzungen dieser Anleitung zu
nden.
GB
Visit our website via the following QR Code or web link to nd further information on this
product or the available translations of these instructions.
FR
Si vous souhaitez obtenir plus d’informations concernant ce produit ou rechercher ce mode
d’emploi en d’autres langues, rendez-vous sur notre site Internet en utilisant le code QR ou le
lien correspondant.
NL
Bezoek onze internetpagina via de volgende QR-code of weblink, voor meer informatie over
dit product of de beschikbare vertalingen van deze gebruiksaanwijzing.
ES
¿Desearía recibir unas instrucciones de uso completas sobre este producto en un idioma
determinado? Entonces visite nuestra página web utilizando el siguiente enlace (código QR)
para ver las versioneAs disponibles.
IT
Desidera ricevere informazioni esaustive su questo prodotto in una lingua specica? Venga a
visitare il nostro sito Web al seguente link (codice QR Code) per conoscere le versioni disponibili.
www.bresser.de/P7000027
www.bresser.de/warranty_terms
GARANTIE · WARRANTY · GARANTÍA · GARANZIA
DE
Besuchen Sie unsere Website über den folgenden QR Code oder Weblink um weitere
Informationen zu diesem Produkt oder die verfügbaren Übersetzungen dieser Anleitung zu
nden.
GB
Visit our website via the following QR Code or web link to nd further information on this
product or the available translations of these instructions.
FR
Si vous souhaitez obtenir plus d’informations concernant ce produit ou rechercher ce mode
d’emploi en d’autres langues, rendez-vous sur notre site Internet en utilisant le code QR ou le
lien correspondant.
NL
Bezoek onze internetpagina via de volgende QR-code of weblink, voor meer informatie over
dit product of de beschikbare vertalingen van deze gebruiksaanwijzing.
ES
¿Desearía recibir unas instrucciones de uso completas sobre este producto en un idioma
determinado? Entonces visite nuestra página web utilizando el siguiente enlace (código QR)
para ver las versioneAs disponibles.
IT
Desidera ricevere informazioni esaustive su questo prodotto in una lingua specica? Venga a
visitare il nostro sito Web al seguente link (codice QR Code) per conoscere le versioni disponibili.
www.bresser.de/P7000027
www.bresser.de/warranty_terms
GARANTIE · WARRANTY · GARANTÍA · GARANZIA

English ............................. 4
Deutsch ........................... 22

4 / 44
1 Imprint (German)
Bresser GmbH
Gutenbergstr. 2
46414 Rhede
Germany
www.bresser.de
For any warranty claims or service inquiries, please refer to
the information on "Warranty" and "Service" in this docu-
mentation. We ask for your understanding that unsolicited
returns cannot be processed.
Errors and technical changes excepted.
© 2022 Bresser GmbH
All rights reserved.
The reproduction of this documentation - even in extracts -
in any form (e.g. photocopy, print, etc.) as well as the use
and distribution by means of electronic systems (e.g. image
file, website, etc.) without the prior written permission of
the manufacturer is prohibited.
The designations and brand names of the respective com-
panies used in this documentation are generally protected
by trade, trademark and/or patent law in Germany, the
European Union and/or other countries.
2 Validity note
This documentation is valid for the products with the follow-
ing article numbers:
7000027
Manual version: 0522
Manual designation:
Manual_7000027_Quadro-Individio_en-
de_BRESSER_v052022a
Always provide information when requesting service.

5 / 44
3 About this Instruction Manual
NOTICE
These operating instructions are to be considered a
component of the device.
Read the safety instructions and the instruction manual
carefully before using this device.
Keep these instruction manual in a safe place for future ref-
erence. If the device is sold or passed on, the instruction
manual must be passed on to any subsequent owner/user
of the product.
4 General safety instructions
DANGER
Risk of an electric shock!
This device contains electronic parts that are powered by a
power source (AC adapter and/or batteries). Improper use
of this product may result in electric shock. Electric shock
can cause serious or fatal injuries. It is therefore imperative
that you observe the following safety information.
• Never leave children unattended when handling the
device! Follow the instructions carefully and do not at-
tempt to power this device with anything other than

6 / 44
power sources recommended in this instruction
manual, otherwise there is a danger of an electric
shock!
• Disconnect the power supply by pulling the mains plug
when the appliance is not in use, in case of a longer in-
terruption of operation and before any maintenance
and cleaning work.
• Place your device so that it can be disconnected from
the power supply at any time. The power outlet should
always be near your appliance and should be easily ac-
cessible, as the plug of the power cord serves as a dis-
connect device from the mains supply.
• To disconnect the unit from the mains, always pull the
mains plug and never pull the cable!
• Check this device, cables and connections for damage
before use.
• Never attempt to operate a damaged device, or a
device with damaged electrical parts! Damaged parts
must be replaced immediately by an authorized service
agent.
• Operate the device only in a completely dry environ-
ment and do not touch the device with wet or damp
body parts.
DANGER
Danger of suffocation!
Improper use of this product may result in suffocation, es-
pecially for children. It is therefore imperative that you ob-
serve the following safety information.

7 / 44
• Keep packaging materials (plastic bags, rubber bands,
etc.) away from children! There is a danger of choking!
• This product contains small parts that can be swal-
lowed by children! Choking hazard!
DANGER
Explosion hazard!
Improper use of this product may result in fire. It is essen-
tial that you observe the following safety information in or-
der to avoid fires.
• Do not expose the device to high temperatures. Use
only the supplied AC adapter or the recommended bat-
teries. Do not short-circuit the device or batteries or
dispose of in fire! Excessive heat and improper hand-
ling can cause short circuits, fires and even explosions!
NOTICE
Danger of material damage!
Improper handling may result in damage to the unit and/or
accessories. Therefore, use the device only in accordance
with the following safety information.

8 / 44
• Do not disassemble the device! In the event of a defect,
please contact your dealer. They will contact the Service
Center and can arrange the return of this device for re-
pair if necessary.
• Do not expose the device to high temperatures and
protect it from water and high humidity.
• Do not immerse the unit in water!
• Do not subject the device to excessive vibrations.
• Only use accessories and spare parts for this device
that comply with the technical specifications.
• Use only the recommended batteries. Always replace
weak or empty batteries with a new, complete set of
batteries at full capacity. Do not use batteries from dif-
ferent brands or types or with different capacities. Re-
move batteries from the device if it is not to be used for
a longer period of time!
• Do not use rechargeable batteries (accumulators).
NOTICE
Danger of voltage damage!
The manufacturer accepts no liability for voltage damage as
a result of incorrectly inserted batteries, or the use of an un-
suitable mains adapter!

9 / 44
5 Parts overview and scope of delivery
1
26
3
48
57
9
10
11
12
13
15
16
22
A
18
19
14
20
B
17
C
21
23 24
D
Illustration1: All parts of the base station (top), the sensors (bottom left) and the AC
power adapter (bottom right) in overview.
1 Display 2 SNZ/LIGHT button
3 ROOM1 key 4 ROOM2 key
5 ROOM3 key 6 Wall mount fixture
7 [DOWN] button 8 [UP] button
9 [MODE] button 10 Ventilation slots
11 Stand, foldable 12 Battery compartment with cover
13 DC connection socket for mains
adapter plug
14 Display
15 Function indicator 16 Wall mount fixture
17 [RESET] knob 18 Channel selector switch

10 / 44
19 Battery compartment 20 Battery compartment cover
21 Adapter fixture 22 Locking button
23 DC barrel connector 24 Plug adapter
Scope of delivery:
1 x base station (A), 3 x indoor sensor (B), 1 x AC power ad-
apter (C) with 2 x plug adapter (D)
Also required (not included):
6 x battery type AAA/LR03 (3 x 2, for the sensors)
3 x battery type AAA/LR03 (optional for the base station)
6 Screen display
123
4
6
7
5
8
9
10
11
13
14
12
15
16

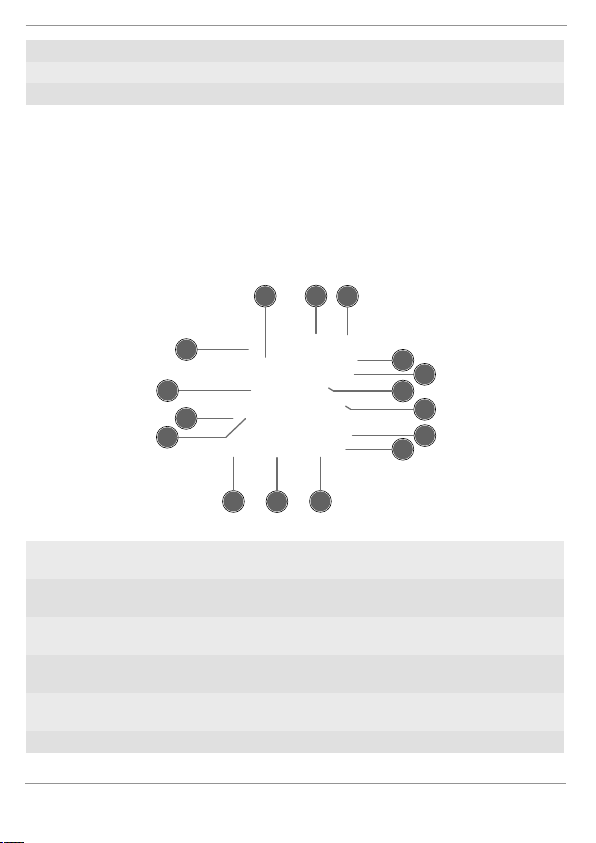

Illustration2: Screen display of the weather station
1 Symbol of the current weather
situation
2 Date (MM/DD or MM/DD/YY se-
lectable)
3 Weekday 4 Current time (hours:minutes) or
alarm time (1, 2)
5 Symbol for active alarm time (1 or
2)
6 Temperature (°C or °F selectable)
at base location
7 Humidity (in %) at the base loca-
tion
8 Room temperature (specific for
rooms 1-3 and different in color)
9 Room humidity (specific for all
rooms 1-3)
10 Display for room 1
11 Display for room 2 12 Display for room 3

11 / 44
13 Room description (individually
settable)
14 Receiving symbol for the room
sensor (specific for all 3 sensors)
15 Air pressure (in hPa) at the base
location
16 Arrows for the weather trend
7 Before commissioning
NOTICE
Avoid connection faults!
In order to avoid connection problems between the devices,
the following points must be observed during commission-
ing.
1. Place the base unit (receiver) and sensor (transmitter)
as close together as possible.
2. Connect the power supply to the base unit and wait un-
til the indoor temperature is displayed.
3. Establish power supply for the sensor.
4. Set up/operate the base unit and sensor within the ef-
fective transmission range.
5. Make sure that the base unit and the radio sensor are
set to the same channel.
When changing the batteries, always remove the batteries
from both the base unit and the sensor and reinsert them in
the correct order so that the radio link can be re-estab-
lished. If one of the two devices is operated via a mains
power connection, the power connection must also be
briefly disconnected for this device when the batteries are
changed. If, for example, only the batteries in the sensor
are replaced, the signal may subsequently not be received
at all or not be received correctly.
Note that the actual range depends on the respective con-
struction materials used for the buildings as well as the re-
spective position of the base unit and the outdoor sensor.
External influences (various radio transmitters and other

12 / 44
sources of interference) can greatly reduce the possible
range. In such cases, we recommend finding other locations
for both the base unit and the outdoor sensor. Sometimes
moving the sensor by just a few centimeters is enough!

13 / 44
8 Power supply
NOTICE!The base unit can be operated both with the sup-
plied power adapter or with batteries.
Base unit
1. Press and hold the locking button on the adapter fix-
ture of the AC power adapter. At the same time, insert
the desired plug adapter into the adapter fixture and
screw it in as far as it will go in the "LOCK" direction .
Release the locking knob.
2. Insert the DC barrel connector into the connection
socket on the base unit.
ATTENTION! Make sure that the plug adapter is firmly
and securely fastened in the adapter fixture of the AC
power adapter before proceeding!
3. Insert the AC power adapter with the previously moun-
ted the plug into the power outlet.
4. The device is powered on directly.
5. Wait until indoor temperature is displayed on the base
unit.
6. To replace the plug adapter, hold down the locking but-
ton and turn the plug adapter in the "OPEN" direction
and remove it from the adapter holder. Then perform
step 1 to mount another plug adapter.
NOTE: Alternatively, operation using batteries (2 x AAA/
LR03) is also possible. To do this, proceed as follows:
7. Remove the battery compartment cover.
8. Insert batteries into the battery compartment. Make
sure that the batteries are correctly aligned (+/- poles).
9. Replace the battery compartment cover.
10. Wait until indoor temperature is displayed on the base
unit.
Wireless sensors

14 / 44
11. Remove the battery compartment cover.
12. Insert the batteries into the battery compartment.
Make sure that the batteries are correctly aligned (+/-
poles).
13. Move CH slider to the position for the desired transmis-
sion channel (setting CH1, CH2 or CH3 with indication
on the display).
NOTE: When operating an outdoor sensor, channel 1 is
recommended as the default setting.
14. Replace the battery compartment cover.
9 Automatic time setting
After the power has been restored, the unit automatically
searches for the radio signal. It takes approximately 3-8
minutes for this process to be completed.
If the radio signal is received correctly, the date and time
are set automatically and the reception symbol is displayed.
If no radio signal has been received, proceed as follows:
1. Press the DOWN button for approx. 2 seconds to initi-
ate the reception of the radio signal again.
2. Press the DOWN button for approx. 2 seconds to initi-
ate the reception of the radio signal again.
3. If still no radio signal is received, the time must be set
manually.

15 / 44
10 Manual time setting
1. Press the MODE button for approx. 3 seconds to enter
the time setting mode.
2. Digits to be set are flashing.
3. Press UP or DOWN button to change the value.
4. Press the MODE button to confirm and switch to the
next setting.
5. Sequence of settings: 12-/24-hour mode > Time zone >
Hours > Minutes > DD/MM or MM/DD/Year > Month >
Day > Language for weekday > Barometer unit >
Weather graphic

16 / 44
NOTICE!The set weather graphic must correspond ex-
actly to the present weather situation, that it can be in-
dicated correctly even when weather is changing!
6. Finally, press the MODE button to save the settings and
exit settings mode.
11 Alarm setting
1. Press the MODE button several times to select the de-
sired alarm function: Alarm 1 (AL 1) or Alarm 2 (AL 2).
The display changes to the set alarm time.
2. Press the MODE button for about 3 seconds to switch
to the setting mode for the corresponding alarm time.
3. The value to be set is flashing.
4. Press UP or DOWN button to change the value.
5. Press the MODE button to confirm and switch to the
next setting.
6. Sequence of the settings: Hours > minutes > snooze
time
7. Finally, press the MODE button to save the settings and
exit settings mode.
8. To activate the alarm, press the UP or DOWN button
until the corresponding alarm symbol (alarm clock) for
AL1, AL2 or AL1+AL2 is displayed.
9. To deactivate the alarm, press the UP or DOWN button
repeatedly until the alarm symbol (bell) is no longer dis-
played.

17 / 44
12 Change room name
NOTICE!The room description cannot be changed when the
time signal search is active (the corresponding symbol
flashes). Wait until the time signal search is completed to be
able to change the room designation.
1. Press the desired ROOM key (1-3) corresponding to the
connected wireless sensor (channel 1-3). The room des-
ignation flashes. Continue with step 2 or 3.
2. Press the ROOM key several times to select one of the 5
preset room designations. Alternatively, continue with
step 3 or wait approx. 5 seconds until the change has
been saved automatically. The display no longer
flashes.
3. Press the MODE button to switch to the entry of a free
room designation. "_" flashes.
4. Press the UP or DOWN button until the desired input
value flashes. Possible input values: blank → 0-9 → A-Z →
< → > → * → + → - → / → _
5. Press the ROOM button again to switch to the next in-
put value and enter it as described under step 4.
6. Finally, press the ROOM button to save the entry. If no
entry is made within 5 seconds, the settings made up to
this point are automatically saved. In both cases, the
display no longer flashes and the free entry is saved.
13 Display change °C/°F
•Base unit
In normal display mode, press the DOWN button to toggle
between °C and °F.
•Wireless sensor
Open the battery compartment.
Press the °C/°F button to toggle between °C and °F.
Close the battery compartment.

18 / 44
14 Weather trend
A weather trend for the next 12 hours is calculated from the
measured values and displayed graphically as follows:
12345
Illustration3: Symbols of the weather trend display
1 Sunny 2 Partly Cloudy
3 Cloudy 4 Rain
5 Snow

19 / 44
15 MAX/MIN weather data
The maximum and minimum readings for indoor and out-
door temperature as well as for the humidity are stored by
the base station over a period of 24 hours:
1. Press the UP button several times to display the stored
values one after the other.
2. Display sequence: Maximum values (MAX) > Minimum
values (MIN) > Current values
3. Press the UP button for approx. 2 seconds to perman-
ently delete all stored readings.
NOTICE!If the recording range for a value is undershot,
'LL.L' is shown in the display. If the recording range is ex-
ceeded, 'HH.H' is shown in the display.
16 Adjusting the display brightness
1. In battery-powered operation, touch the SNZE/LIGHT
button to enable full display brightness for about 10
seconds.
2. In mains operation (DC 5V), touch the SNZE/LIGHT but-
ton several times to set the desired display brightness
in steps: dim - bright - off
NOTICE!In battery-powered operation, display brightness
adjustment is not possible.
17 Disposal
Dispose of the packaging materials according to its type. In-
formation on proper disposal can be obtained from the muni-
cipal waste disposal service provider or environmental agency.
Do not dispose of electronic devices in the household
garbage!
According to the European Directive 2012/19/EU on Waste
Electrical and Electronic Equipment and its transposition into
national law, used electrical equipment must be collected sep-
arately and recycled in an environmentally sound manner.

20 / 44
Batteries and rechargeable batteries must not be disposed of
with household waste. You are legally obliged to return used
batteries and accumulators and can return them after use
either at our sales outlet or in the immediate vicinity (e.g. in the
trade or in municipal collection points) free of charge.
Batteries and accumulators are marked with a crossed-out
dustbin and the chemical symbol of the pollutant, "Cd" stands
for cadmium, "Hg" stands for mercury and "Pb" stands for lead.
18 Technical data
Base station
Radio clock signal: DCF
Power supply: DC 5V 150 mA via AC power adapter
Battery operation: 3 x AAA/LR03 batteries
