English................................................................................................................... 4
Deutsch ................................................................................................................. 16

4 / 28
1 Imprint (German)
Bresser GmbH
Gutenbergstr. 2
46414 Rhede
Germany
http://www.bresser.de
For any warranty claims or service enquiries, please refer to the information on "Warranty" and
"Service" in this documentation. We apologize for any inconvenience caused by the fact that we
cannot process enquiries or submissions sent directly to the manufacturer's address.
Errors and technical changes excepted.
© 2021 Bresser GmbH
All rights reserved.
The reproduction of this documentation - even in extracts - in any form (e.g. photocopy, print, etc.) as
well as the use and distribution by means of electronic systems (e.g. image file, website, etc.) without
the prior written permission of the manufacturer is prohibited.
The designations and brand names of the respective companies used in this documentation are
generally protected by trade, trademark and/or patent law in Germany, the European Union and/or
other countries.
2 Validity note
This documentation is valid for the products with the following article numbers:
7002585
Manual version: 0221
Manual designation:
Manual_7002585_WIFI-Colour-Weather-Station_en-de_BRESSER_v022021a
Always provide information when requesting service.
3 Features
• Measurement of Rainfall
• Measurement of wind speed
• Measurement of wind direction
• Internet time synchronization via PC
• Alarm with snooze function
• Outdoor temperature alarm (frost warning)
• Outdoor temperature (in °C or °F)
• Indoor temperature (in °C or °F)
• Humidity indoor/outdoor
• Barometric pressure
• Since function to display the total rainfall from a customized point in time.
• Highest and lowest value display
• Maximum/Minimum value memory
• Colour display
• Backlight

5 / 28
4 About this Instruction Manual
NOTICE
These operating instructions are to be considered a component of the device.
Read the safety instructions and the operating manual carefully before using this device.
Keep this instruction manual in a safe place for future reference. When the device is sold or given to
someone else, the instruction manual must be provided to the new owner/user of the product.
5 Parts overview Base station
1
2
8
16
1510
18
13
12 1411
25
A
C
34657
17
19
22
20
9
24
23
18 21
B
Illustration1: All parts of the base station
1 ALARM/SNOOZE button (snooze function
or interrupt alarm)
2 Colour display
3 RAIN button (display of different precipita-
tion values)
4 BARO button (display of different air pres-
sure values)
5 INDEX button (display change between
felt temperature, dew point, heat index
and wind chill factor)
6 WIND button (display change between av-
erage and current wind gust)
7 MAX/MIN button (display change between
maximum, minimum or current value)
8 HISTORY button (show measured values
of the last 24 hours)
9 CHANNEL button (channel selection) 10 CLOCK SET button (setting time manu-
ally)
11 ALARM button (alarm setting) 12 ALERT button (e.g. set temperature
alarm)
13 Wall mounting holder 14 DOWN button (Value setting downwards)
15 UP button (Value setting upwards) 16 RESET button (reset all settings)

6 / 28
17 HI/LO/AUTO slider (set or turn off back-
light)
18 Stand, removable
19 REFRESH button (manual data update) 20 SENSOR/WI-FI button (start manual
sensor search or enable/disable WI-FI)
21 Battery compartment (cover) 22 BARO UNIT button (changes air pressure
unit)
23 °C/°F slider (display changes between °C
and °F)
24 Power jack
25 USB power adapter with plug adapters
and power cable (USB/hollow plug)

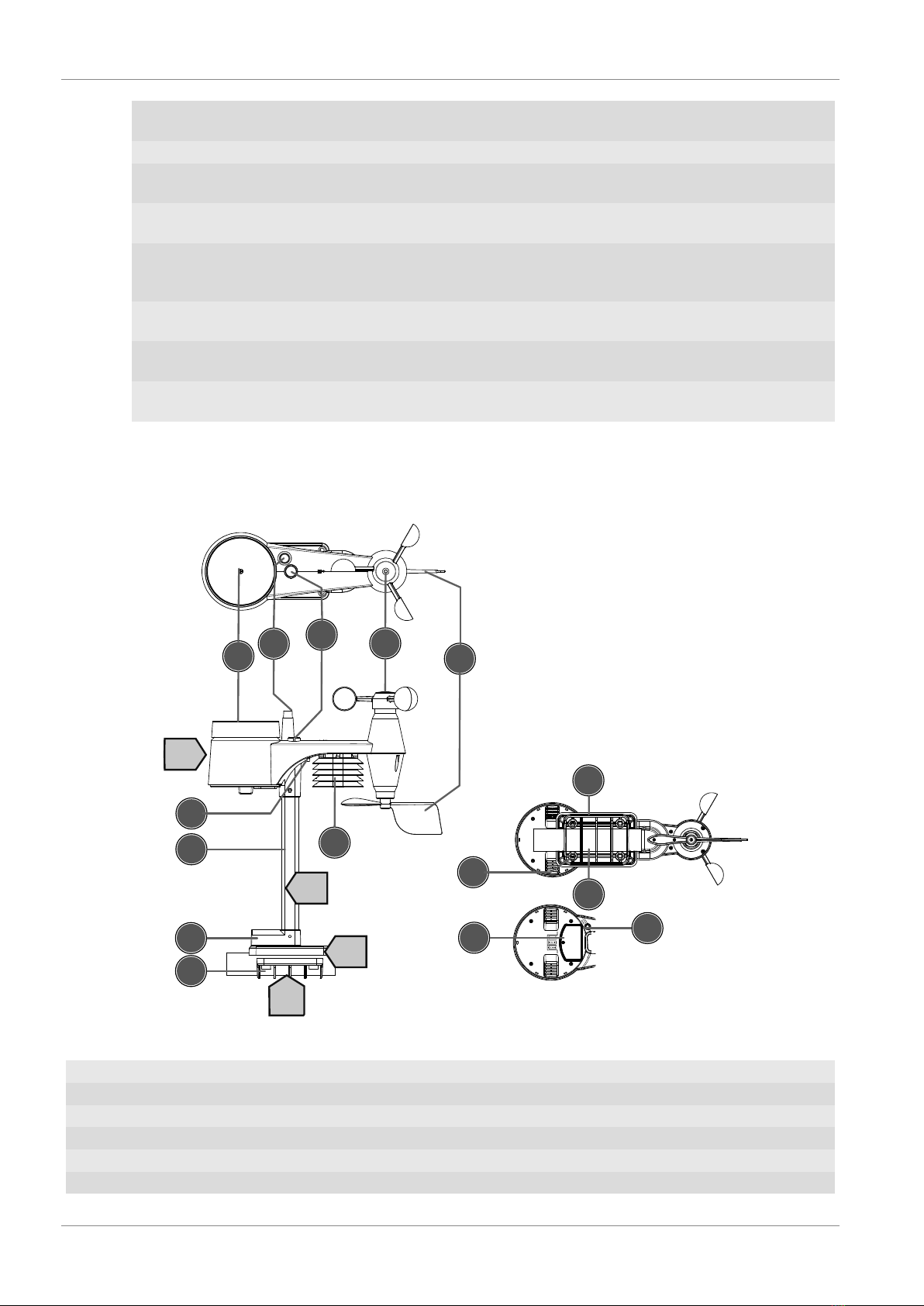

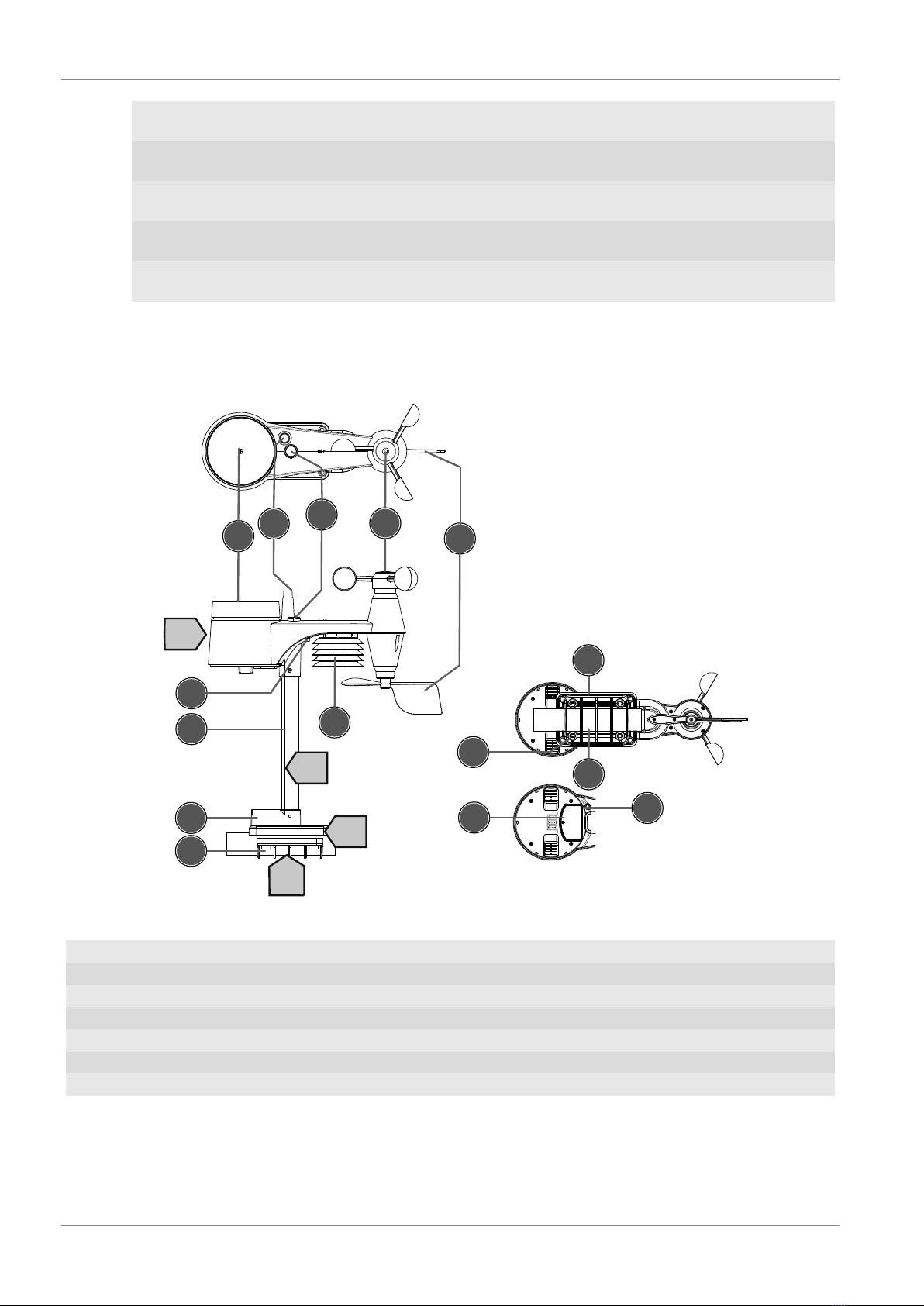

6 Parts overview Multisensor
1
34
5
6
9
8
7
13
10 11
E
D
F
G
7
8
12
2
Illustration2: All parts of the multisensor
1 Rain gauge 2 Antenna
3 Circular level 4 Wind cups (wind speed)
5 wind vane (wind direction) 6 Thermo-Hygrometer
7 Pipe clamp 8 Mounting shoe
9 Mounting bar 10 Battery compartment (cover)
11 RESET button 12 LED function indicator
13 Mounting screws with nuts

7 / 28
7 Scope of delivery
Base station (A), power adapter (B), stand (C), multifunctional outdoor sensor (D), mounting rod (E),
mounting shoe (F), pipe clamp (G), screws, 2 pc. CR2032 type battery (base unit), instruction manual
Also required (not included in delivery):
3 x 1.5V batteries type AA/LR6 (outdoor sensor)
8 Screen display
23
2
1
9
10
15
14
18
7
4
21
20
8
22
3
5
6
13 11
12
17
16
19
Illustration3: Screen display
1 Wind speed 2 Wind direction
3 Signal strength for outdoor sensor 4 Outdoor temperature
5 Outdoor temperature alarm enabled (HI/
LO)
6 Outdoor humidity
7 Barometric pressure 8 Precipitation alarm enabled (HI/LO)
9 Precipitation amount 10 Date

8 / 28
11 WIFI synchronization 12 Ice alert enabled
13 Wake-up alarm enabled 14 Current time
15 Temperature felt 16 Moon phase
17 Weekday 18 Graphical weather trend display
19 Indoor humidity 20 Comfort indicator (climate)
21 Indoor temperature alarm enabled 22 Indoor temperature
23 Trend arrow (rising, constant or falling)
9 Before commissioning
NOTICE
Avoid connection faults!
In order to avoid connection problems between the devices, the following points must be observed
during commissioning.
1. Place the base unit (receiver) and sensor (transmitter) as close together as possible.
2. Connect the power supply to the base unit and wait until the indoor temperature is displayed.
3. Establish power supply for the sensor.
4. Set up/operate the base unit and sensor within the effective transmission range.
5. Make sure that the base unit and the radio sensor are set to the same channel.
When changing the batteries, always remove the batteries in both the base unit and the sensor and
reinsert them in the correct order so that the radio connection can be re-established. If one of the two
devices is operated via a mains power connection, the power connection for this device must also be
disconnected briefly when changing the battery. If, for example, only the batteries in the sensor are
replaced, the signal cannot be received or can no longer be received correctly.
Note that the actual range depends on the building materials used in the building and the position of
the base unit and outdoor sensor. External influences (various radio transmitters and other sources of
interference) can greatly reduce the possible range. In such cases, we recommend finding other
locations for both the base unit and the outdoor sensor. Sometimes a shift of just a few centimetres is
enough!
10 The first steps
Follow the bullet points in order, to ensure a successful setup.
1. Setting up power supply (base station and wireless sensor)
2. Mount the wireless sensor
3. The base station is now in AP mode (LED flashes green) and ready for initial setup.
4. Create an account with a weather service provider compatible with your station, e.g. wunder-
ground.com or weathercloud.net and add the station to your account ("My Profile" / "Add Weather
station") or ("Devices" / "+ New"). Make a note of the station ID and password, as they will be
needed in the next step. Write down the Station ID and Password, because they are needed in the
next step.
5. Setting up the base station (Estabish WIFI / Router connection)
6. Viewing weather data via web, mobile or tablet
11 Setting up power supply
IMPORTANT: When inserting the batteries, always ensure that the battery poles are correctly aligned
(+/-)!

9 / 28
Base unit
1. Slide the appropriate plug adapter onto the spigot on the mounting plate of the USB power adapter
until it clicks into place.
2. Insert the barrel connector of the power cable into the connection socket on the base unit.
3. Insert the USB plug of the power cord into the power adapter.
4. Insert the mains plug of the mains adapter into the socket.
5. The device is powered on directly.
Installing the backup battery:
1. Remove the battery compartment cover.
2. Insert the battery into the battery compartment.
3. Replace the battery compartment cover.
Wireless sensor
6. Remove the screw on the battery compartment cover with a suitable Phillips screwdriver and re-
move the battery compartment cover.
7. Insert the batteries into the battery compartment.
8. Replace and screw on the battery compartment cover.

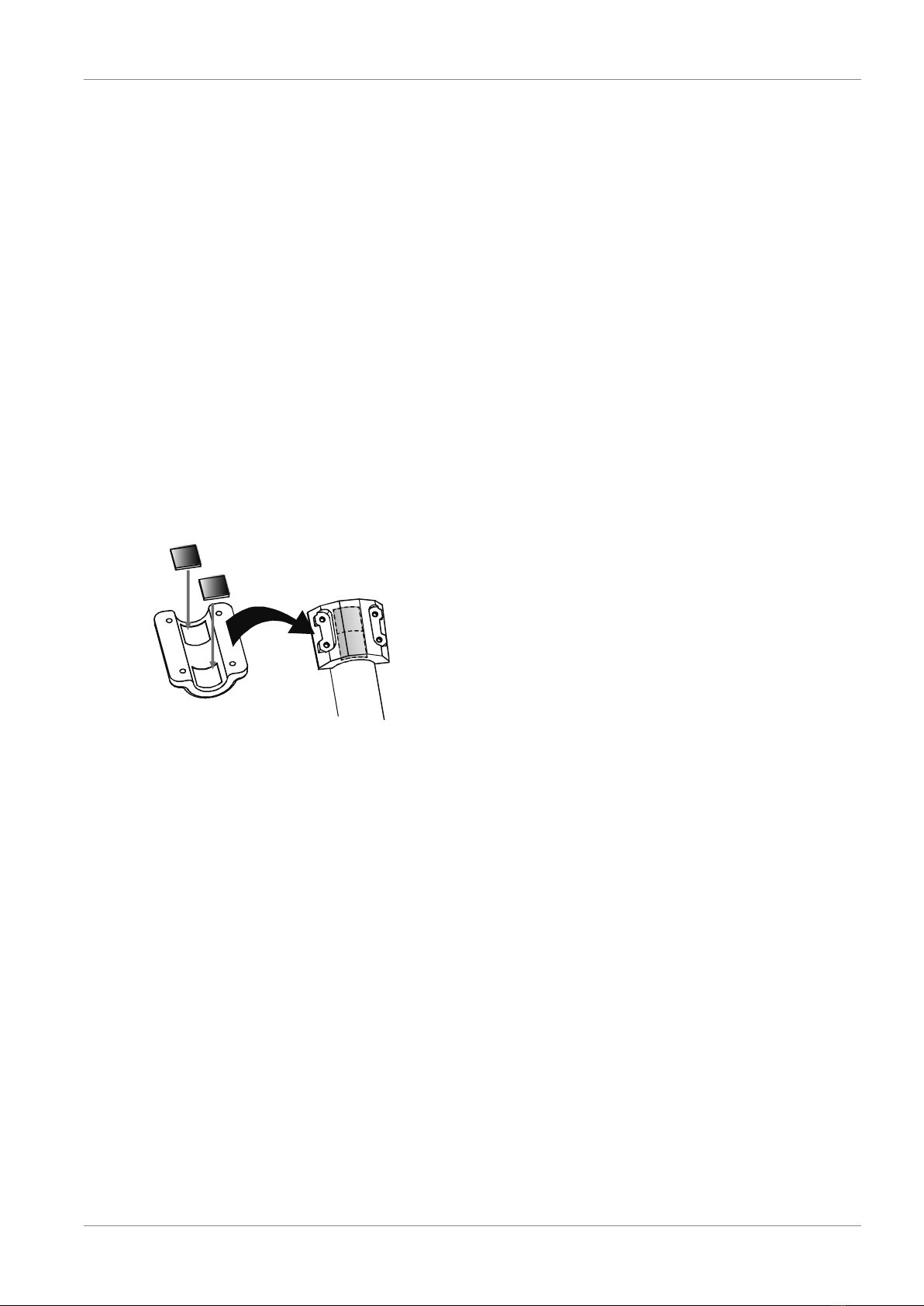

12 Attaching rubber linings
Attach the supplied self-adhesive rubber pads to the clamps as shown to ensure a firmer fitting of the
mounting rod.
13 Assembling and installing the multifunctional
remote sensor
Depending on the desired location, the remote sensor can be installed in two different ways.
NOTICE!During the assembly make sure that the upper part of the wind vanve is minimum 1.5
meters off the ground. Use the circular level in the sensor head to ensure a level installation. The
windmill must point to the North.
Assembly on a vertical or horizontal wooden element
1. Slide one end of the assembly bar into the aperture below the sensor head.
2. Slide one screw through the bore hole and put on the nut on the opposite site. Tighten the screw
connection by hand.
3. Depending on the desired orientation, slide the opposite end of the assembly bar into the aperture
for vertical or horizontal mounting of the assembly base.
4. Slide another screw through the bore hole of the assembly base and put on the nut on the oppos-
ite site. Tighten the screw connection by hand.

10 / 28
5. Place the assembly base with its bottom site first on a wooden element. Use 4 wood screws to
tighten it.
Assembly on a vertical or horizontal tube
6. Repeat steps 1 to 4 as before.
7. Place the assembly base with its bottom site first on the tube. Push the tube bracket against the
tube from the opposite site.
8. Slide 4 screws through the bore holes of the assemby base and through the bore holes of the tube
bracket on the other site.
9. Put on the 4 nuts and tighten the screw connection by hand.
14 Signal transmission
The base station automatically connects to the multi outdoor sensor and (if available) to other wireless
sensors. You can also press the WIFI / SENSOR button to search directly for the sensors. If the
connection is successful, the outdoor symbol (OUT) and/or the channel will appear on the display.
Connection status display:
Connection status Display indication
Good signal Receiver symbol
Sensor is searched for Receiver symbol flashes
No signal for 48 hours Er' (Error) is displayed
Sensor battery low, good signal Battery symbol is displayed
15 Create a user account for Weather
Underground (optional)
1. Enter the following web address for the 'Weather Underground' service in the address bar of your
web browser: https://www.wunderground.com
2. Click on 'Join' to get to the registration page.
3. Enter your personal user data and click on 'Sign up'.
4. Follow the further setup steps.
5. Under the menu item 'Sensor Network' > 'Connect a Weather Station' your own weather station
can be added.
6. A 'Station ID' and a 'Station Key/Password' are automatically generated by the service, which are
needed for the following configuration of the weather station.
NOTICE!Use a valid e-mail address for registration. Otherwise the service can not be used.
16 Create user account for weathercloud
(optional)
1. Enter the following web address in the address bar of the web browser: https://weathercloud.net
2. Under 'Join us today' enter the personal user data and click on 'Sign up'.
3. After successful registration and verification of the e-mail address, select the menu item "Devices"
under the user account.
4. Click the '+New' link under 'Devices' and enter the device and location data in the 'Create New
Device' window to create a new device. Select the appropriate weather station under 'Model'. For
'Link type' select the option 'Pro Weather Link'.

11 / 28
5. A 'weathercloud ID' and a 'key' which are needed for the following configuration of the weather sta-
tion are automatically generated by the service. These can be reached via the account at weather-
cloud.net under Devices > Settings > Link.
NOTICE!Use a valid e-mail address for registration. Otherwise the service can not be used.
17 Configuration / Setting up a WI-FI connection
1. If the base station has not yet been connected to a router, it will switch to AP (Access Point Mode)
mode after the first power supply. The display will show 'AP' and the symbol for WI-FI synchroniza-
tion.
2. Use a smartphone, tablet or computer to connect to Wi-Fi.
NOTICE!The respective device itself must also be equipped with a WI-FI function.
3. In the system settings of the device, switch to W-LAN or WI-FI settings and select the wireless net-
work (SSID) named 'PWS-XXXXXX'.
4. After successful connection via the address bar of the web browser, enter the IP address
'http: //192.168.1.1' to establish a connection to the settings menu of the weather station.
NOTICE!Always prepend 'http: //' to the IP address to avoid browser dependent connection
errors. Recommended browsers: the latest version of Chrome, Safari, Edge, Firefox or Opera.

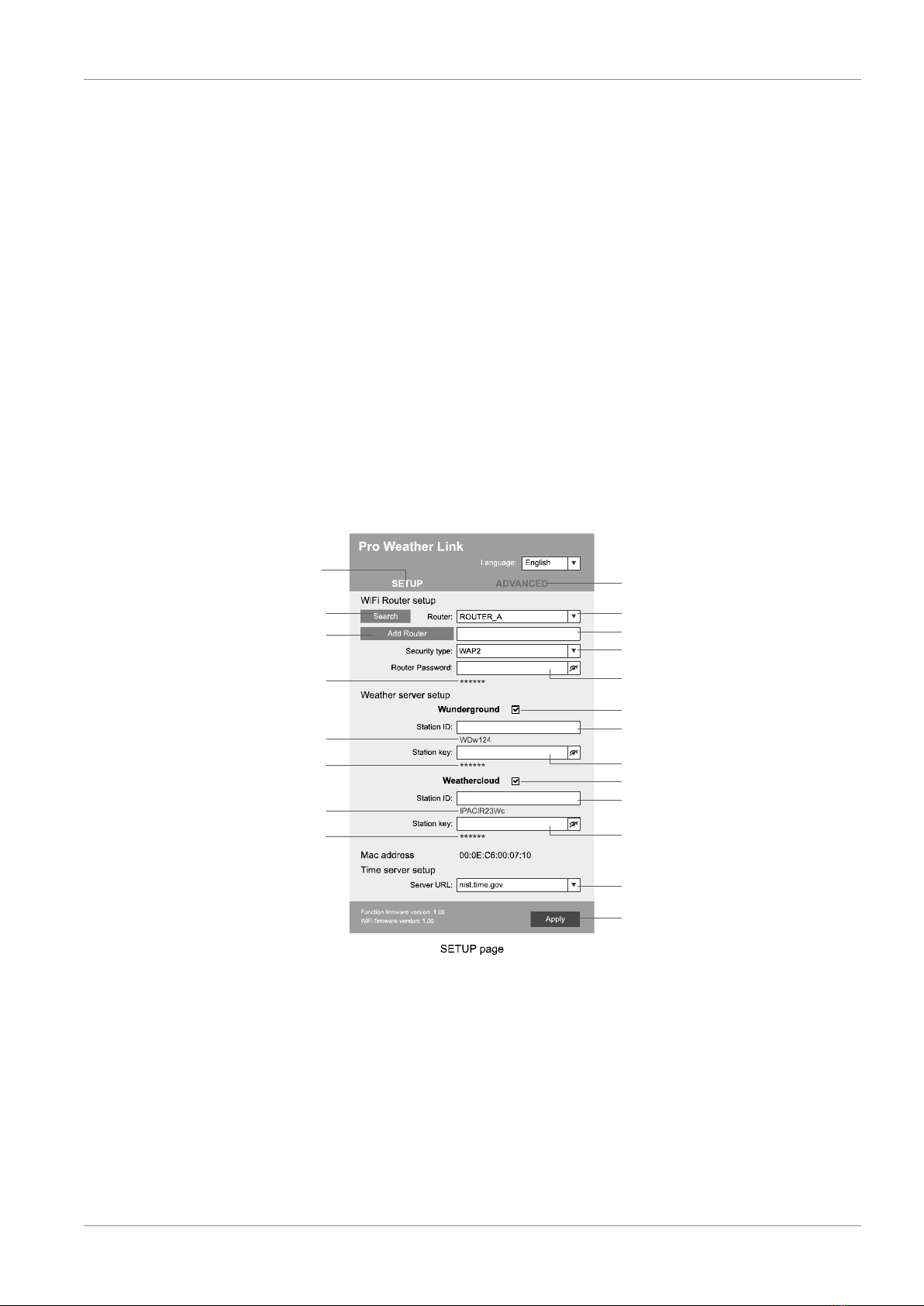

5. Make the following settings in the settings menu:
Select 'Add Router'
to add a router manually**
Select 'ADVANCED'
to enter advanced settings menu
Select desired WI-FI router
If router is not listed, enter SSID manually
Select security type of the router (normally WAP2)
Enter WI-FI password of the Router (leave field
blank if no password has been assigned)
Check to comfirm upload to Weather underground*
Enter 'Station ID' registered at Wunderground*
Enter 'Station Key' registered at Wunderground*
Check to comfirm upload to Weathercloud*
Enter 'Station ID' registered at Weathercloud*
Enter 'Station Key' registered at Weathercloud*
Select time server
Click to confirm entries
Select 'SETUP'
to enter settings menu
Select 'Search'
to search for a router
*Leave field blank if registration is not yet available and entries are to be made later.
**Manual setup requires additional router information (including e.g. IP address, SSID, etc)
Password record
(if a password was entered)
ID record
(if an ID was entered)
Key record
(if a key was entered)
ID record
(if an ID was entered)
Key record
(if a key was entered)
6. After completing the settings, the device will recognize the default WI-FI connection after each re-
start.
7. In Access Point Mode, the WI-FI / SENSOR button can be pressed for 6 seconds to restore the
previous settings.
WI-FI connection status:

12 / 28
WI-FI symbol is shown in the
display
WI-FI symbol flashes in the dis-
play
AP symbol flashes in the display
Connection to the WI-FI router
successful
Connection to the WI-FI router
not stable or ongoing connection
Access Point Mode enabled
18 Automatic time setting
After the power supply and the Wi-Fi connection are established, the time and date information is
automatically transmitted by the Internet time server.
If the time/date information is received correctly, the date and time are set automatically and the
reception symbol is displayed.
If the time/date information was not received or not received correctly, proceed as follows:
1. In countries/regions whose time zone differs from the coordinated world time UTC, the time zone
must be set manually (see chapter 'Setting the time zone') in order to display the correct time.
2. Press the REFRESH button on the base unit for about 2 seconds to re-initiate the retrieval of Inter-
net time information.
3. Check the W-LAN settings on the base unit for correctness and correct them if necessary so that
an Internet connection can be established (see chapter 'Establishing a W-LAN connection').
19 Manual time setting
To set the time / date manually, first disable the reception of the time signal by pressing the RCC
button for approx. 8 seconds.
1. Press and hold CLOCK SET button for approx. 3 seconds to change to time setting mode.
2. Digits to be set are flashing.
3. Press UP or DOWN button to change the value.
4. Press CLOCK SET button to confirm and continue to the next setting.
5. Settings order: time offset > daylight saving time on/off > hours > minutes > 12/24 hours mode >
year > month > day > day/month display change > time synchronization on/off > language
NOTICE!When time is set manually, the time synchronization must be deactivated.
6. Finally press the CLOCK SET button to save the settings and exit the setting mode.
NOTICE!In normal display mode, press CLOCK SET button to switch between year display and
date display. In setting mode, press CLOCK SET button for about 2 seconds to return to the
normal display mode.
20 Time zone setting
To set a different time zone, proceed as follows:
1. Press and hold CLOCK SET button for approx. 3 seconds to change to time setting mode. The
current value for the time offset flashes.
2. Press up or DOWN button to set the desired hour value (0 to 10 hours) for the time offset.
3. Finally press the CLOCK SET button for approx. 3 seconds to save the settings and exit the set-
ting mode.
21 Manual measurement display
1. Press MAX/MIN button several times to display the stored values one after another.
2. Display order: Current values > MAX (highest values) > MIN (lowest values)

13 / 28
3. When highest or lowest values are dsiplayed, press and hold MAX/MIN button for approx. 3
seconds to switch temperature unit display from °C to °F or reverse.
22 Technical data
Base unit
Power supply: DC 5V 1A power plug
Type: HX075-0501000-AX
Temperature measuring range -5°C to 50°C
Maximum number of sensors 1x wireless multisensor
1x wireless internal sensor (optional)
Dimensions 79 x 157 x 41 mm (W x H x D)
Weight 130 g
Multisensor
Batteries 3x AA, 1.5V
RF transmission frequency 868Mhz
RF Transmission range 150 m
Maximum radio-frequency power < 25mW
Temperature measuring range -40°C to 60°C (-40°F to 140°F)
Barometer measuring range 540 to 1100hPa (relative range: 930 to 1050hPa)
Humidity measuring range 1% to 99%
Humidity resolution 1% HR
Precipitation measuring range 0 to 19999 mm (0 to 787.3 inch)
Wind speed measuring range 0 to 112 mph, 50 m/s, 180km/h, 97 knots
Dimensions 392.2 x 326 x 144.5 mm (W x H x D)
Weight 1096g
SPECIFICATIONS
Wi-Fi standard 802.11 b/g/n
Wi-fi operating frequency : 2.4 GHz
Supported devices Smart device with built-in Wi-Fi AP mode (Access
Point) function, PC or notebook, Android or iOS
smartphone/tablet
Supported internet browsers Internet browser that support HTML 5
23 Technical data
Base unit
Power supply: DC 5V 1A power plug
Type: YLJXC-050100
Temperature measuring range -5°C to 50°C
Maximum number of sensors 1x wireless multisensor
1x wireless internal sensor (optional)
Dimensions 79 x 157 x 41 mm (W x H x D)
Weight 130 g

14 / 28
Multisensor
Batteries 3x AA, 1.5V
RF transmission frequency 868Mhz
RF Transmission range 150 m
Maximum radio-frequency power < 25mW
Temperature measuring range -40°C to 60°C (-40°F to 140°F)
Barometer measuring range 540 to 1100hPa (relative range: 930 to 1050hPa)
Humidity measuring range 1% to 99%
Humidity resolution 1% HR
Precipitation measuring range 0 to 19999 mm (0 to 787.3 inch)
Wind speed measuring range 0 to 112 mph, 50 m/s, 180km/h, 97 knots
Dimensions 392.2 x 326 x 144.5 mm (W x H x D)
Weight 1096g
SPECIFICATIONS
Wi-Fi standard 802.11 b/g/n
Wi-fi operating frequency : 2.4 GHz
Supported devices Smart device with built-in Wi-Fi AP mode (Access
Point) function, PC or notebook, Android or iOS
smartphone/tablet
Supported internet browsers Internet browser that support HTML 5
24 EC declaration of conformity
Hereby Bresser GmbH declares that the radio equipment type with 7002585 complies with Directive
2014/53/EU. The full text of the EC declaration of conformity is available at the following Internet ad-
dress www.bresser.de/download/7002585/CE/7002585_CE.pdf
25 UKCA Declaration of Conformity
Bresser GmbH has issued a "Declaration of Conformity" in accordance with applicable
guidelines and corresponding standards. The full text of the UKCA declaration of conform-
ity is available at the following internet address: www.bresser.de/download/7002585/
UKCA/7002585_UKCA.pdf
26 Disposal
Dispose of the packaging materials properly, according to their type, such as paper or card-
board. Contact your local waste-disposal service or environmental authority for information
on the proper disposal.
Do not dispose of electronic devices in the household garbage!
According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equip-
ment and its transposition into national law, used electrical equipment must be collected sep-
arately and recycled in an environmentally sound manner.

15 / 28
Batteries and rechargeable batteries must not be disposed of with household waste. You are
legally obliged to return used batteries and accumulators and can return the batteries after use
either in our sales outlet or in the immediate vicinity (e.g. in the trade or in municipal collection
points) free of charge.
Batteries and accumulators are marked with a crossed-out dustbin and the chemical symbol of
the pollutant, "Cd" stands for cadmium, "Hg" stands for mercury and "Pb" stands for lead.

16 / 28
1 Impressum
Bresser GmbH
Gutenbergstr. 2
46414 Rhede
Germany
http://www.bresser.de
Für etwaige Gewährleistungsansprüche oder Serviceanfragen verweisen wir auf die Informationen zu
„Garantie“ und „Service“ in dieser Dokumentation. Wir bitten um Verständnis, dass direkt an die
Hersteller-Anschrift gerichtete Anfragen oder Einsendungen nicht bearbeitet werden können.
Irrtümer und technische Änderungen vorbehalten.
© 2021 Bresser GmbH
Alle Rechte vorbehalten.
Die Reproduktion dieser Dokumentation – auch auszugsweise – in irgendeiner Form (z.B. Fotokopie,
Druck, etc.) sowie die Verwendung und Verbreitung mittels elektronischer Systeme (z.B. Bilddatei,
Website, etc.) ohne eine vorherige schriftliche Genehmigung des Herstellers ist nicht gestattet.
Die in dieser Dokumentation verwendeten Bezeichnungen und Markennamen der jeweiligen Firmen
sind im Allgemeinen in Deutschland, der Europäischen Union und/oder weiteren Ländern waren-,
marken- und/oder patentrechtlich geschützt.
2 Gültigkeitshinweis
Diese Dokumentation ist gültig für die Produkte mit den nachfolgend aufgeführten Artikelnummern:
7002585
Anleitungsversion: 0221
Bezeichnung dieser Anleitung:
Manual_7002585_WIFI-Colour-Weather-Station_en-de_BRESSER_v022021a
Informationen bei Serviceanfragen stets angeben.
3 Eigenschaften
• Messung der Niederschlagsmenge
• Messung der Windgeschwindigkeit
• Messung der Windrichtung
• Internetzeit-Synchronisation per PC
• Weckruf mit Schlummerfunktion (Snooze)
• Außentemperaturalarm (Frostwarnung)
• Außentemperatur (in °C oder °F)
• Innentemperatur (in °C oder °F)
• Luftfeuchtigkeit innen/außen
• Luftdruck
• Since-Funktion zur Anzeige des gesamten Niederschlags ab einem bestimmten Zeitpunkt??
• Tiefst- und Höchstwertanzeige
• Max-/Min-Werte Speicherung
• Farbdisplay
• Hintergrundbeleuchtung

17 / 28
4 Zu dieser Anleitung
HINWEIS
Diese Bedienungsanleitung ist als Teil des Gerätes zu betrachten!
Lesen Sie vor der Benutzung des Geräts aufmerksam die Sicherheitshinweise und die Bedienungsan-
leitung.
Bewahren Sie diese Bedienungsanleitung für die erneute Verwendung zu einem späteren Zeitpunkt
auf. Bei Verkauf oder Weitergabe des Gerätes ist die Bedienungsanleitung an jeden nachfolgenden
Besitzer/Benutzer des Produkts weiterzugeben.
5 Teileübersicht Basisstation
1
2
8
16
1510
18
13
12 1411
25
A
C
34657
17
19
22
20
9
24
23
18 21
B
Abb.1: Alle Teile der Basisstation
1 ALARM/SNOOZE-Taste (Schlummerfunk-
tion oder Alarm unterbrechen)
2 Farbdisplay
3 RAIN-Taste (Anzeige verschiedener Nie-
derschlagswerte)
4 BARO-Taste (Anzeige verschiedener Luft-
druckwerte)
5 INDEX-Taste (Anzeigewechsel zwischen
gefühlter Temperatur, Taupunkt, Wärme-
index und Windkühlfaktor)
6 WIND-Taste (Wechsel zwischen durch-
schnittlicher und aktueller Windböe)
7 MAX/MIN-Taste (Wechsel zwischen
Höchst-, Tiefst- oder aktueller Werteanzei-
ge)
8 HISTORY-Taste (Messwerte der letzten
24 Stunden abrufen)
9 CHANNEL-Taste (Kanalwahl) 10 CLOCK SET-Taste (manuelle Zeiteinstel-
lung)

18 / 28
11 ALARM-Taste (Weckrufeinstellung) 12 ALERT-Taste (u.a. Temperaturalarm ein-
stellen)
13 Wandhalterung 14 DOWN-Taste (Wertänderung abwärts)
15 UP-Taste (Wertänderung aufwärts) 16 RESET-Taste (alle Einstellungen zurück-
setzen)
17 HI/LO/AUTO-Schieberegler (Hintergrund-
beleuchtung einstellen oder ausschalten)
18 Standfuß, abnehmbar
19 REFRESH-Taste (manuelle Aktualisierung
der Daten)
20 SENSOR/WI-FI-Taste (manuelle Sensor-
suche starten oder WI-FI aktivieren/deakti-
vieren)
21 Batteriefach(-abdeckung) 22 BARO UNIT-Taste (Wechel der Luftdruck-
Maßeinheit)
23 °C/°F-Schieberegler (Anzeigewechsel zwi-
schen °C und °F)
24 Stromanschlussbuchse
25 USB-Netzadapter mit Stecker-Adaptern
und Netzkabel (USB/Hohlstecker)
6 Teileübersicht Multisensor
1
34
5
6
9
8
7
13
10 11
E
D
F
G
7
8
12
2
Abb.2: Alle Teile des Multisensors
1 Regensammelbehälter 2 Antenne
3 Dosenlibelle 4 Windschalen (Windgeschwindigkeit)
5 Windfahne (Windrichtung) 6 Thermo-/Hygrometer
7 Rohrschelle 8 Montageschuh
9 Montagestange 10 Batteriefach(-abdeckung)
11 RESET-Knopf 12 LED-Funktionsleuchte

19 / 28
13 Montageschrauben mit -muttern
7 Lieferumfang
Basisstation (A), USB-Netzadapter (B) mit 2 Adapteraufsätzen (EU und UK), Standfuß (C),
multifunktionaler Außensensor (D), Montagestab (E), Montageschuh (F), Rohrschelle (G), Schrauben,
1 Stück 3V Batterie Typ CR2032 (Basisstation), Bedienungsanleitung
Außerdem erforderlich (nicht im Lieferumfang enthalten):
3 Stück 1.5V Batterien Typ AA (Außensensor)
8 Displayanzeigen
23
2
1
9
10
15
14
18
7
4
21
20
8
22
3
5
6
13 11
12
17
16
19
Abb.3: Displayanzeigen
1 Windgeschwindigkeit 2 Windrichtung
3 Empfangssignalstärke Außensensor 4 Außentemperatur
5 Temperaturalarm Außenbereich aktiv 6 Außenluftfeuchtigkeit
7 Luftdruck 8 Niederschlagsalarm aktiv

20 / 28
9 Niederschlagsmenge 10 Datum
11 W-LAN Synchronisation 12 Frostwarnung aktiv
13 Weckruf aktiv 14 Aktuelle Uhrzeit
15 Gefühlte Temperatur 16 Mondphase
17 Wochentag 18 Grafische Wettertrend-Anzeige
19 Innenluftfeuchtigkeit 20 Komfortindikator (Klima)
21 Temperaturalarm Innenbereich aktiv 22 Innentemperatur
23 Trendpfeil (steigend, gleichbleibend oder
fallend)
9 Vor der Inbetriebnahme
HINWEIS
Vermeidung von Verbindungsstörungen!
Um Verbindungsstörungen zwischen den Geräten zu vermeiden, sind die folgenden Punkte bei der In-
betriebnahme zu beachten.
1. Basisgerät (Empfänger) und Sensor (Sender) so nah wie möglich nebeneinander stellen/legen.
2. Stromversorgung für das Basisgerät herstellen und warten bis die Innentemperatur angezeigt wird.
3. Stromversorgung für den Sensor herstellen.
4. Basisgerät und Sensor innerhalb des effektiven Übertragungsbereichs aufstellen/betreiben.
5. Sicherstellen, dass Basisgerät und Funksensor auf den gleichen Kanal eingestellt sind.
Bei einem Batteriewechsel stets die Batterien sowohl im Basisgerät als auch im Sensor entfernen und
in richtiger Reihenfolge wieder neu einsetzen, damit die Funkverbindung erneut aufgebaut werden
kann. Wird eines der beiden Geräte über einen Netzstromanschluss betrieben, so muss auch für
dieses bei einem Batteriewechsel kurzzeitig die Stromverbindung getrennt werden. Werden z.B. nur
die Batterien im Sensor ausgetauscht, kann das Signal anschließend gar nicht oder nicht mehr korrekt
empfangen werden.
Beachten Sie, dass die tatsächliche Reichweite von den jeweils verwendeten Baumaterialien der
Gebäude sowie der jeweiligen Position der Basiseinheit und des Außensensors abhängt. Durch
externe Einflüsse (diverse Funksender und andere Störquellen) kann sich die mögliche Reichweite
stark verringern. In solchen Fällen empfehlen wir, sowohl für das Basisgerät als auch den
Außensensor andere Standorte zu suchen. Manchmal reicht schon ein Verschieben um wenige
Zentimeter!
10 Die ersten Schritte
Befolgen Sie die Punkte in der angegebenen Reihenfolge, um eine erfolgreiche Einrichtung zu
Gewährleisten.
1. Stromversorgung herstellen (Basisstation und Funksensor)
2. Funksensor montieren
3. Die Basisstation befindet sich jetzt im AP-Modus (AP blinkt) und ist bereit für die Erstinbetriebnah-
me.
4. Ein Konto bei einem mit Ihrer Station kompatiblen Wetterdienst Anbieter erstellen, z.B. wunder-
ground.com oder weathercloud.net und die Station Ihrem Konto hinzufügen („My Profile“ / „Add
Weather station“) oder („Devices“ / „+ New). Die Station ID und das Password notieren, da diese
im nächsten Schritt benötigt werden.
5. Basisstation einrichten (Die WIFI / Router Verbindung herstellen)
6. Wetterdaten abrufen über Web, Mobile oder Tablet
