BRFO BR-1915G User manual

BR-1915G WASH ZOOM 19*15 Product Datasheet
H ZOOM 1
10.Maintenance and cleaning
It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not
build up on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced. Regular
cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably
throughout its life.A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under
no circumstances should alcohol or solvents be used!
The front objective lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light-
output very quickly. The cooling-fans should be cleaned monthly.
The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet. Remove dust
and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner.
Important! Check the air filters periodically and clean before they become clogged!
Clean two air filters placed in the fixture’s covers and two in the fixture base. Use a vacuum cleaner,
compressed air or you can wash them and put back dry.
After replacing the air filters, reset the elapsed time counter in the menu "Information" (Information--->Air Filters---
>Elapsed Time).
Replacing the fuse. Before replacing the fuse, unplug mains lead.
1) Remove the fuse holder on the rear panel of the base with a fitting screwdriver from the housing (anti-
clockwise).
2) Remove the old fuse from the fuse holder.
3) Install the new fuse in the fuse holder (only the same type and rating).
4) Replace the fuseholder in the housing and fix it.
Brighten Led Lighting Limited
2nd-3rd floor, No.288, Guangzhou East Line, Pingwen, Lanhe Town,Nansha District, Guangzhou,China.
Tel.[phone] Fax.+ 86-020-84939725 - www. brightenfocus.com - info@ brightenfocus.com
WAS
BR-1915G 9*15
Version 1.0
USER MANUAL
Be sure to read the USER MANUAL carefully before using this product. Be
sure to keep the USER MANUAL properly for future needs.
Use this product correctly when you can fully understand the User Manual
DANGER !
Disconnect from the mains before starting any
maintenance work

BR-1915G WASH ZOOM 19*15 Product Datasheet
BR-1915G WASH ZOOM 19*15 Product Datasheet
CAUTION ! EYE DAMAGES !
Avoid looking directly into the light source
(meant especially for epileptics) !
1. Safety instructions
Thank you for choosing our BR-1915G WASH ZOOM 19*15. FOR YOUR OWN SAFETY, PLEASE READ THIS
USER MANUAL CAREFULLY
BEFORE YOU INITIAL START - UP!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
Important:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
During the operation the housing becomes hot). Allow the fixture to cool approximately 20 minutes prior to
manipulate with it.
Make sure that the available voltage is not higher than stated on the rear panel.
WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to
completely remove power from unit when not in use or before cleaning or servicing the fixture.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-
cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-
cord by the plug. Never pull out the plug by tugging the power cord.
This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.
The electric connection, repairs and servicing must be carried out by a qualified employee. Do not
connect this device to a dimmer pack.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)! For
replacement use lamps and fuses of same type and rating only.
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
CAUTION!
Be careful with your operations.
With a high voltage you can suffera dangerous electric shock when touching the wires!
01
14
35
Green in pixel 4
0..255
Greeninpixel4saturationcontrol(0-100%)
36
Blue in pixel 4
0..255
Blue in pixel 4 saturationcontrol(0-100%)
37
White in pixel 4
0..255
Whitein pixel4 saturationcontrol(0-100%)
38
22
16
Special function
0..19
No function
20..29
No function
30..39
No function
40..79
No function
80..89
All Motor reset
90..94
SCANMotor Reset
95..99
ZOOMMotorReset
100..119
Internalprogram1
120..139
Internalprogram2
140..159
Internalprogram3
160..179
Internalprogram4
180..199
Internalprogram5
200..219
Internalprogram6
220..239
Internalprogram7
240..255
InternalSound program1

BR-1915G WASH ZOOM 19*15 Product Datasheet
BR-1915G WASH ZOOM 19*15 Product Datasheet
2. UNPACKING
The BR-1915G WASH ZOOM adopts a 15W RGBW 4-IN-1 LED lamp which features high brightness and stability.
Please carefully unpack it when you receive the fixture and check whether it is damaged during the transportation.
And please check whether the following items are included inside the box:
The BR-1915G WASH ZOOM is made of a new type of high temperature strength of engineering plastics and
cast aluminum casing with nice outlook . The fixture is designed and manufactured strictly following CE standards,
complying with international standard DMX512 protocol. It’s available independently controlled and linkable with
each other for operation. And it is applicable for large-scale live per formances, theater, studio, nightclubs and
discos.
This manual covers the important information on installation and applications. Meanwhile, please keep this
manual well for future needs.
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
EuroStandard UKStandard
USA Standard
▲ User Manual*1
▲ Power Cable*1
▲ Moving Head *1
▲ Safety Cable*1
▲ Hanging Kit *2
▲ Signal Cable *1
)
13
02
22
Red in Pixel 1
0..255
Red in pixel 1 saturationcontrol(0-100%)
23
Green in Pixel 1
0..255
Green in pixel1 saturationcontrol(0-100%
24
Blue in Pixel 1
0..255
Blue in pixel 1 saturationcontrol(0-100%)
25
White in pixel 1
0..255
White in pixel1 saturationcontrol(0-100%)
26
Red in pixel 2
0..255
Red in pixel2 saturationcontrol(0-100%)
27
Green in pixel 2
0..255
Green in pixel 2 saturationcontrol(0-100%)
28
Blue in pixel 2
0..255
Blue in pixel 2 saturationcontrol(0-100%)
29
White in pixel 2
0..255
White in pixel2 saturationcontrol(0-100%)
30
Red in Pixel 3
0..255
Red in pixel 3 saturationcontrol(0-100%)
31
Green in pixel 3
0..255
Green in pixel3 saturationcontrol(0-100%
32
Blue in pixel 3
0..255
Blue in pixel 3 saturationcontrol(0-100%)
33
White in pixel 3
0..255
White in pixel3 saturationcontrol(0-100%)
34
Red in Pixel 4
0..255
Red in pixel 4 saturationcontrol(0-100%)

411
198
410
100
99
247
410
100
224
3. TECHNICAL INFORMATION
280
307
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
BR-1915G WASH ZOOM 19*15 Product Datasheet
BR-1915G WASH ZOOM 19*15 Product Datasheet
15
16
350
A group of four led lamp controllable
individuall
Color temperature Liner up and down in
2700K-8000K
Dimensions:411(D)*280(W)*410(H)mm
Packing Dimensions:
490(D)*280(W)*560(H)mm
Net Weight:11.2kg
Gross Weight:13.9kg
03
12
21
21
Static patterns or patterns speed
StaticPatterns
(IfPatternschannelisintheinterval016–031)
000..015
staticscene1
016..031
staticscene2
032..047
staticscene3
048..063
staticscene4
064..079
staticscene5
080..095
staticscene6
096..111
staticscene7
112..127
staticscene8
128..143
staticscene9
144..159
static scene10
160..175
static scene11
176..191
static scene12
192..207
static scene13
208..223
static scene14
224..239
static scene15
240..255
static scene16
DynamicPatterns (If
Patternschannelisintheinterval032–255)
000..023
No function
024..137
Forwardspeedfromzerospeedto fast
speed
138..141
Stop movement
142..255
Reversespeedfromzerospeedto fast
speed

BR-1915G WASH ZOOM 19*15 Product Datasheet
BR-1915G WASH ZOOM 19*15 Product Datasheet
4. PHOTOMETRICS DIAGRAM
Distance 1m 3m 5m 7m
6°
6 ° (LUX)
60 ° (LUX)
R
G
B
W
RGBW
R
G
B
W
RGBW
15719
25300
35650
28750
88550
2185
3220
4255
3680
10810
4255
6095
8050
7015
25415
368
460
644
517
1380
1691
2415
3105
2760
7820
207
253
258
245
529
920
1265
1610
1530
5290
5. OPERATION INSTRUCTIONS
●The BR-1915 G WASH ZOOM19*15 is for beam&wash effect for on-site decoration purpose.
●Don’t turn on the fixture if it’s been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the fixture
until it is in normal temperature.
●This light should be keep away from strong shaking during any transportation or movement.
●Don’t pull up the light by only the head, or it might cause damages to the mechanical parts.
●Don’t expose the fixture in overheat, moisture or environment with too much dust when installing it. And
●don’t lay any power cables on the floor. Or it might cause electronic shock to the people.
●Make sure the installation place is in good safety condition before installing the fixture.
●Make sure to put the safety chain and check whether the screws are screwed properly when installing
the fixture.
●Make sure the lens are in good condition.It’s recommended to replace the units if there are any damages
or severe scratch.
●Make sure the fixture is operated by qualified personnel who knows the fixture before using.
●Keep the original packages if any second shipment is needed.
●Don’t try to change the fixtures without any instruction by the manufacturer or the appointed repairing
agencies.
●It is not in warranty range if there are any malfunctions from not following the user manual to operate or
any illegal operation, like shock short circuit, electronic shock , lamp broke, etc.
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
11
04
18
18
Background color for patterns
0..0
No Function
1..13
Red
14..27
Green
28..41
Blue
42..55
White
56..69
Red+White
70..83
Green+White
84..97
Blue+White
98..111
Green+Blue
112..125
Red+Blue
126..139
Red+Green
140..153
Green+Blue+White
154..167
Red+Blue+White
168..181
Red+Green+White
182..195
Red+Blue+Green+White
196..202
2700K
203..209
3200K
210..216
3500K
217..223
5000K
224..230
5500K
231..237
6000K
238..244
6500K
245..251
7000K
252..255
8000K
19
19
Background dimmer
Choose Background color for
Dynamic/StaticScene,nofunctionfor
MulticolorScene
000..255
Backgrounddimmer0 –100%.
20
20
Patterns
000..015
No function
016..031
Static patterns
032..045
DynamicScene1
046..059
DynamicScene2
060..073
DynamicScene3
074..087
DynamicScene4
088..101
DynamicScene5
102..115
DynamicScene6
116..129
DynamicScene7
130..143
DynamicScene8
144..157
Multicolor DynamicScene1
158..171
MulticolorDynamicScene2
172..185
MulticolorDynamicScene3
186..199
MulticolorDynamicScene4
200..213
MulticolorDynamicScene5
214..227
MulticolorDynamicScene6
228..241
MulticolorDynamicScene7
242..255
MulticolorDynamicScene8
60 °

BR-1915G WASH ZOOM 19*15 Product Datasheet
BR-1915G WASH ZOOM 19*15 Product Datasheet
Satety Clamp
Hanging Kit
1/4 Turn
1/4 Turn
Safety Cable
INSTALLATION DIAGRAM
Cautions:
6. INSTALLATIONS
For added protection mount the fixtures in areas d
outside walking paths, seating areas, or in areas were the
fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure
that the installation area can hold a minimum point
load of 10 times the device’s weight.
Fixture installation must always be secured with a
secondary safety attachment, such as an appropriate
safety cable.
Never stand directly below the device when mounting,
removing, or servicing the fixture.
from a ceiling, or set on a flat level surface (see
illustration below). Be sure this fixture is kept at least
0.5m (1.5 f t) away from any flammable materials
(decoration etc.).
Always use and install the supplied safety cable as a
safety measure to prevent accidental damage and/or
injury in the event the clamp fails.
Mounting points:
Overhead mounting requires extensive experience,
including amongst others calculating working load limits, a
fine knowledge of the installation material being used, and
periodic safety inspection of all installation material and
the fixture. If you lack these qualifications, do not attempt
the installation yourself. Improper installation can result in
bodily injury.
Be sure to complete all rigging and installation procedures
before connecting the main power cord to the appropriate
wall outlet.
Clamp Mounting:
BR-1915G WASH ZOOM 19*15 provides a unique
mounting bracket assembly that integrates the bottom
of the base, and the safety cable rigging point in one
unit (see the illustration below). When mounting this
fixture to truss be sure to secure an appropriately
rated clamp to the included omega bracket using a
M10 screw fitted through the center hole of the
“Hanging Kit”. As an added safety measure be sure to
attached at least one properly rated safety cable to
the fixture using on of the safety cable rigging point
integrated in the base assembly .
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone] WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone] WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
10
15
15
15
Visual Tungsten Lamp
0..15
No Function
16..255
Tungsten lamp effect is graduallyenhance
16
16
Foreground color for patterns
0..0
No Function
1..13
Red
14..27
Green
28..41
Blue
42..55
White
56..69
Red+White
70..83
Green+White
84..97
Blue+White
98..111
Green+Blue
112..125
Red+Blue
126..139
Red+Green
140..153
Green+Blue+White
154..167
Red+Blue+White
168..181
Red+Green+White
182..195
Red+Blue+Green+White
196..202
2700K
203..209
3200K
210..216
3500K
217..223
5000K
224..230
5500K
231..237
6000K
238..244
6500K
245..251
7000K
252..255
8000K
17
17
Foreground dimmer
ChooseForegroundcolorfor
Dynamic/StaticScene,nofunctionfor
MulticolorScene
000..255
Foregrounddimmer0 –100%.

BR-1915G WASH ZOOM 19*15 Product Datasheet
BR-1915G WASH ZOOM 19*15 Product Datasheet

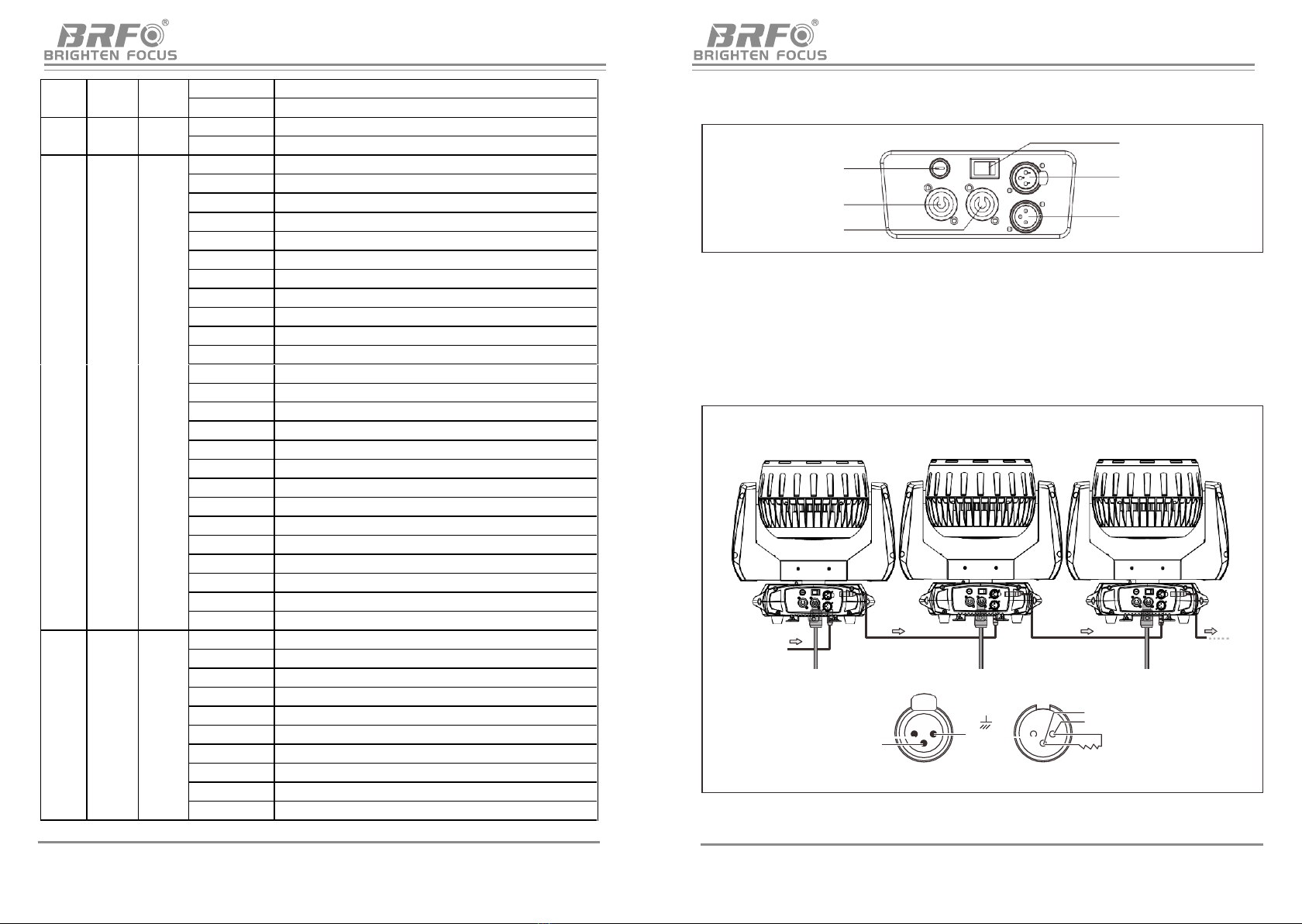

7. CONTROL CONNECTION
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-
pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable
needed should be two core, screened cable with XLR input and output connectors.
Please refer to the diagram below. DMX-512 connection with DMX terminator.
For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in
a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control
signal by electrical noise. The DMX terminator is simply an XLR plug with a3 resistor connected between pins 2 and
3,which is then plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below.
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Power Switch
Fuse
DMX OUT
POWER OUT
POWER IN
DMX IN
DMX IN
POWER IN
Signal (-) 3
Signal (+)
2 1
Signal (-)
1 2 Signal (+)
Ground 3
120 Ω
DMX512 OUT DMX512 IN
09
06
11
11
11
White
0..255
0-100% White dimmerfrom dark to bright
12
12
12
Zoom
0..255
In(near)to out(far)
13
13
13
Virtual color
0..0
No Function
1..13
Red
14..27
Green
28..41
Blue
42..55
White
56..69
Red+White
70..83
Green+White
84..97
Blue+White
98..111
Green+Blue
112..125
Red+Blue
126..139
Red+Green
140..153
Green+Blue+White
154..167
Red+Blue+White
168..181
Red+Green+White
182..195
Red+Blue+Green+White
196..202
2700K
203..209
3200K
210..216
3500K
217..223
5000K
224..230
5500K
231..237
6000K
238..244
6500K
245..251
7000K
252..255
8000K
14
14
14
Color Temp
0..15
No Function
16..45
Below 3200K
46..75
3200K - 3500K
76..105
3500K - 5000K
106..135
5000K - 5500K
136..165
5500K - 6000K
166..195
6000K - 6500K
196..225
6500K - 7000K
226..255
7000K - 8000K

8. MENU OPERATIONS
9. DMX PROTOCOL
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
BR-1915G WASH ZOOM 19*15 Product Datasheet
BR-1915G WASH ZOOM 19*15 Product Datasheet
LCD DISPLAY
MENU
UP
DOWN
ENTER
MENU Description
07
08
Mode/Channel
Value
Function
38
22
16
1
1
1
Pan
0..255
PAN Movement
2
2
2
Pan -fine
0..255
Fine controlof Pan movement
3
3
3
Tilt
0..255
Tilt Movement
4
4
4
Tile-fine
0..255
Fine controlof Tilt movement
5
5
5
Speed pan/tile
0..225
maxto min speed
226..235
blackoutby movement
236..255
no function
6
6
6
Dimmer
0..255
Dimmer 0%...100%
7
7
7
Shutter
0..31
Shutter closed
32..63
shutter open
64..95
Strobe effectslowto fast
96..127
shutter open
128..159
Pulse-effect in sequencesslowto fast
160..191
shutter open
192..223
Randomstrobeeffectslowto fast
224..255
shutter open
8
8
8
Red
0..255
0-100%Reddimmerfromdarktobright
9
9
9
Green
0..255
0-100% Green dimmerfrom dark to bright
10
10
10
Blue
0..255
0-100%Bluedimmerfromdark to bright
Function
Mode
Dmx Address
A001~AXXX
DMX address setting
Channel Mode
CH22
22Channel mode
CH16
16Channel mode
CH38
38Channel mode
Auto Run
Internal Program1~8
Master/Alone
Auto run
Music Control
Internal Program1~8
Master/Alone
Sound Control
Option
Reset Default
Yes/No
Reset Default
Signal Set
Wire DMX
Wire DMX
Wireless DMX
Wireless DMX
Act WDMX & Out
Act WDMX & Out
Pan / Tilt
Reverse Pan (On/Off)
Reverse Pan
Reverse Tilt (On/Off)
Reverse Tilt
Select Pan 630°/540°/360°
Pan Degree,default is 540°
Select Tilt 270°/180°/90°
Tilt Degree,default is 270°
UI SET
Mic SEN 0~99%
Sensitivity Setting
OFF Signal Mode (On/Off)
OFF at original status and
ON at reset status when no
DMX signal
Information
Temperature
XXX°C/°F
Current Temperature
Software Version
V1.0~V9.9
Software Version
Manual
Control
Reset
Total Reset
Total Reset
Pan/Tilt Reset
Pan/Tilt Reset
Zoom Reset
ZoomReset
Channel
PAN=XXX……
Manual Control Channel
Advanced
(AccessCode088)
Calibration
PAN=XXX……
Calibration (Code:088)
