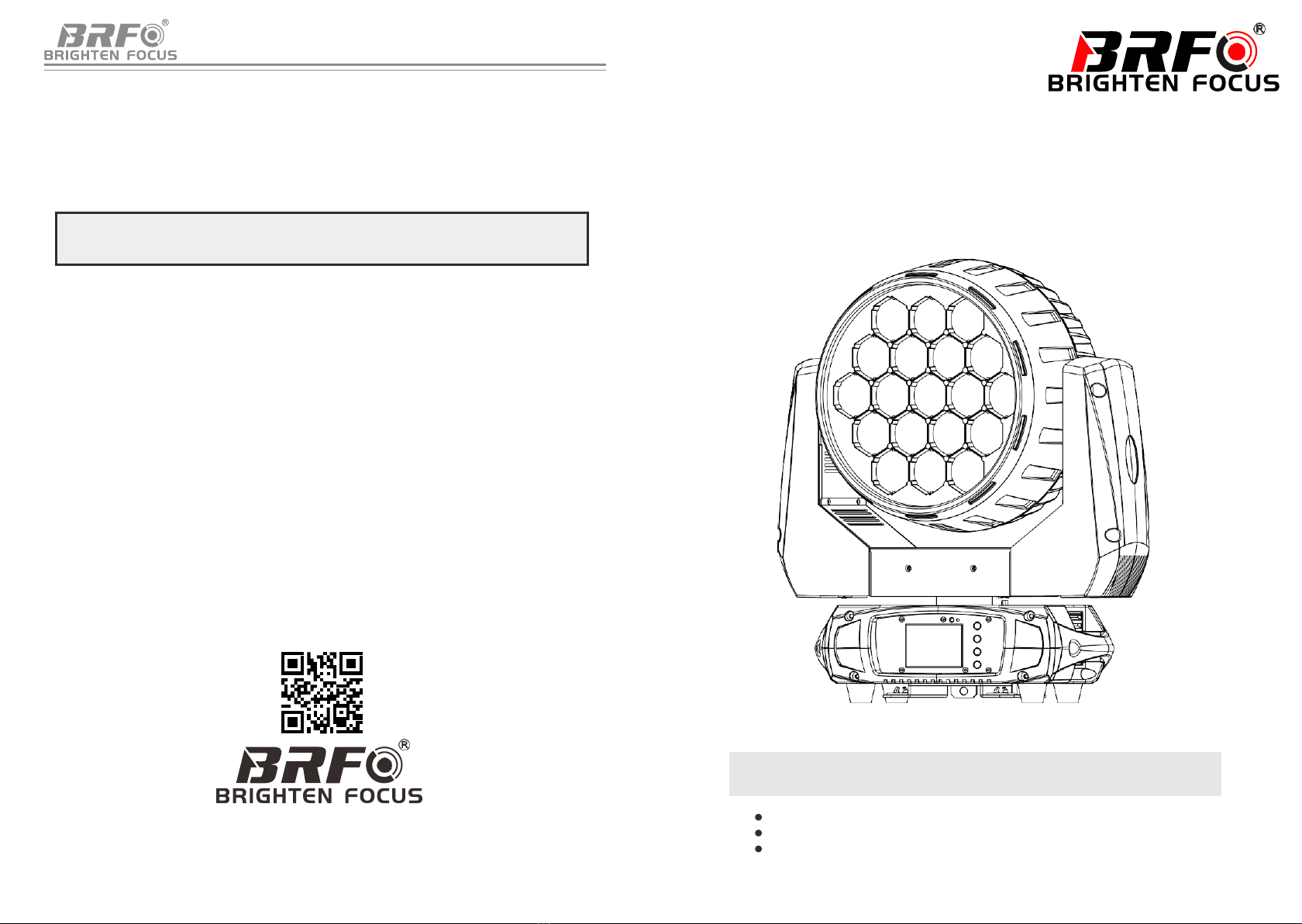

BRFO BR-1915P User manual

BR-1915P WASH ZOOM Product Datasheet
10.Maintenance and cleaning
It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not
build up on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced. Regular
cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably
throughout its life.A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under
no circumstances should alcohol or solvents be used!
The front objective lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light-
output very quickly. The cooling-fans should be cleaned monthly.
The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet.
Remove dust and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner.
Important! Check the air filters periodically and clean before they become clogged!
Clean two air filters placed in the fixture’s covers and two in the fixture base. Use a vacuum cleaner,
compressed air or you can wash them and put back dry.
After replacing the air filters, reset the elapsed time counter in the menu "Information" (Information--->Air Filters---
>Elapsed Time).
Replacing the fuse. Before replacing the fuse, unplug mains lead.
1) Remove the fuse holder on the rear panel of the base with a fitting screwdriver from the housing (anti-
clockwise).
2) Remove the old fuse from the fuse holder.
3) Install the new fuse in the fuse holder (only the same type and rating).
4) Replace the fuseholder in the housing and fix it.
BR-1915P
WASH ZOOM
Brighten Led Lighting Limited
2nd-3rd floor, No.288, Guangzhou East Line, Pingwen, Lanhe Town,Nansha District, Guangzhou,China.
Tel.[phone] Fax.+ 86-020-84939725 - www. brightenfocus.com - info@ brightenfocus.com
Version 1.0
USER MANUAL
Be sure to read the USER MANUAL carefully before using this product. Be
sure to keep the USER MANUAL properly for future needs.
Use this product correctly when you can fully understand the User Manual
DANGER !
Disconnect from the mains before starting any
maintenance work

BR-1915P WASH ZOOM Product Datasheet
BR-1915P WASH ZOOM Product Datasheet
Brighten Led Lighting Limited
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
Tel:[phone]
Fax:[phone]
14
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
01
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
CAUTION ! EYE DAMAGES !
Avoid looking directly into the light source
(meant especially for epileptics) !
1. Safety instructions
Thank you for choosing our BR-1915P WASH ZOOM. for your own safety, please read this user manual
carefully
BEFORE YOU INITIAL START - UP!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
Important:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
During the operation the housing becomes hot). Allow the fixture to cool approximately 20 minutes prior to
manipulate with it.
Make sure that the available voltage is not higher than stated on the rear panel.
WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to
completely remove power from unit when not in use or before cleaning or servicing the fixture.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-
cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-
cord by the plug. Never pull out the plug by tugging the power cord.
This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.
The electric connection, repairs and servicing must be carried out by a qualified employee. Do not
connect this device to a dimmer pack.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)! For
replacement use lamps and fuses of same type and rating only.
CAUTION!
Be careful with your operations.
With a high voltage you can suffera dangerous electric shock when touching the wires!
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
86
80
Red in Pixel 17
0..255
White in pixel17 saturationcontrol(0-100%)
87
81
Green in pixel 17
0..255
Greenin pixel 17 saturationcontrol(0-100%)
88
82
Blue in pixel 17
0..255
Blue in pixel 17 saturationcontrol(0-100%)
89
83
White in pixel 17
0..255
White in pixel 17 saturationcontrol(0-100%)
90
84
Red in Pixel 18
0..255
Red in pixel 18 saturationcontrol(0-100%)
91
85
Green in Pixel 18
0..255
Greenin pixel 18 saturationcontrol(0-100%)
92
86
Blue in Pixel 18
0..255
Blue in pixel 18 saturationcontrol(0-100%)
93
87
White in pixel 18
0..255
White in pixel 18 saturationcontrol(0-100%)
94
88
Red in pixel 19
0..255
Red in pixel 19 saturationcontrol(0-100%)
95
89
Green in pixel 19
0..255
Greenin pixel 19 saturationcontrol(0-100%)
96
90
Blue in pixel 19
0..255
Blue in pixel 19 saturationcontrol(0-100%)
97
91
White in pixel 19
0..255
White in pixel 19 saturationcontrol(0-100%)
98
92
20
14
Special function
0..19
No function
20..29
No function
30..39
No function
40..79
No function
80..89
All Motorreset
90..94
SCAN MotorReset
95..99
Focus MotorReset
100..119
Internalprogram1
120..139
Internalprogram2
140..159
Internalprogram3
160..179
Internalprogram4
180..199
Internalprogram5
200..219
Internalprogram6
220..239
Internalprogram7
240..255
InternalSoundprogram1

BR-1915P WASH ZOOM Product Datasheet
BR-1915P WASH ZOOM Product Datasheet
Brighten Led Lighting Limited
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
02
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
13
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com

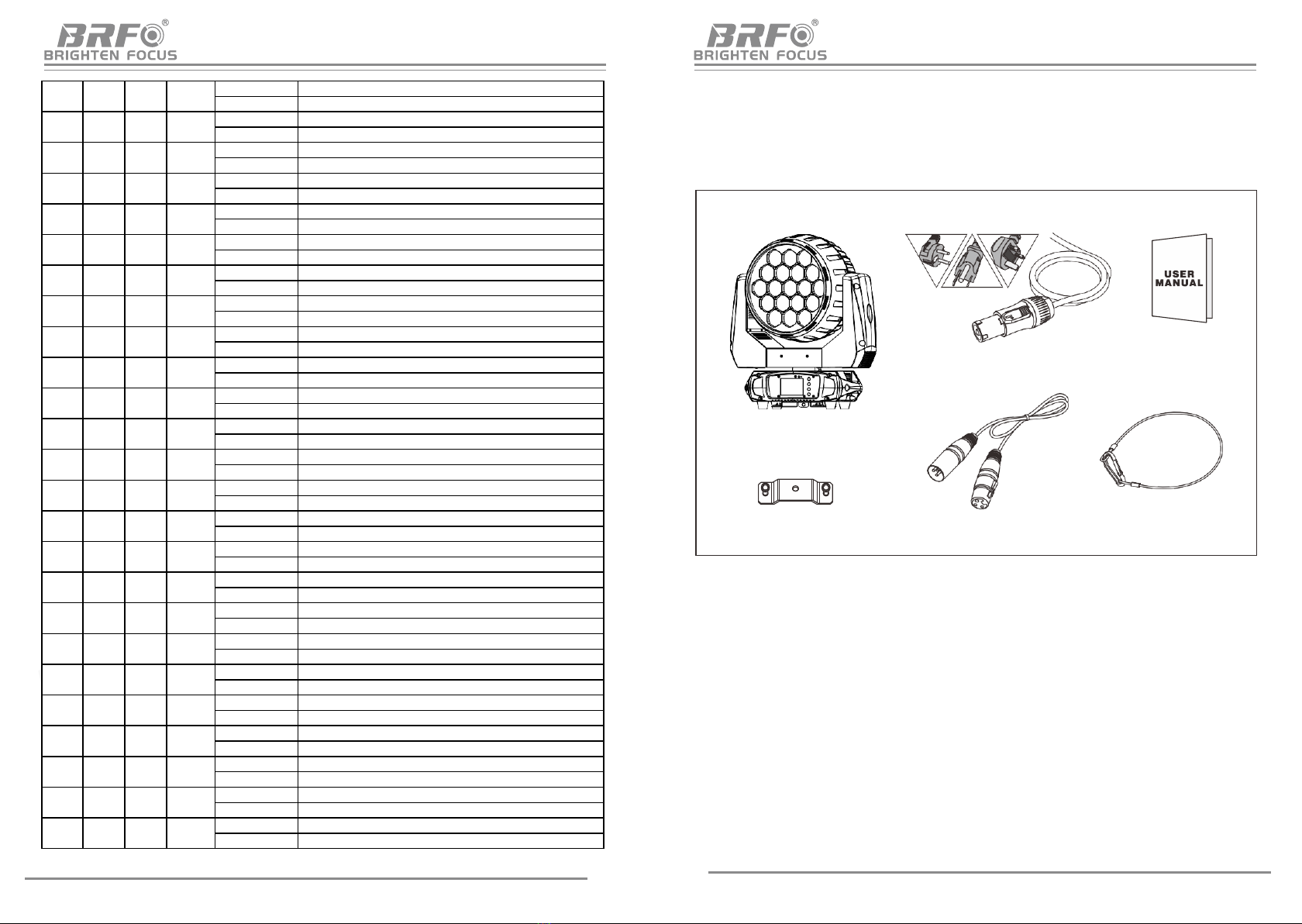

2. UNPACKING
The BR-1915P WASH ZOOM adopts 19*15W white LED lamp which features high brightness and stability.
Please carefully unpack it when you receive the fixture and check whether it is damaged during the
transportation. And please check whether the following items are included inside the box:
The BR-1915P WASH ZOOM is made of a new type of high temperature strength of engineering plastics and
cast aluminum casing with nice outlook . The fixture is designed and manufactured strictly following CE
standards, complying with international standard DMX512 protocol. It’s available independently controlled and
linkable with each other for operation. And it is applicable for large-scale live per formances, theater, studio,
nightclubs and discos.
This manual covers the important information on installation and applications. Meanwhile, please keep this
manual well for future needs.
EuroStandard UKStandard
USA Standard
▲ User Manual*1
▲ Power Cable*1
▲ Moving Head *1
▲ Safety Cable*1
▲ Hanging Kit *2
▲ Signal Cable *1
61
55
White in pixel 10
0..255
Whi t e in pixel 10 sa t ura t ioncon t rol(0-100%)
62
56
Red in Pixel 11
0..255
Red in pixel 11 saturationcontrol(0-100%)
63
57
Green in Pixel 11
0..255
Greenin pixel11 saturationcontrol(0-100%)
64
58
Blue in Pixel 11
0..255
Blue in pixel 11 sa t ura t ioncon t rol(0-100%)
65
59
White in pixel 11
0..255
Whi t e in pixel 11 sa t ura t ioncon t rol(0-100%)
66
60
Red in pixel 12
0..255
Red in pixel 12 sa t ura t ioncon t rol(0-100%)
67
61
Green in pixel 12
0..255
Greenin pixel 12 sa t ura t ioncon t rol(0-100%)
68
62
Blue in pixel 12
0..255
Blue in pixel 12 sa t ura t ioncon t rol(0-100%)
69
63
White in pixel 12
0..255
Whi t e in pixel 12 sa t ura t ioncon t rol(0-100%)
70
64
Red in Pixel 13
0..255
Red in pixel 13 saturationcontrol(0-100%)
71
65
Green in pixel 13
0..255
Greenin pixel 13 sa t ura t ioncon t rol(0-100%
72
66
Blue in pixel 13
0..255
Blue in pixel 13 sa t ura t ioncon t rol(0-100%)
73
67
White in pixel 13
0..255
Whi t e in pixel 13 sa t ura t ioncon t rol(0-100%)
74
68
Red in Pixel 14
0..255
Red in pixel 14 saturationcontrol(0-100%)
75
69
Green in pixel 14
0..255
Greenin pixel 14 sa t ura t ioncon t rol(0-100%)
76
70
Blue in pixel 14
0..255
Blue in pixel 14 sa t ura t ioncon t rol(0-100%)
77
71
White in pixel 14
0..255
Whi t e in pixel 14 sa t ura t ioncon t rol(0-100%)
78
72
Red in Pixel 15
0..255
White in pixel15 saturationcontrol(0-100%)
79
73
Green in pixel 15
0..255
Greenin pixel 15 sa t ura t ioncon t rol(0-100%)
80
74
Blue in pixel 15
0..255
Blue in pixel 15 sa t ura t ioncon t rol(0-100%)
81
75
White in pixel 15
0..255
Whi t e in pixel 15 sa t ura t ioncon t rol(0-100%)
82
76
Red in Pixel 16
0..255
White in pixel16 saturationcontrol(0-100%)
83
77
Green in pixel 16
0..255
Greenin pixel 16 sa t ura t ioncon t rol(0-100%)
84
78
Blue in pixel 16
0..255
Blue in pixel 16 sa t ura t ioncon t rol(0-100%)
85
79
White in pixel 16
0..255
Whi t e in pixel 16 sa t ura t ioncon t rol(0-100%)

BR-1915P WASH ZOOM Product Datasheet
BR-1915P WASH ZOOM Product Datasheet
Brighten Led Lighting Limited
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
Tel:[phone]
Fax:[phone]
12
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
03
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
99
247
410
100
224

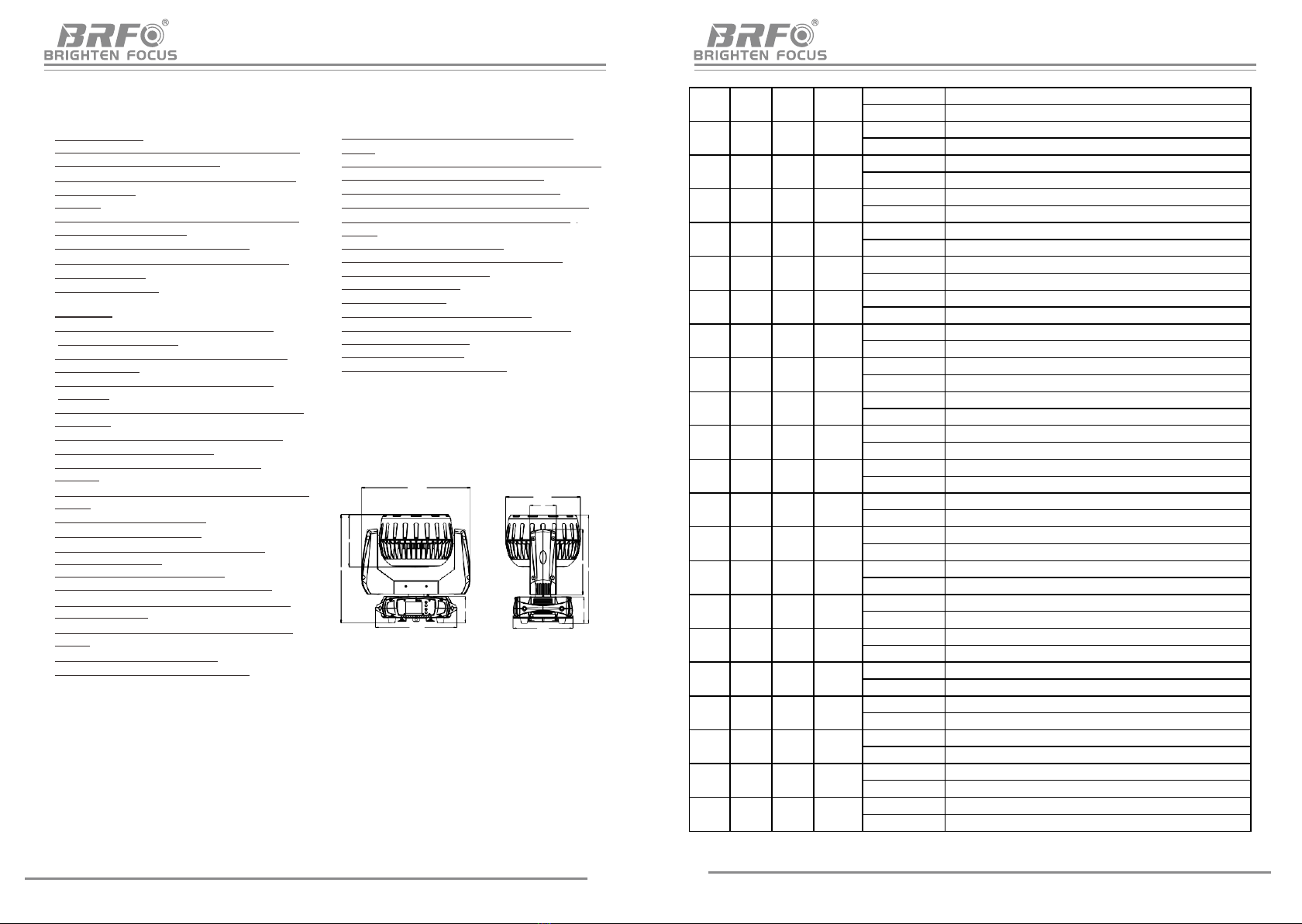

SPECIFICATIONS:
3. TECHNICAL INFORMATION
■
2.4" TFT LCD display (320*240pix) with 4 control
■
19*15W 4-IN-1 RGBW LEDs 50,000 hours life span
■
Input Voltage: AC90-260V 50/60Hz
■
Control Signal: DMX512, master-slave and sound
activated or auto
■
operation
■
Control Channel: 20/14/92/98DMX channel modes
■
Power Consumption: 350W
■
Dimensions: 409(D)*280(W)*410(H)mm
■
Packing Dimensions:490(D)*280(W)*560(H)mm
■
Net Weight: 11.2kg
■
Gross Weight: 13.9kg
FEATURES:
■
Specific optic lens of highly efficient elements
integrated with glass tube
■
CTB and CTO,linear colour temperature 2800K-
8000K changable
■
19 Pixel each color and each LED controllable
individually
■
Fast, smooth and quiet motorized zoom with 6°-60°
beam angle
■
Even, soft edge and pure color mixing coverage
■
Flicker free sources management
■
8/16 Bit smooth, fast and precise PAN/TILT
movement
■
630°/540°/360°PAN optional and 270°/180°/90°TILT
optional
■
PAN/TILT reversible advantage
■
PAN/TILT calibration available
■
Scan position memory, auto reposition after
unexpected movement
■
0-100% Smooth linear LED dimmer
■
7 built-in default programs for easy operation
■
Different Kinds of pre-programmed macro effects
with variable speed
■
Variable speed strobe effect with 1-25 flashes per
second
■
Variable pusle and random effects
■
Sound control with sensitivity adjustment
buttons
■
LCD display switch-off automatically after 60 seconds
■
DMX signal monitoring indicator available
■
Lower noise and efficient FAN cooling system
■
Efficient low noise self adjusting fan cooling system
■
Constant temperature readout and management f
unction
■
Over heat protection management
■
Powercon IN/ OUT with power switch and fuse
■
3-Pin DMX connectors IN/OUT
■
DB rating@1M=54.18dB
■
IP20 protection rating
■
-35°C ~ 45°C max ambient temperature
■
2*1/4 turn fastening Omega Clamps (Adaptable
vertically and horizontally)
■
1*Safety attachment point
■
CE (EMC/LVD) and RoHS certified
280
411
198
410
100
307
39
33
Green in pixel 5
0..255
Greenin pixel 5 saturationcontrol(0-100%)
40
34
Blue in pixel 5
0..255
Blue in pixel 5 saturationcontrol(0-100%)
41
35
White in pixel 5
0..255
White in pixel 5 saturationcontrol(0-100%)
42
36
Red in Pixel 6
0..255
White in pixel 6 saturationcontrol(0-100%)
43
37
Green in pixel 6
0..255
Greenin pixel 6 saturationcontrol(0-100%)
44
38
Blue in pixel 6
0..255
Blue in pixel 6 saturationcontrol(0-100%)
45
39
White in pixel 6
0..255
White in pixel 6 saturationcontrol(0-100%)
46
40
Red in Pixel 7
0..255
White in pixel 7 saturationcontrol(0-100%)
47
41
Green in pixel 7
0..255
Greenin pixel 7 saturationcontrol(0-100%)
48
42
Blue in pixel 7
0..255
Blue in pixel 7 saturationcontrol(0-100%)
49
43
White in pixel 7
0..255
White in pixel 7 saturationcontrol(0-100%)
50
44
Red in Pixel 8
0..255
Red in pixel 8 saturationcontrol(0-100%)
51
45
Green in Pixel 8
0..255
Greenin pixel8 saturationcontrol(0-100%)
52
46
Blue in Pixel 8
0..255
Blue in pixel 8 saturationcontrol(0-100%)
53
47
White in pixel 8
0..255
White in pixel 8 saturationcontrol(0-100%)
54
48
Red in pixel 9
0..255
Red in pixel 9 saturationcontrol(0-100%)
55
49
Green in pixel 9
0..255
Greenin pixel 9 saturationcontrol(0-100%)
56
50
Blue in pixel 9
0..255
Blue in pixel 9 saturationcontrol(0-100%)
57
51
White in pixel 9
0..255
White in pixel 9 saturationcontrol(0-100%)
58
52
Red in Pixel 10
0..255
Red in pixel 10 saturationcontrol(0-100%)
59
53
Green in pixel 10
0..255
Greenin pixel 10 saturationcontrol(0-100%
60
54
Blue in pixel 10
0..255
Blue in pixel 10 saturationcontrol(0-100%)

BR-1915P WASH ZOOM Product Datasheet
BR-1915P WASH ZOOM Product Datasheet
Brighten Led Lighting Limited
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
04
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
11
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
4. PHOTOMETRICS DIAGRAM
Distance 1m 3m 5m 7m
6°
6 ° (LUX)
60 ° (LUX)
R
G
B
W
RGBW
R
G
B
W
RGBW
15719
25300
35650
28750
88550
2185
3220
4255
3680
10810
4255
6095
8050
7015
25415
368
460
644
517
1380
1691
2415
3105
2760
7820
207
253
258
245
529
920
1265
1610
1530
5290
5. OPERATION INSTRUCTIONS
●The BR-1915P WASH ZOOM is for beam effect for on-site decoration purpose.
●Don’t turn on the fixture if it’s been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the fixture
until it is in normal temperature.
●This light should be keep away from strong shaking during any transportation or movement.
●Don’t pull up the light by only the head, or it might cause damages to the mechanical parts.
●Don’t expose the fixture in overheat, moisture or environment with too much dust when installing it. And
●don’t lay any power cables on the floor. Or it might cause electronic shock to the people.
●Make sure the installation place is in good safety condition before installing the fixture.
●Make sure to put the safety chain and check whether the screws are screwed properly when installing
the fixture.
●Make sure the lens are in good condition.It’s recommended to replace the units if there are any damages
or severe scratch.
●Make sure the fixture is operated by qualified personnel who knows the fixture before using.
●Keep the original packages if any second shipment is needed.
●Don’t try to change the fixtures without any instruction by the manufacturer or the appointed repairing
agencies.
●It is not in warranty range if there are any malfunctions from not following the user manual to operate or
any illegal operation, like shock short circuit, electronic shock , lamp broke, etc.
21
15
19
152..159
static scene20
160..167
static scene21
168..175
static scene22
176..183
static scene23
184..191
static scene24
192..199
static scene25
200..207
static scene26
208..215
static scene27
216..223
static scene28
224..231
static scene29
232..239
static scene30
240..247
static scene31
248..255
static scene32
DynamicPatterns ( If
channel18 is in t he in t erva0l 32 – 255)
000..023
No function
024..137
speed
138..141
Stop movement
142..255
speed
22
16
Red in Pixel 1
0..255
Red in pixel 1 saturationcontrol(0-100%)
23
17
Green in Pixel 1
0..255
G reenin pixel 1 sa t ura t ioncon t rol(0-100%)
24
18
Blue in Pixel 1
0..255
Blue in pixel 1 sa t ura t ioncon t rol(0-100%)
25
19
White in pixel 1
0..255
White in pixel 1 saturationcontrol(0-100%)
26
20
Red in pixel 2
0..255
Red in pixel 2 sa t ura t ioncon t rol(0-100%)
27
21
Green in pixel 2
0..255
G reenin pixel 2 sa t ura t ioncon t rol(0-100%)
28
22
Blue in pixel 2
0..255
Blue in pixel 2 sa t ura t ioncon t rol(0-100%)
29
23
White in pixel 2
0..255
W hi t e in pixel 2 sa t ura t ioncon t rol(0-100%)
30
24
Red in Pixel 3
0..255
Red in pixel 3 saturationcontrol(0-100%)
31
25
Green in pixel 3
0..255
Greenin pixel 3 saturationcontrol(0-100%
32
26
Blue in pixel 3
0..255
Blue in pixel 3 saturationcontrol(0-100%)
33
27
White in pixel 3
0..255
White in pixel 3 saturationcontrol(0-100%)
34
28
Red in Pixel 4
0..255
Red in pixel 4 saturationcontrol(0-100%)
35
29
Green in pixel 4
0..255
G reenin pixel 4 sa t ura t ioncon t rol(0-100%)
36
30
Blue in pixel 4
0..255
Blue in pixel 4 saturationcontrol(0-100%)
37
31
White in pixel 4
0..255
White in pixel 4 saturationcontrol(0-100%)
38
32
Red in Pixel 5
0..255
W hi t e in pixel 5 sa t ura t ioncon t rol(0-100%)
60 °

BR-1915P WASH ZOOM Product Datasheet
BR-1915P WASH ZOOM Product Datasheet
Brighten Led Lighting Limited
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
10
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
5
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Cautions:
6. INSTALLATIONS
For added protection mount the fixtures in areas outside
walking paths, seating areas, or in areas were the fixture
might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure
that the installation area can hold a minimum point
load of 10 times the device’s weight.
Fixture installation must always be secured with a
secondary safety attachment, such as an appropriate
safety cable.
Never stand directly below the device when mounting,
removing, or servicing the fixture.
from a ceiling, or set on a flat level surface (see
illustration below). Be sure this fixture is kept at least
0.5m (1.5 f t) away from any flammable materials
(decoration etc.).
Always use and install the supplied safety cable as a
safety measure to prevent accidental damage and/or
injury in the event the clamp fails.
Mounting points:
Overhead mounting requires extensive experience,
including amongst others calculating working load limits, a
fine knowledge of the installation material being used, and
periodic safety inspection of all installation material and
the fixture. If you lack these qualifications, do not attempt
the installation yourself. Improper installation can result in
bodily injury.
Be sure to complete all rigging and installation procedures
before connecting the main power cord to the appropriate
wall outlet.

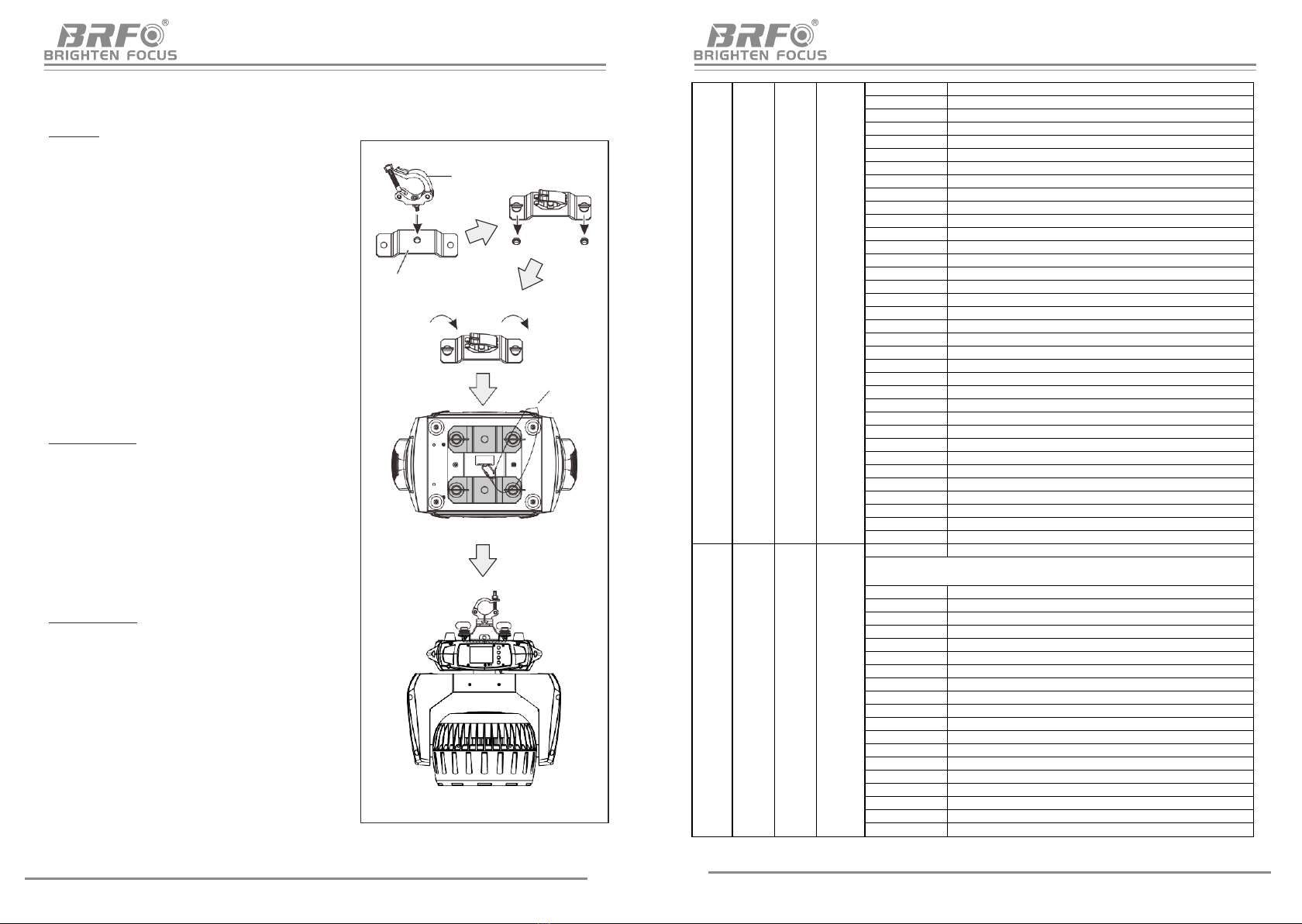

Clamp Mounting:
BR-1915P WASH ZOOM provides a unique mounting
bracket assembly that integrates the bottom of the
base, and the safety cable rigging point in one unit
(see the illustration below). When mounting this
fixture to truss be sure to secure an appropriately
rated clamp to the included omega bracket using a
M10 screw fitted through the center hole of the
“Hanging Kit”. As an added safety measure be sure to
attached at least one properly rated safety cable to the
fixture using on of the safety cable rigging point
integrated in the base assembly .
Satety Clamp
Hanging Kit
1/4 Turn
1/4 Turn
Safety Cable
INSTALLATION DIAGRAM
20
14
18
Patterns
000..015
No function
016..031
Static patterns
032..038
DynamicScene1
039..045
DynamicScene2
046..052
DynamicScene3
053..059
DynamicScene4
060..066
DynamicScene5
067..073
DynamicScene6
074..080
DynamicScene7
081..087
DynamicScene8
088..094
DynamicScene9
095..101
DynamicScene10
102..108
DynamicScene11
109..115
DynamicScene12
116..122
DynamicScene13
123..129
DynamicScene14
130..136
DynamicScene15
137..143
DynamicScene16
144..150
DynamicScene17
151..157
DynamicScene18
158..164
DynamicScene19
165..171
DynamicScene20
172..178
DynamicScene21
179..185
DynamicScene22
186..192
DynamicScene23
193..199
DynamicScene24
200..206
DynamicScene25
207..213
DynamicScene26
214..220
DynamicScene27
221..227
DynamicScene28
228..234
DynamicScene29
235..241
DynamicScene30
242..248
DynamicScene31
249..255
DynamicScene32
21
15
19
Static patterns or patterns speed
Static Patterns (If
channel18 is in the interva0l 16 – 031)
000..007
static scene1
008..015
static scene2
016..023
static scene3
024..031
static scene4
032..039
static scene5
040..047
static scene6
048..055
static scene7
056..063
static scene8
064..071
static scene9
072..079
static scene10
080..087
static scene11
088..095
static scene12
096..103
static scene13
104..111
static scene14
112..119
static scene15
120..127
static scene16
128..135
static scene17
136..143
static scene18
144..151
static scene19

BR-1915P WASH ZOOM Product Datasheet
BR-1915P WASH ZOOM Product Datasheet
Brighten Led Lighting Limited
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
6
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
09
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
7. CONTROL CONNECTION
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-
pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable
needed should be two core, screened cable with XLR input and output connectors.
Please refer to the diagram below. DMX-512 connection with DMX terminator.
For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in
a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control
signal by electrical noise. The DMX terminator is simply an XLR plug with a3 resistor connected between pins 2 and
3,which is then plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below.
Power Switch
Fuse
DMX OUT
POWER OUT
POWER IN
DMX IN
DMX IN
POWER IN
Signal (-) 3
Signal (+)
2 1
Signal (-)
1 2 Signal (+)
Ground 3
120 Ω
DMX512 OUT DMX512 IN
1 4
C o l o r Te m p
0 . . 1 5
N o F u n c t i o n
16..45
B e l o w3 2 0 0 K
46..75
3 2 0 0 K- 3 5 0 0 K
76..105
3 5 0 0 K- 5 0 0 0 K
106..135
5 0 0 0 K- 5 5 0 0 K
136..165
5 5 0 0 K- 6 0 0 0 K
166..195
6 0 0 0 K- 6 5 0 0 K
196..225
6 5 0 0 K- 7 0 0 0 K
226..255
7 0 0 0 K- 8 0 0 0 K
1 5
Vi s u a l Tu n g s t e n L a m p
0 . . 1 5
N o F u n c t i o n
16..255
Tungstenlampeffectis graduallyenhanced
1 6
1 0
1 4
Foreground color for patterns
0 . . 0
N o F u n c t i o n
1 . . 1 3
R e d
14..27
G r e e n
28..41
B l u e
42..55
W h i t e
56..69
R e d + W h i t e
70..83
G r e e n + W h i t e
84..97
B l u e + W h i t e
9 8 . . 111
G r e e n + B l u e
112..125
R e d + B l u e
126..139
R e d + G r e e n
140..153
G r e e n + B l u e + W h i t e
154..167
R e d + B l u e + W h i t e
168..181
R e d + G r e e n + W h i t e
182..195
Red+Blue+Green+White
196..202
2 7 0 0 K
203..209
3 2 0 0 K
210..216
3 5 0 0 K
217..223
5 0 0 0 K
224..230
5 5 0 0 K
231..237
6 0 0 0 K
238..244
6 5 0 0 K
245..251
7 0 0 0 K
252..255
8 0 0 0 K
1 7
11
1 5
F o r e g r o u n d d i m m e r
000..255
Foreground dimmer0 –100%.
1 8
1 2
1 6
Background color for patterns
0 . . 0
N o F u n c t i o n
1 . . 1 3
R e d
14..27
G r e e n
28..41
B l u e
42..55
W h i t e
56..69
R e d + W h i t e
70..83
G r e e n + W h i t e
84..97
B l u e + W h i t e
9 8 . . 111
G r e e n + B l u e
112..125
R e d + B l u e
126..139
R e d + G r e e n
140..153
G r e e n + B l u e + W h i t e
154..167
R e d + B l u e + W h i t e
168..181
R e d + G r e e n + W h i t e
182..195
Red+Blue+Green+White
196..202
2 7 0 0 K
203..209
3 2 0 0 K
210..216
3 5 0 0 K
217..223
5 0 0 0 K
224..230
5 5 0 0 K
231..237
6 0 0 0 K
238..244
6 5 0 0 K
245..251
7 0 0 0 K
252..255
8 0 0 0 K
1 9
1 3
1 7
B a c k g r o u n d d i m m e r
000..255
Backgroun d immer0 –100%.

BR-1915P WASH ZOOM Product Datasheet
BR-1915P WASH ZOOM Product Datasheet

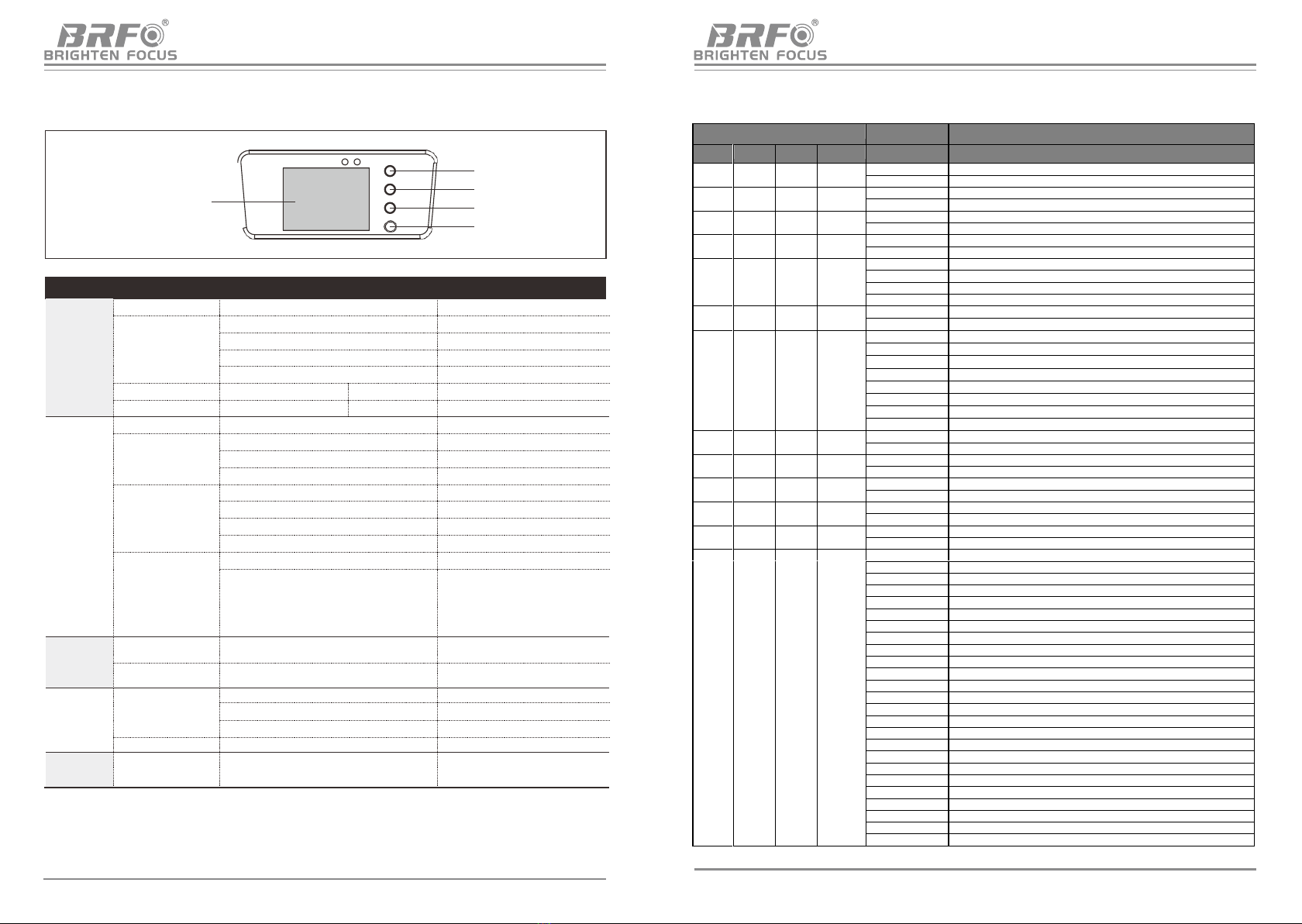

8. MENU OPERATIONS 9.DMX PROTOCOL
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
LCD DISPLAY
MENU
UP
DOWN
ENTER
MENU Description
07
08
Mode/Channel
Va l u e
F u n c t i o n
9 8
9 2
2 0
1 4
1
1
1
1
P a n
0..255
PA N M o v e m e n t
2
2
2
2
P a n-f i n e
0..255
FinecontrolofPanmovement
3
3
3
3
Ti l t
0..255
Ti l t M o v e m e n t
4
4
4
4
Ti l e -f i n e
0..255
FinecontrolofTiltmovement
5
5
5
5
S p e e d p a n / t i l e
0..225
m a x t o m i n s p e e d
226..235
b l a c k o u tb y m o v e m e n t
236..255
n o f u n c t i o n
6
6
6
6
D i m m e r
0..255
D i m m e r0 % . . . 1 0 0 %
7
7
7
7
S h u t t e r
0 . . 3 1
S h u t t e rc l o s e d
32..63
s h u t t e ro p e n
64..95
S t r o b ee ff e c ts l o w t o f a s t
96..127
s h u t t e ro p e n
128..159
Pulse-effectin sequence s lowto fast
160..191
s h u t t e ro p e n
192..255
s h u t t e ro p e n
8
8
8
R e d
0..255
0-100%Reddimmerfromdarkto bright
9
9
9
G r e e n
0..255
0-100%Greendimmerfromdarkto bright
1 0
1 0
1 0
B l u e
0..255
0-100%Bluedimmerfromdarkto bright
11
11
11
W h i t e
0..255
0-100%Whitedimmerfromdarkto bright
1 2
8
1 2
1 2
Z o o m
0..255
I n ( n e a r ) t o o u t ( f a r )
1 3
9
1 3
1 3
Vi r t u a l c o l o r
0 . . 0
N o F u n c t i o n
1 . . 1 3
R e d
14..27
G r e e n
28..41
B l u e
42..55
W h i t e
56..69
R e d + W h i t e
70..83
G r e e n + W h i t e
84..97
B l u e + W h i t e
9 8 . . 111
G r e e n + B l u e
112..125
R e d + B l u e
126..139
R e d + G r e e n
140..153
G r e e n + B l u e + W h i t e
154..167
R e d + B l u e + W h i t e
168..181
R e d + G r e e n + W h i t e
182..195
Red+Blue+Green+White
196..202
2 7 0 0 K
203..209
3 2 0 0 K
210..216
3 5 0 0 K
217..223
5 0 0 0 K
224..230
5 5 0 0 K
231..237
6 0 0 0 K
238..244
6 5 0 0 K
245..251
7 0 0 0 K
252..255
8 0 0 0 K
Function
Mode
Dmx Address
A001~AXXX
DMX address setting
Channel Mode
CH20 MODE
20 Channel Mode
CH14 MODE
14 Channel Mode
CH92 MODE
92 Channel Mode
CH98 MODE
98 Channel Mode
Auto Run
Internal Program1~8
Master/Alone
Auto run
Music Control
Internal Program1~8
Master/Alone
Sound Control
Option
Reset Default
Yes/No
Reset Default
Signal Set
Wire DMX
Wire DMX
Wireless DMX
Wireless DMX
Act WDMX & Out
Act WDMX & Out
Pan / Tilt
Reverse Pan (On/Off)
Reverse Pan
Reverse Tilt (On/Off)
Reverse Tilt
Select Pan 540°/360°/630°
Pan Degree,default is 540°
Select Tilt 270°/90°/180°
Tilt Degree,default is 270°
UI SET
Mic SEN 0~99%
Sensitivity Setting
OFF Signal Mode (On/Off)
OFF at original status and
ON at reset status when no
DMX signal
Information
Temperature
XXX°C/°F
Current Temperature
Software Version
V1.0~V9.9
Software Version
Manual
Control
Reset
Total Reset
Total Reset
Pan/Tilt Reset
Pan/Tilt Reset
Zoom Reset
Zoom Reset
Channel
PAN=XXX……
Manual Control Channel
Advanced
(AccessCode088)
Calibration
PAN=XXX……
Calibration(Code:088)
