BRFO BR-149S User manual

BR-149S 150W MOVING HEAD SPOT Product Datasheet
10.Maintenance and cleaning
It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not
build up on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced. Regular
cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably
throughout its life.A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under
no circumstances should alcohol or solvents be used!
The front objective lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light-
output very quickly. The cooling-fans should be cleaned monthly.
The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet.
Remove dust and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner.
Important! Check the air filters periodically and clean before they become clogged!
Clean two air filters placed in the fixture’s covers and two in the fixture base. Use a vacuum cleaner,
compressed air or you can wash them and put back dry.
After replacing the air filters, reset the elapsed time counter in the menu "Information" (Information--->Air Filters---
>Elapsed Time).
Replacing the fuse. Before replacing the fuse, unplug mains lead.
1) Remove the fuse holder on the rear panel of the base with a fitting screwdriver from the housing (anti-
clockwise).
2) Remove the old fuse from the fuse holder.
3) Install the new fuse in the fuse holder (only the same type and rating).
4) Replace the fuseholder in the housing and fix it.
2nd-3rd floor, No.288, Guangzhou East Line, Pingwen, Lanhe Town,Nansha District, Guangzhou,China.
Tel.[phone] Fax.+ 86-020-84939725 - www. brightenfocus.com - info@ brightenfocus.com
BR-149S
150W MOVING HEAD SPOT
Version 1.0
USER MANUAL
Be sure to read the USER MANUAL carefully before using this product. Be
sure to keep the USER MANUAL properly for future needs.
Use this product correctly when you can fully understand the User Manual
DANGER !
Disconnect from the mains before starting any
maintenance work

BR-149S 150W MOVING HEAD SPOT Product Datasheet
BR-149S 150W MOVING HEAD SPOT Product Datasheet
CAUTION ! EYE DAMAGES !
Avoid looking directly into the light source
(meant especially for epileptics) !
1. Safety instructions
Thank you for choosing our 150W MOVING HEAD SPOT. FOR YOUR OWN SAFETY, PLEASE READ THIS USER
MANUAL CAREFULLY
BEFORE YOU INITIAL START - UP!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
Important:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
During the operation the housing becomes hot). Allow the fixture to cool approximately 20 minutes prior to
manipulate with it.
Make sure that the available voltage is not higher than stated on the rear panel.
WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable to
completely remove power from unit when not in use or before cleaning or servicing the fixture.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-
cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-
cord by the plug. Never pull out the plug by tugging the power cord.
This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth.
The electric connection, repairs and servicing must be carried out by a qualified employee. Do not
connect this device to a dimmer pack.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s life.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)! For
replacement use lamps and fuses of same type and rating only.
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
CAUTION!
Be careful with your operations.
With a high voltage you can suffera dangerous electric shock when touching the wires!
01
9
7
Shutter
0..31
Shutter closed
32..63
shutter open
64..95
Strobe effect slow to fast
96..127
shutter open
128..159
Pulse-effect in sequences slow to fast
160..191
shutter open
192..223
Random strobe effect slow to fast
224..255
shutter open
10
8
Dimmer
0..255
Dimmer 0%...100%
11
9
Focus
0..255
In(near) to out(far)
12
10
Rrotating prism, Prism
0..5
OFF
6..255
ON
13
11
Speed pan/tile
0..225
max to min speed
226..235
blackout by movement
236..245
blackout by all wheel changing
246..255
no function
14
12
Special function
0..19
No function
20..29
No function
30..39
No function
40..79
No function
80..84
All Motor reset
85..87
Scan motor reset
88..90
Colors motor reset
91..93
Gobo motor reset
94..96
No function
97..99
Other motor reset
100..119
Internal program 1
120..139
Internal program 2
140..159
Internal program 3
160..179
Internal program 4
180..199
Internal program 5
200..219
Internal program 6
220..239
Internal program 7
240..255
Internal Sound program 1
Brighten Led Lighting Limited
Tel:[phone] WWW. brightenfocus.com
Fax:[phone] E-mail:info@ brightenfocus.com

BR-149S 150W MOVING HEAD SPOT Product Datasheet
BR-149S 150W MOVING HEAD SPOT Product Datasheet

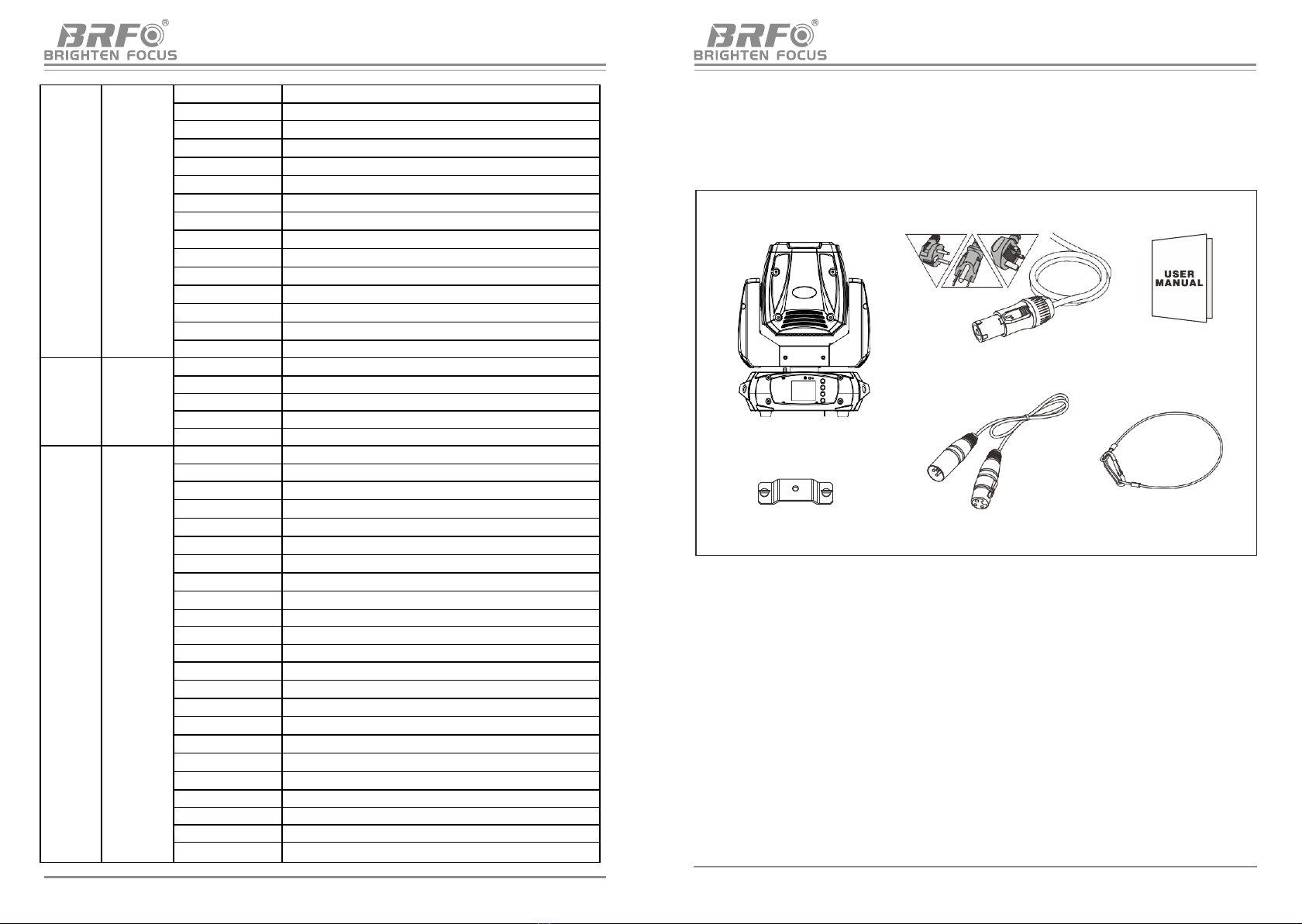

2. UNPACKING
The 150W MOVING HEAD SPOT adopts a 150W white LED lamp which features high brightness and stability.
Please carefully unpack it when you receive the fixture and check whether it is damaged during the
transportation. And please check whether the following items are included inside the box:
The 150W MOVING HEAD SPOT is made of a new type of high temperature strength of engineering
plastics and cast aluminum casing with nice outlook . The fixture is designed and manufactured strictly
following CE standards, complying with international standard DMX512 protocol. It’s available
independently controlled and linkable with each other for operation. And it is applicable for large-scale live
per formances, theater, studio, nightclubs and discos.
This manual covers the important information on installation and applications. Meanwhile, please keep this
manual well for future needs.
Brighten Led Lighting Limit Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone] WWW. brightenfocus.com
E-mail:info@ brightenfocus.com Tel:[phone]
Fax:[phone] WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
EuroStandard UKStandard
USA Standard
▲ User Manual*1
▲ Power Cable*1
▲ Moving Head *1
▲ Safety Cable*1
▲ Hanging Kit *1
▲ Signal Cable *1
09
02
6
4
Gobo wheel 1
0..9
Open
10..19
gobo 1
20..29
gobo 2
30..39
gobo 3
40..49
gobo 4
50..59
gobo 5
60..69
gobo 6
70..89
Gobo 1 shake slow to fast
90..109
Gobo 2 shake slow to fast
110..129
Gobo 3 shake slow to fast
130..149
Gobo 4 shake slow to fast
150..169
Gobo 5 shake slow to fast
170..189
Gobo 6 shake slow to fast
190..255
Rot. gobo wheel cont. rotation slow to fast
7
5
Gobo&Prism rotation
0..3
no function
4..127
Forwards gobo&prism rotation from fast to slow
128..131
Gobo&prism rotation stop
132..255
Backwards gobo&prism rotation from slow to fast
8
6
Gobo wheel 2
0..9
Open
10..19
gobo 1
20..29
gobo 2
30..39
gobo 3
40..49
gobo 4
50..59
gobo 5
60..69
gobo 6
70..79
gobo 7
80..89
gobo 8
90..99
gobo 9
100..109
gobo 10
110..119
Gobo 1 shake slow to fast
120..129
Gobo 2 shake slow to fast
130..139
Gobo 3 shake slow to fast
140..149
Gobo 4 shake slow to fast
150..159
Gobo 5 shake slow to fast
160..169
Gobo 6 shake slow to fast
170..179
Gobo 7 shake slow to fast
180..189
Gobo 8 shake slow to fast
190..199
Gobo 9 shake slow to fast
200..209
Gobo 10 shake slow to fast
210..255
ed
Rot. gobo wheel cont. rotation slow to fast

BR-149S 150W MOVING HEAD SPOT Product Datasheet
BR-149S 150W MOVING HEAD SPOT Product Datasheet
SPECIFICATIONS:
3. TECHNICAL INFORMATION
COLORS:
9. DMX PROTOCOL
■
A 150W white LED lamp,7500K, 50000 hours life span
■
Input Voltage:AC90-260V 50/60Hz
■
Power Consumption: 195W
■
Control Signal:DMX512, master-slave and sound
activated or auto operation (7 built-in
programs)
■
1 Color wheel with 8 colors plus open.
■
GOBOS:
■
1 Rotating Gobo Wheel with 6 gobos plus open
1 Static Gobo Wheel with 10 gobos plus open
■
Control Channel: 14/12 DMX channels USITT DMX-
512
■
Dimensions:266(D)*177(W)*362(H)mm
■
Packing Dimensions:350(D)*245(W)*45(H)mm
■ Net Weight:6.6kgs
■ Gross Weight:7.6kgs
FEATURES:
■ 13° Beam angle
■ Motorized focus from near to far(2.5M-30M)
■ 3-Facet prism with variable speed and direction
■ Dual flag mechanical dimming system
■ 25T/sec high speed LED shutter/strobe effect with
variable speed
■ Preset variable/random strobe and dimming pulseeffect
■ 1.8' TFT LCD display (160*128pix)
■ Display reversible for up side down application
■ Powercon IN
■ 3-Pin XLR connectors IN/OUT
■ IP20 protection rating
■ 55dB at 3’dB rating
■ 1*1/4 turn fastening Omega clamps
■ 1*Safety attachment point available
MOVEMENT:
■
Smooth and precise resolution for PAN/TILT
■
movement
■
360° /540° /630° PAN and 90°/180° /270° TILT
■
movement optional
■
Scan position memory, auto reposition after
■ unexpected movement
FUNCTION:
■
Electronic ballast and power supply
■
Improved optics and flat beam field
■
No need for adjustment of reflector or lamp
■
Variable direction rainbow effect with speed
adjustable
■
Vector mode with blackout MIB function
■
Constant temperature readout and management
function
■
Fan cooling system
■
-35-45°C max ambient temperature
RotatingGobo Wheel
Brighten Led Lighting Limited
Static Gobo Wheel Color Wheel
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone] WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Tel:[phone]
Fax:[phone] WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
03
08
Mode/Channel
Value
Function
16b
8b
1
1
Pan
0..255
PAN Movement
2
Pan-fine
0..255
Fine control of Pan movement
3
2
Tilt
0..255
Tilt Movement
4
Tile-fine
0..255
Fine control of Tilt movement
5
3
Color wheel
0..13
Open / white
14..27
Red
28..41
Blue
42..55
Green
56..69
Yellow
70..83
Rosy Red
84..97
Deep Blue
98..111
Deep Yellow
112..127
Orange
128..189
Forwards rainbow effect from fast to slow
190-193
Color rotation stop
194..255
Backwards rainbow effect from slow to fast
5
3
Color wheel(Half color Mode)
0..6
Open / white
7..13
Open+Red
14..20
Red
21..27
Red+Blue
28..34
Blue
35..41
Blue+Green
42..48
Green
49..55
Green+Yellow
56..62
Yellow
63..69
Yellow + Rosy Red
70..76
Rosy Red
77..83
Rosy Red + Deep Blue
84..90
Deep Blue
91..97
Deep Blue + Deep Yellow
98..104
Deep Yellow
105..111
Deep Yellow + Orange
112..118
Orange
119..125
Orange + Open
128..189
Forwards rainbow effect from fast to slow
190-193
Color rotation stop
194..255
Backwards rainbow effect from slow to fast

BR-149S 150W MOVING HEAD SPOT Product Datasheet
BR-149S 150W MOVING HEAD SPOT Product Datasheet
8. MENU OPERATIONS 4.PHOTOMETRICS DIAGRAM
Distance 2.5m 5m 7.5m 10m 15m
13°
150W(LUX)
Diameter(m)
25200 5520 3276 1716 1152
ø 0.41 ø 0.82 ø 1.23 ø 1.65 ø 2.64
5.OPERATION INSTRUCTIONS
●The 150W MOVING HEAD SPOT is for beam effect for on-site decoration purpose.
●Don’t turn on the fixture if it’s been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the fixture
until it is in normal temperature.
●This light should be keep away from strong shaking during any transportation or movement.
●Don’t pull up the light by only the head, or it might cause damages to the mechanical parts.
●Don’t expose the fixture in overheat, moisture or environment with too much dust when installing it. And
●don’t lay any power cables on the floor. Or it might cause electronic shock to the people.
●Make sure the installation place is in good safety condition before installing the fixture.
●Make sure to put the safety chain and check whether the screws are screwed properly when installing
the fixture.
●Make sure the lens are in good condition.It’s recommended to replace the units if there are any damages
or severe scratch.
●Make sure the fixture is operated by qualified personnel who knows the fixture before using.
●Keep the original packages if any second shipment is needed.
●Don’t try to change the fixtures without any instruction by the manufacturer or the appointed repairing
agencies.
●It is not in warranty range if there are any malfunctions from not following the user manual to operate or
any illegal operation, like shock short circuit, electronic shock , lamp broke, etc.
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
MENU Description
LCD DISPLAY
MENU
UP
DOWN
ENTER
07
04
DMX
(Function Mode)
Dmx Address
A001~AXXX
DMX address setting
Channel Mode
CH14 MODE
Standard mode
CH12 MODE
Vector mode
Auto Run
Program1~8
Master/Alone
Auto run
Music Run
Program1~8
Master/Alone
Sound Control
SET
(Fixture Set)
Reset Default
Yes/No
Reset Default
Signal Set
Wire DMX
Wire DMX
Reverse Pan
(On/Off)
Reverse Pan
Reverse Tilt
(On/Off)
Reverse Tilt
Select Pan
630°/540°/360°
Pan Degree,default is 540°
Select Tilt
270°/180°/90°
Tilt Degree,default is 270°
Mic Sensitivity
0~99%
MIC Sensitivity Setting
OFF Signal Mode
(On/Off)
OFF at original status and
ON at reset status when no
DMX signal
Half Color Wheel
(On/Off)
Half color Select
Manu
(Manual)
Reset
Total Reset
Total Reset
Scan Reset
Scan Reset
Color Reset
Color Reset
Gobo Reset
Gobo Reset
Others Reset
The Others Reset
Channel
PAN=XXX……
Channel Control
ADV
(Advanced)
(AccessCode088)
Calibration
PAN=XXX……
Calibration

BR-149S 150W MOVING HEAD SPOT Product Datasheet
BR-149S 150W MOVING HEAD SPOT Product Datasheet
Cautions:
6. INSTALLATIONS 7. CONTROL CONNECTION
For added protection mount the fixtures in areas outside
walking paths, seating areas, or in areas were the fixture
might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that
the installation area can hold a minimum point load of 10
times the device’s weight.
Fixture installation must always be secured with a
secondary safety attachment, such as an appropriate
safety cable.
Never stand directly below the device when mounting,
removing, or servicing the fixture.
from a ceiling, or set on a flat level surface (see
illustration below). Be sure this fixture is kept at least
0.5m (1.5 f t) away from any flammable materials
(decoration etc.).
Always use and install the supplied safety cable as a
safety measure to prevent accidental damage and/or
injury in the event the clamp fails.
Mounting points:
Overhead mounting requires extensive experience,
including amongst others calculating working load limits, a
fine knowledge of the installation material being used, and
periodic safety inspection of all installation material and
the fixture. If you lack these qualifications, do not attempt
the installation yourself. Improper installation can result in
bodily injury.
Be sure to complete all rigging and installation procedures
before connecting the main power cord to the appropriate
wall outlet.
Clamp Mounting:
The 150W MOVING HEAD SPOT provides a unique
mounting bracket assembly that integrates the bottom
of the base, and the safety cable rigging point in one
unit (see the illustration below). When mounting this
fixture to truss be sure to secure an appropriately
rated clamp to the included omega bracket using a
M10 screw fitted through the center hole of the
“Hanging Kit”. As an added safety measure be sure to
attached at least one properly rated safety cable to
the fixture using on of the safety cable rigging point
integrated in the base assembly .
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-
pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable
needed should be two core, screened cable with XLR input and output connectors.
Please refer to the diagram below. DMX-512 connection with DMX terminator.
For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in
a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control
signal by electrical noise. The DMX terminator is simply an XLR plug with a3 resistor connected between pins 2 and
3,which is then plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below.
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
Brighten Led Lighting Limited
Tel:[phone]
Fax:[phone]
WWW. brightenfocus.com
E-mail:info@ brightenfocus.com
DMX OUT
DMX IN
POWER IN
Power Switch
Fuse
DMX IN
POWER IN
Signal (-) 3
Signal (+)
2 1
Signal (-)
1 2 Signal (+)
Ground 3
120 Ω
DMX512 OUT DMX512 IN
Satety Clamp
Hanging Kit
1/4 Turn
1/4 Turn
Safety Cable
INSTALLATION DIAGRAM
05
06
