Briggs & Stratton 252700 User manual

COPYRIGHT by BRIGGS & STRATTON CORPORATION
All rights reserved. No part of this material may be reproduced or transmitted,
in any form or by any means, electronic or mechanical, including photocopying,
recording or by any information storage and retrieval system, without permission
in writing from Briggs & Stratton Corporation.
FORM MS–6929–6/2002
REPLACES FORM MS–6929–9/92
FILE IN SECT. 2 OF SERVICE MANUAL
252700 to 252799
Illustrated Parts List
Model Series
252700 to 252799
TYPE NUMBERS
0016 through 0028,
0111 through 0247,
0515 through 0560,
0611,
0616 through 0622,
0624, 0625,
0630 through 0719.
TO FIND
THE CORRECT NUMBER OF THE PART YOU NEED:
FOLLOW THE INSTRUCTIONS BELOW
A. Refer to Engine Model, Type and Code Number that is stamped on the blower housing of engine.
Engine type numbers such as 0123 01 are listed only as 0123 in most instances. The two digits (01
or 02, etc.) to the right of the space may be required for more accurate parts identification in some
instances. Select the Illustrated Parts List covering the correct Model Series and Type Number.
B. Refer to the Illustrations and compare the original part with Illustration. The number next to the
illustration is the Reference Number. Assemblies include all parts shown in frames. All parts shown
in assembly frames having individual reference numbers can be purchased separately.
C. After the Reference Number has been identified, refer to the Numerical text, where Reference and
Primary Part Number are listed. THE PRIMARY PART IS USED ON ALL TYPE NUMBERS
EXCEPT THOSE TYPE NUMBERS UNDER “NOTE.”
D. If a “Note” appears below the Primary Part Number, it means that this part differs from the Primary
Part for certain types. If your Type number is listed under “Note,” order the part referred to at the
“Note.”
E. If your Engine Type Number does not appear after any part number listed under “Note,” use the
Primary Part Number.
F. For Engine Type Numbers not covered by this book, check other Parts Lists having the same
engine model or contact your source of supply.
PRINTED IN U.S.A.

252700 to 252799
6929–2 Assemblies include all parts shown in frames. 58
2
1019 LABEL KIT
14
11
10
383
635
337
REQUIRES SPECIAL TOOLS TO INSTALL.
SEE REPAIR INSTRUCTION MANUAL.
6
1058 OWNER’S MANUAL
9
8
13
668
3
87
307
306
12
871
869
870
645
308
5
7
552

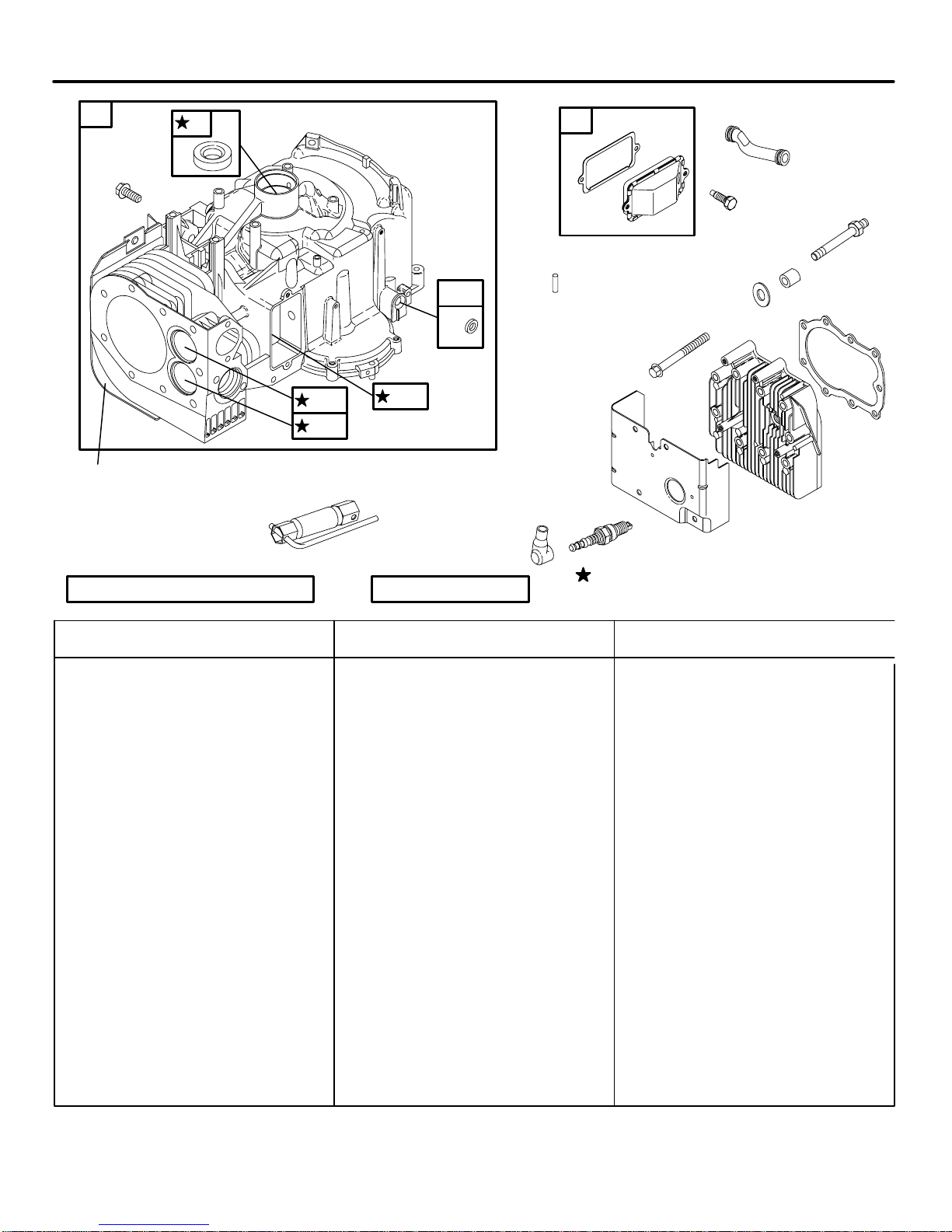

1 495728 Cylinder Assembly
(Used After Code Date
82073100).
––––––– Note –––––
396448 Cylinder Assy.
(Used Before Code
Date 82080100).
2 399265 Bushing–Cylinder
3391086 Seal–Oil
5 212914 Head–Cylinder
6 22963 Washer–Flat
7∅271866 Gasket–Cylinder Head
8 495735 Breather Assembly
––––––– Note –––––
495734 Breather Assy.
Used on Type No(s).
0189, 0219, 0228,
0634, 0644, 0646,
0650, 0675.
9∅27803 Gasket–Breather
10 94621 Screw–Hex.
11 280100 Tube–Breather
13 94776 Stud–Hex. Drive
14 94622 Screw–Hex.
87 491323 Seal–Gov. Shaft
306 224882 Shield–Cylinder
––––––– Note –––––
224542 Shield–Cyl.
Used on Type No(s).
0537, 0560, 0611,
0617, 0618, 0620,
0621, 0622, 0625,
0707, 0712, 0713,
0714, 0715, 0718,
0719.
307 94930 Screw–Hex.
308 224897 Cover–Cylinder
337 298809 Plug–Spark
(1 1/2”High)
––––––– Note –––––
802592 Plug–Spark
(1 27/32”High,
Resistor Type)
383 89838 Wrench–Spark Plug
552 491986 Bushing–Governor
Crank
635 66538 Boot–Spark Plug
645 23513 Bushing–Plunger
Used on Type No(s).
0500.
668 231186 Spacer
869 261463 Seat–Valve
(Intake)
870 262924 Seat–Valve
(Exhaust)
871 231218 Bushing–Guide
1019 491195 Label Kit
1058 270862 Owner’s Manual
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–3 Assemblies include all parts shown in frames. 58
3
27
357
45
3433
45
36 35
42
41 40
616
230
614
26
27
31
32
25 29
28
562
592
227
46
219
741
1021
1020
24
16
146
759
757
761
758
760
16 498994 Crankshaft
(Used After Code Date
82073100).
––––––– Note –––––
392299 Crankshaft
(Used Before Code
Date 82080100).
491634 Crankshaft
Used on Type No(s).
0166, 0179, 0654.
498993 Crankshaft
Used on Type No(s).
0027, 0132, 0133,
0135, 0141, 0145,
0157, 0163, 0172,
0175, 0200, 0236,
0527, 0632, 0643,
0691, 0694.
25 391285 Piston Assembly
(Standard)
391287 Piston Assy.
(.010”O.S.)
391288 Piston Assy.
(.020”O.S.)
391289 Piston Assy.
(.030”O.S.)
26 391780 Ring Set
(Standard)
392331 Ring Set
(Standard Chrome)
391781 Ring Set
(.010”O.S.)
391782 Ring Set
(.020”O.S.)
391783 Ring Set
(.030”O.S.)
27 260924 Lock–Piston Pin
28 299691 Pin–Piston
(Standard)
391286 Pin–Piston
(.005”O.S.)
29 490348 Rod–Connecting
(Standard)
490469 Rod–
Connecting
(.020”Undersize)
31 222299 Lock–Rod Screw
32 92909 Screw–Conn. Rod
33 261185 Valve–Exhaust
34 261462 Valve–Intake
35 65906 Spring–Valve
36 26828 Spring–Valve
40 221596 Retainer–Valve
41 292260 Retainer–Valve
––––––– Note –––––
68293 Retainer–Valve
Used on Type No(s).
0030, 0031, 0032.
42 494553 Keeper–Valve
45 262248 Tappet–Valve
46 212897 Gear–Cam
146 94196 Key–Timing
––––––– Note –––––
231086 Pin–Dowel
(Used Before Code
Date 82080100).
219 490815 Governor–Oil Slinger
227 490927 Lever–Governor
––––––– Note –––––
391733 Lever–Gov.
(Used Before Code
Date 87030200).
230 94742 Washer–Flat
357 91540 Key–Drive Pulley
562 94907 Bolt–Governor Lever
592 231978 Nut–Hex.
614 93306 Pin–Cotter
616 495157 Crank–Governor
741 262932 Gear–Timing
757 691714 Link–Counterweight
(Used After Code Date
78100411).
211675 Link–
Counterweight
(Used Before Code
Date 78100511).
758 692941 Counterweight Assy.
759 298909 Pin–Counterweight
760 231038 Spacer–Counterweight
761 691096 Screw–Hex
1020 261242 Eccentric
1021 94160 Pin–Eccentric
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–4 Assemblies include all parts shown in frames. 58
4
REQUIRES SPECIAL TOOLS TO INSTALL.
SEE REPAIR INSTRUCTION MANUAL.
529
422 523
284
116
847
22
15
4
12
20
665
20
19
525

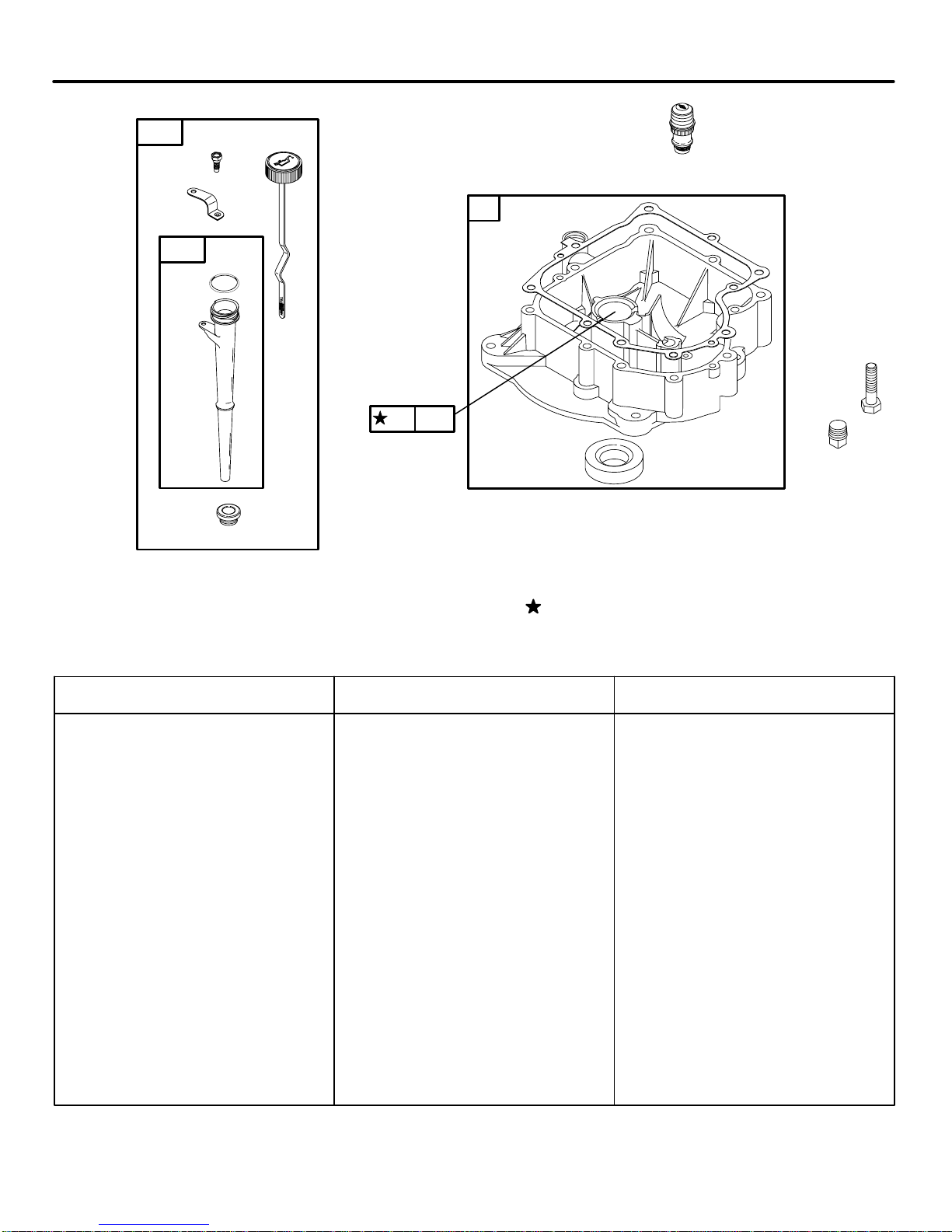

4 391784 Sump–Engine
––––––– Note –––––
398072 Sump–Engine
Used on Type No(s).
0687.
12 271702 Gasket–Crankcase
(.015”Thick, Standard)
––––––– Note –––––
270915 Gasket–
Crankcase
(.005”Thick)
270916 Gasket–
Crankcase
(.009”Thick)
15 94239 Plug–Oil Drain
19 399264 Bushing
20 291675 Seal–Oil
22 93585 Screw–Hex.
116 270920 Seal–O-Ring
284 94602 Screw–Hex.
422 224872 Bracket–Oil Fill
523 495229 Dipstick
525 280134 Tube–Oil Fill
529 281370 Seal–Fill Tube
665 296768 Minder–Oil
847 392067 Dipstick/Tube
Assembly
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–5 Assemblies include all parts shown in frames. 58
5
131
141
127
113
108 103
104
101
138
99
95
130
95
98
618
257
634
636
132
51
124
94
118
105
987
634A
137
136
147
128
537
662
125

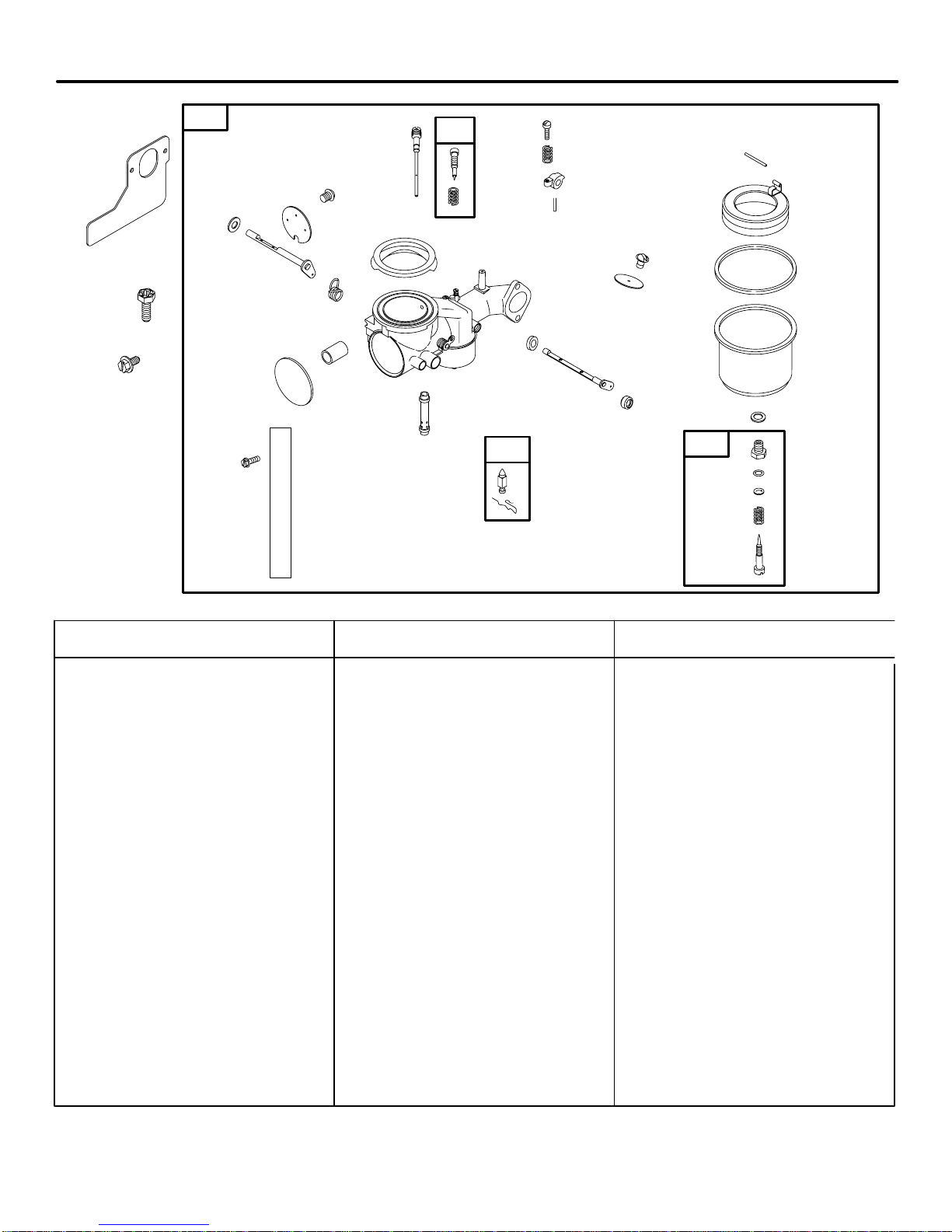

51∅270872 Gasket–Carb Mounting
94 292681 Kit–Idle Mixture
95 93499 Screw–Choke/Throttle
98 91920 Screw–Slotted
99 26157 Spring–Friction
101 93043 Pin–Throttle Lever
103 299707 Float–Carburetor
104 230896 Pin–Float Hinge
105 394681 Valve–Needle
(Gravity Feed)
––––––– Note –––––
394683 Valve–Needle
(Pump Feed)
108 222010 Valve–Choke
113 299740 Nozzle–Carburetor
118 396568 Valve–High Speed
124 94913 Screw–TorxHex.
125 491026 Carburetor Assembly
(Choke A Matic)
––––––– Note –––––
490149 Carburetor
Used on Type No(s).
0634.
491028 Carburetor
(Remote & Manual
Choke)
Used on Type No(s).
0025, 0111, 0112,
0118, 0119, 0144,
0149, 0151, 0156,
0159, 0165, 0167,
0190, 0198, 0203,
0206, 0209, 0212,
0214, 0219, 0226,
0227, 0237, 0239,
0247, 0525, 0611,
0618, 0619, 0622,
0639, 0673, 0683,
0693.
491029 Carburetor
(Choke A Matic)
Used on Type No(s).
0189, 0228, 0644,
0646, 0650, 0675.
126 391787 Body Assembly–Upper
––––––– Note –––––
394038 Body
Assembly–Upper
Used on Type No(s).
0189, 0219, 0228,
0634, 0644, 0646,
0650, 0675.
127 221997 Plug–Welch
128 211960 Venturi–Carburetor
130 222433 Valve–Throttle
131 491006 Throttle Shaft Kit
132 211712 Stop–Throttle
136 221995 Bowl–Float
137 270511 Gasket–Float Bowl
138 222014 Washer
141 390684 Shaft–Choke
147 231323 Nozzle–Carburetor
257 93543 Screw–Slotted
537 270853 Gasket–Air Cleaner
618 261116 Spring
634 270382 Washer
634A 271853 Seal
662 222311 Bracket–Carburetor
663 93572 Screw–Hex.
987 398970 Seal–Throttle Shaft
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–6 Assemblies include all parts shown in frames. 58
6
952
953
535
643A
537
534A
643
536
875
224
445
874
549
534D
873
465
872
534B
534C
536A
534

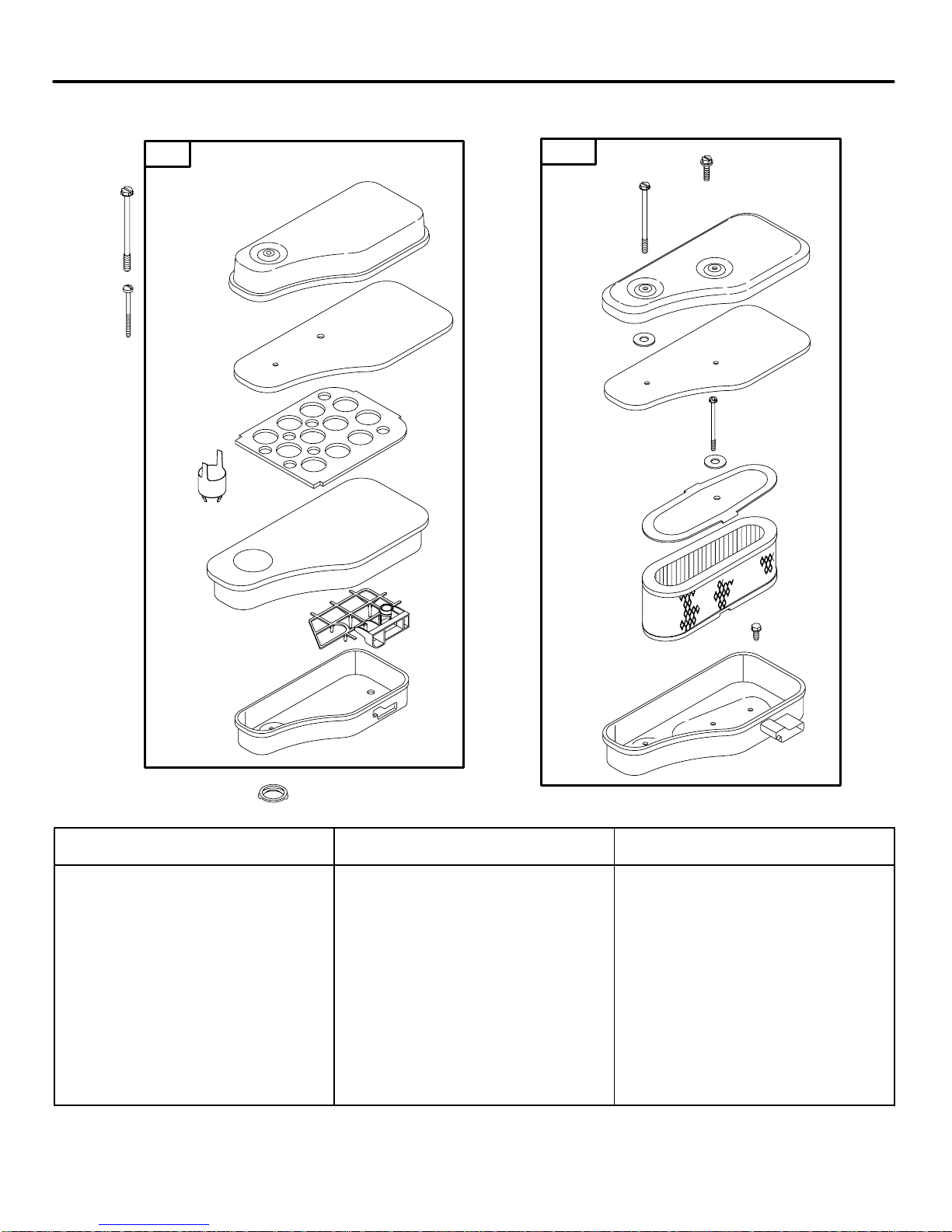

224 94902 Screw–Hex.
445 393725 Filter–Air
465 271118 Washer
534 93323 Screw–Slotted
534A 93622 Screw–Slotted
534B 93911 Screw–Slotted
534C 93913 Screw–Slotted
534D 93910 Screw–Slotted
535 270843 Filter–Air
536 391786 Cleaner–Air
536A 393749 Cleaner–Air
537 270853 Gasket–Air Cleaner
549 270978 Washer
643 222380 Spacer–Air Cleaner
643A 280118 Retainer–Air Filter
872 396966 Cover–Air Cleaner
873 397971 Gasket–Cleaner
Cover
874 222898 Retainer–Air Filter
875 397321 Base–Air Cleaner
952 222495 Spacer–Air Cleaner
953 222382 Screen–Air Cleaner
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–7 Assemblies include all parts shown in frames. 58
7
202
621
507
188
216
265
354
353
657
346
270
268
269
271
232
520
222
265A
916
202A
507A
354
353
506
188 94627 Screw–Hex.
202 262348 Link–Mechanical
Governor
202A 261609 Link–Mechanical
Governor
216 261610 Link–Choke
222 491594 Bracket–Control
(Choke A Matic)
––––––– Note –––––
491593 Bracket–
Control
(Remote & Manual
Choke)
396349 Bracket–
Control
(Used Before Code
Date 82110311).
232 260584 Spring–Link
(Used After Code Date
82110200).
––––––– Note –––––
261197 Spring–Link
(Used Before Code
Date 82110311).
265 221535 Clamp–Casing
265A 22372 Clamp–Casing
268 65616 Casing–Wire
(Cut to Required
Length)
269 26633 Wire–Control
(Cut to Required
Length)
270 63426 Locknut–Casing
271 290568 Lever–Control
346 94896 Screw–Hex.
353 92791 Washer–Lock
354 90576 Nut–Hex.
506 90200 Screw–Slotted
507 398525 Insulator
507A 66895 Insulator
520 93722 Terminal
657 94906 Screw–Slotted Hex.
621 396847 Switch–Stop
916 280324 Rack–Governor Gear
(Choke A Matic)
––––––– Note –––––
280321Rack–
Governor Gear
(Remote & Manual
Choke)
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–8 Assemblies include all parts shown in frames. 58
8
209
209 260871 Spring–Governor
(Used After Code Date
87030100).
261129 Spring–Gov.
(Used Before Code
Date 87030200).
––––––– Note –––––
260695 Spring–Gov.
(Used After Code Date
87030100).
Used on Type No(s).
0526, 0560, 0620,
0621, 0622, 0624,
0625, 0630, 0631,
0632, 0633, 0634,
0636, 0637, 0642,
0643, 0644, 0645,
0647, 0648, 0649,
0650, 0651, 0652,
0653, 0654, 0655,
0657, 0667, 0668,
0669, 0671, 0672,
0674, 0675, 0676,
0677, 0682, 0685,
0686, 0687, 0692,
0695, 0698, 0700,
0705, 0707, 0717,
0718.
260902 Spring–Gov.
(Used After Code Date
87030100).
Used on Type No(s).
0697, 0706, 0713,
0719.
261126 Spring–Gov.
(Used After Code Date
87030100).
Used on Type No(s).
0527, 0537, 0617,
0638, 0646, 0663,
0670, 0690, 0691,
0694, 0701, 0704,
0710, 0711, 0712,
0719.
261130 Spring–Gov.
(Used After Code Date
87030100).
Used on Type No(s).
0616, 0699, 0708.
260871 Spring–Gov.
(Used Before Code
Date 87030200).
Used on Type No(s).
0616, 0617, 0691,
0697, 0699, 0704,
0706, 0708, 0710,
0711, 0712, 0713,
0719.
261306 Spring–Gov.
(Used Before Code
Date 87030200).
Used on Type No(s).
0526, 0527, 0537,
0620, 0621, 0622,
0624, 0630, 0632,
0633, 0634, 0636,
0637, 0638, 0642,
0643, 0644, 0645,
0646, 0647, 0648,
0649, 0650, 0651,
0652, 0653, 0654,
0655, 0657, 0663,
0667, 0668, 0669,
0670, 0671, 0672,
0674, 0675, 0677,
0682, 0685, 0686,
0687, 0690, 0692,
0694, 0695, 0698,
0700, 0701, 0705.
261306 Spring–Gov.
Used on Type No(s).
0026, 0027, 0130,
0131, 0132, 0133,
0135, 0137, 0139,
0140, 0141, 0145,
0146, 0150, 0151,
0154, 0158, 0162,
0164, 0166, 0170,
0171, 0172, 0175,
0177, 0179, 0182,
0185, 0186, 0188,
0189, 0196, 0199,
0200, 0201, 0205,
0206, 0207, 0209,
0213, 0216, 0221,
0222, 0223, 0225,
0228, 0230, 0231,
0233, 0234, 0235,
0236, 0238, 0239,
0240, 0242, 0243,
0244, 0246.
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–9 Assemblies include all parts shown in frames. 58
9
601
240A
725
1054 187
527
683
242
243
247
245
244
240
246
241
917 601
918
305
346
387
187 296004 Line–Fuel
(Cut to Required
Length)
240 393169 Filter–Fuel
240A 298090 Filter–Fuel
241 296005 Cover–Filter
242 295913 Valve–Shut Off
243 22547 Screen–Filter
244 230318 Connector–Hose
245 68477 Gasket–Bowl
246 298683 Bowl–Filter
247 99665 Yoke–Bowl
305 94786 Screw–Hex.
346 94896 Screw–Hex.
387 491922 Pump–Fuel
527 221428 Cl amp–Tube
601 93053 Clamp–Hose
(Green)
––––––– Note –––––
93807 Clamp–Fuel
Line (Black)
683 94874 Screw–Hex.
725 222175 Shield–Heat
917 223271 Handle–Shut-Off
Valve
918 393815 Hose–Vacuum
(Cut to Required
Length)
1054 280275 Tie–Cable
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–10 Assemblies include all parts shown in frames. 58
10
182
181
184
185 188
198
958
198
186B
186A
180
183
199
199A
182A
184
185
181A
186
183A
917
189

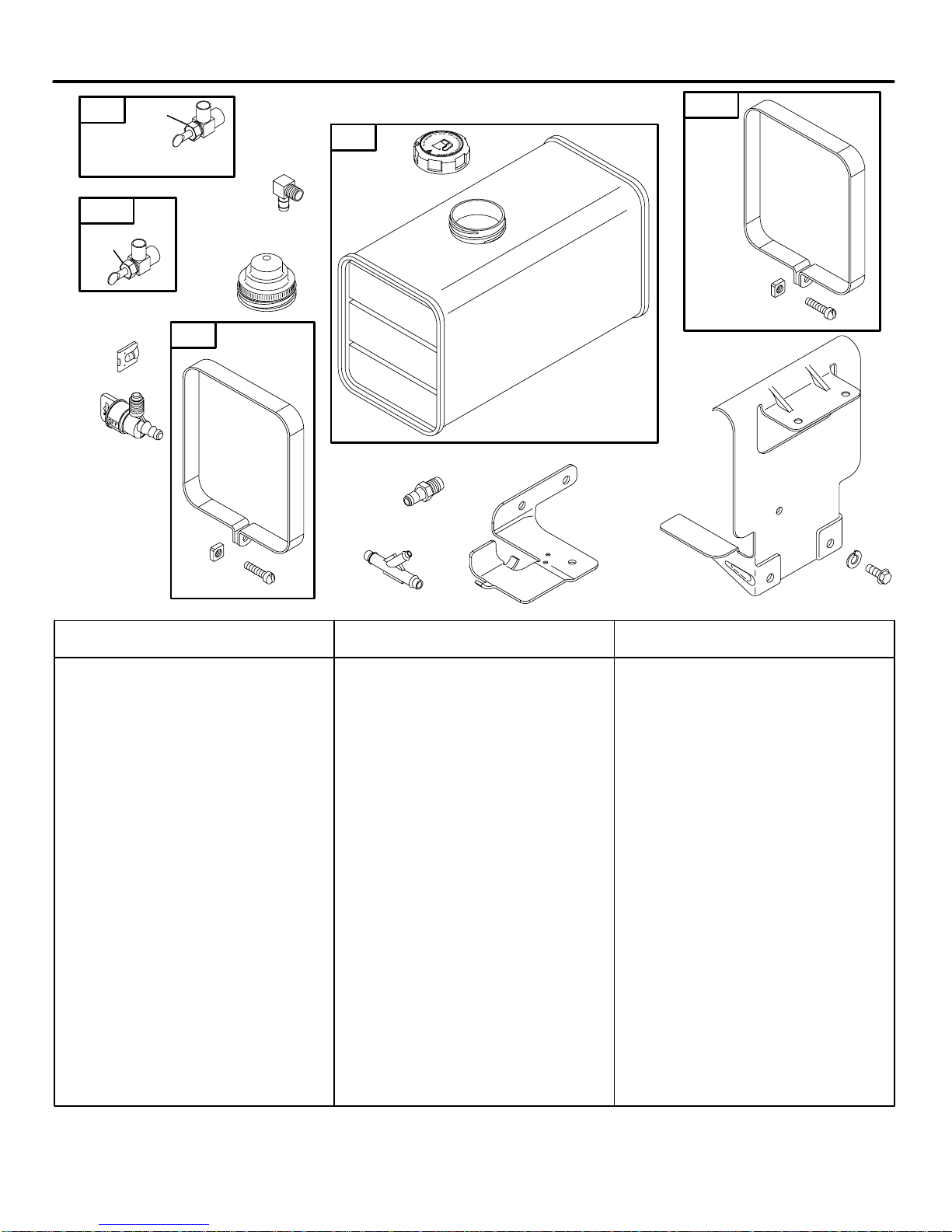

180 390225 Tank–Fuel
(3 Quart)
––––––– Note –––––
292415 Tank–Fuel
(8 Quart)
181 493988 Cap–Fuel Tank
181A 392305 Cap–Fuel Tank
182 222980 Bracket–Fuel Tank
(R.H.)
182A 224884 Bracket–Fuel Tank
(L.H.)
––––––– Note –––––
223157 Bracket–Fuel
Tank
Used on Type No(s).
0668.
183 496853 Strap–Fuel Tank
(R.H.)
183A 496852 Strap–Fuel Tank
(L.H.)
184 94286 Screw–Hex.
185 90970 Nut
186 67218 Connector–Hose
186A 67218 Connector–Hose
186B 230318 Connector–Hose
188 94627 Screw–Hex.
––––––– Note –––––
94786 Screw–Hex.
Used on Type No(s).
0668.
189 90832 Washer–Lock
Used on Type No(s).
0668.
198 293934 Screw–Shut-Off
199 492649 Valve–Shut-Off
199A 297563 Valve–Shut–Off
Used on Type No(s).
0639.
917 223271 Handle–Shut-Off
Valve
958 399517 Valve–Shut-Off
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–11 Assemblies include all parts shown in frames. 58
11
883 613
725A
836
346
300C
436
302
346
346
301 883
300
300A
676
676A
676B
346
994
300 491413 Muffler–Exhaust
300A 391569 Muffler–Exhaust
300C 498984 Muffler–Exhaust
301 93768 Pipe–Muffler
––––––– Note –––––
93833 Pipe–Muffler
Used on Type No(s).
0516, 0601, 0604,
0606, 0607, 0630,
0631, 0632, 0636,
0637, 0638, 0639,
0650, 0680, 0691,
0692, 0693, 0694,
0701, 0704, 0705,
0706, 0715, 0728,
0732, 0740, 0754.
302 261564 Locknut–Muffler
346 94896 Screw–Hex.
436 91308 Manifold–Exhaust
613 93927 Screw–Shoulder
676 393761 Deflector–Muffler
676A 396903 Deflector–Muffler
676B 397630 Deflector–Muffler
725A 223023 Shield–Heat
836 94729 Screw–TorxHex.
883 ∅272293 Gasket–Exhaust
––––––– Note –––––
222761 Gasket–
Exhaust
Used on Type No(s).
0261, 0640, 0695.
994 392390 Arrestor–Spark
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–12 Assemblies include all parts shown in frames. 58
12
24
726
363
423
304
305
23A
37
38
727
23
75
332
73B
78
74
73
455
353
58
73C
37A
781
729C
930
727A
23 391988 Flywheel
23A 498896 Flywheel
24 222698 Key–Flywheel
37 224886 Guard–Flywheel
37A 222475 Guard–Flywheel
38 94811 Screw–Hex.
58 69932 Rope–Starter
73 224874 Screen–Rotating
73B 224517 Screen–Rotating
73C 496084 Screen–Rotating
74 93758 Screw–Hex.
75 225136 Washer–Flywheel
78 94626 Screw–Phillips
304 398333 Housing–Blower
––––––– Note –––––
396608 Housing–
Blower
Used on Type No(s).
0677.
305 94786 Screw–Hex.
332 94877 Nut–Flywheel
353 92791 Washer–Lock
423 94903 Screw–Shoulder
455 222561 Cup–Flywheel
726 399676 Gear–Ring
727 395405 Cover–Starter Drive
727A 224871 Guard–Flywheel
729C 281159 Clip–Wire
781 280068 Cap–Starter Pully
930 280685 Guard–Rewind
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–13 Assemblies include all parts shown in frames. 58
13
DUAL CIRCUIT TRI–CIRCUIT
877A 877B
878C 878B
NOTE: ALL STATORS USE NO. 482 MOUNTING SCREW.
10 AMPDUAL CIRCUIT/FUSE 474A 474B 474C
474
851
334
333
356A 878A
501
605
841
878
877C
356
877C
526
356B
333 398811 Armature–Magneto
334 94731 Screw–Hex.
356 398808 Wire–Stop
356A 494328 Wire–Stop
356B 399323 Wire–Stop
474 391529 Alternator
Used on Type No(s).
0616, 0694.
474A 393474 Alternator
Used on Type No(s).
0525, 0526, 0550,
0604, 0607, 0618,
0619, 0620, 0630,
0635, 0638, 0641,
0643, 0644, 0650,
0664, 0669, 0676,
0677, 0680, 0682,
9684, 0732, 0735,
0738, 0740, 0745,
0749, 0751, 0753,
0754, 0755, 0757,
0761, 5526.
474B 392595 Alternator
Used on Type No(s).
0655, 0673, 0675.
474C 393295 Alternator
Used on Type No(s).
0527, 0694, 0697,
0703, 0716, 0767,
5545.
482 93621 Screw–Hex.
501 394890 Regulator
––––––– Note –––––
397809 Regulator
Used on Type No(s).
0694.
526 93343 Screw–Hex.
––––––– Note –––––
94137 Screw–Hex.
Used on Type No(s).
0694.
605 222934 Bracket–Mounting
851 493880 Terminal–Cable
841 393514 Clamp
877A 393456 Wire–Alternator
877B 393537 Wire–Alternator
877C 393814 Wire–Alternator
878 393362 Harness–Alternator
(D.C.)
878A 393422 Harness–Alternator
878B 392606 Harness–Alternator
878C 393362 Harness–Alternator
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–14 Assemblies include all parts shown in frames. 58
14
57
56
1016
655
64
63
58A
59
373 65
608
55
60
76
71
68
70
67
69
66
55 393576 Housing–Rewind
Starter
––––––– Note –––––
398099 Housing–
Rewind Starter
Used on Type No(s).
0516, 0601, 0604,
0606, 0607, 0630,
0631, 0632, 0636,
0637, 0639, 0640,
0650, 0677, 0680,
0691, 0693, 0694,
0695, 0701, 0704,
0705, 0706, 0715,
0719, 0727, 0728,
0732, 0734, 0735,
0736, 0737, 0739,
0745, 0749, 0751,
0754, 0755, 0756,
0757, 0762.
56 295871 Pulley–Starter
(Includes Rope)
57 490179 Spring–Rewind Starter
58A 66894 Rope–Starter
(Cut to Required
Length)
59 490653 Insert–Grip
60 490652 Grip–Starter Rope
––––––– Note –––––
398101 Grip–Starter
Rope
Used on Type No(s).
0516, 0601, 0604,
0606, 0607, 0630,
0631, 0632, 0636,
0637, 0639, 0640,
0650, 0677, 0680,
0691, 0693, 0694,
0695, 0701, 0704,
0705, 0706, 0715,
0719, 0727, 0728,
0732, 0734, 0735,
0736, 0737, 0739,
0745, 0749, 0751,
0754, 0755, 0756,
0757, 0762.
63 260414 Spring–Ratchet
64 281204 Adapter–Spring
65 94904 Screw–Hex.
66 399671 Clutch–Starter
67 394897 Housing–Clutch
68 63770 Ball–Clutch
69 66718 Washer
70 298799 Ratchet–Clutch
71 394506 Cover–Ratchet
76 68238 Seal
373 94908 Nut–Hex.
608 390391 Starter–Rewind
––––––– Note –––––
397982 Starter–
Rewind
Used on Type No(s).
0516, 0601, 0604,
0606, 0607, 0630,
0631, 0632, 0636,
0637, 0639, 0640,
0650, 0677, 0680,
0691, 0693, 0694,
0695, 0701, 0704,
0705, 0706, 0715,
0719, 0727, 0728,
0732, 0734, 0735,
0736, 0737, 0739,
0745, 0749, 0751,
0754, 0755, 0756,
0757, 0762.
655 222598 Anchor–Spring
1016 490817 Spacer–Rewind
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799

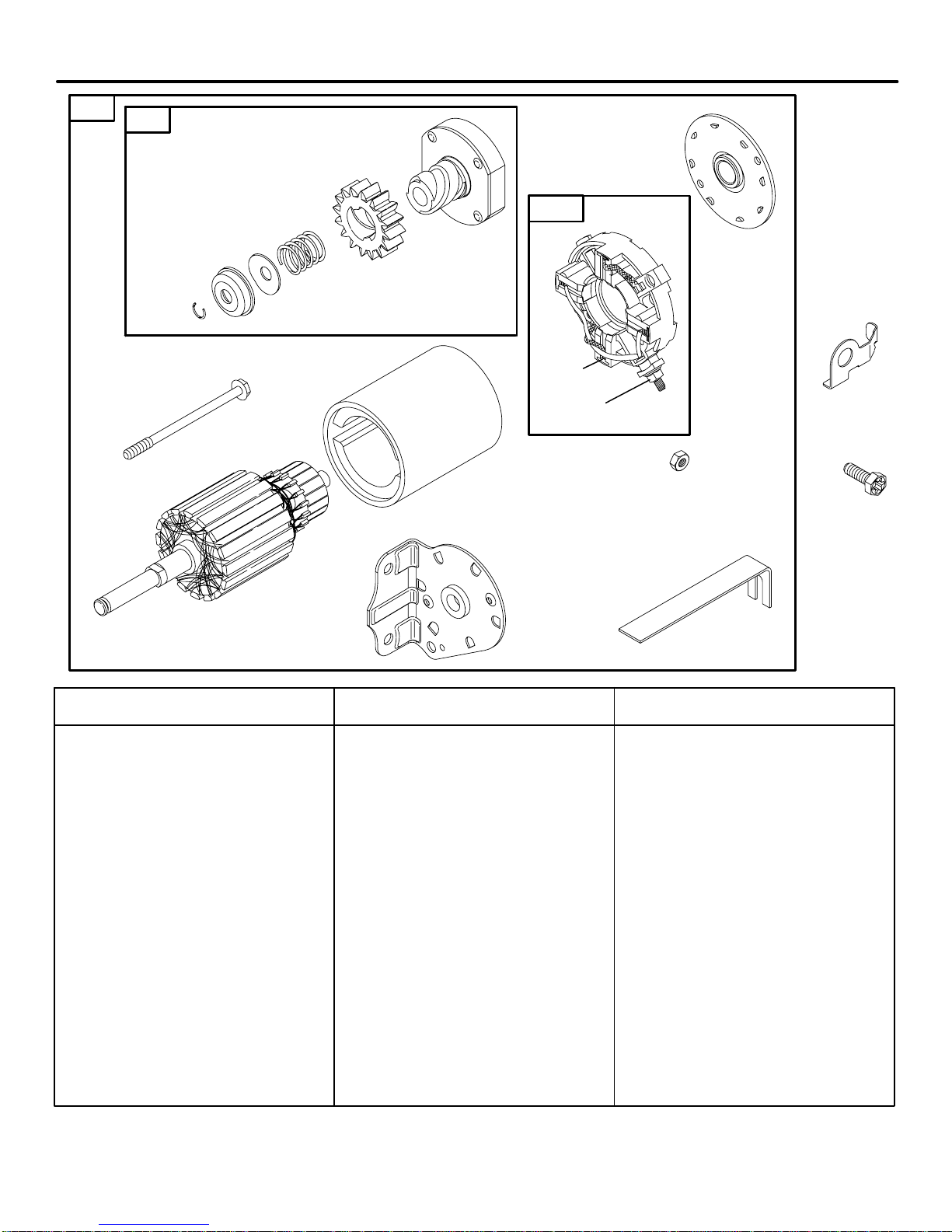

6929–15 Assemblies include all parts shown in frames. 58
15
544
802
801
803
310
697
783
729
1051
503
309 510 513
311
1090
797A
797
309 693054 Motor–Starter
(3 5/8”Housing
Length)
––––––– Note –––––
499521 Motor–Starter
(4 3/8”Housing
Length)
310 94003 Bolt
(Starter Motor)
(For 3 5/8”Housing
Length)
––––––– Note –––––
95035 Bolt
(Starter Motor)
(For 4 3/8”Housing
Length)
311 497608 Brush Set
503 806000 Strap–Starter
510 497606 Drive–Starter
513 398003 Clutch–Drive
544 497603 Armature–Starter
(For 3 5/8”Housing
Length)
697 94773 Screw
(Starter Motor
Mounting)
729 225170 Clip–Wire
783 693059 Gear–Starter
797 92278 Nut
(Starter Terminal)
797A 693167 Nut
(Starter Terminal)
801 497626 Cap–Drive
802 497607 Cap–End
803 497604 Housing–Starter
(For 3 5/8”Housing
Length)
1051 263080 Ring–Retaining
1090 497605 Retainer–Brush
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799
6929–16 Assemblies include all parts shown in frames. 58
16
513
896
310
803A
544A
513
896A 783
783
510B
773
876 311A
802A
697
309A NOTE: For Replacement Starter Motor,
See Ref. 309, Previous Page
801A
510A
729A
797A 797
1003
311B
797A
797
834
926
309A Motor–Starter
(For Replacement
Starter Motor, See Ref
309, Previous Page.)
310 94003 Bolt
(Starter Motor)
(For 3 5/8”Housing
Length)
––––––– Note –––––
95035 Bolt
(Starter Motor)
(For 4 3/8”Housing
Length)
94169 Bolt
(Starter Motor)
(For 4 9/16”Housing
Length)
311A 395538 Brush Set
(For 3 5/8”and 4 3/8”
Housing Lengths)
311B 490311 Brush Set
(For 4 9/16 ”Housing
Length)
510A 495878 Drive–Starter
510B 391461 Drive–Starter
513 398003 Clutch–Drive
544A 390837 Armature–Starter
(For 3 5/8”Housing
Length)
––––––– Note –––––
391160 Armature–
Starter
(For 3 5/8”and 4 3/8”
Housing Lengths)
697 94627 Screw
(Starter Motor
Mounting)
729A 224723 Clip–Wire
773 391462 Retainer–Clutch
783 693059 Gear–Starter
797 93715 Nut
(Starter Terminal)
797A 693167 Nut
(Starter Terminal)
801A 394856 Cap–Drive
802A 395537 Cap–End
(For 3 5/8”and 4 3/8”
Housing Lengths)
803A 398159 Housing–Starter
(For 3 5/8”Housing
Length)
––––––– Note –––––
494205 Housing–
Starter
(For 4 9/16 ”Housing
Length)
834 92507 Washer
(Starter Terminal)
876 495877 Kit–Gear
896 94288 Pin–Drive Retainer
(Copper)
896A 94192 Pin–Drive Retainer
(Black)
926 498233 Housing/Cap Kit
(Hsg. Length 4 9/16”)
1003 490316 Spring–Brush
(Hsg. Length 4 9/16”)
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

252700 to 252799

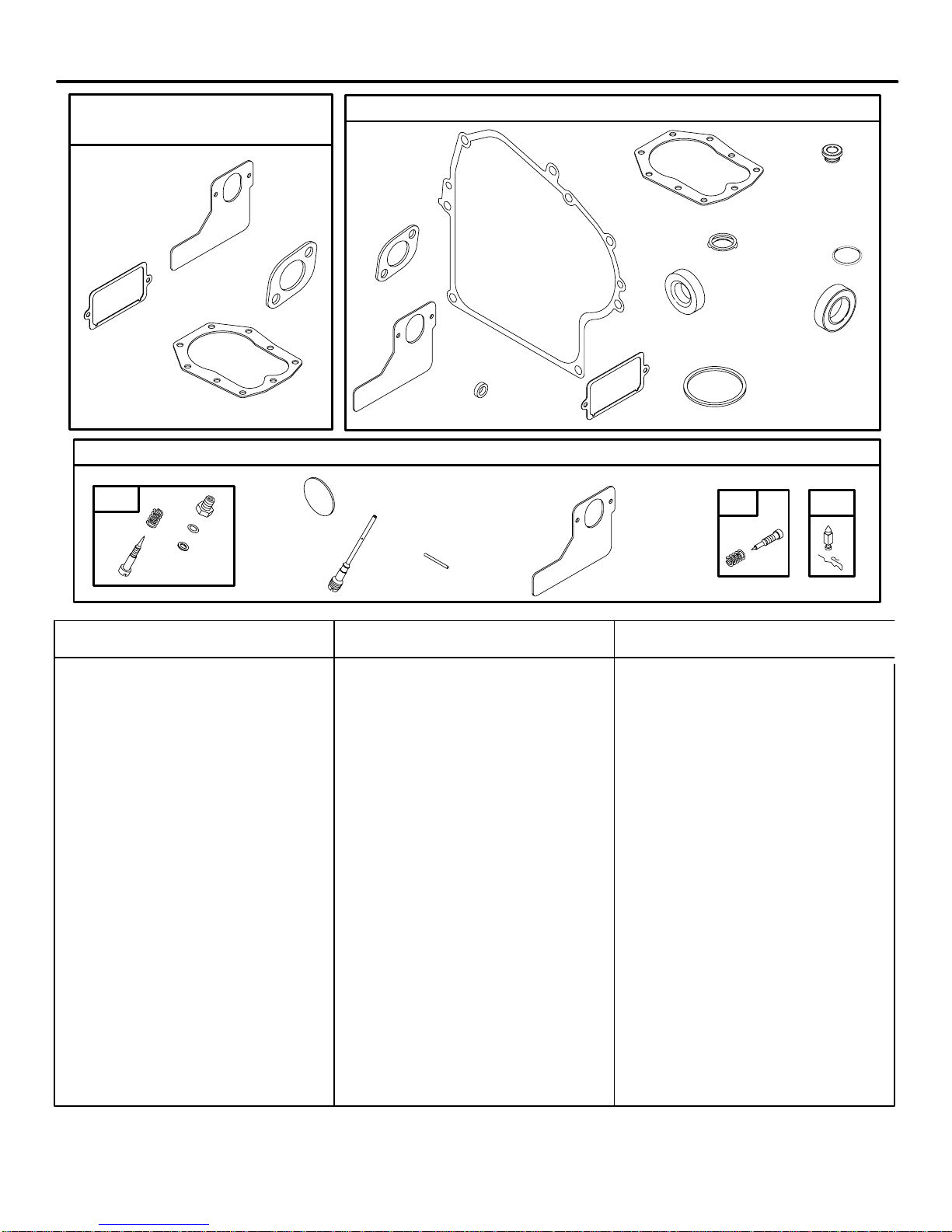

6929–17 Assemblies include all parts shown in frames. 58
17
9
7
12
883
529
87
20
3
358 GASKET SET
121 CARBURETOR KIT
127
104
113
1095 VALVE OVERHAUL
GASKET SET
7
9883
51
51
51
118 105
94
116
537
245
3391086 Seal–Oil
7∅271866 Gasket–Cylinder Head
9∅27803 Gasket–Breather
12 271702 Gasket–Crankcase
(.015”Thick,
Standard)
––––––– Note –––––
270915 Gasket–
Crankcase
(.005”Thick)
270916 Gasket–
Crankcase
(.009”Thick)
20 291675 Seal–Oil
51∅270872 Gasket–Intake
87 491323 Seal–Governor Shaft
94 292681 Kit–Idle Mixture
104 231435 Pin–Float Hinge
105 394681 Valve–Needle
(Gravity Feed)
113 299740 Nozzle–Carburetor
116 270920 Seal–O-Ring
118 396568 Valve–High–Speed
121 394698 Carburetor Kit
127 221997 Plug–Welch
245 68477 Gasket–Bowl
358 393411 Gasket Set
529 281370 Seal–Fill Tube
537 270853 Gasket–Air Cleaner
883 ∅272293 Gasket–Exhaust
1095 498537 Gasket Set–Valve
Overhaul
Included in Gasket Set–Part No. 393411.
Included in Carburetor Kit–Part No. 394698. ∅Included in Valve Overhaul Gasket Set–Part No. 498537.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
