ZELo
Assembly Instructions
Please Scan this QR Code to your Mobile
Phone to Download Brightline Smart

580 Mayer Street - Building # 7 - Bridgeville, PA 15017 USA
Phone: [phone] www.brightlines.com
© 2020 Brightline LP All Rights Reserved
Specifications are subject to change without notice.
Overview

580 Mayer Street - Building # 7 - Bridgeville, PA 15017 USA
Phone: [phone] www.brightlines.com
© 2020 Brightline LP All Rights Reserved
Specifications are subject to change without notice.
Fixture Features
• Custom heat sink
• Internal glare control lter
• External soft light diffusion
• Focusing handle
• Articulating light cell
• Adjustable height 18- to 30-in (457- to 762-mm)
• Twist-locking grip
• Play back pre-set memory
• Safety base
Construction
The xture and base are made of aluminum. The two diffusion plates are plastic.
Fixture Finish
Two tone paint, powder-coat black and silver with full color logo design.
LED Technology
1300 Lumen LEDs with 96+CRI (98 TLCI). Color temperature range from 2700°K to 6500°K,
adjustable for seasonal affective disorder (SAD) therapy.
Power & Control
Control options included are:
• on/off switch with App sync
• 2 touch sliders for brightness control and color adjustment
• Voice-activated control through Alexa and Google Assistant
Fixture can playback stored presets. Includes power supply with multiple plug in connectors (parallel
blade and ground, Schuko 2-pin connector). Fixtures are 120/230V.
Fixture Dimensions and Weight
Base Plate: 13.25- x 8-in (336.6- x 203.2-mm)
Fixture Height: 18- to 30-in (457- to 762-mm)
Fixture Weight: 7-lbs (3.2-kg)
Certications
cETL and CE
Specifications

580 Mayer Street - Building # 7 - Bridgeville, PA 15017 USA
Phone: [phone] www.brightlines.com
© 2020 Brightline LP All Rights Reserved
Specifications are subject to change without notice.
Base Plate Assembly

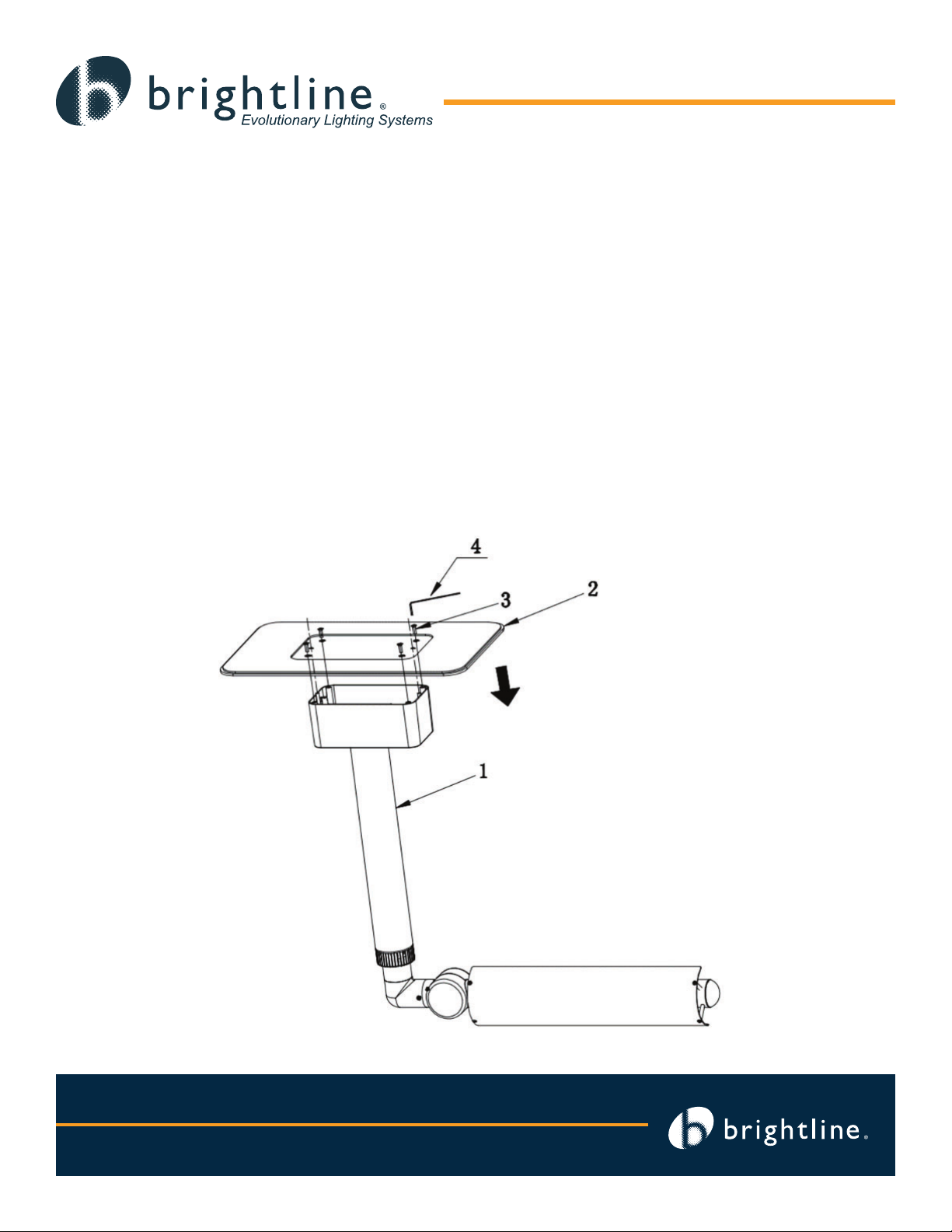

• Place the Main Body Housing (1) on a soft, at surface.
• Lift the Main Body Housing (1) enough to locate and align the registration tabs on the Main Body
Housing (1) with the center guide holes on Base Plate (2).
• Once Base Plate (2) is in position start at any hole location and install the Hex Screw (3) by turning
clockwise - continue the process until all four Hex Screws are in place.
• Use Hex Wrench (4) <provided> to tighten and secure each Hex Screw (3).
Assembly Instructions
Preparation

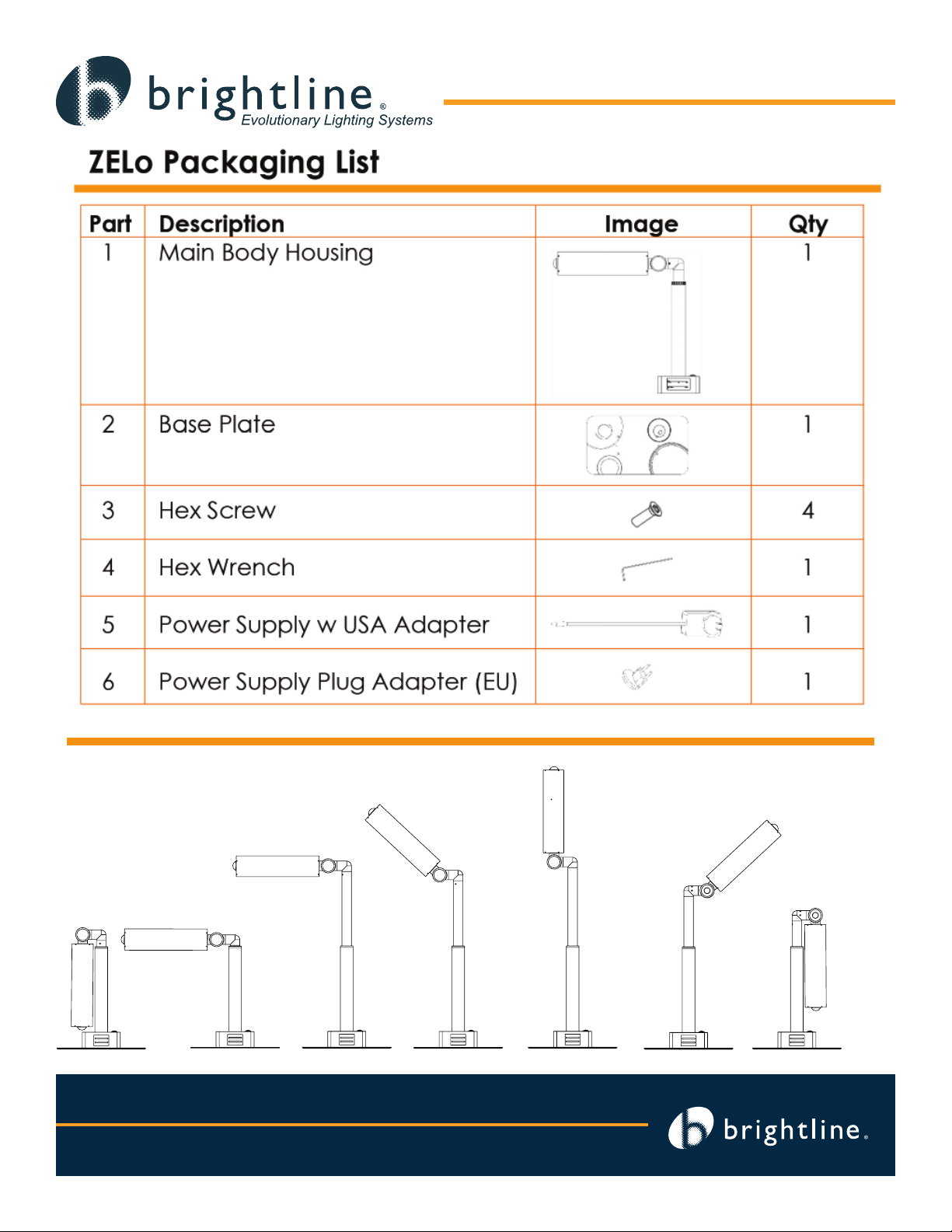

Before beginning assembly of ZELo make sure all parts are present. Compare carton contents to the ZELo
Packaging List. If any parts are missing or damaged do not attempt to assemble the product.

580 Mayer Street - Building # 7 - Bridgeville, PA 15017 USA
Phone: [phone] www.brightlines.com
© 2020 Brightline LP All Rights Reserved
Specifications are subject to change without notice.
Power Supply

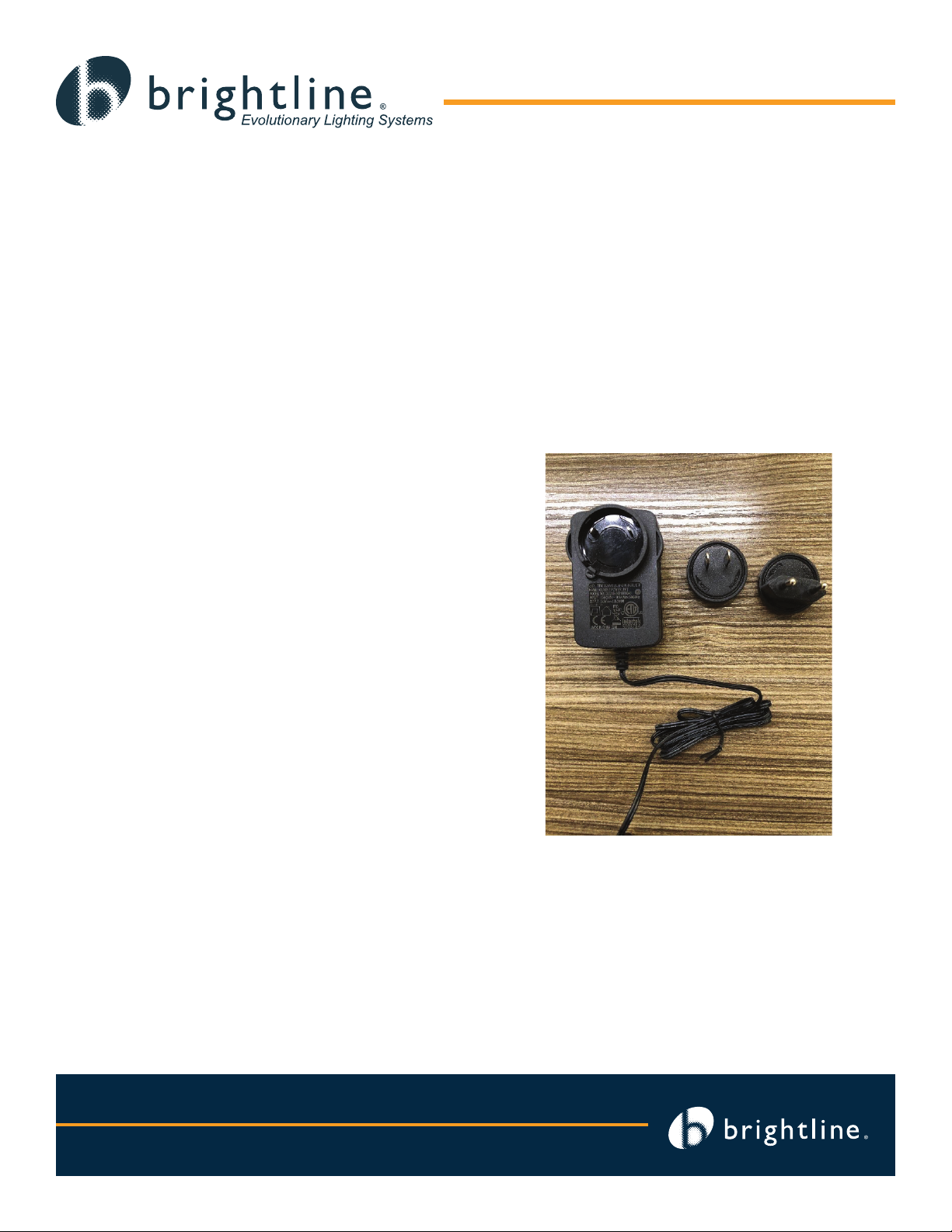

• Select the corresponding Power Supply Plug Adapter (6) for your location.
• Insert the Power Supply Plug Adapter (6) into the pins located on the Power Supply (5) – follow the
instructions on the Power Supply Plug Adapter (6) to secure correctly to the Power Supply (5).
• Plug the cord into the power adapter source located on the back of the ZELo Control Box.
• Plug the Power Supply (5) into the wall outlet.
• ZELo will now be ready to proceed to the Brightline APP startup guide or you can begin using
ZELo in the manual control mode.
Assembly Instructions

580 Mayer Street - Building # 7 - Bridgeville, PA 15017 USA
Phone: [phone] www.brightlines.com
© 2020 Brightline LP All Rights Reserved
Specifications are subject to change without notice.
Adjustment Features
In addition to color temperature change and
dimming, ZELo has a full set of adjustment features
that allow you to further rene your xture settings
and light distribution.
270° Rotating Light Bar – use the handle on the
back of the Light Bar to rotate and adjust to the
desired direction – TIP: in the downward direction
ZELo doubles as a great task / desk light!
Center Pole Height Adjustment – loosen the
center pole collar by turning counter-clockwise
approximately ¼ turn. Raise and lower the xture
height between 18 and 30 inches by grabbing
and adjusting the tube at or just below the elbow.
Once the height is set, turn the center pole collar
clockwise to tighten and secure. Do not attempt to
raise or lower the center pole by grabbing anywhere
on the Light Bar – doing so could damage the
xture.
300° Light Bar Swivel - loosen the center pole
collar by turning counter-clockwise approximately
¼ turn. The Light Bar can be rotated a full 300° by
grabbing the center pole at or just below the elbow
and rotating the Light Bar in either direction . Once
the angle of the Light Bar is set, turn the center
pole collar clockwise to tighten and secure.
Light Bar Swivel
Height Adjustment
270° Rotating Light Bar

580 Mayer Street - Building # 7 - Bridgeville, PA 15017 USA
Phone: [phone] www.brightlines.com
© 2020 Brightline LP All Rights Reserved
Specifications are subject to change without notice.
Brightline guarantees all its PDQXIDFWXUHG/('products to be free from defects
in materials andworkmanship for a period of WKUHH () yearVfrom the date of
shipment.
If any product is found to be unsatisfactory under this warranty, the buyer must notify
Brightline immediately. Once a course of action has been determined, if it is
necessary to return the product to Brightline a Return Authorization (RA) will be
issued. Ship the product directly to Brightline, 580 Mayer Street, Building #7,
Bridgeville, PA 15017. The RA number should be marked on the shipping carton. The
unit will be replaced or put into proper operating condition, free of all charges. The
correction of any defects through repair or replacement by Brightline shall
constitute fulfillment of all obligations and liability of Brightline to the buyer under
this warranty and the contract of sale.
Brightline is not responsible for damage to its products caused by improper
installation, maintenance, or use; by improper electrical hookups; or by unauthorized
repairs.
Failure to notify Brightline of unsatisfactory operation or any improper or
unauthorized installation, maintenance, use, repairs, or adjustments shall terminate the
warranty and Brightline shall have no further responsibility under the warranty.
Brightline shall not be liable for special or consequential damages in any claim,
action, suit, or proceeding arising under this warranty or contract of sale, nor shall
Brightline be liable for claims for labor, loss of profits or goodwill, repairs, or other
expenses incidental to replacement. Brightline makes no other warranty of any
kind whatsoever, expressed or implied, and all implied warranties of merchantability and
fitness for a particular purpose that exceed the obligation specifically described in this
warranty are hereby disclaimed by Brightline and excluded from this agreement.
All shipments, unless otherwise noted, are F.O.B. factory.
The customer is advised to inspect for shipping damage, apparent and/or hidden.
If detected, notify the transportation company and file your claim.
WARRANTY
PROCEDURES
DISCLAIMERS
580 Mayer Street, Building #7, Bridgeville, PA 15017 • phone [phone] • fax [phone]
www.brightlines.com
