OWNER'S MANUAL
40" LAWN AERATOR
MODEL:
SA2-40BH1-G
• Assembly
• Installation
• Operation
• Repair Parts

21019097-B
English Manual
INTRODUCTION AND SAFETY
CONGRATULATIONS on your new Brinly-Hardy Aerator! This accessory has been designed, engineered and
manufactured to give you the best possible dependability and performance.
Should you experience any problem you cannot easily remedy, please do not hesitate to contact our knowledgeable
customer service department toll-free at 1-877-728-8224. We have competent, well trained technicians to help you with
the assembly and use of your product.
CUSTOMER RESPONSIBILITIES
- Please read & retain this manual. The instructions will enable to assemble and maintain your product properly.
- Please carefully read and observe the SAFETY SECTION of this manual.
- Follow a regular schedule in maintaining and caring for your Brinly-Hardy product.
TABLE OF CONTENTS
SAFETY ......................2-4
COMPONENT VIEW
AND REFERENCE LIST ..........5-6
ASSEMBLY .................. 7-11
OPERATION ................ 12-13
MAINTENANCE ............... 14
STORAGE AND SERVICE ........ 15
WARRANTY ................... 16
RECORD PURCHASE INFORMATION
Record your purchase information in
the spaces provided below:
Date of Purchase __________________________________
Company Name __________________________________
Company Phone __________________________________
Serial Number __________________________________
SAFETY
This symbol will help to point out important
safety precautions throughout this manual.
It means: ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED.
The machine safety labels shown in this section are placed
in important areas on your machine to draw attention to
potential safety hazards.
On your machine safety labels, the words DANGER,
WARNING, and CAUTION are used with this safety-alert
symbol. DANGER identifies the most serious hazards.
The operator’s manual also explains any potential safety
hazards whenever necessary in special safety messages
that are identified with the word, CAUTION, and the safety-
alert symbol.
B-7063 (Not to scale)

1019097-B3
English Manual
SAFETY
Caution should be taken when towing and/or using any attachment. This attachment combined
with the weight distribution, turning radius, and speed of towing vehicle can result in severe injury
or death to operator, damage to towing vehicle, and/or attachment if not used properly. Follow
all towing safety precautions noted in the towing vehicle owner’s manual, including the following
precautions:
- Use this attachment for intended purpose only.
- Before you operate any feature of this attachment or towing vehicle, observe your
surroundings and look for bystanders.
- This attachment is intended for use in lawn care and home applications. Do not tow
behind a vehicle on a highway or in any high speed applications. Do not tow at speeds
higher than the maximum recommended towing speed.
- Towing speed should always be slow enough to maintain control. Travel slowly over
rough terrain. Avoid holes, rocks and roots. Slow down before turning.
- Do not exceed the maximum towing capacity of your towing vehicle.
- Do not tow this product behind a motor vehicle such as a car, truck or ATV.Towing this
product behind a ZTR (Zero Turn Radius) mower can affect the stability of the mower
and is not recommended. Additionally, towing this product behind a ZTR mower is not
recommended due to the speed and sharp turning ability the ZTR. Damage to this product
or ZTR may result.
- Know your towing vehicle controls and how to stop safely, READ YOUR OWNER’S
MANUAL before operating.
- Check the towing vehicle brake action before you operate. Adjust or service brakes as
necessary.
- Do not allow children to operate the towing vehicle. Do not allow adults to operate the
towing vehicle without proper instruction or without having read the owner’s manual.
- Always wear substantial footwear. Do not wear loose fitting clothing that can get caught
in moving parts.
- Keep your eyes and mind on your towing vehicle, attachment and area being covered. Do
not let other interests distract you.
- Stay alert for holes and other hidden hazards in the terrain.
- The towing vehicle and attachment should be stopped and inspected for damage after
striking a foreign object. Any damage should be repaired before restarting and operating
the equipment.
- Do not drive close to creeks, ditches and public highways.
- Watch out for traffic when crossing near roadways.
- Keep the towing vehicle and attachment in good operating condition and keep safety
devices in place.
- Keep all parts in good condition and properly installed. Fix damaged parts immediately.
Replace worn or broken parts. Replace all worn or damaged safety and instruction
decals. Keep all nuts, bolts and screws tight.
- Do not modify the attachment or safety devices. Unauthorized modifications to the towing
vehicle or attachment may impair its function or safety, and it will void the warranty.
GENERAL NOTES (OPERATION)
Safety continues on page 4...
B-3922

41019097-B
English Manual
TOWING VEHICLE AND TOWING SAFELY
- Read the safety operating precautions in your towing
vehicle operator’s manual for additional safety information.
- Stopping distance increases with speed and weight
of towed load. Travel slowly and allow extra time and
distance to stop. Total towed weight must not exceed
limits specified in towing vehicle operator’s manual.
- Excessive towed load can cause loss of traction and
loss of control on slopes. Reduce towed weight when
operating on slopes.
- Use only approved hitches. Tow this attachment only with
a towing vehicle that has a hitch designed for towing. Do
not connect this attachment except at the approved hitch
point.
- Follow the towing vehicle manufacturer’s recommendations
for weight limits for towed equipment and towing on slopes.
Use counterweights or wheel weights as described in the
towing vehicle operator’s manual.
- Slow down before you turn and do not turn sharply.
Use additional caution when turning or operating under
adverse surface conditions.
- When reversing, carefully back-up straight to avoid jack-
knifing. Do not allow the towing vehicle’s wheels to contact
the attachment drawbar. Damage could result.
- Do not shift to neutral and coast downhill.
PROTECT THOSE AROUND YOU
- Keep children, bystanders and pets at a safe distance
away while operating this or any attachment.
- Use care when reversing. Before you back up, look
carefully behind for bystanders.
- Before you operate any feature of this attachment or
towing vehicle, observe your surroundings and look for
bystanders.
KEEP RIDERS OFF TOWED
ATTACHMENT AND TOWING VEHICLE
- Do not carry passengers.
- Do not let anyone, especially children, ride in/on this
attachment, the towing vehicle or hitch bracket. Riders
are subject to injury such as being struck by foreign
object and/or being thrown off during sudden starts, stops
and turns. Riders may also obstruct the operator’s view
resulting in this attachment being operated in an unsafe
manner.
SAFETY
NOTES
STOP
Installation Questions?
Missing Parts? Replacement Parts?
DON’T GO BACK TO
THE STORE!
Please call our Customer Service
Department, Toll Free: 877-728-8224
or [e-mail]
TOOLS REQUIRED
FOR ASSEMBLY:
• 1/2” Wrench (x1)
• Set of Pliers or Hammer
• Gloves

1019097-B5
English Manual
x10

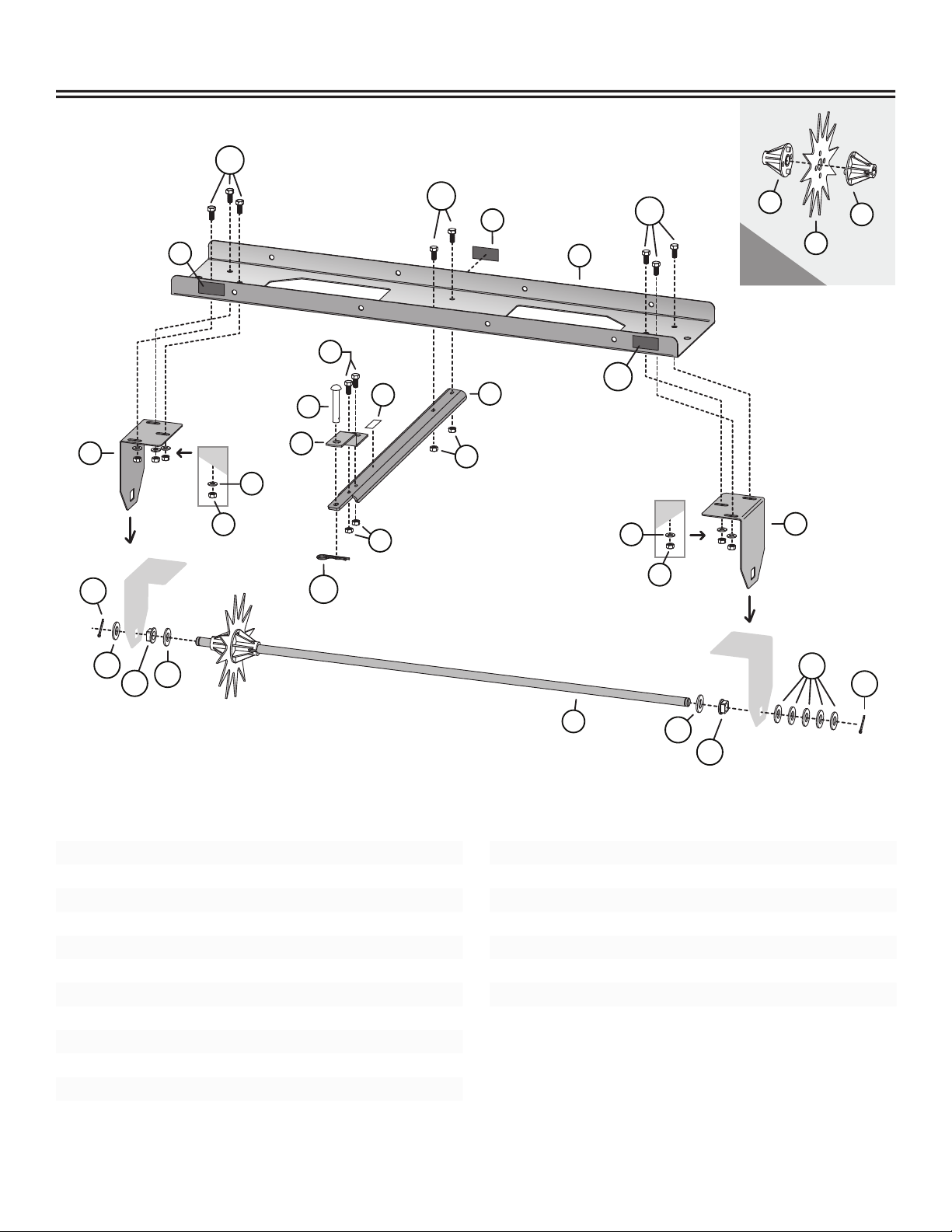

COMPONENT VIEW AND REFERENCE LIST
2
x3
14
12
x3
14
12
10
11
6
20
16
3
12
12
11
18
4
1
1
5
9
8
9
7
10
15
17 15
17
15
15
19
19
21
Ref # Part # Description Qty
11018977-16 End Panel 2
21018988 Tine Shaft 1
31018984-16 Drawbar 1
4B-3922 Decal; Caution Aerator 1
51018986-16 Tray 1
61019088 Decal; Brinly Logo 1
7B-7063 Label; Caution Pictorial 1
81018833 Tine 10
9B-5425 Bearing 20
10 2M1012P Bolt; Hex Head, 5/16 x 3/4 6
11 2M1016P Bolt; Hex Head, 5/16 x 1 4
12 B-4786 Nut; Nylock, 5/16 10
Ref # Part # Description Qty
14 45M1111P Washer; Flat, 5/16" 6
15 45M2121P Washer; Flat, 5/8" 8
16 B-3861 Hitch Pin, 1/2" x 2-1/2" 1
17 1019206 Square Bearing 2
18 1019151 Hairpin Cotter, 1/8" 1
19 1008098 Cotter Pin 2
20 1019260-16 Clevis 1
21 1019245 Label; Serial Number 1

61019097-B
English Manual
DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS.
Please Call: 1 [phone]
HARDWARE IDENTIFIER
Illustrations on this page
are to scale for faster
identication of hardware
during assembly.
Hitch Pin: 1/2" x 2 1/2" (x1) . . . . . . . . . . . . . . . . . . . . . . .
B-3861
16
Hairpin Cotter, 1/8" (x1)
1019151 . . . . . . . . . . . . . . . .
18
Cotter Pin (x2)
1008098 . . . . . . .
19
9Bearing (x20). . . . . . . . . .
B-5425
Washer: Flat
5/16” (x6) . . . . . . . . . . . .
45M1111P
14
B-4786
12 Nut: Nylock
5/16” (x10) . . . . . . . . . . . . .
Washer: Flat
5/8” (x8) . . . . . . . .
45M2121P
15
17 Square
Bearing (x2) . . . . . . .
B-6270
Bolt: Hex Head, 5/16 x 1” (x4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2M1016P
11
Bolt: Hex Head, 5/16 x 3/4” (x6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2M1012P
10

1019097-B7
English Manual
x2
ASSEMBLY
Assembly Tip
Illustrations on page 6 are to-scale.
For faster identication
of the hardware during assembly,
simply lay the hardware on top of
these illustrations.
Additional info and videos
are available on our website:
brinly.com
This QR code links directly to the
Spike Aerator product page.
Align the Drawbar (3) with the Tray (5) as illustrated.
- Attach the drawbar from beneath the tray using two 5/16" x 1" Hex Head Bolts (11).
- Secure on top with two 5/16" Nylock Nuts (12).
5
3
12
11
61019097-A
English Manual
DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS.
Please Call: 1 [phone]
HARDWARE IDENTIFIER
Illustrations on this page
are to scale for faster
identication of hardware
during assembly.
Hitch Pin: 1/2" x 2 1/2" (x1) . . . . . . . . . . . . . . . . . . . . . . .
B-3861
16
Hairpin Cotter, 1/8" (x1)
1019151 . . . . . . . . . . . . . . . .
18
Cotter Pin (x 2)
1008098 . . . . . . .
19
9Bearing (x20). . . . . . . . . .
B-5425
Washer: Flat
5/16” (x6) . . . . . . . . . . . .
45 M1111P
14
B-1674 P
12 Nut: Nylock
5/16” (x10) . . . . . . . . . . . . .
Washer: Flat
5/8” (x8) . . . . . . . .
45M2121P
15
17 Square
Bearing (x2) . . . . . . .
B-6270
Bolt: Hex Head, 5/16 x 1” (x4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2M1016P
11
Bolt: Hex Head, 5/16 x 3/4” (x6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2M1012P
10
Step 1-A
12
11

81019097-B
English Manual
ASSEMBLY
20
3
12
11
x2

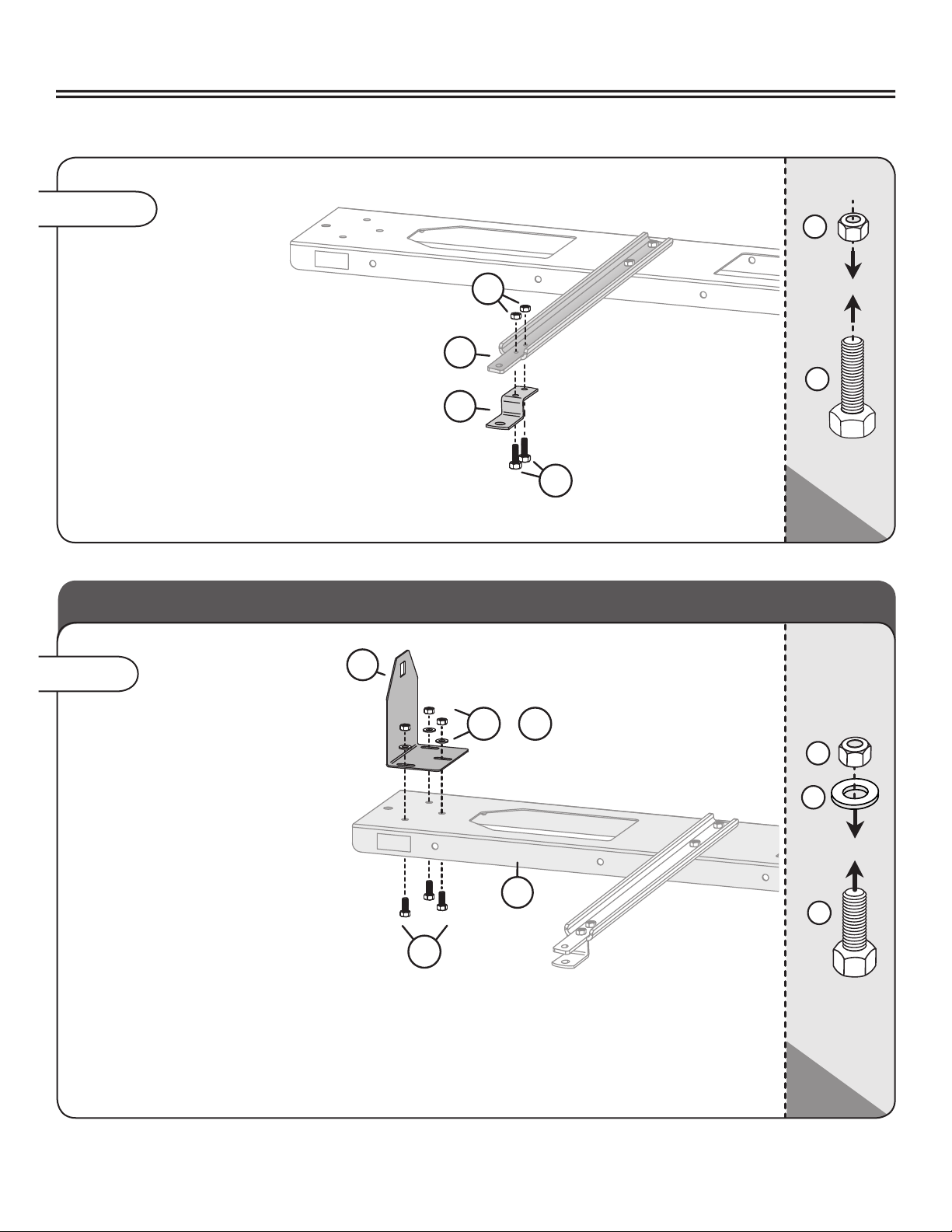

1. Align the Clevis (20) to
the Drawbar (3).
- Attach the clevis from beneath with two
5/16" x 1" Hex Head Bolts (11).
- Secure with two 5/16" Nylock Nuts (12).
Step 1-B
NOTE: Leave nuts loose on this step, allowing the End Panels (1) to be adjusted later.
x6
Align an End Panel (1)
with the Aerator Tray (5).
- From beneath, run three
5/16" x 3/4" Hex Head Bolts (10)
through the tray and end panel.
- Add a 5/16" Flat Washer (14) to each bolt.
- Add three 5/16" Hex Nuts (12), DO NOT TIGHTEN FULLY.
NOTE: These will be adjusted and secured on Step 4-B.
Repeat on the other end of the tray (5).
12
+
14
10
1
5
Step 2
12
14
12
11
10

1019097-B9
English Manual
9
8
9
x10
19
17
2
15
2
ASSEMBLY
Slide a Cotter Pin (19)
through the end of
the Tine Shaft (2). Using
pliers, bend the ends
over to secure the pin
in place.
CAUTION:
GLOVES ARE REQUIRED WHEN
HANDLING AERATOR TINES.
Tines have extremely sharp points.
Use caution when handling.
NOTE: The Bearings (9)
have two small openings and
extensions. These are designed to
sandwich the Tines (8), sliding
through and connecting.
Place a 5/8" Flat
Washer (15) on the Tine
Shaft (2) and push the
shaft through one End
Panel (1).
19
1
2
15
2
19
1
2
15
2
19
1
2
15
2
Step 3
Step 4-A
Add a Square Bearing (17) and a
5/8" Flat Washer (15) on the Tine Shaft (2)
as illustrated.
17
1
17
1

10 1019097-B
English Manual
NOTE: The Square Bearings must be completely inserted into the end panels.
3. Push the End Panels (1) toward the center until there is no free play along the
shaft. Tighten the six nuts (A) securing these panels fully.

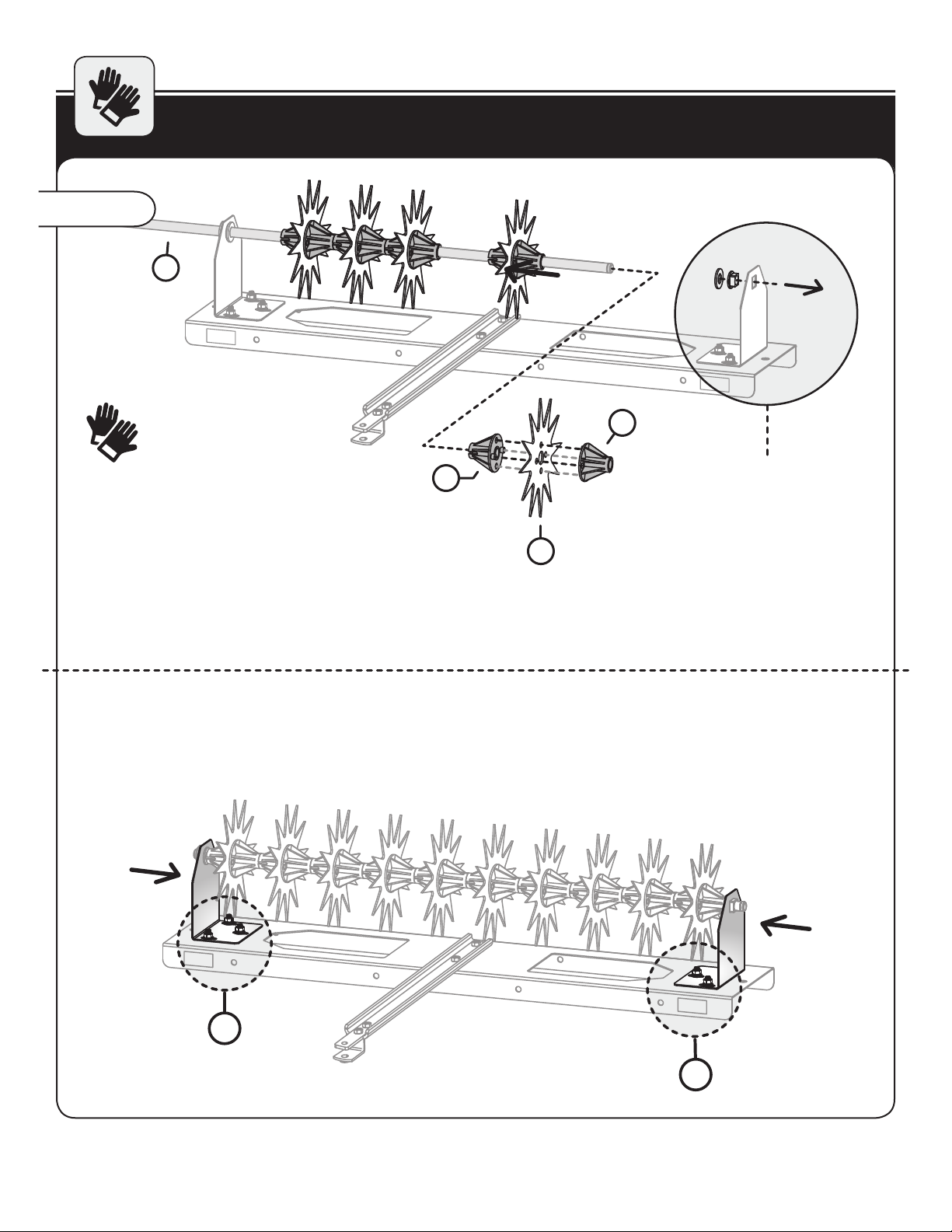

1. WEARING GLOVES:
Slide the 10 Tines (8)
and 20 Bearings (9) onto the
Tine Shaft (2) as illustrated.
NOTE: Round projections on Bearings (9) must
fit into holes in Tines (8) and into two holes of
opposite Bearing.
2. Push a Square
Bearing (17) into the
End Panel (1).
Place a 5/8” Flat
Washer (15) on the
Tine Shaft (2) and slide
the shaft through the
end panel.
Step 4-B
ASSEMBLY
CAUTION: GLOVES ARE REQUIRED.
Tines have extremely sharp points. Use caution when working around them.
8
2
9
9
A
A

1019097-B11
English Manual
ASSEMBLY
CAUTION: GLOVES ARE REQUIRED.
Tines have extremely sharp points. Use caution when working around them.
Add as many 5/8" Flat Washers (15) to the
opposite end of the shaft as necessary to eliminate
extra space. Fasten the remaining Cotter Pin (19)
on the end of the Tine Shaft (2).
NOTE: Store extra flat washers (15) in a safe location. You may need them for maintenance.
Step 4-C
2
19
19
2
Using pliers,
bend the Cotter
Pin (19) ends
over to secure
the pin in
place.
Add the hitch pin (16) through the clevis (20) and
drawbar (3). Secure with a Hairpin Cotter (18)
through the hitch pin.
NOTE: The hairpin cotter can be easily
tapped in place with a hammer or tool.
Step 5
15
CAUTION: AVOID INJURY!
Make sure feet and hands are
clear of Tine Tips.
Carefully
flip the Aerator
Spreader over.
18
16
20
3

12 1019097-B
English Manual
OPERATION
AERATOR WEIGHT
The following maximum loaded weight capacity is the
weight of the Aerator plus the maximum weight loaded into
the Aerator Tray:
Weight
Model SA2-40BH1-G 25 lbs (empty)
Maximum Tray Weight 110 lbs
__________
Maximum Towed Weight 135 lbs
USAGE
CAUTION: Keep body parts away from under drawbar.
Do not attempt to disconnect Aerator from towing vehicle with weight on the tray.
REMOVING
CAUTION: AVOID INJURY!
Avoid damage to tines. Do not tow
the aerator across concrete or asphalt
driveways and walkways.
CAUTION: Excessive towed load can
cause loss of control on slopes. Stopping
distance increases with speed and the
weight of the towed load.
CAUTION: Total towed weight must
not exceed combined weight of towing
vehicle, ballast and operator.
INSTALLING
1. Park towing vehicle safely and
set the parking brake (See
towing vehicle operator’s
manual).
2. Align Aerator Clevis (20) with
towing machine hitch plate.
3. Install Hitch Pin (16)
through Clevis (20) and
towing machine hitch
plate. Secure Hitch Pin
(16) with Hairpin Cotter
(18).
1. Park towing vehicle safely
and set the parking brake
(See towing vehicle
operator’s manual).
2. Unload weight from the
Aerator tray.
3. Remove Hairpin Cotter (18)
and Hitch Pin (16).
4. Push Aerator away from
the towing vehicle.
5. Install Hitch Pin (16)
and Hairpin Cotter (18) for
storage.

1019097-B13
English Manual
OPERATION
SPEED
The best operating speed
is 3 mph or less.
Maximum operating speed is 5 mph.
ADDING WEIGHT
- Bagged weight material can fall through
Tray Openings and be torn open or damaged by the
Tines. Use solid weight or close Tray Openings with
wood panel or by other suitable means.
- Weight should be added to the tray after attaching to the
towing vehicle. Weight should be secured by rope,
straps, or other suitable means to contain the weight in
the tray.
TINES
CAUTION: AVOID INJURY! Openings
in Tray allow access to Tines for cleaning
and service. Exercise caution when
working around Tray openings and avoid
placing body parts into the openings.
- Moderate soil moisture is important for proper tine
penetration. Extremely dry conditions will not permit tine
penetration and may damage the tines. Extremely wet
conditions will cause full penetration of tines (up to tine
bearings). This condition will cut slots in the turf.
- Tray Openings allow access to Tines for cleaning and
service only and are not to be used in any other
application.
CAPACITY
Maximum capacity
of the Aerator Tray is
110 lbs.
110 lbs
SPEED
LIMIT
3
FREQUENCY
Lawn aeration is
not accomplished in
a single pass. It will
normally take several
passes over the lawn.
Alternating the direction
by 90 degrees will
improve the aeration effect. The Aerator may be
used in an independent operation or may be used
when mowing your lawn.

14 1019097-B
English Manual
MAINTENANCE
MAINTENANCE
- The key to years of trouble-free service is to keep your Aerator clean and dry.
- After the first 30 minutes of use, check all fasteners for tightness. Thereafter, periodically check
all fasteners for tightness.
AFTER USE, THE TINE AND TINE BEARINGS MAY BECOME LOOSE ON THE TINE SHAFT.

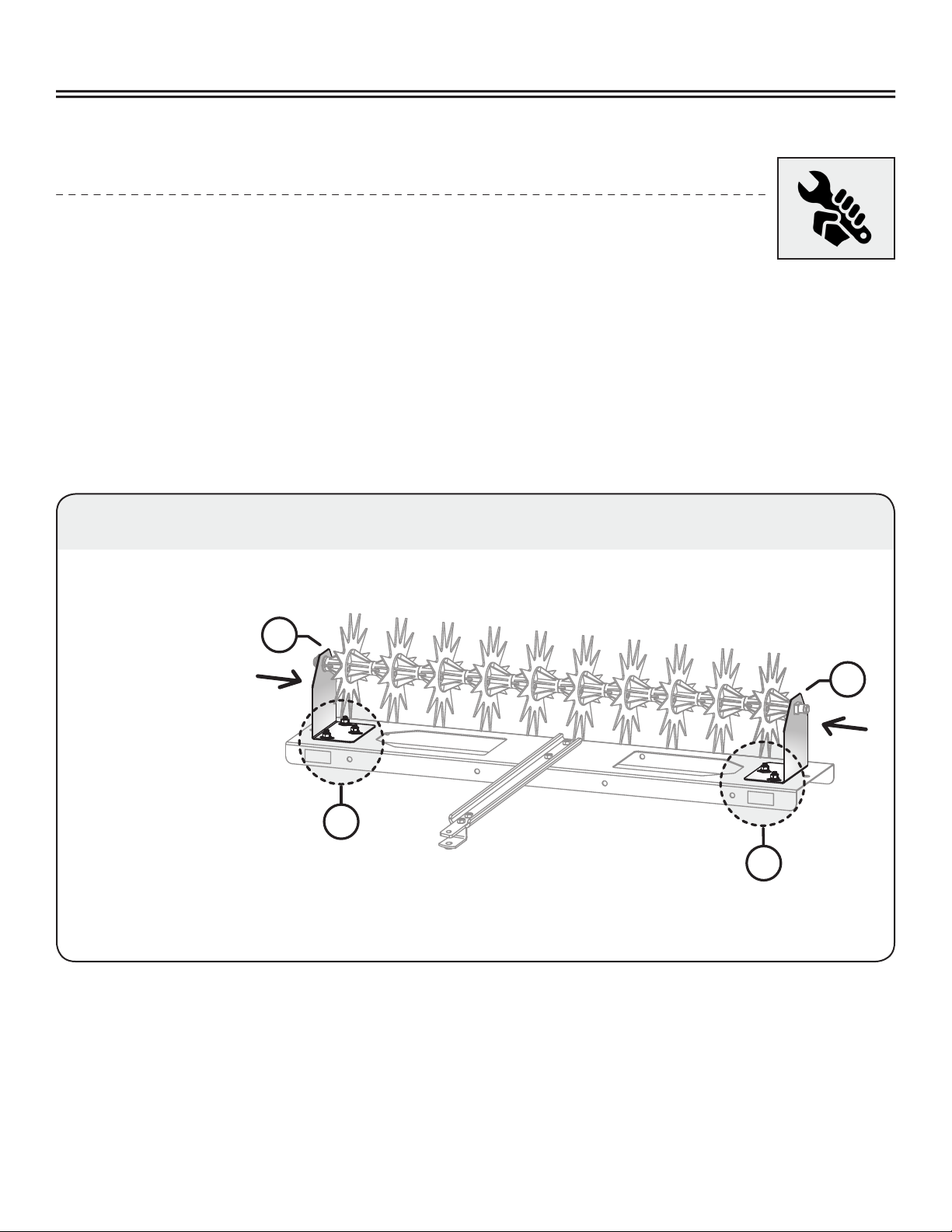

1. Loosen
the End Panel
nuts (A).
2. Push the
End Panels (1)
toward the Tines
until there is no
free play along the
Tine Shaft.
3. Tighten the
End Panel nuts (A).
NOTE: The Square Bearings must be completely inserted into
the End Panels before you tighten the End Panel nuts (A).
A
A
1
1
Should this occur, remove the
looseness as follows:
- For rust appearing on painted surfaces, sand
lightly and paint affected area with enamel.
- Periodically remove debris that
builds up between Tines.
- Apply lubricating oil at each tine bearing and axle
bearing before use.
- Tines are manufactured with galvanized steel to resist
wear of abrasive soil. Striking objects can cause Tines
to curl or break. Contact Brinly-Hardy customer service
department to purchase replacement Tines.
- Apply a light coat of oil on tines
after use to prevent rust.

1019097-B15
English Manual
STORAGE
CAUTION: AVOID INJURY!
The Aerator Tines are very sharp. Care
should be taken when choosing a storage
location for this product.
- Store Aerator in low traffic aisle ways.
- Store Aerator with Tine points facing the wall or ground.
- Store Aerator on the ground or low to the ground.
- Do not store Aerator hanging from the wall, ceiling or
with Tine points facing outward.
- Product packaging can be used to offer a protective
area around the Tines.
- Drawbar is a trip hazard. Avoid leaving Drawbar in aisle
ways and walking paths.
QUALITY CONTINUES
WITH QUALITY SERVICE
If you have installation questions, are missing parts or need
replacement parts, don’t go back to the store!
Please find your product serial number and model number,
then contact our Customer Service department:
SERVICE
In North America and Canada call
Toll-Free: 877-728-8224
Chat online: www.brinly.com
Email: [e-mail]
BRINLY.COM
Additional info and videos are
available on our website. Please
visit the URL above OR scan this
QR code.
ONLINE SA2-40BH1-G
STORAGE & SERVICE

16 1019097-B
English Manual
The limited warranty set forth below is given by Brinly-Hardy
Company with respect to new merchandise purchased and
used in the United States, its possessions and territories.
Brinly-Hardy Company warrants the products listed below
against defects in material and workmanship, and will at its
option, repair or replace, free of charge, any part found to be
defective in materials or workmanship. This limited warranty shall
only apply if this product has been assembled, operated, and
maintained in accordance with the Operator’s manual furnished
with the product, and has not been subject to misuse, abuse,
commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of
other peril or natural disaster.
Normal Wear Parts or components thereof are subject to
separate terms as follows: All normal wear parts or component
failures will be covered on the product for a period of 90 days.
Parts found to be defective within the warranty period will be
replaced at our expense. Our obligation under this warranty is
expressly limited to the replacement or repair, at our option, of
parts found to be defective in material and workmanship.
HOW TO OBTAIN SERVICE: Warranty parts replacements
are available, ONLY WITH PROOF OF PURCHASE, through
our Customer Service Department. Call 877-728-8224.
This limited warranty does not provide coverage in the following
cases:
a) Routine maintenance items such as lubricants and
filters.
b) Normal deterioration of the exterior finish due to
use or exposure.
c) Transportation and/or labor charges.
d) The warranty does not include commercial and/or
rental use.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies
after the applicable period of express written warranty
above as to the part as identified below. No other express
warranty whether written or oral, except as mentioned
above, given by any person or entity, including a dealer
or retailer, with respect to any product, shall bind Brinly-
Hardy Co. During the period of the warranty, the exclusive
remedy is repair or replacement of the product as set forth
above.
The provisions as set forth in this warranty provide the sole
and exclusive remedy arising from the sale. Brinly-Hardy
Co. shall not be liable for incidental or consequential loss
or damage including, without limitation, expenses incurred
for substitute or replacement lawn care services or for
rental expenses to temporarily replace a warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not
apply to you.
During the warranty period, the exclusive remedy is replacement
of the part. In no event shall recovery of any kind be greater that
the amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty. You
assume the risk and liability for loss, damage, or injury to you
and your property and/or to others and their property arising out
of the misuse or inability to use this product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased
as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY:
This limited warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
IMPORTANT:
The Warranty period stated below begins with the PROOF
OF PURCHASE. Without the proof of purchase, the Warranty
period begins from the date of manufacture determined by the
serial number manufacturing date.
WARRANTY PERIOD:
The warranty period for the product shown in this manual is as
follows: Steel Frame Parts: 2 Years. Tires, Wheels and Drive
are normal wear parts - 90 days.
MANUFACTURER’S LIMITED WARRANTY FOR
BRINLY PULL-BEHIND ACCESSORIES
Brinly-Hardy Company • 3230 Industrial Parkway • Jeffersonville, IN 47130 • [phone] • brinly.com

1019097-B1
Manuel Français
GUIDE D'UTILISATION
Appelez le service à la clientèle sans frais: 877-728-8224
Important: Le présent manuel renferme des renseignements
relatifs à la sécurité des personnes et des biens. Il est
important de le lire atten-tivement avant d’assembler
et d’utiliser le matériel!
Visitez notre site web!
www.brinly.com
AÉRATEUR DE GAZON DE
101,6CM (40 PO)
MODÈLE :
SA2-40BH1-G
• Assemblage
• Installation
• Fonctionnement
• Pièces

21019097-B
Manuel Français
TABLE DES MATIÈRES
SÉCURITÉ ....................2-4
VUE DES COMPOSANTS
ET LISTE DE RÉFÉRENCES ......5-6
ASSEMBLÉE . . . . . . . . . . . . . . . . . 7-11
FONCTIONNEMENT .......... 12-13
ENTRETIEN ....................14
STOCKAGE ET SERVICE .........15
GARANTIE .....................16
B-7063 (Pas à l'échelle)
ENREGISTREMENT DES
RENSEIGNEMENTS D'ACHAT
Inscrivez les renseignements pertinents à l'achat dans
les espacesfournis ci-dessous.
Date D'achat _________________________________
Nom du Détaillant _________________________________
Téléphone du Détaillant _________________________________
Numéro de Série _________________________________
SÉCURITÉ
Ce symbole identifie d'importantes mises en
garde de sécurité figurant dans l'ensemble de
ce manuel. Il signifie: ATTENTION! SOYEZ
ATTENTIF! IL EN VA DE VOTRE SÉCURITÉ.
Les étiquettes relatives à la sécurité illustrées dans cette section sont
apposées sur des zones importantes de la machine pour mettre en
évidence les dangers potentiels pouvant porter atteinte à la sécurité.
Les étiquettes relatives à la sécurité apposées sur la machine portent
les mentions DANGER, AVERTISSEMENT et MISE EN GARDE
accompagnées de ce symbole d'alerte à la sécurité. La mention DANGER
identie les dangers les plus graves.
Le manuel de l'utilisateur explique également, lorsque nécessaire,
plusieurs dangers potentiels relatifs à la sécurité à l'aide de messages
spéciaux de sécurité qui sont identiés par la mention MISE EN GARDE
et le symbole d'alerte à la sécurité.
INTRUDUCTION
FÉLICITATIONS pour l’achat de votre nouvel aérateur Brinly-Hardy! Votre aérateur de gazon a été conçu, pensé et
fabriqué dans le but de vous offrir la plus grande abilité et le meilleur rendem ent qui soient.
Si vous rencontrez un problème que vous ne pouvez pas résoudre facilement, n’hésitez pas à contacter notre service
clientèle au numéro sans frais 1-877-728-8224. Nous avons des techniciens compétents et bien formés pour vous aider
avec l'assemblage et l'utilisation de votre produit.
RESPONSABILITÉS DU CLIENT
- Veuillez lire et conserver ce manuel. Les instructions permettront d'assembler d'entretenir correctement votre produit.
- Veuillez lire attentivement et observer la section SÉCURITÉ de ce manuel.
- Suivez un horaire régulier pour l'entretien et l'entretien de votre produit Brinly-Hardy.

1019097-B3
Manuel Français
SÉCURITÉ
Faites preuve de prudence lorsque vous remorquez et/ou utilisez tout accessoire. La combinaison
de cet accessoire à la répartition du poids, au rayon de braquage et à la vitesse du véhicule
tracteur peut causer de graves blessures ou la mort du conducteur, des dommages au véhicule
tracteur et/ou à l’accessoire remorqué en cas d’utilisation inadéquate. Re-spectez toutes les
mises en garde de sécurité spécifiques au remorquage figurant dans le manuel du propriétaire
de véhicule tracteur, y compris les suivantes:
- Assurez-vous que le poids combiné du véhicule tracteur (poids du véhicule tracteur + poids du
conducteur) est supérieur au poids maximal de l’accessoire chargé (poids de l’accessoire vide +
poids du chargement).
- Ne dépassez pas la capacité de remorquage maximale du véhicule tracteur.
- Ne dépassez pas la capacité d’effort de traction maximale du véhicule tracteur. L’effort de traction est
la force horizontale nécessaire pour tirer l’accessoire (poids du chargement inclus).
- Remorquez uniquement ce produit en respectant le réglage du mode/vitesse de remorquage du
véhicule ou la vitesse maxi male de 8 km/h (5 mi/h). Ne dépassez pas la vitesse de 8 km/h (5 mi/h).
- La vitesse de remorquage doit toujours être assez lente pour conserver la maîtrise du véhicule.
Conduisez lentement et soyez prudent lorsque vous roulez sur un terrain accidenté. Évitez les nids-
de-poule, les pierres et les racines.
- Ralentissez avant de virer et évitez de tourner brusquement.
- Utilisez de grands angles de rotation pour vous assurer que l’accessoire remorqué suit la trajectoire
du véhicule tracteur.
- Évitez de remorquer l’accessoire sur des pentes raides. Un chargement important peut entraîner une
perte de contrôle ou le renversement de l’accessoire remorqué et du véhicule tracteur. Il peut s’avérer
nécessaire d’ajouter des poids supplémentaires à votre véhicule. Communiquez avec le fabri cant du
véhicule tracteur pour connaître ses recommandations.
- Réduisez le poids remorqué dans les pentes.
- Roulez lentement et progressivement sur les pentes. Ne faites pas de changements de vitesse, de
direction ou de virages brusques.
- Si vous démarrez et stoppez brusquement sur une pente, vous pouvez perdre la maîtrise du véhicule
ou le véhicule peut se renverser. Évitez de démarrer ou de stopper brusquement lors des descentes
ou des montées. Évitez les démarrages en côte.
REMARQUES GÉNÉRALES (UTILISATION)
La sécurité continue à la page 4 ...
B-3922
- Ralentissez et soyez très prudent sur les pentes. L’état de la pelouse peut influencer la stabilité du véhicule. Soyez très
prudent lorsque vous roulez à proximité de ravins.
- Ne conduisez pas près de ruisseaux, fossés et autoroutes publiques.
- Soyez attentif à la circulation lorsque vous traversez une route.
- Faites attention lorsque vous chargez ou déchargez le véhicule d’une remorque ou d’un camion.
- L’accessoire remorqué peut obstruer la vue arrière. Faites très attention lorsque vous effectuez une marche arrière.
- En marche arrière, reculez en ligne droite afin d'éviter les risques de mise en portefeuille. Évitez tout contact entre les roues
du véhicule tracteur et la barre de traction de l’accessoire remorqué. Cela pourrait provoquer des dommages.
- Arrêtez-vous sur une surface plane, désengagez les roues, serrez le frein de stationnement et arrêtez le moteur avant de
quitter le poste de conduite pour toute raison, y compris le déchargement de l’accessoire remorqué.
- N’utilisez cet accessoire que pour l’usage pour lequel il a été conçu.
- Cet accessoire est conçu pour être utilisé lors de l’entretien de pelouse et pour d’autres tâches domestiques. Ne le remorquez
pas derrière un véhicule sur l’autoroute ou à haute vitesse. Ne le remorquez pas à des vitesses dépassant l a vitesse de
remorquage maximale recommandée.
- Ne le remorquez pas derrière un véhicule motorisé, tel qu’une voiture ou un camion.
- Portez toujours des chaussures solides. Ne portez pas de vêtements amples qui risquent de s’enchevêtrer dans pièces mobiles.

41019097-B
Manuel Français
- Gardez un œil sur votre véhicule tracteur et l’accessoire
remorqué, ainsi que sur l’aire de travail couverte.
Concentrez-vous sur la tâche en cours, sans vous laisser
distraire.
- Faites attention aux trous et aux autres dangers dissimulés
sur le terrain.
- Conservez le véhicule tracteur et l’accessoire en bon état
de fonctionnement. Gardez les dispositifs de protection en
place.
- Après avoir heurté un objet, arrêtez le véhicule tracteur et
l’accessoire et vérifiez l'absence de dommages. Fait réparer
tout dommage avant de redémarrer le matériel et de l’utiliser.
- Maintenez toutes les pièces en bonne condition et correct-
ement installées. Réparez les pièces endommagées
immédiatement. Remplacez les pièces usées ou
endommagées. Remplacez les autocollants concernant
la sécurité et le mode d’emploi dès qu’ils sont usés ou
endommagés. Assurez-vous que tous les écrous, boulons
et vis sont bien ser rés.
- Ne modifiez pas l'accessoire ou les dispositifs de sécurité. Des
modifications non autorisées apportées au véhicule tracteur
ou à l’accessoire pourraient entraver son fonctionnement et
ses dispositifs de sécurité, et ainsi annuler la garantie.
VÉHICULE TRACTEUR ET REMORQUAGE
EN TOUTE SÉCURITÉ
- Familiarisez-vous avec les commandes de votre véhicule
tracteur et la manière de l’arrêter en toute sécurité.
LISEZ LE MANUEL DU PROPRIÉTAIRE DU VÉHICULE
TRACTEUR avant de l’utiliser.
- Vérifiez le système de freinage du véhicule tracteur
avant de l’utiliser. Ajustez ou faites inspecter les freins
au besoin.
- La distance d’arrêt augmente avec la vitesse et le poids
du chargement remorqué. Déplacez-vous lentement et
assurez-vous d’avoir assez de temps et d’espace pour
vous arrêter.
- Utilisez uniquement des attelages approuvés.
Remorquez cet accessoire uniquement avec un
véhicule tracteur pourvu d’un attelage conçu pour le
remorquage. Attachez toujours l’accessoire au point
d’attelage approuvé.
- Respectez les recommandations du fabricant en matière
de limites de poids pour l’équipement remorqué et le
remorquage sur les pentes. Utilisez des contrepoids ou
des masses d’équilibrage, tels que décrits dans le manuel
de l’opérateur du véhicule tracteur.
- N’embrayez jamais en neutre pour descendre les pentes.
- Ne permettez pas l’utilisation du véhicule tracteur par des
enfants. Ne permettez pas l’utilisation du véhicule tracteur
par des adultes sans directives adéquates préalables ou
sans qu’ils aient lu le manuel du propriétaire.
PROTÉGEZ VOTRE ENTOURAGE
- Avant l’utilisation d’une quelconque fonction de
l’accessoire ou du véhicule tracteur, regardez aux
alentours et vérifiez l'absence de passants.
- Tenez-vous à l’écart des enfants, des passants et des
animaux domestiques lors de l’utilisation de ce véhicule
ou d’un accessoire.
- Soyez attentif pendant les marches arrière. Avant de faire
une marche arrière, regardez attentivement derrière vous
et vérifiez la présence de passants.
NE TRANSPORTEZ PAS DE PASSAGERS SUR
L’ACCESSOIRE REMORQUÉ OU LE VÉHICULE
TRACTEUR
- Ne transportez pas de passagers.
- Ne laissez personne monter sur cet accessoire, le
véhicule tracteur ou le support de fixation d'attelage à
titre de passager, surtout pas les enfants. Les passagers
pourraient se blesser en se heurtant à des objets ou
en étant éjectés lors de départs, d’arrêts et de virages
soudains. Il se peut également que les passagers gênent
la visibilité du conducteur, ce qui rend l’opération du
véhicule dangereuse.
SÉCURITÉ
OUTILS REQUIS POUR
L’ASSEMBLAGE :
• Clé de 13mm ou 1/2" (x1)
• Jeu de pinces ou marteau
• Gants
ARRÊT
Des questions d'installation? Parties
manquantes? Pièces de rechange?
NE PAS REVENIR À
LE MAGASIN!
Veuillez appeler notre service
Client Département, sans frais:
877-728-8224 ou
[e-mail]
