OWNER'S MANUAL
40" LAWN AERATOR
MODEL:
SAT2-40BH-S
• Assembly
• Installation
• Operation
• Repair Parts

21019099-F
English Manual
================================================================================================
INTRODUCTION AND SAFETY
CONGRATULATIONS on your new Brinly-Hardy Aerator! This accessory has been designed, engineered and
manufactured to give you the best possible dependability and performance.
Should you experience any problem you cannot easily remedy, please do not hesitate to contact our knowledgeable
customer service department toll-free at 1-877-728-8224. We have competent, well trained technicians to help you with
the assembly and use of your product.
CUSTOMER RESPONSIBILITIES
- Please read & retain this manual. The instructions will enable to assemble and maintain your product properly.
- Please carefully read and observe the SAFETY SECTION of this manual.
- Follow a regular schedule in maintaining and caring for your Brinly-Hardy product.
TABLE OF CONTENTS
Safety .......................2-4
Component View
and Reference List ..............5-6
Assembly ....................7-13
USE AND CARE
Operation ................... 14-15
Maintenance .................. 16
Storage and Service ........... 16-17
Warranty ..................... 18
RECORD PURCHASE INFORMATION
Record your purchase information in
the spaces provided below:
Date of Purchase __________________________________
Company Name __________________________________
Company Phone __________________________________
Serial Number __________________________________
SAFETY
This symbol will help to point out important
safety precautions throughout this manual.
It means: ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED.
The machine safety labels shown in this section are placed
in important areas on your machine to draw attention to
potential safety hazards.
On your machine safety labels, the words DANGER,
WARNING, and CAUTION are used with this safety-alert
symbol. DANGER identifies the most serious hazards.
The operator’s manual also explains any potential safety
hazards whenever necessary in special safety messages
that are identified with the word, CAUTION, and the safety-
alert symbol.
B-7063 (Not to scale)

1019099-F3
English Manual
================================================================================================
SAFETY
Caution should be taken when towing and/or using any attachment. This attachment combined
with the weight distribution, turning radius, and speed of towing vehicle can result in severe injury
or death to operator, damage to towing vehicle, and/or attachment if not used properly. Follow
all towing safety precautions noted in the towing vehicle owner’s manual, including the following
precautions:
- Ensure the combined weight of the towing vehicle (tow vehicle weight + operator weight) is greater
than the maximum towed weight of attachment (empty attachment weight + weight of load).
- Do not exceed maximum towing capacity of towing vehicle.
- Do not exceed the maximum drawbar pull rating of the towing vehicle. Drawbar pull is the horizontal
force required to pull the attachment (including weight of load).
- Only tow this product in the vehicle’s tow mode / speed setting or less than 5 mph. Do not exceed
5 mph.
- Towing speed should always be slow enough to maintain control. Travel slowly and use caution
when traveling over rough terrain. Avoid holes, rocks and roots.
- Slow down before you turn and do not turn sharply.
- Use wide turning angles to ensure the attachment follows the path of the towing vehicle.
- Do not use attachment on steep slopes. A heavy load could cause loss of control or overturn
attachment and towing vehicle. Additional weights may need to be added to your vehicle; check
with towing vehicle manufacturer for recommendations.
- Reduce towed weight when operating on slopes.
- Keep all movement on slopes slow and gradual. Do not make sudden changes in speed,
directions, or turning.
- If you start and stop suddenly on hills, you may lose steering control or the towing vehicle may tip.
Do not start or stop suddenly when going uphill or downhill. Avoid uphill starts.
- Slow down and use extra care on hillsides. Turf conditions can affect vehicle stability. Use extreme
caution while operating near drop-offs.
- Do not drive close to creeks, ditches and public highways.
- Watch out for traffic when crossing near roadways.
- Use care when loading or unloading the vehicle into a trailer or truck.
- The attachment can obstruct the view to the rear. Use extra care when operating in reverse.
GENERAL NOTES (OPERATION)
Safety continues on page 4...
B-3922
- When reversing, carefully back-up straight to avoid jackknifing. Do not allow towing vehicle wheels to contact attachment
draw bar. Damage could result.
- Stop on level ground, disengage drives, set the parking brake, and shut off engine before leaving the operator’s position
for any reason including emptying the attachment.
- Use this attachment for intended purpose only.
- This attachment is intended for use in lawn care & home applications. Do not tow behind a vehicle on a highway or in any
high speed applications. Do not tow at speeds higher than the maximum recommend towing speed.
- Do not tow this product behind a motor vehicle such as a car or truck.
- Always wear substantial footwear. Do not wear loose fitting clothing that can get caught in moving parts.
- Keep your eyes and mind on your towing vehicle, attachment and area being covered. Do not let other interests distract
you.
- Stay alert for holes and other hidden hazards in the terrain
- Keep the towing vehicle and attachment in good operating condition and keep safety devices in place.
- The towing vehicle and attachment should be stopped and inspected for damage after striking a foreign object. Any
damage should be repaired before restarting and operating the equipment.

41019099-F
English Manual
================================================================================================
- Keep all parts in good condition and properly installed.
Fix damaged parts immediately. Replace worn or broken
parts. Replace all worn or damaged safety and instruction
decals. Keep all nuts, bolts and screws tight.
- Do not modify the attachment or safety devices.
Unauthorized modifications to the towing vehicle or
attachment may impair its function, safety and void the
warranty.
TOWING VEHICLE AND TOWING SAFELY
- Know your towing vehicle controls and how to stop safely.
READ YOUR TOWING VEHICLE OWNER’S MANUAL
before operating.
- Check the towing vehicle brake action before you
operate. Adjust or service brakes as necessary.
- Stopping distance increases with speed and weight
of towed load. Travel slowly and allow extra time and
distance to stop.
- Use only approved hitches. Tow this attachment only with
a towing vehicle that has a hitch designed for towing. Do
not connect this attachment except at the approved hitch
point.
- Follow the tow vehicle manufacture’s recommendations
for weight limits for towed equipment & towing on slopes.
Use counterweights or wheel weights as described in the
towing vehicle operator’s manual.
- Do not shift to neutral and coast downhill.
- Do not allow children to operate the towing vehicle. Do
not allow adults to operate the towing vehicle without
proper instruction or without having read the owner’s
manual.
PROTECT THOSE AROUND YOU
- Before you operate any feature of this attachment or
towing vehicle, observe your surroundings and look for
bystanders.
- Keep children, bystanders and pets at a safe distance
away while operating this or any attachment.
- Use care when reversing. Before you back up, look
carefully behind for bystanders.
KEEP RIDERS OFF TOWED
ATTACHMENT AND TOWING VEHICLE
- Do not carry passengers.
- Do not let anyone, especially children, ride in/on this
attachment, the towing vehicle or hitch bracket. Riders
are subject to injury such as being struck by foreign
object and/or being thrown off during sudden starts,
stops and turns. Riders may also obstruct the operator’s
view resulting in this attachment being operated in an
unsafe manner.
SAFETY
NOTES
STOP
Installation Questions?
Missing Parts? Replacement Parts?
DON’T GO BACK TO
THE STORE!
Please call our Customer Service
Department, Toll Free: 877-728-8224
or [e-mail]
TOOLS REQUIRED FOR
ASSEMBLY:
• Flat Head Screwdriver (x1)
• 7/16” Wrenches (x2)
• 1/2” Wrench (x1)
• 3/4” Wrenches (x2)
• Set of Pliers
• Gloves

1019099-F5
English Manual
================================================================================================
PARTS REFERENCE
Ref # Part # Description Qty
11019260-06 Drawbar Clevis 1
31019412 Tray 1
41019415 Drawbar 1
51019244-06 End Panel 2
61019283-06 Axle Assembly 1
71018833 Tine 11
81019262-06 Handle Assembly 1
9R-891 Wheel 2
10 B-4867 Handle Grip 1
12 1019151 Hairpin Cotter 1
13 2M1012P Bolt; Hex Head, 5/16” x 3/4” 8
14 2M1016P Bolt; Hex Head, 5/16” x 1” 2
15 B-4786 Nut; Hex Lock, 5/16” 10
Ref # Part # Description Qty
16 1019390 Washer; Flat, 5/8” (thick) 10
17 B-3861 Drawbar Pin 1
19 1M1648P Bolt; Hex, 1/2” x 3” 2
20 30M1600P Nut; Hex, 1/2” 2
21 1019753 Washer; Flat, 1/2" 4
22 B-3307-S Transport Lock Pin 1
23 2M0820P Bolt; Hex, 1/4” x 1-1/4” 1
24 B-4785 Nut; Nylon Lock, 1/4-20” 1
25 1019589 Spacer / Bearing; Tube 22
26 1019391 Washer; Flat, 5/8” (thin) 2
27 45M1111P Washer; Flat, 5/16” 6
28 B-5096Y Nut; Hex Lock, 1/2” 2
29 40M1000P Washer; Lock, 5/16" 1
30 30M1000P Nut; Hex, 5/16" 1
x11
13
27
15
13
16
5
15
15
15
22
29
27 30
27
3
13
13
13
27
15
12
17
14
14
15
15
27
6
26
20 28
21
20
28
19
21
9
9
21
24
23
8
16
10
25
25
7
21
19

61019099-F
English Manual
================================================================================================
DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS.
Please Call: 1 [phone]
HARDWARE IDENTIFIER
Illustrations on this page
are to scale for faster
identication of hardware
during assembly.
Washer: Flat
5/16” (x6) . . . . . . . . . . . .
45M1111P
27
Washer: Thick
5/8” (x10) . . . . . . . . .
1019390
16
Washer: Flat
1/2" (x4) . . . . . . . . . .
21
1019753
Washer: Thin
5/8” (x2) . . . . . . . . . . .
1019391
26
Bolt: Hex Head
5/16 x 3/4” (x8) . . . . . . . . . . . .
2M1012P
13
Bolt: Hex Head
5/16 x 1” (x2) . . . . . . . . . . .
2M1016P
14
Nut: Hex 1/2” (x2) . . . . . . . . . . . . .
30M1600P
20
24 Nut: Nylon Lock, 1/4-20” (x1) . . . . . .
B-4785
Drawbar Pin: 1/2" x 2 1/2" (x1) . . . . . . . . . . . . . . . . . . . . . . . .
B-3861
17
19 Bolt: Hex Head, 1/2” x 3” (x2) . . . . . . . . . . . . . . . .
1M1648P
22
Transport
Lock Pin (x1) . . . . . . . .
B-3307-S
23
Bolt: Hex Head
1/4 x 1-1/4” (x1) . . . . . .
2M0820P
Nut: Hex Lock 1/2” (x2). . . . . . . . .
B-5096Y
28
Nut: Hex Lock, 5/16” (x10) . . . . . . . .
B-4786
15
Washer: Lock
5/16” (x1) . . . . . . . . . . . . .
40M1000P
29
Nut: Hex, 5/16” (x1) . . . . . . . . . . . . .
30M1000P
30

1019099-F7
English Manual
================================================================================================
x6
ASSEMBLY
Assembly Tip
Illustrations on page 6 are to-scale.
For faster identication of the hardware during assembly,
simply lay the hardware on top of these illustrations.
Additional info and videos
are available on our website:
brinly.com
This QR code links directly to the
Spike Aerator product page.

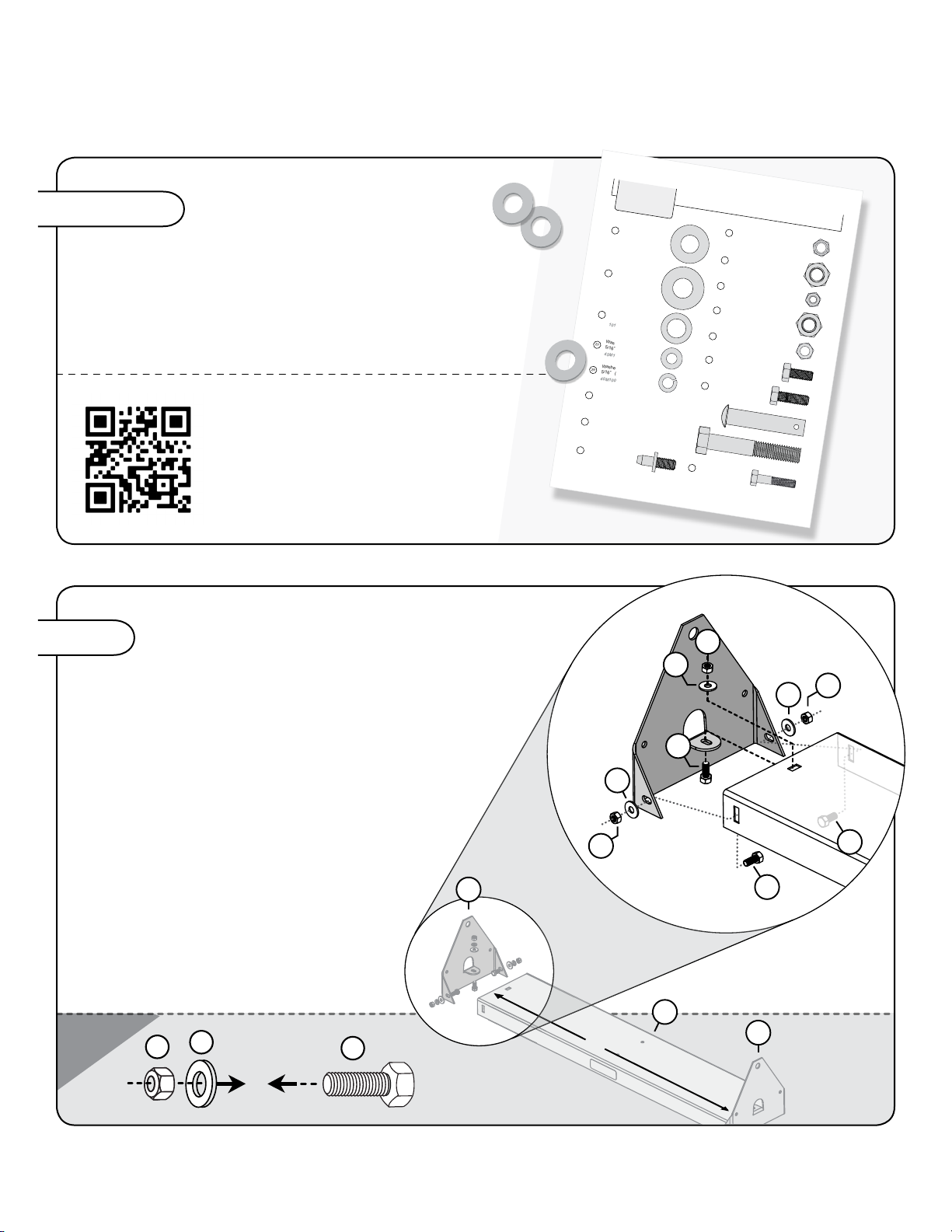

Attach End Panels to Tray
Attach the two End Panels (5)
to the Tray (3) using the following
as illustrated:
x6 - 5/16” x 3/4” Hex Head Bolts (13)
x6 - 5/16” Flat Washers (27)
x6 - 5/16” Hex Nuts (15)
61019099-F
English Manual
================================================================================================
DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS.
Please Call: 1 [phone]
HARDwARE IDENTIFIER
Illustrations on this page
are to scale for faster
identication of hardware
during assembly.
Washer: Flat
5/16” (x6) . . . . . . . . . . . .
45 M1111P
27
Washer: Thick
5/8” (x10) . . . . . . . . .
1019390
16
Washer: Flat
1/2 " (x4) . . . . . . . . . .
21
1019753
Washer: Thin
5/8” (x2) . . . . . . . . . . .
1019391
26
Bolt: Hex Head
5/16 x 3/4” (x8) . . . . . . . . . . . .
2M1012P
13
Bolt: Hex Head
5/16 x 1” (x2) . . . . . . . . . . .
2M1016P
14
Nut: Hex 1/2” (x2) . . . . . . . . . . . . .
30M1600P
20
24 Nut: Nylon Lock, 1/4-20” (x1) . . . . . .
B-4785
Drawbar Pin: 1/2" x 2 1/2" (x1) . . . . . . . . . . . . . . . . . . . . . . . .
B-3861
17
19 Bolt: Hex Head, 1/2” x 3” (x2) . . . . . . . . . . . . . . . .
1M1648P
22
Transport
Lock Pin (x1) . . . . . . . .
B- 3307-S
23
Bolt: Hex Head
1/4 x 1-1/4” (x1) . . . . . .
2M0820P
Nut: Hex Lock 1/2” (x2). . . . . . . . .
B-5096Y
28
Nut: Hex Lock, 5/16” (x10) . . . . . . . .
B-4786
15
Washer: Lock
5/16” (x1) . . . . . . . . . . . . .
40M1000P
29
Nut: Hex, 5/16” (x1) . . . . . . . . . . . . .
30M1000P
30
Step 1 15
27
27
13
13
27
15
15 13
5
3
NOTE: The inside distance between
the two end panels should be 41 inches
to ensure proper installation.
41"
5
13
27
15

81019099-F
English Manual
================================================================================================
ASSEMBLY
x2

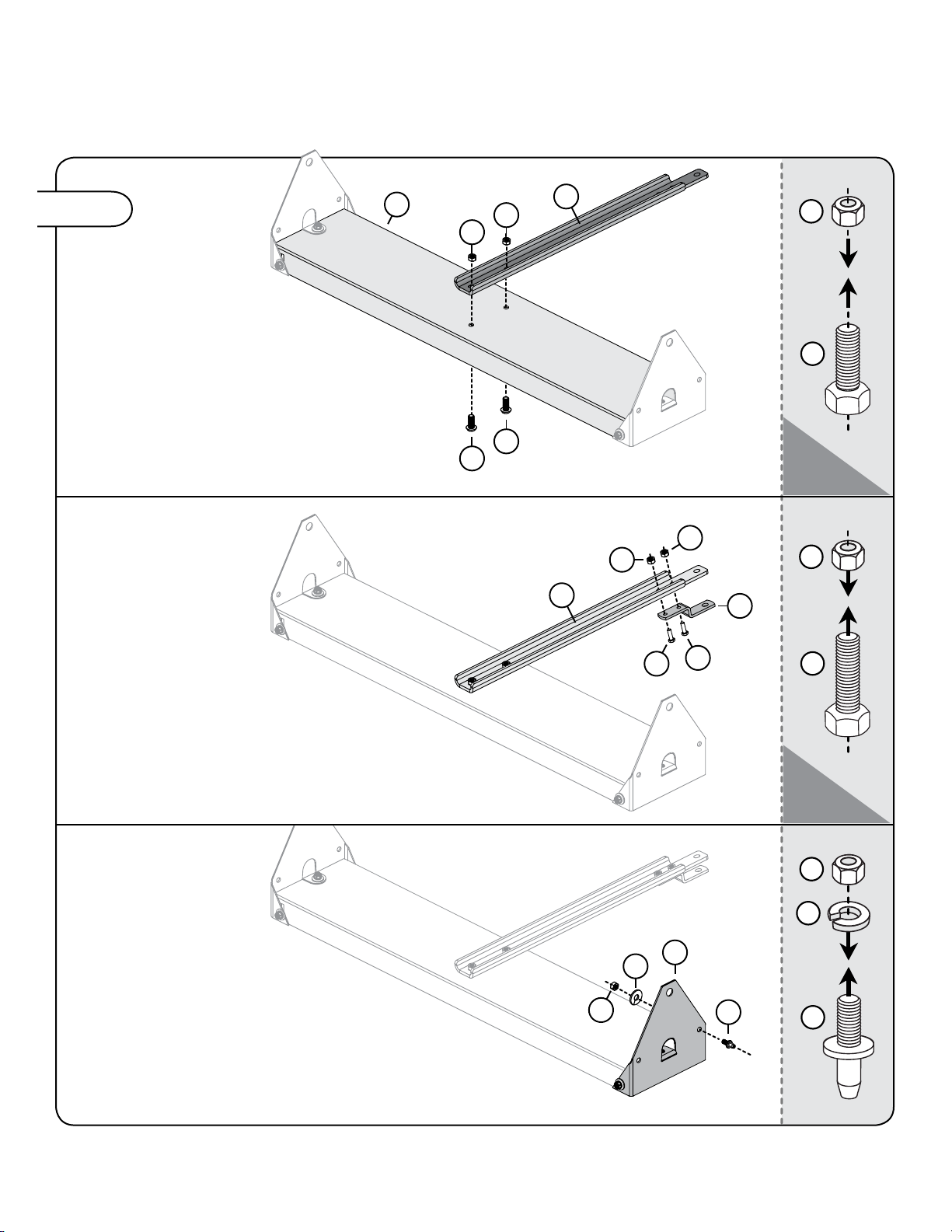

Install Drawbar
Attach drawbar (4)
to the tray (3) using the
following as illustrated:
x2 - 5/16” x 3/4” Hex Head Bolts (13)
x2 - 5/16" Hex Lock Nuts (15)
Step 2
Attach Clevis (1) to
the Drawbar (4) using the
following as illustrated:
x2 - 5/16” x 1” Hex Head Bolts (14)
x2 - 5/16" Hex Nuts (15)
1
14 14
4
x2
13
15
14
15
4
3
15
15
13
13
15
15
5
29
22
30 22
30
29
Attach the Transport Lock
Pin (22) to End Panel (5) using
a 5/16" Lock Washer (29) and 5/16”
Hex Nut (30), as shown.

1019099-F9
English Manual
================================================================================================
x11
25
7
25
ASSEMBLY
WEARING
GLOVES:
Position the eleven
Tines (7) and twenty-two
Spacer/Bearing Tubes (25)
on the Axle Assembly (6)
as follows:
• Bearing, Small End First (25)
• Aerator Tine (7)
• Bearing, Large End First (25)
CAUTION: GLOVES ARE REQUIRED WHEN
HANDLING AERATOR TINES. Tines have extremely
sharp points. Use caution when handling.
Step 3-B
NOTE: The Bearings (25) have two small openings
and extensions. These are designed to sandwich the
Tines (7), sliding through and connecting.
Place a 5/8” Thick, Flat Washer (16)
on the Axle Assembly (6).
Slide the Axle (6) through the hole in the
End Panel (5, right side) and add another
Flat Washer Thick (16) if needed.
Step 3-A 16
16
6
5
6

10 1019099-F
English Manual
================================================================================================
ASSEMBLY
6
5
2616
6
5
Step 3-C
Position as many extra
washers (16 or 26)
as needed to eliminate any
side-to-side movement
and push Axle Assembly (6)
through hole in the left End
Panel (5) as far as
possible.
See layout below.
IF LOOSENESS
EXISTS, use
additional 5/8"
Thick or Thin
Washers (16 or 26)
inside the
End Panel to
eliminate any side
movement.
NOTE: Tines must not move from side to side inside opening of end panels.
Step 4-A
Slide the Handle Grip (10) on to the Handle Assembly (8) as illustrated.
10 8

1019099-F11
English Manual
================================================================================================
ASSEMBLY
Slide the Handle Assembly (8) on the end of the
Axle Assembly (6).
Insert one
1/4” x 1-1/4” Hex Bolt (23)
though the hole in the end of the
Handle Assembly (8).
Secure with 1/4-20” Nylon Lock
Nut (24), as shown.
23
8
24
Step 4-B
8
6
NOTE:
The wheel bar mount
on the axle assembly must
be positioned downward, as
shown, in order to properly
attach the wheels.

12 1019099-F
English Manual
================================================================================================
ASSEMBLY

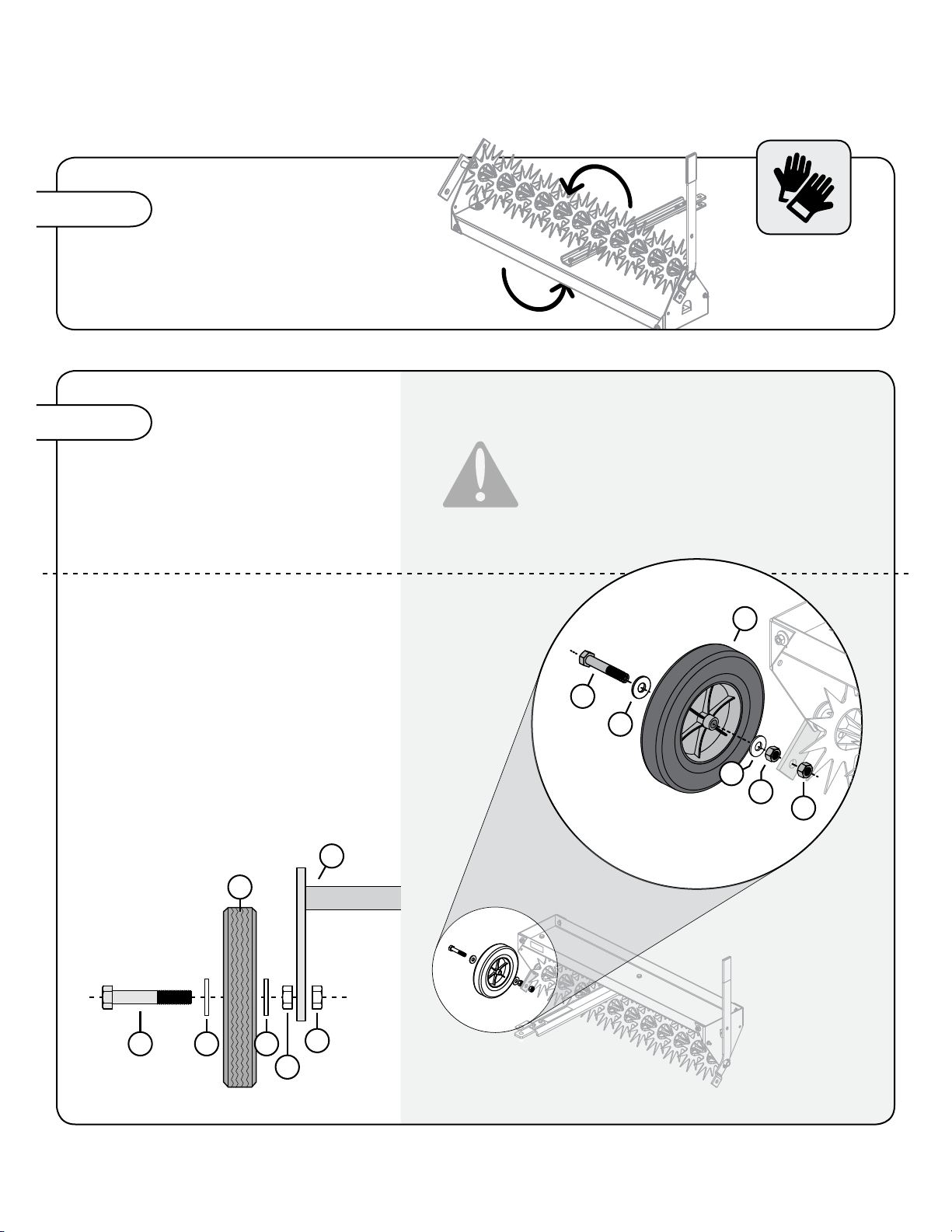

Step 5-A
While wearing gloves, carefully
and gently flip the Spike Aerator over.
Step 5-B
INSTALL FIRST WHEEL
Attach a wheel (9) to the wheel bar
mount on the Axle (6).
IMPORTANT:
Attaching the wheel without all of the
proper hardware will cause the wheel to
wobble. Insure all hardware is used, see
inset below.
21
9
6
21
20
28
19
Secure the first wheel to the right side
using hardware in this order:
• 1/2” x 3” Hex Bolt (19)
• 1/2” Flat Washer (21)
• Wheel (9)
• 1/2” Flat Washer (21)
• 1/2” Hex Nut (20)
( Wheel Bar Mount on the Axle )
• 1/2” Hex Lock Nut (28)
19
21
20
28
21
9

1019099-F13
English Manual
================================================================================================
ASSEMBLY
6
28 21
21
20
9
19

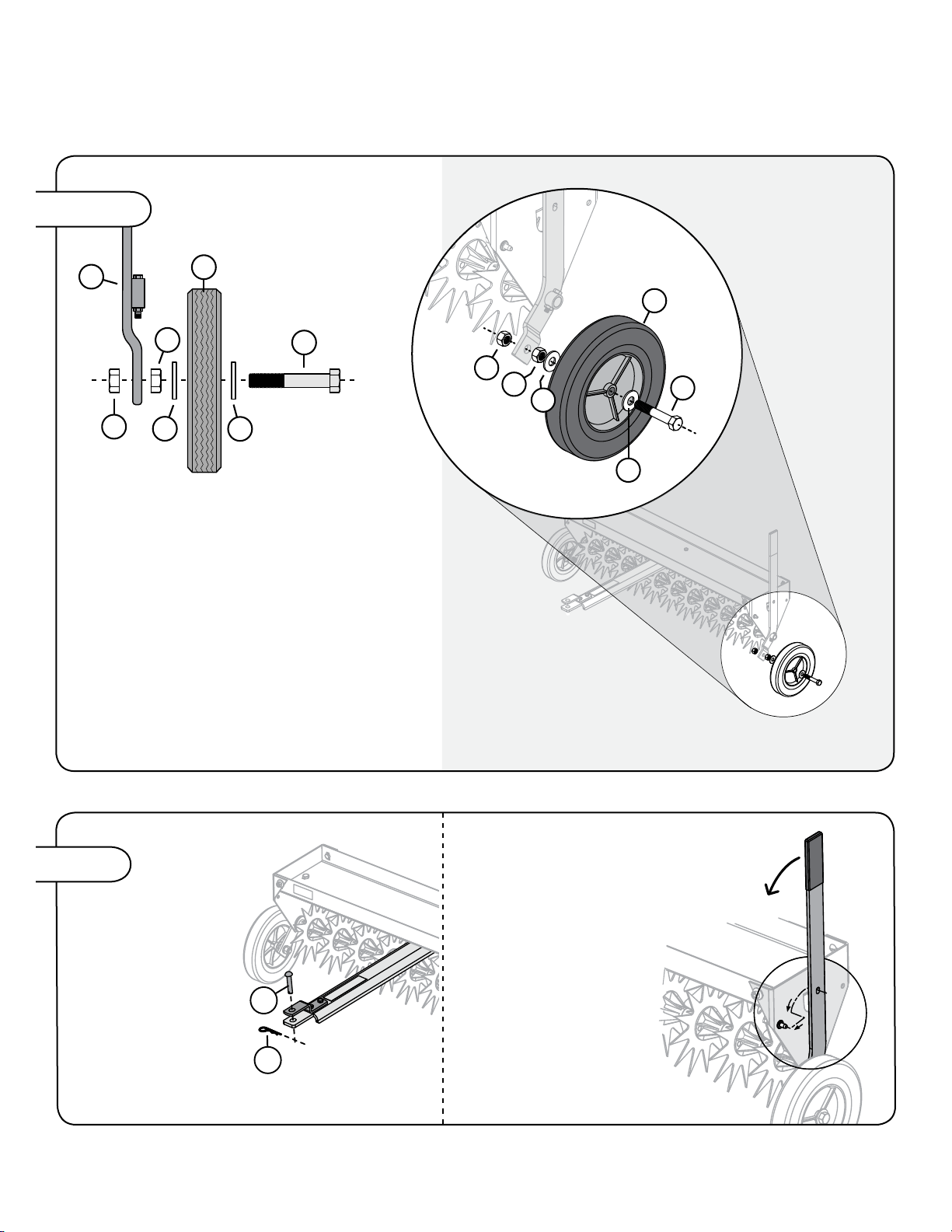

Step 5-C
Attach the second wheel (9) to the
Handle Assembly (6) using hardware in
this order:
• 1/2” x 3” Hex Bolt (19)
• 1/2” Flat Washer (21)
• Wheel (9)
• 1/2” Flat Washer (21)
• 1/2” Hex Nut (20)
( Handle Assembly )
• 1/2” Hex Lock Nut (28)
19
21
9
20
28
21
Step 6
Attach the
Aerator to
your towing
vehicle using a
Drawbar Pin (17)
and the supplied
Cotter (12).
17
12
Pull FORWARD on the
Handle Assembly (8).
Pull out slightly and
position over Transport
Lock Pin (22).
Aerator will rest on
the wheels.

14 1019099-F
English Manual
================================================================================================
OPERATION

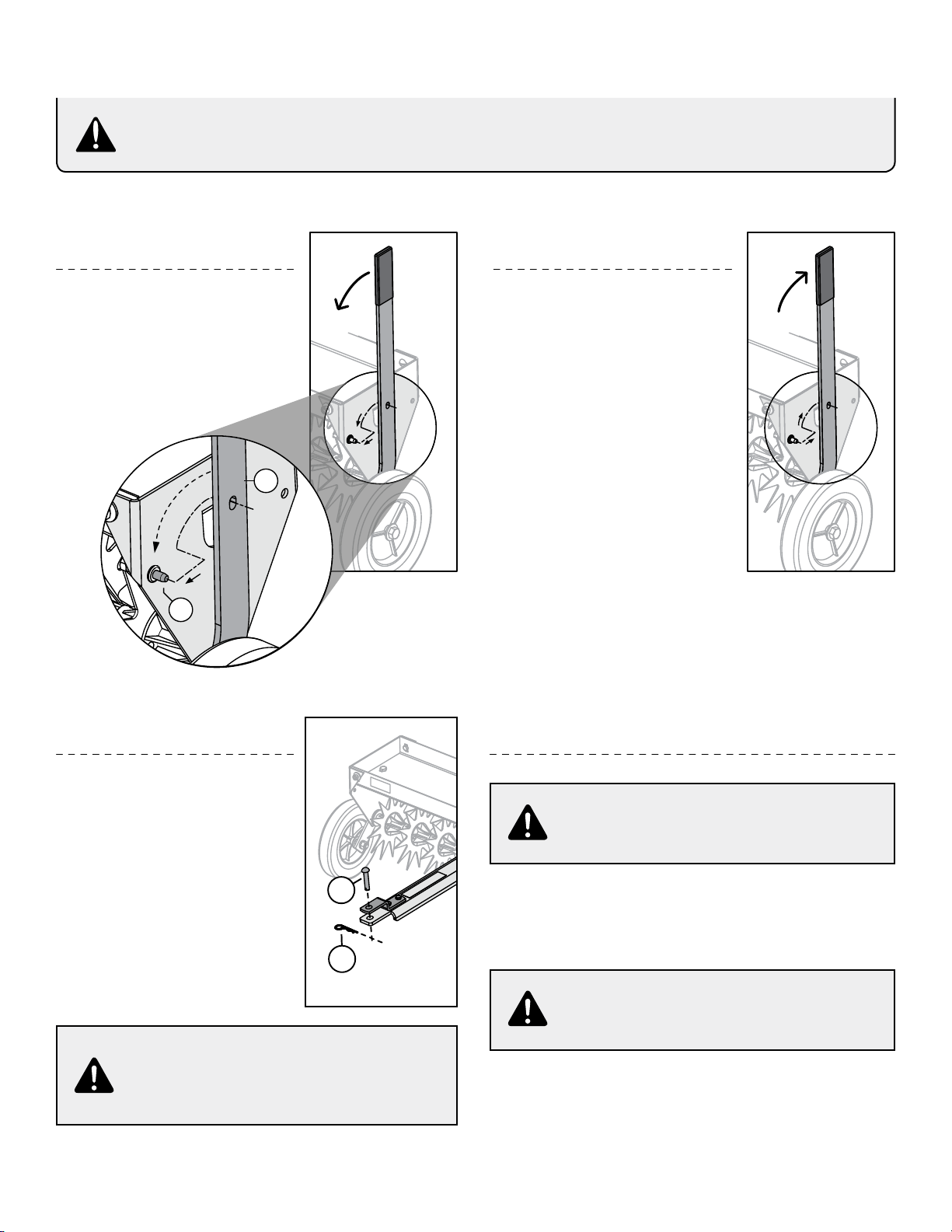

TRANSIT POSITION OPERATING POSITION
1. Secure towing vehicle parking brake.
(See towing vehicle manual).
2. Place Aerator in the Transport Position.
3. Unload Aerator tray.
4. Remove cotter pin and drawbar pin.
5. Push aerator away from towing vehicle.
6. Install drawbar pin and cotter pin to towbar for storage.
CAUTION: AVOID INJURY! Keep body parts away
from under drawbar. Do not disconnect aerator from
the towing vehicle with weight on the tray.
CAUTION: AVOID INJURY! Keep body parts away
from under drawbar. Do not disconnect aerator from
the towing vehicle with weight on the tray.
REMOVING
- Pull FORWARD
on Handle Assembly (8).
- Pull out slightly and
position over Transport
Lock Pin (22). Aerator
rests on wheels.
- Pull OUT on the
Handle Assembly
(releasing from Transport
Position) and push
Handle BACK.
- Aerator should rest on Tines.
CAUTION: Avoid damage to tines. Engage the transport wheels when
crossing concrete or asphalt driveways and walkways.
8
22
22
8
CAUTION: AVOID INJURY!
Make sure feet and hands are clear of Tine Tips.
Avoid injury! Do not operate lift handle unless
attachment is installed to towing vehicle
INSTALLING
1. Park machine safely.
(See towing
vehicle manual).
2. Align the aerator clevis with
towing machine drawbar.
3. Install drawbar pin (17)
through clevis and machine
drawbar. Secure drawbar pin
with Hairpin Cotter (12). 12
17

1019099-F15
English Manual
================================================================================================
OPERATION
CAUTION: AVOID INJURY: Excessive towed load can cause loss of control on slopes.
Stopping distance increases with speed and weight of the towed load. Total towed weight must
not exceed combined weight of towing vehicle, ballast and operator.
DEPTH / PENETRATION
- Weight should be added to tray after installing
to the towing machine. Weight should be secured by
rope, straps, or other suitable means to contain the
weight in the tray.
- Weight tray maximum capacity = 150 pounds.
- Moderate soil moisture is
important for proper penetration.
- Extremely dry conditions will not permit penetration
and may damage the tines. Extremely wet conditions
will cause full pene-tration to the tine spacers. This
condition will cut slots in the turf.
SPEED
The best operating speed
is 3 mph or less.
FREQUENCY
Aeration is not accomplished in a single pass. It will
normally take several passes over the lawn. Alternating
the direction by 90° will improve the aeration effect.
The aerator may be used in an independent operation or
may be used when mowing your lawn.
CAUTION: AVOID INJURY! Keep body parts away
from under drawbar. Do not disconnect aerator from
the towing vehicle with weight on the tray.
USING THE WEIGHT TRAY
The following maximum loaded weight capacity is the
weight of the aerator plus the weight loaded in the tray:
MODEL WEIGHT CAPACITY
SAT2-40BH-S 42 lbs. (Empty)
150 lbs. (Max Load)
192 lbs. Max Towed Weight
Towing capacity will vary with weight of towing vehicle
and operator. Add the weight of your machine to operator
weight to find the maximum capacity for towing.
SPEED
LIMIT
3

16 1019099-F
English Manual
================================================================================================
MAINTENANCE / SPECIFICATIONS
MAINTENANCE
- After the first 30 minutes of
use check all fasteners for
tightness.
- Tines are manufactured with galvanized steel to resist
wear of abrasive soil. Striking objects can cause tines to
curl or break. Contact our Customer Service Department
to purchase replacement Tines (Part # 1018833).
- PREVENTING RUST: Aerators are essentially
maintenance free. However as with any steel product,
it can rust. Apply a light coat of oil on tines after use to
prevent rust. For rust appearing on painted surfaces,
sand lightly and coat with enamel.
- Periodically remove debris that builds up between tines.
- Apply lubricating oil at each tine and
bearing before use.
STORAGE
points facing the wall or ground.
- Store Aerator on the ground or low to the ground.
- Do not store Aerator hanging from the wall, ceiling or
with Tine points facing outward.
- Product packaging can be used to offer a protective area
around the Tines.
- Drawbar is a trip hazard. Avoid leaving Drawbar in aisle
ways and walking paths.
CAUTION: Avoid Injury!Keep body parts away from under drawbar.
Do not disconnect aerator from the towing vehicle with weight on the tray.
SPECIFICATIONS
Maximum Towing Speed ............. 5 mph.
Maximum Load ................... 150 lbs.
Empty Weight ..................... 42 lbs.
Maximum Towed Weight ............ 192 lbs.
CAUTION:
AVOID INJURY!
- Store Aerator
in low traffic
aisleways.
- Store Aerator
with the tine
The Aerator Tines are very
sharp. Care should be taken
when choosing a storage
location for this product.
OPTIONAL
ACCESSORY
Magnetic Hitch Pin
MHPK-12BH
This quick-connect magnetic
hitch pin can replace a regular
cotter pin for an extra-strong,
convenient upgrade.
- Diameter: 1/2”
- Pin Length: 3”
NOTE: Additional accesories are also available
in our Parts Store online: shop.brinly.com

1019099-F17
English Manual
================================================================================================
QUALITY CONTINUES
WITH QUALITY SERVICE
If you have installation questions, are missing parts or need
replacement parts, don’t go back to the store!
Please nd your product serial number and model number,
then contact our Customer Service department:
SERVICE
In North America and Canada call
Toll-Free: 877-728-8224
Chat online: www.brinly.com
Email: [e-mail]
BRINLY.COM
Additional info and videos are
available on our website. Please
visit the URL above OR scan this
QR code.
ONLINE SAT2-40BH-S
CUSTOMER SERVICE
NOTES

Brinly-Hardy Company warrants the products listed below against
defects in material and workmanship, and will at its option, repair or
replace, free of charge, any part found to be defective in materials
or workmanship. This limited warranty shall only apply if this prod-
uct has been assembled, operated, and maintained in accordance
with the Operator’s manual furnished with the product, and has not
been subject to misuse, abuse, commercial use, neglect, accident,
improper maintenance, alteration, vandalism, theft, re, water, or
damage because of other peril or natural disaster.
Parts found to be defective within the warranty period will be re-
placed at our expense. Our obligation under this warranty is ex-
pressly limited to the replacement or repair, at our option, of parts
found to be defective in material and workmanship.
HOW TO OBTAIN SERVICE: Warranty parts replacements are
available, only with proof of purchase, through our Customer Ser-
vice Department. Call 877-728-8224.
No implied warranty, including any implied warranty of mer-
chantability of tness for a particular purpose, applies after
the applicable period of express written warranty above as to
the part as identied below. No other express warranty whether
written or oral, except as mentioned above, given by any per-
son or entity, including a dealer or retailer, with respect to any
product, shall bind Brinly-Hardy Co. During the period of the
warranty, the exclusive remedy is repair or replacement of the
product as set forth above.
The provisions as set forth in this warranty provide the sole
and exclusive remedy arising from the sale. Brinly-Hardy Co.
shall not be liable for incidental or consequential loss or dam-
age including, without limitation, expenses incurred for substi-
tute or replacement lawn care services or for rental expenses to
temporarily replace a warranted product.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warran-
ty lasts, so the above exclusions or limitations may not apply to you.
During the warranty period, the exclusive remedy is replacement of
the part. In no event shall recovery of any kind be greater that the
amount of the purchase price of the product sold. Alteration of safety
features of the product shall void this warranty. You assume the risk
and liability for loss, damage, or injury to you and your property and/
or to others and their property arising out of the misuse or inability
to use this product. NOTE: This limited warranty shall not extend to
anyone other than the original purchaser or to the person for whom
it was purchased as a gift.
This limited warranty lasts as long you own your product purchased
from an authorized seller. Coverage terminates once you sell or
otherwise transfer the product.
This limited warranty does not cover any purchaser other than the
original purchaser of the product, nor does it cover any product pur-
chased from an unauthorized third-party. If you are not the original
purchaser of this product, your product is not covered by our limited
warranty and you take the product “AS IS” and “with all faults.”
We may require proof of purchase from you demonstrating that you
are the original purchaser of the product, purchased the product from
an authorized dealer, and are eligible to make a valid claim under this
limited warranty.
How state law relates to this warranty: This limited warranty gives
you specic legal rights, and you may also have other rights which
vary from state to state.
IMPORTANT:
The Warranty period stated below begins with the proof of purchase.
Without the proof of purchase, the Warranty period begins from the
date of manufacture determined by the serial number manufacturing
date. All parts replaced under warranty will be considered as part
of the original product, and any warranty on the replaced parts will
expire coincident with the original product warranty.
The limited warranty set forth below is given by Brinly-Hardy Company with respect to new
merchandise purchased and used in the United States (its possessions and territories) and Canada.
This limited warranty does not provide coverage
in the following cases:
a. Routine maintenance items such as lubricants & lters.
b. Normal deterioration of exterior nish due to use or exposure.
c. Transportation and/or labor charges.
d. The warranty does not include commercial and/or rental use.
MANUFACTURER’S LIMITED WARRANTY
AERATORS
If this equipment is being used in a commercial application and / or for
multiple properties, the warranty is 90 days after purchase for all parts.
WARRANTY PERIOD:
See applicable parts listed below.
Standard / Residential Use:
Steel Frame & Steel Parts ............. 2 years
Stars & Plugs ...................... 90 days
Tires / Wheels .................... 90 days
Drive: Chain & Sprocket ............. 90 days
All other normal wear parts or component failures
will be covered on this product for a period of 90 days.
Brinly-Hardy Company • 3230 Industrial Parkway • Je󰀨ersonville, IN 47130 • [phone] • brinly.com
