Brite View BV-5005HD mini User manual

1
Safety Instructions
This product has been engineered and manufactured to assure your
personal safety. However, improper use can result in potential electric
shock or fire hazards. In order not to defeat the safe-guards incorporated
in this instrument and its accessories, please adhere to the following
instructions when installing, operating and servicing.
Power Source Warning
A marking label attached on the rear side of the adapter (supplied)
indicates the correct power source for this equipment. Operate this
product only from an electrical outlet with the voltage and frequency
indicated on the product label. Incorrect power source may result in a
risk of electric shock or fire. If you are uncertain of the type of power
supplied to your home, consult your local power company or appliance
dealer.
Only use the power cord and adapter provided by the manufacturer.
Internal component may be damaged if you use a different adapter to
power this product. To avoid electric shock and fire hazard, match the
plug and outlet connections carefully, then fully insert. If the plug fails to
fit the outlet, please contact an electrician to update your power outlets.
Do not overload electrical outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock. And to
prevent power cord damage, arrange all power cords so that people
cannot walk on the cords. Do not place objects on the cords.
Place this product in a location that is close enough to an electrical outlet
and where the power cord is easily accessible to be disconnected from the
wall outlet.

2
Usage Warning
To reduce the risk of electric shock, do not remove the cover or attempt to
disassemble this product. There are no user-serviceable parts inside.
Please refer all servicing to qualified service personnel.
Protect this product from foreign objects. Never push object of any kind
into this product through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric shock.
Do not expose this product to liquids, rain or moisture.
This product has ventilation openings that protect it from overheating.
Never block or cover these openings. And do not place this product near
heat sources such as radiators, heat registers, stoves or other products
producing heat.
Before cleaning or wiping this product, make sure your power cord is
already unplugged from the electrical outlet. Only use damp cloth to
clean this product, and never use a liquid cleaner or an aerosol cleaner.
During a thunderstorm, or when this product is unused for long periods of
time, unplug power cord from the wall outlet. This will prevent damage
to the product due to lightning and power-line surges.
Service Warning
Refer all servicing to qualified service personnel. For damage that
requires service, please unplug your power cord from the AC outlet first,
and contact your dealer or servicing personnel to obtain service for the
following conditions.
If there is damage to the adapter, power cord or plug.
If liquid enters this product.
If you drop this product, a heavy object falls on this product, or
damage occurs to the cover of this product.
If you expose this product to rain or water.
If this product does not operate normally by following the operating
instructions.
If this product exhibits a distinct change in performance.

3
Table of Contents
Ⅰ
INTRODUCTION
The Contents of Package
4
Specifications
5
Front View
6
Back View
6
Remote Control
7
Ⅱ
SETTING UP FOR BV-5005HD
Connections
9
Connect to the Internet
9
Connect to USB Devices
11
Power On
11
Turn On BV-5005HD
11
Select the Video Output/Resource
11
Ⅲ
NETWORK CONNECTIONS
Wired
13
Wireless
14
File Sharing Configuration
17
Ⅳ
MEDIA PLAYBACK
Select Media Sources
19
Video Playback
21
Music Playback
22
Photo Playback
23
Ⅴ
WEB SERVICE
YouTube
25
BT Download
27
Ⅵ
SETUP MENU
Audio
29
Video
30
System
31
Other
32
Ⅶ
Trouble Shooting

4
1INTRODUCTION
BV-500HD is a high-definition multimedia player, connecting the
external USB hard drives to your HD TV or display, bringing PC
entertainment to the living room. BV-5005HD is also an Internet
downloader, with built-in BitTorrent engine, it downloads
corresponding media files into the attached USB hard drives
according to the BitTorrent requests. Playing and downloading your
favorite media files is now PC-free. It supports most
video/audio/image formats so you do not need to convert
downloaded media to another format. You can plug in your USB
devices to BV-5005HD to play music, movies and pictures on TV by
following the user-friendly on-screen display (OSD) menu. You can
also access the shared folders of the remote PCs through the intranet
(local area network) and play the digital media files there on your TV.
It supports high-definition media playback with HDMI output.
The content of package
Please make sure the following items are included within your new
BV-5005HD package. If any item is missing or damaged, please
email us at [e-mail]. BV-5005HD might not be
compatible with some accessories made by other manufacturers. We
highly recommend that you use only the specific accessories we
suggest.

5
Specification
Interfaces
Video Output
HDMI、YPbPr、Composite Video
Audio Output
Audio L/R、S/P DIF (Optical)
Data Transfer
USB x 2、Ethernet Port
General Specifications
Support Media
Format
Video
MPEG1 (DAT/MPG/MPEG)
MPEG2
(MPG/MPEG/VOB/ISO/IFO/TS/TP)/M2TS
MPEG4 (MP4/AVI/MOV)
DivX 3/4/5/6、Xvid (AVI/MKV)
H.264/AVC (TS/AVI/MKV/MOV)/M2TS
VC-1 (TS/AVI/MKV/WMV)/M2TS
WMV9 (WMV)
Real Video 8/9/10 (RM/RMVB)
FLV
Audio
MP3、MPEG Audio、Dolby Digital、DTS 、
WMA、PCM、LPCM、ADPCM、FLAC、WAV、
AAC、RA、OGG、MKA
HD JPEG、GIF、PNG、BMP、TIF、TIFF
Subtitle
SRT、SMI、SUB、SSA、IDX+SUB
USB Device
File Systems
EXT3、NTFS、FAT16/32
Decoding
Up to 1080p (RMVB up to 720p)
Output
Up to 1080p
Dimension
204 mm× 145.4 mm× 40 mm
Power Supply
100~240V ±10% input voltage/ 12V @ 2A

6
Front View
Back View
①
Power
Press to turn the BV-5005HD on.
②
Network LED
The LED blinks when BV-5005HD accesses to
Network.
①
DC IN
Connects to the DC output of the power adapter.
②
USB Port
Plug the supported USB devices into USB ports,
such as USB hard drives, cameras, camcorders
and wireless USB dongles.。
③
LAN
Connects to the RJ-45 Ethernet 10/100 based
network. Not compatible with the telephone line.
④
HDMI OUT
Connects to the HDMI jack on the display, using a
single cable to transmit both audio and video
data.
⑤
S/PDIF
Connects the BV-5005HD to a display that has an
optical digital audio port, using an optical digital
audio (also called S/PDIF) cable.
⑥
AUDIO L/R/ VIDEO
Connects to the display with the VIDEO IN/
AUDIO L/R IN jacks on the display using VIDEO
(Yellow)/ AUDIO L (White)/R (Red) cables.
⑦
Y/Pb/Pr
Connect to a Y/Pb/Pr-compatible display using
three video (Y/Pb/Pr) and two audio jacks
(AUDIO L/R), through a component video cable
with green, blue, and red connectors.

7

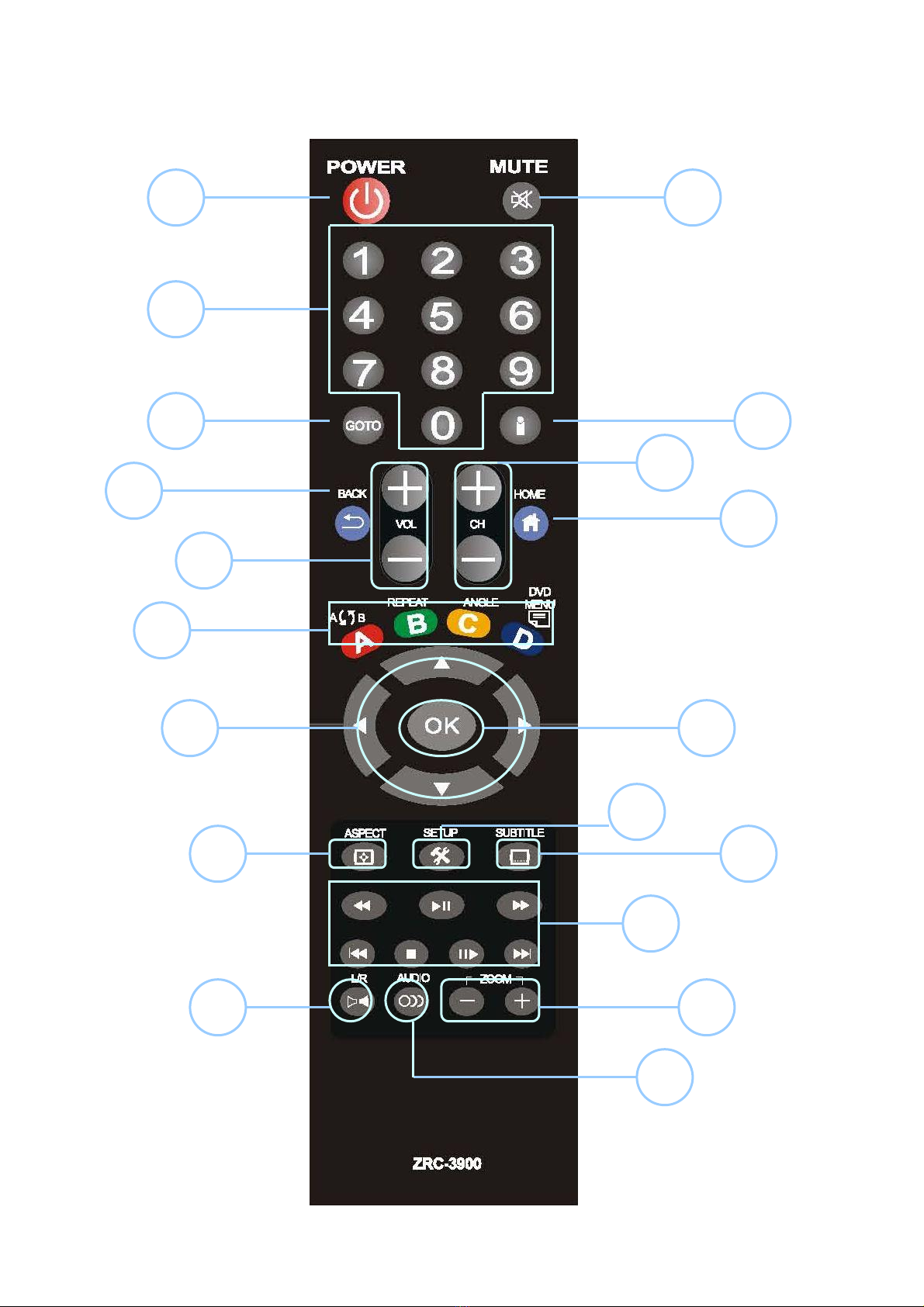

REMOTE CONTROL
3
4
7
8
1
2
9
6
10
11
16
5
13
15
14
17
19
18
12

8
REMOTE CONTROL
①
POWER
Turn on and off in the stand-by mode.
②
MUTE
Press to mute the sound.
③
Number
Keys for selection.
④
GOTO
Video/movie chapter selection.
⑤
INFO
Display the information of media files
while in play mode.
⑥
BACK
Return to the previous display.
⑦
VOL
Increase/decrease the volume.
⑧
CHANNEL
Reserved keypad.
⑨
HOME
Hot key to the main OSD menu.
⑩
REPEAT
Enable/disable repeat of file playback.
REPEAT A-B
Set repeat option (e.g. Chapter, Title)
ANGLE
Switch DVD display angles.
DVD MENU
Show DVD Menu.
○
⑪
Navigate through menuscreen or media
libraries.
○
⑫
OK
Confirm or select.
○
⑬
ASPECT
Adjust screen aspect.
○
⑭
SETUP
Enter setup menu
○
⑮
SUBTITLE
Switch subtitle files.
○
⑯
MULTI-FUNCTION: Refer to the
instructions in the screen.
PALY/ PAUSE
Play/pause selected file.
PREV
Return to previous file.
NEXT
Go to next file.
STOP
Stop playback and return to the previous
screen.
SLOW MOTION
Play films in slow mode.
○
⑰
L/R
Enable/disable Left/Right speaker.
○
⑱
AUDIO
Switch audio outputs.
○
⑲
ZOOM
Zoom video or image display on screen.

9
2SETTING UP BV-5005HD
Step1: Cable connections.
Match the cables to the connections on your TV or display. Your choices
of connection include:
HDMI
For both audio and video output
Composite (AV)
For composite video (yellow) and stereo
audio (white and red)
Y/Pb/Pr (RGB)
For component video output
S/PDIF
For audio output
Step2: Connect the BV-5005HD to the home network through
wired LAN (Option A) or wireless LAN (Wi-Fi 802.11 b/g/n)
(Option B)

10
A. Plug the Ethernet cable to the “LAN” jack on the rear panel of
BV-5005HD, for wired Internet connection. BV-5005HD will
detect the network automatically.
B. If you have the optional wireless USB dongle we approved, it is
possible to connect BV-5005HD to the network wirelessly using
Wi-Fi 802.11 b/g/n. You need to plug the USB dongle into one of
the USB port on the front panel of the BV-5005HD and connect to
the internet through wireless IP sharing router. You may need to
know your wireless AP, name of the router, and encryption keys in
order to set up correctly.

11
Step3: Connect USB devices
Step4: Power cord connection
Plug one end of the power cord into the back
of the BV-5005HD and the other end into a
power outlet. BV-5005HD will start
automatically without pressing any other
button once the power is connected.
Step5: Switch your TV Input/Source
After choosing the desired video and audio connection, you need to
select appropriate video input mode using the remote control for your
TV/display to switch to the corresponding video output by pressing the
Input/Source button on the remote control.

12
3Network Connections
▲Network Connections: needed only when using “PC Media”,
“Download Media” and “YouTube TV”features.
If your wired network equipment such as the IP Sharing router or AP
(Access Point), uses DHCP to assign IP address, by default the
BV-5005HD will automatically request the IP and other related
information to set up BV-5005HD over the network in DHCP mode
(under Setup> Network >Wired).If your network does not have
DHCP server, switch to the Static IP mode (under Setup> Network
>Wired) and set up various parameters manually. If you have a
compatible wireless USB dongle, and have already set up the wireless
router/AP according to the instructions that come with the dongle,
please enter Setup> Network> Wireless mode to input the WEP or
WPA keys.

13

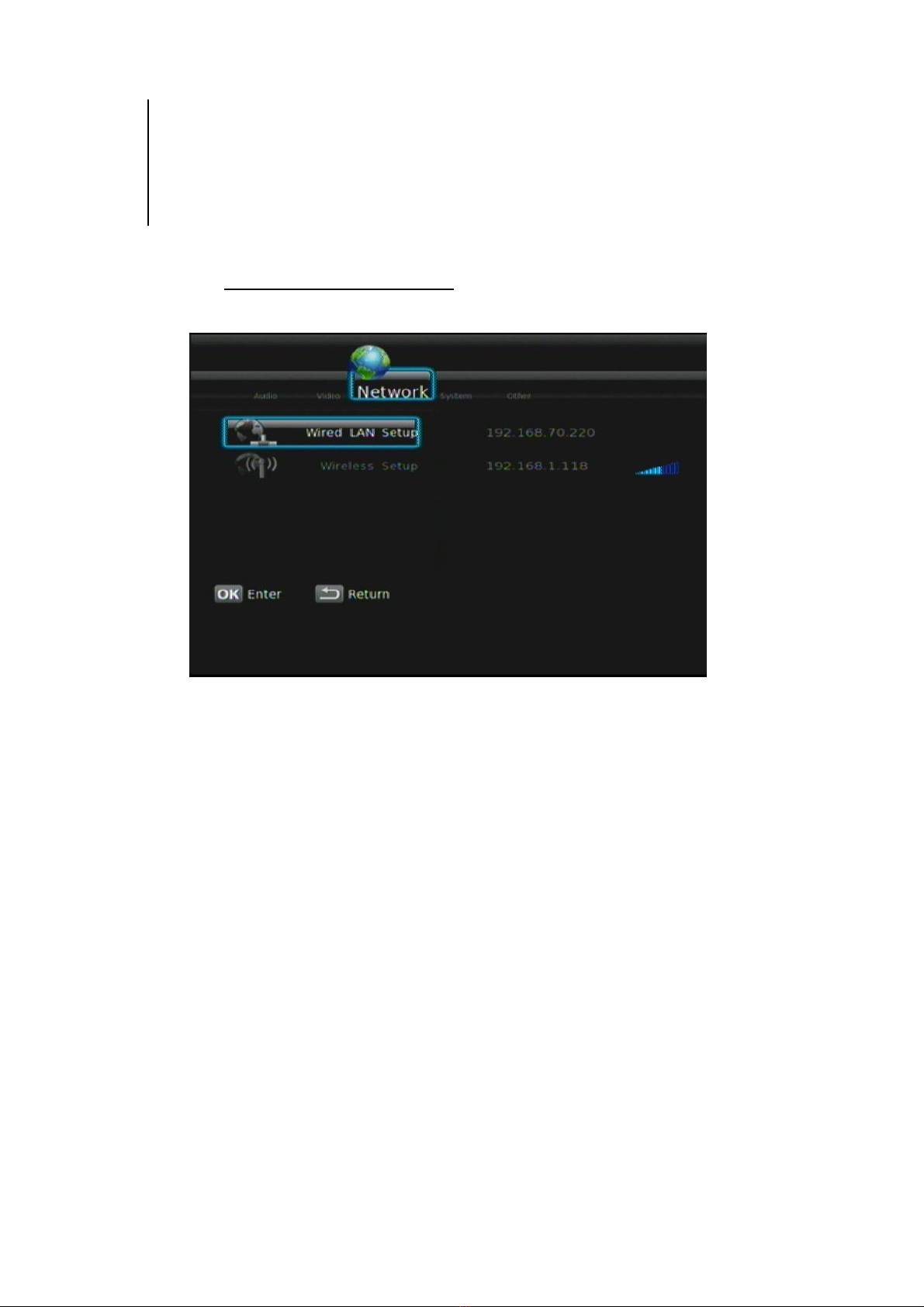

Wired Network Setup
> DHCP
+
Step 1:
To access “Setup” on the main menu.
Select “Network”.
Step 2:
Select “Wired” on the Network menu.
Select “DHCP”.
+
Step 3:
Select Yes to implement DHCP network
setting. BV-5005HD will automatically
receive its IP address from a DHCP
sever that is built into the access point
or IP sharing router.
> Static IP

14
+
Step 1:
Select “Wired” on the Network menu.
Select “Static IP”.
+
Step 2:
Input the value IP Address, Subnet
mask, Gateway, and DNS text box
respectively.
PS Please acquire information of these setting values from your ISP（Internet
Service Provider）first.
Wireless Network Setup
+
Step 1:
Select “Wireless setup” on the
Network menu.
+
Step 2:
Select Connection 1/2/3. BV-5005HD
provides you multiple profiles for use
across multiple networks.
Note:
BV-5005HD supports WPA-PSK and WPA2-PSK encryption mode only.
Please use brite-View approved WI-FI dongle for wireless network.

15
> Infrastructure (AP)
BV-5005HD performs a list of current wireless network connections-
“SSIDs”. Along with its security protocols (WEP/WPA/WPA 2 key)
and signal strength.
+
Step 1:
Select your preferred wireless network
connection.
+
Step 2:
If an access key is required for the
network connection, the keyboard will
pop up.

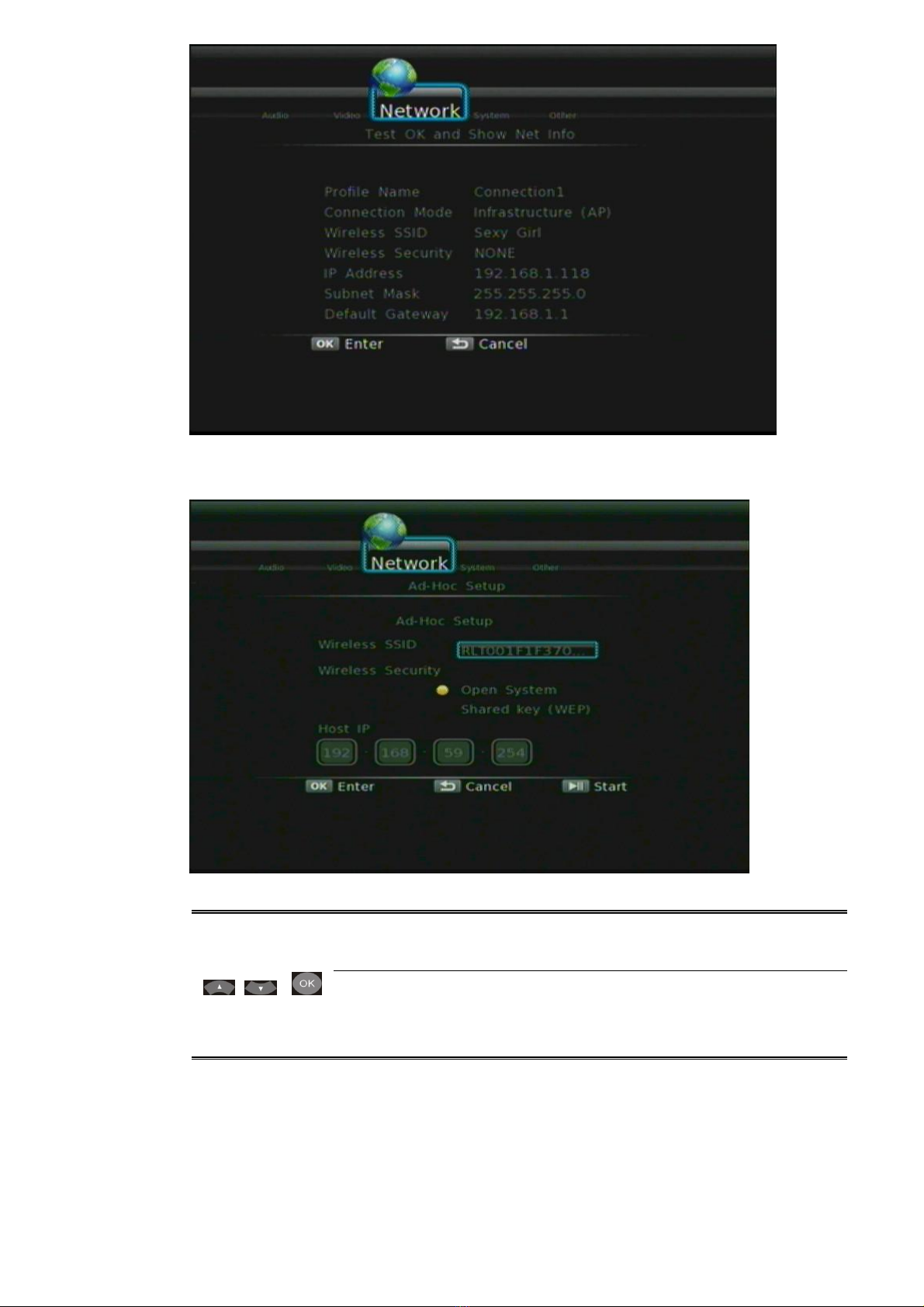

Once the wireless network setup is successful, the “TEST OK”screen
will appear and shows the information.

16
> Ad-Hoc Setup
+
Rename SSID
Rename your wireless network
connection.
Wireless Security
Set your wireless network as an
open system or WEP key will be
needed for connection.

17
File sharing Configuration
To activate this feature, please make sure:
The BV-5005HD is connected to the network;
The network is properly set up. For more information on this part,
please refer to “Step 2”in “Setting up BV-5005HD”section, and
“Network”under “Setup Menu”.

18
To allow the BV-5005HD to access folders on your computer, you need:
1) BV-5005HD already connected to the network
2) to designate the folders/files on your PC as shared resources.
Please refer to Microsoft’s official website:
http://www.microsoft.com/windowsxp/using/networking/setup/home
net.mspx to see the initial and detailed process of Home Network Setup
in Windows XP. Please refer to the following instructions to allow the
BV-5005HD to access the shared folders on the remote PC.
Step 1: Right click on the folder to be shared and select Sharing and
Security.
Step 2: If this is the first time you intend to share a folder, Windows XP
will p rompt a warning message, urging you to use the Network
Setup Wizard for safety purpose. Choose to either run the
Wizard or do it yourself. XP will display another warning. If you
want the firewall enabled, select Use the wizard to enable
file sharing. Otherwise, select enable file sharing.
Step 3: You may now specify a “Share Name”, which will be used for
users on the network to access the shared folder. The icon of
the shared folder will be changed to showing a hand holding
the folder.
Caution: File sharing may lead to security problems since, by definition, it gives other users
access to the content of a part of the hard drive. As a result, it is essential that you share
only folders for which it would not be extremely important if their contents are revealed.

19
If your operating system is Windows Vista, please refer to the following
instructions:
(1) Open the Control Panel and then open Network and Sharing
Center.
(2) Click the down arrow to the right of File Sharing to expand it.
(3) Click Turn on file sharing and then click Apply.
You may also refer to Setup menu on the OSD screen of BV-5005HD to
select wired or wireless connection.
