Britex HBDA User manual

MELBOURNE
Britex Place Mirra Crt
Bundoora VIC 3083
t(03) 9466 9000
e[email protected]om.au
SYDNEY
16 Northumberland Drv
Taren Point NSW 2229
t(02) 9531 2100
[e-mail]
PERTH
Unit 1/8 Principal Link
Malaga WA 6090
t(08) 9249 5464
[e-mail]
BRISBANE
19 Manilla St
East Brisbane QLD 4169
t(07) 3363 2400
e[email protected]om.au
ADELAIDE
The Britex Group
SA State Office
t1300 764 744
e[email protected]om.au
Installation
Guide
HBDA
Disabled
Hand Basin
HBDA Installation Guide | QID 3.17 | Rev 2 | 9 Feb 2024
700 From FFL to Comply With AS1428
232
40mm
Waste
75
470
380
HBDA - Disabled Hand Basin
Installation
A3
SHEET 1 OF 2
SCALE:1:10
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
AW
8/02/24
A
SD-6470.1

Australia’s Finest Stainless | britex.com.au
About
The BRITEX Stainless Steel Disabled Hand Basin is a vandal resistant fixture that is
designed to conform to Australian Standards for disability access – AS1428 - and is ideal
for use in public amenities, night clubs, pavilions and correctional institutions. Fabricated
from heavy duty stainless steel with a rolled safety fascia, a 40mm waste outlet and can be
supplied with fully certified disabled compliant tapware.
2
HBDA Installation Guide | QID 3.17 | Rev 2 | 9 Feb 2024
WARNING
WHEN INSTALLATION IS COMPLETE, ENSURE THESE INSTRUCTIONS REMAIN INSIDE
THE PLASTIC BAG PROVIDED WITH THE UNIT FOR FUTURE REFERENCE
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORISED SERVICE PERSON
Installation of this unit must be in accordance with AS/NZS 3500.2, the PCA and the local
regulatory requirements. Water and/or electrical supply conditions must comply to national or
state requirements and standards. Failure to comply shall void the product warranty and may
affect the performance of the product. For further support and after-sales care, please contact
Britex.
Preparation and Completion Notes
Contractors please note: Stainless steel hand basins should be installed after all other
building activities that could cause contamination to the surface of the stainless steel have
been completed.
These activities include:
Using proprietary building mortar removers containing hydrochloric acid. welding, cutting
and grinding that may ‘spray’ carbon steel and iron particles onto the stainless-steel
surface.
1. Remove basin from box packaging and inspect for any damage before beginning
installation process.
2. Confirm all requested details are correct.
3. If the basin is damaged in transit or if any details are not as requested, do not install it.
Notify Britex immediately within 24 hours of receipting the product.
Note: No power tools are recommended for use with access panel screws. Britex advises
use of supplied security torx allen key only.
When returning access panel to basin it is recommended to insert all screws and tighten
all of them until 3/4 tight, then proceed to tighten all screws fully. This will ensure the
best alignment of the access panel, be aware that over tightening can damage the female
thread.
Installation of this unit must be in accordance with PCA Plumbing Code of Australia,
AS/NZS 3500.1 and AS/NZS 3500.2
For further support and after-sales care, please contact Britex.

Australia’s Finest Stainless | britex.com.au 3
HBDA Installation Guide | QID 3.17 | Rev 2 | 9 Feb 2024

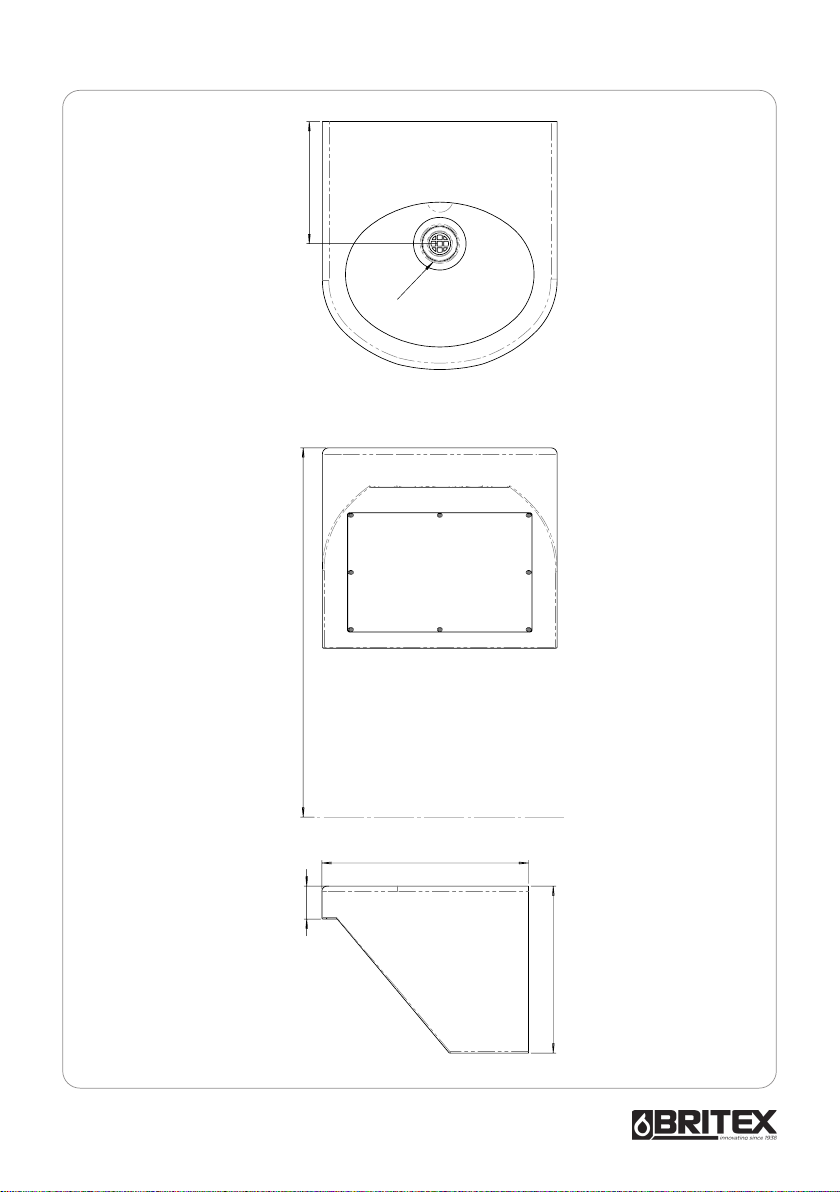

HBDA Drawing
700 From FFL to Comply With AS1428
232
40mm
Waste
75
470
380
HBDA - Disabled Hand Basin
Installation
A3
SHEET 1 OF 2
SCALE:1:10
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
AW
8/02/24
A
SD-6470.1
700 From FFL to Comply With AS1428
232
40mm
Waste
75
470
380
HBDA - Disabled Hand Basin
Installation
A3
SHEET 1 OF 2
SCALE:1:10
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
AW
8/02/24
A
SD-6470.1

Australia’s Finest Stainless | britex.com.au
Installation Instructions
1. Mark a level, horizontal line on the wall at the desired height for the hand basin to be
installed. To comply with AS 1428, operable basin height from finished floor level must be
700mm.
2. Remove access panel from bottom of basin and mark the hole centres for the wall
fixings. See figure (A)
3. Use appropriate wall fixings, leave fixings protruding enough to hang the basin by the
rear keyholes. See figure (B)
4
35
180
335
400
9
A
A
SECTION
A-A
SCALE
1 : 5
(A)
(B)
(C) (D)
Low Level
Caroma Trap
Recommended
(Not Supplied)
HBDA - Disabled Hand Basin
Installation
A3
SHEET 2 OF 2
SCALE:1:10
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
AW
8/02/24
A
SD-6470.2
35
180
335
400
9
A
A
SECTION
A-A
SCALE
1 : 5
(A)
(B)
(C) (D)
Low Level
Caroma Trap
Recommended
(Not Supplied)
HBDA - Disabled Hand Basin
Installation
A3
SHEET 2 OF 2
SCALE:1:10
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
AW
8/02/24
A
SD-6470.2
HBDA Installation Guide | QID 3.17 | Rev 2 | 9 Feb 2024

Australia’s Finest Stainless | britex.com.au
Installation Instructions

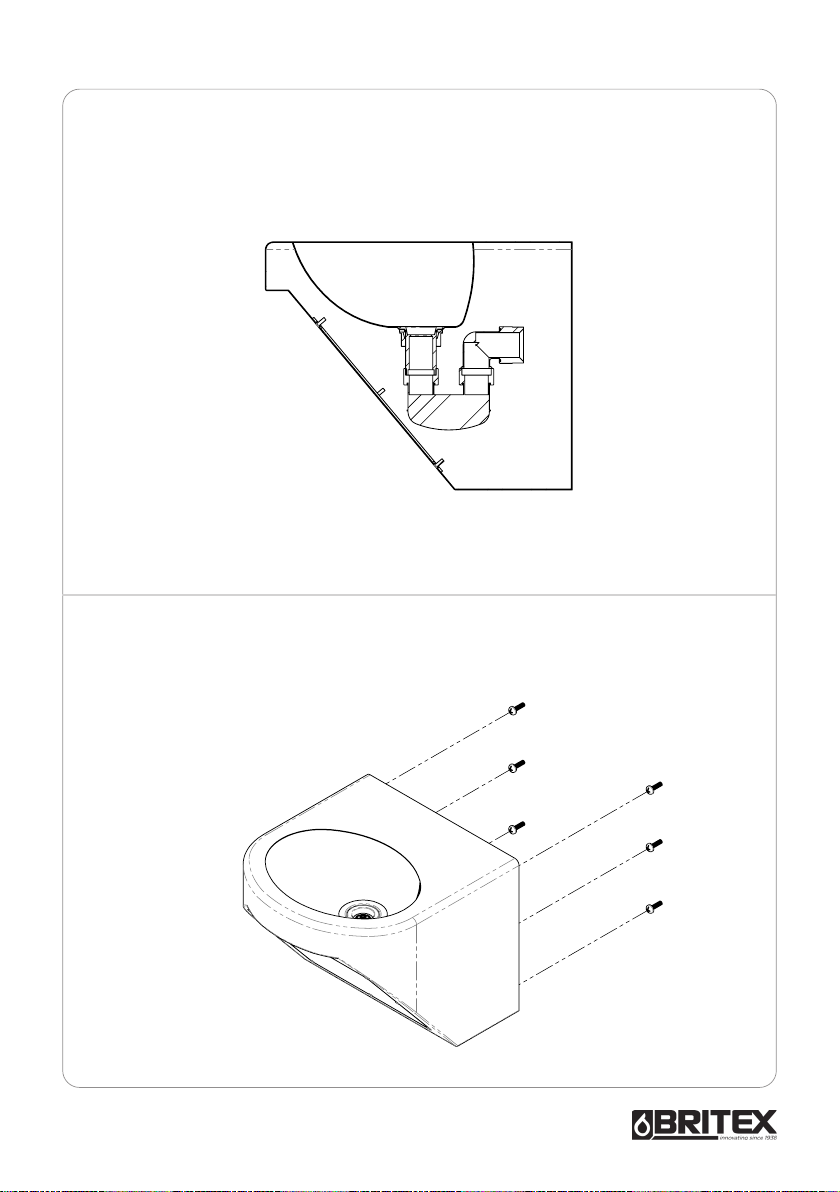

4. It is recommended to fit trap to 40mm waste and mark where the wall penetration will
be made. See figure (C)
5. Remove basin from wall and make penetration for trap.
6. Return basin to wall and tighten fixings. See figure (D)
7. The sink is supplied with a 40mm waste and is now ready to be plumbed. (Trap not
supplied)
5
35
180
335
400
9
A
A
SECTION
A-A
SCALE
1 : 5
(A)
(B)
(C)
(D)
Low Level
Caroma Trap
Recommended
(Not Supplied)
HBDA - Disabled Hand Basin
Installation
A3
SHEET 2 OF 2
SCALE:1:10
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
AW
8/02/24
A
SD-6470.2
35
180
335
400
9
A
A
SECTION
A-A
SCALE
1 : 5
(A)
(B)
(C)
(D)
Low Level
Caroma Trap
Recommended
(Not Supplied)
HBDA - Disabled Hand Basin
Installation
A3
SHEET 2 OF 2
SCALE:1:10
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
AW
8/02/24
A
SD-6470.2
HBDA Installation Guide | QID 3.17 | Rev 2 | 9 Feb 2024

Australia’s Finest Stainless | britex.com.au
Care and Maintenance
Cleaning: The coil at the front of the unit
and the vents on the side must be kept clean
from dust and lint. Regular checks of the unit
should be conducted on a weekly basis and
cleaning carried out as necessary by dusting
with a soft brush and/or vacuuming. A damp
cloth can be used to wipe the exterior cover
down. Excessive build up of foreign material
will result in poor ventilation, causing the
compressor to overheat and drinking water
to increase in temperature. High pressure
hoses and water jets should never be used to
clean chiller units.
Stainless steel products should be
kept clean at all times. The secret to
stainless steel’s ability to maintain a high
quality finish and promises of a long life
expectancy is the invisible chromium-oxide
film that sits on the surface and protects
the steel beneath. To maintain this film it
is essential that the surface remains clean
and in constant contact with oxygen. If
this film is penetrated (either by abrasion
or chemically) and dirt, liquid, grime
contaminants embed themselves in these
micro chasms for an extended period of
time, the chromiumoxide film will not be
able to regenerate and the steel below
will eventually become damaged and
discoloured.
What we recommend for general cleaning
and maintenance:
Cleaning Materials:
• A soft cloth
• A soft-bristled brush
• A natural or artificial sponge
Cleaning Solutions:
• Hand washing soap / soft water solution
• Mild soap / soft water solution
• White vinegar / soft water solution
It is recommended that general cleaning
of stainless steel surfaces be carried out
weekly, or as soon as a build up of surface
media has been observed. To clean, simply
wash stainless steel surfaces with, warm,
diluted, mild soapy water using a cloth or
soft bristled brush. Once all dirt, oil and
grime is removed, rinse thoroughly with
clean water and wipe dry.
Do NOT – use a metal brush or steel wool to
clean stainless steel. Ever. These tools will
scratch the surface as well as potentially
leave behind steel fragments that can go
rusty and cause the stainless to discolour.
Using these materials will void the warranty.
Do NOT – use scourers of any kind that
have previously been used on ordinary
steel. Microscopic steel fibers transferred
onto stainless steel can cause considerable
damage to the surface and will void the
warranty.
Do NOT – use abrasive cleaning brushes,
pads or agents on highly polished finishes
Do NOT use harsh cleaners that contain
powerful acidic or alkaline chemicals such
as hydrochloric acid and sodium hydroxide
that will damage the surface. Any water
coming into contact with stainless steel,
particularly cleaning solutions, should
have zero chloride content as even minute
amounts can cause damage. Using these
cleaners will void any product warranty.
Do NOT – use chlorinated sanitizers,
cleansers or bleach of any kind. Using these
substances will void the warranty. Despite
some cleaners displaying the text, ‘Suitable
for Toilets and Urinals’ this is more likely
in reference to ceramic/vitreous China
products and use of these cleaners can
damage stainless steel and will void the
warranty.
Do NOT – use brick cleaning liquids that
contain hydrochloric acid anywhere near
stainless. If cement needs to be removed from
stainless (before it sets), a mixture of hot
water and 25% vinegar or 10% phosphoric
acid can be effective. Once cleaned, the
surface should then be neutralised with
dilute ammonia or sodium bicarbonate then
rinsed and dried
6
HBDA Installation Guide | QID 3.17 | Rev 2 | 9 Feb 2024

Australia’s Finest Stainless | britex.com.au
Warranty
The BRITEX product is backed by our manufacturer’s warranty available for download
from our website at www.britex.com.au. We expressly warrant that the product is free from
operational defects in workmanship and materials for the warranty period indicated on the
schedule in the manufacturer’s warranty. During the warranty period, BRITEX will repair or
replace any defective products manufactured by BRITEX at no charge, provided that the
terms of the manufacturer’s warranty are followed.
This warranty is the only warranty given by BRITEX, and we expressly disclaim all other
warranties, including but not limited to implied warranties of merchantability and fitness
for a particular purpose. This warranty represents the sole and exclusive remedy for breach
of warranty, and BRITEX shall not be liable for any incidental, special, or consequential
damages, including lost profits, labor charges, delays, vandalism, negligence, fouling
caused by foreign material, damage from adverse water conditions, chemical, electrical or
any other circumstances beyond BRITEX’s control.
This warranty shall be void if the product is abused, misused, improperly installed,
maintained, or altered. By purchasing our product, you agree to these terms and
conditions. We appreciate your business and look forward to providing you with high-
quality products and services.
7
HBDA Installation Guide | QID 3.17 | Rev 2 | 9 Feb 2024

MELBOURNE
Britex Place Mirra Crt
Bundoora VIC 3083
t(03) 9466 9000
e[email protected]om.au
SYDNEY
16 Northumberland Drv
Taren Point NSW 2229
t(02) 9531 2100
[e-mail]
PERTH
Unit 1/8 Principal Link
Malaga WA 6090
t(08) 9249 5464
[e-mail]
BRISBANE
19 Manilla St
East Brisbane QLD 4169
t(07) 3363 2400
e[email protected]om.au
ADELAIDE
The Britex Group
SA State Office
t1300 764 744
e[email protected]om.au
HBDA Installation Guide | QID 3.17 | Rev 2 | 9 Feb 2024
