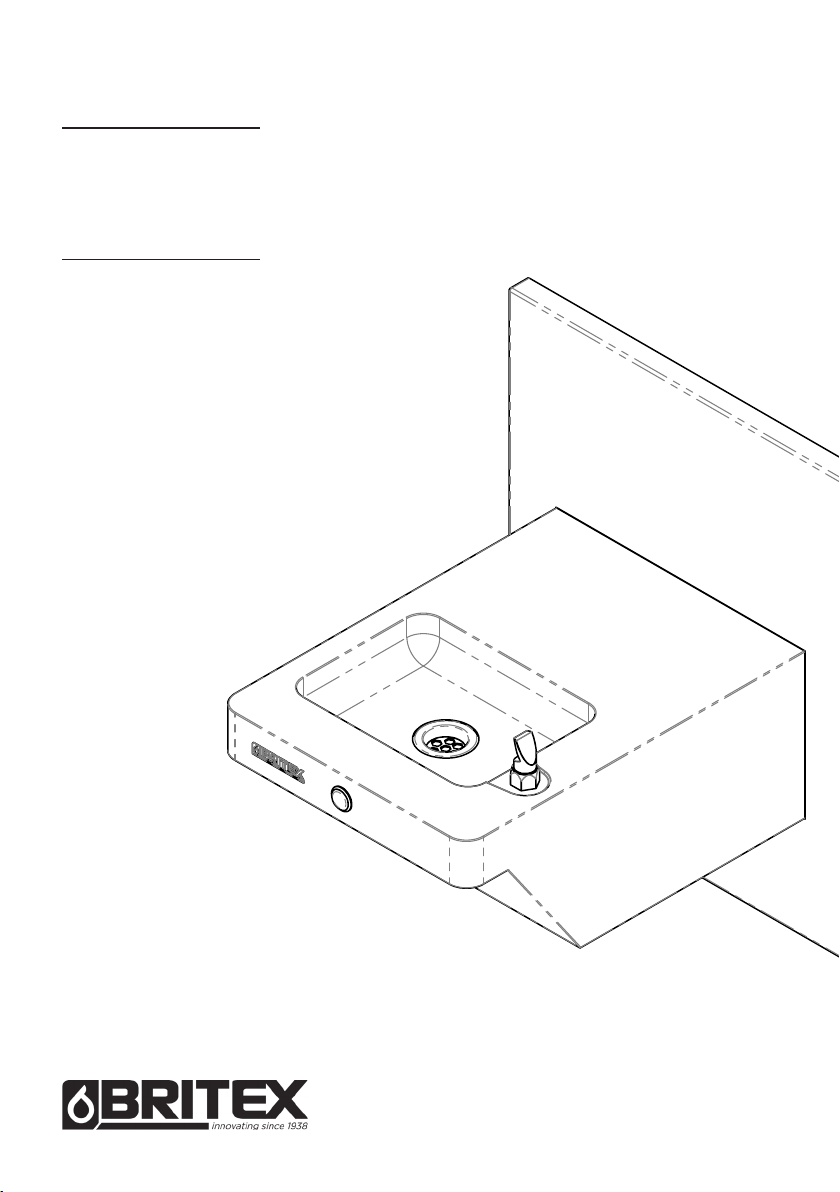

Installation
Guide
DDS1-D
Dado Square Drinking
Fountain - Accessible
Refrigerated and
Non-refrigerated
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023
60
150 210 240
600
168 150 282
Dome Head
Fixing Screws
Removable
Bottom Panel
Services
Access
Front Elevation
28
518
240
15
700 As Per
AS1428.2
355 Recommended
Noggin Height
340
45
895 Recommended Noggin Height
Timber Bonded
Splashback
Piezo
Activated
Button
Solenoid
1/2" Inlet
40mm Waste
Angle
Mounting
Strip
Offset Fixing Strip
Designed to suit
Caroma 102115
and HepVo
Not Supplied
Side Elevation
230
350
265
360
200
Plan View
Please Tick for Optional Chiller
Optional
Chiller Unit
CWU-INT
485H x 335L
x 186W
1/4" John
Guest
Fittings
Should not be
Installed more
than 8m Away
DDR1-D
DADO Drinking Fountain Single Disabled
A3
SHEET 1 OF 2
SCALE:1:7
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
db
25/08/20
D
SD-2782.1
Sign
Date
Approval For Manufacture

Australia’s Finest Stainless | britex.com.au
About
Preparation and Completion Notes
The BRITEX Stainless Steel Dado Single Square Accessible Drinking Fountain - is a stylish,
versatile fixture that can be supplied in either an accessible configuration or a space saving
compact size. Both models are supplied complete with a front piezo activated timed flow
Drink Safe™ low lead bubbler, splash back panel, waste outlet, mounting bracket and
concealed access. Manufactured from commercial grade 304 stainless steel. Refrigerated
models are supplied with a separate remote chiller unit for installation within cavity.
Contractors please note: Stainless steel drinking fountains should be installed after all other
building activities that could cause contamination to the surface of the stainless steel have
been completed.
These activities include:
Using proprietary building mortar removers containing hydrochloric acid. Welding, cutting and
grinding that may ‘spray’ carbon steel and iron particles onto the stainless-steel surface.
1. Remove drinking fountain from box packaging and inspect for any damage before
beginning installation process.
2. Confirm all requested details are correct.
3. If the drinking fountain is damaged in transit or if any details are not as requested, do
not install it. Notify Britex immediately within 24 hours of receipting the product.
2
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023
Technical Parameters
Inlet Connection 1/2” BSP Male
Recommended Inlet Pressure 350 kPa
Maximum Inlet Pressure 500 kPa
Water Supply Temperature
Limitations 4-15°C
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORISED SERVICE PERSON
Installation of this unit must be in accordance with AS/NZS 3500.1, AS/NZS 3500.2, the PCA
and the local regulatory requirements. Water and/or electrical supply conditions must comply to
national or state requirements and standards. Failure to comply shall void the product warranty
and may affect the performance of the product. For further support and after-sales care, please
contact Britex.
WARNING
WHEN INSTALLATION IS COMPLETE, ENSURE THESE INSTRUCTIONS REMAIN INSIDE
THE PLASTIC BAG PROVIDED WITH THE UNIT FOR FUTURE REFERENCE

Australia’s Finest Stainless | britex.com.au
DDS1-D Drawing (Non-refrigerated)
3
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023
60
150 210 240
600
168 150 282
Dome Head
Fixing Screws
Removable
Bottom Panel
Services
Access
Front Elevation
28
518
240
15
700 As Per
AS1428.2
355 Recommended
Noggin Height
340
45
895 Recommended Noggin Height
Timber Bonded
Splashback
Piezo
Activated
Button
Solenoid
1/2" Inlet
40mm Waste
Angle
Mounting
Strip
Offset Fixing Strip
Designed to suit
Caroma 102115
and HepVo
Not Supplied
Side Elevation
230
350
265
360
200
Plan View
Please Tick for Optional Chiller
Optional
Chiller Unit
CWU-INT
485H x 335L
x 186W
1/4" John
Guest
Fittings
Should not be
Installed more
than 8m Away
DDR1-D
DADO Drinking Fountain Single Disabled
A3
SHEET 1 OF 2
SCALE:1:7
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
db
25/08/20
D
SD-2782.1
Sign
Date
Approval For Manufacture
28
518
240
15 45
700 As Per
AS1428.2
355 Recommended
Noggin Height
340
895 Recommended Noggin Height
Solenoid
1/2" Inlet
Side Elevation
Timber Bonded
Splashback
Angle
Fixing
Strip
Offset Fixing Strip
40mm Waste
Designed to Suit
Caroma 102115
and HepVo
Not Supplied
Piezo
Activation
Button
DDS1-D Installation Steps
A3
SHEET 2 OF 2
SCALE:1:7
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
AW
29/04/23
A
SD-2782.4
60
150 210 240
600
168 150 282
Dome Head
Fixing Screws
Removable
Bottom Panel
Services
Access
Front Elevation
28
518
240
15
700 As Per
AS1428.2
355 Recommended
Noggin Height
340
45
895 Recommended Noggin Height
Timber Bonded
Splashback
Piezo
Activated
Button
Solenoid
1/2" Inlet
40mm Waste
Angle
Mounting
Strip
Offset Fixing Strip
Designed to suit
Caroma 102115
and HepVo
Not Supplied
Side Elevation
230
350
265
360
200
Plan View
Please Tick for Optional Chiller
Optional
Chiller Unit
CWU-INT
485H x 335L
x 186W
1/4" John
Guest
Fittings
Should not be
Installed more
than 8m Away
DDR1-D
DADO Drinking Fountain Single Disabled
A3
SHEET 1 OF 2
SCALE:1:7
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
db
25/08/20
D
SD-2782.1
Sign
Date
Approval For Manufacture

Australia’s Finest Stainless | britex.com.au
Installation Instructions
1. Place unit on wall and mark the top, ensuring top of basin is between 695 and 700mm
FFL. Fix Offset Fixing Strip to wall.
2. Mark location for bottom fixing strip and fix to wall.
3. Place unit on the top fixing strip while holding the bottom of the unit away from the
bottom fixing angle.
4. Push the bottom of the unit over the bottom fixing strip and insert the bottom fixing
screws.
5. Now the plumbing for the waste can be installed and the mains will need to be attached
to the unit.
6. Ensure the unit is not leaking once this is all done, the time flow bubbler should run for
approximately 7 seconds.
7. An in-line filter to prevent debris fouling solenoid is recommended, this is supplied.
If you have ordered a refrigeration model, then below is the other steps that need to be
carried out.
1. Place the refrigeration unit in the cavity, ensure there is a 10-amp standard power outlet.
2. This unit to be installed in a cavity not less than 700mm wide. A vent should be installed
adjacent to the fan aperture. The remote unit must have 25mm at front and back of the
unit, the unit can be installed flush against either side wall of the cabinet.
3. Unit is ‘remotely’ located whether that’s in a cupboard space with adequate ventilation
or in a janitorial/services room ideally adjacent to the fountain.
4
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023
PLEASE NOTE:
This unit is preset and locked to flow for 7 seconds and cannot be adjusted.
PLEASE READ: This unit has an automatic 24 hour purge setting (hygiene rinse) to
remove any stagnant water. This will reduce the amount of metals that may leach into
the water from the plumbing system, and assist in minimising the growth of bacteria
such as Legionella. This function is activated at the time the unit is first live (switched
on). The unit will then automatically flush at this time if the unit has been inactive for
24 hours.
PLEASE READ: If this unit is preplumbed with your product please note that it has
been tested and to flow for 7 seconds and will be installed with a blue ring.
PLEASE READ: Ensure all supply lines are flushed thoroughly to remove debris prior to
the installation. Strainers are recommended if debris is an ongoing problem.

Australia’s Finest Stainless | britex.com.au
Installation Instructions
DDS1-D-R Drawing (Refrigerated)
5
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023
28
518
240
15 45
700 As Per
AS1428.2
355 Recommended
Noggin Height
340
895 Recommended Noggin Height
Solenoid
1/2" Inlet
Side Elevation
Timber Bonded
Splashback
Angle
Fixing
Strip
Offset Fixing Strip
40mm Waste
Designed to Suit
Caroma 102115
and HepVo
Not Supplied
Piezo
Activation
Button
DDS1-D Installation Steps
A3
SHEET 2 OF 2
SCALE:1:7
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
AW
29/04/23
A
SD-2782.4
28
518
240
15 45
700 As Per
AS1428.2
355 Recommended
Noggin Height
340
895 Recommended Noggin Height
Solenoid
1/2" Inlet
Side Elevation
Timber Bonded
Splashback
Angle
Fixing
Strip
Offset Fixing Strip
40mm Waste
Designed to Suit
Caroma 102115
and HepVo
Not Supplied
Piezo
Activation
Button
DDS1-D Installation Steps
A3
SHEET 2 OF 2
SCALE:1:7
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
AW
29/04/23
A
SD-2782.4
1
2
3
4
150 210 240
600
500
150 168 282
Services
Access
Removable
Bottom panel,
Dome Head
Fixing Screws
28
518
240
15 45
700 As Per
AS1428.2
355 Recommended
Noggin Height
340
895 Recommended Noggin Height
Solenoid
1/2" Inlet
Side Elevation
Front Elevation
Timber Bonded
Splashback
Angle
Fixing
Strip
Offset Fixing Strip
40mm WASTE
Designed to Suit
Caroma 102115
and HepVo
Not Supplied
Piezo
Activation
Button
Optional
Chiller Unit
CWU-INT
485H x 335L
x 185W
1/4" John
Guest
Fittings
Should not be
Installed more
than 8m Away
1. Place unit on wall and mark the top, ensuring top of the basin is between
695 and 700mm FFL. Fix Offset Fixing Strip to wall.
2. Mark location for bottom fixing strip and fix to wall.
3. Place unit on the top fixing strip while holding the bottom of the unit
away from the bottom fixing angle.
4. Push the bottom of the unit over the bottom fixing strip and insert the
bottom fixing screws.
DDS1-D Installation Diagram
A3
SHEET 1 OF 2
SCALE:1:7
TITLE:
DO NOT SCALE DRAWING
DATE
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
APPV'D
CHK'D
DRAWN
REVISION
Britex Metal Products Co. Pty Ltd.
ACN: 004 309 737
2 Mirra Ct, Bundoora Victoria 3083
P: 03 9466 9000 F: 03 9466 9044
britex.com.au [email protected]
Drawing:
RD
16/01/14
A
SD-2782.3

Australia’s Finest Stainless | britex.com.au
6
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023
Troubleshooting for Piezo Button (74-08-0105)
PROBLEM CAUSES ACTION
Inconsistent flow Blocked flow regulator screw Remove flow regulator screw
and clean
Water is not flowing from
tap
Water is turned off Turn on water
Blocked flow regulator screw Remove flow regulator screw
and clean
Rate of flow inadequate The flow regulator screw may
not be adjusted correctly
Remove blanking screw and
adjust flow regulating screw as
described above
Specifications for Piezo Button
Inlet G 1/2"BSP -
Female
Outlet G 1/2”BSP - Male
Working Pressure (kPa) min 50
max 500
Working Temperature Range (°C) min 5°C - max 60°C
Headwork Solenoid Valve
• Press the button once to activate.
• The water will flow for the set duration and turn off automatically.
• Alternatively press the button at any time to turn off.
How to Activate the Piezo Button

Australia’s Finest Stainless | britex.com.au 7
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023
Troubleshooting for DDS1-D
PROBLEM CAUSES ACTION
Water Not Cold Loss of gas or failed fan Contact manufacturer
Power supply to Chiller unit No Power Supply Turn on water
Inconsistent flow Blocked flow regulator screw Remove flow regulator screw
and clean
Water is not flowing from
tap
Water is turned off Turn on water
Blocked flow regulator screw Remove regulator screw and
clean
Rate of flow inadequate The flow regulator screw may
not be adjusted correctly
Remove blanking screw and
adjust flow regulating screw as
described above
Spare Parts
74-08-0106
Battery for Electronic
Piezo Button
CWU-INT
Refrigerated Chiller Unit
PRV
Pressure Relief Valve
TW-BF-HF
Drink Safe™ Fixed Spout
Bottle Filler

Australia’s Finest Stainless | britex.com.au
8
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023
Specifications for CWU-INT Chiller Unit
CWU - INT
Height 485 mm
Length 335 mm
Width 185 mm
Dry Weight 15.4 kg
Water Tank Capacity 3.6 Litres
Initial Draw Off 4.5 Litres
Water Tank Safety Pressure Relief Valve 700 kPa
Litres per minute of Chilled Water @ 350kPa 15 Litres per hour cold water supply (14 min
recovery time)
Compressor Hermetically sealed with automatic over load
Condenser Fan assisted
Temperature Control Capillary controlled factory pre-set thermostat
Thermostat Pre-Set 5 Degrees Celsius (+2)
Power Supply 10 amp power cable and plug
Capacity 1 / 6 HP
Power 165 Watts
Optimum Ambient Operating Temperature 2 – 30 Degrees Celsius
Incoming Water Temperature 17 Degrees Celsius
Chilled to 8 - 10 Degrees Celsius
Minimum Working Pressure 200 kPa
Maximum Working Pressure 800 kPa
Water Inlet 6 mm PE Push in Fitting
Water Outlet 6 mm PE Push in Fitting
Optimum Quantity of Serviced Taps/Bubblers 2
Chilled Cups per Hour (Cup size 175ml) 85
Troubleshooting and Maintenance for CWU-INT
SYMPTOM CAUSES ACTION
No Water Water supply Check main supply
Water not cold
• Loss of gas
• Failed fan Contact manufacturer
No power supply Check and test power supply
Poor ventilation
Clean cabinet louvers (if fitted) and
condenser fins. These units need
ventilation
• Cleaning: The coil in front of the unit must be kept clean. Check on a regular basis i.e., weekly
and should be dusted and vacuumed. The vents on the side of the unit should be free from dust
or lint and checked on a regular basis. The cover itself should be wiped over with a damp cloth.
• When servicing/cleaning the unit please be aware that the unit is pressurised and contains gas.

Australia’s Finest Stainless | britex.com.au 9
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023
Care and Maintenance
Cleaning: The coil at the front of the unit
and the vents on the side must be kept clean
from dust and lint. Regular checks of the
unit should be conducted on a weekly basis
and cleaning carried out as necessary by
dusting with a soft brush and/or vacuuming.
A damp cloth can be used to wipe the
exterior cover down. Excessive build up of
foreign material will result in poor ventilation,
causing the compressor to overheat and
drinking water to increase in temperature.
High pressure hoses and water jets should
never be used to clean chiller units.
Stainless steel products should be kept
clean at all times. The secret to stainless
steel’s ability to maintain a high quality finish
and promises of a long life expectancy is the
invisible chromium-oxide film that sits on
the surface and protects the steel beneath.
To maintain this film it is essential that the
surface remains clean and in constant
contact with oxygen. If this film is penetrated
(either by abrasion or chemically) and
dirt, liquid, grime contaminants embed
themselves in these micro chasms for an
extended period of time, the chromiumoxide
film will not be able to regenerate
and the steel below will eventually
become damaged and discoloured.
What we recommend for general cleaning
and maintenance:
Cleaning Materials:
• A soft cloth
• A soft-bristled brush
• A natural or artificial sponge
Cleaning Solutions:
• Hand washing soap / soft water solution
• Mild soap / soft water solution
• White vinegar / soft water solution
It is recommended that general cleaning
of stainless steel surfaces be carried
out weekly, or as soon as a build up of
surface media has been observed. To
clean, simply wash stainless steel surfaces
with, warm, diluted, mild soapy water
using a cloth or soft bristled brush. Once
all dirt, oil and grime is removed, rinse
thoroughly with clean water and wipe dry.
Do NOT – use a metal brush or steel wool
to clean stainless steel. Ever. These tools
will scratch the surface as well as potentially
leave behind steel fragments that can go
rusty and cause the stainless to discolour.
Using these materials will void the warranty.
Do NOT – use scourers of any kind that have
previously been used on ordinary steel.
Microscopic steel fibers transferred onto
stainlesssteelcancauseconsiderabledamage
to the surface and will void the warranty.
Do NOT – use abrasive cleaning brushes,
pads or agents on highly polished finishes
Do NOT use harsh cleaners that contain
powerful acidic or alkaline chemicals such
as hydrochloric acid and sodium hydroxide
that will damage the surface. Any water
coming into contact with stainless steel,
particularly cleaning solutions, should
have zero chloride content as even minute
amounts can cause damage. Using these
cleaners will void any product warranty.
Do NOT – use chlorinated sanitizers,
cleansers or bleach of any kind. Using these
substances will void the warranty. Despite
some cleaners displaying the text, ‘Suitable
for Toilets and Urinals’ this is more likely in
reference to ceramic/vitreous China products
and use of these cleaners can damage
stainless steel and will void the warranty.
Do NOT – use brick cleaning liquids that contain
hydrochloric acid anywhere near stainless. If
cement needs to be removed from stainless
(before it sets), a mixture of hot water and
25% vinegar or 10% phosphoric acid can be
effective. Once cleaned, the surface should
then be neutralised with dilute ammonia or
sodium bicarbonate then rinsed and dried

Australia’s Finest Stainless | britex.com.au
10
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023
Warranty
The BRITEX product is backed by our manufacturer’s warranty available for download
from our website at www.britex.com.au. We expressly warrant that the product is free from
operational defects in workmanship and materials for the warranty period indicated on the
schedule in the manufacturer’s warranty. During the warranty period, BRITEX will repair or
replace any defective products manufactured by BRITEX at no charge, provided that the
terms of the manufacturer’s warranty are followed.
This warranty is the only warranty given by BRITEX, and we expressly disclaim all other
warranties, including but not limited to implied warranties of merchantability and fitness
for a particular purpose. This warranty represents the sole and exclusive remedy for breach
of warranty, and BRITEX shall not be liable for any incidental, special, or consequential
damages, including lost profits, labor charges, delays, vandalism, negligence, fouling
caused by foreign material, damage from adverse water conditions, chemical, electrical or
any other circumstances beyond BRITEX’s control.
This warranty shall be void if the product is abused, misused, improperly installed,
maintained, or altered. By purchasing our product, you agree to these terms and
conditions. We appreciate your business and look forward to providing you with high-
quality products and services.

Australia’s Finest Stainless | britex.com.au 11
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023

MELBOURNE
Britex Place Mirra Crt
Bundoora VIC 3083
t(03) 9466 9000
e[email protected]om.au
SYDNEY
16 Northumberland Drv
Taren Point NSW 2229
t(02) 9531 2100
[e-mail]
PERTH
Unit 1/8 Principal Link
Malaga WA 6090
t(08) 9249 5464
[e-mail]
BRISBANE
19 Manilla St
East Brisbane QLD 4169
t(07) 3363 2400
e[email protected]om.au
ADELAIDE
The Britex Group
SA State Office
t1300 764 744
e[email protected]om.au
DDS1-D Installation Guide | QID 1.17 | Rev 2 | 22 May 2023
