Broadata LBC-HDV-T User manual

LBC-HDV-T
LINK BRIDGETM HDBASET
HDMI/DISPLAYPORT/VGA
TRANSMISSION SYSTEM
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rightsreserved.
©2015 Broadata Communications, Inc.

LBC-HDV-TUser Manual
LinkBridgeTM HDBaseTHDMI/DisplayPort/VGATransmissionSystem
Broadata Technical Support, [email protected] 3
SAFETY INSTRUCTIONS AND
COMPLIANCE DECLARATIONS
PLEASE OBSERVE THE FOLLOWING SAFETY
PRECAUTIONS
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.

LBC-HDV-TUser Manual
LinkBridgeTM HDBaseTHDMI/DisplayPort/VGATransmissionSystem
Broadata Technical Support, [phone]
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION ..............................................5
2.0 OPERATION CONTROLS AND FUNCTIONS .................6
2.1 FRONT PANEL .................................................................6
2.2 REAR PANEL ...................................................................7
2.3 DC POWER CONNECTION .............................................8
3.0 PHOENIX CONTACT CONNECTION ..............................9
4.0 WEB SERVER................................................................10
5.0 MAINTENANCE AND TROUBLESHOOTING ...............15
5.1 MAINTENANCE ..............................................................15
5.2 TROUBLESHOOTING ...................................................15
6.0 SPECIFICATIONS...........................................................17
7.0 SERVICE PROCEDURE ................................................18
7.1 REPLACEMENT POLICY ..............................................18
7.2 RETURN AND REPAIR SERVICE .................................18
8.0 LIMITED WARRANTY ....................................................19
9.0 APPENDIX A...................................................................20

LBC-HDV-TUser Manual
LinkBridgeTM HDBaseTHDMI/DisplayPort/VGATransmissionSystem
Broadata Technical Support, [email protected] 5
1.0 PRODUCT DESCRIPTION
The LBC-HDV-T is a multi-format switcher with HDMI, VGA and
DisplayPort inputs to HDBT output. The audio port is independent and
could be embedded into any of the video signals and send it to the far
end. The product supports webserver and can be controlled by the
button,LAN,RS-232,contactclosure,IRandRS-232canpassthrough.
Features
• Switch and extend HDMI, DisplayPort or VGA signals up to
70 meters over CAT-5e/6
• HDTV video resolutions up to 720p/1080i/1080p@60Hz or
1920x1200@60Hz, as well as Ultra HD (4K2K@30Hz)
• Fully uncompressed video with embedded audio provides zero
loss of quality
• Selectable manual or auto-switching between HDMI,
DisplayPort and VGA inputs
• Webserverfor monitoring andconfiguation
• Manual switching through front-panel button, contact closure,
RS-232 or webserver
• Video/Audio+Data over 1 CAT-5e/6 with true DDC/EDID/HDCP
transmission
• Compatible with our LBH/LBC Series products

LBC-HDV-TUser Manual
LinkBridgeTM HDBaseTHDMI/DisplayPort/VGATransmissionSystem
Broadata Technical Support, [phone]
6
2.0 OPERATION CONTROLSAND FUNCTIONS
2.1 Front Panel
1. PWR:
Solid red when powered on.
2. HDMI:
LEDsolid when the HDCP,flashing when without HDCP.
3. LINK:
FlashingwhenHDBTconnectedwithout videosignal,solid when
videopresented.
4. D:
LED solid when DP selected, flashing when signal presented,
off means no input signal.
5. H:
LEDsolidwhen HDMIselected,flashingwhensignal presented,
off means no input signal.
6. V:
LEDsolidwhenVGAselected,flashingwhensignalpresented,
off means no input signal.
7. Button forswitchinginput signal.
HDMI
LINKPWR
D
H
V
SELECT
HDMI
LINKPWR
D
H
V
SELECT
HDMI
LINKPWR
D
H
V
SELECT
1
2
3
45
67

LBC-HDV-TUser Manual
LinkBridgeTM HDBaseTHDMI/DisplayPort/VGATransmissionSystem
Broadata Technical Support, [email protected] 7
2.2 Rear Panel
1. Power:
24V DC Power.
2. HDBT Out:
HDBToutput.
3. DP:
DisplayPortinput.
4. HDMI:
HDMIinput.
5. VGA:
VGAinput.
6. AUD:
Independentaudioinput
7. LAN:
LAN for local control or web serve access
8. Phoenix Port:
RS-232 and Contact Closure with LED indicator
24V DC
HDBT
OUT
DP HDMI
VGA
IN
AUD
LAN DHVLD
TX RX LV LH
13678
245

LBC-HDV-TUser Manual
LinkBridgeTM HDBaseTHDMI/DisplayPort/VGATransmissionSystem
Broadata Technical Support, [phone]
8
2.3 DC Power Connection
Congratulations! You are now ready to power up the
LBC-HDV-T and set up your network connection. In order to
make sure that you have a proper installation, please observe
thefollowing:
1. Your AC jack has power.
2. The 24VDC power supply is working.
3. Your electrical systemhas proper grounding(this ensures
that your power supply does not suffer from voltage
variations).
4. Power Surge Protection. This is optional, but highly
recommended. AUPS systemprovides voltage regularity
as well as prevents spikes from occurring, thus protecting
your LBC-HDV-Tfrom sensitive voltage conditions.
TheLBC-HDV-Tderives power froman external 24VDCpowersupply.
This power supply is a wall mounted AC/DC adapter, 100-240 VAC,
50-60Hz,at 1A. This power supply comes standardfor theLBC-HDV-T
unless otherwise specified.
Ifyou have anyproblems or concerns,regarding the installation,make
sure that you have taken the proper steps to ensure a proper power
connection. Otherwise, feel free to contact us for any questions you
mayhave.

LBC-HDV-TUser Manual
LinkBridgeTM HDBaseTHDMI/DisplayPort/VGATransmissionSystem
Broadata Technical Support, [email protected] 9
3.0 PHOENIX CONTACT CONNECTION
DHVLD
TX RX LV LH
LD
V
H
D
GND
LH
LV
GND
TX
RX
Note:
V: VGAInput LV: LED indicator for VGA
D: DP Input LD: LED indicator for DP
H: HDMIInput LH: LED indicator for HDMI
TX: RS-232 Tx
RX: RS-232 Rx
GND: Ground

LBC-HDV-TUser Manual
LinkBridgeTM HDBaseTHDMI/DisplayPort/VGATransmissionSystem
Broadata Technical Support, [phone]
10
4.0 WEB SERVER
The factory default IP: 192.168.2.175
Note:BCIproductconfigurationprogramcanbeusedtodiscover
unit’s IP address.
To access the product web server, user candirect connect the
PC LAN port to the LBC-HDV-TLAN port with a straight RJ-45
cable.After making the connection, go to networkconnection of
the PC and revise the IP property to static IP as below. Once
done, open a web browser and enter the 192.168.2.175 to
access the web server.
FortheLBC-HDV-Tconnectiontothe local areanetwork,please
update the LBC-HDV-T IP to match the LAN network setting
from the web server.
For example, if the LAN IP is set as 192.168.88.xxx. Once the
IP is set, then you can access to the device from an PC in the
same network.

LBC-HDV-TUser Manual
LinkBridgeTM HDBaseTHDMI/DisplayPort/VGATransmissionSystem
Broadata Technical Support, [email protected] 11

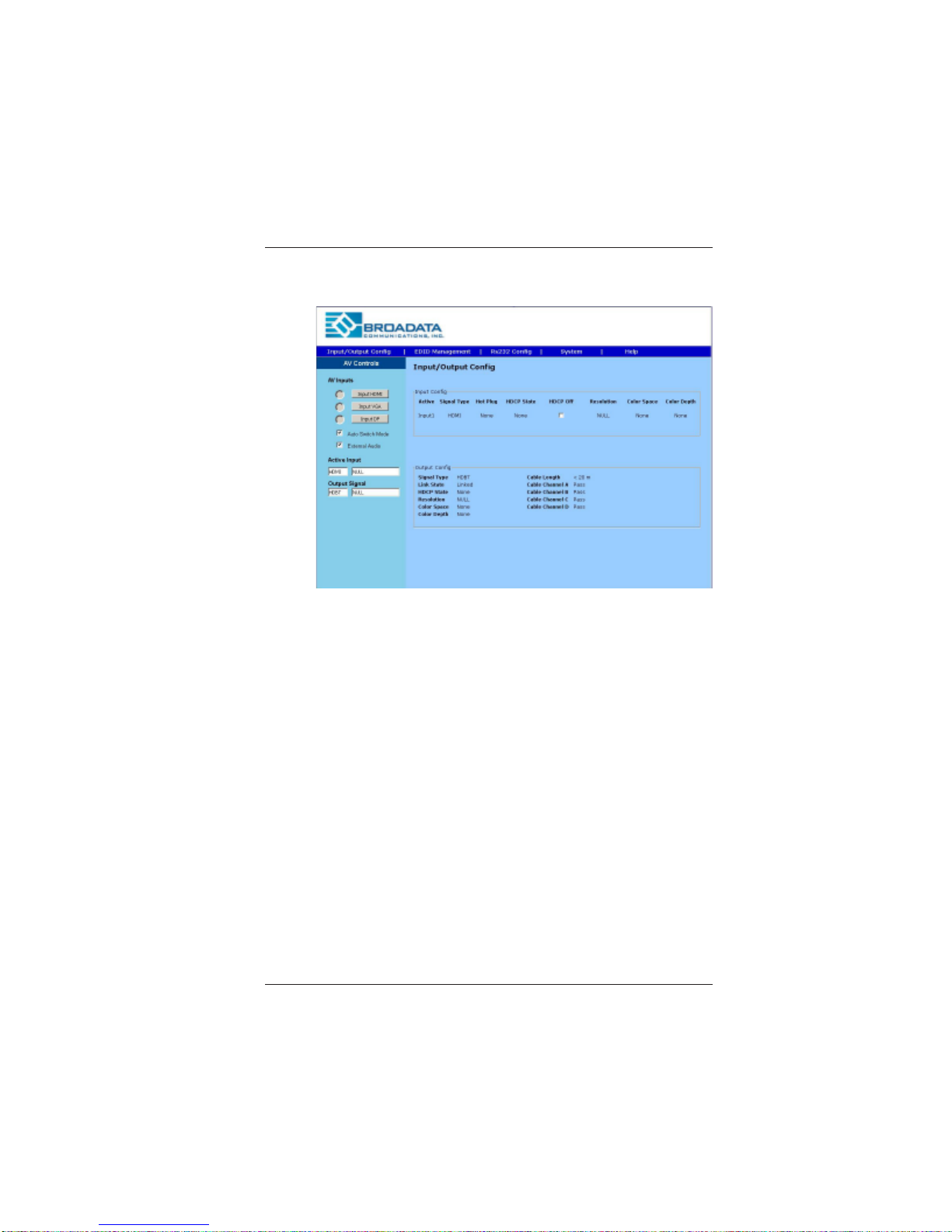

Input/Output Configuration
This page provides the switching, connection input signal
information,and the HDBT outputconnectionstatus.
AV Inputs: Select to switch the input.
Auto Switch Video: If checked, the device is set in auto
switchingmode rather than manualmode.
ExternalAudio:If checked,the3.5mmaudioinput isembedded
to the input video.
Input Config: Input port information.
Output Config: HDBT connection status.
Active Input: Showing the input signal format and resolution.
Active Output: Showing output signal format and resolution.
HDCPUnauthorized: When checked, LBC-HDV-Twillrequest
noHDCPcompliant source.
