BIDET ATTACHMENT WS12

ATTACH PROOF OF PURCHASE TO THIS PAGE
Adjunte prueba de compra a esta página
Joindre une preuve d’achat à cette page

1
RINSLET WS12 OWNER’S MANUAL
Contents
PRODUCT INFORMATION
2 Product Features
3 Product Components
4 Product Dimensions
PRODUCT INSTALLATION
5 Before Installation
5 Installing the Bidet Attachment
PRODUCT OPERATION
9 Using the Rinslet
MAINTENANCE
9 Cleaning the Rinslet
9 Short Term Non-Use
TECHNICAL INFORMATION
10 Warranty
11 Contact
TRANSLATIONS
12 Spanish
23 French
Read this Owner’s Manual for correct
installation, use and maintenance of this
product. After reading and completing
installation, keep this manual in a place
that is easily accessible.

2
• Separate Front (feminine) and Rear wash nozzles
• Hygienic retractable nozzles
• High-quality ABS material with full body panel
• Ambient temperature bidet wash
• Adjustable water pressure
• Ceramic-core internal valve
• High-quality metal ⅞” T-valve
• Durable braided metal cold water hose
• No electricity or batteries required
• Easy installation and adjustable toilet fit
• All accessories included for standard installation
• One-year warranty
PRODUCT INFORMATION
Product Features

3
PRODUCT INFORMATION

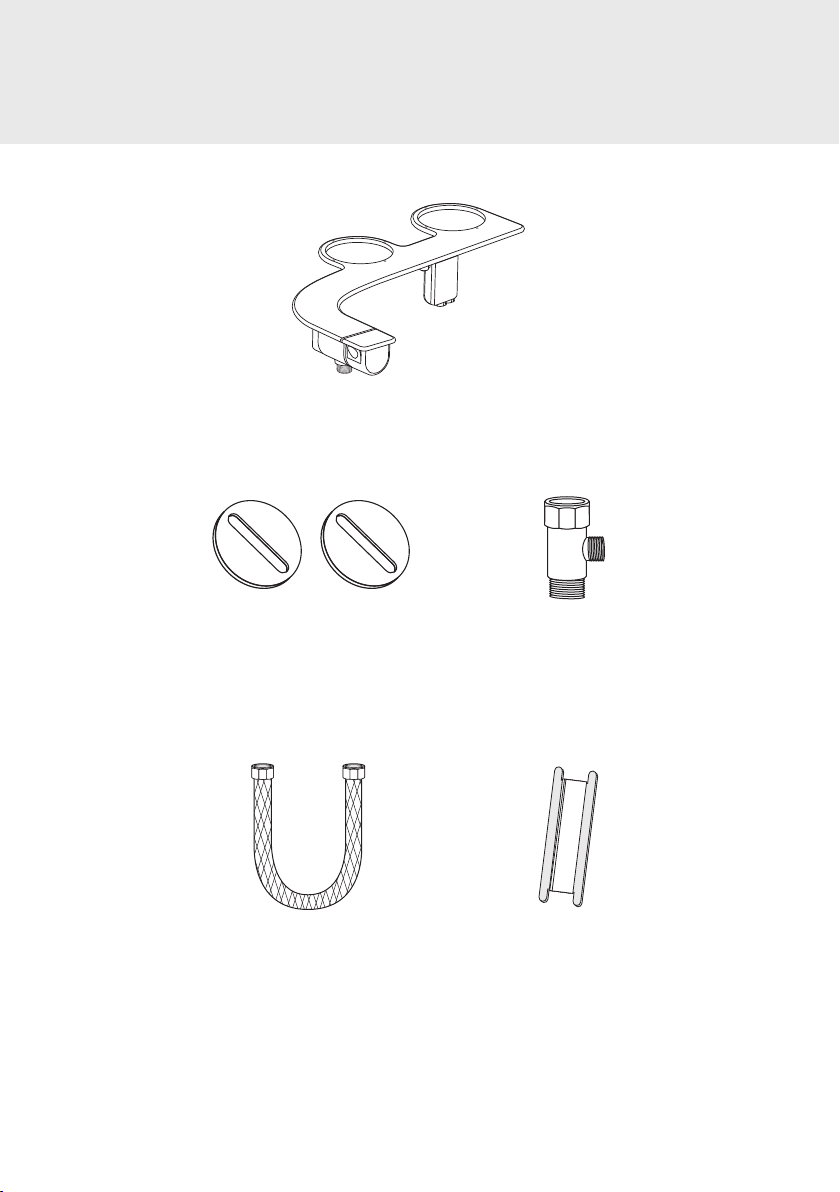

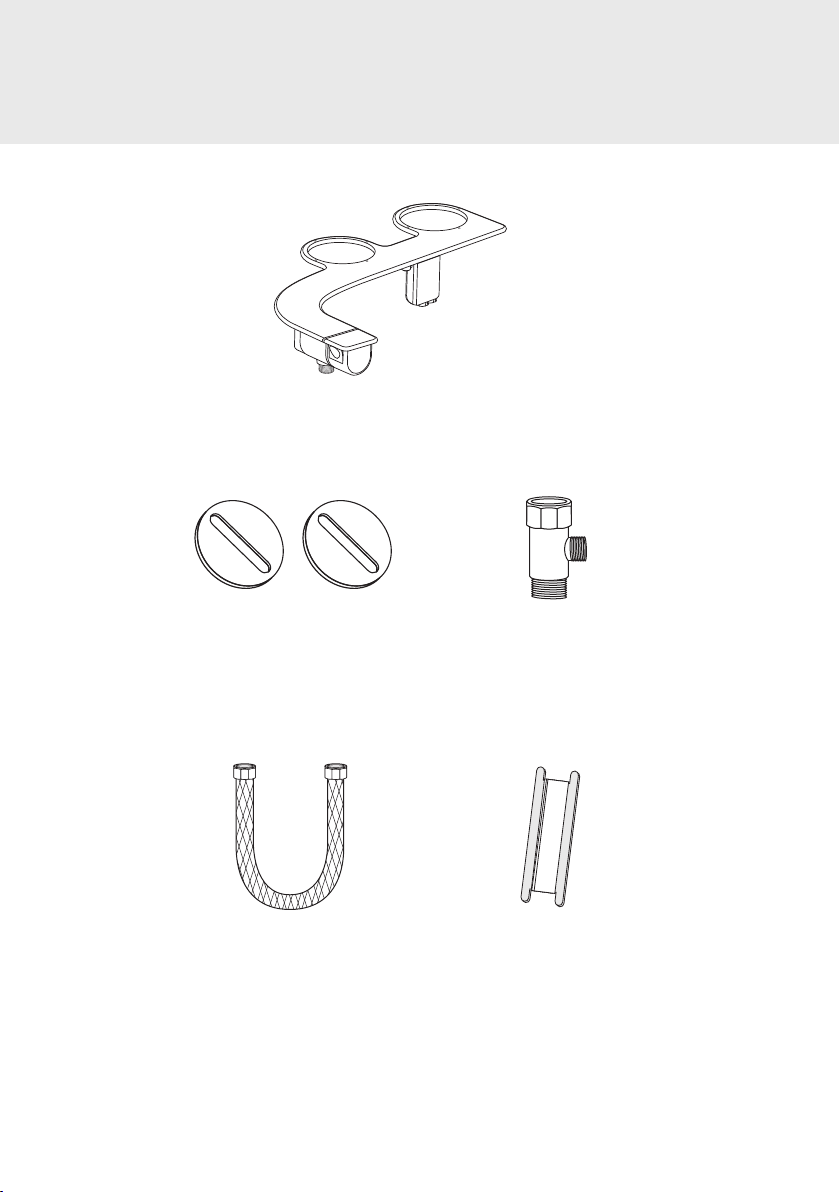

Product Components
Bidet attachment with ergonomic control
Teflon Tape
Adjustable
mounting brackets (2)
T-Valve connector with
included rubber cone
washer
(⅞" x ⅞" x ⅜")
27½” braided metal
bidet hose

4
9.3"
1.6" at deepest point
on control
0.2" deep
15.4"
7.4"
4.7"
2.95"
2.0"
PRODUCT INFORMATION

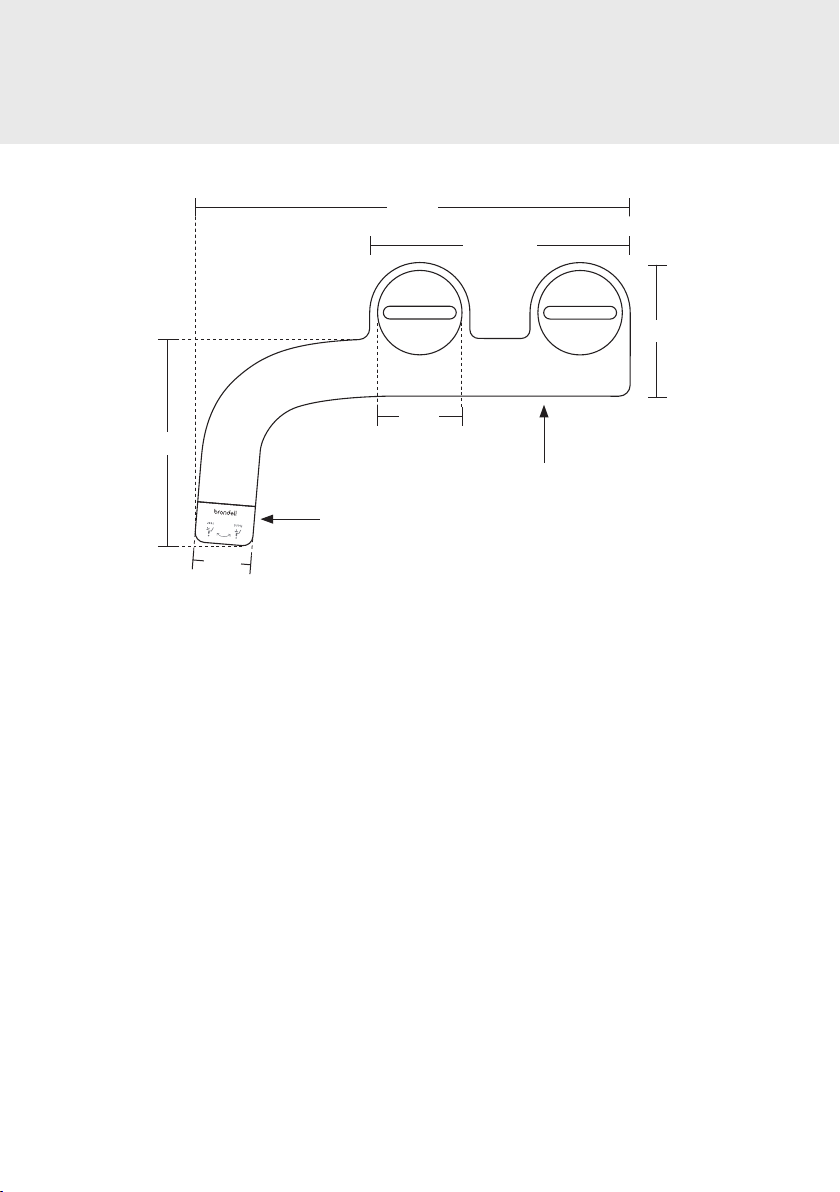

Product Dimensions

5
PRODUCT INSTALLATION
Before Installation
IMPORTANT
Please be advised that the provided T-Valve
should be installed at the Fill Valve under the
toilet tank, and NOT at the cold water supply
coming from the wall.
If you do not have access to the Fill Valve under
the toilet tank, contact Brondell Customer
Service at 888.542.3355. We may be able to
provide alternative options.
Check Water Supply Line
Check the water supply line that connects the
toilet tank fill valve to the water shut-o valve
at the wall. If it is a rigid pipe, you will need to
purchase a flexible water supply hose to replace
it before installing the Rinslet. The length of
the hose you purchase may vary, but the top
connection size should be ⅞” Ballcock (to
connect to the T-valve that you will install under
the toilet tank), and the bottom connection will
be ⁄” or ½” female compression (to connect at
the shut-o valve at the wall).
INCORRECT
Cold Water Supply
Fill Valve
CORRECT

6
Step 2c
Step 3a
Step 3b
PRODUCT INSTALLATION
Installing the Bidet Attachment
Step 1b

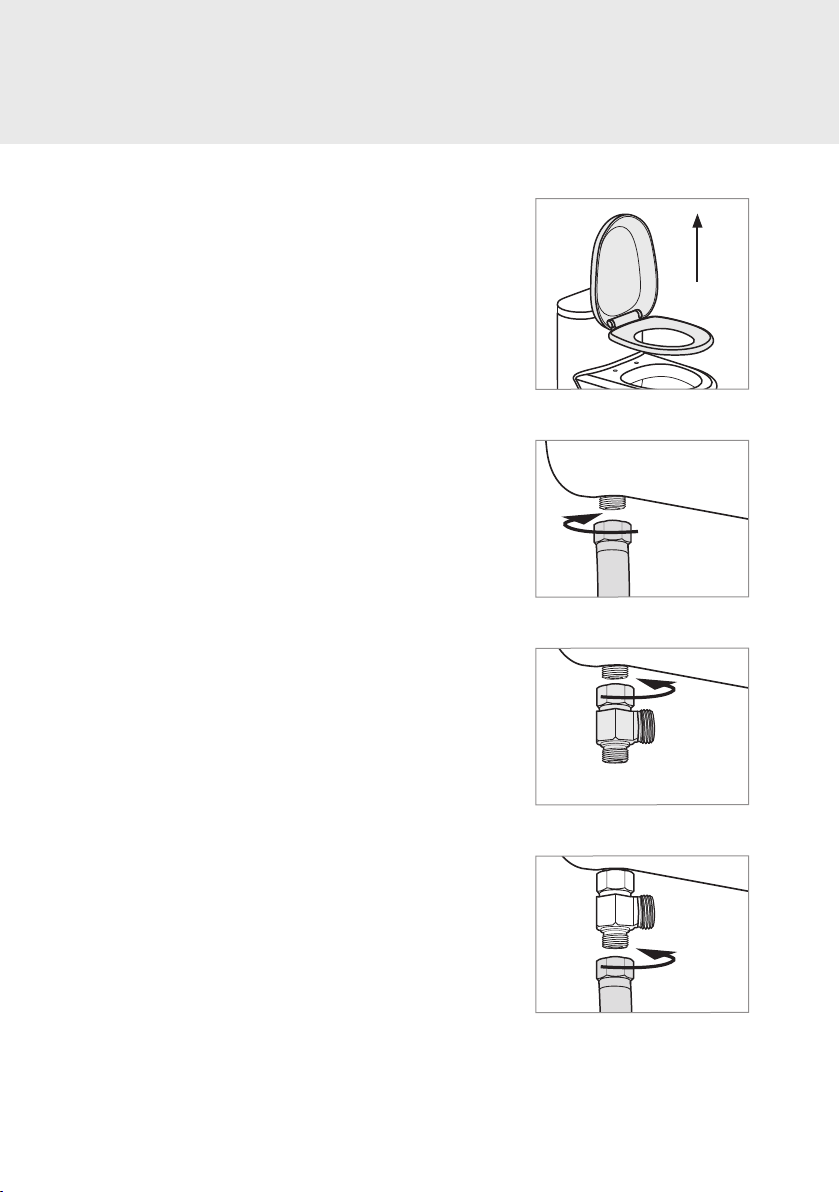

1. Remove the existing toilet seat.
a. Lift hinge covers and use flathead or Phillips
head screwdriver to remove the mounting
bolts. Alternatively, you may need to loosen
mounting bolts underneath the seat.
b. Remove the toilet seat and set the seat,
mounting bolts, and hardware aside.
2. Turn o water supply valve and flush toilet.
a. Turn o water supply at the wall to stop flow
of water.
b. Flush toilet and hold down handle to
completely empty toilet tank.
c. Disconnect water supply hose from the fill
valve under the toilet tank.
3. Connect ⅞” T-Valve to Water Supply Line
and Fill Valve under Toilet Tank.
a. Install the ⅞” T-valve with included rubber
washer to the incoming water connection
on the bottom of your toilet tank. Ensure the
rubber washer is properly seated, tapered
side up.
b. Connect the cold water supply line coming
from the wall to the bottom of the T-valve.

7
4. Connect the Bidet Hose to the T-Valve.
a. The ends of the bidet hose are two dierent
sizes. Determine which is the smaller of the
two ends.
b. Connect the smaller end of the braided metal
bidet hose to the remaining open side of the
installed T-valve.
5. Install Adjustable Mounting Brackets into the
Bidet Attachment
a. Line up the dots of one of the adjustable
mounting brackets with the dots around one
of the open mounting bracket holders.
b. Push the bracket into the bracket holder until
it snaps into place.
c. Repeat Steps 1 and 2 to install the other
adjustable mounting bracket.

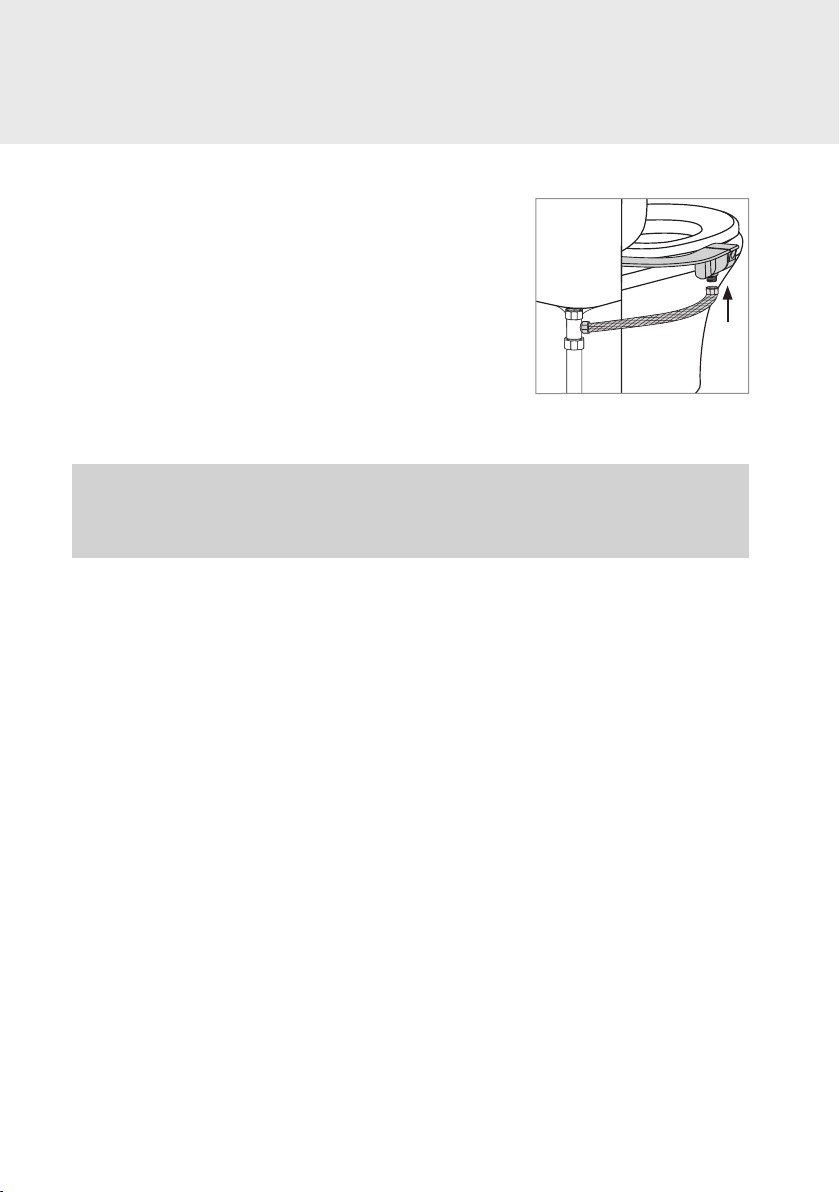

6. Install Bidet Attachment on Toilet.
a. Place bidet attachment on the toilet with
the nozzles close to the back of the toilet,
leaving a slight gap between the toilet and
the nozzles. This will vary by toilet.
b. Make sure the adjustable brackets line
up with the holes in the toilet fixture. You
may need to rotate the adjustable brackets
accordingly to line up properly.
c. Replace the toilet seat on top of bidet
attachment and secure using original toilet
seat hardware. Make sure to tighten so that
the bidet attachment and seat do not move.
d. Ensure the control knob is lying flat and isn’t
turned to one of the operating positions to
prevent water from accidentally spraying out
of the toilet bowl.
Step 4b
Step 6a
Step 6c
Step 6b
PRODUCT INSTALLATION
Installing the Bidet Attachment

8
7. Connect the Bidet Hose to the Bidet Attachment
Connect open end of bidet hose to the connection
underneath the bidet attachment.

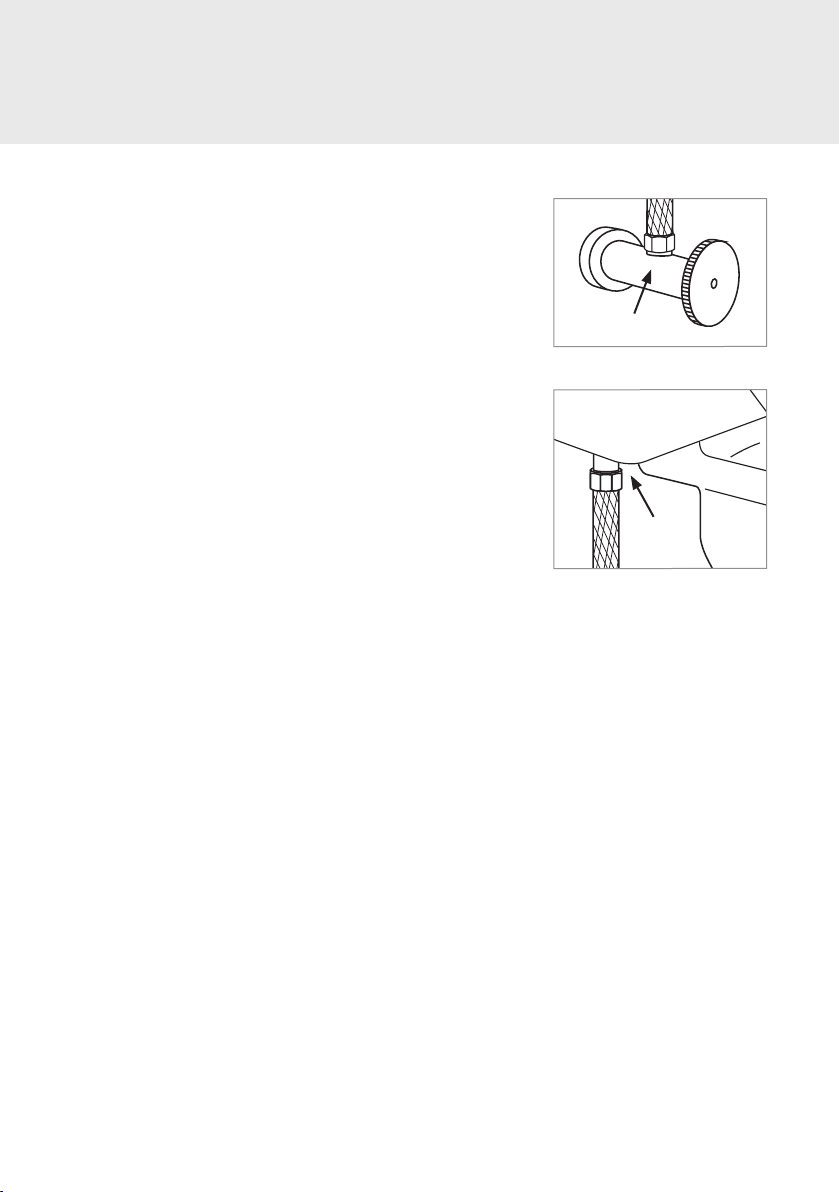

8. Turn on the Water Supply and check for leaks.
a. Open the main water supply valve slowly and
check for leaks.
b. Wait 5-10 minutes, check again and if there are
no leaks, continue.
Step 7
PRODUCT INSTALLATION
Installing the Bidet Attachment
NOTE: If there is any leaking, check all rubber washers and make sure all water
connections are tight and secure. If necessary, you can use the provided Teflon
Tape (Plumber’s Tape) for any leaking connections.

9
PRODUCT OPERATION
Use and Maintenance
Using the Rinslet
To activate a wash function, turn the control knob
to the left for a Front (feminine) wash, or to the
right for a Rear wash.
• The further the knob is turned, the higher
the water pressure will be.
• To lower the water pressure, turn the knob
back towards the center.
• To stop the flow of water, rotate the knob
to center so it sits flat.
Cleaning the Rinslet
To clean the nozzles, open the Nozzle Guard door
by pulling it gently open on the right side. With the
nozzle revealed, pull down on the nozzle cap, and
clean the spray holes and nozzle using a toothbrush
or soft cloth and mild detergent (such as dish soap).
When cleaning, be careful not to drop or flush
the nozzle cap. Periodically tighten the cap so it
doesn’t become loose with use and cleaning.
To clean the Rinslet, use a mild cleaner such as
Simple Green or Windex spray. Do not scrub or use
harsh, abrasive products to clean the Rinslet, as
they may scratch the product.
Short Term Non-Use
If the product will not be used for more than a
few weeks, you may consider shutting the water
supply o at the wall for extra precaution.

10
Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell
warrants that all products (excluding consumable items) shall be free from defects in material and
workmanship under normal use and service.
Rinslet WS-12 Residential One-Year Limited Warranty
100% Coverage of all parts and labor for the entire product for the first year from original date of
purchase.
Rinslet WS-12 Commercial Warranty
Warranty period 1 year from original purchase date for all Brondell products. Warranties may not apply
to products that are used for heavy commercial, hospital, or other high use non-residential applications.
Exclusions and Limitations
1. BRONDELL warrants its products to be free from manufacturing defects under normal use and
service. This warranty is extended only to the ORIGINAL PURCHASER.
2. BRONDELL’s obligations under this warranty are limited to repairs or replacement, at BRONDELL’s
option, of products or parts found to be defective, provided that such products were properly installed
and used in accordance with instructions. BRONDELL reserves the right to make such inspections as
may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor
or parts in connection with warranty repairs for the first full year from date of purchase on all products
except those that may be subject to commercial use limitations.
3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or re-installation of
products. This warranty does NOT apply to:
• Damage or loss which occurs during shipment.
• Damage or loss sustained through any natural or man-made causes beyond the control of
BRONDELL, including but not limited to fire, earthquake, floods, etc.
• Damage or loss resulting from sediments or foreign matter contained in a water system.
• Damage or loss resulting from negligent or improper installation including installation of a unit in
a harsh or hazardous environment.
• Damage or loss resulting from removal, improper repair, modification of the product, or improper
maintenance including damage caused by chlorine or chlorine related products
4. This warranty gives you specific legal rights. You may have other rights which vary from state to state.
THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY
AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE
OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES
OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO
INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE
NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW,
ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO
THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE
LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.
How to Obtain Service
To obtain repair service under this warranty, you must contact an authorized BRONDELL Service Center
to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy
of the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the
unit pre-paid to the closest Brondell authorized service center along with the RMA number and proof of
purchase.
To obtain the RMA number and locate the BRONDELL Service Center location nearest you, please call
1-888-542-3355.
TECHNICAL INFORMATION
Warranty

11
Contact:
Brondell, Inc.
PO Box 470085
San Francisco, CA 94147-0085
Phone: [phone]
Email: [email protected]
Web: www.brondell.com
For questions, contact Brondell
Customer Service: 1-888-542-3355
Manufactured by:
Brondell, Inc.
PO Box 470085
San Francisco, CA 94147-0085
Please retain receipt records
for any warranty claims.

12
MANUAL DEL PROPIETARIO DE RINSLET WS12
Contenido
INFORMACIÓN DEL PRODUCTO
13 Características del producto
14 Componentes del producto
15 Dimensiones del producto
INSTALACIÓN DEL PRODUCTO
16 Antes de la instalación
17 Instalación del accesorio de bidé
FUNCIONAMIENTO DEL
PRODUCTO
20 Uso del Rinslet
MANTENIMIENTO
20 Limpieza del Rinslet
20 Ausencia de uso de corto plazo
INFORMACIÓN TÉCNICA
21 Garantía
22 Contacto
Lea este Manual del Propietario
para instalar, utilizar y mantener este
producto correctamente. Después de
leer y completar la instalación, guarde
este manual en un lugar a mano.

13
• Separar las boquillas de lavado delanteras
(hembras) y traseras
• Boquillas higiénicas retráctil
• Material ABS de alta calidad con panel
de cuerpo entero
• Lavado de bidé a temperatura ambiente
• Presión de agua ajustable
• Válvula interna con núcleo de cerámica
• Válvula T de metal de ⅞” (2.2 cm) de
alta calidad
• Manguera de metal trenzado duradera
para agua fría
• No requiere electricidad ni baterías
• Fácil instalación y calce ajustable al
inodoro
• Todos los accesorios incluidos para la
instalación estándar
• Un año de garantía
INFORMACIÓN DEL PRODUCTO
Características del producto

14
Accesorio de bidé con control ergonómico
INFORMACIÓN DEL PRODUCTO
Componentes del producto
Conector de válvula T con
arandela cónica de goma
(2.2 cm x 2.2 cm x 1 cm)
Cinta de teflón
Ajustable Soportes de
montaje ajustables (2)
Manguera para bidé
de metal trenzado
69.9 cm

15
INFORMACIÓN DEL PRODUCTO
Dimensiones del producto
23.6 cm
4.1 cm en el punto
más profundo
en el control
0.5 cm de profundidad
39.1 cm
18.8 cm
11.9 cm
7.5 cm
5.1 cm

16
INSTALACIÓN DEL PRODUCTO
Antes de la instalación
IMPORTANTE
Tenga en cuenta que la válvula T suministrada
debe instalarse en la válvula de llenado debajo
del tanque del inodoro, y NO en el suministro de
agua fría que viene de la pared.
Si no tiene acceso a la válvula de llenado debajo
del tanque del inodoro, comuníquese con el
Servicio de Atención al Cliente de Brondell al
888.542.3355. Podríamos ofrecerle opciones
alternativas.
INCORRECTO
Suministro de agua fría
Llenar la
válvula
CORRECTO
Revisar la línea de suministro de agua
Revise la línea de suministro de agua que
conecta la válvula de llenado del tanque del
inodoro a la válvula de cierre de agua en la
pared. Si es una tubería rígida, necesitará
comprar una manguera flexible de suministro
de agua para reemplazarla antes de instalar el
Rinslet. La longitud de la manguera que compre
puede variar, pero el tamaño de la conexión
superior debe ser ⅞” (2.2 cm) Ballcock (para
conectar a la válvula T que instalará debajo del
tanque del inodoro), y la conexión inferior será
una válvula de compresión hembra de ⅜” (1 cm)
o ½” (1.3 cm) (para conectar en la válvula de
cierre en la pared).

17
Paso 2c
Paso 3a
Paso 3b
INSTALACIÓN DEL PRODUCTO
Instalación del accesorio de bidé
1. Retire el asiento del inodoro existente.
a. Levante las tapas de las bisagras y utilice
un destornillador de cabeza plana o Phillips
para quitar los pernos de montaje. También
puede ser necesario aflojar los pernos de
montaje que están debajo del asiento.
b. Retire el asiento del inodoro y apártelo
junto con los pernos de montaje y los
herrajes.
2. Cierre la válvula de suministro de agua y
vacíe el tanque del inodoro.
a. Corte el suministro de agua en la pared
para detener el flujo de agua.
b. Descargue el inodoro y sujete la manija
para vaciar completamente el tanque del
inodoro.
c. Desconecte la manguera de suministro de
agua de la válvula de llenado debajo del
tanque del inodoro.
3. Conecte la válvula T de ⅞” (2.2 cm) a la
línea de suministro de agua y llene la válvula
debajo del tanque del inodoro.
a. Instale la válvula T de ⅞” (2.2 cm) con
arandela de goma incluida en la conexión
de agua entrante en el fondo del tanque
del inodoro. Asegúrese que la arrandela la
arandela de goma esté bien asentada, con
el lado cónico hacia arriba.
b. Conecte la línea de suministro de agua fría
que viene de la pared a la parte inferior de
la válvula T.
Paso 1b

18
Paso 4b
Paso 6a
Paso 6c
Paso 6b
INSTALACIÓN DEL PRODUCTO
Instalación del accesorio de bidé
4. Conecte la manguera del bidé a la válvula T.
a. Los extremos de la manguera del bidé son
de dos tamaños. Determine cuál es el más
pequeño de los dos extremos.
b. Conecte el extremo más pequeño de la
manguera metálica trenzada del bidé al lado
abierto restante de la válvula T instalada.
5. Instalar los soportes de montaje ajustables en
el accesorio de bidé.
a. Alinee los puntos de uno de los soportes de
montaje ajustables con los puntos alrededor
de uno de los agujeros de montaje abiertos.
b. Empuje el soporte en el agujero de montaje
hasta que encaje en su lugar.
c. Repita los pasos 1 y 2 para instalar el otro
soporte de montaje ajustable.
6. Instale el accesorio de bidé en el inodoro.
a. Coloque el accesorio de bidé en el inodoro
con la(s) boquilla(s) cerca de la parte posterior
de la taza del inodoro, dejando un pequeño
espacio entre el inodoro y las boquillas. Esto
variará según el inodoro.
b. Asegúrese de que los soportes ajustables
estén alineados con los agujeros del inodoro.
Es posible que tenga que girar los soportes
ajustables para alinearlos correctamente.
c. Vuelva a colocar el asiento del inodoro sobre
el accesorio de bidé y asegúrelo con el
herraje original del asiento del inodoro.
Procure apretarlo para que la sujeción del
bidé y el asiento no se muevan.
d. Asegúrese de que la perilla de control esté
en posición plana y no esté girado en una de
las posiciones de funcionamiento para evitar
que el agua salga accidentalmente de la taza
del baño.
