brondell SWASH BL97 User manual

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
Swash Bidet Toilet Seat Installation
PRODUCT INFORMATION
6
PRODUCT INFORMATION
Dual Stainless Steel Nozzles – separate stainless steel nozzles resist soiling and bacterial
contamination for enhanced hygiene. The dual nozzle configuration ensures accurate coverage for
all types of users.
Aerated Wash Spray – micro-bubbles introduced into the wash spray create a gentler, softer
wash action designed for sensitive skin. In addition, the aerated spray reduces overall water
consumption and is more eective in washing the skin.
Positionable Nozzles – each nozzle has seven dierent positions to ensure the most comfortable
and complete wash.
Ergonomic Heated Seat – with four temperature settings (High/Med/Low/O).
Night Light – an illuminating night light means no more blinding lights during midnight trips to the
bathroom.
Sturdy, “Sittable” Lid – the strong bidet seat lid will support up to 270 pounds.
Gentle Closing Seat and Lid – “slam free” gentle closing seat and lid are user friendly.
Instant and Endless Warm Water – the cutting-edge instant ceramic heating system ensures an
endless warm water stream for posterior and feminine washes.
Adjustable Water Temperature and Pressure – each wash mode (Front and Rear) has four
available water temperature settings, and three water pressure settings.
Wide Spray Option – three width settings widens the wash spray from a strong concentrated
stream to a soft spray for a more personal and thorough wash.
Wireless Remote Control – the intuitive remote control comes with a convenient magnetic dock
and mounting bracket, and includes its own Eco Mode to conserve battery life.
Two User Memory Settings – personalize your settings like water temperature, water pressure,
and even the spray width to your own preferences and retain them with two programmable profile
settings.
“Auto” Function – activates a preset for either a Front or Rear wash cycle. The Dry cycle will then
activate with the Swash 1400. See page 22 for more details.
Automatic Eco Mode – this function automatically lowers the seat temperature ten minutes after
the Swash was last used.
Quick-Release Seat – quick-release button for easy removal and cleaning of seat and toilet.
S1200/1400 PRODUCT FEATURES
PRODUCT FEATURES
(features vary depending on model)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
7
Warm Air Dryer – includes adjustable temperature with three levels for a hands-free experience
and toilet paper reduction – even elimination.
Nozzle Oscillation – the move function provides a massaging, oscillating cleanse during the wash
cycle ensuring a thorough and comfortable wash.
Nozzle Sterilization – utilizing silver as a natural antibacterial agent we are able to create a
sterilizing wash for the nozzles that is 100% chemical and maintenance free keeping them clean,
hygienic, and corrosion free.
Deodorizer – the activated charcoal deodorizing filter eliminates odors at the source. It does not
cover or mask odors, but eliminates them by removing air from the toilet bowl, passing it through
the replaceable filter and expelling the clean air through the vent in the back of the Swash.
S1400-ONLY PRODUCT FEATURES
PRODUCT FEATURES (cont.)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
8
PRODUCT INFORMATION (cont.)
PRODUCT DIMENSIONS
5.25 – 8.3 in
Distance Between
Mounting Holes
5.3 in
5.3 in
15.125 in
14.25 in
15.2 in
15.2 in
14.25 in
14.25 in
8 in
8 in
Elongated Top View
Round Top View
5.25 – 8.3 in
Rear Fixing Distance: 6.9 in
Bottom View
2.9 in
PRODUCT DIMENSIONS

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
9
PRODUCT PARTS
1. Lid
2. IR Sensor
3. Stainless Steel Nozzles
4. Body (seat) Sensor
5. Seat
6. Power Cord
7. Bidet Hose
8. T-Valve
9. Drain Plug
10. Water Inlet
11. Quick Release Button
12. Mounting Plate
13. Deodorizer
14. Night Light
15. Remote Control
11
9 10
1
2
3
4
5
8 7
6
15
13
12
14
PRODUCT PARTS

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
10
PRODUCT INSTALLATION
INSTALLATION PARTS
1. Mounting Bolt (2)
2. Rubber Cone Washer (2)
3. Flat Washer (2)
4. Barrel Nut (2)
5. Mounting Plate
6. Adjustable Bracket (2)
7. T-Valve Connector with Rubber Washer
1 5
2
3 6
4
8. Bidet Hose
9. Cable Clips (2)
10. Remote Control Wall Mount
11. Remote Screw (2)
12. Remote Anchor (2)
13. CR2032 Batteries (4)
7 8 9
10
11 12
13
INSTALLATION PARTS

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
11
WATCH OUR INSTALLATION VIDEO
Installation for all Swash products can be found online at brondell.com
CHECK FOR TOP MOUNT INSTALLATION
If your fixture only has top-side access to the mounting bolts that hold the seat to the toilet, you
will likely need to purchase the Swash Bidet Seat Top Mount Hardware Kit, found on brondell.com.
CHECK FOR A CONCEALED TOILET FILL VALVE
Many modern toilets have sleek designs intended to cover and camouflage plumbing
connections, which makes a standard Swash installation dicult or impossible. For this, we
recommend using our Alternate Swash Bidet Seat T-Valve, found on brondell.com.
CHECK WATER SUPPLY LINE
Check the line that connects the toilet tank to the water shut o valve. If it is a rigid pipe, you may
need to purchase a flexible hose to replace it before installing the Swash. The length of the hose
and the size of the connectors will vary.
RESIDUAL MOISTURE IS NORMAL
Every product is tested with pure water during production to ensure the highest quality and
performance. It is normal to find a small amount of residual moisture on the product and in the
reservoir and filter.
TOOLS
A Phillips head or standard screwdriver may be needed to remove the existing toilet seat and a
standard wrench may be needed for tight water supply connections. Teflon tape can be helpful in
creating a water-tight seat between plumbing connections.
BEFORE INSTALLATION
SWASH INSTALLATION
1. Existing Toilet Seat Removal
a. Lift hinge covers and use a screwdriver to remove the mounting bolts.
b. Remove the toilet seat.
Please read these instructions carefully before installing the Swash. Failure to do so could result
in flooding, leaking or damage to the product.
NOTE: Steps may vary by type of seat and toilet
BEFORE INSTALLATION

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
12
PRODUCT INSTALLATION (cont.)
SWASH INSTALLATION (cont.)
3. Connect T-Valve to the Toilet Tank Fill Valve
a. Place the flat edge of the rubber washer into the
T-Valve against the metal with the raised lip facing the
toilet tank connection.
b. Install the T-Valve with the rubber washer to the incoming
water connection on the bottom of your toilet tank.
4. Connect the water supply line coming from the wall to the
bottom of the T-Valve.
5. Install Mounting Plate
a. Place adjustable mounting plate over mounting holes
on toilet, rubber side faces down, curved edge faces
toward the toilet tank.
b. Place adjustable brackets flat side down in the center
of the square opening in the mounting plate and
insert mounting bolts through adjustable brackets and
mounting holes. Be sure that the square mounting bolt
head is even with sides of adjustable bracket.
c. Slide rubber cone washer, flat washer, and then barrel
nut onto mounting bolts under the toilet bowl and
tighten to keep mounting plate in place.
NOTES:
• The T-Valve connects to the fill valve directly under
your toilet tank - it does not connect at the wall.
• Only connect to the cold toilet water supply line.
• If your water supply line is rigid you may need to
replace it before continuing.
Steps 5b & 5c
Steps 3-4
Step 3a
raised lip
(faces up)
toilet tank
t-valve
cold water
supply line
NOTES:
• You may wish to place a container under the tank to
catch any excess water.
• Do not continue without completing the above steps
• Failure to do so could result in flooding, leaking or
damage to the Swash.
2. Turn O Water Supply Valve and Flush Toilet
a. Turn water valve o to stop the flow of water.
b. Flush toilet and hold down handle to completely empty
tank.
c. Disconnect water supply hose from toilet tank. Do not
disconnect from the water supply valve.
Step 2c
PRODUCT INSTALLATION (cont.)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
13

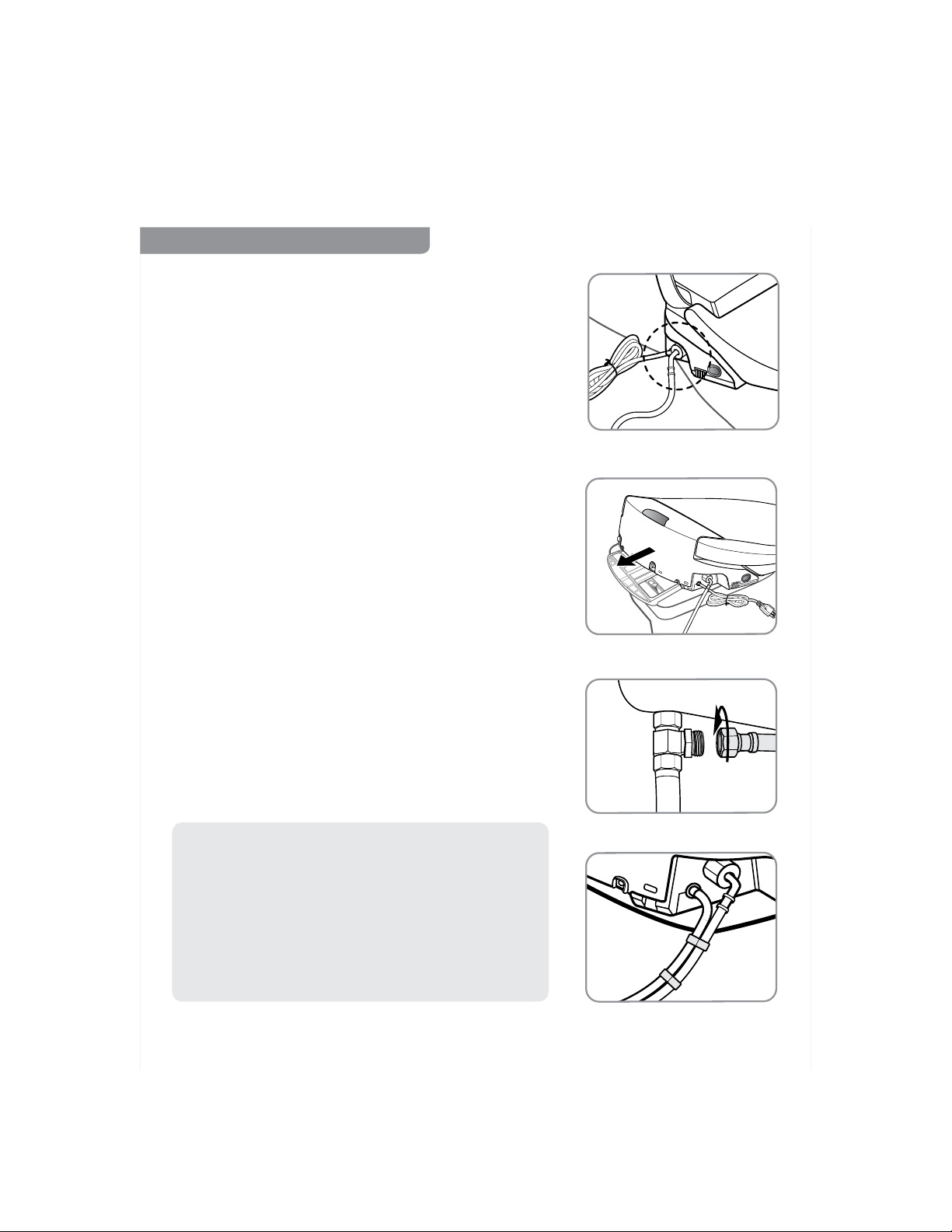

SWASH INSTALLATION (cont.)
NOTES:
• Make sure to only use a grounded GFCI (ground
fault circuit interrupter) electrical outlet. In the case
of a short circuit, a grounded GFCI outlet may help
prevent electric shock or injury.
• If it is necessary to use an extension cord, only use
those rated for a minimum of 15 amps with a three-
wire extension cord with a three-blade grounding
plug.
8. Connect the open end of the Bidet Hose to the T-Valve.
7. Attach the Swash to the Mounting Plate
a. Set the Swash flat on the toilet bowl in front of the
mounting plate, and slide seat onto plate until it is
secure and “clicks” into place.
b. If the seat appears too short or too long for the toilet,
adjust the mounting plate accordingly. To adjust the
mounting plate, loosen barrel nuts underneath the toilet
and slide seat forward or backwards as needed. Once
the seat is lined up properly, tighten barrel nuts to hold
in place.
6. Connect the Bidet Hose to the Seat
a. Connect the bidet hose to the water inlet. Hand-tighten
to secure. Take care not to twist the bidet hose, exces-
sively bend it, or strip the plastic screw threads when
screwing the hose onto the bidet seat.
10. Connect Power
a. Plug the power cord into the electrical outlet.
b. If desired, use the included Cable Clips to connect the
power cord and bidet hose side-by-side for a tidier
appearance.
9. Turn On Water Supply
a. Open the main water supply valve slowly and check for
leaks.
b. Wait 5 minutes, check again and if there are no leaks
continue.
Step 7b
Step 6a
Step 8
Step 10b
PRODUCT INSTALLATION (cont.)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
14
PRODUCT INSTALLATION (cont.)

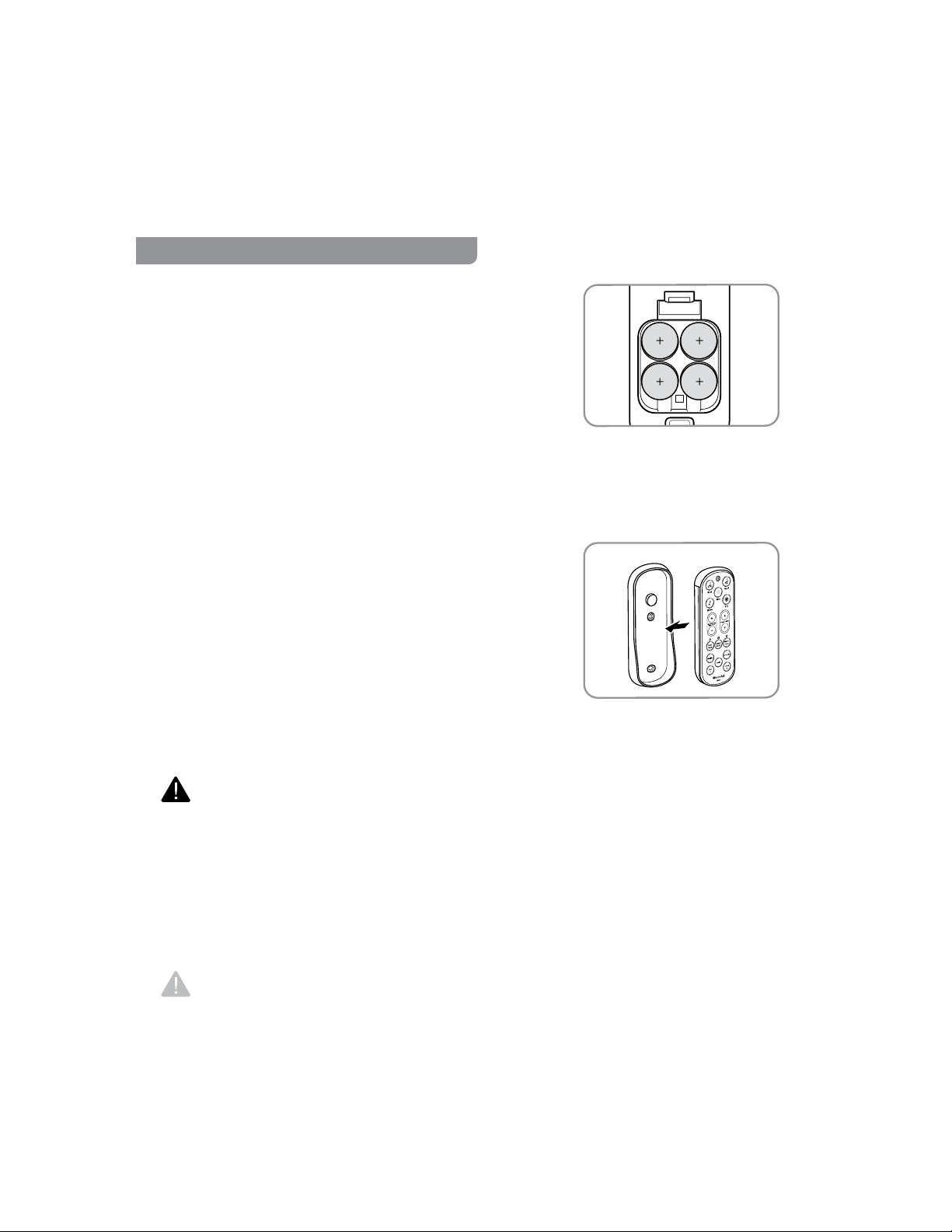

REMOTE CONTROL INSTALLATION
1. Battery Installation
a. Separate the remote control from the magnetic dock.
b. Turn remote over and open the child-proof battery
compartment by popping o the battery cover with
a flat-head screwdriver or small coin. Insert the four
included CR2032 batteries “plus” side up and replace
battery cover.
c. To confirm the batteries are installed correctly, press the
Stop button and you should see the “Wide Spray” LED
light turn on for a few seconds (NOTE: the 2 other LED
lights may or may not turn on at this time depending on
the current settings).
2. Mount Remote (optional)
a. Identify a location in the bathroom for the remote
control that is visible and reachable from the toilet.
b. Depending on the wall type, you can install using
the supplied screws and anchor mounts or use the
provided double stick tape on the back of the remote
wall mount.
Make sure the remote mount is fully secure with either
method so that it does not fall and damage the remote
control.
c. Place the remote control into the mount as shown.
Step 2c
DANGER – Important Battery Information:
1. Remote contains “coin-style” batteries – keep away from children. If swallowed, seek
medical attention immediately.
2. Ingestion of batteries may cause severe injury or death in just 2 hours.
3. Use only CR2032 batteries. Do not mix new and old batteries together.
4. Double-check the + and – direction.
5. Take care when opening the battery compartment to replace the batteries - the
batteries are spring-loaded.
6. Dispose of old batteries carefully.
Step 1b
For California Residents: CR2032 batteries contain Perchlorate Material - special handling
may apply. Visit http://www.dtsc.ca.gov/hazardouswaste/perchlorate for more information.
PRODUCT INSTALLATION (cont.)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
15
EXTERNAL BIDET FILTER INSTALLATION
1. Turn O Water Supply Valve and Flush Toilet.
a. Turn water valve o to stop the flow of water.
b. Flush toilet and hold down handle to completely empty
tank.
2. Disconnect the Bidet Hose from the T-Valve
3. Connect the female end of the Swash Filter to the Open
T-Valve Connection.
4. Connect the Bidet Hose to the male end of the Swash
Filter.
5. Turn the toilet water supply valve back on.
FLOW
FLOW
Step 2
Step 3
Step 4
NOTE:
• Customers with hard water, well water, and softened water can extend the life of their bidet
seat by purchasing and installing an external inline water filter to be used with the Swash.
The bidet filter should be changed every six months.
EXTERNAL BIDET FILTER INSTALLATION

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
31
TROUBLESHOOTING
If the bidet appears to be operating abnormally, please review the troubleshooting tips before
calling the Brondell Service Center as most issues are easily resolved with a few simple steps. If
you are unable to resolve the issue after checking the following items,
please call the Service Center at 888-542-3355, Mon–Fri, 9am–5pm PST, or email us at support@
brondell.com.
Check before continuing:
• Make sure the Swash is connected to power and that the outlet is working properly.
• Make sure you check & test the reset button on the GFCI outlet (Standard 120V GFCI outlet).
• Make sure the Remote Control has fresh batteries and they are installed correctly
• Make sure main water supply valve is open.
• Make sure the seat is not in Eco Mode.
• Confirm there are no leaks from hoses or water supply.
• Make sure Mesh Filter is clean and free of build up or debris (see maintenance section).
After checking items above, refer to the following troubleshooting chart for additional solutions
PRODUCT STORAGE & USE
Short Term Non-Use
If the product will not be used for more than a few weeks, you can simply unplug it. You may also
consider shutting the water supply o at the wall for extra precaution.
Long Term Non-Use
If the product will not be used for an extended time (longer
than four months), you should unplug the unit, shut the water
supply o at the wall, remove the Swash from the toilet, and
then drain the Hot Water Heater. To drain the Hot Water
Heater, remove the drain plug and the back of the bidet seat
by turning it counterclockwise by 90 degrees (Image “1”) and
then pulling it forward (Image “2”) so that any residual water
drains out.
PRODUCT STORAGE & USE | TROUBLESHOOTING

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
32
TROUBLESHOOTING (cont.)
Problem Possible Cause(s) Solution(s)
The bidet seat
is not working
1. Bidet not plugged in
2. No power to Swash
3. There is power, but nothing hap-
pens when trying to use the Swash
4. The incoming water is too hot
5. Not activating Seat Sensor
1. Make sure the bidet is plugged in.
2. Check and reset GFCI outlet.
3. The Remote Control batteries may be
dead. Replace them if necessary.
4. Ensure that the bidet seat is connected to
the cold water supply.
5. Adjust sitting position to fully cover the
Seat Sensor. Override the Seat Sensor (refer
to special mode operation section to unlock
Seat Sensor).
Product shuts o
during use
1. Washing time exceeded the cycle
time
2. Power failure
3. Water supply too hot
1. Press the wash button during cycle to extend
the time (see operation section for more infor-
mation about wash functions).
2. Check and reset GFCI outlet.
3. Ensure that the Swash is connected to the
cold water supply only.
Low water flow or
spray pressure
1. Clogged filter
2. Water supply valve not opened fully
3. Nozzles dirty
4. External bidet filter
5. Pressure & wide spray settings
1. Remove, clean, and reinstall mesh filter
(see maintenance section).
2. Check that the water supply valve at wall
is fully open.
3. Clean nozzles (see maintenance section).
4. If you have an external bidet filter, check
and replace if necessary.
5. Adjust the water pressure settings on the
remote to increase and adjust the wide spray
settings on the remote.
Nozzles do not
function properly
1. Nozzles are dirty
2. Clogged filter
3. Water pressure is too low
4. External bidet filter
1. Clean nozzles (see maintenance section).
2. Remove, clean, and reinstall mesh filter
(see maintenance section).
3. Check water supply valve at wall to fully
open.
4. If you have an external bidet filter, check
and replace if necessary.
TROUBLESHOOTING (cont.)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
33
Problem Possible Cause(s) Solution(s)
Seat is not heated 1. Seat temperature set to o
1. Make sure that the Seat temperature setting
is on (Low- Blue light, Med- Pink light, High- Red
light, O- No light).
Bidet wash feature
does not work or
fails to spray
1. Body sensor does not detect that you
are sitting on the Swash
1a. Adjust sitting position to fully cover the
Body Sensor (see page 9).
1b. Override the body sensor – refer to
Special Mode Operation section on page 27
to unlock the body Seat Sensor.
Water (wash spray)
not heated
1. Water temperature set to o
2. Resettable fuse blown
1. Make sure that the Water temperature
setting is on (Low- Blue light, Med- Pink light,
High- Red light, O- No light).
2. The bimetal resettable fuse may blow if
the temperature exceeds over the normal
level. The bidet will not work and show an
error message until the bidet cools down.
The fuse will automatically reset.
Water flows before or
after use
1. Water coming from nozzles 1a. The water that comes out between the
nozzles before or after a wash cycle is the
self-clean cycle and is not a malfunction.
1b. Residual water may drip into the
bowl for several seconds after a wash
cycle, self-clean cycle, or nozzle
sterilization cycle and is not a malfunction.
Water leaks from
areas other than the
nozzles
1. Water leaking from the T-valve
2. Water leaking from the bidet hose
connection
3. Water leaking from under the seat
4. Water leaking from behind the seat
1. Make sure that the rubber gasket is insert-
ed correctly into the T-valve (flat side down
with lip pointing up towards the toilet tank
connection) and firmly tighten the connector.
2. Make sure that the bidet hose is correctly
connected and tight. Check any rubber
washers and do not over tighten.
3. Check if there is anything between the
mesh filter and bidet. Remove, clean, and
reinstall mesh filter. Check if the filter is
damaged (see maintenance section).
4. Check the water tank plug in the back of
the seat (see maintenance section under
product storage and use).
TROUBLESHOOTING (cont.)
