brondell SWASH LT89 User manual

2
This manual contains important safety information.
Before operating the bidet, please read this manual
thoroughly, and retain it for future reference.
PRODUCT INSTALLATION
GENERAL INFO
PRODUCT OPERATION
01 SAFETY INFORMATION
06
06
07
08
PRODUCT INFORMATION
Product Features
Product Dimensions

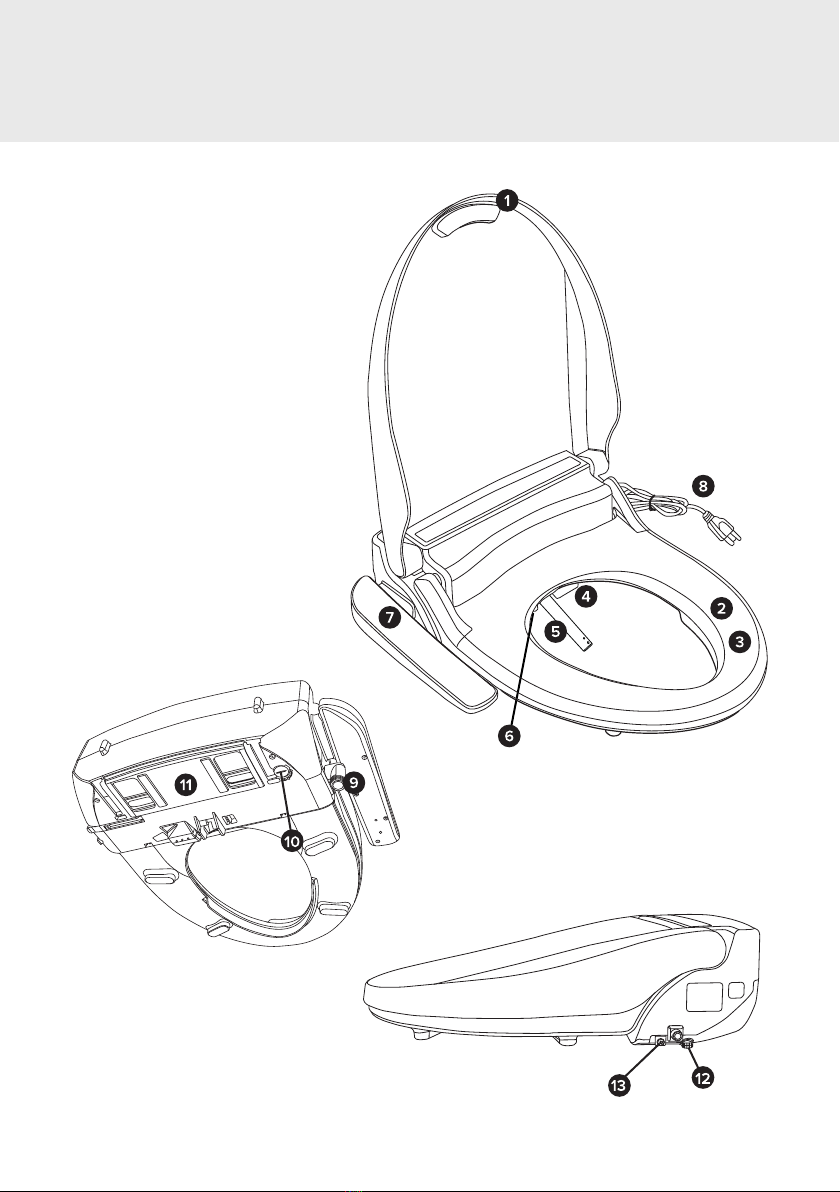

Product Parts
09
09
10
11
13
PRODUCT INSTALLATION

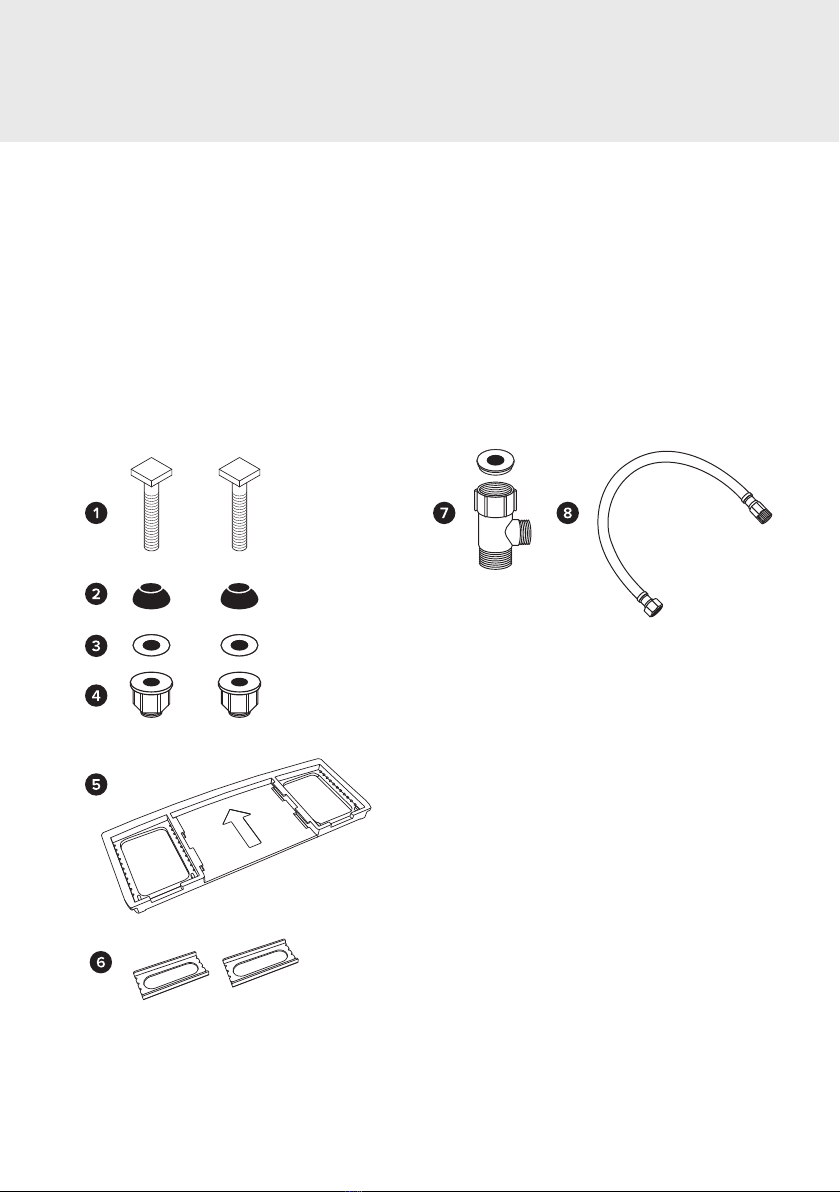

Installation Parts
Before Installation
Swash Installation
External Bidet Filter Installation
14
14
16
17
OPERATING THE SWASH
LT89 / LE89 Control Panel
Using the LT89 / LE89
Special Mode Operations
TECHNICAL INFO
TRANSLATIONS
19 PRODUCT SPECIFICATIONS
20
20
20
21
21
MAINTENANCE
Seat Cleaning & Removal
Nozzle Cleaning
Cleaning the Mesh Filter
Product Storage
22 TROUBLESHOOTING
25 WARRANTY
26 CONTACT
1 ENGLISH
27 SPANISH
54 FRENCH
LT89 / LE89 OWNER'S MANUAL
Table of Contents

1
SAFETY INFORMATION
(IMPORTANT SAFEGUARDS)
READ ALL INSTRUCTIONS BEFORE USING
BE CAREFUL TO KEEP THIS SAFETY INFORMATION. PLEASE READ THIS INFORMATION TO PREVENT
PROPERTY LOSS AND ENSURE SAFETY.
DANGER: If not observed, serious injury or even death may occur as a result.
WARNING: If not observed, serious physical injury or property damage may occur as a result.
CAUTION: If not observed, minor physical injury or property damage may occur as a result.
DANGER Failure to observe the following warnings may result in electric shock, fire,
personal injury, property damage or product damage.
• Do not use a damaged power plug or plug into a loose electric outlet.
• Do not move the product by pulling the power cord.
• Do not handle the product or power plug with wet hands.
• Do not forcefully bend the power cord or place heavy objects on it to prevent it from being
damaged or deformed.
• Do not connect and pull out the power plug or cord repeatedly.
• Unplug the product before cleaning, repairing, inspecting, or replacing parts.
• Remove any dust or water from the power plug prior to plugging in.
• Do not plug the product into an electrical outlet or power strip that is being used by too many
other products. Use an electrical outlet adequate for the wattage of the product rated for a
minimum of 15 amps.
• If the power cord is damaged, do not attempt to repair, modify, or replace the cord yourself.
Contact the Brondell Service Center toll free at 888-542-3355 or email us through our website.
• If the product produces a strange noise, a burning smell, or emits smoke, unplug it immediately
from the electrical outlet and contact Brondell. Failure to do so may result in electric shock or fire.
• Do not insert any wires or sharp objects into any product gaps. This may result in electric shock,
fire, or product damage.
• Do not place an electronic or gas heater near the product or dispose of any burning materials
such as a lit cigarette in the toilet. This may result in fire or product deformation. Do not place any
containers filled with water or other liquids, food, metallic objects, or any flammable material on
top of the product. If foreign material enters the product, this may result in electric shock or fire.
SAVE THESE INSTRUCTIONS

2
• Do not plug in, operate, or store the unit in locations where flammable or combustible materials are
used or kept.
• Do not use industrial water, or gray water for the supply, as this may cause skin damage or disease.
• Turn o the main water supply valve when cleaning.
• For children and seniors who may have diculties with adjusting temperatures or those with
sensitive skin or impaired heat sensitivity, set the temperature of the wash spray and seat to “low”
or “o” to prevent burning.
• Close supervision is necessary when this product is used by children, seniors, or persons requiring
general assistance.
• Do not press the buttons using excessive force.
• Do not stand on top of or place any heavy objects onto the seat cover.
• Use this product for its intended use only, as described in this manual. Do not use any attachments
that are not recommended by Brondell.
SAVE THESE INSTRUCTIONS
SAFETY INFORMATION
(IMPORTANT SAFEGUARDS)
DANGER Failure to observe the following warnings may result in electric shock, fire,
personal injury, property damage or product damage.
• Do not use the product in locations exposed to excessive moisture and do not splash water
onto the product.
• While cleaning the bathroom, pull the power plug out of the electrical outlet and exercise
caution to ensure that water or cleaning supplies do not splash onto the bidet. Failure to do so
may result in electric shock or fire.
• If foreign material enters the product, pull the power plug out of the electrical outlet, turn o
the main water valve, and call the Brondell Service Center.
• Do not disassemble, repair, or modify the product yourself.
• Do not use the product while wet from bathing or showering.
• Do not place or store the product where it can fall or be pulled into a tub or sink.
• Do not place in or drop the product into water or any other liquid.
• Do not reach for the product if it has fallen into water. Unplug the product immediately and call
the Brondell Service Center.
• Do not use the product if it is not working properly. Please unplug the product immediately,
close the main water supply valve, and call the Brondell Service Center at 888-542-3355.
Failure to do so may result in electric shock, fire, or flooding.
WARNING Failure to observe the following warnings may result in electric shock, fire,
personal injury, property damage or product damage.

3
SAVE THESE INSTRUCTIONS
• Do not connect the main water supply to the hot water pipe or supply (only connect to the
cold water supply).
• After the installation, make sure to check all water supply connections for leaks. Rubber
washers should be in place for the water connection hoses & T-valve.
• Do not open/close the seat or seat cover with excessive force.
• Exercise caution that urine does not come into contact with the product - failure to do so may
result in bad odors or malfunction.
• If the product will not be used for a long period of time, unplug the power cord, close the
main water supply valve, and drain any water in the water tank.
• Do not pull out the bidet hose using excessive force.
• Do not use thinner, benzene, acidic chemicals, chloride, or hydrochloric acid detergent on or
near the product. This may result in corrosion to the metal parts or discoloration or scratches
to the bidet body.
• This appliance is not intended for use by persons (including children and seniors) with
reduced physical, sensory, or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning the use of the appliance by
a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Never operate this product if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water. Contact the Brondell Service Center for
examination and repair.
• Keep the cord away from heated surfaces and heating vents.
• Never block the air openings of the product or place it on a soft surface, such as a bed or couch,
where the air openings may be blocked. Keep the air openings free of lint, hair, etc.
• Never drop or insert any object into any opening or hose.
• Do not use the product outdoors or operate where aerosol (spray) products are being used or a
room where it could be exposed to oxygen.
• Connect this product to a properly grounded outlet only. Refer to the Grounding Instructions in
the next pages of the manual.
SAFETY INFORMATION
(IMPORTANT SAFEGUARDS)
WARNING Failure to observe the following warnings may result in electric shock, fire,
personal injury, property damage or product damage.
CAUTION Failure to observe the following warnings may result in electric shock, fire,
personal injury, property damage or product damage.

4
SAFETY INFORMATION
(IMPORTANT SAFEGUARDS)
Ground GFCI Outlet
ATTENTION
This product should only be used with a grounded GFCI (Ground Fault
Circuit Interrupter) outlet and a grounded three-prong electrical cord
as shown to the right. In the event of an electrical short circuit, using a
grounded GFCI outlet reduces the risk of electric shock.
This product is equipped with a grounded cord and is for use on a
nominal 120V circuit only (minimum 15 amps) and must be plugged
into an outlet that is properly grounded with a GFCI breaker as shown.
Replace or repair a damaged cord immediately.
Test
Reset
Grounding Pin
IMPROPER USE OF THE GROUNDING PLUG CAN RESULT
IN A RISK OF ELECTRIC SHOCK.
• If repair or replacement of the cord or plug is necessary,
do not connect the grounding wire to either flat blade
terminal. The wire with green insulation (either with or
without a yellow stripe) is the grounding wire.
• Check with a qualified electrician if the grounding
instructions are not completely understood, or if there is
doubt if the product is properly grounded.
For those with certain medical or mobility issues in the bathroom,
we recommend our Swash 1400 or Swash 1000 bidet seats, as their
mounting systems are engineered for the most secure transitions from
wheelchairs or walkers.
GROUNDING AND GFCI OUTLET INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DANGER Improper use of the grounding plug can result in a risk of electric shock.

5
DANGER
EXTENSION CORD USE
If it is necessary to use an extension cord, only use those rated
for a minimum of 15 amps with a three-wire extension cord with a
three-blade grounding plug. Only plug into a three-slot grounded
GFCI receptacle that will accept the plug of the product. Replace or
repair any damaged cords immediately.
Do not connect the grounding wire to a
non-grounded outlet.
SAVE THESE INSTRUCTIONS
OPTIONAL GROUNDING INSTRUCTIONS
SAFETY INFORMATION
(IMPORTANT SAFEGUARDS)
This product is for use on a nominal 120V circuit, and has a grounding
plug that looks like the plug illustrated in sketch A in Figure 1.
A temporary adapter, which looks like the adapter illustrated in
sketches B and C, may be used to connect this plug to a 2-pole
receptacle as shown in sketch B if a properly grounded outlet is
not available.
The temporary adapter should be used only until a properly grounded
outlet (sketch A) can be installed by a qualified electrician.
A
B
D
C
Figure 1
Figure 2
Attach the grounding wire to the grounding screw on the product as
shown in sketch D of Figure 2. Attach the other end of the grounding
wire to the grounding screw located on the temporary outlet.

6
Stainless Steel Nozzle
Stainless steel resists soiling and bacterial
contamination for enhanced hygiene.
Posterior and Feminine Warm Water Wash
Experience the ultimate in clean with
adjustable temperature, position, pressure,
massage, and oscillation settings.
Strong Wash
Concentrated stream with adjustable
pressure, position, temperature, massage, and
oscillation settings.
Positionable Nozzle
The nozzle has five dierent positions
to ensure the most comfortable and
complete wash.
Adjustable Water Temperature and Pressure
Front, Rear and Strong wash modes have four
available water temperature settings, and five
water pressure settings.
Pulse
When activated, the water pressure
automatically increases and decreases to
provide a pulsating, cleaning spray.
Warm Air Dryer
Includes adjustable temperature with five
levels for a hands-free experience and
toilet paper reduction – even elimination
(LE89 model only).
PRODUCT INFORMATION
Product Features
Nozzle Oscillation
The Move function provides a massaging,
oscillating cleanse during the wash cycle
ensuring a thorough and comfortable wash.
Gentle Wash Function
Activates a preset wash cycle at the softest
setting for a gentle clean. A drying cycle will
follow on LE89 model only.
Ergonomic Heated Seat
With four temperature settings
(High/Medium/Low/O).
Illuminating Nightlight
The cool blue hue of the nightlight means
no more blinding lights during midnight trips
to the bathroom.
Gentle-Closing Seat and Lid
“Slam free” gentle-closing seat and lid are
user friendly.
Eco Mode
When activated, this function automatically
lowers the water and seat temperature to one
of two dierent settings.
Quick-Release Seat
Quick-release button for easy removal and
cleaning of seat and toilet.

7
4.72 in – 8.27 in
Required Distance Between Mounting Holes
18.5 in
18.5 in
15.9 in
15.9 in
8.1 in
11.9 in
8.1 in
2.1 in
20.7 in
19.5 in
10.6 in
2.1 in
Elongated Top View
Round Top View
PRODUCT INFORMATION
Product Dimensions

8
1. Lid
2. Seat Sensor
3. Warm Seat
4. Warm Air Dryer (LE89 model only)
5. Nozzle Assembly
6. LED Nightlight
7. Control Panel
8. Power Plug
9. Water Inlet with Mesh Filter
10. Drain Plug
11. Mounting Plate
12. Quick-Release
13. Grounding Wire
PRODUCT INFORMATION
Product Parts

9
1. Mounting Bolt (2)
2. Rubber Cone Washer (2)
3. Flat Washer (2)
4. Nuts (2)
5. Mounting Plate
6. Adjustable Brackets (2)
7. T-valve Connector with
Rubber Washer
8. Bidet Hose
PRODUCT INSTALLATION
Installation Parts

10
PRODUCT INSTALLATION
Before Installation
DO NOT PLUG THE PRODUCT IN WHILE THE UNIT IS UPSIDE DOWN
This may cause damage to the internal components.
WATCH OUR INSTALLATION VIDEO
Installation for all Swash products can be found online at brondell.com
CHECK BOLT SPREAD
This bidet seat can only be installed on toilets with a bolt hole spread of 4.72 – 8.27 in.
(see Product Dimensions on page 7 for more information).
CHECK FOR TOP MOUNT INSTALLATION
If your fixture only has top-side access to the mounting bolts that hold the seat to the toilet, you
will likely need to purchase the Swash Bidet Seat Top Mount Hardware Kit, found on brondell.com.
CHECK FOR A CONCEALED TOILET FILL VALVE
Many modern toilets have sleek designs intended to cover and camouflage plumbing
connections, which make a standard Swash installation dicult or impossible. For this, we
recommend using our Alternate Swash Bidet Seat T-valve, found on brondell.com.
CHECK WATER SUPPLY LINE
Check the line that connects the toilet tank to the water shut o valve. If it is a rigid pipe, you may
need to purchase a flexible hose to replace it before installing the Swash. The length of the hose
and the size of the connectors will vary.
RESIDUAL MOISTURE IS NORMAL
Every product is tested with pure water during production to ensure the highest quality and
performance. It is normal to find a small amount of residual moisture on the product and in the
reservoir and filter.
TOOLS
A Phillips head or standard screwdriver may be needed to remove the existing toilet seat and a
standard wrench may be needed for tight water supply connections. Teflon tape can be helpful in
creating a water-tight seal between plumbing connections.

11
3. Connect the top of the T-valve to the incoming water connection on
the bottom of your toilet tank.
4. Connect the water supply line coming from the wall to the bottom of
the T-valve.
5. Install Mounting Plate for Standard Installation
a. Place mounting plate over mounting holes on toilet, rubber side
facing down, arrow pointing to the toilet tank.
b. Place adjustable brackets flat side down in the center of the square
opening in the mounting plate and insert mounting bolts through
adjustable brackets and mounting holes. Be sure that the square
mounting bolt head is even with sides of adjustable bracket.
1. Existing Toilet Seat Removal
a. Lift hinge covers and use a screwdriver to remove the
mounting bolts.
b. Remove the toilet seat. Keep for future use.
2. Turn O Water Supply Valve and Flush Toilet
a. Turn water valve o to stop the flow of water.
b. Flush toilet and hold down handle to completely
empty tank.
c. Disconnect water supply hose from toilet tank. Do not
disconnect from the water supply valve.
PRODUCT INSTALLATION
Swash Installation
Please read these instructions carefully before installing the Swash.
Failure to do so could result in flooding, leaking or damage to the product.
NOTE: Steps may vary by type of seat and toilet
NOTES
• You may wish to place a container under the tank to catch excess water.
• Do not continue without completing the above steps.
• Failure to do so could result in flooding, leaking or damage to the Swash.
NOTES
• The T-valve connects to the fill valve directly under your toilet tank - it
does not connect at the wall.
• Only connect to the cold toilet water supply line.
• If your water supply line is rigid you may need to replace the water
supply line before continuing. Steps 3-4
Toilet tank
T-valve
Cold
water
supply
line
Step 2c
Steps 5b & 5c

12
6. Connect the Bidet Hose to the Seat
Connect the plastic side of the bidet hose to the water inlet.
Hand-tighten to secure. Take care not to twist the bidet hose,
excessively bend it, or strip the plastic screw threads when
screwing the hose onto the bidet seat.
7. Attach the Swash to the Mounting Plate
a. Set the Swash flat on the toilet bowl in front of the mounting
plate, and slide seat onto plate until it is secure.
b. If the seat appears too short or too long for the toilet, adjust
the mounting plate accordingly. To adjust the mounting plate,
loosen the nuts underneath the toilet and slide seat forward
or backwards as needed. Once the seat is lined up properly,
tighten the nuts to hold in place.
8. Connect the open end of the Bidet Hose to the T-valve.
NOTE: For those with mobility issues, we recommend our Swash 1400
or Swash 1000 bidet seats, as their mounting systems are engineered
for the most secure transitions from wheelchairs or walkers.
9. Turn On Water Supply
a. Open the main water supply valve slowly and check for leaks.
b. Wait 5 minutes, check again and, if there are no leaks, continue.
10. Plug the Power Cord into an Electrical Outlet. Nozzle will extend
and retract.
PRODUCT INSTALLATION
Swash Installation
c. Slide rubber cone washer, flat washer, and then nut onto
mounting bolts under the toilet bowl and tighten to keep
mounting plate in place.
Step 7b
Step 6
Step 8
NOTES
• Make sure to only use a grounded GFCI (ground fault circuit interrupter) electrical outlet. In
the case of a short circuit, a grounded GFCI outlet may help prevent electric shock or injury.
• If it is necessary to use an extension cord, only use those rated for a minimum of 15 amps
with a three-wire extension cord with a three-blade grounding plug.
11. Follow instructions on page 16 for using the Swash.

13
NOTE: Customers with hard water, well water, and softened water can extend the
life of their bidet seat by purchasing and installing an external inline water filter
to be used with the Swash. The bidet filter should be changed every six months,
and can be purchased online at brondell.com.
PRODUCT INSTALLATION
External Bidet Filter Installation
1. Turn O Water Supply Valve and Flush Toilet.
a. Turn water valve o to stop the flow of water.
b. Flush toilet and hold down handle to completely empty tank.
2. Disconnect the Bidet Hose from the T-valve.
3. Connect the female end of the Swash Filter to the open T-valve connection.
4. Connect the Bidet Hose to the male end of the Swash Filter.
5. Turn the toilet water supply valve back on.
Step 2
FLOW
Step 3
FLOW
Step 4

14
Nozzle Cleaning Button 9
Pulse Button 6
Seat Temperature
Controls 8
Nozzle Position
Controls 7Water Pressure and Dryer
Temperature Controls
(Dryer LE89 model only)
12
Gentle Mode Button
13
Water Temperature Button
11
Eco Mode Button
10
1 Stop Button
3
Front Wash /
Move Button
2
Rear Wash /
Move Button
4
Strong Wash /
Move Button
Dry Button (LE89
model only) 5
OPERATING THE SWASH
LT89 / LE89 Control Panel

15
1. Stop Button
Stops all wash and dry functions
currently operating.
2. Rear Wash / Move Button
Press once to initiate a rear wash. Press
again to initiate nozzle oscillation (repetitive
forward and backward nozzle movement).
3. Front Wash / Move Button
Press once to initiate a front wash. Press
again to initiate nozzle oscillation (repetitive
forward and backward nozzle movement).
4. Strong Wash / Move Button
Press once to initiate a strong wash. Press
again to initiate nozzle oscillation (repetitive
forward and backward nozzle movement).
5. Dry Button
Press once to initiate a two-minute Warm Air
Dryer cycle (LE89 model only).
6. Pulse Button
Pressing this button while a wash is
running enables the water to repeatedly
increase and decrease in pressure in a
pulsating pattern.
7. Nozzle Position Buttons
Press the up and down arrow buttons to
adjust the nozzle position forward and
backward during a wash cycle.
8. Seat Temperature Button and Indicators
Press and release the Seat Temp button
to adjust the seat temperature to one of
four settings (Low: 93.2 °F, Medium: 100.4 °F,
High: 107.6 °F, and O). Settings will be
saved for the next use.
OPERATING THE SWASH
LT89 / LE89 Control Panel
9. Nozzle Cleaning Button
Press this button to initiate Nozzle Cleaning
when not sitting on the seat, or while seat
sensor is deactivated. For more nozzle
maintenance see page 20.
10. Eco Mode Button and Indicator
Press and release the Eco Mode button to
select between two energy-saving options
(Standard, High-Eciency). See page 17 for
more information.
11. Water Temperature Button and Indicators
Press and release the Water Temp button
to adjust the outgoing water temperature to
one of four settings (Low: 91.4 °F,
Medium: 96.8 °F, High: 102.2 °F, and O).
Settings will be saved for the next use.
12. Water Pressure and Dry Temperature
Buttons and Indicators
Press the “+” and “–” buttons to increase
and decrease the outgoing water pressure
to one of five settings. Pressing these
buttons while the Warm Air Dryer is
operating will adjust the drying temperature
(LE89 model only). For Front Wash, Rear
Wash and Dry, settings will be saved for
next use. For Strong Wash, the highest
pressure settings will default for all uses.
13. Gentle Mode Button
Press this button to initiate a two-minute
gentle wash cycle followed by a two-minute
dry cycle (LE89 model only). See page 16
for more information.

16
Prepare for Wash
Sit on the seat to ensure skin-to-seat contact
on the Seat Sensor. Once contact is made the
water pressure indicator lights will turn on.
Warm Water Wash
When ready to wash, press the Rear Wash,
Front Wash, or Strong Wash button on
the control panel one time to initiate a wash.
The nozzle will self-clean, extend into
the toilet bowl, spray for two minutes, turn o
automatically, retract, and self-clean once again.
1. Pressing the Rear Wash, Front Wash, or
Strong Wash button a second time while
the wash is running will cause the nozzle to
oscillate forward and backward, providing
a wider range of wash spray. Press again to
cancel the Move function.
2. While washing, users can adjust the water
temperature, pressure, and nozzle position
settings, as well as initiate the Pulse feature
by following the notes on page 15.
3. If you would like to stop the wash before the
two-minute cycle ends, press the Stop button
to discontinue water flow.
4. After extended use the water may decrease
in temperature if a Low, Medium, or High
water temperature setting is selected. To
regain warmer water, stop all wash functions
for three minutes to allow the bidet to reheat
the water.
NOTE: The wash functions will not work
unless the sensor in the seat detects someone
sitting down (with the built-in skin conductivity
sensor). To override the Seat Sensor, please
see the instructions on page 17.
OPERATING THE SWASH
Using the LT89 / LE89
Warm Air Dryer Function (LE89 model only)
Press the Dry button to activate the Warm Air
Dryer. The dryer will run for two minutes and
turn o automatically.
1. While the air dryer is operating, users
can adjust the dryer temperature to a
comfortable level using the Dry Temp “+”
and “–” buttons. The dry temperature will be
reflected on the five indicator LEDs.
2. If you would like to stop the dryer before the
two minutes has elapsed, press Stop.
Gentle Mode
All settings within Gentle Mode are 40%
softer than standard wash modes.
Once activated, gentle mode will begin a
two-minute wash including:
• Full nozzle extension
• Water Pressure set to low
• Front Wash for one minute, Nozzle
Oscillation for 30 seconds, then Pulse
for 30 seconds
After the wash cycle is over, Gentle Mode will
initiate a two minute Warm Air Dry cycle on
Level Two (LE89 model only).
NOTE: While the Gentle Mode cycle is running,
the Water Pressure setting is adjustable down
two more levels for an even gentler wash
by pressing the “>” arrow. Dryer settings are
also adjustable during the Gentle Mode (LE89
model only).

17
OPERATING THE SWASH
Special Mode Operations
Eco Mode
In this mode, the water in the tank and the seat temperature can be reduced to one of
two dierent energy-saving settings.
Standard Eco Mode: Press the Eco Mode button until the Yellow indicator light is on for
Low energy-saving, and the seat and water temperature will be heated to 89.6 °F. Once
a person sits on the bidet, the Swash will revert to the last seat and water temperature
settings used. Press the Eco Mode button until there are no indicator lights on to
deactivate Eco Mode.
High-Eciency Eco Mode: Press the Eco Mode button until the Green indictor light is on
for High energy-saving, and the seat and water temperature will turn o when the bidet
is not in use. Once a person sits on the bidet, the Swash will revert to the last seat and
water temperature settings used. Press the Eco Mode button until there are no indicator
lights on to deactivate Eco Mode.
Sitz Bath Mode
In Sitz Bath Mode, water pressure is switched to the lowest level regardless of the
preset water pressure settings. To initiate Sitz Bath Mode, while in a front or rear wash
cycle, press the Nozzle Cleaning button. Sitz Bath Mode will automatically run for five
minutes. The Nozzle Cleaning LED on the side arm will light up indicating Sitz Bath
Mode is on. To stop the Sitz Bath Mode before the end of the five-minute cycle, press
the Nozzle Cleaning button.
Seat Sensor Override
1. To activate the Seat Sensor Override, press and hold the Pulse button for four seconds.
A beep will sound and the Nozzle Position and Water Pressure/Dry Temp lights will turn on
to indicate that the seat sensor has been turned o. If the Swash is in Silent Mode, there
will not be a beep and only the Nozzle Position and Water Pressure/Dry Temp lights will
turn on. The Nozzle Position and Water Pressure/Dry Temp lights will stay on as long as
Seat Sensor Override is activated.
2. To deactivate the Seat Sensor Override, press and hold the Pulse button for four seconds.
Two beeps will sound and the Nozzle Position and Water Pressure/Dry Temp lights will
turn o.
NOTES
• Activation or deactivation of Seat Sensor Override is not possible when seated.
• The Swash cannot be put into Silent Mode while Seat Sensor Override is activated.
• Nozzle Cleaning function will not work when Seat Sensor Override is activated. To initiate Nozzle
Cleaning you must first deactivate Seat Sensor Overide.

18
OPERATING THE SWASH
Special Mode Operations
Activating/Deactivating Silent Mode
1. To activate Silent Mode, press and hold the
“ – “ Water Pressure/Dry Temp button for
four seconds. A beep will sound to indicate
that Silent Mode has been activated.
2. To deactivate Silent Mode, press and
hold the “ – “ Water Pressure/Dry Temp
button for four seconds. Two beeps will
sound to indicate that Silent Mode has
been deactivated.
Activating/Deactivating Nightlight
The Nightlight is activated at the factory
by default.
1. To deactivate the Nightlight, press and hold
“+” for four seconds. This function cannot be
performed while sitting on the seat.
2. To activate the Nightlight, press and hold “+”
for four seconds. This function cannot be
performed while sitting on the seat.
Sleep Mode
In Sleep Mode, the Swash essentially
powers down. The Nightlight and the side arm
lights, the seat heater and the water heater will
turn o.
1. To activate Sleep Mode, press and hold the
Stop button for four seconds. The unit will
power down.
2. To awaken the Swash from Sleep Mode,
press the Stop, Front, or Strong button.
Factory Default Reset
It is possible to reset the Swash to Factory
Default settings.
To reset the Factory Default settings, press
and hold the Stop button for ten seconds.
A beep will sound at two seconds indicating
the beginning of the reset process and another
beep will sound at four seconds indicating the
reset is activated.
Automatic Tank Draining
1. To prevent stagnation, water in the warm
water storage tank can be set to drain and refill
itself if the seat hasn’t been used in 48 hours.
2. To program this feature, press “Stop” and
“Water Temp.” at the same time and hold
buttons for four seconds.
